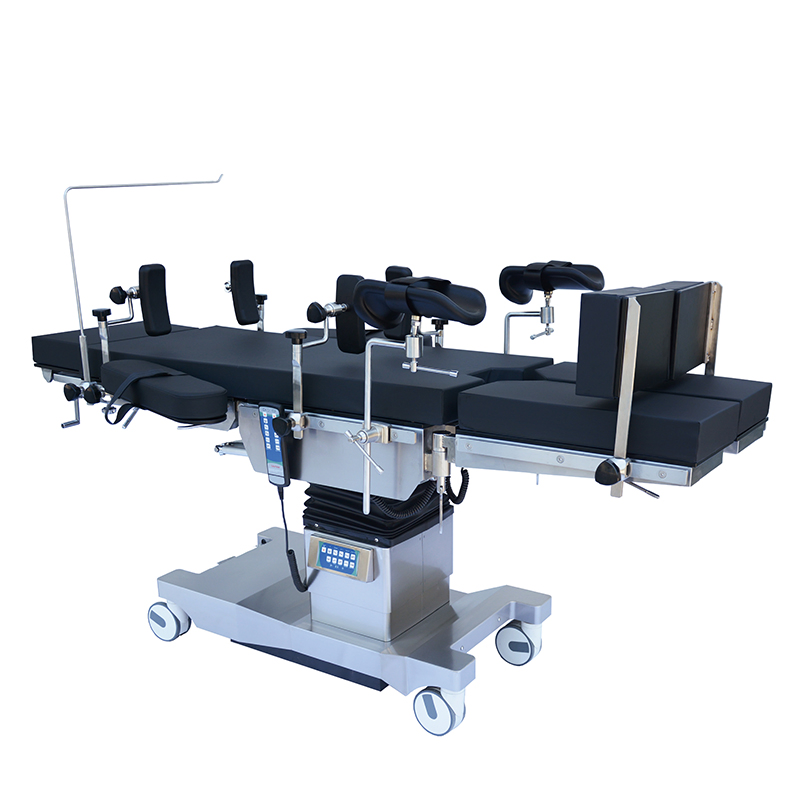

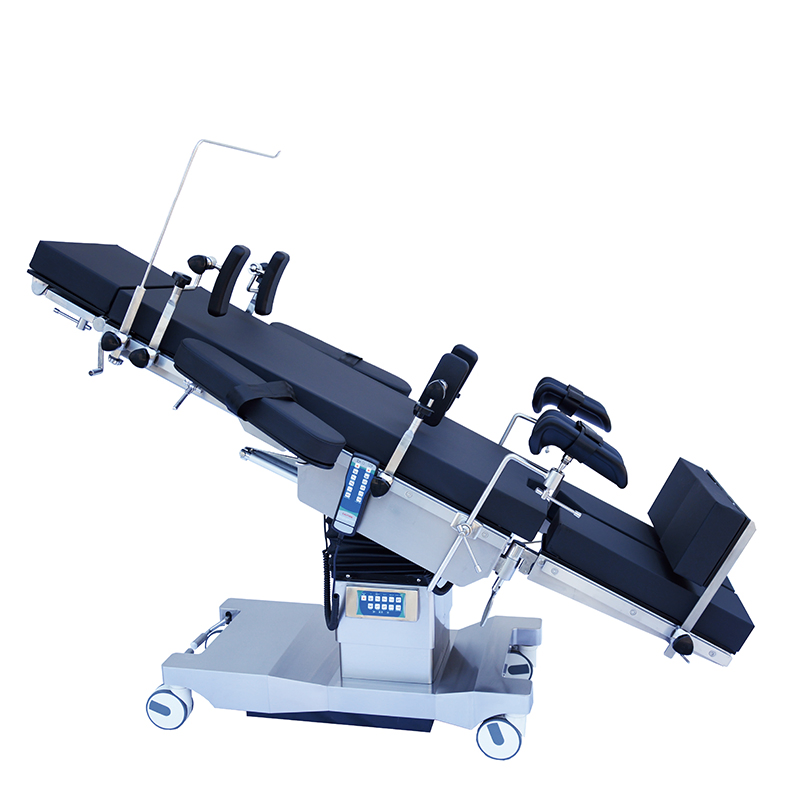

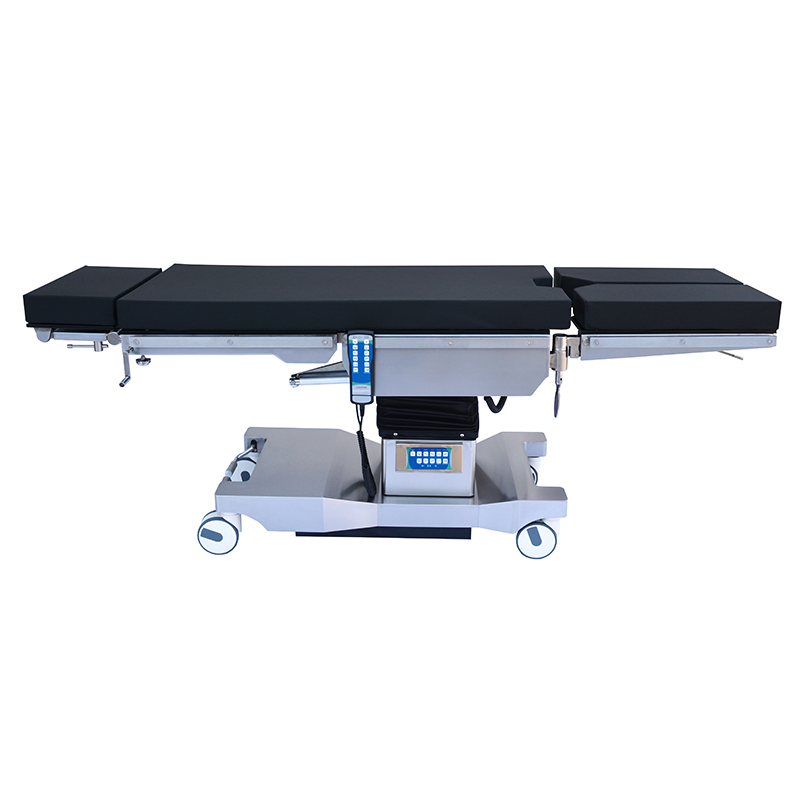

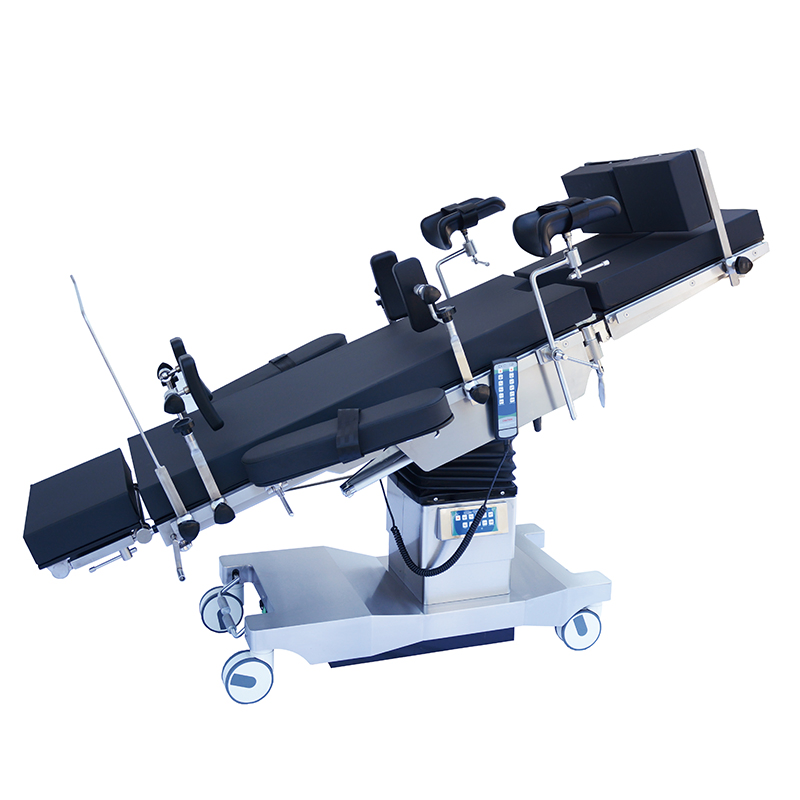

Medical Equipment Ysot-Yf5d Electric 5-Function General Operating Table Surgical Table

Customization: Available
Type: Operating Table
Kind: Electric

Product Description

Product Overview

The YSOT-YF5D is a high-performance electric 5-function general operating table designed to handle extreme loads in any surgical position. Its versatile structure allows for rapid adaptation to various patient sizes and surgical disciplines. Featuring a longitudinal shift of up to 350mm, it provides exceptional flexibility for modern operating rooms.

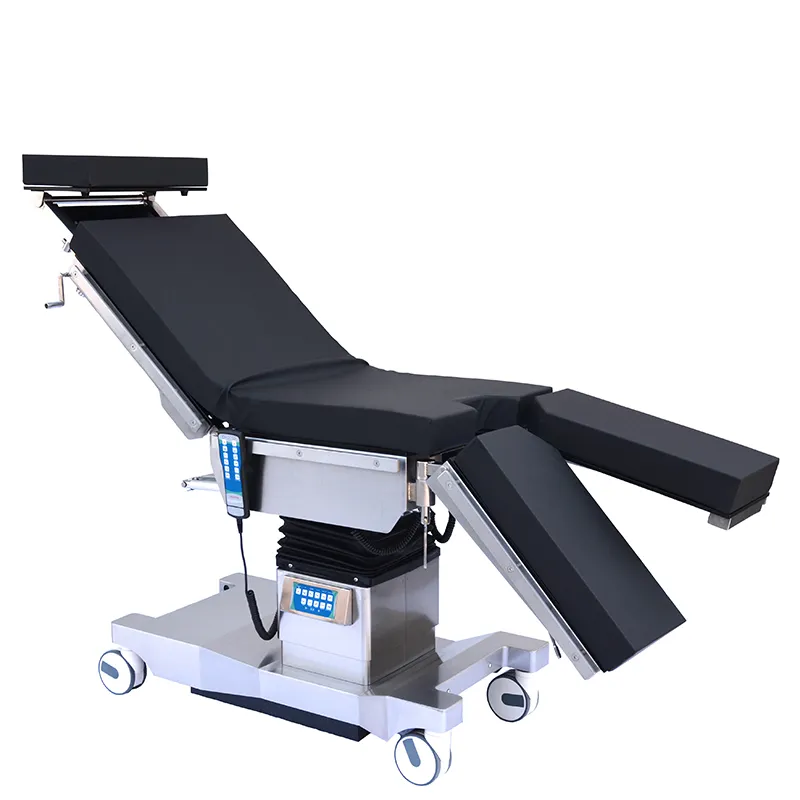

Electric Operating Table View 1
Electric Operating Table View 2
Key Features & Benefits
  • Intelligent Control: Equipped with an advanced automatic control system to satisfy complex surgical demands.
  • C-Arm Compatibility: Longitudinal slide up to 350mm ensures free access for C-arm imaging.
  • High Load Capacity: Supports an extreme weight load of 250kg with maximum safety and stability.
  • Specialized Padding: Memory pad with antistatic and waterproof design for patient comfort and hygiene.
  • Safety Override: Standard override panel control ensures the table remains operational even in emergency scenarios.
  • Battery Efficiency: Integrated battery power supports 50-80 full operations on a single charge.
Technical Parameters
Model YSOT-YF5D
Certification ISO13485
Table Length ≥2100mm
Table Width 550mm
Elevation Range 300mm (Lowest height ≤700mm)
Horizontal Sliding ≥350mm
Trendelenburg / Reverse ≥25° / ≥20°
Lateral Tilt (L/R) ≥15°
Kidney Bridge Elevation ≥120mm
Adjustment Range
Head Plate Up ≥90° / Down ≥90°
Flexible ≥40°
Back Plate Up ≥80° / Down ≥20°
Leg Plate Up ≥15° / Down ≥90° / Outward ≥90°
Standard Accessories
Anaesthesia screen (1 pc)
Shoulder support (2 pcs)
Arm support (2 pcs)
Body support (2 pcs)
Leg support (2 pcs)
Foot plate (2 pcs)
Fixing Clamps (9 pcs)
Hand-held Controller
Waterproof Mattress
Packaging & Delivery
Package Type Sturdy Wooden Case
Dimensions 140 * 74 * 103 cm
Weight (G.W./N.W.) 290kg / 240kg
Operating Table Dimensions and Structure
Frequently Asked Questions (FAQ)
What is the maximum weight capacity of the YSOT-YF5D?
The operating table is designed with an extreme weight load capacity of 250kg, ensuring stability for a wide range of patients.
Is this table suitable for use with a C-arm?
Yes, it features a longitudinal sliding range of ≥350mm, which provides ample space and free access for C-arm and X-ray imaging.
How long does the battery last?
The high-capacity integrated battery is designed to support between 50 to 80 surgical operations on a full charge.
What kind of mattress is provided with the table?
The table comes with a memory pad mattress that features an antistatic and waterproof design for enhanced safety and hygiene.
What are the height adjustment capabilities?
The tabletop can be lowered to ≤700mm, with a total elevation range of 300mm to accommodate different surgical requirements.
What certifications does this medical equipment hold?
The YSOT-YF5D surgical table is manufactured under ISO13485 certification standards for medical devices.
