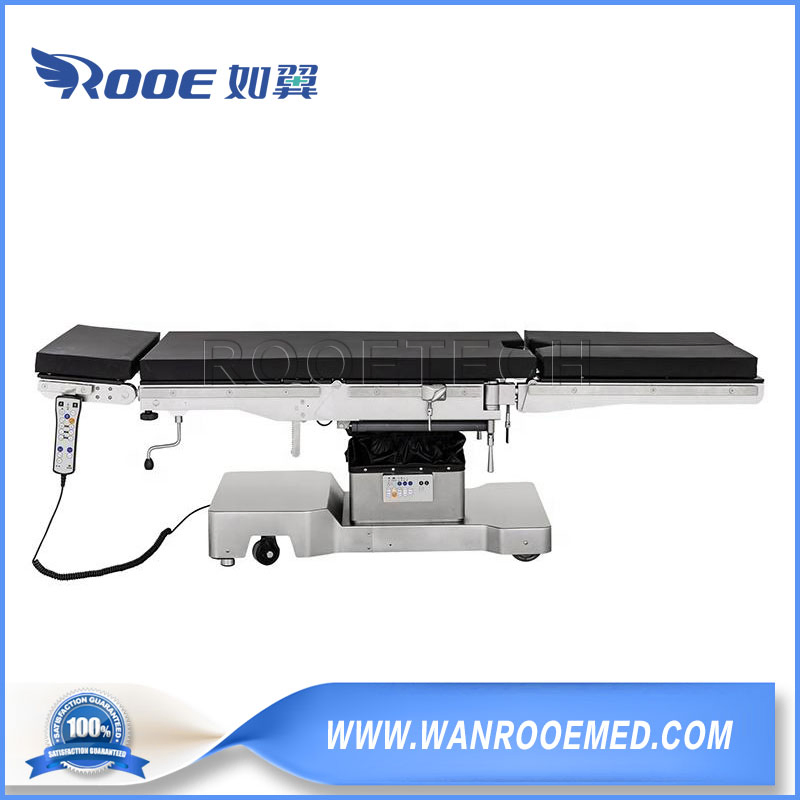

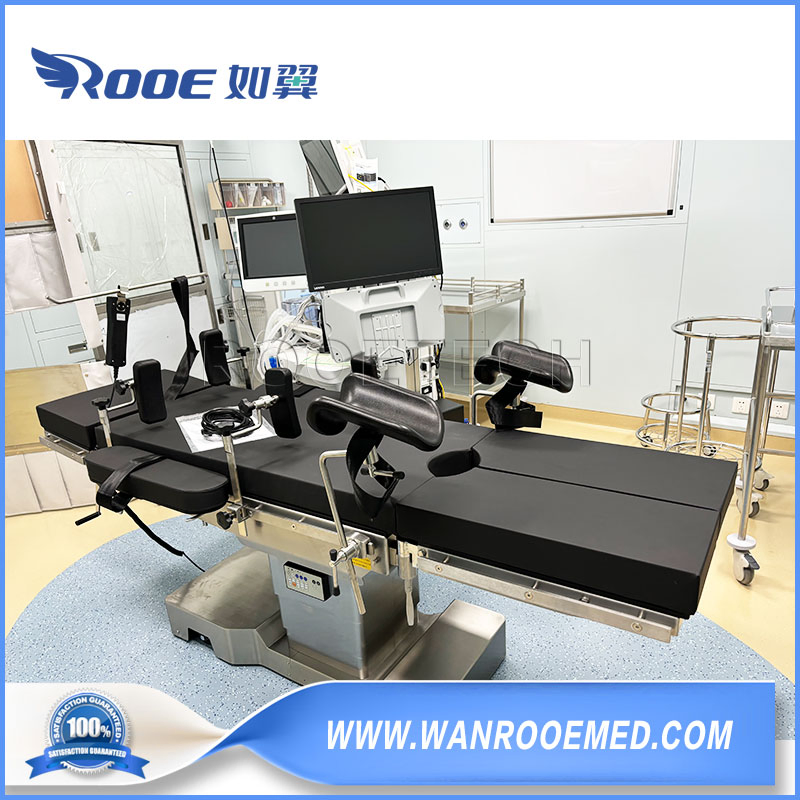

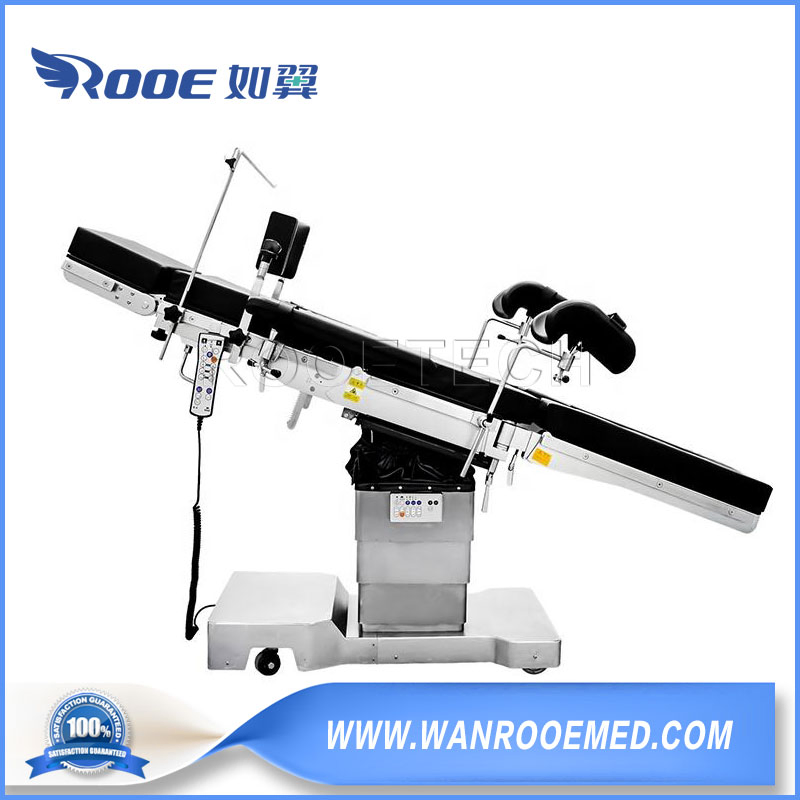

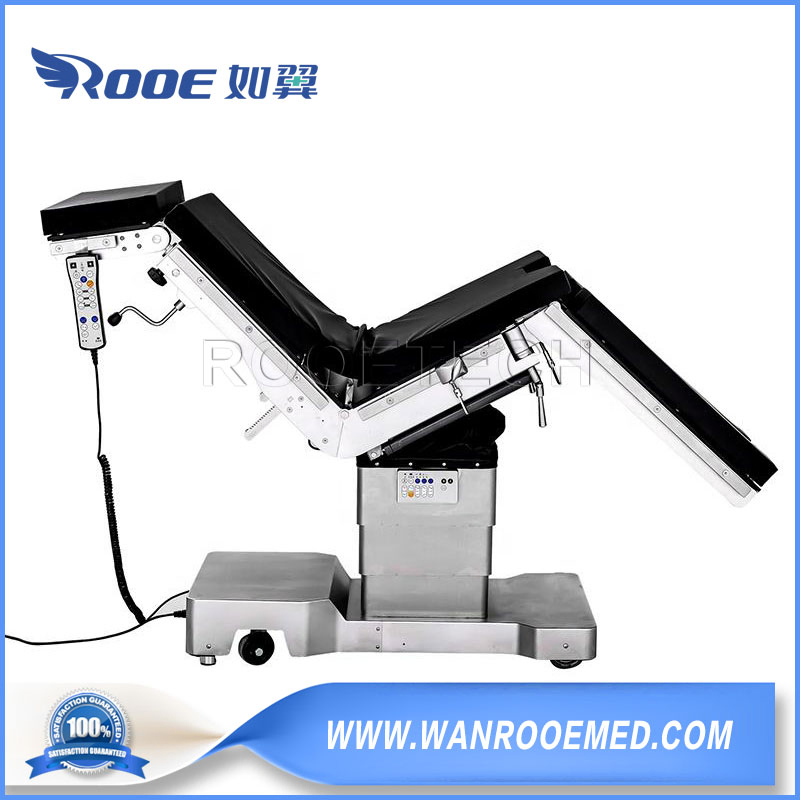

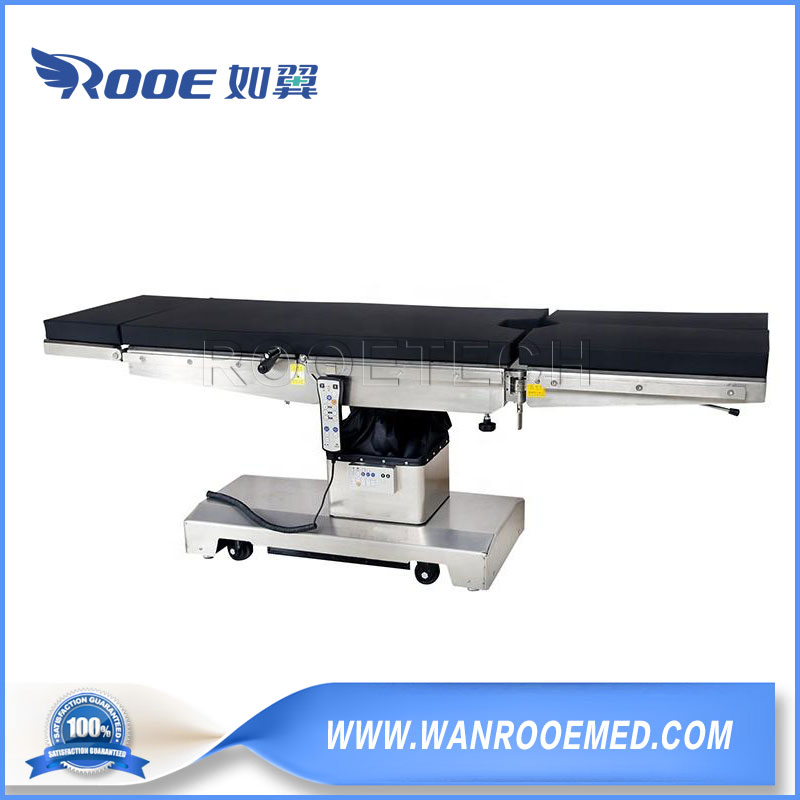

Electro-Hydraulic 540-1040mm Extra-Large Lift Stroke Operating Theatre Surgical Table
Electro-Hydraulic 540-1040mm Extra-Large Lift Stroke Operating Theatre Surgical Table
Electro-Hydraulic 540-1040mm Extra-Large Lift Stroke Operating Theatre Surgical Table
Electro-Hydraulic 540-1040mm Extra-Large Lift Stroke Operating Theatre Surgical Table
Electro-Hydraulic 540-1040mm Extra-Large Lift Stroke Operating Theatre Surgical Table
1 / 5
Electro-Hydraulic 540-1040mm Extra-Large Lift Stroke Operating Theatre Surgical Table
Electro-Hydraulic 540-1040mm Extra-Large Lift Stroke Operating Theatre Surgical Table
Electro-Hydraulic 540-1040mm Extra-Large Lift Stroke Operating Theatre Surgical Table
Electro-Hydraulic 540-1040mm Extra-Large Lift Stroke Operating Theatre Surgical Table
Electro-Hydraulic 540-1040mm Extra-Large Lift Stroke Operating Theatre Surgical Table

Electro-Hydraulic 540-1040mm Extra-Large Lift Stroke Operating Theatre Surgical Table

Customization: Available
Type: Operating Table
Kind: All
Send Inquiry

Product Description

Operating Theatre Surgical Table
Basic Specifications
Model:AOT8801A Lite
Certification:CE, FDA, ISO13485
Group:Adult
X-ray Examination:Available
C-Arm Compatibility:Available
Size:2070*540*540-1040mm
Max Lift Stroke:500mm
HS Code:9402900000
Product Features
Adopting a full set of hydraulic control system, with heavy load bearing and low noise, ensuring high safety and reliability for various surgeries.
Five movable segments: head, back, waist, hip, and leg plates, all made of X-ray transmissible material.
Ultra-low surgical position (540mm), ideal for cerebral and ophthalmic surgery, with a large lifting stroke up to 1040mm.
Premium SUS304 stainless steel construction for the base, column, and side rails, offering acid and alkali corrosion resistance.
Integrated lumbar bridge made of carbon fiber, capable of elevating up to 14cm with excellent X-ray transmissibility.
Dual control systems: standard hand control box and an auxiliary independent control system for emergency backup.
Advanced memory foam mattress for superior pressure distribution, reducing the risk of bed sores during long procedures.
One-key reset and one-key flexion/anti-flexion functions for rapid positioning.
350mm vertical panning for effortless C-arm matching and high-definition imaging.
Built-in high-capacity battery for intelligent wireless operation, supporting a full week of surgical procedures.
Technical Parameters
Adjustment Range & Measurements
Table Length / Width2070mm / 540mm
Height Range (Floor to Top)540mm - 1040mm
Reversed Trendelenburg / Trendelenburg≥30° / ≥30°
Lateral Tilt (Left/Right)≥22°
Backward and Forward Movement0 - 350mm
Head Section (Up/Down)≥40° / ≥90°
Back Section (Up/Down)≥80° / ≥40°
Leg Section (Up/Down/Open)≥15° / ≥90° / ≥90°
Kidney Bridge Elevation0 - 140mm
Power SupplyAC 220V±10%, 50Hz
Detailed Gallery

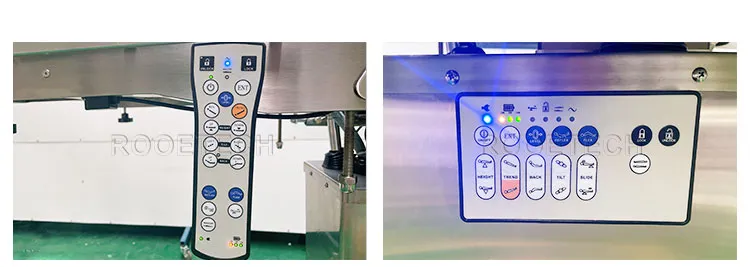

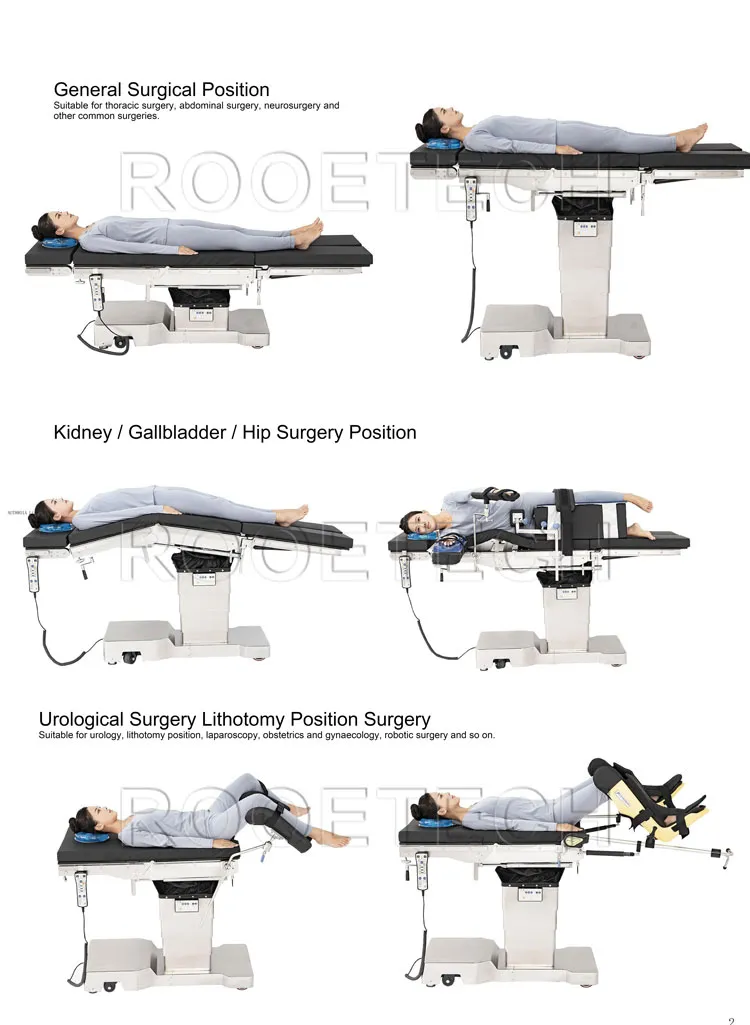

Surgical Table Detail 1 Surgical Table Detail 2

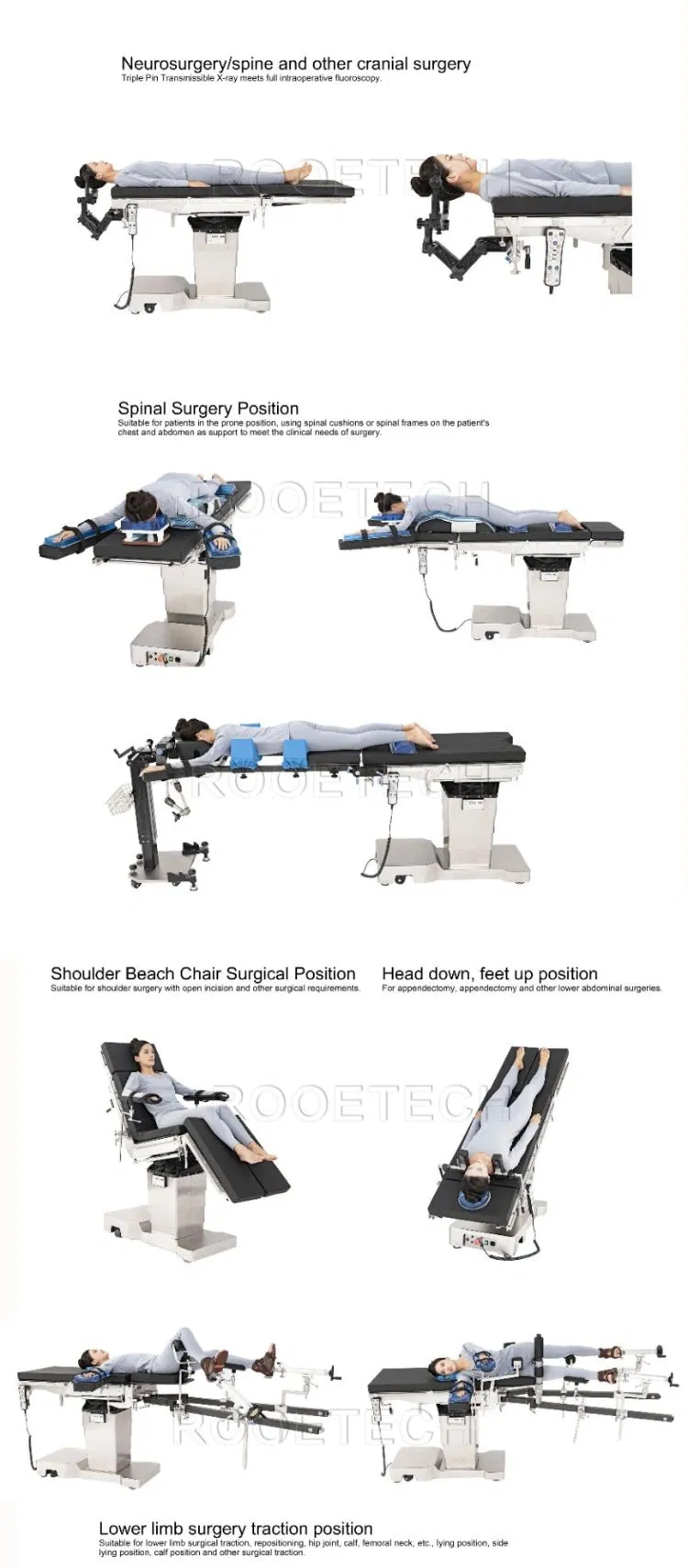

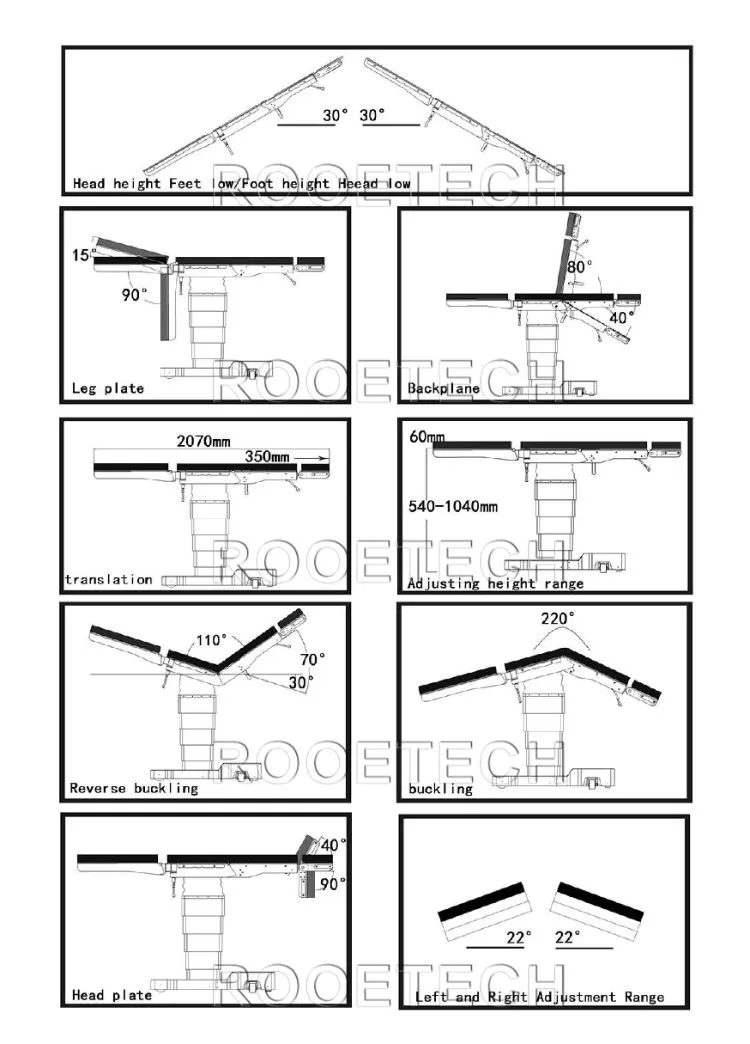

Surgical Table Detail 3 Surgical Table Detail 4
Production View 1
Production View 2
Frequently Asked Questions
Q1: What is the maximum weight capacity of the AOT8801A Lite? A: The table features a full electro-hydraulic control system designed for heavy load-bearing requirements, making it suitable for a wide range of surgical procedures including bariatric needs.
Q2: Can this table be used with a C-arm? A: Yes, the table offers a 350mm horizontal sliding movement and uses X-ray transmissible materials for all sections, providing excellent clearance for C-arm imaging.
Q3: How long does the battery last? A: The built-in high-capacity battery is designed to support a full week's worth of surgeries under normal operating conditions when external power is unavailable.
Q4: Is the mattress included and what are its features? A: Yes, it comes with a multi-layer memory foam mattress that is anti-static and designed to provide optimal pressure distribution to prevent bed sores.
Q5: What safety features are included for control? A: It features dual independent control systems (handheld and auxiliary), an automatic 60-second shutdown when not in use, and a lock switch to prevent accidental operation.
Q6: What material is used for the external structure? A: The base, lifting column shell, and side rails are all constructed from high-quality SUS304 stainless steel for maximum durability and corrosion resistance.
