Model NO.AN-48003200HMS
CertificationCE, ISO
FormFlatbed
ApplicationSecurity Check
PortableNon Portable
TypeIndustrial High-Definition X-ray Detector
Ray Energy6mev
External Dimension7.5m (L) X 7.5m (W) X 6.2m (H)
Channel Size5.0m (W) X 5.0m (H)
OriginChina

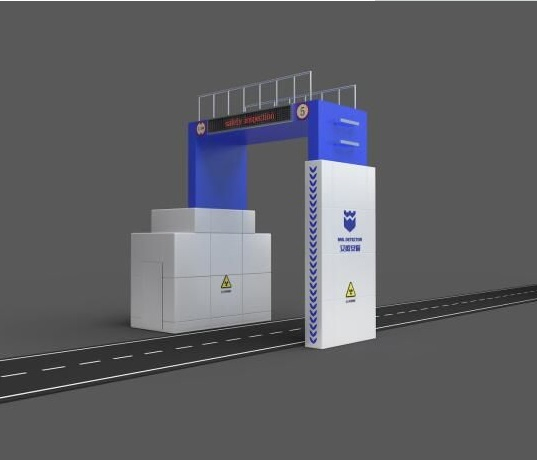

AN-48003200HMS Hydraulic Drive Self-Propelled Container X-ray Scanning System
⚙️High-Efficiency Detection

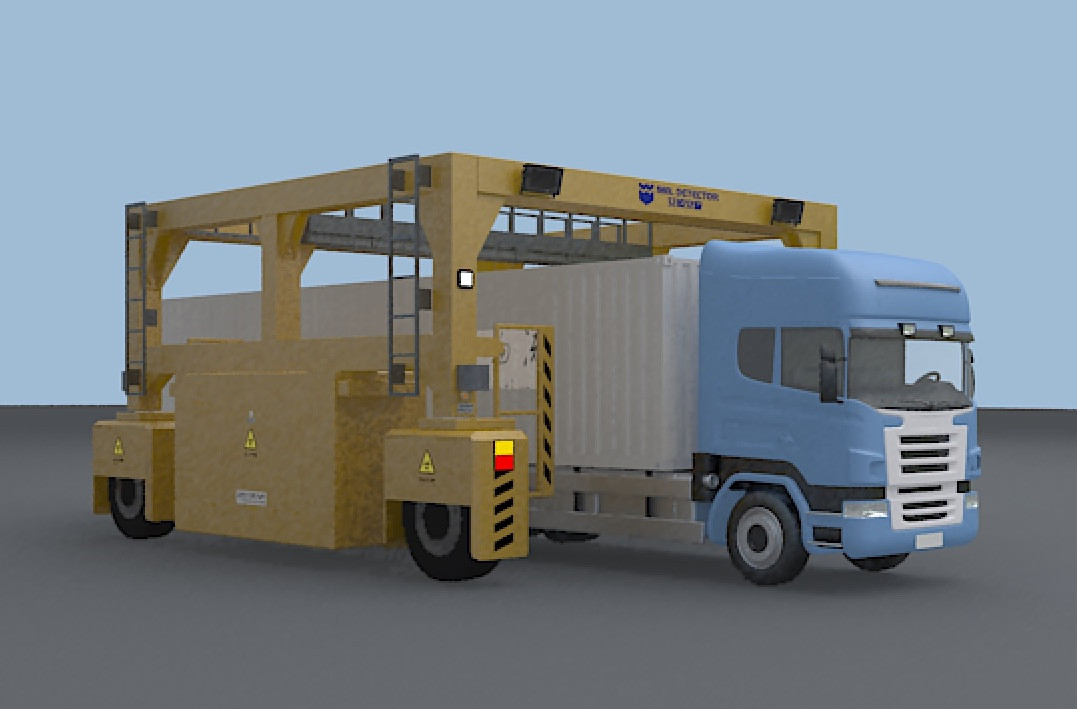

The self-propelled chassis is driven by an electric hydraulic pump, featuring three servo electric steering gears for precision direction control. The gantry-type three-point support X-ray scanning frame reaches 5 meters in height and width. Equipped with radar ranging and grating sensors, it automatically identifies scanned container vehicles.

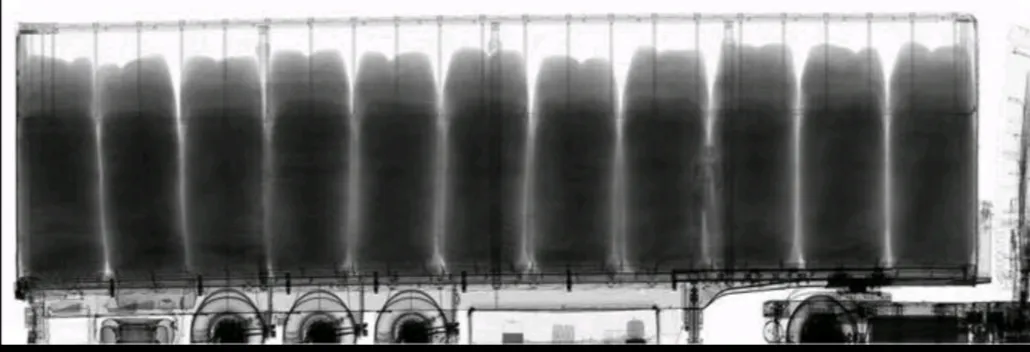

This system adopts multi-energy 6MeV electron accelerator radiation imaging, allowing steel plate penetration up to 300 mm. In active scanning mode, it handles 80 container trucks per hour; in passive mode, it reaches up to 100 trucks per hour.
Frequently Asked Questions
What is the scanning capacity of the AN-48003200HMS system?
The system can scan approximately 80 container trucks per hour in active scanning mode and up to 100 trucks per hour in passive scanning mode.
What is the maximum penetration capability?
The 6MeV X-ray source provides high penetration, capable of seeing through steel plates up to 300 mm thick.
Is the equipment mobile for different site requirements?
Yes, it features a hydraulic drive self-propelled chassis with servo electric steering, providing excellent mobility and shock absorption for complex outdoor environments.
How is radiation safety managed for operators?
The system uses 5G WiFi and optical fiber for remote data transmission. Drivers and passengers stay away from the source during scanning, and the source itself is shielded by a 100mm lead tank.
What are the power and battery specifications?
It is equipped with a 195ah blade-type modular lithium battery that supports continuous 24-hour operation with a 50km endurance range.
Does the system support radioactive material detection?
Optional equipment includes automatic radioactive material detection (ARD μ) to identify the presence of gamma and/or neutron materials during X-ray inspection.
