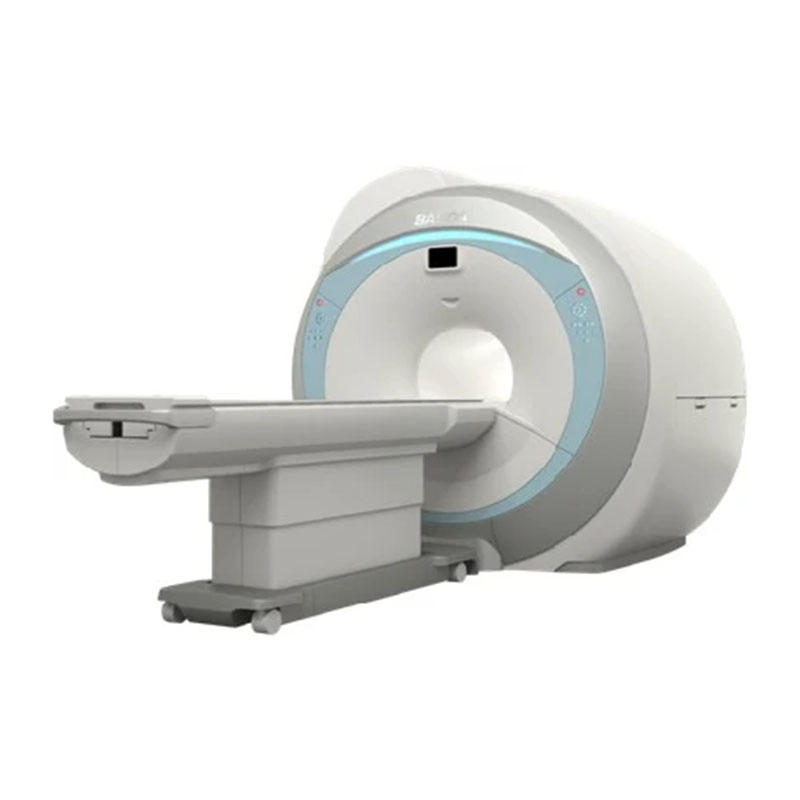

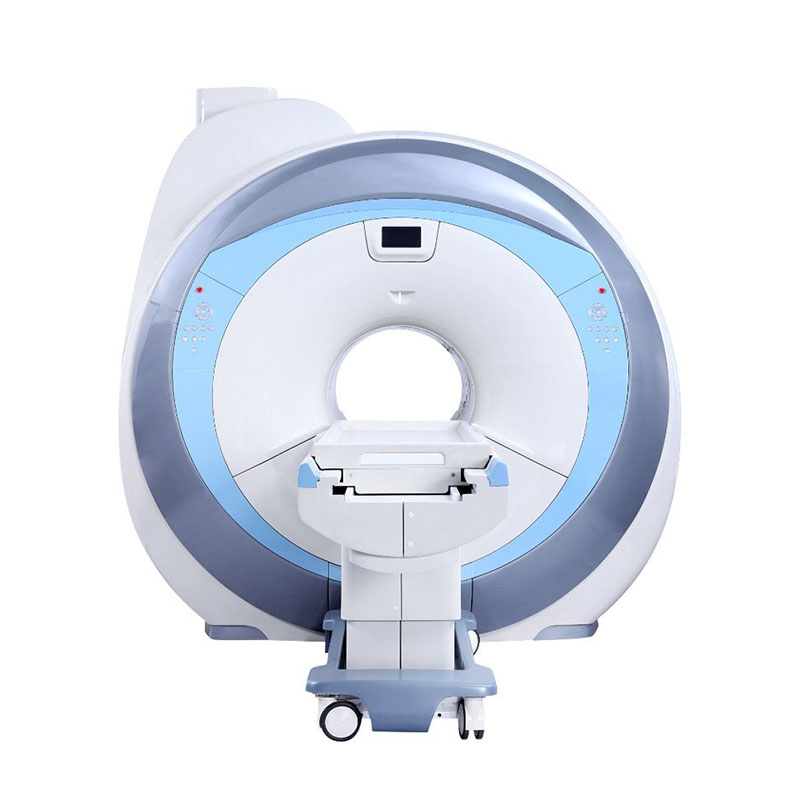

China 1.5t Hospital Imaging Machine Medical MRI Scanner

1 / 5

China 1.5t Hospital Imaging Machine Medical MRI Scanner

Customization:	Available
Certification:	CE
Product Name:	Medical Equipment MRI Scan Price MRI Scanner Equip

Send Inquiry

Product Description

Basic Specifications

Model NO.	MC-150
Min. Shielding Room Size	6000mm5000mm3200mm(H)
Standard Shielding Room Size	7000mm6000mm3200mm(H)

Product Description

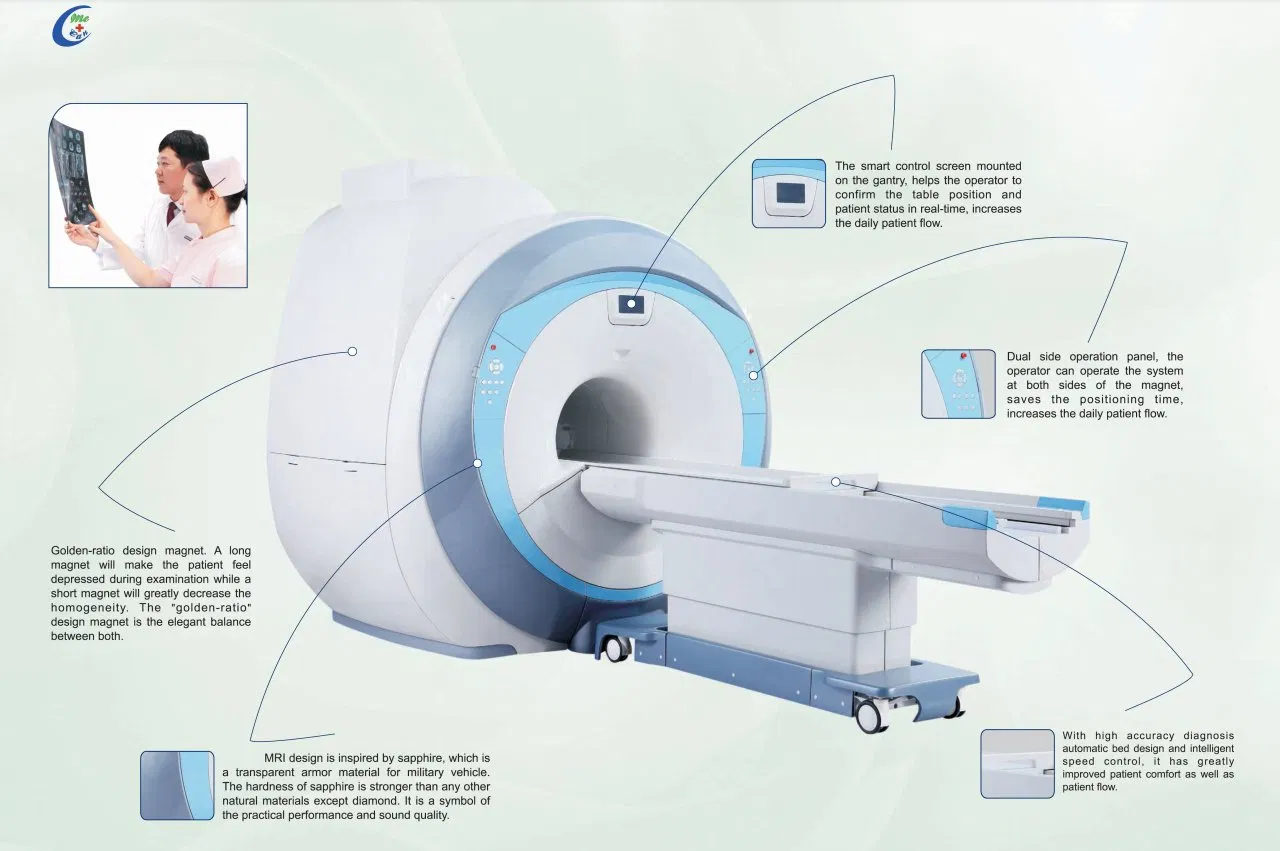

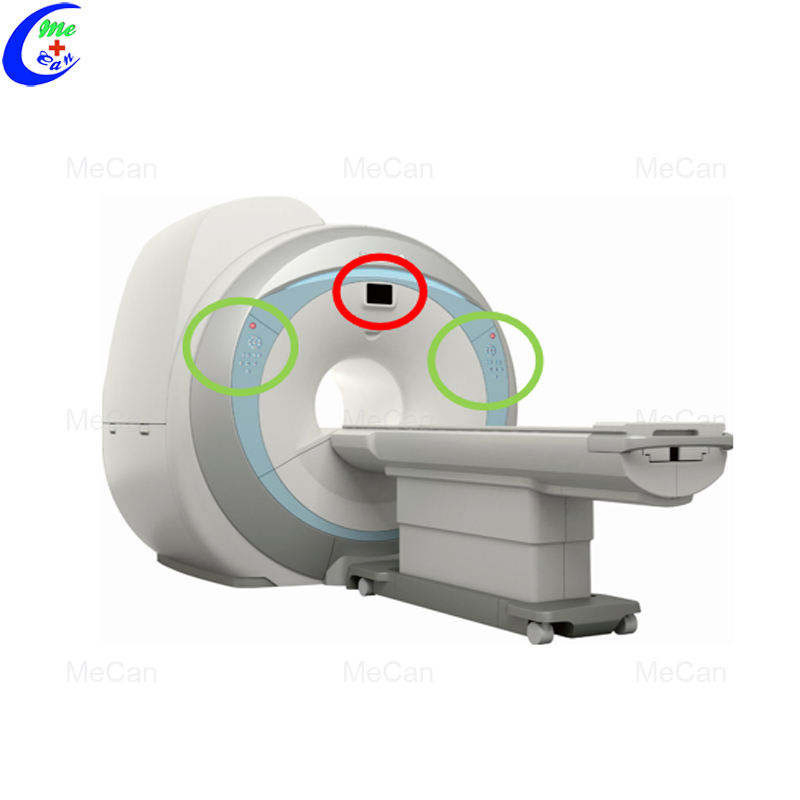

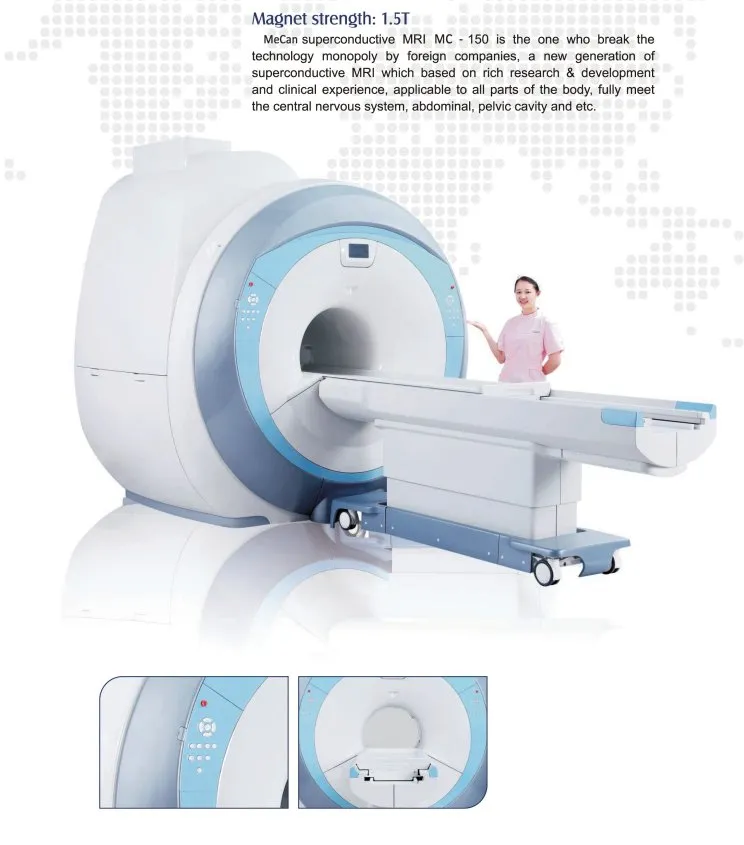

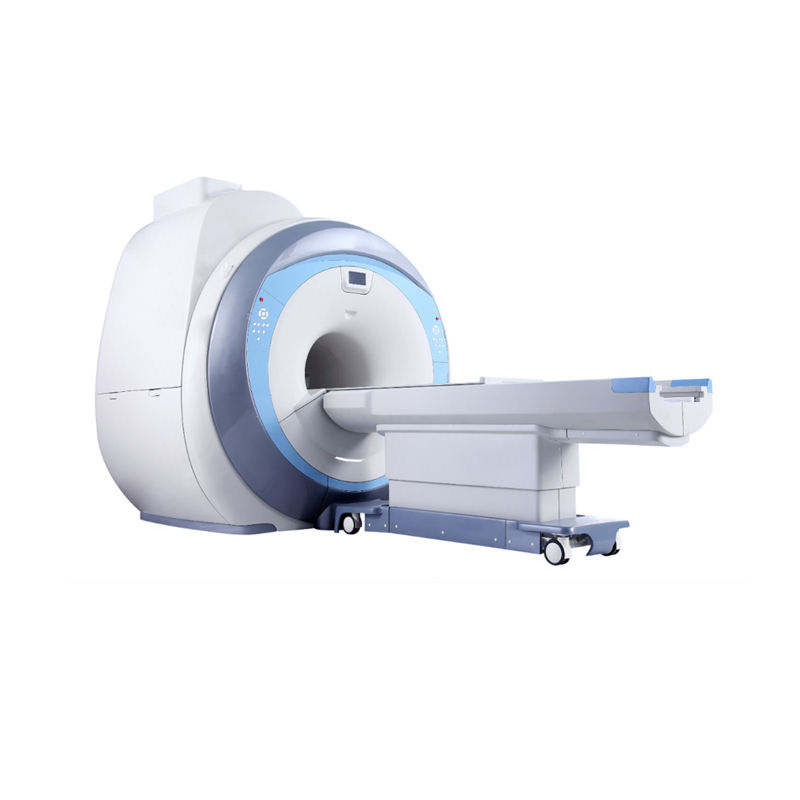

Hospital Imaging Diagnostic System: 1.5T MRI Scanner Machine

Key Features & Technologies

01. Advanced Magnet Technology Helium supplement interval time: ≥48 months. Utilizes Zero consumption technology for enhanced efficiency.

02. E-alarm System Built-in monitoring for inner pressure, temperature, and liquid levels. Auto-notification system to reduce quench risks.

03. Digital Spectrometer Equipped with a Full Digital 8-16 channels spectrometer for precise signal processing.

04. RF & Gradient Performance 18KW RF Amplifier for strong proton excitation. Gradient intensity: 41mT/m; Slew rate: 187mT/m/ms with water cooling.

05. Quiet Comfort Technology Gradient noise is reduced by 33%, providing a significantly more comfortable environment for patients.

06. AIT Technology One-time positioning for full-field imaging, greatly improving diagnostic throughput.

Receiver Coils Configuration

No.	Coil Type	Channels
1	Head Coil	CH8
2	Neck Coil	CH8
3	Body Coil	CH8
4	Knee Coil	CH8
5	Breast Coil	CH8 & CH4
6	Shoulder Coil	CH4
7	Ankle Coil	CH8
8	Full Palm Coil	CH8
9	Spine Coil	CH18 High
10	Soft Coil	CH4
11	Head-Neck Coil	CH16
12	AIT Coil	CH18

Patient Table & Workstation

Motor-driven Table Max load 200Kg, 8" TFT screen (800*600), Positioning accuracy ≤ 1mm, Operable from both sides of the magnet.

High-Performance Workstation Windows-based OS, Quad-core ≥2.8GHz, 24" LCD TFT monitor, integrated system condition data monitoring.

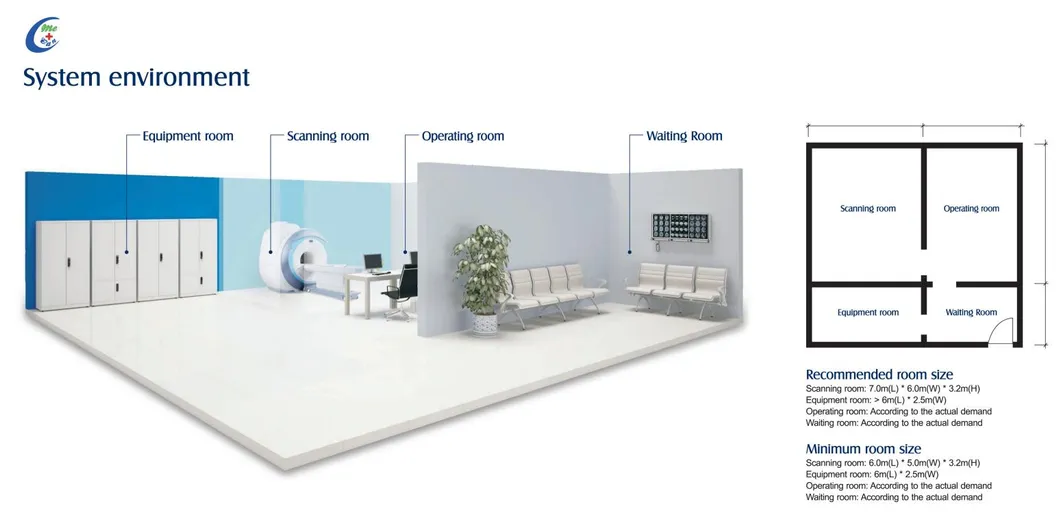

Room Installation Requirements

Standard Shielding Room	7000mm × 6000mm × 3200mm(H)
Min. Shielding Room	6000mm × 5000mm × 3200mm(H)
Equipment Room	Approx. 15m²
Operator Room	Approx. 12m²

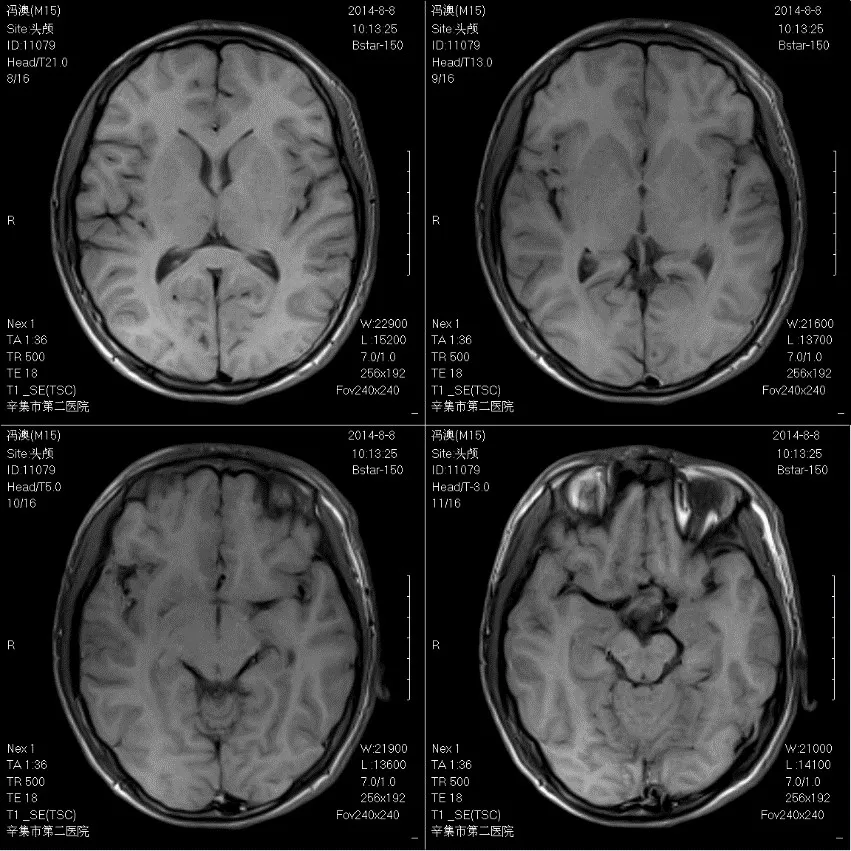

Clinical Imaging Performance

Routine head imaging powered by new generation PA coils. Most scanning sequences can be finished in less than 2 minutes. High signal-to-noise ratio and excellent spatial resolution in T1WI and FLAIR sequences.
