Thermogravimetric Analysis/Tga/Laboratory Instruments

1 / 3

Thermogravimetric Analysis/Tga/Laboratory Instruments

Customization:	Available
Transport Package:	Paper/Wood Box
Specification:	195145105mm

Send Inquiry

Product Description

Basic Info.

Model NO. TGA-TC1550

Origin China/Hongkong

Product Description

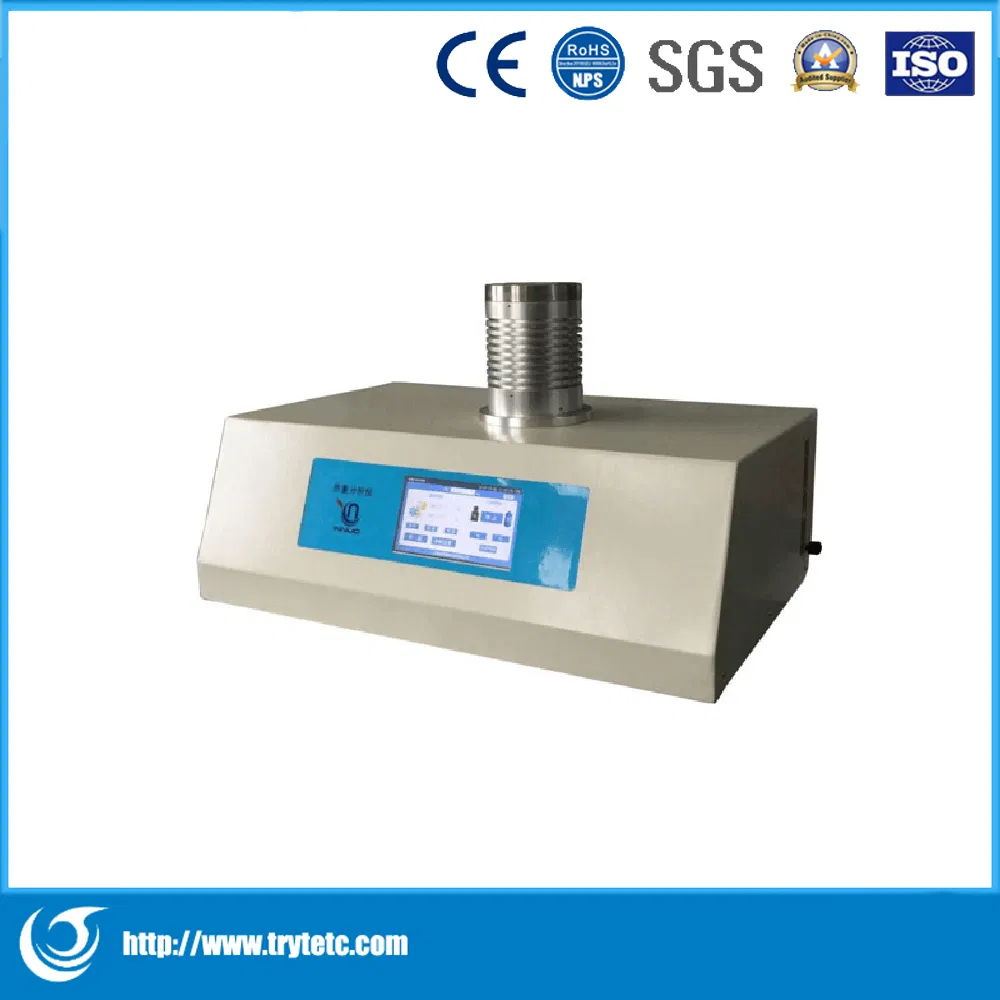

Thermogravimetric Analysis/TGA/Laboratory Instruments

Main Features:

Widescreen touch structure of industrial level, display information is rich, including the set temperature, sample temperature, oxygen flow rate, nitrogen flow, thermogravimetric signal, all kinds of switch state, the flow rate to zero.

USB communication interface, strong commonality, reliable communication don't interrupt, support the restore.

Furnace body structure is compact, arbitrary adjustable cooling rate.

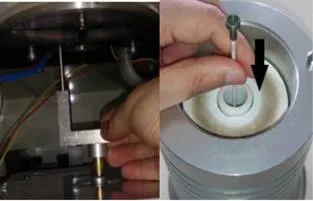

Improved the installation process, all adopt mechanical fixed way, the sample support bar flexible replaceable, convenient different customers' needs.

Two way air flow control, switching speed, stable time is short.

With standard sample, convenient customer constant temperature correction coefficient.

The software adaptive resolution computer screen, the software automatically according to the computer display screen size to adjust the curve. Support notebooks, desktops; Support the Win2000, XP, VISTA, Windows 7 operating system.

Support user programming procedures, to achieve automatic measurement step. Software provides dozens of instructions, the user can according to your own measurement steps, and combined the instruction, and save.

Range of Application

Thermogravimetric analysis (TG, TGA) is in the process of heating and constant temperature or temperature, observe the quality of the samples, along with the change of temperature or time objective is to study the thermal stability of materials and components.

Widely used in plastics, rubber, coatings, pharmaceuticals, catalysts, inorganic materials, metal materials and composite materials in various fields of research and development, process optimization and quality monitoring. Measurement and study the following characteristics: thermal stability, decomposition, adsorption and desorption, oxidation and reduction, a quantitative analysis of ingredients, additives and fillers, moisture and volatile matter and reaction kinetics.

Software Interface

Specification

Temperature range	At room temperature to 1550 ºC
The temperature resolution	0.1ºC
Temperature fluctuations	±0.1ºC
Heating rate	0.1~80ºC/min Any optional
Temperature control mode	PID Temperature control
Balance measurement range	10g
Thermogravimetric resolution	0.1μg
Constant temperature time	0~300min Set arbitrary
Atmosphere control	Nitrogen, oxygen, two lines of gas control
The power supply	AC220V 50 Hz or 60 Hz or custom

Packing

Why Choose Us?

We supply high quality products with reasonable price.

We are the professional manufacturer.

Advanced production machine.

Strict quality control system.

Ten people research & develop team.

We have professional sales team.

Frequently Asked Questions

1. What is the maximum temperature range for this TGA instrument? The TGA-TC1550 model supports a wide temperature range from room temperature up to 1550 ºC, suitable for high-temperature material analysis.

2. Which materials can be analyzed using this thermogravimetric analyzer? It is widely used for plastics, rubber, coatings, pharmaceuticals, catalysts, inorganic materials, metal materials, and various composite materials.

3. Does the software support modern operating systems? Yes, the adaptive software supports Windows 2000, XP, VISTA, and Windows 7 operating systems, and automatically adjusts to different screen resolutions.

4. What kind of atmosphere control does the TGA-TC1550 provide? The instrument features two-way air flow control for Nitrogen and Oxygen, with quick switching and short stabilization times.

5. What is the resolution of the balance and temperature? The instrument provides a thermogravimetric resolution of 0.1μg and a temperature resolution of 0.1ºC for highly precise measurements.

6. Is it possible to program custom measurement steps? Yes, the software supports user programming, allowing you to combine dozens of instructions to achieve fully automatic measurement steps.
