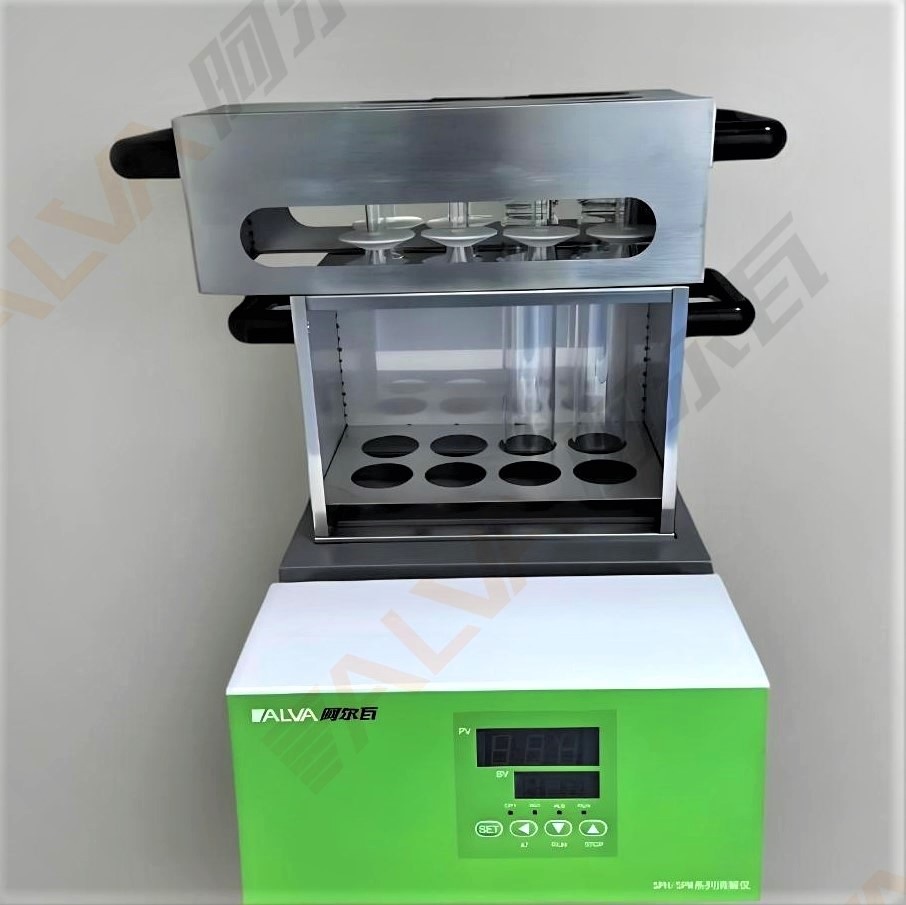

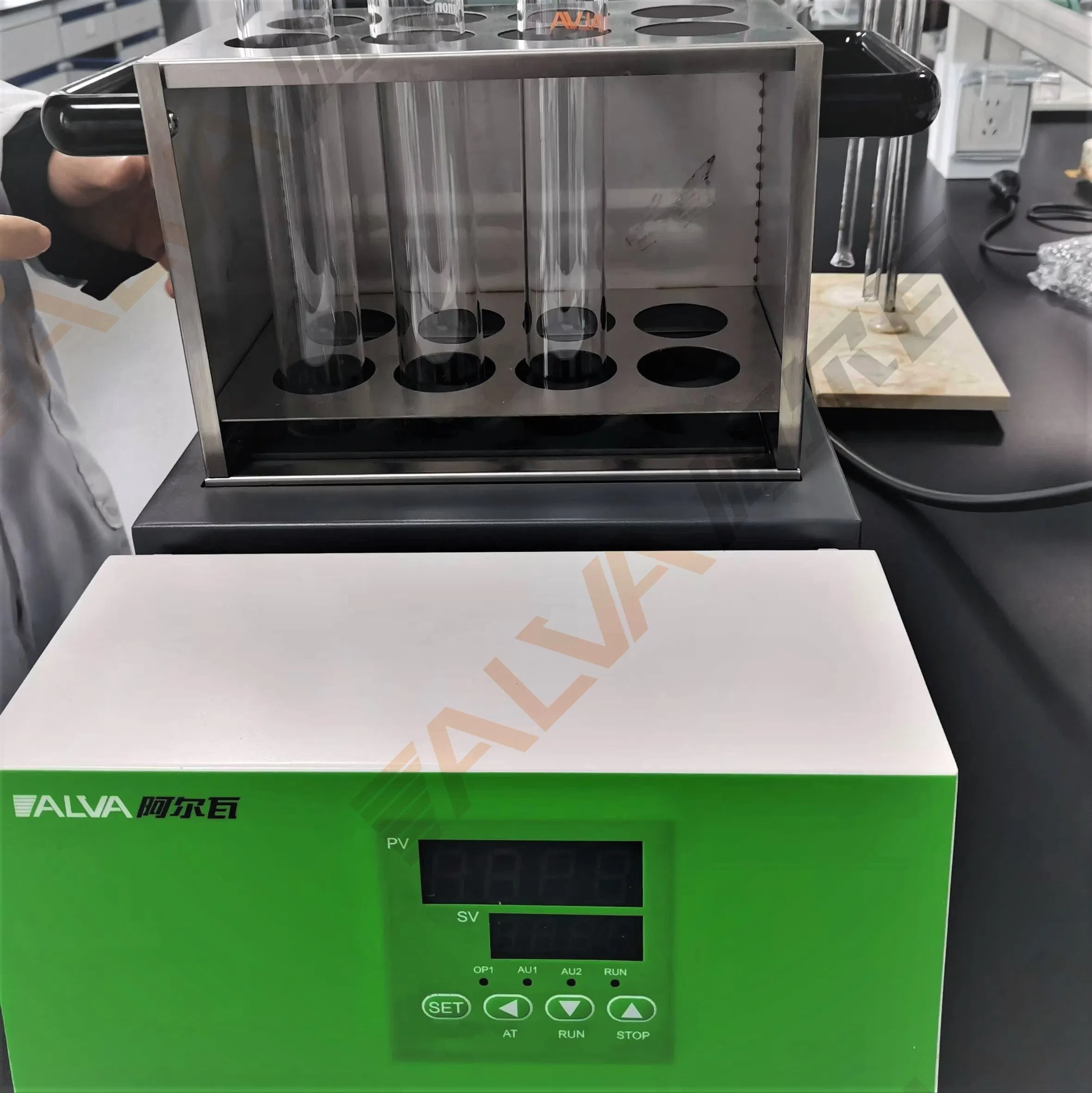

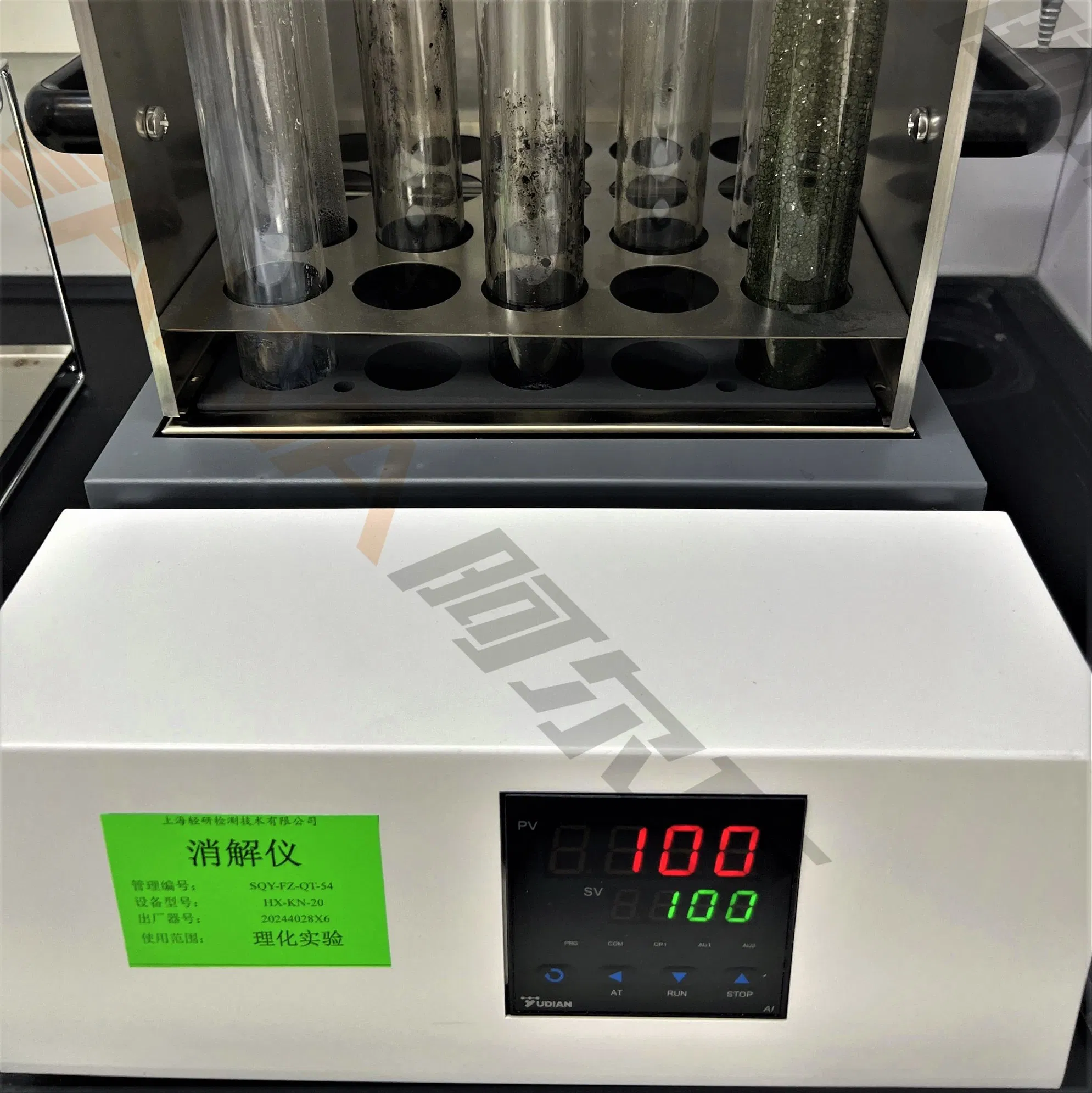

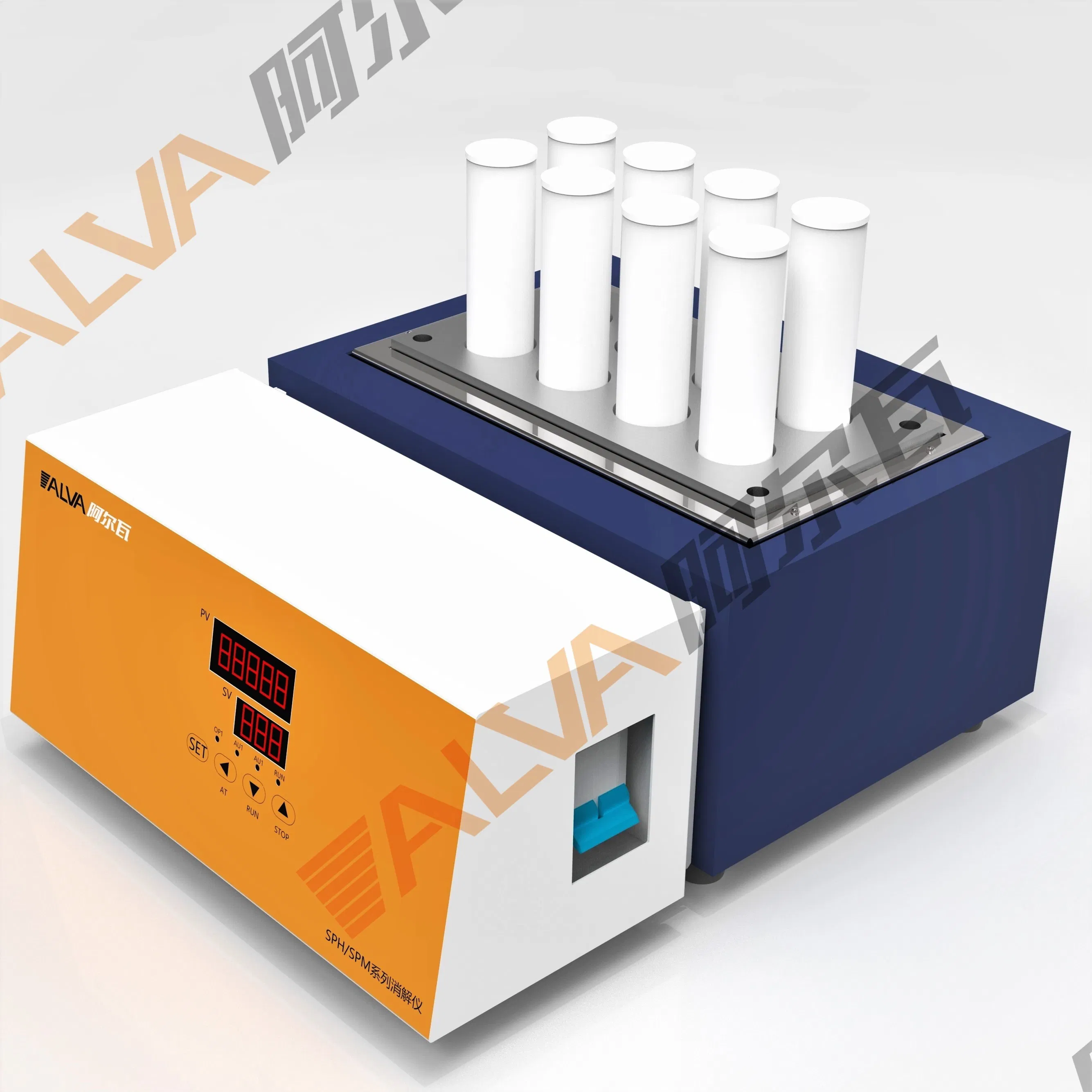

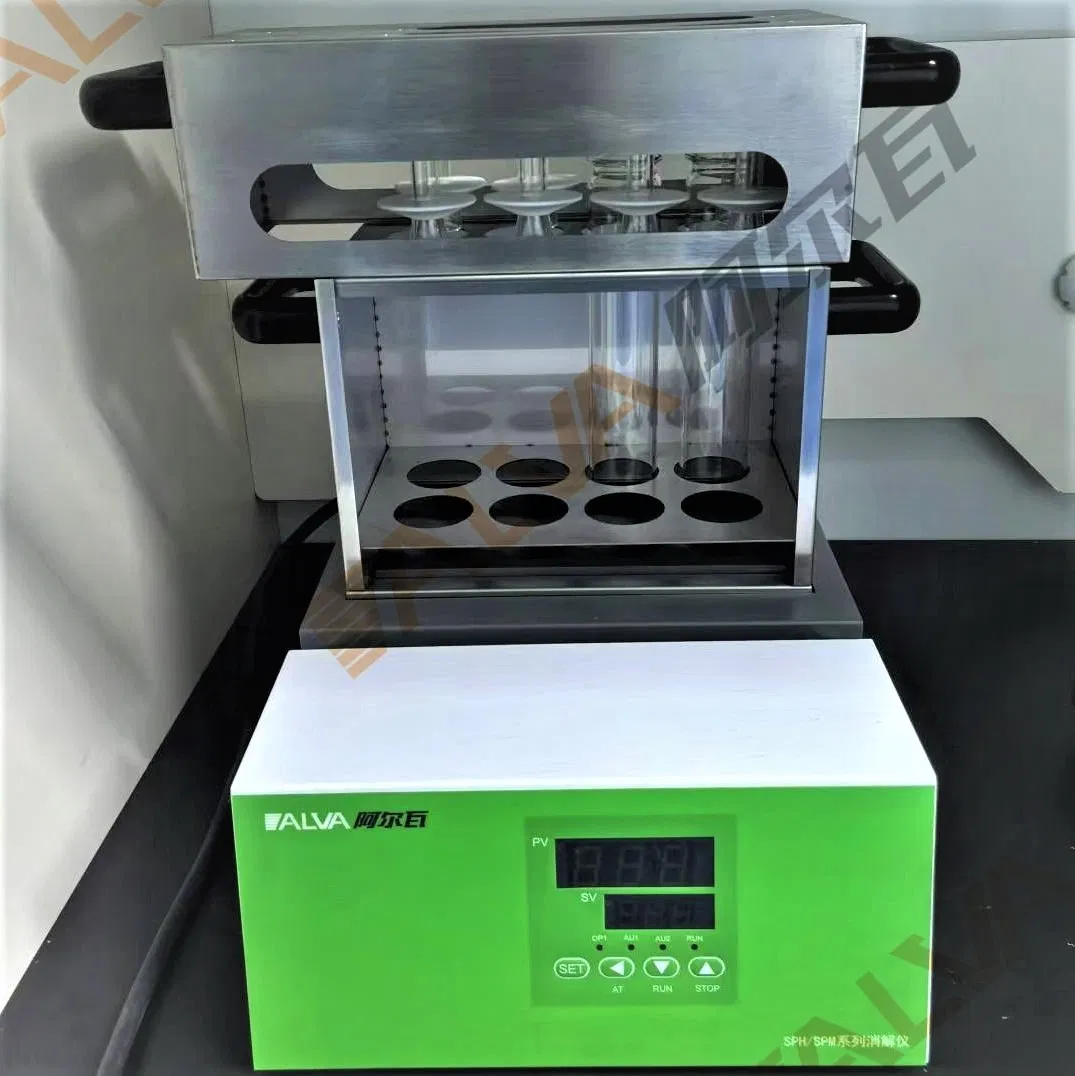

SPD108 Laboratory Sample Pretreatment Digestion Instrument: Essential Auxiliary Tool for Kjeldahl Nitrogen Analyzer in Food and Environmental Analysis

Customization: Available
After-sales Service: Online Support
Warranty: 1 Year

Product Description

Basic Specifications
Model NO.
SPD108
Analysis
Infrared Heating Aluminum Module Digestion
Display
Digital
Application
Kjeldahl Nitrogen Analyzer Pretreatment
Performance
Automation
Batch Capacity
8 PCS / Batch
Temperature Range
Room Temp to 500℃
Power Source
AC220V±22V, 1560W
Product Overview

The SPD108 Laboratory Sample Pretreatment Digestion Instrument is meticulously designed for the digestion of samples before chemical analysis, specifically functioning as an auxiliary tool for the Kjeldahl nitrogen analyzer. This instrument is versatile and applicable across various sectors, including food, pharmaceuticals, agriculture, forestry, environmental protection, and the chemical and biochemical industries. It features a digital display and is capable of processing up to eight samples simultaneously per batch.

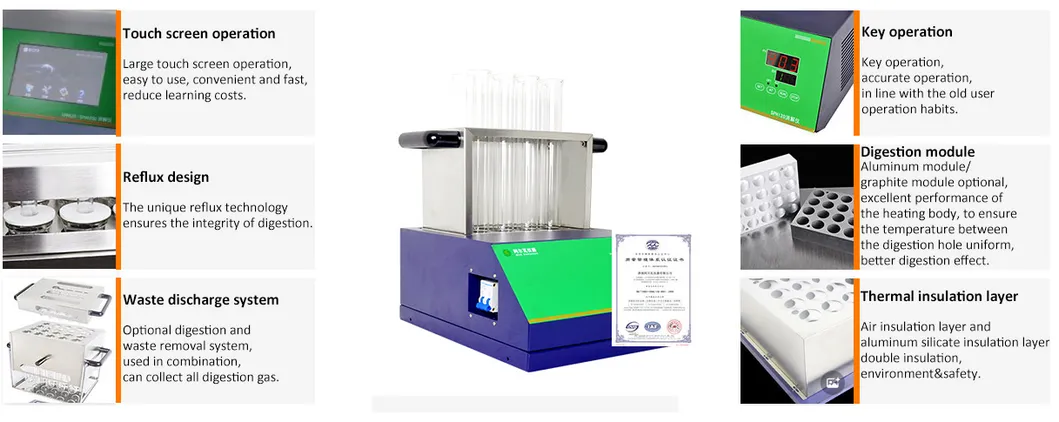

Digestion Instrument Overview
Technological Advantages
Reflux Design Ensures the integrity of sample digestion and significantly improves experimental efficiency.
Intelligent Digital Display Real-time monitoring of temperature on the screen with intuitive operation controls.
Double Insulation Combines air insulation and aluminum silicate layers to reduce heat loss and enhance safety.
Heating Modules Equipped with uniform aluminum or optional graphite modules for consistent and fast sample processing.
Over-temperature Alarm Automatic safety monitoring triggers an alarm if temperatures exceed set values.
Linear Heating Provides a uniform and linear heating process to ensure batch-to-batch consistency.
Technical Parameters
Feature Specification
Temperature rangeMax 500ºC
Over temperature alarmStandard
Display control modeIntelligent Digital Display
Insulation MaterialsHigh Density Aluminum Silicate
Temperature stability (100ºC)±1ºC
Temperature stability (400ºC)±2ºC
Digestion batch capacity8 pcs / batch
Digestion tube specifications300ml
Sample SpecificationsSolid ≤ 20g, Liquid ≤ 20ml
Heating ModuleMetal Heating Module (Aluminum)
🛡️ Comprehensive Support Services:
  • Complimentary Sample Testing: Submit your samples for professional testing at no cost.
  • Technical Consulting: Professional guidance on diverse experimental techniques.
  • Testing Consultation: Support for various industry testing products.
Customer Application Cases

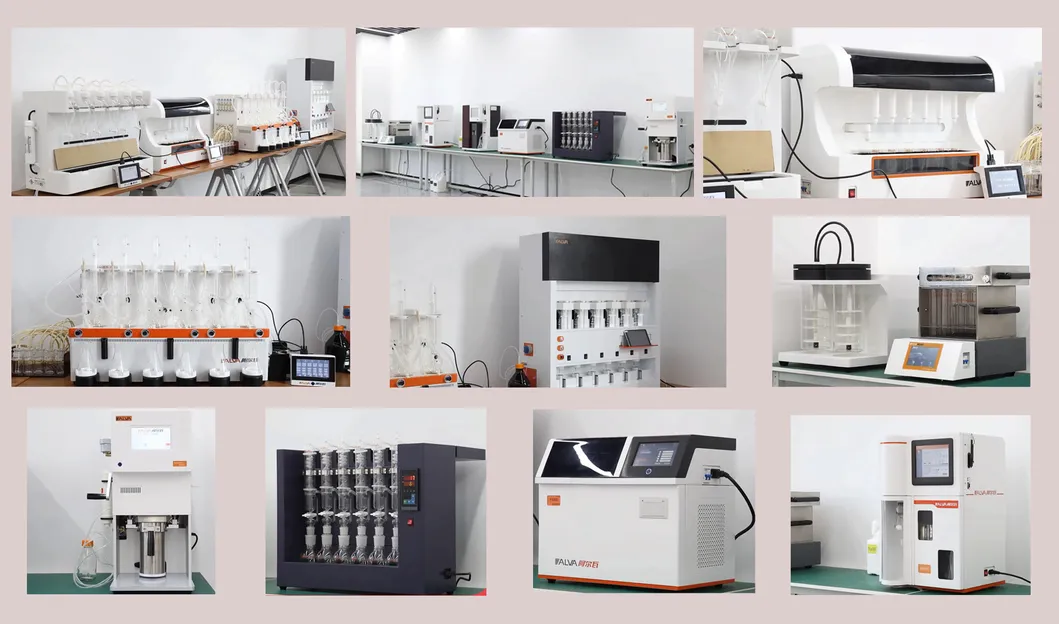

Application Case 1

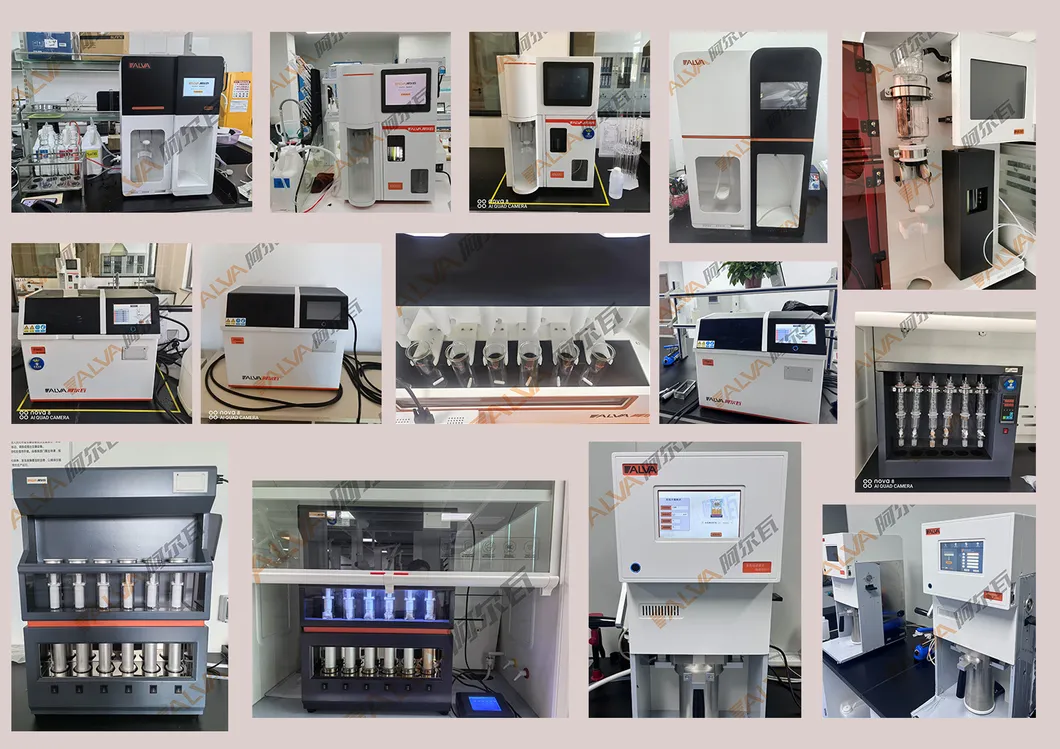

Application Case 2

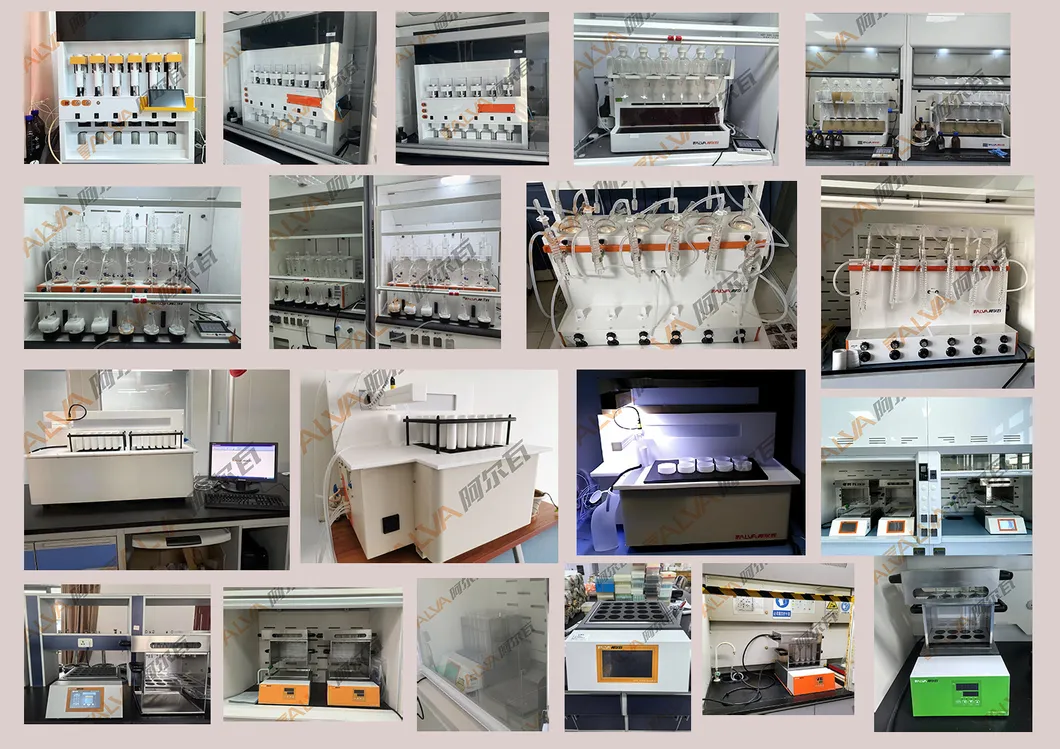

Application Case 3
Corporate Profile
Facility 1

Founded in 2011, the company is a leading integrated analytical instrument provider, focusing on R&D, manufacturing, and sales. We offer a diverse range of laboratory instruments including nitrogen/protein analyzers, fiber analyzers, and fat extraction analyzers. Our facility is ISO9001 certified, CE marked, and TUV approved, holding multiple utility and invention patents.

Facility 2

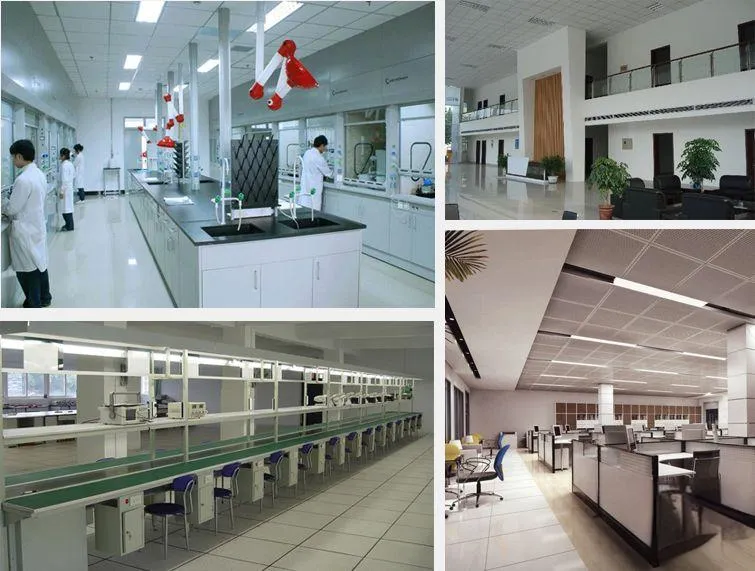

Facility 3
Qualification & Certification
Cert 1
Cert 2
Cert 3
Cert 4
Cert 5
Cert 6
Cert 7
Cert 8
Cert 9
Frequently Asked Questions
What analytical products do you mainly provide?
We mainly provide Soxhlet fat analyzers, Kjeldahl nitrogen analyzers, fiber analyzers, digestion instruments, and other high-end measurement instruments alongside industry application solutions.
What are the core features of your products?
Our products feature cutting-edge technology such as fully automated wet digestion for various samples and automated determination of nitrogen/protein, total fat, and fatty acids.
What is your product quality assurance policy?
We offer a one-year warranty on all products. We are responsible for repair or replacement for any quality issues or non-human damage within this period.
Do you provide technical support for instrument operation?
Yes, we provide comprehensive support including technical data, video guidance, reagent preparation methods, and accessories support via our dedicated after-sales team.
Which industries are your instruments suitable for?
Our instruments are widely used in food processing, grain, feed, environmental monitoring, pharmaceuticals, tobacco, agriculture, and scientific research institutions.
Are customized products and services available?
Yes, as an industry and trade-integrated enterprise with over ten years of experience, we support customized products and services to meet specific customer requirements.
