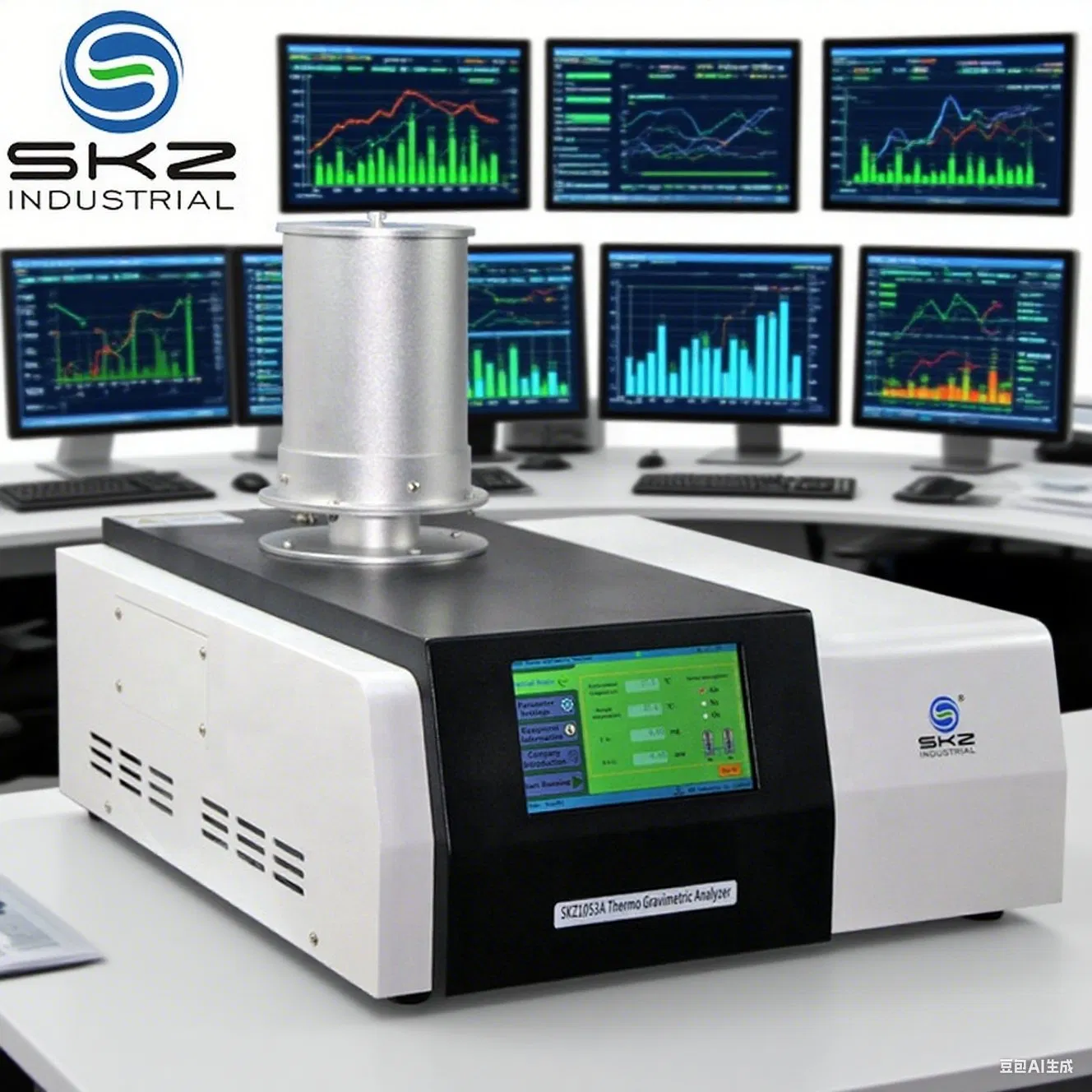

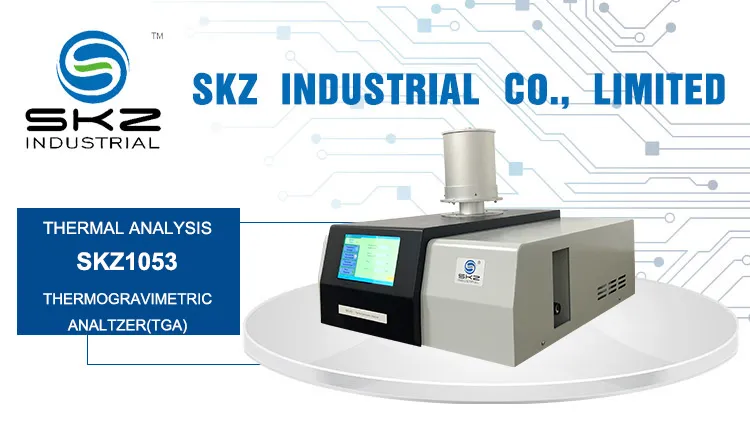

| Model NO. | SKZ1053A |
| Type | Thermo Gravimetric Analyzer |
| Temperature Range | Actual Maximum Temperature 1150c |
| Temperature Resolution | 0.01c |
| Heating Rate | 0.1 ~ 100c/ Min |
| Sensitivity | 0.01mg |
| Display | 7-inch full-color 24bit touch screen |
| Control Mode | Computer / Touch Screen Control |

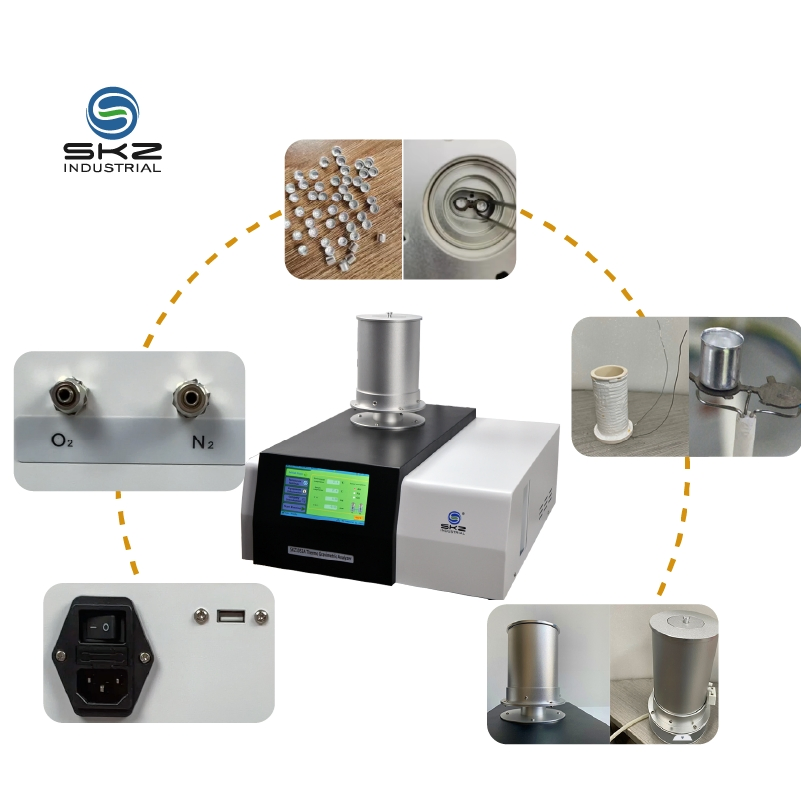

| Atmosphere Device | Built-in Gas Flow Meter, Switch Two Path |
| Data Interface | USB Interface |
| Power Source | AC220V 50Hz |
| Size | 500*400*430mm |

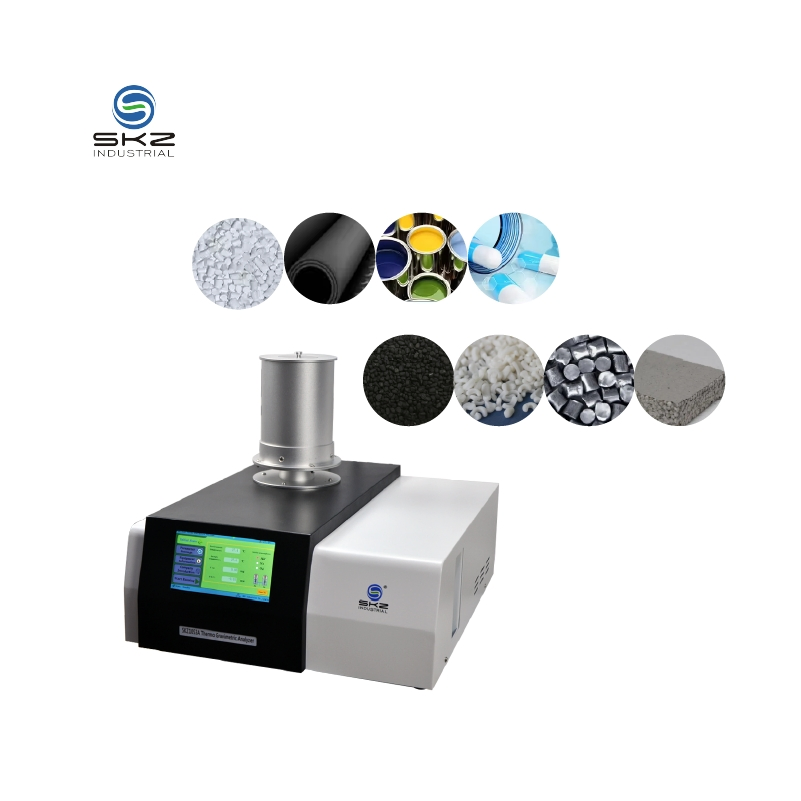

Widely used in research, development, and quality control for: Plastics, rubber, coatings, pharmaceuticals, catalysts, inorganic materials, metals, and composite materials.

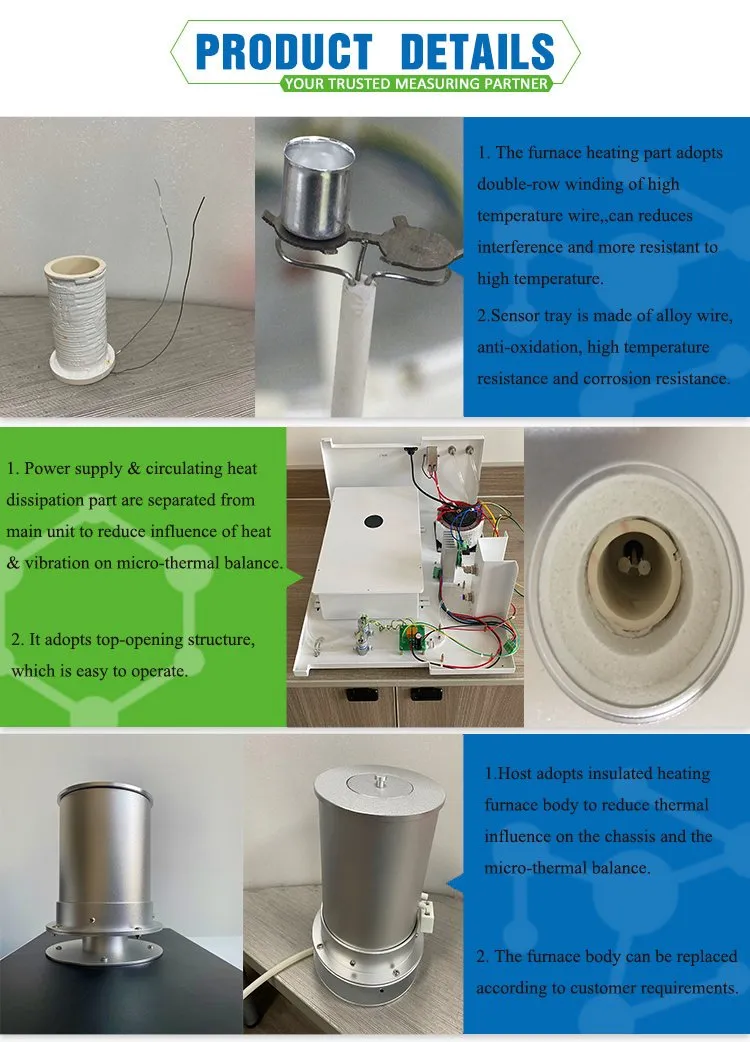

1. Double-row winding nickel-cadmium alloy furnace reduces interference and resists high temperatures.
2. Precious metal alloy tray sensor for oxidation and corrosion resistance.
3. Top-opening structure for easy operation and sample safety.
4. Separated power supply and heat dissipation to protect micro-thermal balance from vibration.
1. Imported ARM processor for faster sampling and processing.
2. PID algorithm for precise multi-stage heating control.
3. USB two-way communication for full remote computer operation.
4. 7-inch full-color touch screen supporting direct TG calibration.
| Temperature Resolution | 0.01ºC |
| Temperature Fluctuation | ±0.01ºC |
| Cooling Time | 15min (1000ºC ~ 100ºC), Natural cooling |
| Balance Measuring Scope | 1mg ~ 3g (Expanded to 50g) |
| Constant Temp Time | 0 ~ 300min (set arbitrarily) |
| Program Control | Multi-stage heating and constant temperature settings |

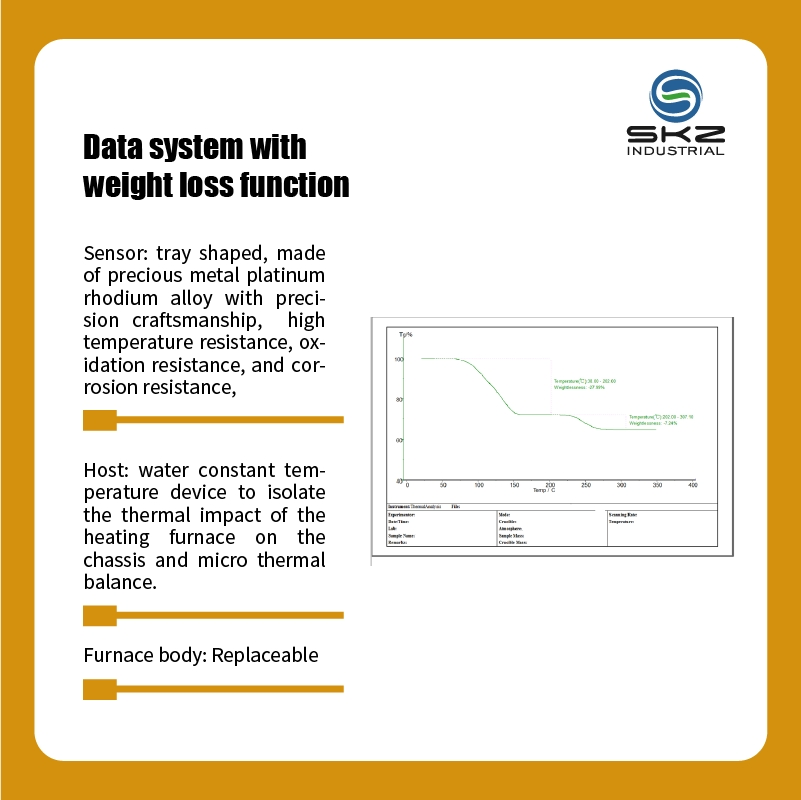

| Software Functions | Automatic TG curve recording, data processing and printing |
