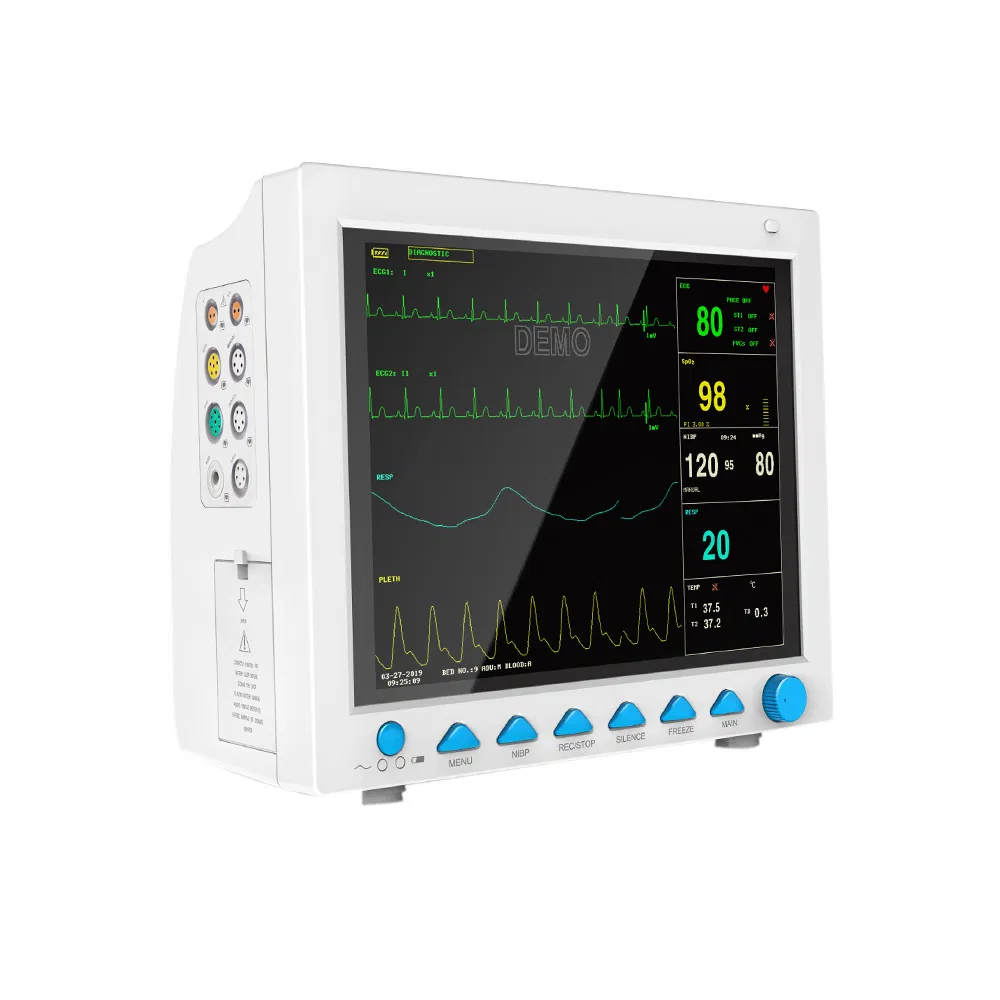

Reliable Contec Cms8000 Hospital Patient Monitor at Low Prices

1 / 5

Reliable Contec Cms8000 Hospital Patient Monitor at Low Prices

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	Patient Monitor

Send Inquiry

Product Description

Basic Information

Model NO.

CMS8000

Certification

CE, FDA, ISO13485

Screen

12.1" Color TFT

Standard Parameters

ECG, SpO2, NIBP, RESP, 2-TEMP, PR

Optional

EtCO2, IBP, Printer, VGA, 12-Channel ECG

HS Code

9018193010

Product Description

Introduction & Key Features

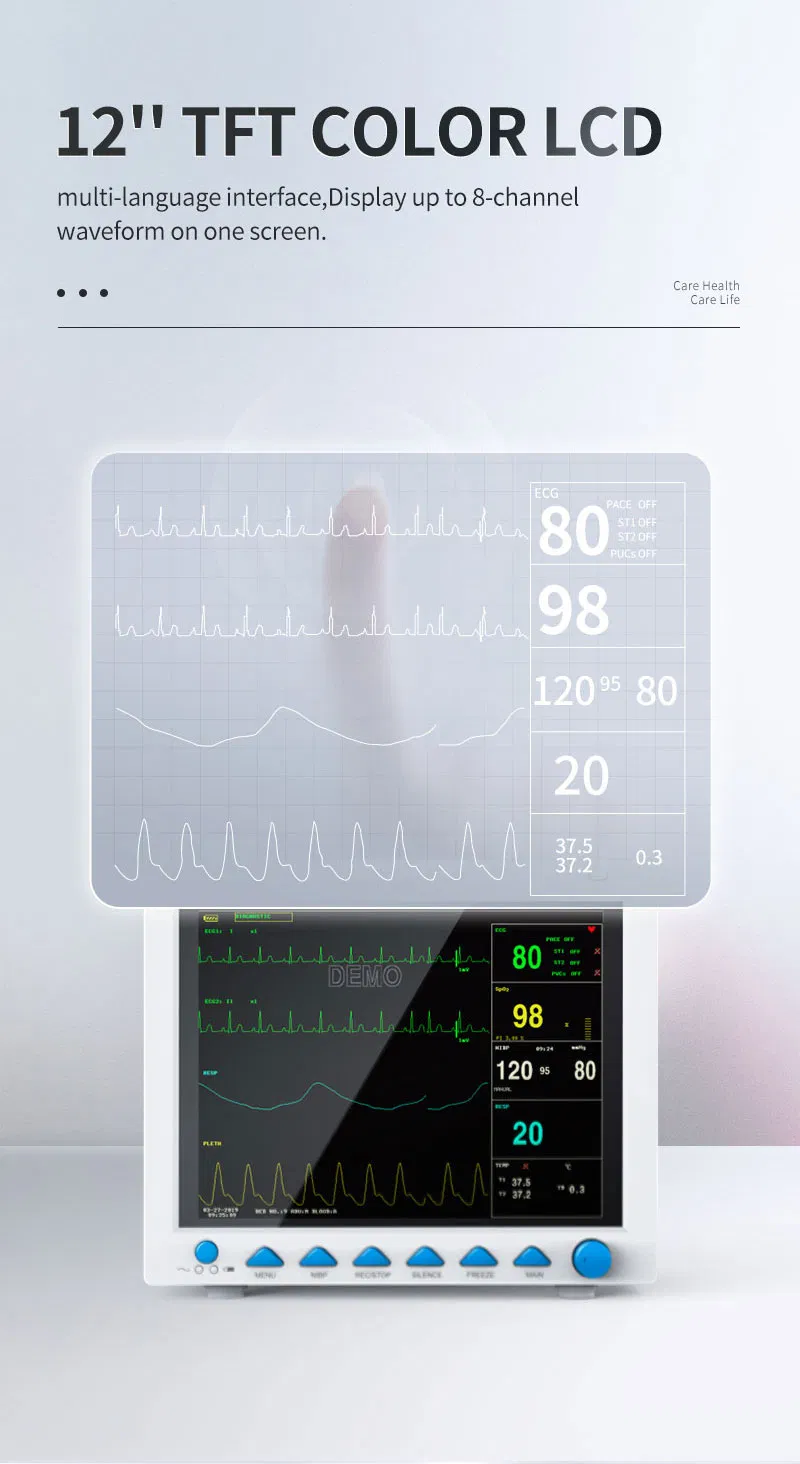

Display: 12'' color TFT LCD with high-resolution for clear data visualization.
Application: Suitable for adult, pediatric, and neonatal monitoring.
Operation: Multi-language interface including English, French, German, Italian, Turkish, etc.
Data Storage: 480-hour trend data storage and 40-second holographic waveform review.
Advanced Tech: Digital SpO2 technology with strong anti-interference and anti-weak filling capability.

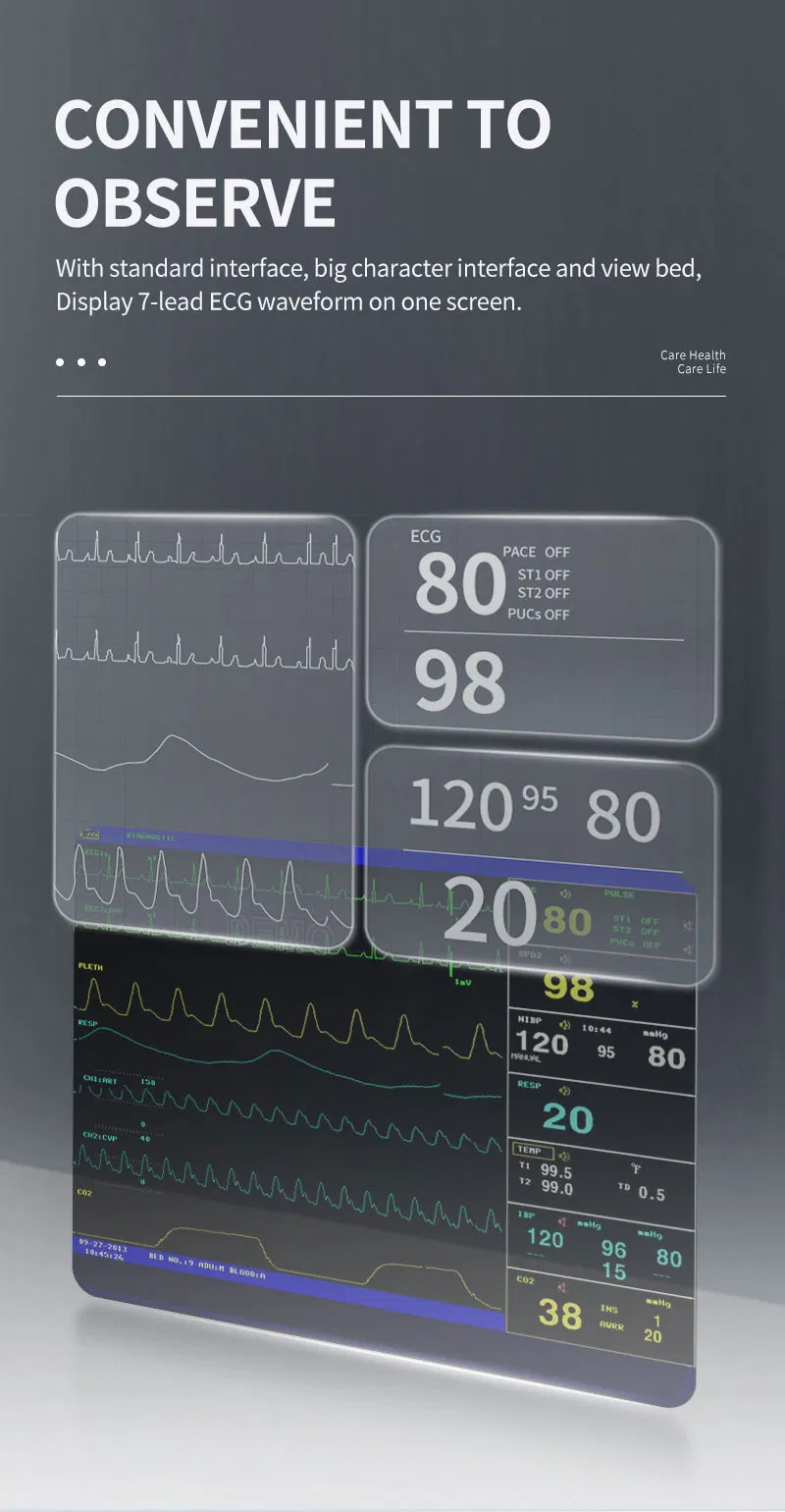

Flexibility: Multiple display modes including big character interface and custom waveform colors.
Mobility: Built-in rechargeable lithium battery for uninterrupted monitoring.

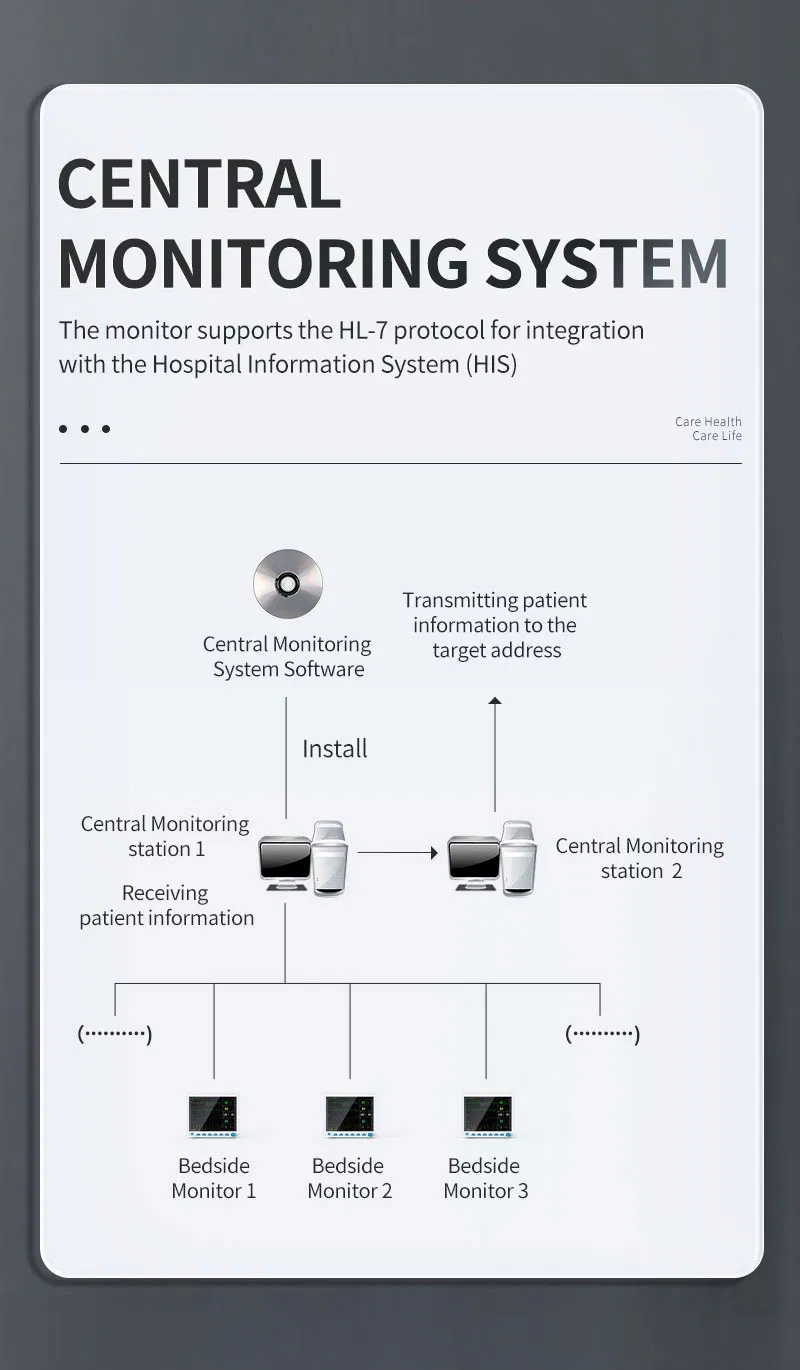

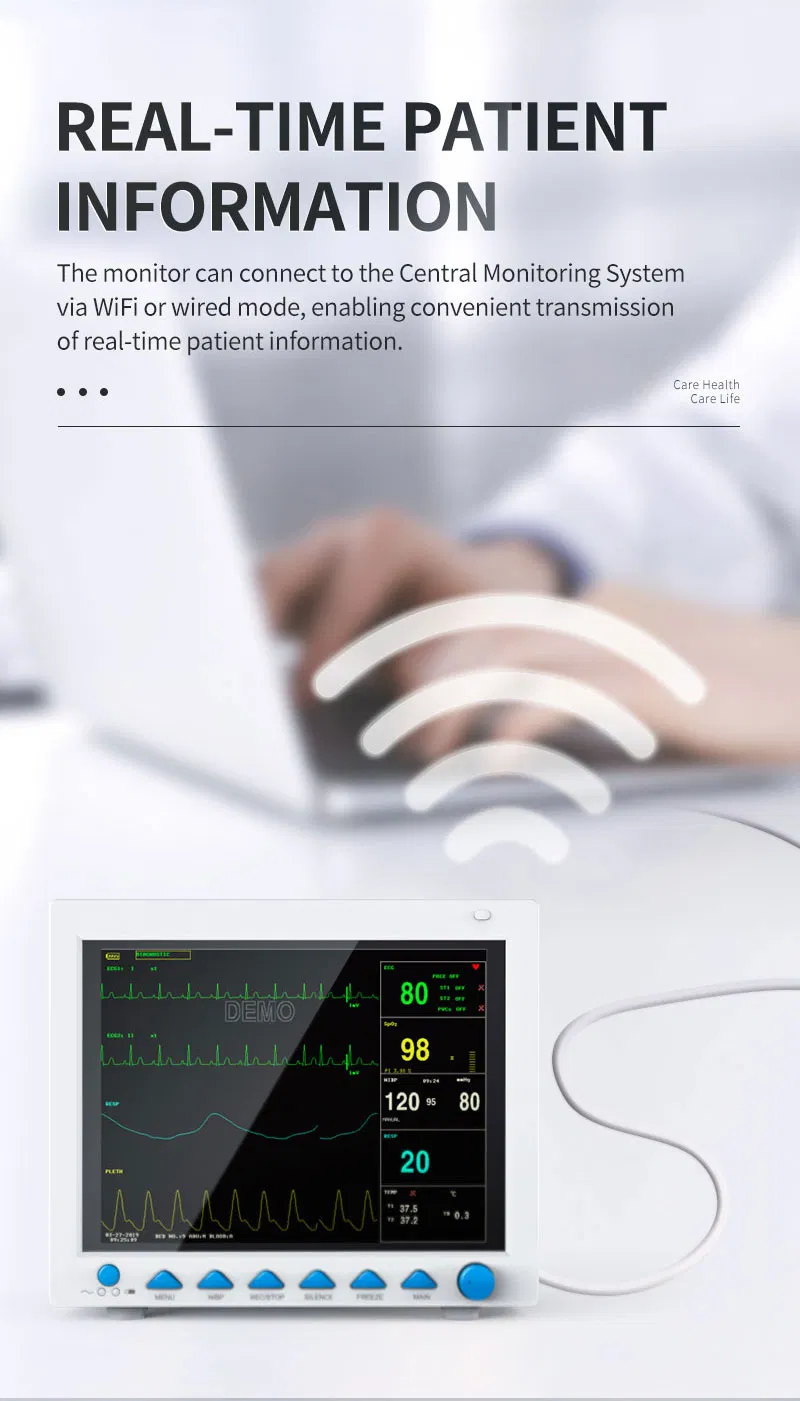

Connectivity: Supports wired/wireless connection to central monitoring stations and VGA video output.

Technical Specifications

Parameter	Details
Display Mode	12'' Color TFT LCD
ECG Lead Mode	3-lead and 5-lead (Optional)
HR Range	15 ~ 300 bpm
Resp. Rate Range	Adult: 0~120rpm; Pediatric/Neonatal: 0~150rpm
SpO2 Range	0 ~ 100 % (Accuracy: 70%~100% ±2%)
NIBP Mode	Manual, Auto, Continuous
TEMP Range	Dual-channel, 0 ~ 50°C

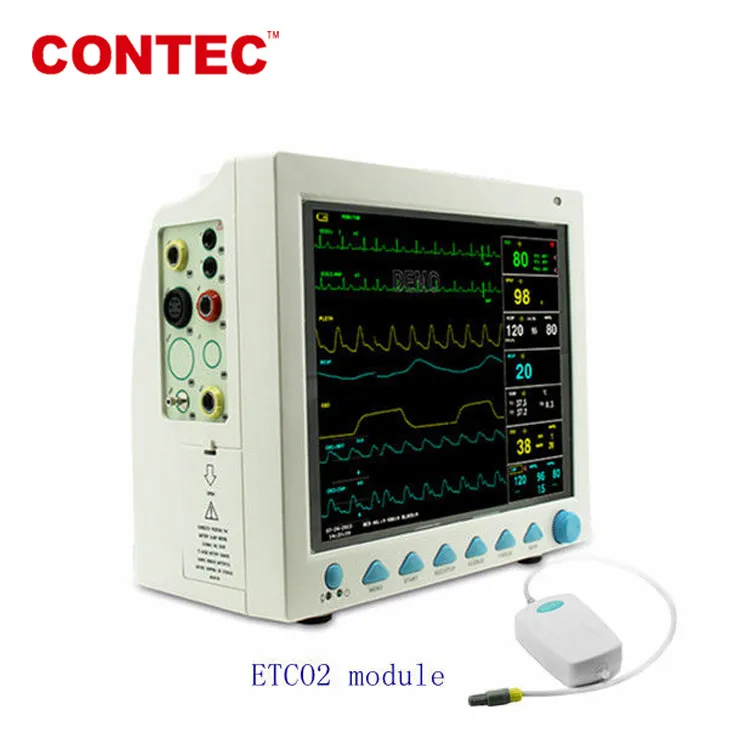

EtCO2 (Optional)	Sidestream or Mainstream, Range: 0~150mmHg
Power Supply	AC 100~240V, 50/60Hz

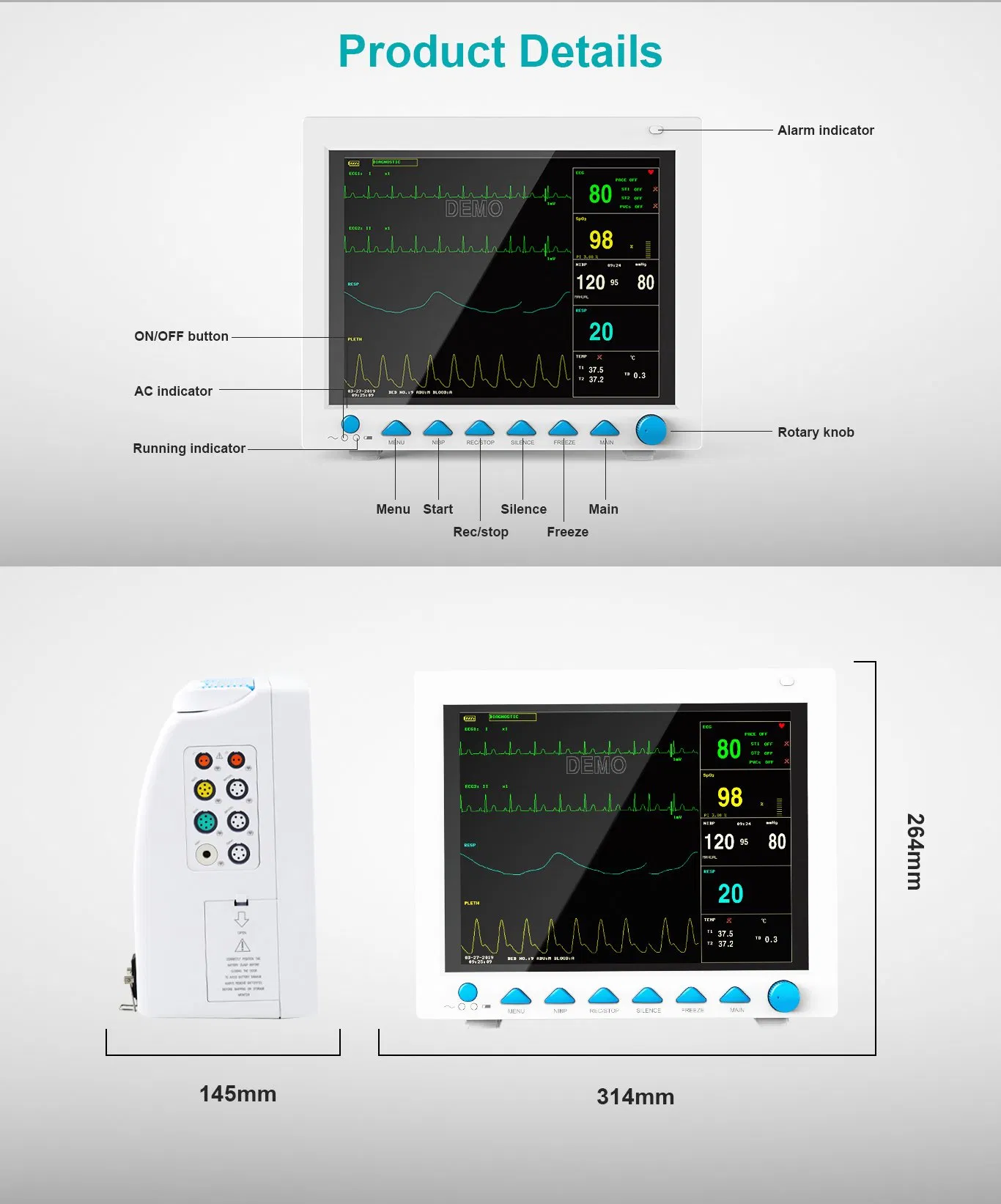

Dimensions	310 × 140 × 263 (mm)
Net Weight	3.8 Kg

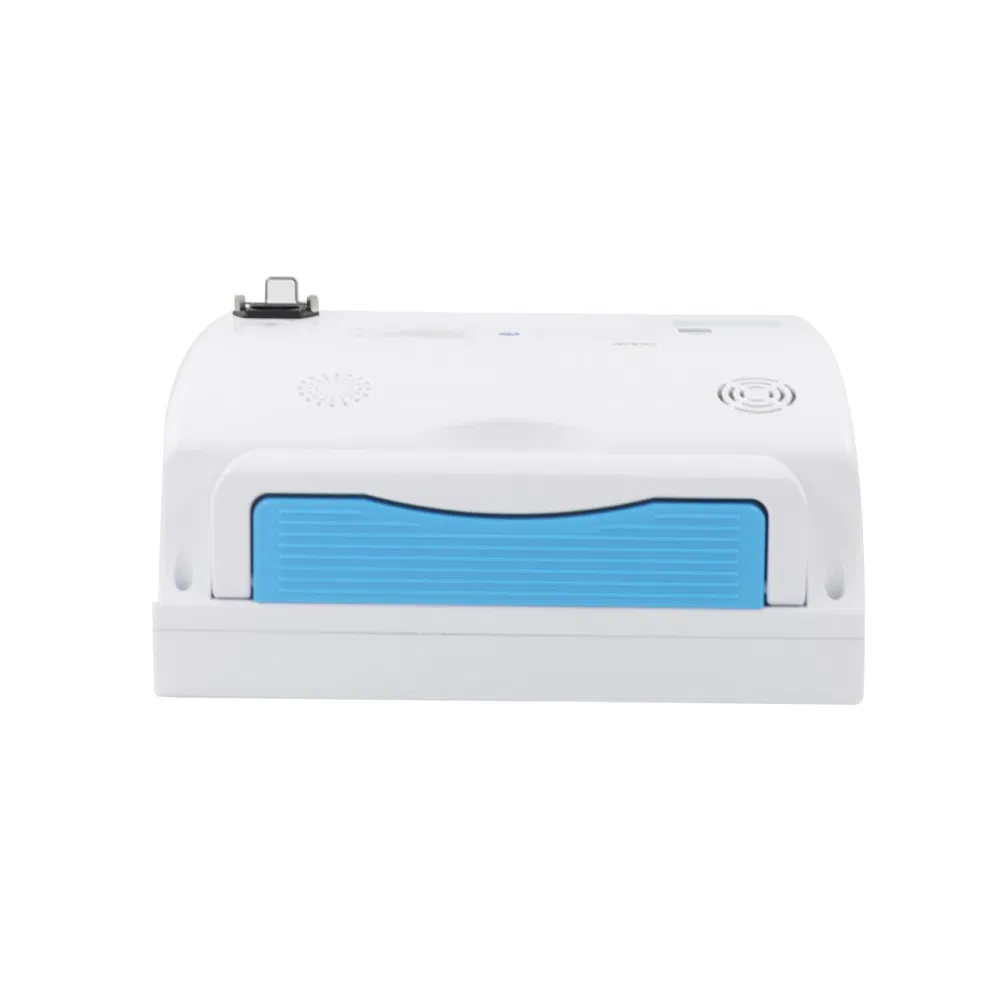

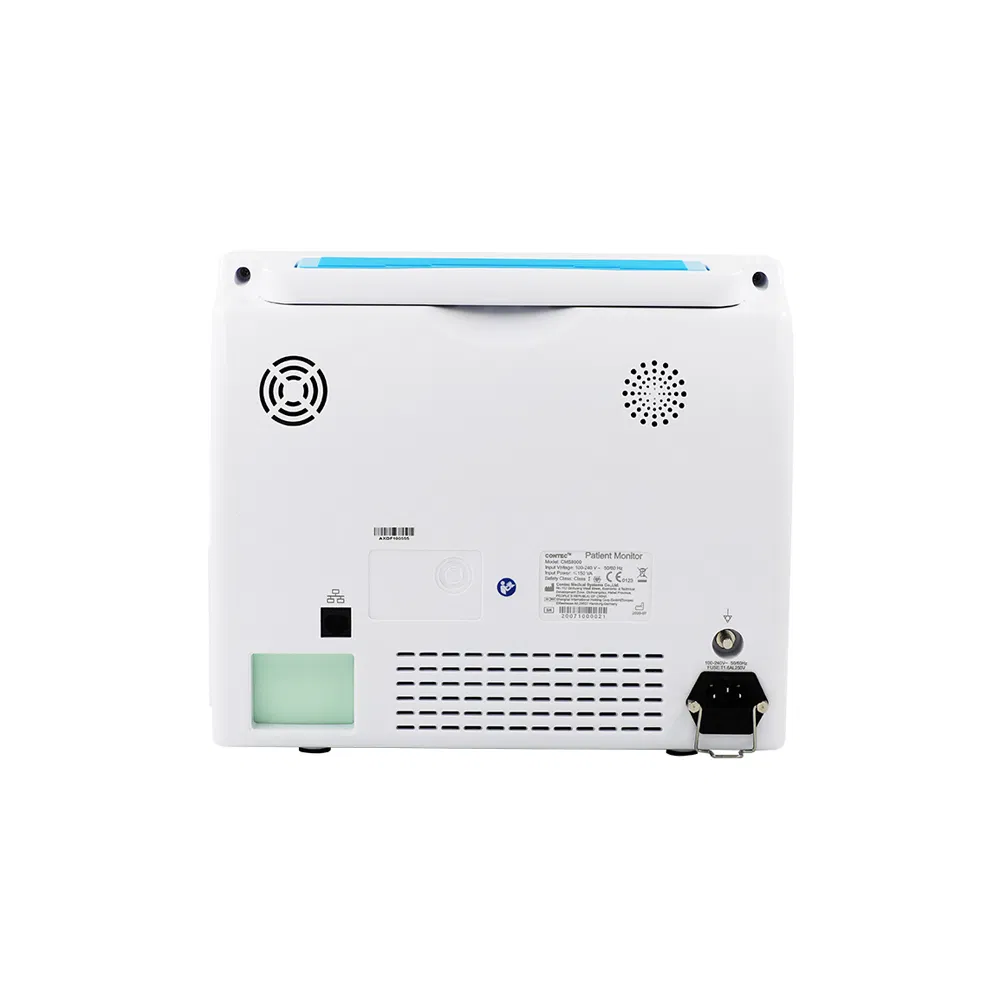

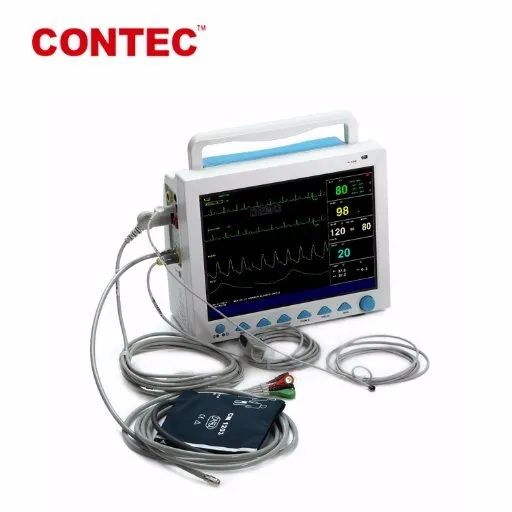

Detailed Photos

Frequently Asked Questions (FAQ)

What are the standard monitoring parameters of the CMS8000?

The CMS8000 standard configuration includes ECG, SpO2, NIBP, Respiration (RESP), dual-channel Temperature (2-TEMP), and Pulse Rate (PR).

Is this monitor suitable for all patient groups?

Yes, the CMS8000 is designed for adult, pediatric, and neonatal patient monitoring. For newborns, specialized cuffs and probes are available.

Does the monitor support data storage and trend analysis?

Yes, it features 480-hour trend data storage and a review function for up to 400 NIBP data points and 40-second holographic waveforms.

What are the optional features I can add to the CMS8000?

Optional parameters include EtCO2 (Sidestream or Mainstream), dual-channel IBP, thermal printer, VGA output, 12-channel ECG, and a central monitor system connection.

What kind of display does it use?

It uses a high-resolution 12.1-inch color TFT LCD, supporting multiple display modes such as big characters for easier viewing from a distance.

Is it safe to use during surgery with high-frequency units?

Yes, it is designed with anti-high frequency surgical unit interference and is defibrillation-proof (requires special leads).
