4-7.5 Mev Radiation Energymobile Vehicle Container Safety Inspection Machine Gold Detector MRI Scanner

Customization:	Available
After-sales Service:	Remote Support
Warranty:	1year

ℹ️

Basic Info.

Model NO.

AN-48002800M

Certification

CE, ISO

Application

Security Check

Form

Flatbed

Type

Conveying X-ray Detector

Radiation Energy

4-7.5 Mev

Channel Size

2.8m (W) X 4.8m (H)

Origin

China

📦

Product Description

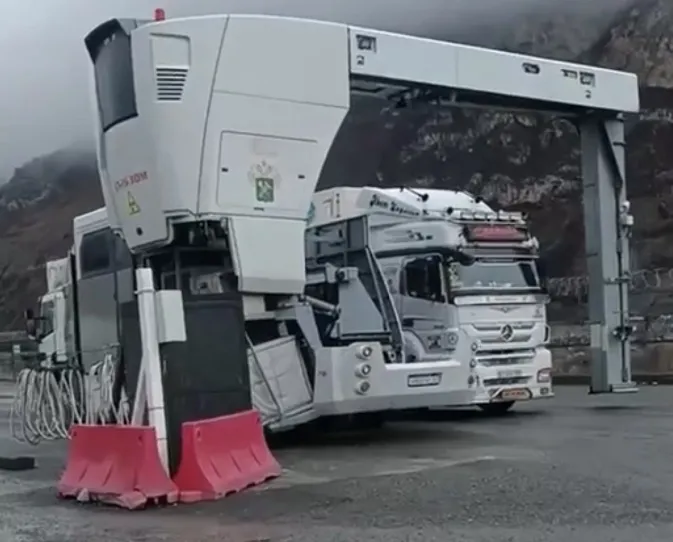

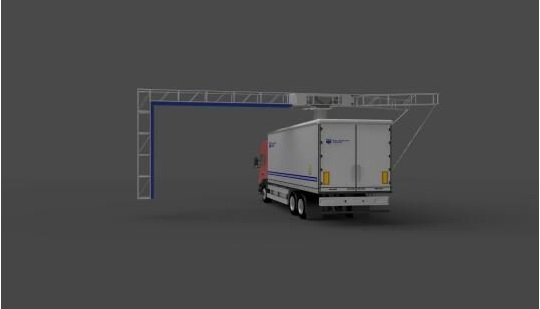

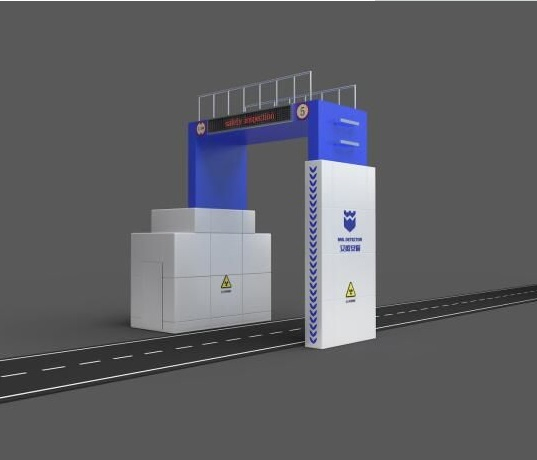

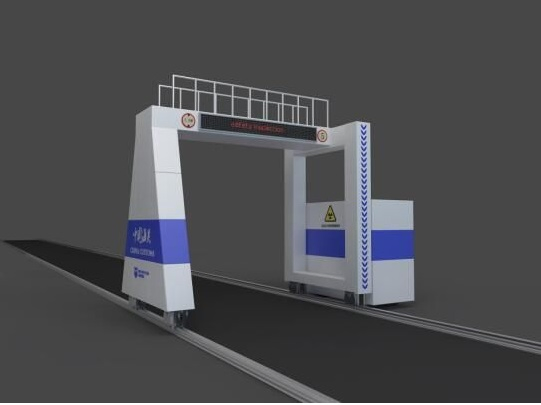

AN-48002800M Mobile Vehicle Container Safety Inspection Machine

HIGH ENERGY MOBILE X-RAY SERIES

This Vehicle-borne Mobile Large Vehicle Safety Inspection System is specially designed for the safety inspection of container loading cargo at customs, ports and border ports. Through X-ray fluoroscopy, it generates images of materials, volumes and quantities of goods loaded in containers to check for explosives, drugs, weapons of mass destruction (WMDS) and contraband.

⚡

X-RAY Features

01.
Uses an adjustable electronic accelerator ranging from 4 MeV to 7.5 MeV with a penetrating force of 330 mm steel plate. Mobile scanning mode handles up to 60 vehicles hourly; through scanning mode handles up to 100 vehicles hourly.
02.
High-speed image data acquisition circuit up to 0.8 meters per second. Features pseudo-color gray level display and high-resolution LCD monitors for reliable analysis.
03.
Easy to operate with a small footprint and low infrastructure requirements, meeting stringent international safety inspection standards.
04.
Integrated automatic radioactivity detection (ARDmu) to simultaneously detect radioactive gamma and/or neutron materials.

📋

Technical Specifications

Ray Source & Imaging System		Equipment Performance
Radiation Energy:	4-7.5 MeV	Chassis:	Dongfeng Dolica
Direction:	Side illumination	Weight:	27 Tons
Penetration:	330mm Steel Plate	Scanning Mode:	Mobile / Through Scanning
Channel Size:	2.8m (W) x 4.8m (H)	Scanning Speed:	5 - 10 Km/h
Pixels:	1920 (L-shaped Array)	Pass Rate:	60-100 Cars / Hour
Data Storage:	500,000 images standard	Waterproof:	IP45 Grade

🏗️

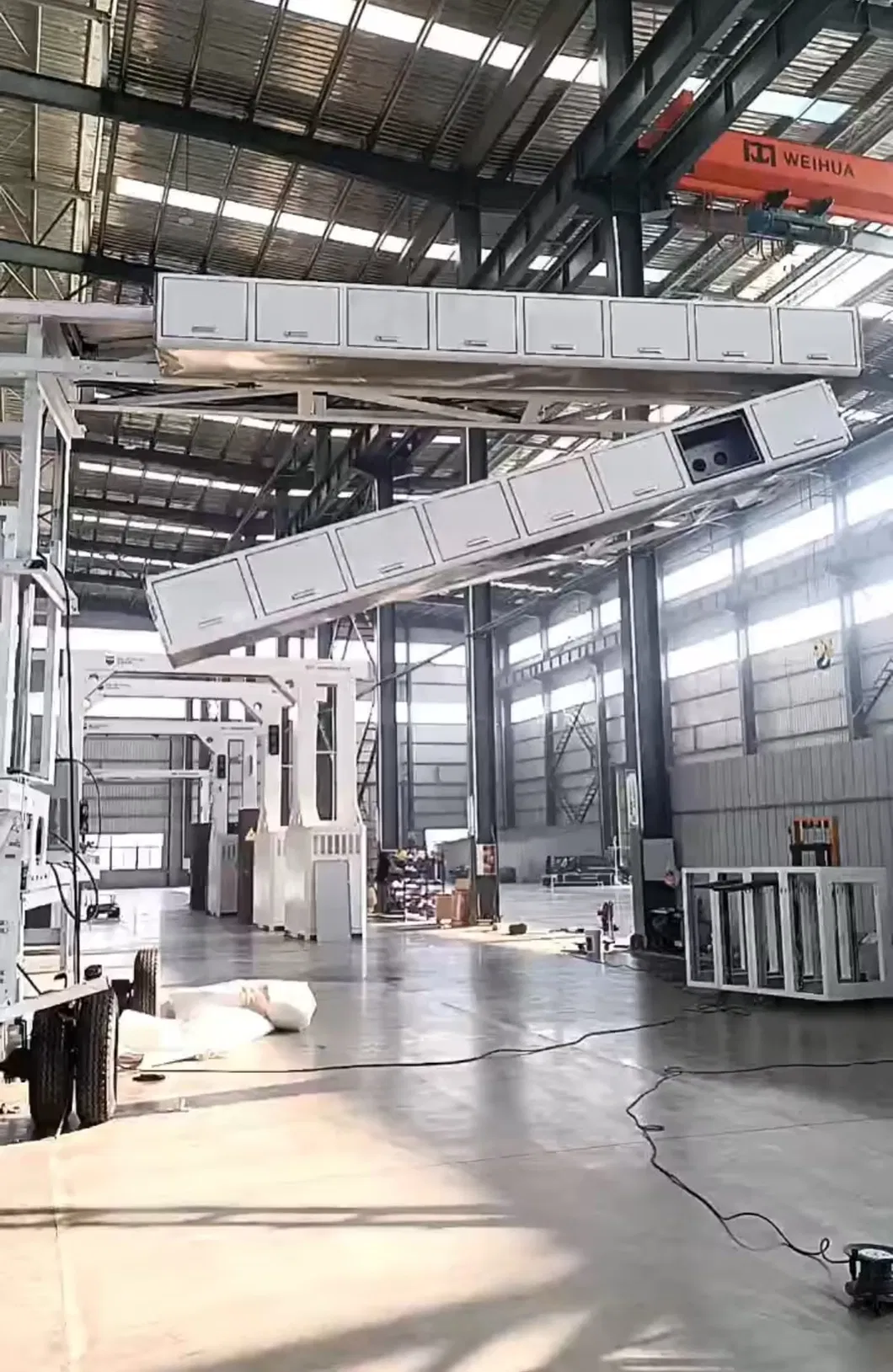

Applications & Factory

❓

Frequently Asked Questions

Q1: How many vehicles can be inspected per hour?

In standard mobile scanning mode, up to 60 vehicles can be inspected hourly. In the fast-through scanning mode, the capacity increases to 100 vehicles per hour.

Q2: What is the maximum penetration capability of the X-ray?

The system utilizes an adjustable 4-7.5 MeV energy source, allowing it to penetrate up to 330mm of steel plate for detailed inspection of container contents.

Q3: Does the system detect radioactive materials?

Yes, the equipment is equipped with automatic radioactivity detection (ARDmu), which simultaneously performs X-ray examination and analysis to detect radioactive gamma and neutron materials.

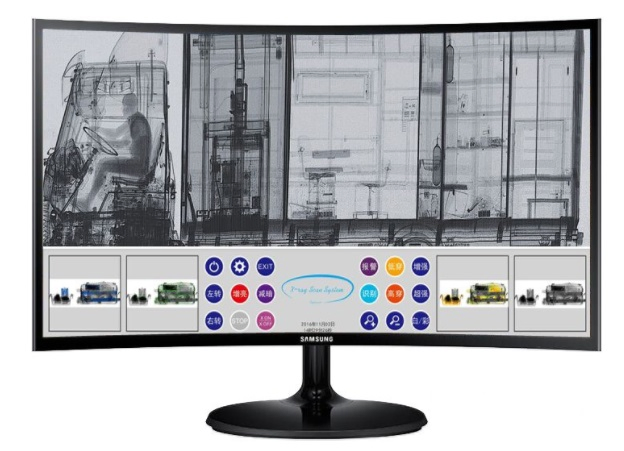

Q4: What are the software's image processing capabilities?

The software includes edge enhancement, image inversion, histogram equalization, organic/inorganic matter removal, and real-time video, all displayed on a high-resolution LCD monitor.

Q5: What is the warranty and after-sales support period?

We provide a 12-month free warranty upon equipment acceptance, including free parts and services. Additionally, we offer 5 years of technical consulting services after the warranty period expires.

Q6: What certifications does the inspection system comply with?

The system is fully compliant with ISO9001, ISO14001, CE certification, and radiation safety standards from the World Health Organization and local regulations.
