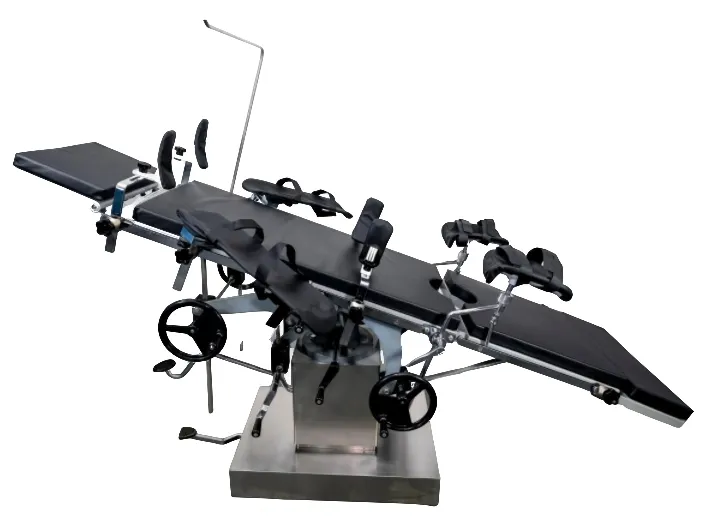

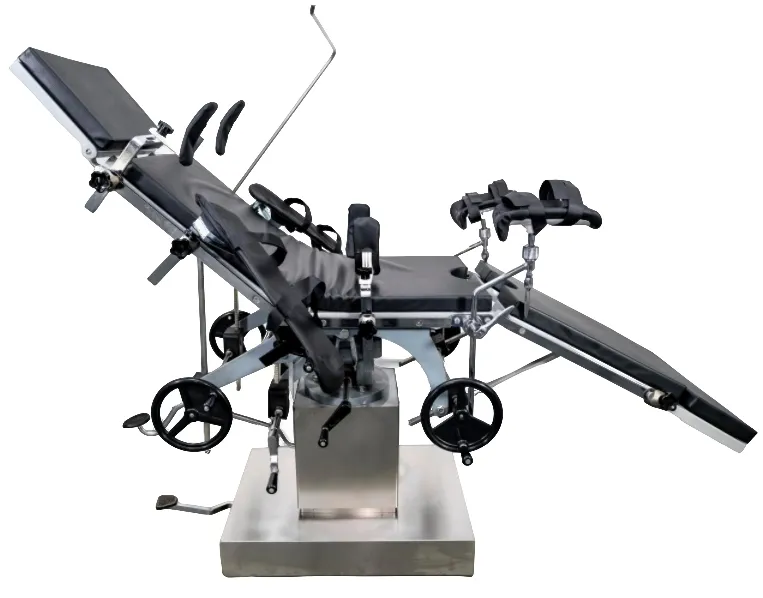

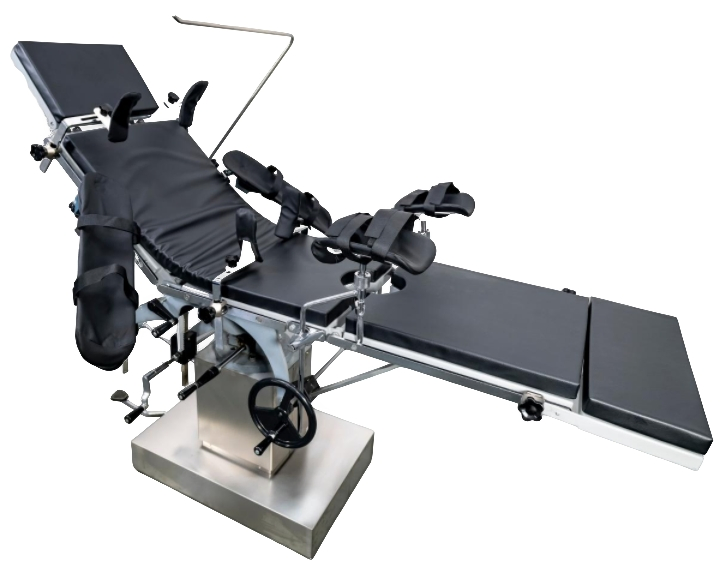

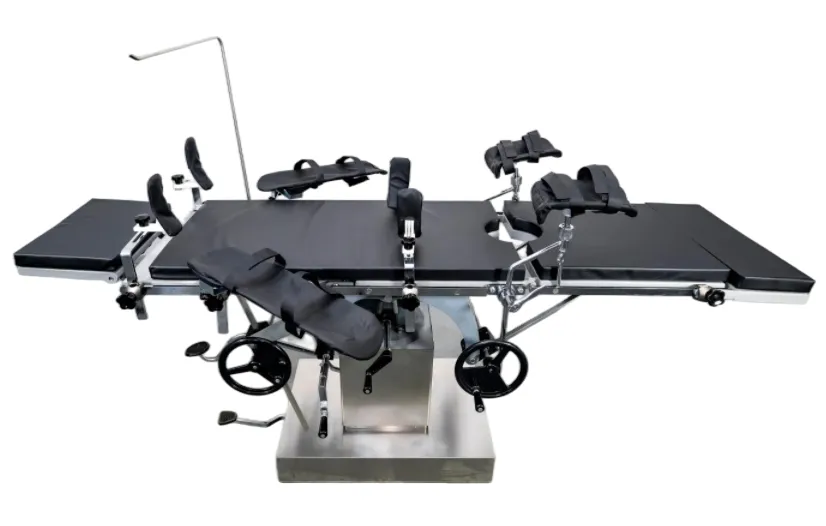

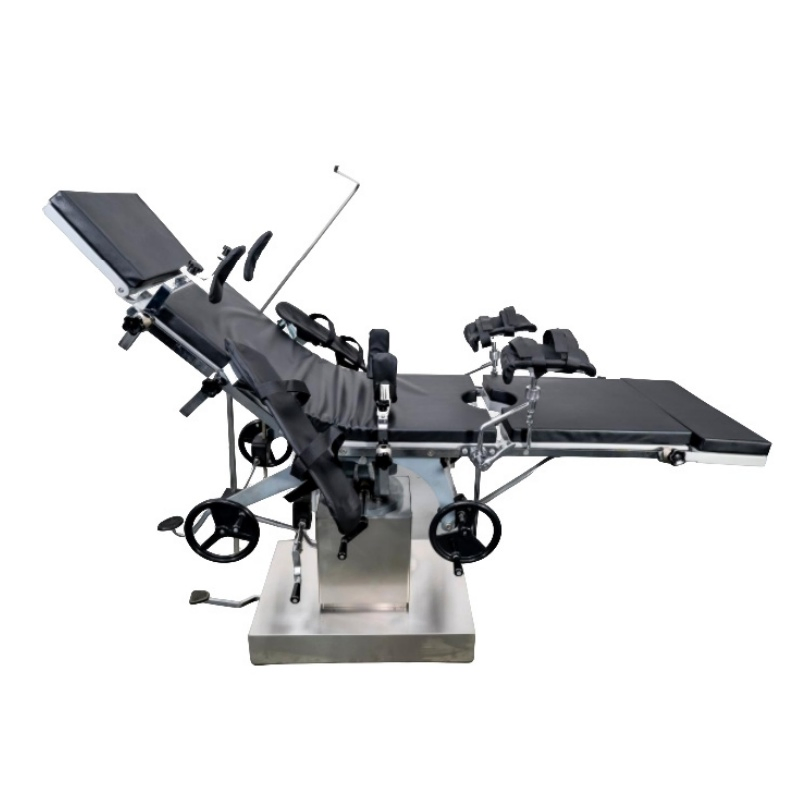

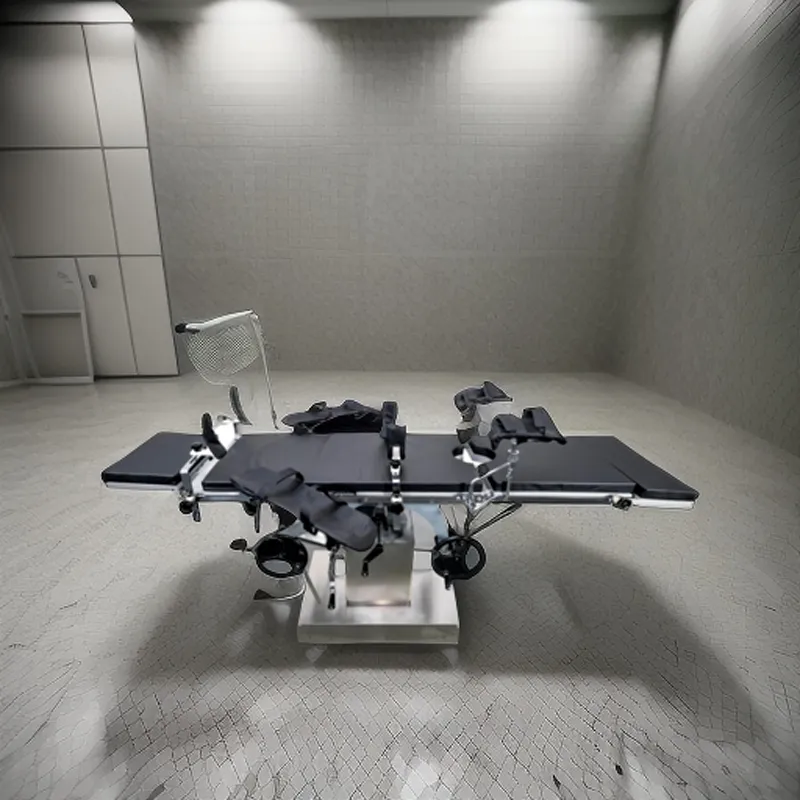

Side-operated comprehensive operating table
01. Dual Control: One back plate adjustment handwheel and one leg plate control handwheel are provided on both the left and right sides of the table, ensuring accessibility from either side.

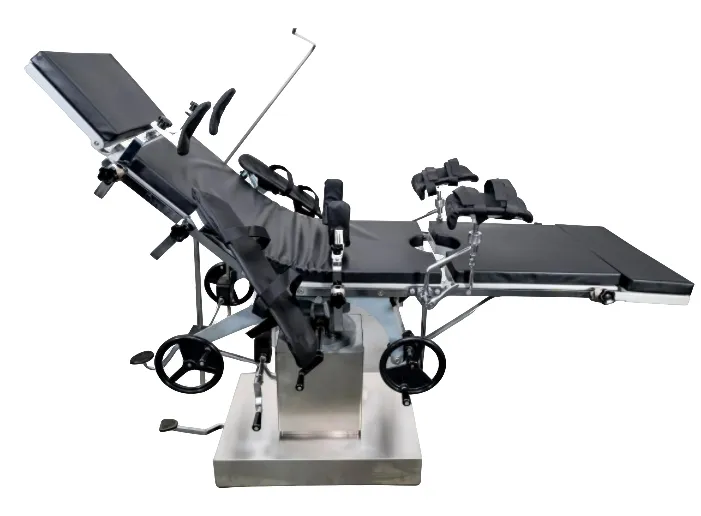

02. Precision Adjustment: Includes a side tilt adjustment crank and a lumbar adjustment crank for precise positioning of the table and lumbar board.
03. Versatile Handle: The forward and backward tilt adjustment handle is interchangeable between the left and right sides for operational flexibility.

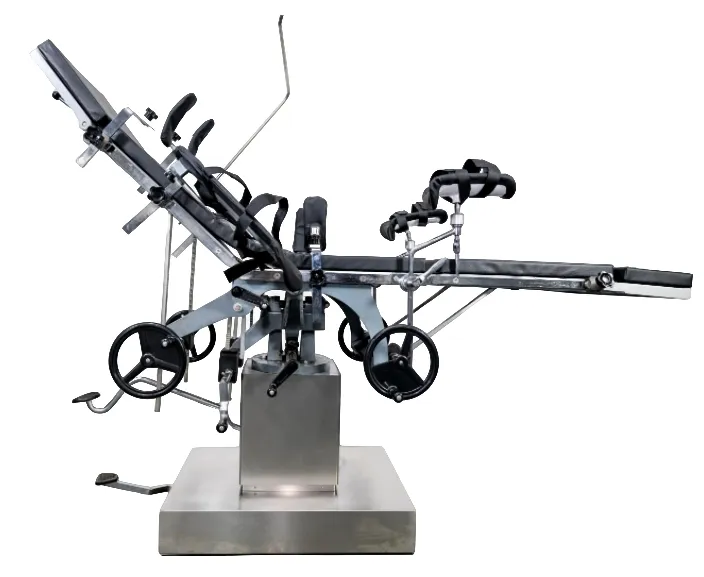

04. Hydraulic System: Lifting and lowering are powered by a high-quality oil pump structure with imported hydraulic tamping. A continuous foot pedal operation allows for smooth rising, while a release mechanism facilitates controlled lowering.
05. Mobility & Stability: Equipped with swivel casters for effortless movement. The integrated landing mechanism allows for secure ground fixation or quick movement using the same foot control.
| Table Front/Back Tilt Angle | Front tilt ≥55°, Back tilt ≥35° |
| Table Left/Right Tilt Angle | Left tilt ≥25°, Right tilt ≥25° |
| Back Plate Folding Angle | Upward ≥85°, Downward ≥10° |
| Table Surface Specification | Length ≥2100mm, Width ≥480mm |
| Minimum Table Height | ≤800mm (without mattress) |
| Waist Plate Rise | ≥120mm |
| Leg Plate Folding Angle | Downward bend ≥90° |
| Lifting Stroke | ≥240mm |
| Head Plate (260x400) | Up/Down ≥90°, Extendable or Removable |
