Basic Specifications
Model NO.A301
NameElectric Operating Table
CertificationCE, FDA, ISO13485, ISO9001
Warranty2 Year
ServiceLifetime
Safe Working Load275kg
OriginJiangsu
HS Code94029000
Product Description

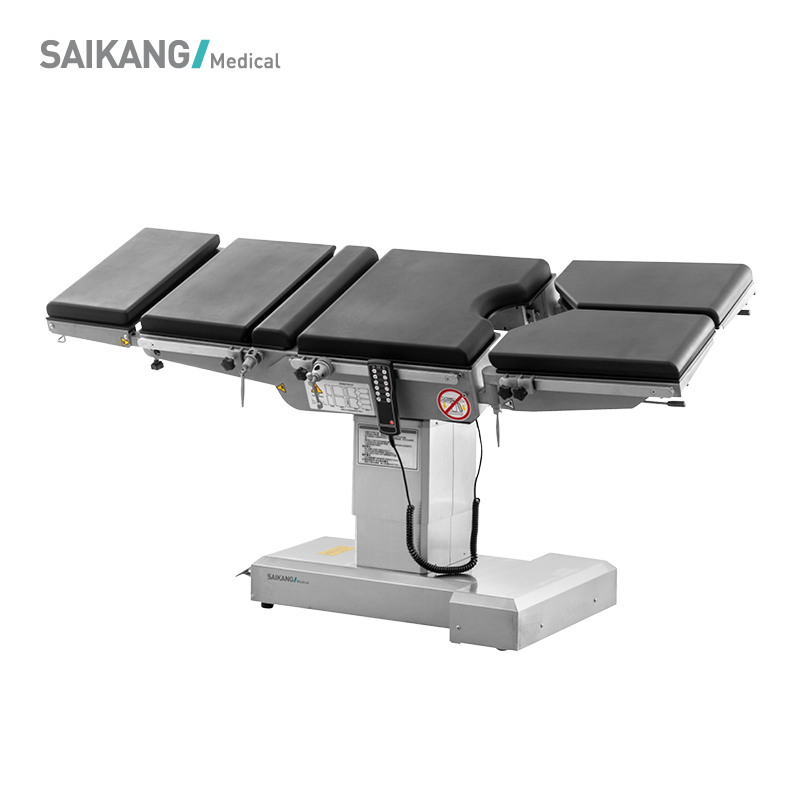

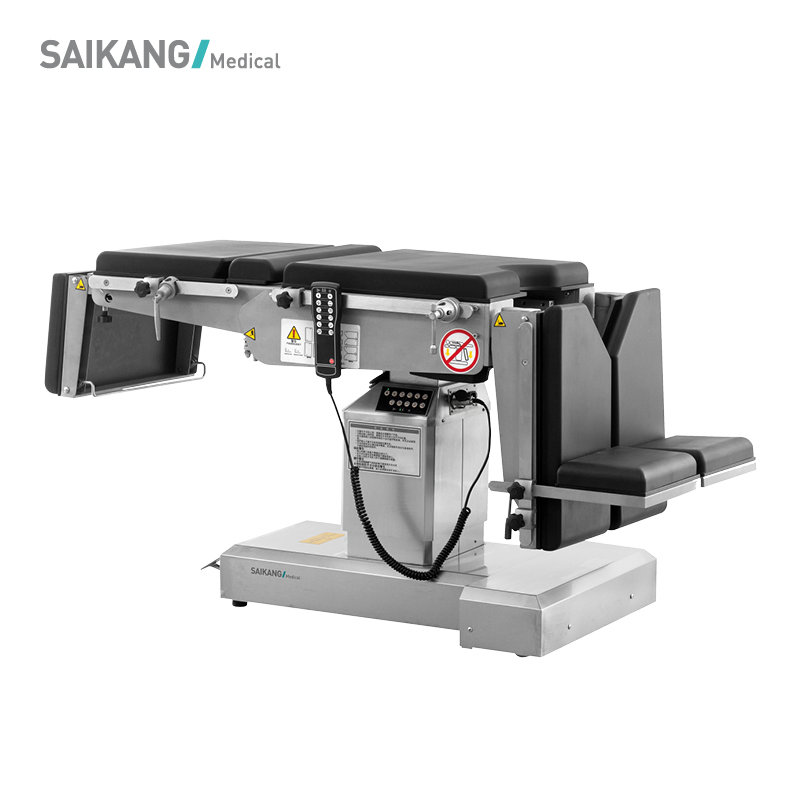

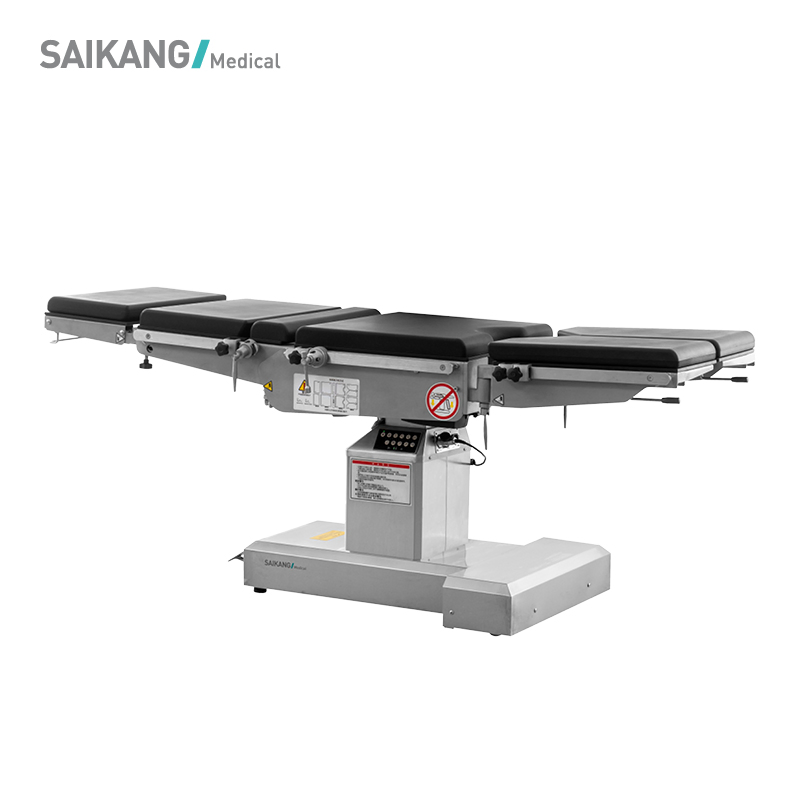

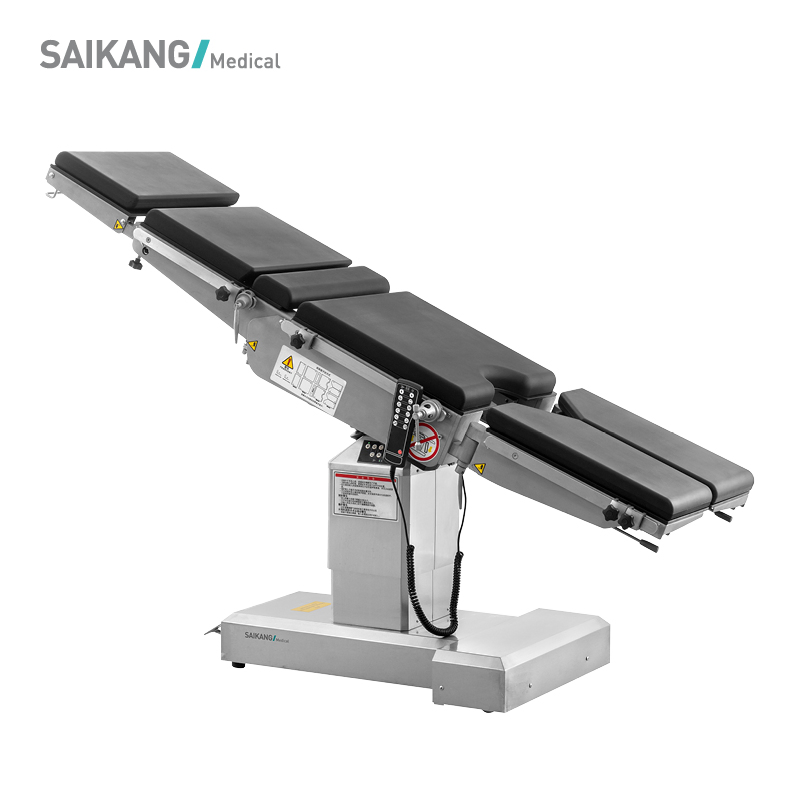

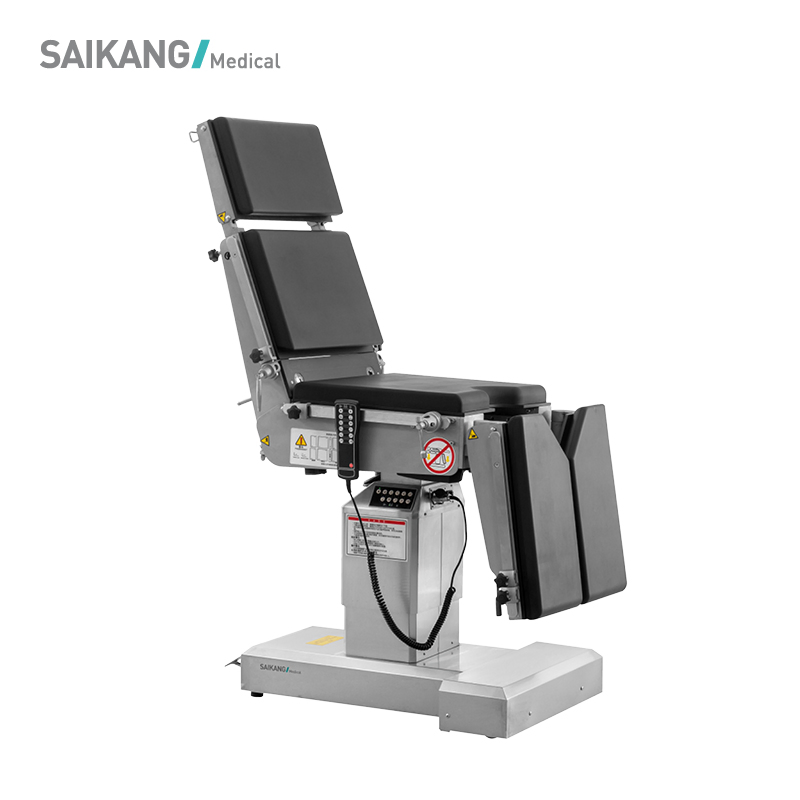

A301 Professional Stainless Steel Medical Treatment Equipment Multifunction Adjustable Electric Surgical Operating Table
Key Quality Control Features
◈
The base material is high thickness 304 stainless steel, seamlessed welding by robot for maximum stability and a modern appearance.
◈
Polyurethane foam mattress: waterproof, seamless, and easy to clean with buckle joints for quick disassembly.
◈

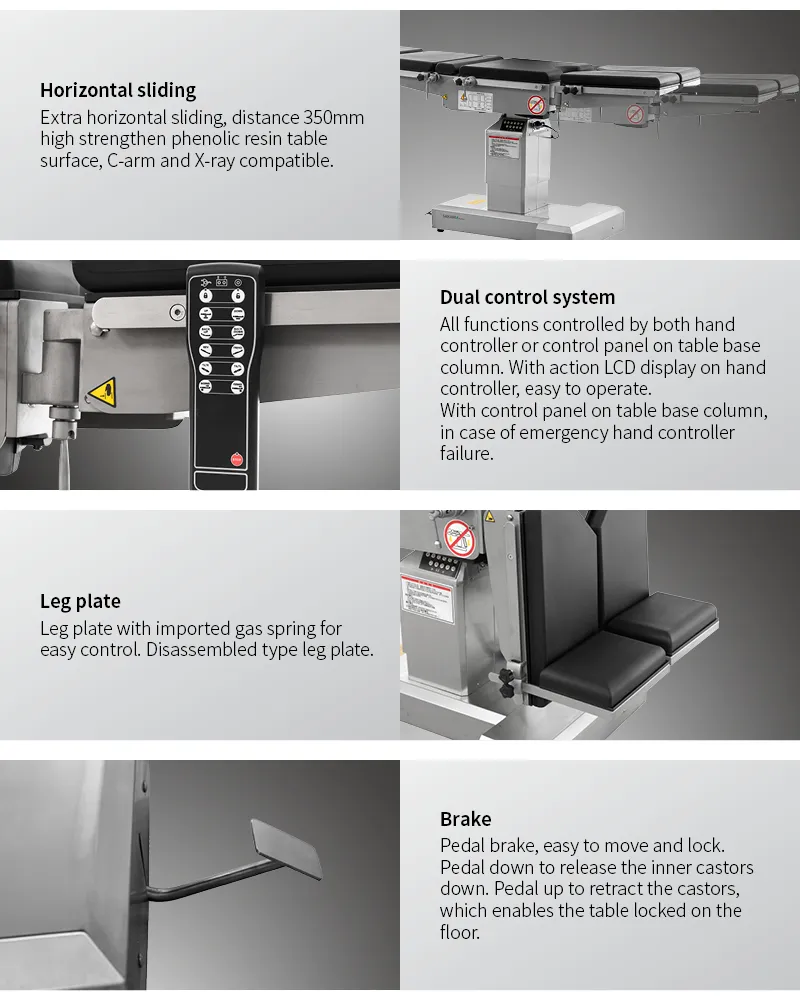

Head and leg plates utilize imported gas springs for smooth and effortless control.
◈
Dual control system: Operations can be managed via hand controller (with LCD display) or the emergency control panel on the base column.
◈
Advanced mobility: Pedal brake system allows for easy movement and secure floor locking.
◈
Imaging compatible: Features 350mm extra horizontal sliding, compatible with C-arm and X-ray imaging.
◈

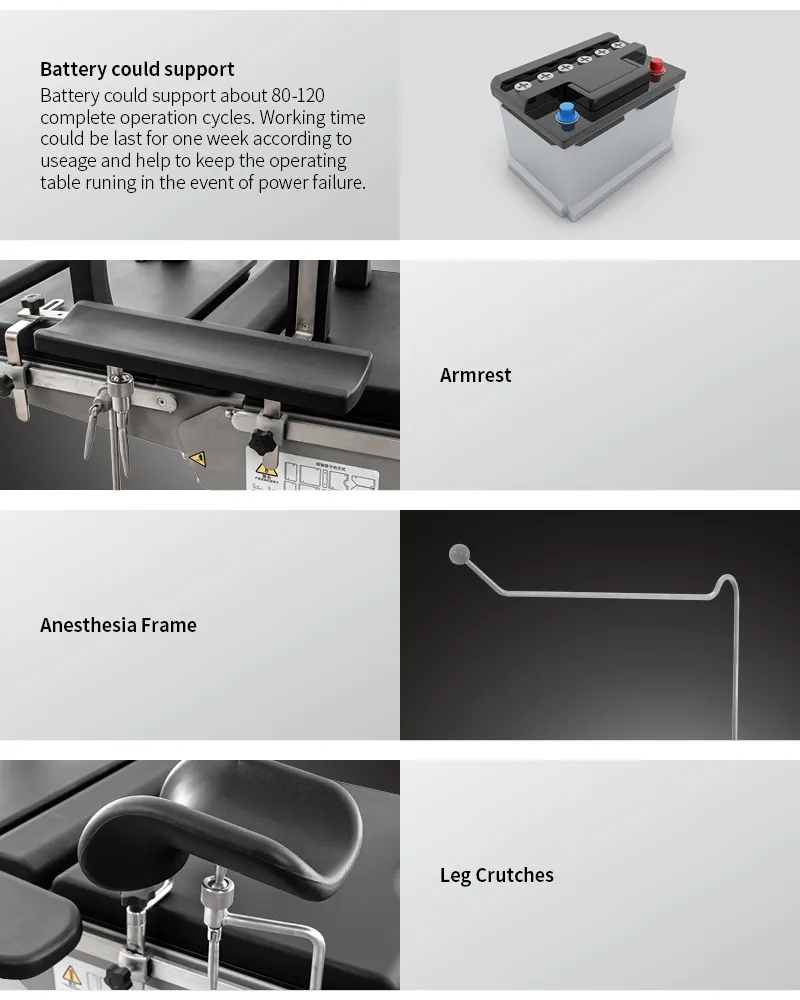

Emergency backup: Built-in battery supports 80-120 operation cycles in case of power failure.

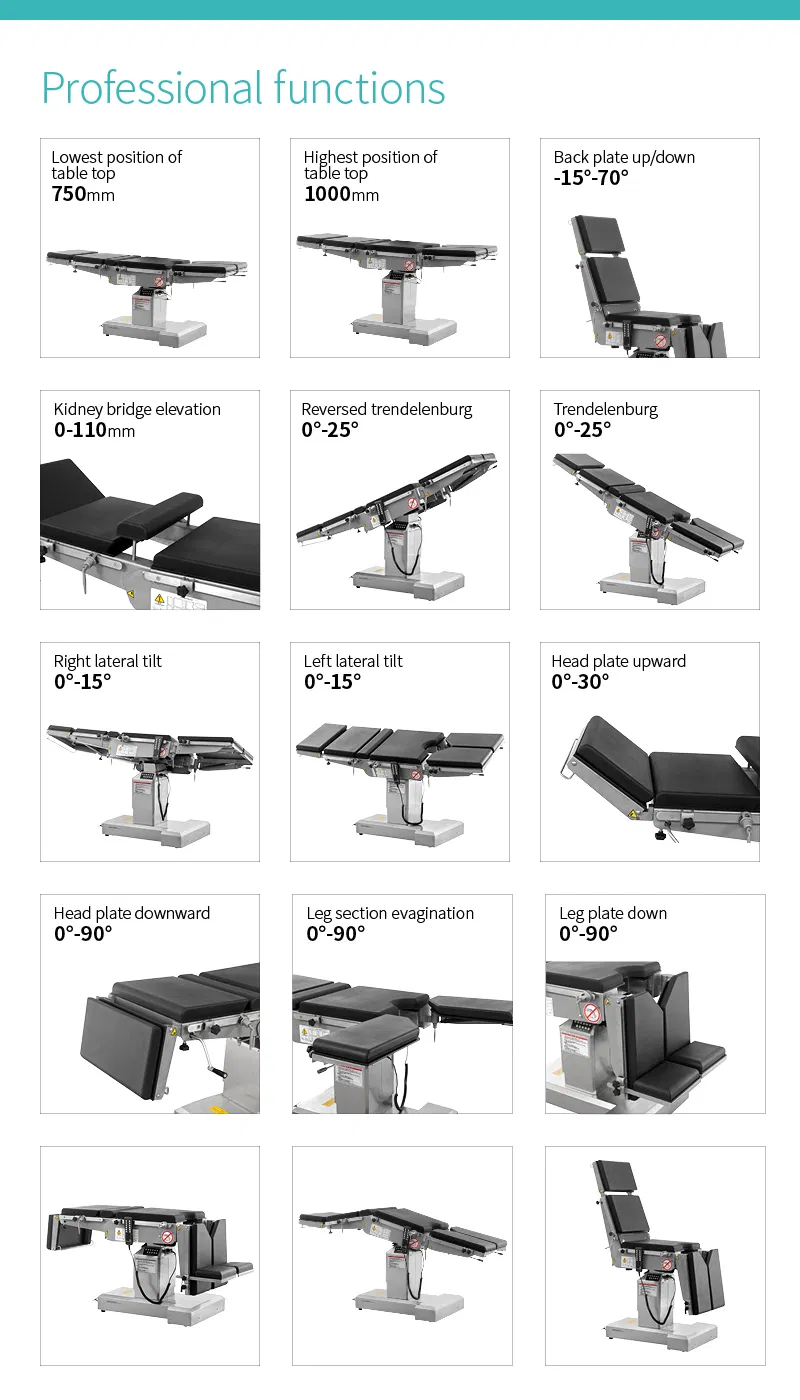

| Parameter |
Category Data |
| External size (LxWxH) | 2150x555x(750-1000)mm |
| Reverse trendelenburg | 0-25° |
| Head plate up/down | 30°/90° |
| Kidney bridge elevation | 0-110mm |
| Horizontal sliding | 0-350mm |
| Safe working load | 275kg |
Product Gallery
Frequently Asked Questions
Q1: What is the primary material used for the A301 operating table base?
The base is constructed from high-thickness 304 stainless steel with seamless robot welding for superior durability and hygiene.
Q2: Can this operating table be used for X-ray or C-arm procedures?
Yes, the table features a 350mm horizontal sliding range and is made of high-strength phenolic resin, making it fully C-arm and X-ray compatible.
Q3: How does the table function during a power outage?
The A301 is equipped with a built-in battery that supports approximately 80-120 complete operation cycles, ensuring continuous use during power failures.
Q4: What is the maximum weight capacity of the table?
The safe working load for the A301 electric operating table is 275kg.
Q5: Is the mattress easy to maintain and disinfect?
Yes, the polyurethane foam mattress is waterproof and seamless, preventing liquid ingress. It uses buckle joints for easy disassembly and cleaning.
Q6: What controls are available for adjusting the table's position?
The table can be controlled via a hand controller with an LCD display or through a backup control panel located on the table's base column for emergency use.
