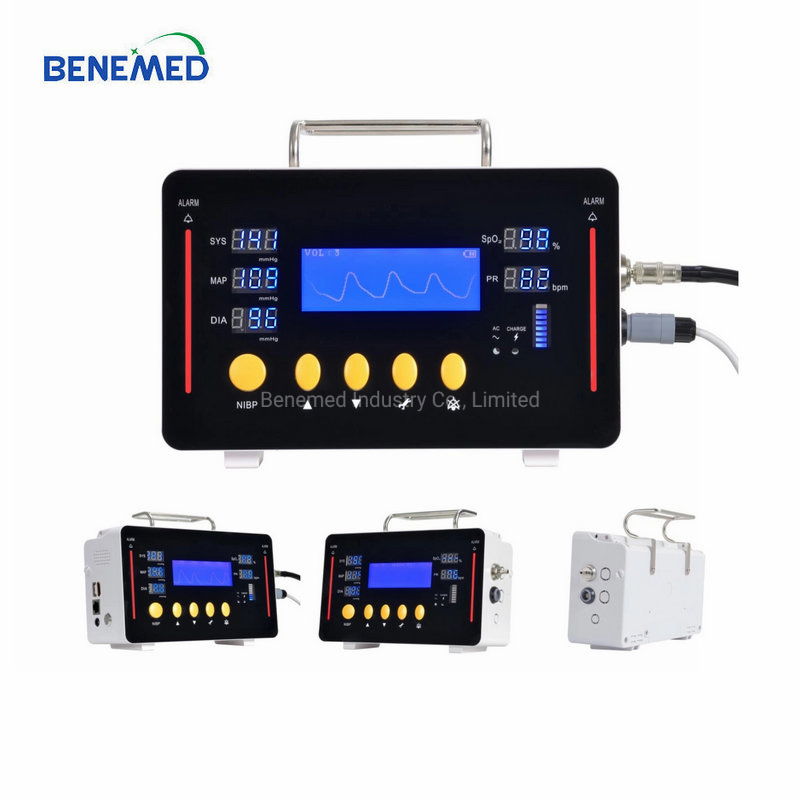

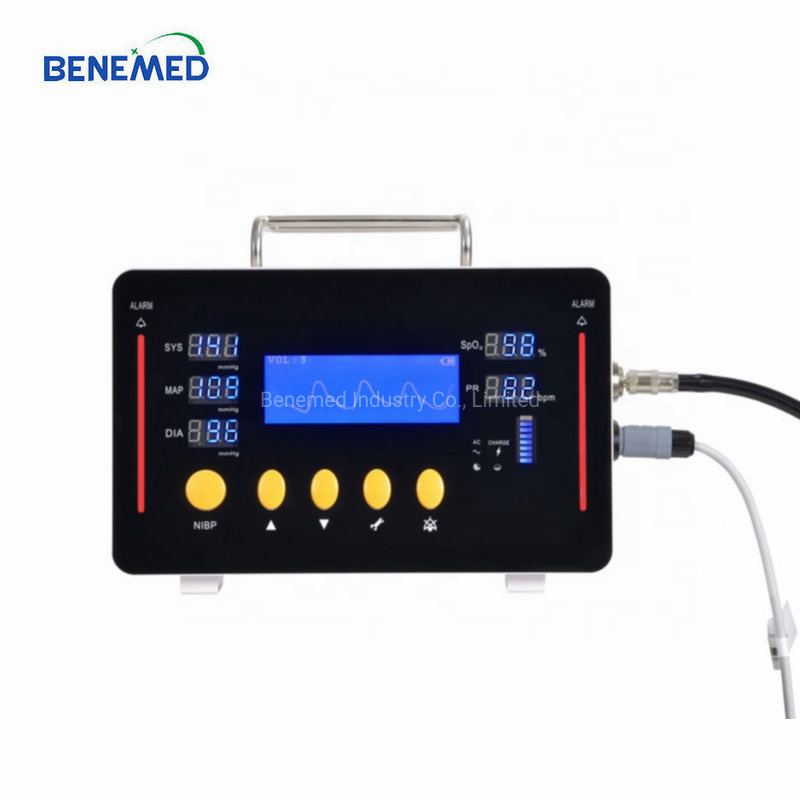

Portable NIBP SpO2 Medical Vital Signs Patient Monitor Bvm-8

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
BVM-8
Certification
CE, ISO13485
Group
Adult and Children
N.W.
1kg
LCD Size
85mm * 30mm
Parameter
SpO2, Pulse Rate, NIBP
Battery
Build in Rechargeable up to 15 Hours
Application
Adult, Pediatric, Infant, Neonate
Power
AC:100V-240V 50/60 Hz
HS Code
9018199000
Dimensions
210mm x 170mm x 75mm
Capacity
5000PCS Per Month

Product Description

Portable Vital Sign Monitor: NIBP, SPO2, RESP (BVM-8)
Portable Vital Signs Patient Monitor
1. Dimension and Weight
  • Dimension: 210mm×170mm×75mm
  • Net Weight: 1 kg
  • Display: LED + LCD (Size: 85mm * 30mm)
2. Power Supply
  • AC Power Adaptor: AC100 ~ 240V, 50/60Hz (Output 5VDC, 4A)
  • Battery Type: Rechargeable Lithium battery 3.7V/2200mAh
  • Cycle Life: ≥500 times
  • Working Time: 3 hours (Optional large battery for 8-9 hours)
3. Monitoring Parameters

NIBP (Oscillometric Method):

  • Modes: Manual, Auto (1~480 min interval), STAT (5 mins cycle)
  • Adult Range: SYS 30~270 mmHg, DIA 10~220 mmHg
  • Pediatric Range: SYS 40~235 mmHg, DIA 10~220 mmHg
  • Neonate Range: SYS 30~135 mmHg, DIA 10~110 mmHg
  • Accuracy: Max Mean error ±5mmHg

SpO2 & Pulse Rate:

  • SpO2 Range: 0 ~ 100% (Accuracy ±2% for 80-100%)
  • Pulse Rate Range: 25 ~ 250bpm (Accuracy ±1bpm)
  • PI Range: 0.075% ~ 20%
4. Features & Review
  • Trend Review: 100 hours of patient SpO2 trend
  • NIBP Review: 500 groups of measurements
  • Alarm: Low, Medium, High levels (Auditory and Visual)
  • System Output: RJ45 Ethernet port, USB Port

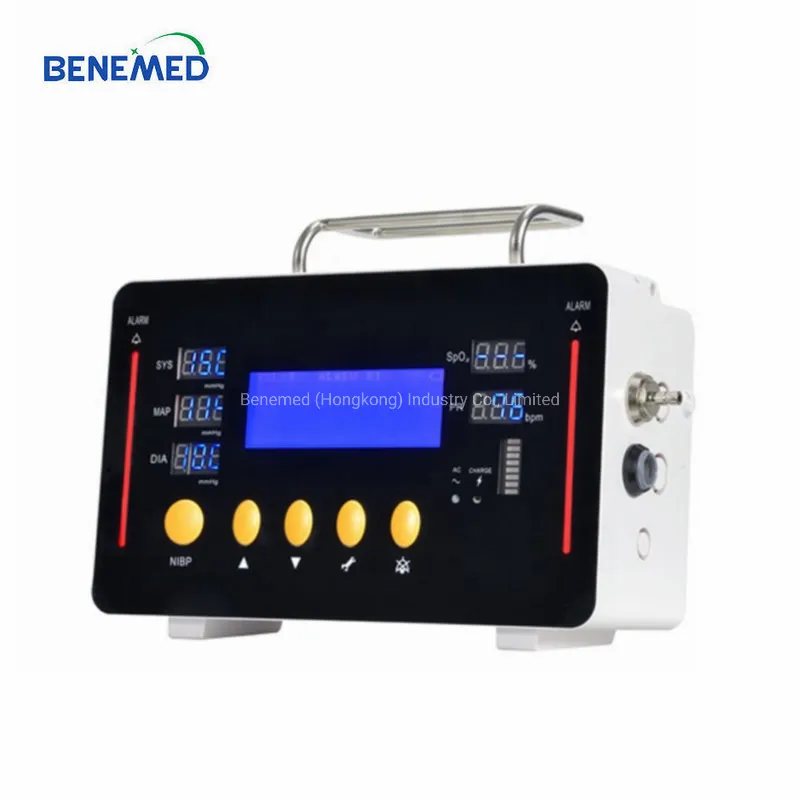

Monitor View 1

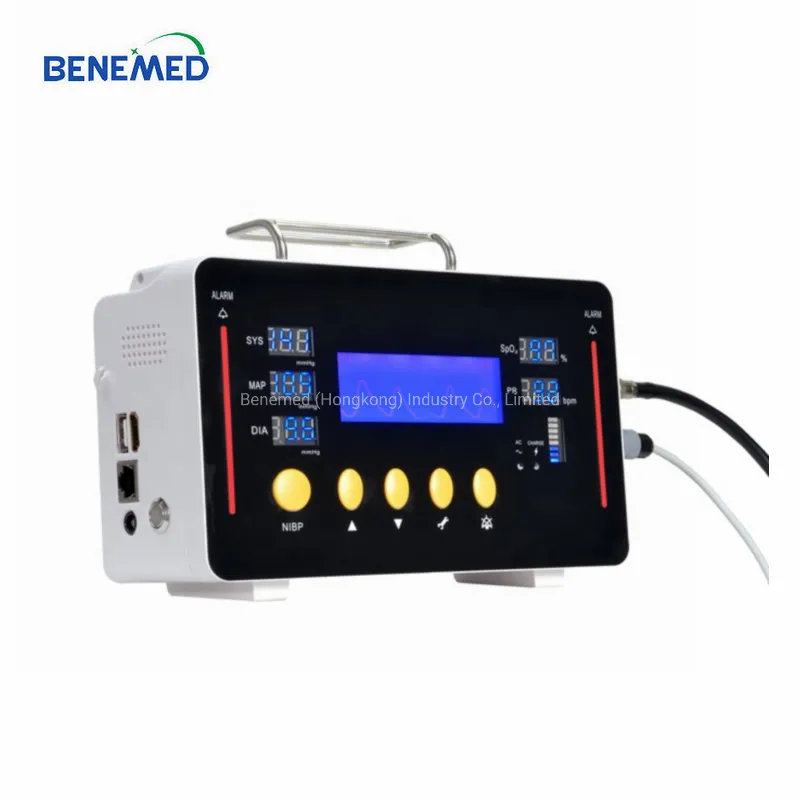

Monitor View 2
Monitor View 3
Monitor View 4
Monitor Detail Strip
Monitor Packaging

Frequently Asked Questions

What are the main parameters monitored by BVM-8?
The BVM-8 monitor tracks vital signs including SpO2 (Oxygen Saturation), Pulse Rate (PR), and NIBP (Non-Invasive Blood Pressure).
Is this device suitable for all age groups?
Yes, it is designed for a wide range of patients, including adults, pediatric patients, infants, and neonates.
How long does the battery last?
The standard built-in rechargeable battery supports up to 3 hours of operation. There is an optional large battery available that extends working time to 8-9 hours, with certain configurations supporting up to 15 hours.
How many blood pressure records can it store for review?
The system can store and review up to 500 groups of NIBP measurement data and 100 hours of SpO2 trends.
What kind of display does the BVM-8 have?
It uses a combined LED and LCD display system. The LCD screen size is 85mm * 30mm for clear parameter reading.
What are the safety features for blood pressure monitoring?
It features dual over-pressure protection through both software and hardware to ensure patient safety during NIBP measurements.
