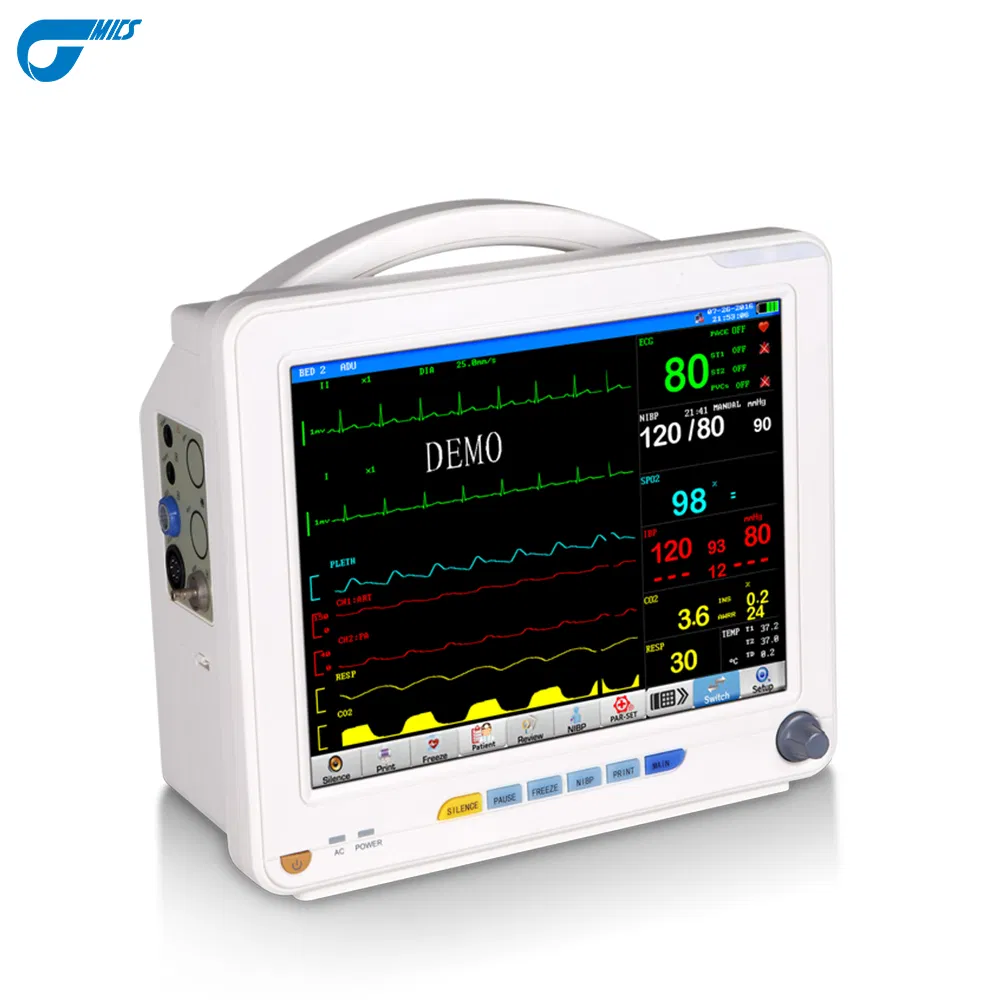

Medical Equipments Portable Multi-Parameter ICU Patient Monitor

1 / 5

Medical Equipments Portable Multi-Parameter ICU Patient Monitor

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

Alps PM100A

Certification

ISO13485

Product

Patient Monitor

Screen

12 Inch TFT LCD

Power Supply

Built-in Battery

Warranty

1 Year

Color

White

Specification

31*29*15cm

Product Description

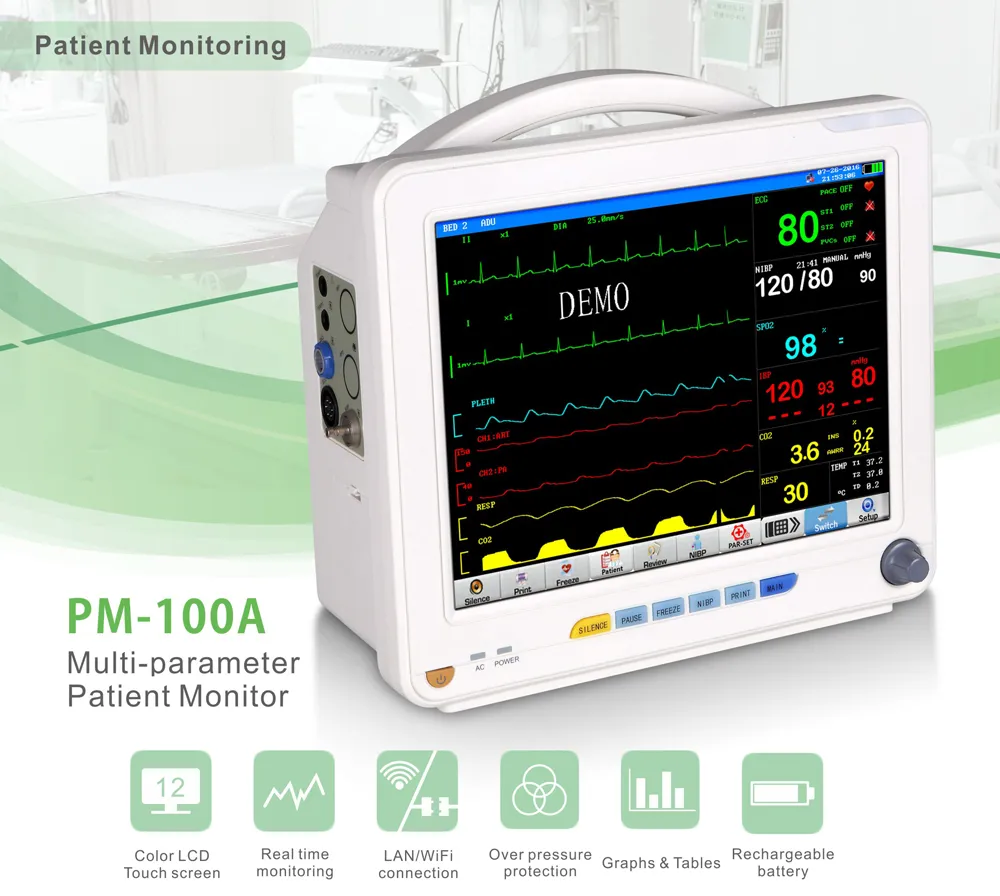

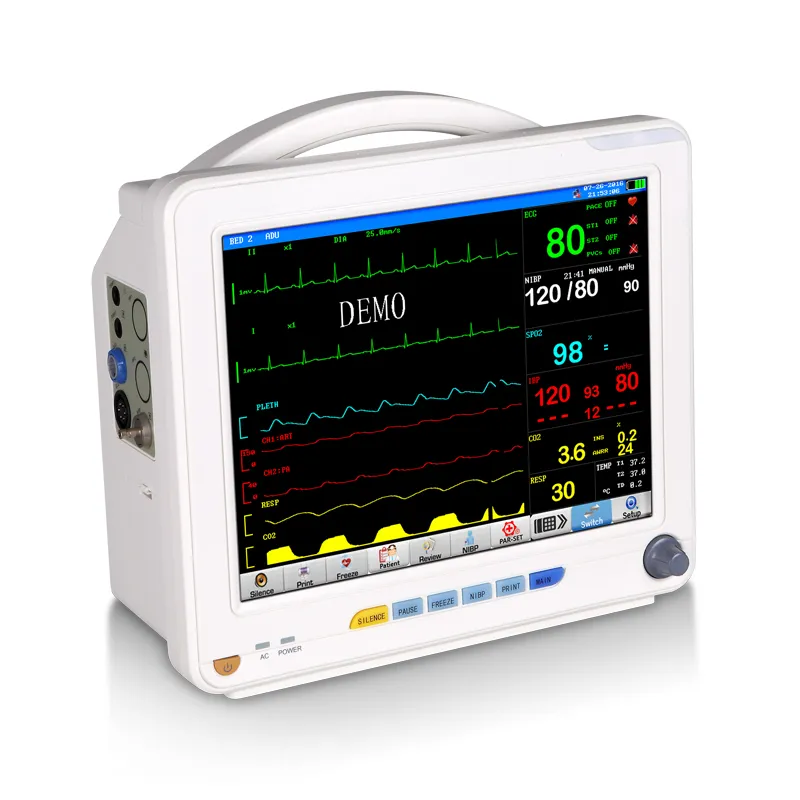

Portable Multi-Parameter ICU Patient Monitor

Key Features

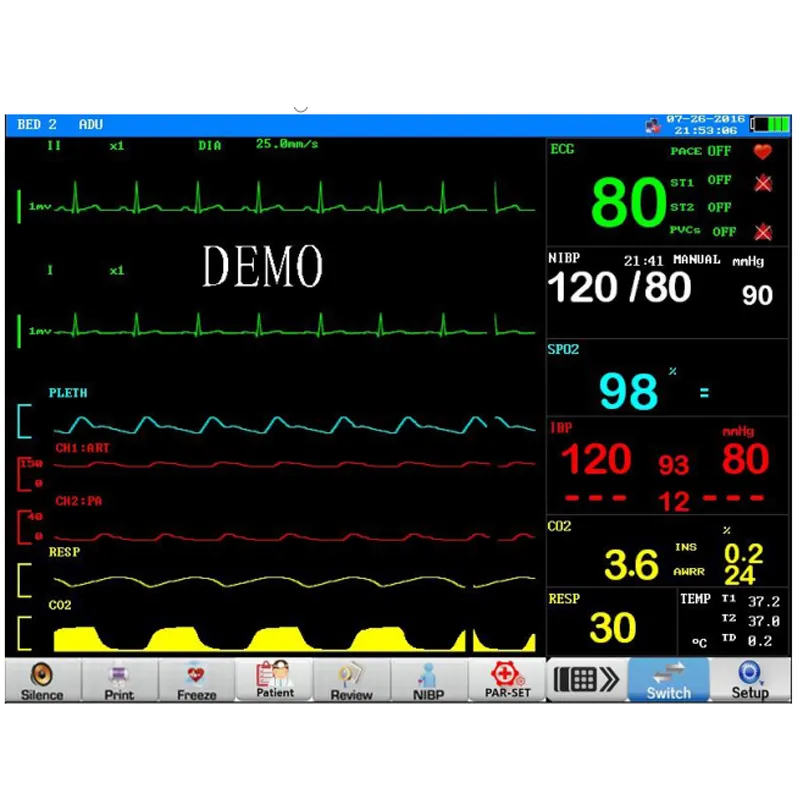

12 inch high brightness (800x600) colorful TFT LCD
Simultaneous display of 7 lead ECG waveform
Protection against defibrillation and ESU interference
New SPO2 technology for precise measurement
Real-time ST segment arrhythmia analysis
168 hour graphic and tabular trend data storage
Efficient power management without electric fan (low noise)
Networking capacity for up to 66 beds to connect with HIS
750 group NIBP data recall and display

Standard Configuration: ECG, NIBP, SpO2, PR, RESP., TEMP., HR

Optional Configuration: 1/2/4 IBP, EtCO2, multi gas, CO, 12 lead ECG, thermal recorder, touch screen, WiFi, HDMI, USB, VGA

Technical Parameters

ECG Monitoring

Lead Mode: 5 Leads (R, L, F, N, C)
Lead selection: I, II, III, avR, avL, avF, V
Gain: 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV, auto
HR Range: Adult: 15 ~ 300 bpm / Neo/Ped: 15 ~ 350 bpm
Accuracy: ± 1% or ± 1 bpm
Bandwidth: Surgery: 1-20Hz, Monitor: 0.5-40Hz, Diagnostic: 0.05-130Hz

SpO2 & Pulse Rate

Measurement Range: 0 ~ 100 %
Resolution: 1 %
Accuracy: 70% ~ 100%: ± 2%
Pulse Rate Range: 20 ~ 250 bpm
Pulse Accuracy: ± 3 bpm
Alarm Delay: 10 seconds

NIBP (Non-Invasive Blood Pressure)

Method: Oscillometric
Mode: Manual, Auto, STAT
Adult Mode: SYS: 40 ~ 280 mmHg, DIA: 10 ~ 220 mmHg
Pediatric Mode: SYS: 40 ~ 220 mmHg, DIA: 10 ~ 160 mmHg
Static pressure accuracy: ±3 mmHg
Overpressure Protection: Double safety protection

Respiration & Temperature

Resp. Method: Impedance between RA-LL
Resp. Range: Adult: 0 ~ 120 rpm / Neo: 0 ~ 150 rpm
Temp. Channel: 1 Channel
Temp. Range: 0 ~ 50 °C
Temp. Accuracy: ± 0.1 °C

Packaging & Shipping

Product dimension & weight:
Length×Width×Height: 310mm×290mm×150mm
Weight: 3.5 Kg

Package list:

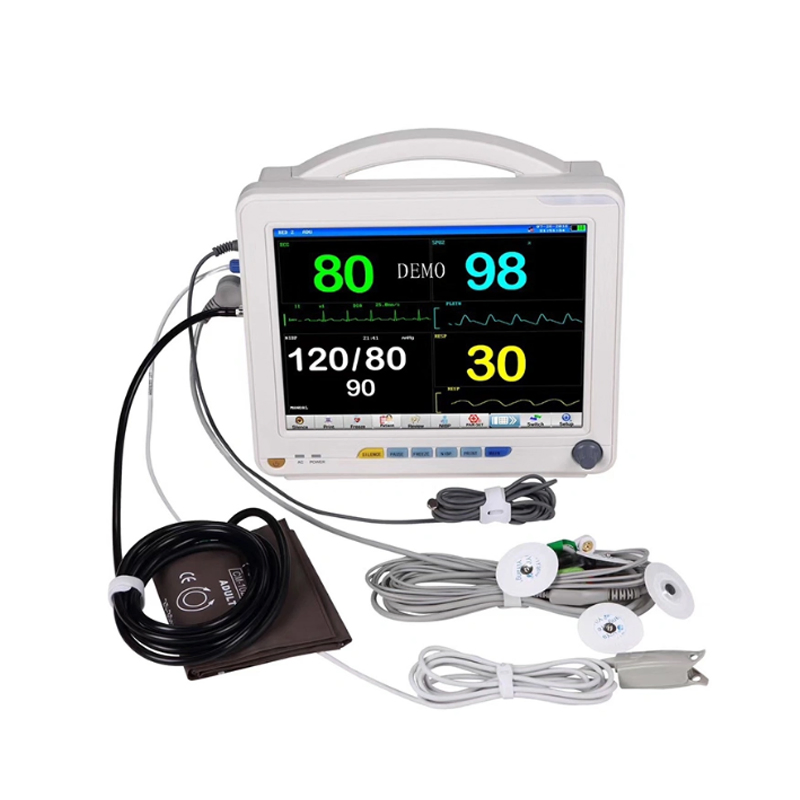

1* PM-100A Patient Monitor, 1* ECG Cable(5 Lead), 1* ECG Electrodes, 1* SpO2 Probe, 1* NIBP Cuff, 1* Temp Probe, 1* Extension tube, 1* Power Wire, 1* Grounding cable, 1* User manual

Packing: 1pc/carton, size: 39*37*30cm

Product Showcase

Frequently Asked Questions

What parameters does the PM100A monitor as standard?

The standard configuration includes ECG, NIBP (Non-invasive Blood Pressure), SpO2, Pulse Rate (PR), Respiration (RESP), Temperature (TEMP), and Heart Rate (HR).

Is this patient monitor suitable for all age groups?

Yes, it features specific modes and measurement ranges for Adult, Pediatric, and Neonatal patients, ensuring accurate monitoring for all.

Can the device be used during transport or power outages?

Absolutely. The Alps PM100A comes with a built-in battery, making it portable and reliable during internal hospital transport or in case of power failure.

What is the storage capacity for historical patient data?

The monitor can store up to 168 hours of graphic and tabular trend data, along with 750 groups of NIBP data for recall and analysis.

Does it support networking with central systems?

Yes, it has networking capacity for up to 66 beds, allowing it to connect with Hospital Information Systems (HIS) via optional WiFi or wired connections.

What is the warranty period for this device?

The product comes with a 1-year warranty and online technical support for after-sale service.
