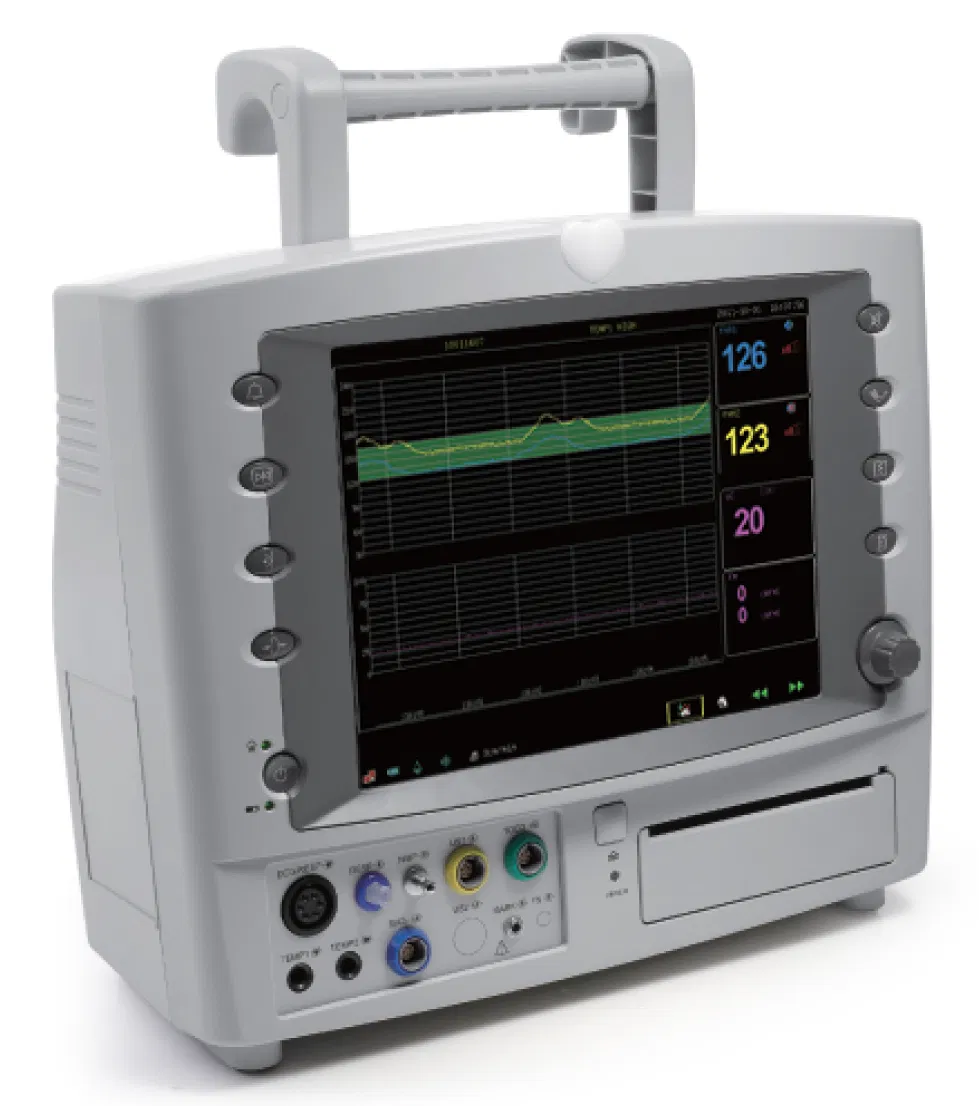

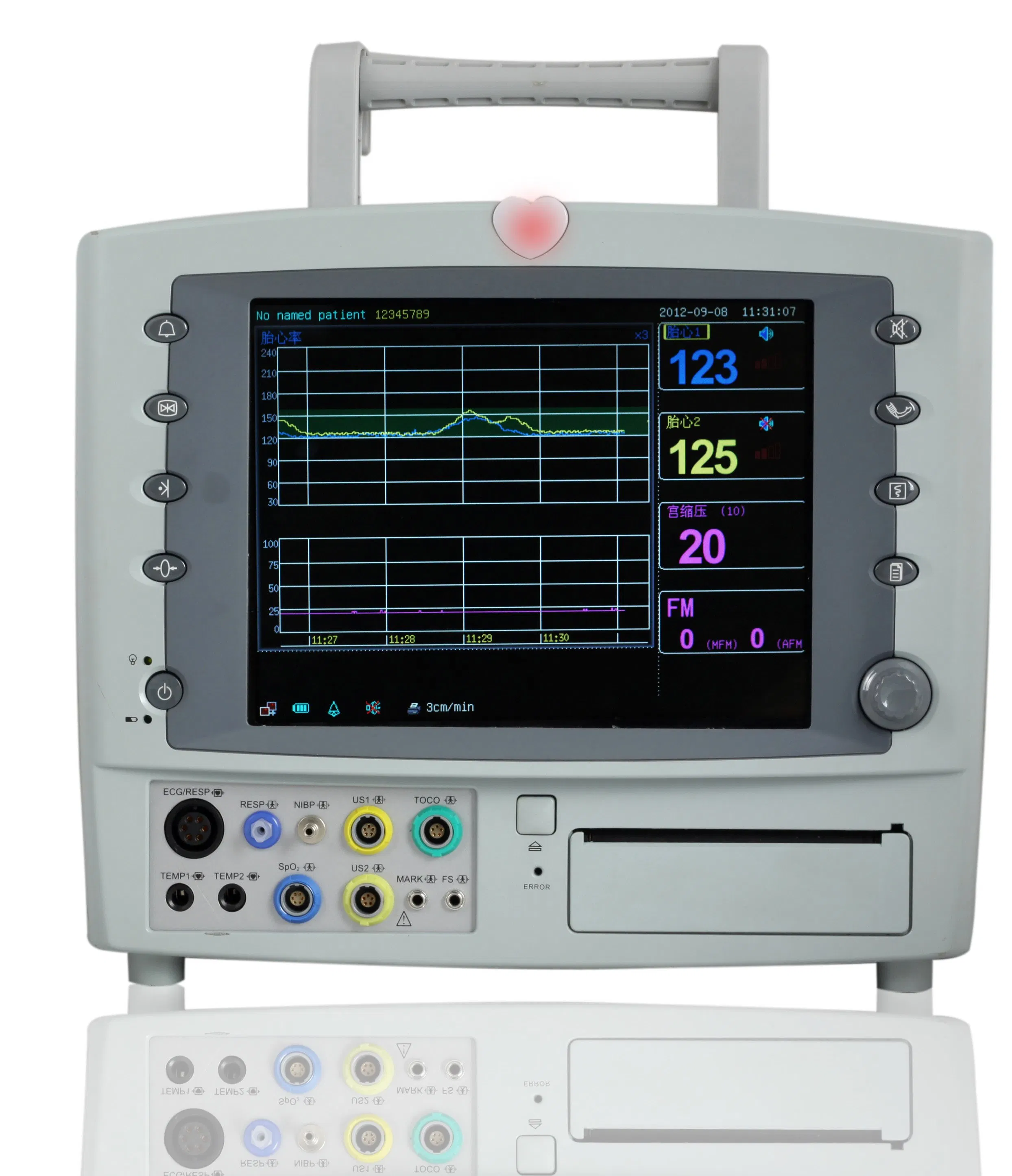

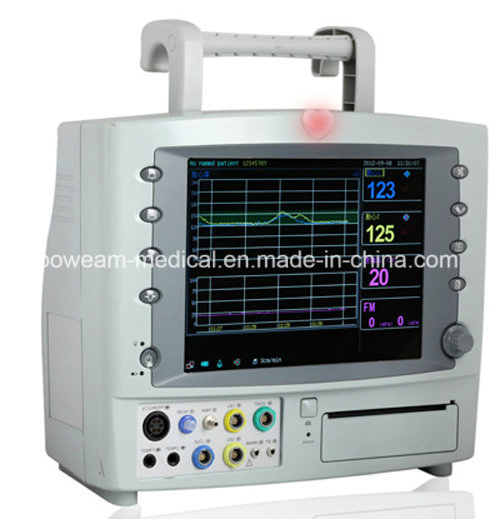

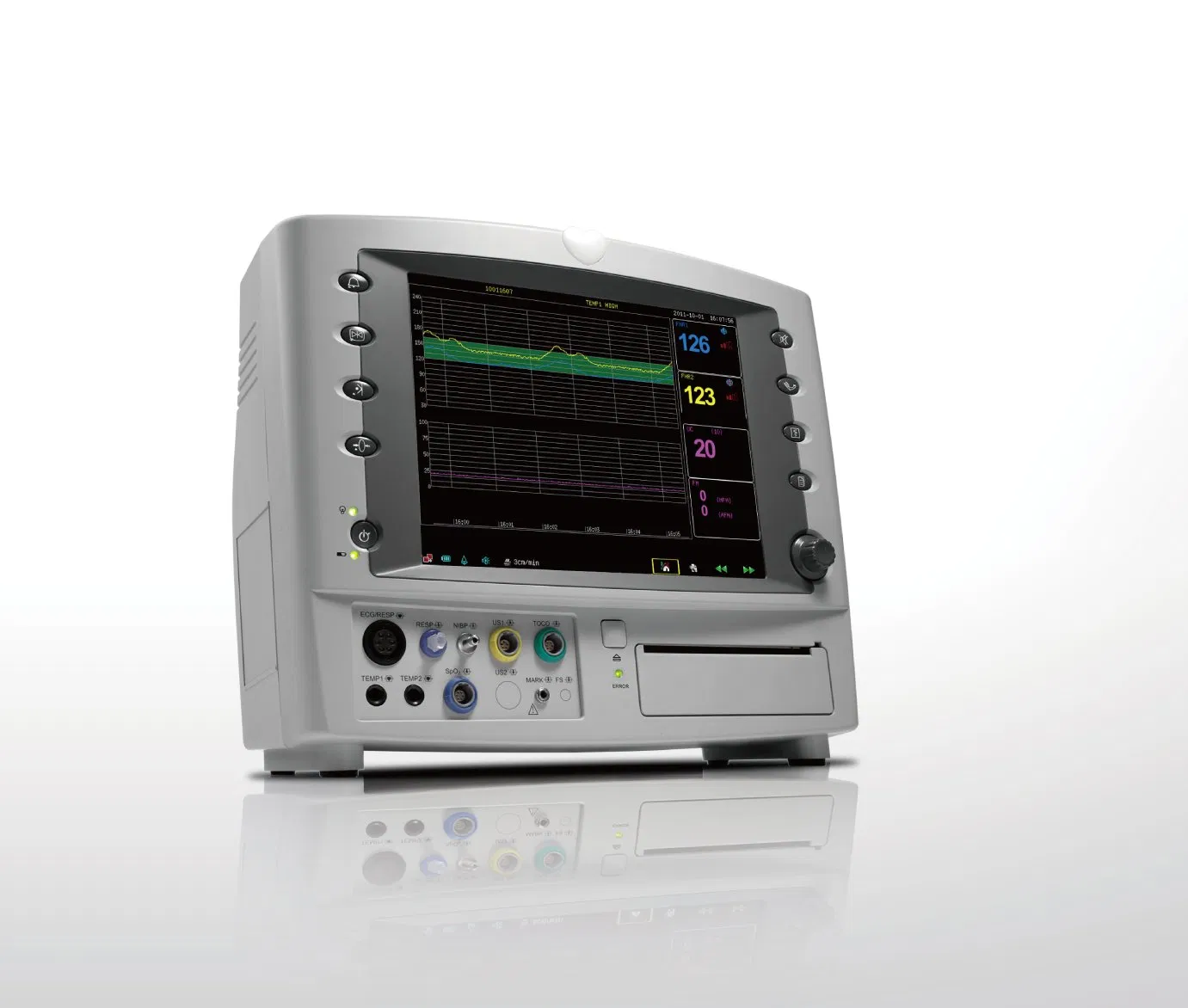

Portable Fetal Monitor, Fetal Doppler

Customization:	Available
Classification:	Patient/Fetal/Maternal Monitor
Type:	Patient Monitor

i

Basic Specifications

Model NO.

FM-10A

Certification

CE, FDA, ISO13485

Group

Infants and Young Children

Display

10.4 Inch Color TFT LCD Screen

Type Name

Fetal Monitor

Power Supply

100~240VAC, 50/60Hz

Measurement Range

30~240bpm

Printer Paper

Foldable Z-Type Thermal Paper

Origin

China

HS Code

90189090

★

Key Features

10.4 inch color TFT LCD screen with monitor wave and data display.
Monitor FHR (fetal heart rate), TOCO, FM (fetal movement) and FM waveform.
At least 24 hours CTG data storage, reviewable and printable after power off.
High-speed printing (25mm/s) of stored CTG data.
Selectable print speeds: 1cm/min, 2cm/min, 3cm/min, 25mm/sec.
Audio and visual alarms with adjustable lightness and volume.
Display/offset print of Twins FHR waveform.
3 display modes: Fetal, Fetal & Maternal, Maternal emphasis.
Built-in rechargeable high energy battery.
Independent network function supporting remote, wireless, and wired central monitor networks.

⚙

Technical Parameters

FHR (Fetal Heart Rate)	Ultrasound frequency	1MHz ± 1KHz
	Measurement range	30~240bpm
	Resolution	± 1bpm
	Alarm limit	Up/Lower limit (30~240)bpm, ± 5%
TOCO	Range	0~100%
	Resolution	1%
	Zero-mode	Manual/Adjustable base-line
Fetal Movement	Manual and auto fetal movement mark & waveform
Printer	Foldable Z-type thermal paper, 110mm/152mm width

📋

Product Profile

This fetal monitor system represents professional-grade medical instrumentation designed for life support and patient monitoring. Our technical focus ensures high-quality diagnostics with international advanced levels, servicing healthcare providers globally.

With a commitment to excellent quality and strict QC steps, the equipment meets suitable quality standards required for sensitive medical environments. We provide comprehensive training and backup for equipment installation, supported by qualified technical engineers to ensure optimal performance at all times.

🖼
