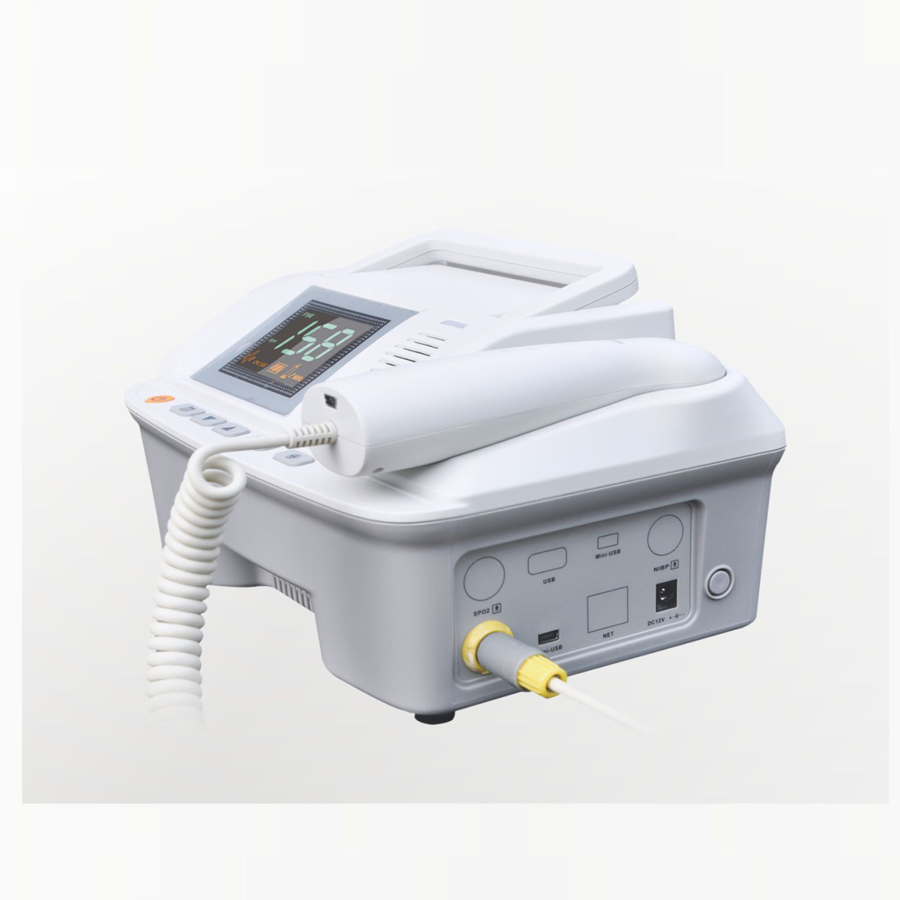

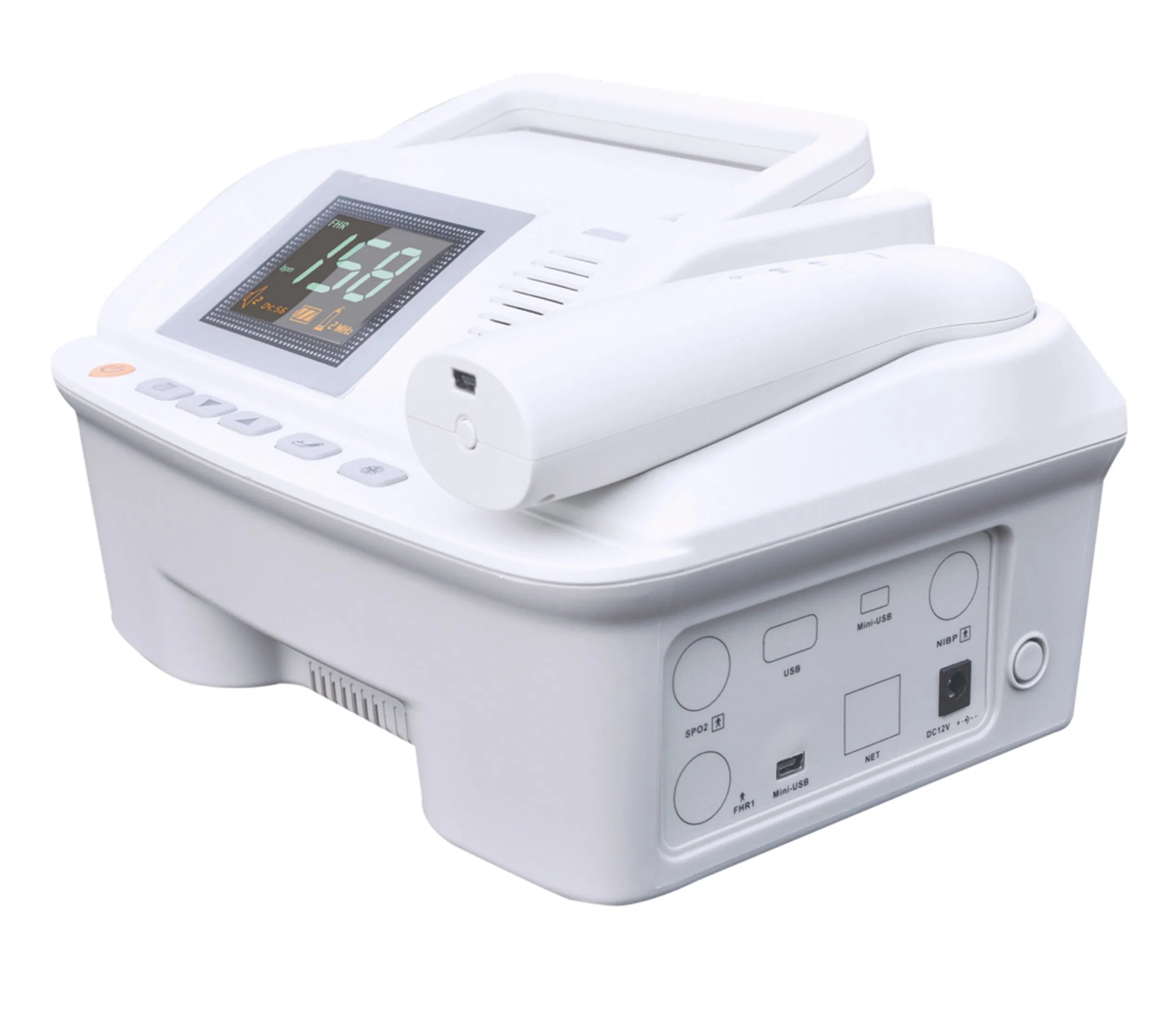

Ms-Fd500 Fetal Doppler Ultrasound Baby Heart Monitor
Ms-Fd500 Fetal Doppler Ultrasound Baby Heart Monitor
Ms-Fd500 Fetal Doppler Ultrasound Baby Heart Monitor
Ms-Fd500 Fetal Doppler Ultrasound Baby Heart Monitor
Ms-Fd500 Fetal Doppler Ultrasound Baby Heart Monitor
1 / 5
Ms-Fd500 Fetal Doppler Ultrasound Baby Heart Monitor
Ms-Fd500 Fetal Doppler Ultrasound Baby Heart Monitor
Ms-Fd500 Fetal Doppler Ultrasound Baby Heart Monitor
Ms-Fd500 Fetal Doppler Ultrasound Baby Heart Monitor
Ms-Fd500 Fetal Doppler Ultrasound Baby Heart Monitor

Ms-Fd500 Fetal Doppler Ultrasound Baby Heart Monitor

Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Type: Patient Monitor
Certification: CE, FDA, ISO13485
Send Inquiry

Product Description

Basic Info

Model NO.:MS-FD500
Group:Infants and Young Children
G.W:800g
N.W:600g
Transport Package:5 PCS in Carton
Specification:390*310*640mm
Trademark:Customized
Origin:China
HS Code:9018193010
Production Capacity:1000PCS/Year

Product Description

MS-FD500 Fetal Doppler 1

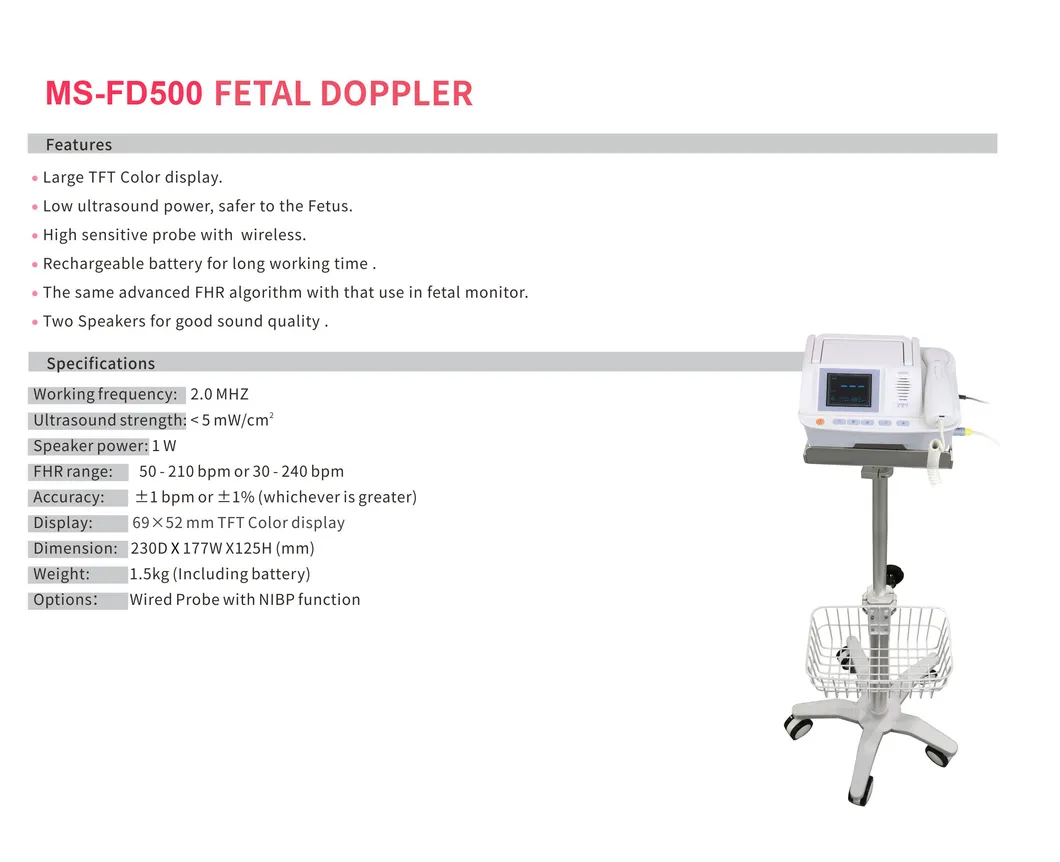

MS-FD500 Fetal Doppler 2

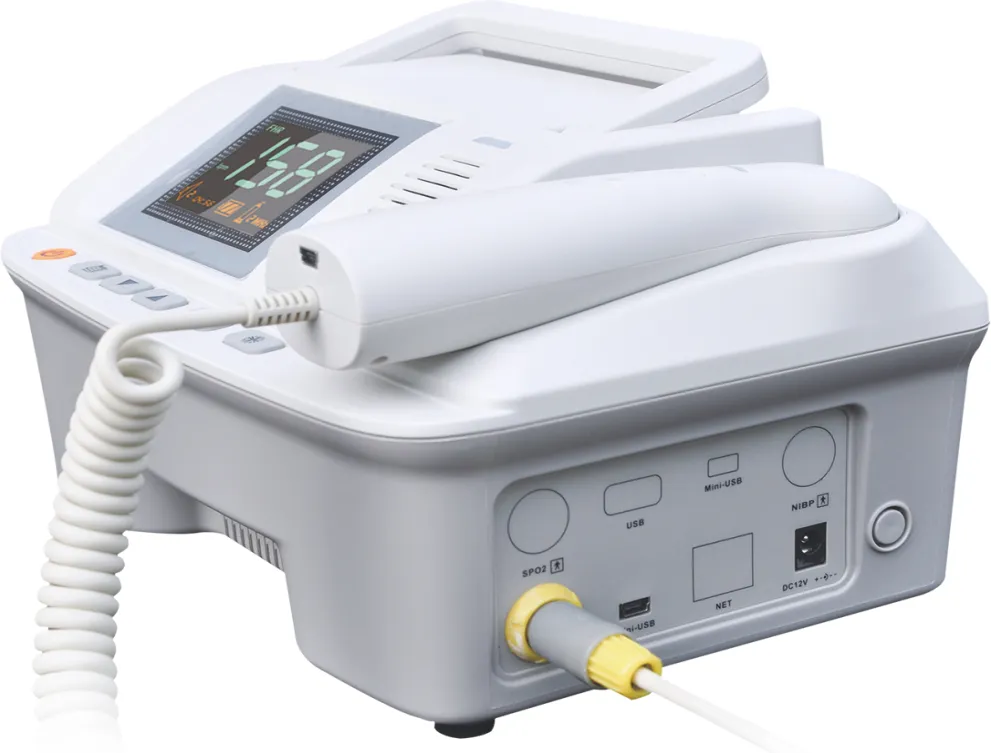

MS-FD500 Fetal Doppler 3
MS-FD500 Fetal Doppler 4

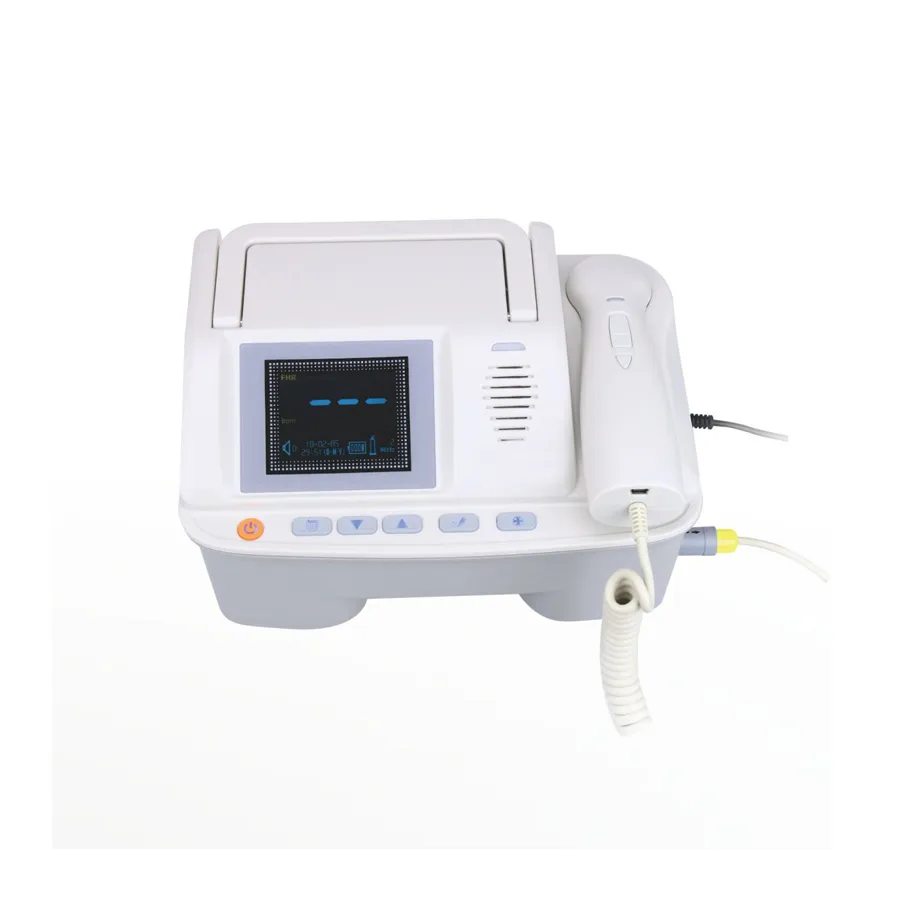

MS-FD500 Fetal Doppler 5
MS-FD500 Fetal Doppler 6

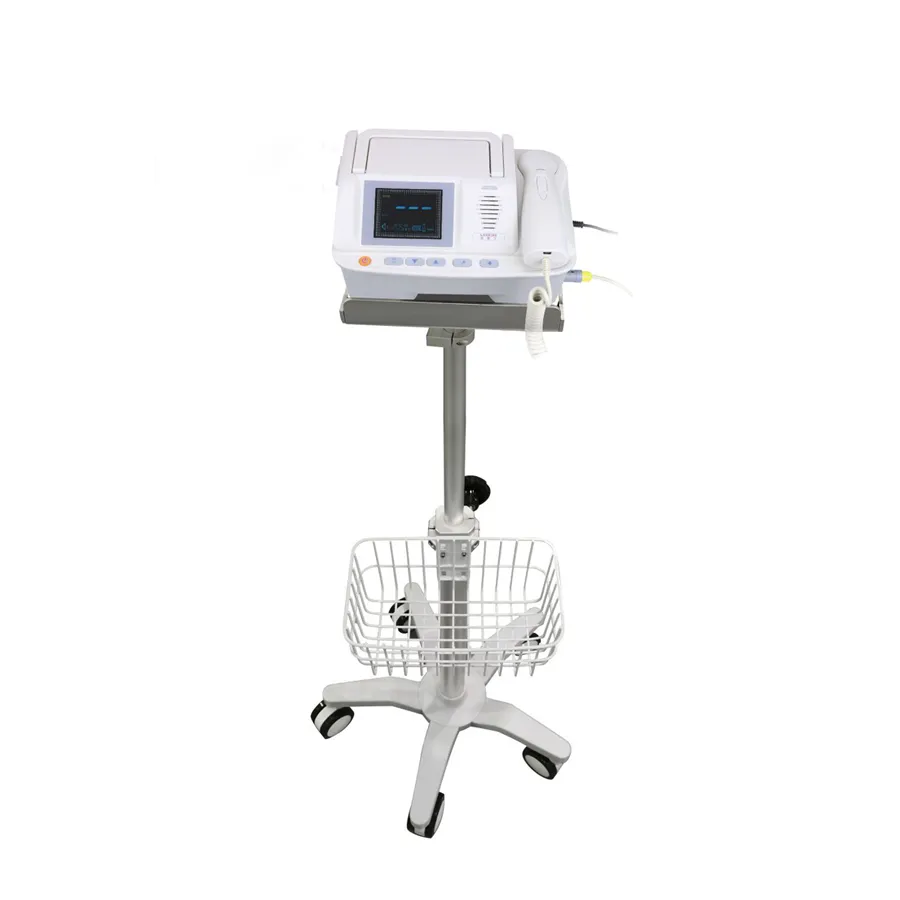

MS-FD500 Fetal Doppler 7

MS-FD500 FETAL DOPPLER

✨ Main Features
  • ✓Large TFT Color display.
  • ✓Low ultrasound power, safer to the Fetus.
  • ✓High sensitive probe with wireless.
  • ✓Rechargeable battery for long working time.
  • ✓The same advanced FHR algorithm with that use in fetal monitor.
  • ✓Two Speakers for good sound quality.

Technical Specifications

Working Frequency2.0 MHZ
Ultrasound Strength<5mW/Cm²
Speaker Power1W
FHR Range50-210 bpm or 30-240 bpm
Accuracy±1 bpm or ±1% (whichever is greater)
Display69x52 mm TFT Color display
Dimension230D x 177W x 125H (mm)
Weight1.5kg (Including battery)
OptionsWired Probe with NIBP function

Frequently Asked Questions

Q1: Is the MS-FD500 Fetal Doppler safe for regular use?
Yes, the device features low ultrasound power (less than 5mW/cm²), making it safer for the fetus during monitoring sessions.
Q2: Can I see the Fetal Heart Rate (FHR) clearly?
Absolutely. The MS-FD500 is equipped with a large 69x52 mm TFT Color display that clearly shows the FHR data and waves.
Q3: How accurate is the heart rate measurement?
The device uses an advanced FHR algorithm similar to professional fetal monitors, providing an accuracy of ±1 bpm or ±1%.
Q4: Is the probe wireless or wired?
The standard high-sensitive probe is wireless for ease of use. However, there is an option for a wired probe that includes NIBP functions.
Q5: How is the sound quality of the baby's heartbeat?
The device features two built-in speakers, ensuring high-quality, clear sound for both parents and medical professionals to hear.
Q6: Is the battery rechargeable?
Yes, it comes with a built-in rechargeable battery designed for long working hours, making it convenient for mobile or clinical use.
