Home > Fetal Monitors > Portable Fetal Heartbeat Monitor with LCD Display for Moms

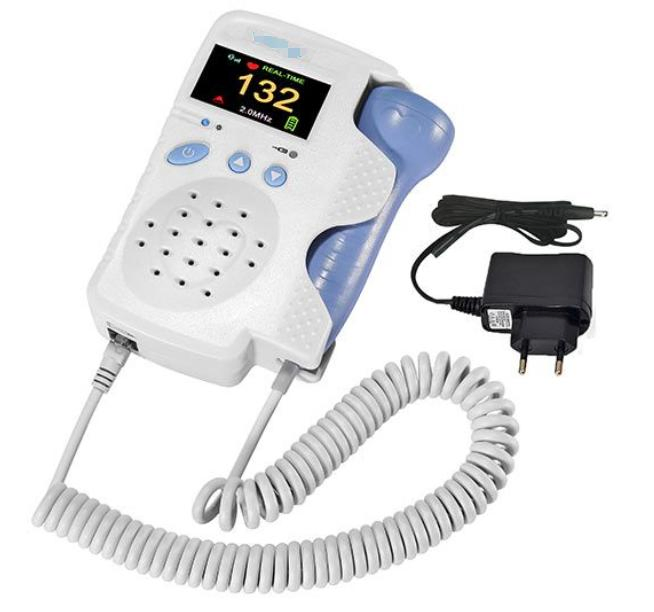

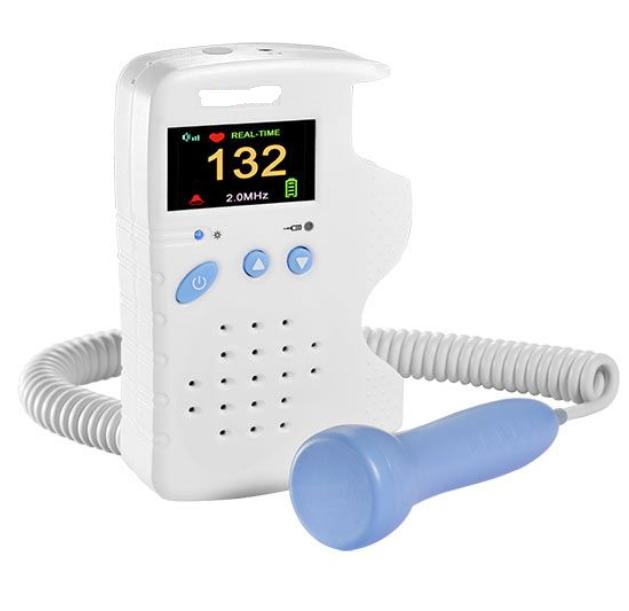

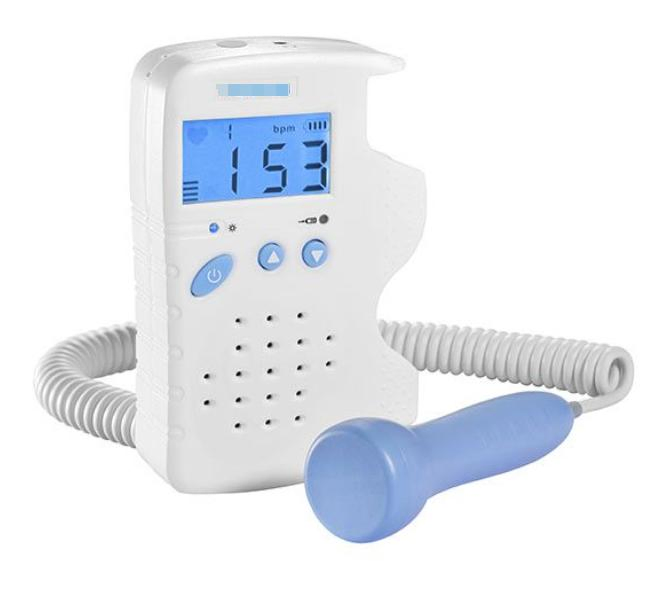

Portable Fetal Heartbeat Monitor with LCD Display for Moms
Portable Fetal Heartbeat Monitor with LCD Display for Moms
Portable Fetal Heartbeat Monitor with LCD Display for Moms
Portable Fetal Heartbeat Monitor with LCD Display for Moms
Portable Fetal Heartbeat Monitor with LCD Display for Moms
1 / 5
Portable Fetal Heartbeat Monitor with LCD Display for Moms
Portable Fetal Heartbeat Monitor with LCD Display for Moms
Portable Fetal Heartbeat Monitor with LCD Display for Moms
Portable Fetal Heartbeat Monitor with LCD Display for Moms
Portable Fetal Heartbeat Monitor with LCD Display for Moms

Portable Fetal Heartbeat Monitor with LCD Display for Moms

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info.

Model NO.
LK-200
Certification
CE, FDA, ISO13485
Group
Female
Transport Package
Box
Specification
150mm × 109mm × 33mm
Origin
China
HS Code
9018193000

Product Description

✓ Easy and convenient operation
✓ High-fidelity, crystal clear sound
✓ Earphone and speaker are feasible
✓ High sensitivity doppler probe
✓ Low ultrasound dosage
✓ Display with backlight LCD and color LCD

Product Parameters

Ultrasound frequency
2MHz
Ultrasound intensity
<10mW/cm²
Power supply
Alkalinity and Rechargeable battery
Display
45mm×25mm LCD
FHR Measuring range
50~230bpm
FHR resolution
1bpm
FHR accuracy
±2bpm
Power consumption
<1W
Dimension
135mm × 95mm × 35mm
Gross weight
approximately 500g

Packaging & Shipping

Standard Configuration:
Main body | Alkalinity battery or Ni-MH battery (with adaptor) | 2MHz probe
Optional Extras:
Earphone | 3MHz probe | Carry bag
Packaging Options

FD-200 Series Difference Table

Functions FD-200B FD-200D FD-200C FD-200G
Doppler typeContinuousContinuousContinuousContinuous
Display typeB/WB/WColourColour
Build-in speakerYesYesYesYes
Battery indicatorYesYesYesYes
DisplayDigitDigitDigit+CurveDigit+Curve
Various work modesYesYesYesYes
BatteryAlkalinityNi-MHNi-MHAlkalinity
Charge in deviceNoYesYesNo

Detailed Photos

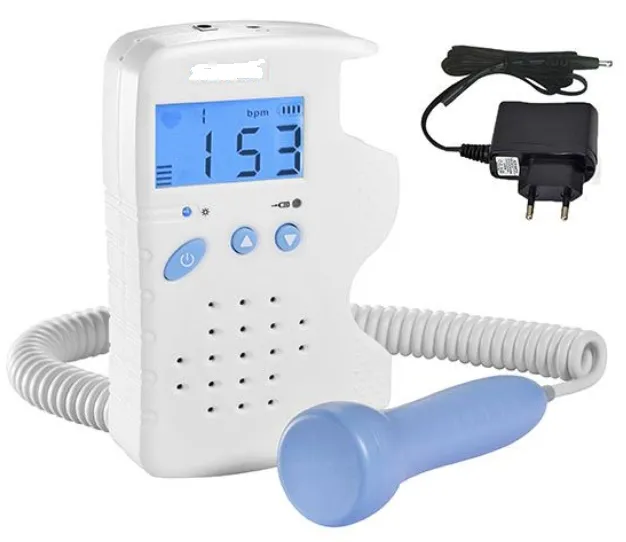

Detailed View 1 Detailed View 2 Detailed View 3 Detailed View 4

Company Profile

Overview Image
Frequently Asked Questions
What is the measurement range for the fetal heart rate (FHR)?
The monitor has a wide measuring range of 50 to 230 bpm with high accuracy of ±2 bpm.
Is the ultrasound dosage safe for pregnant women?
Yes, the device is designed with a low ultrasound dosage, maintaining an intensity of less than 10mW/cm².
What type of battery does the device use?
The monitor supports both standard Alkalinity batteries and rechargeable Ni-MH batteries, depending on the specific model.
Can I hear the heartbeat through speakers or headphones?
Both options are available. The device includes a high-fidelity built-in speaker and also supports earphone connection.
Does the display show a heart rate curve?
Models FD-200C and FD-200G feature a color LCD that displays both the digital heart rate and the FHR curve.
What is the ultrasound frequency of the probe?
The standard configuration includes a high-sensitivity 2MHz probe, with an optional 3MHz probe available.
