Product Overview

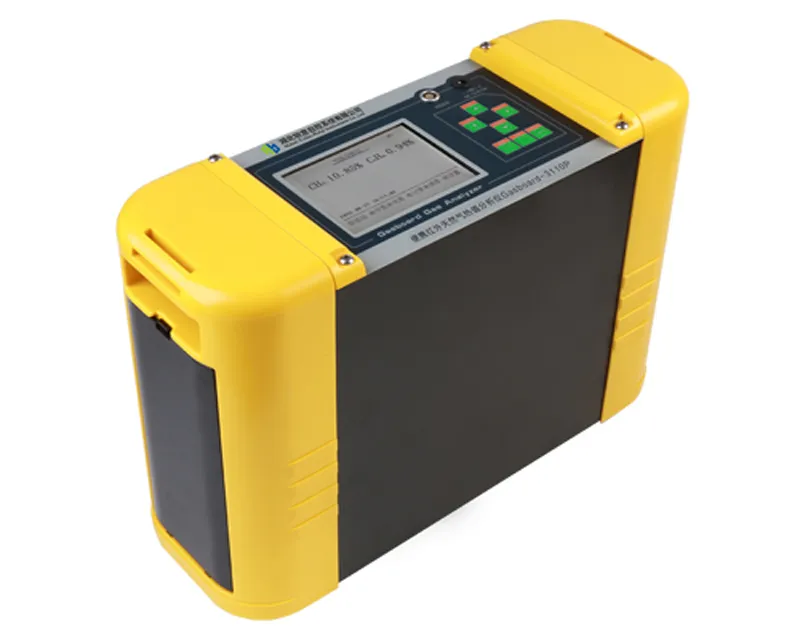

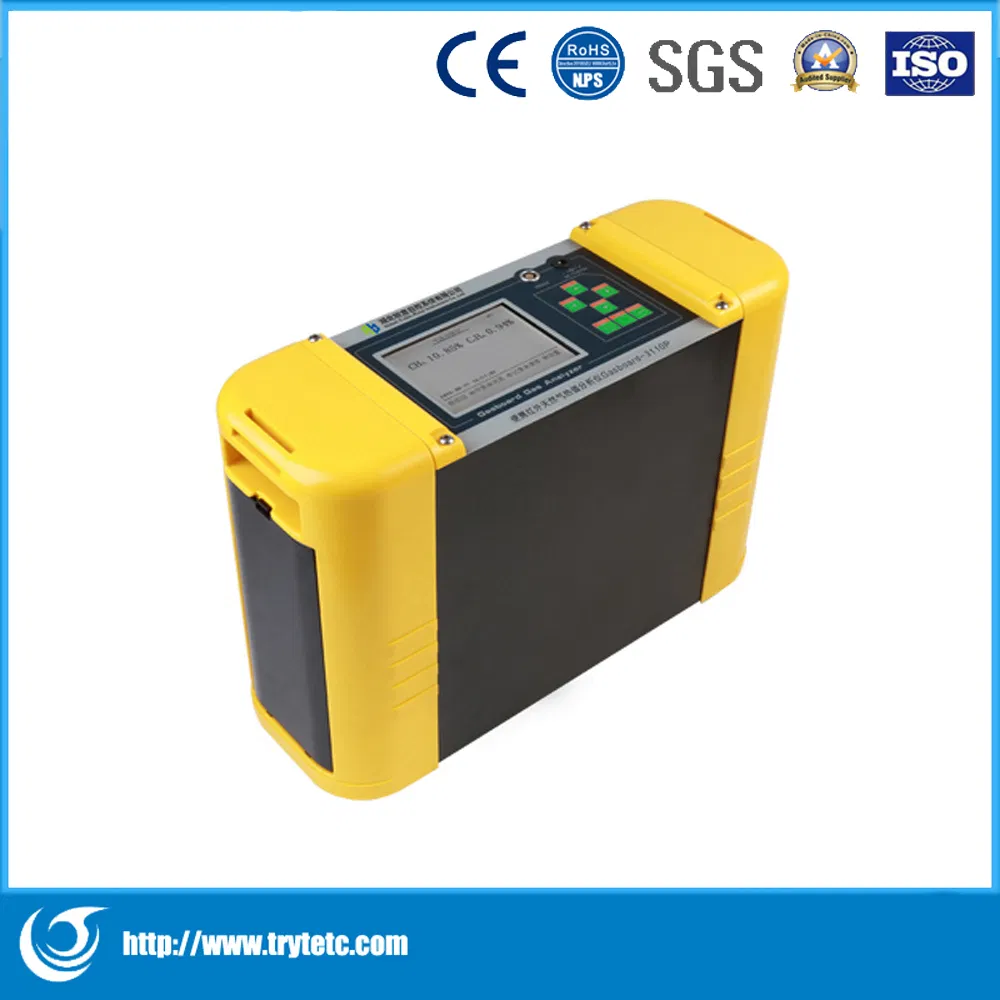

Natural Gas Analyzer / Gas Analysis / Laboratory Instruments
Key Applications: Coal bed gas and natural gas components monitoring and calorific value calculating.
Design Features
- Modular sensor design ensures easy operation and maintenance.
- Standard 19'' 3U industrial enclosure design for easy system integration.
- LCD display for real-time data monitoring and tactile keypad for easy operation.
- Integrated RS232/RS485 digital output and 4-20mA analog output.
- Built-in sample gas flow meter, needle valve, and internal gas filter.
- Constant temperature enclosure for NDIR and TCD sensors to improve accuracy.
- Auto-zeroing function with built-in pump to reduce calibration frequency.
- Bluetooth module support for smartphone APP remote control and diagnosis.
Measurement Capabilities
- Advanced NDIR and TCD gas analysis technology.
- Simultaneous measurement of CO, CO2, CH4, H2, O2, CnHm.
- No interference from CnHm when measuring CH4 results.
- Patented Thermal Conductivity Detecting technology for H2 reading with interference compensation.
- Real-time Online Heating Value calculation (MJ/m³ or kcal/m³, HHV or LHV).
Packaging & Accessories
Standard configuration: CH4 + CnHm + Calorific Value. The unit comes with a robust casing and protective carrying bag.

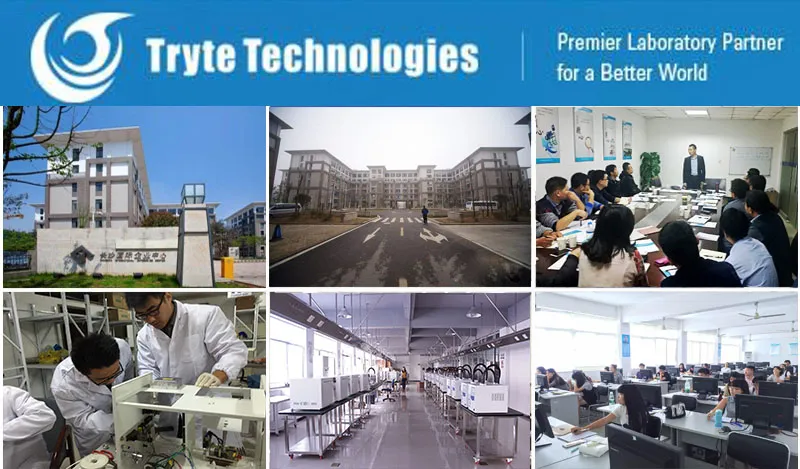

Manufacturing Excellence
Founded in 1999, the manufacturer is a diversified high-tech provider devoted to technical services for energy analysis, oil, steel, and geology. As a "one-stop" instrument procurement service provider, the company integrates advanced R&D with strict quality control systems. With solutions proven by over 100,000 successful results and decades of certification experience, our laboratory and industrial instruments serve customers in over 80% of the world's countries.
Why Choose Us?
- High-quality products with professional manufacturing standards.
- Advanced production machinery and strict quality control.
- Dedicated ten-person research & development team.
- Professional sales and technical support team.
Frequently Asked Questions
What specific gases can this analyzer measure simultaneously?
The analyzer uses advanced NDIR and TCD technology to measure CO, CO2, CH4, H2, O2, and CnHm simultaneously without mutual interference.
How does the device calculate the gas heating value?
It features an online calculation function that provides real-time data for both High Heating Value (HHV) and Low Heating Value (LHV), switchable between MJ/m³ and kcal/m³.
Is the measurement affected by ambient temperature changes?
No. The analyzer is equipped with a constant temperature enclosure for its NDIR and TCD sensors to avoid influence by temperature fluctuations, ensuring high measurement accuracy.
How often does the analyzer require calibration?
The frequency is significantly reduced thanks to the built-in auto-zero pump and auto-zeroing function, which ensures the baseline remains stable.
Can the analyzer be integrated into larger industrial systems?
Yes, it features a standard 19'' 3U industrial enclosure design and supports RS232/RS485 digital outputs and 4-20mA analog outputs for seamless integration.
What is the data logging capacity of the device?
The device can log up to 1500 sets of data, with an adjustable logging rate from 3 to 99 seconds, allowing for detailed historical analysis.
