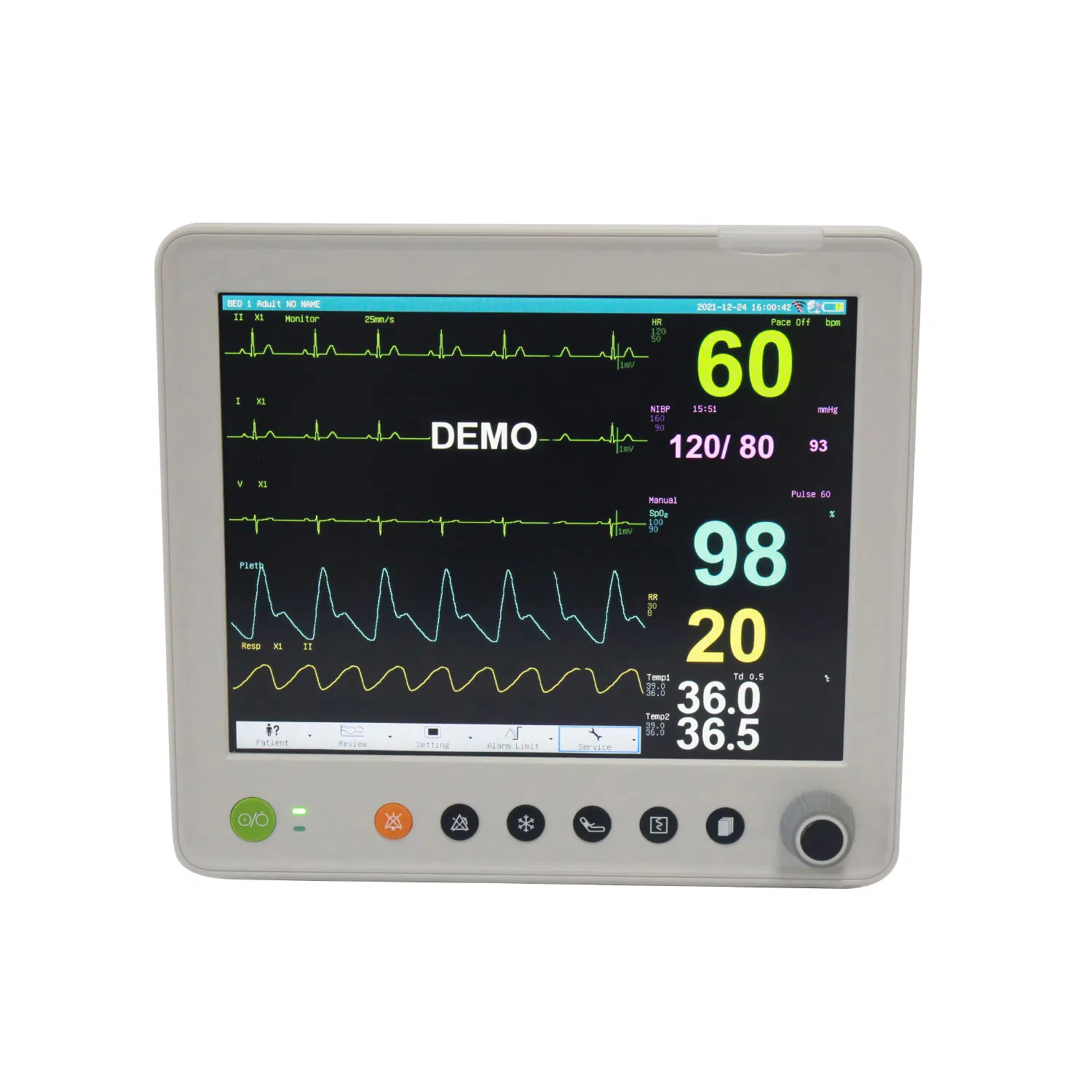

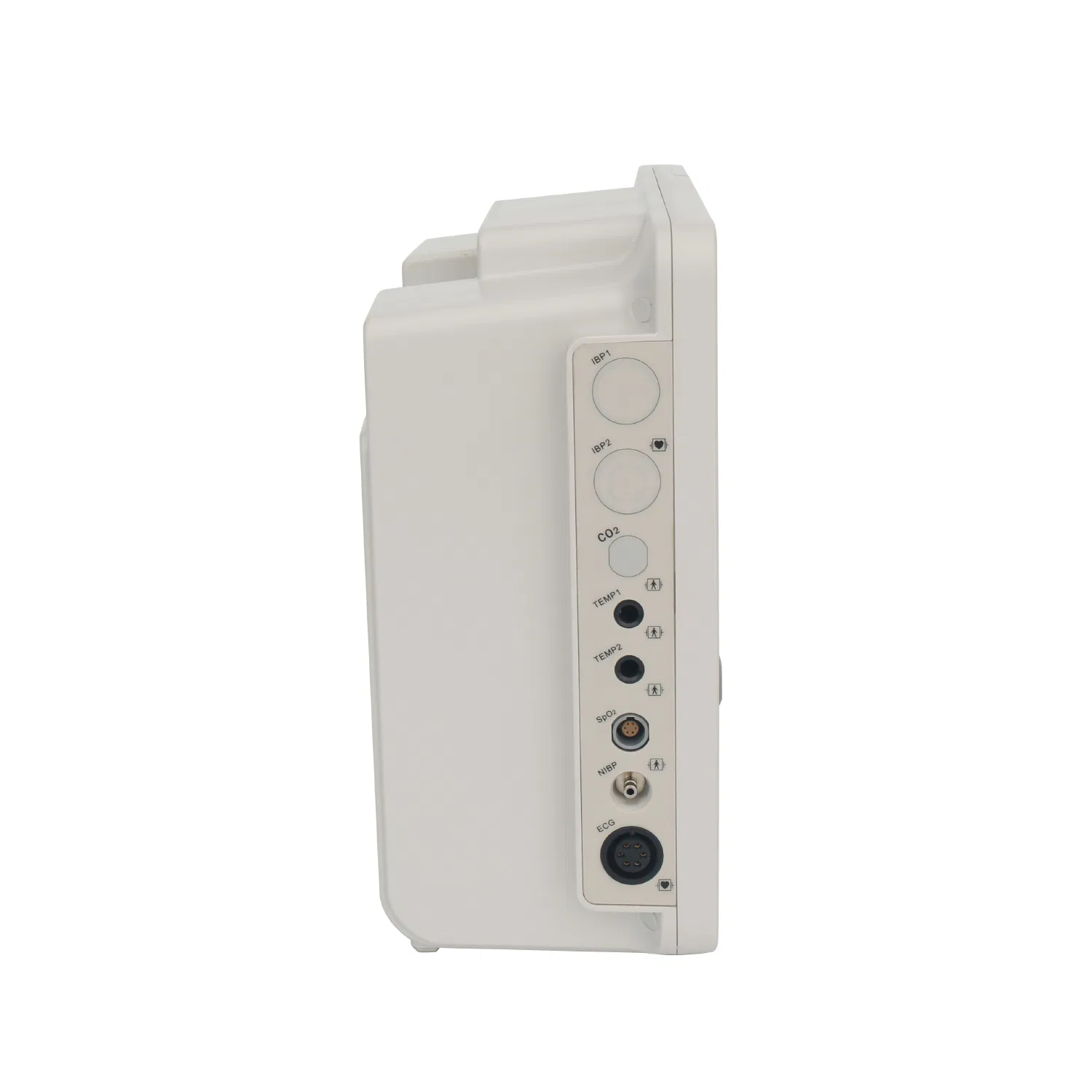

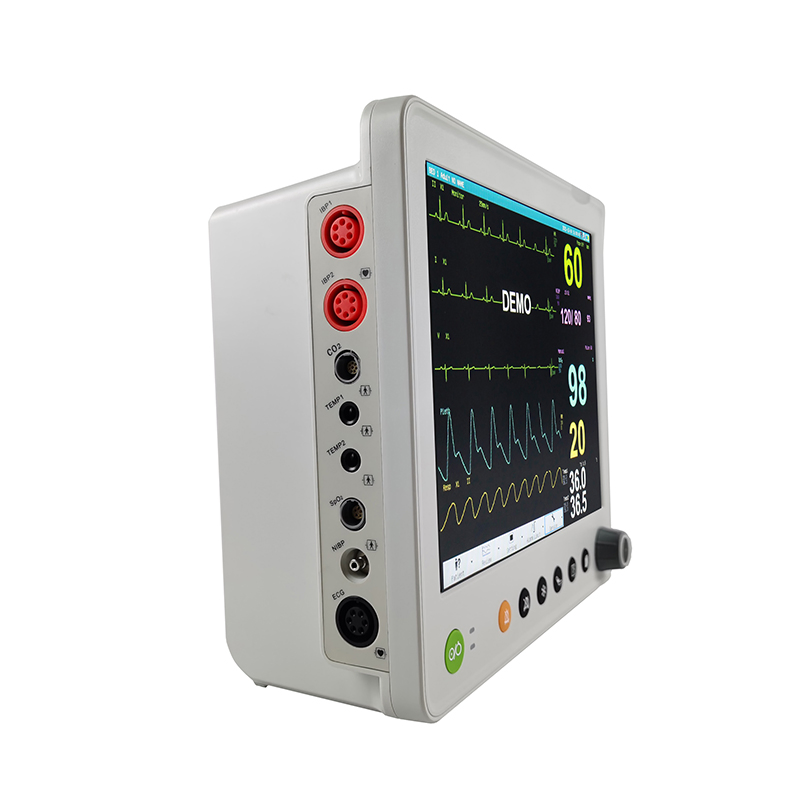

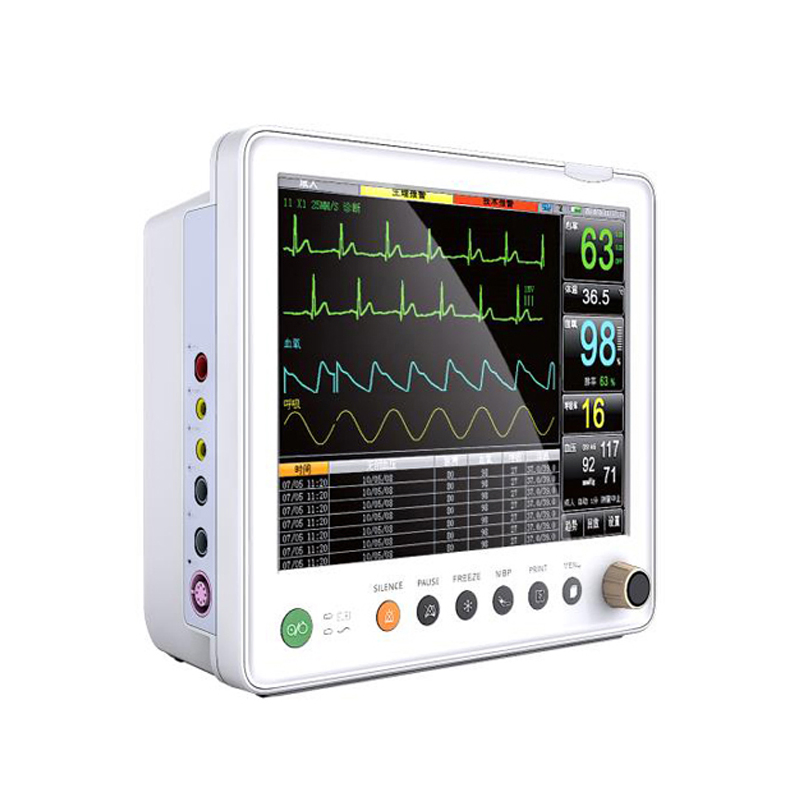

Multi-Parameter Patient Monitor with 12.1" Screen for ICU/Ccu Hospital Equipment
Multi-Parameter Patient Monitor with 12.1" Screen for ICU/Ccu Hospital Equipment
Multi-Parameter Patient Monitor with 12.1" Screen for ICU/Ccu Hospital Equipment
Multi-Parameter Patient Monitor with 12.1" Screen for ICU/Ccu Hospital Equipment
Multi-Parameter Patient Monitor with 12.1" Screen for ICU/Ccu Hospital Equipment
1 / 5
Multi-Parameter Patient Monitor with 12.1" Screen for ICU/Ccu Hospital Equipment
Multi-Parameter Patient Monitor with 12.1" Screen for ICU/Ccu Hospital Equipment
Multi-Parameter Patient Monitor with 12.1" Screen for ICU/Ccu Hospital Equipment
Multi-Parameter Patient Monitor with 12.1" Screen for ICU/Ccu Hospital Equipment
Multi-Parameter Patient Monitor with 12.1" Screen for ICU/Ccu Hospital Equipment

Multi-Parameter Patient Monitor with 12.1" Screen for ICU/Ccu Hospital Equipment

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info.
Model NO.
Alps PM200A
Certification
ISO13485
Group
All
Product
12.1" Touch Screen Patient Monitor
Item No.
Pm-200A
Screen
12.1inch
Standard Configuration
ECG, NIBP, SpO2, Pr, Resp, Temp, Hr
Warranty
1 Year
HS Code
9018193010
Product Description

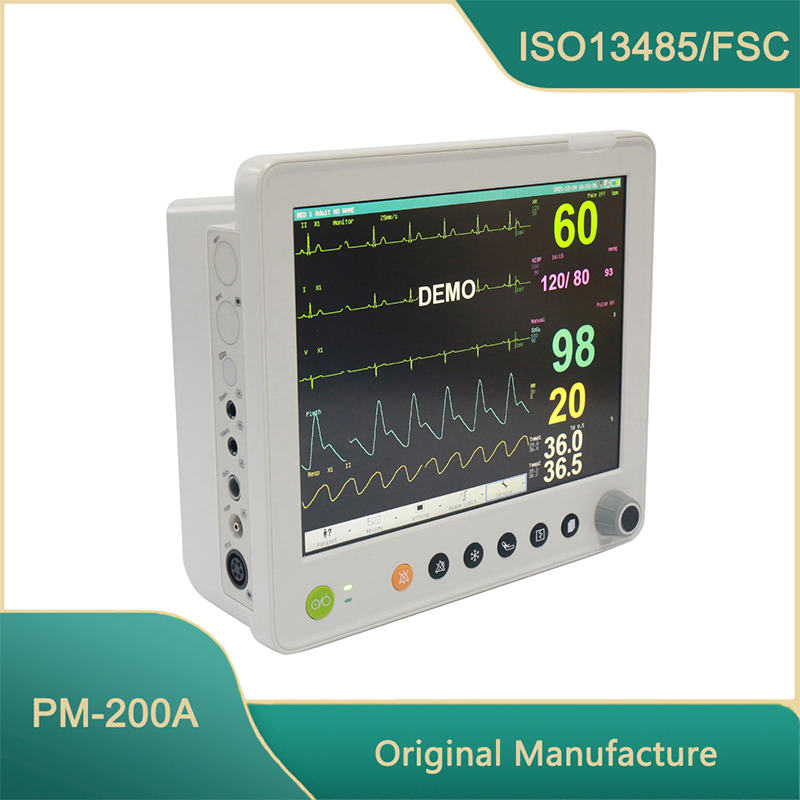

Multi-Parameter Patient Monitor with 12.1" Screen for ICU/CCU Hospital Equipment

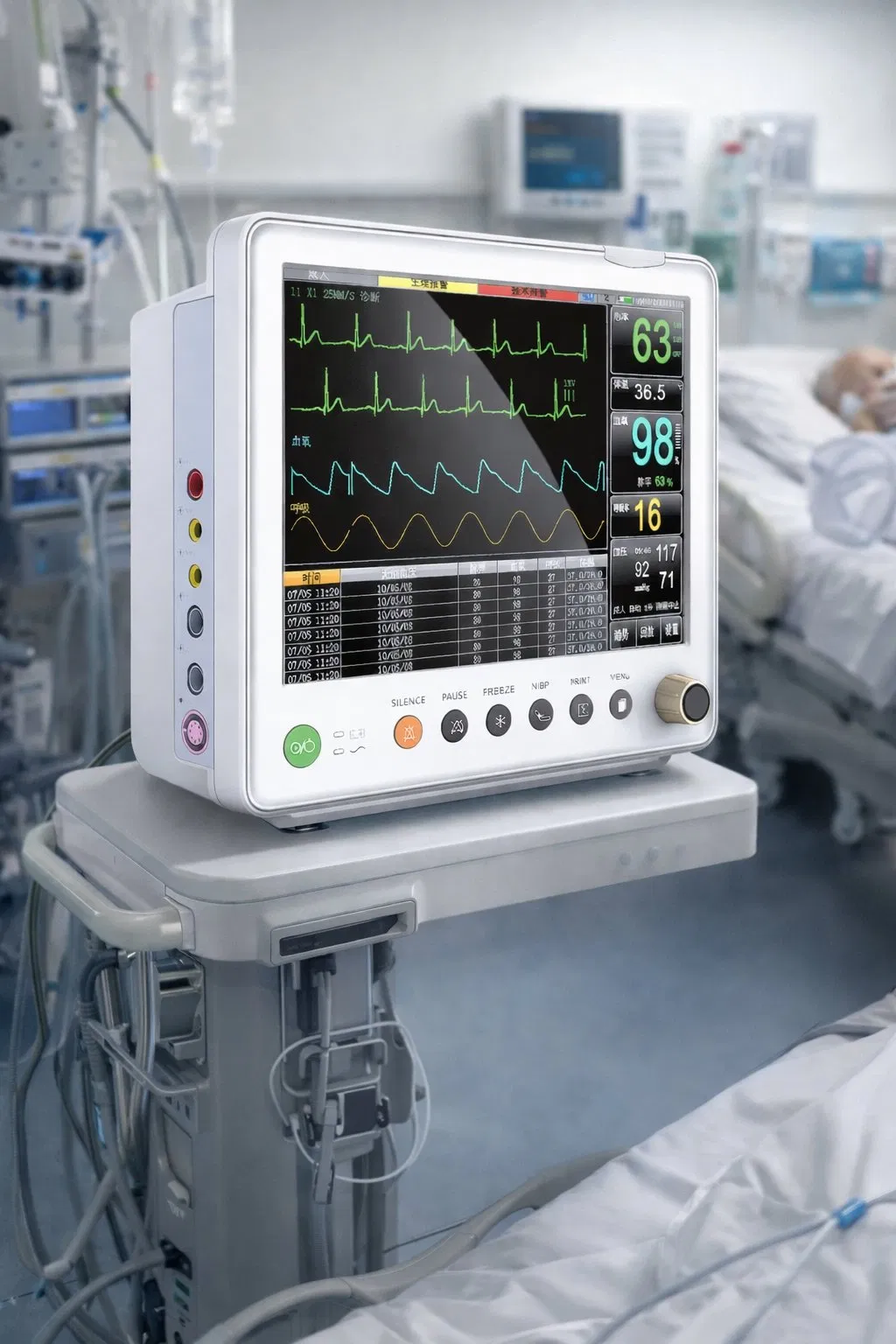

Patient Monitor
  • 12.1 inch high brightness (800x600) colorful TFT LCD
  • Simultaneous display of 7 lead ECG waveform
  • Indented menu layout to maximize the space for display
  • Protection against defibrillation and ESU interference
  • New SPO2 technology to assure precise measurement
  • Analysis of real time ST segment arrhythmia
  • 168 hour graphic and tabular trend with data storage
  • Up to 66 beds for networking capacity to connect with HIS
Product Parameters

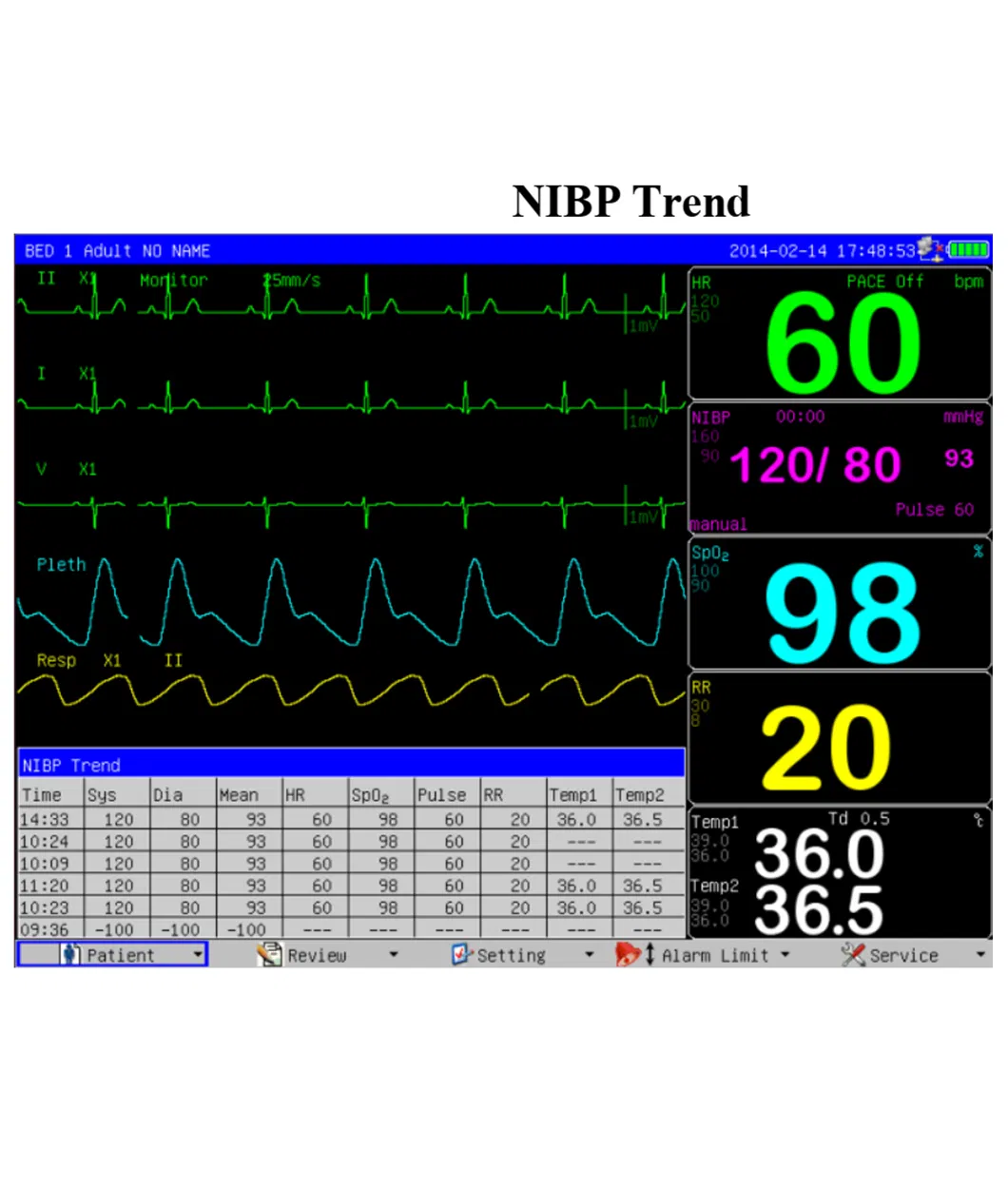

Parameters detail
ECG Lead Mode: 5 Leads; Waveform: 3 channel; Baseline Recovery: < 3 seconds after defibrillation; Bandwidth: Surgery 1-15Hz, Monitor 0.5-35Hz.
SPO2 Measurement Range: 0 ~ 100 %; Accuracy: 70% ~ 100%: ±2 %; Pulse Rate Range: 0 ~ 254 bpm.
NIBP Method: Oscillometric; Modes: Adult, Pediatric, Neonatal; Adult Range: SYS 40-270 mmHg, DIA 10-215 mmHg.
Respiration Measurement Range: 0.3~5.0 Ω; Rate Range: Adult 0-120 rpm, Neo/Ped 0-150 rpm; Accuracy: ±2 rpm.
Temperature Measuring Range: 0 ~ 50 °C; Accuracy: ± 0.1 °C; Average Time Constant: < 10 second.
Detailed Photos

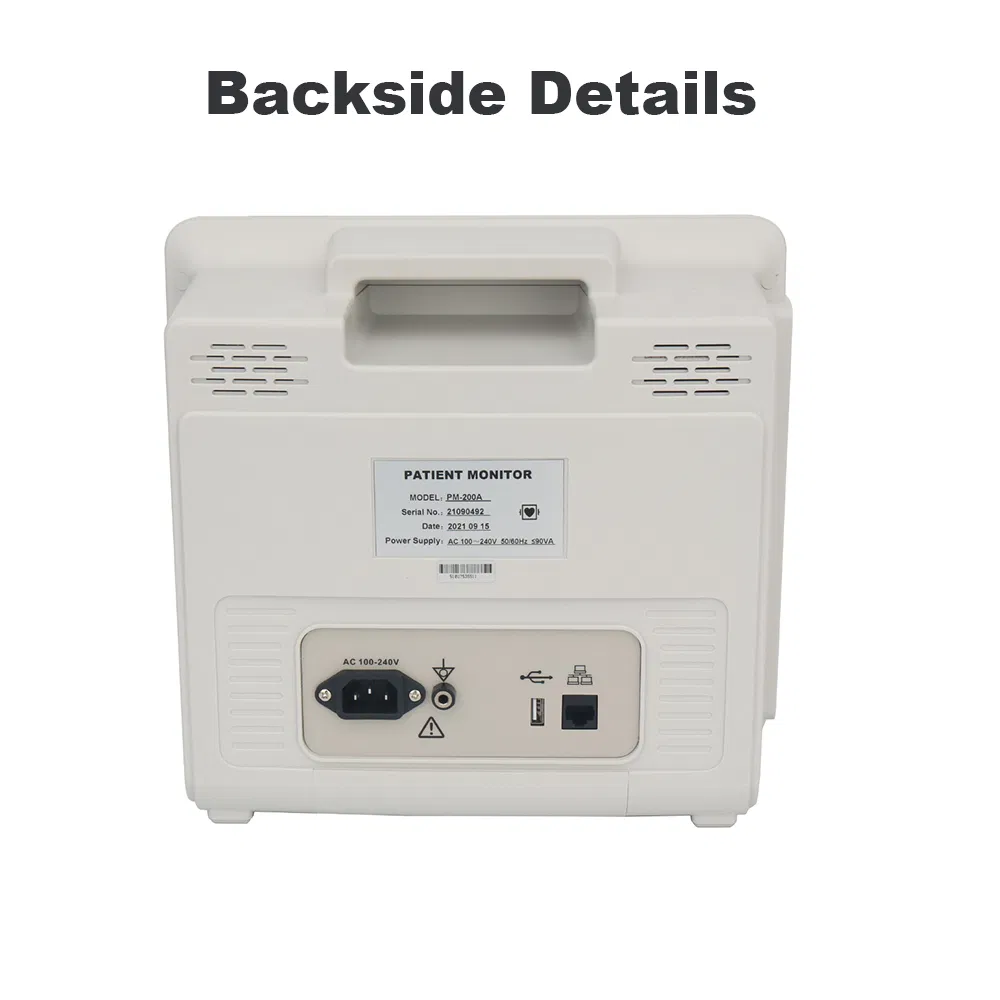

Detail 1

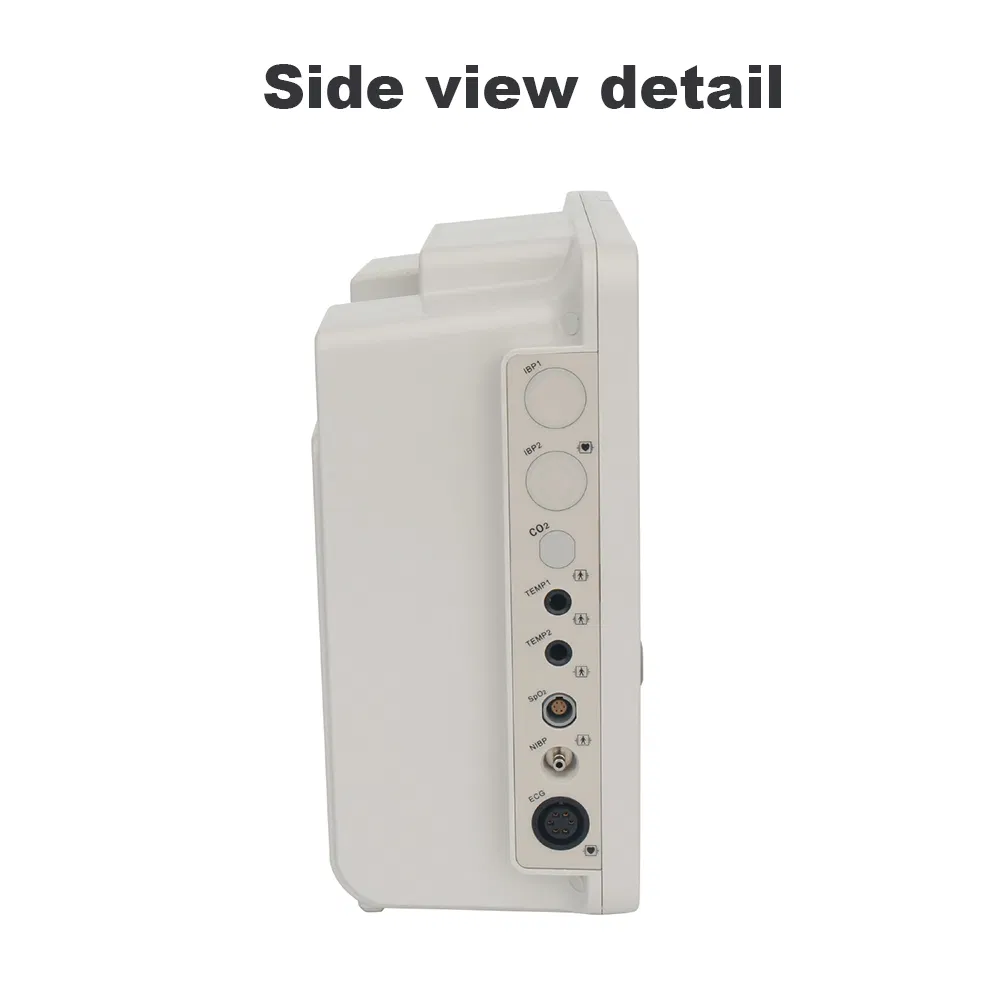

Detail 2
Packaging & Shipping

Product dimension & weight:
Length×Width×Height: 312mm×287mm×175mm | Weight: 3.4 Kg

Standard Package list:

  • 1* PM-200A Patient Monitor
  • 1* ECG Cable (5 Lead) & Electrodes
  • 1* SpO2 Probe
  • 1* NIBP Cuff & Extension tube
  • 1* Temp Probe
  • 1* Power Wire & Grounding cable
  • 1* User manual & Warranty
  • 1* Certificate of Qualification
Packaging
Facilities & Production
Facility 1
Facility 2
Facility 3
Facility 4
Frequently Asked Questions
1. What is the screen size and type of the PM200A monitor?
It features a 12.1-inch high-brightness colorful TFT LCD screen with an 800x600 resolution.
2. Which standard parameters can this device monitor?
The standard configuration includes ECG, NIBP, SpO2, PR, RESP, TEMP, and HR monitoring.
3. How much historical data can the device store?
It supports up to 168 hours of graphic and tabular trend data storage for recall and display.
4. Can this patient monitor be used in a networked hospital environment?
Yes, it has a networking capacity for up to 66 beds and can connect with Hospital Information Systems (HIS).
5. Is the device protected against surgical interference?
Yes, the monitor is designed with protection against defibrillation and Electrosurgical Unit (ESU) interference.
6. What is the weight and portability of the unit?
The device weighs approximately 3.4 Kg and has dimensions of 312mm × 287mm × 175mm, making it suitable for ICU/CCU environments.
