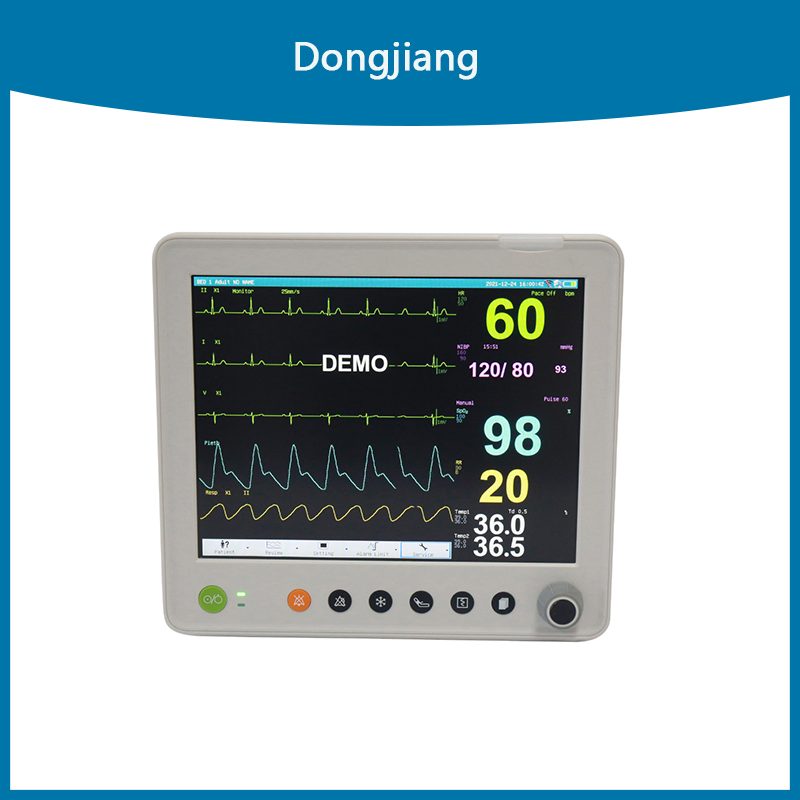

Medical Supply Mult-Parameter Patient Monitor with Optional Touch Screen for Hospital ICU

1 / 5

Medical Supply Mult-Parameter Patient Monitor with Optional Touch Screen for Hospital ICU

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

Alps PM200A

Certification

ISO13485

Product

Multi Parameter Patient Monitor

Screen

12.1 inch

Standard Configuration

ECG, NIBP, SpO2, PR, Resp, Temp, HR

ECG

7 Lead ECG Waveform

Transport Package

Carton

HS Code

9018193010

📋

Product Description

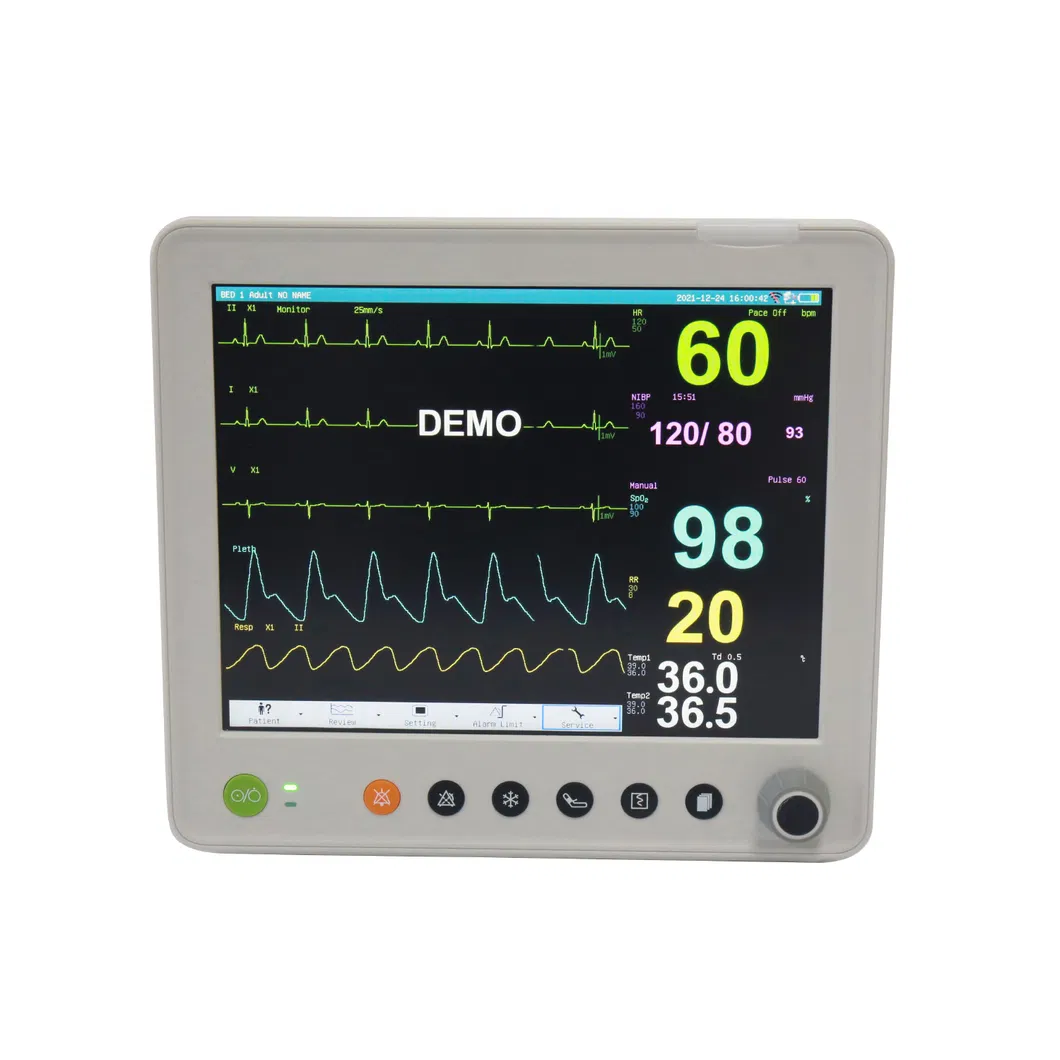

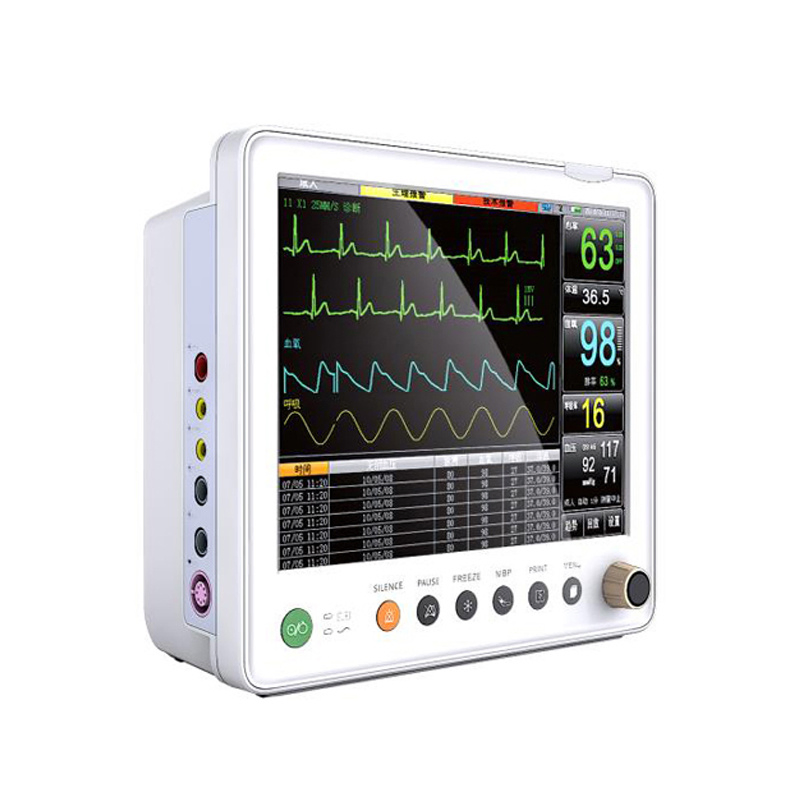

Medical Supply Multi-Parameter Patient Monitor with Optional Touch Screen for Hospital ICU

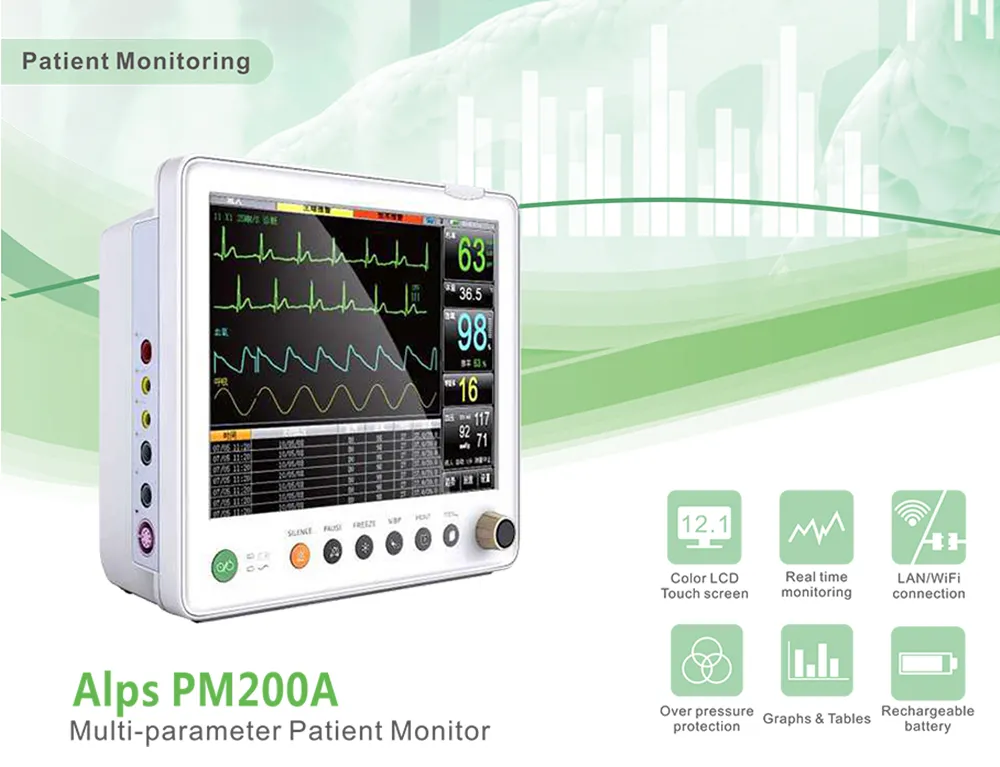

Portable Patient Monitor Features

12.1 inch high brightness (800x600) colorful TFT LCD

Simultaneous display of 7 lead ECG waveform

Indented menu layout to maximize display space

Protection against defibrillation and ESU interference

Advanced SPO2 technology for precise measurement during low perfusion

Real-time ST segment and arrhythmia analysis

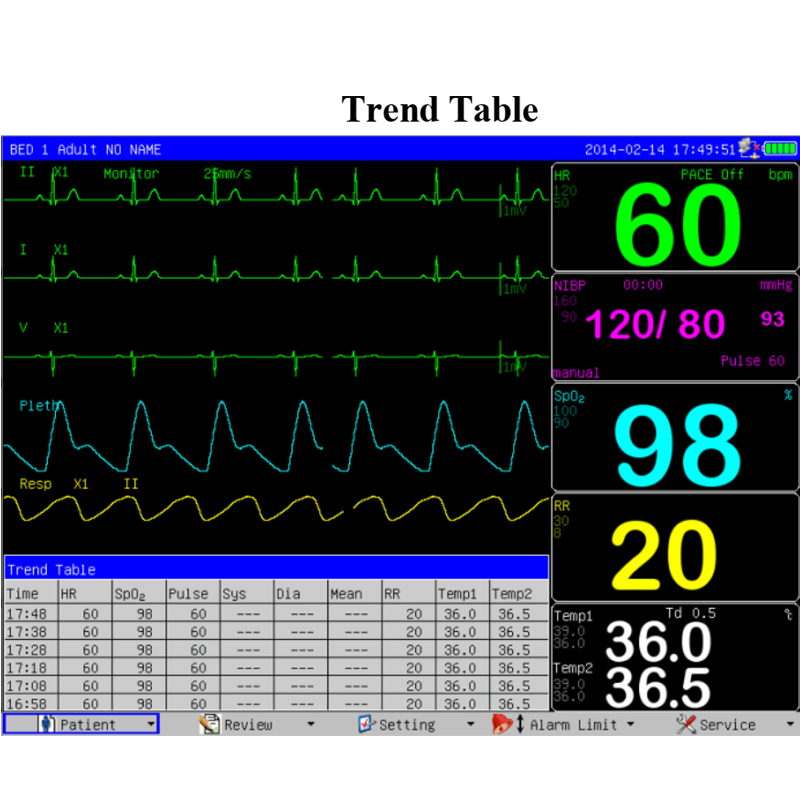

168-hour graphic and tabular trend data storage

Efficient power management without fans to avoid cross-contamination

Networking capacity for up to 66 beds to connect with HIS

750 groups of NIBP data recall and display

Standard Configuration: ECG, NIBP, SpO2, PR, RESP., TEMP., HR
Optional Configuration: 1/2/4 IBP, EtCO2, Multi-gas, CO, 12 Lead ECG, Thermal Recorder, Touch Screen, WiFi, HDMI, USB, VGA, SunTech NIBP

📊

Product Specification

ECG Monitoring
Lead Mode	5 Leads (R, L, F, N, C or RA, LA, LL, RL, V)
Gain	2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV, Auto
HR Range	Adult: 15 ~ 300 bpm \| Neo/Ped: 15 ~ 350 bpm
ST Segment Range	-2.0 ~ +2.0 mV
SpO2 Monitoring
Measurement Range	0 ~ 100 %
Accuracy	70% ~ 100%: ± 2%
Pulse Rate Range	0 ~ 254 bpm
NIBP Monitoring
Method	Oscillometric (Manual, Auto, STAT)
Adult Range	SYS: 40 ~ 270 mmHg \| DIA: 10 ~ 215 mmHg
Overpressure Protection	Double Safety Protection
Respiration & Temperature
Resp. Rate	Adult: 0 ~ 120 rpm \| Neo/Ped: 0 ~ 150 rpm
Temp. Range	0 ~ 50 °C (Accuracy: ± 0.1 °C)

📷

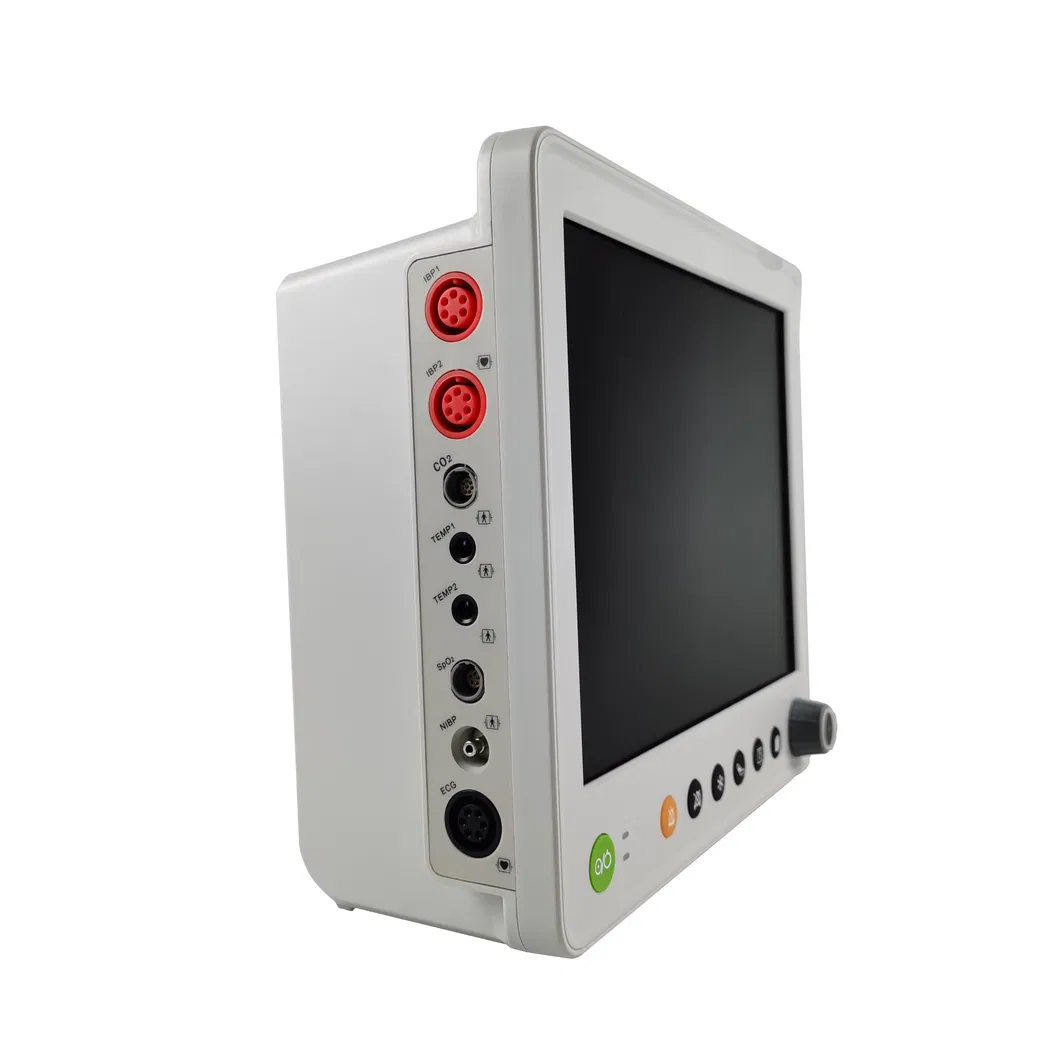

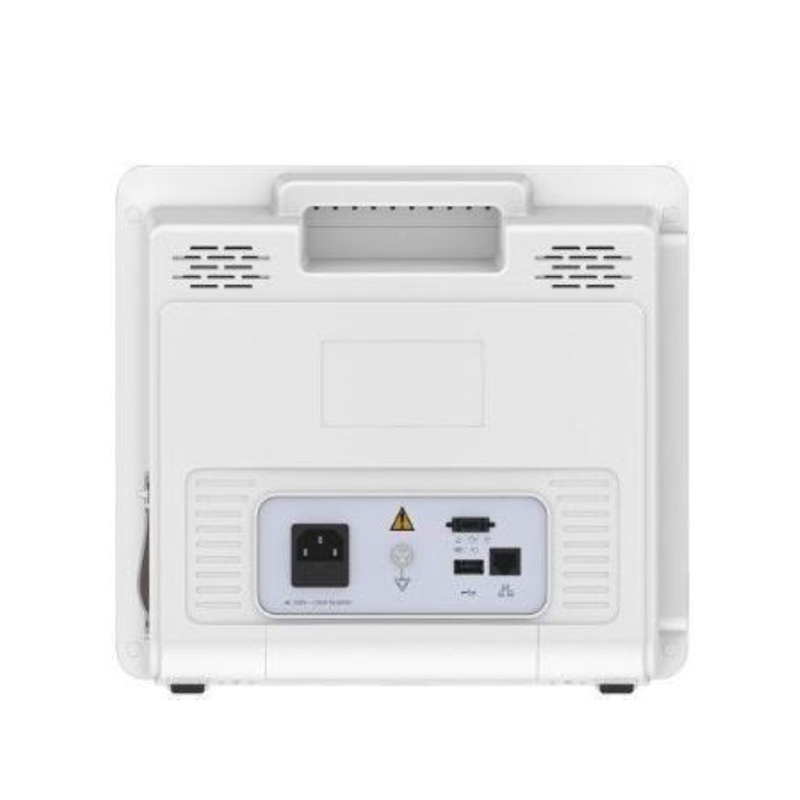

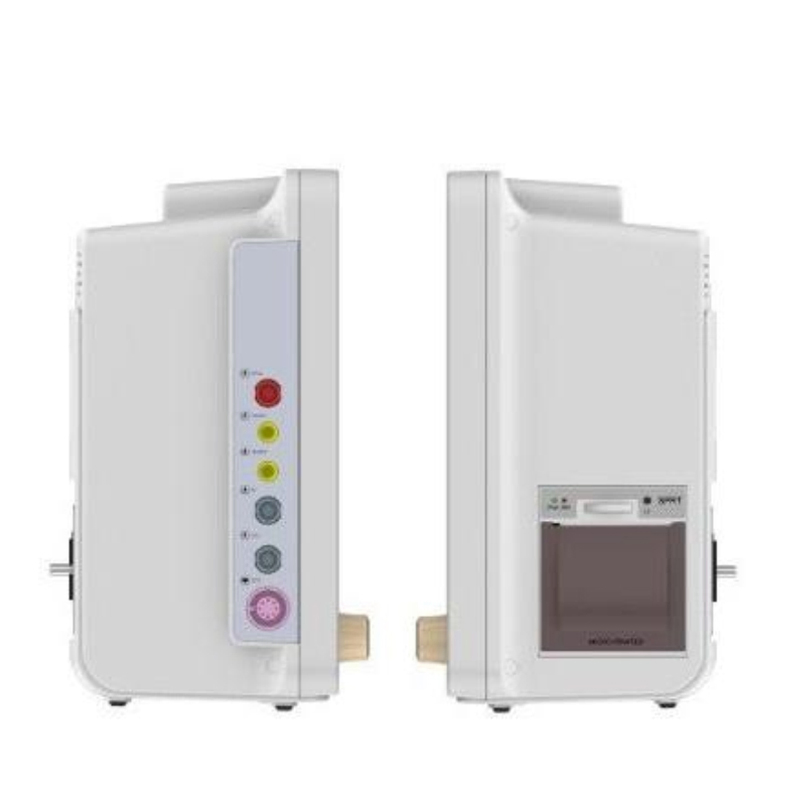

Optional Details Photo

📦

Packaging & Shipping

Dimension & Weight:
Size: 312mm × 287mm × 175mm
Net Weight: 3.4 Kg
Packing: 1pc/carton (39*37*30cm)

Package List:

1* PM-200A Patient Monitor
1* ECG Cable (5 Lead) & Electrodes
1* SpO2 Probe & NIBP Cuff
1* Temp Probe & Extension Tube
1* Power Wire & Grounding Cable
1* User Manual & Warranty Card

🏢

Production Display

Frequently Asked Questions

What parameters are standard on the PM200A?

The standard configuration includes ECG, NIBP, SpO2, Pulse Rate (PR), Respiration (RESP), Temperature (TEMP), and Heart Rate (HR).

Is the monitor suitable for neonatal use?

Yes, it features dedicated modes for Adult, Pediatric, and Neonatal patients with specific alarm ranges and overpressure protection for each.

How long can the monitor store data?

It provides up to 168 hours of graphic and tabular trend storage, allowing medical staff to review long-term patient data.

Does the device support central station networking?

Yes, it has a networking capacity of up to 66 beds, allowing it to connect to a Hospital Information System (HIS).

Can I add a touch screen to this model?

Yes, a touch screen is available as an optional configuration, along with other modules like EtCO2 and IBP.

How does the device prevent cross-contamination?

The unit is designed with high-efficiency power management that operates without an electric fan, significantly reducing the risk of circulating dust or contaminants.
