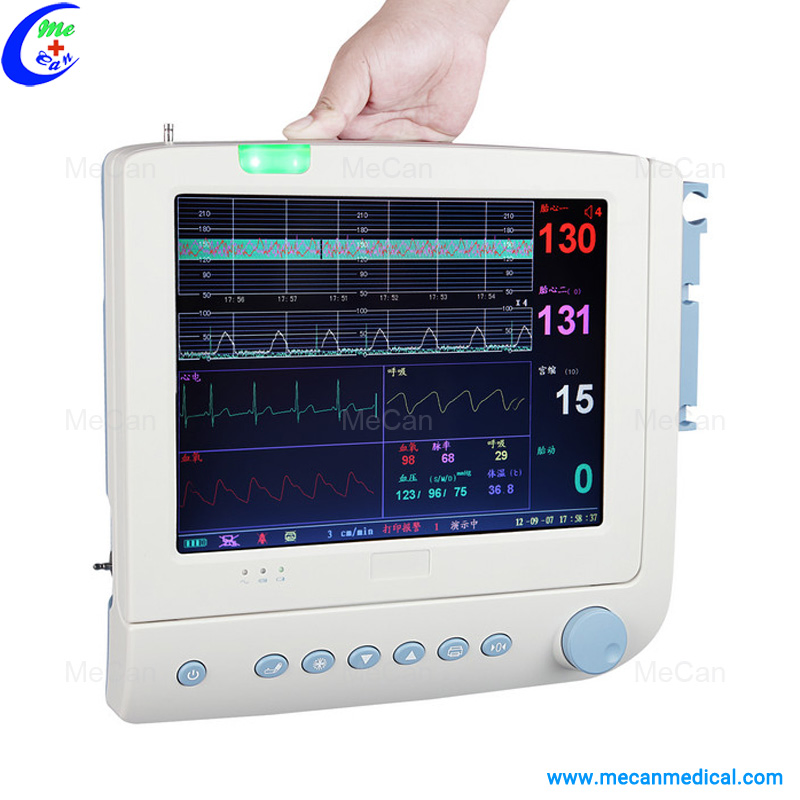

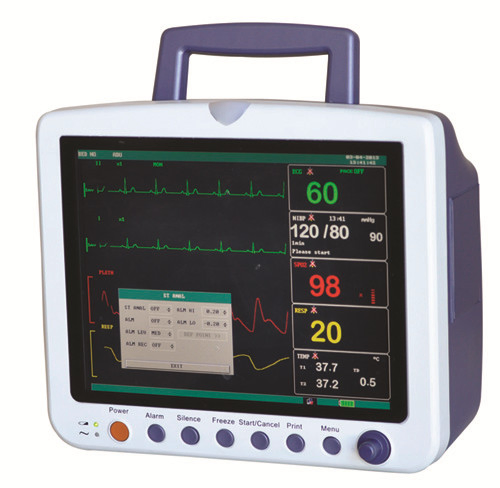

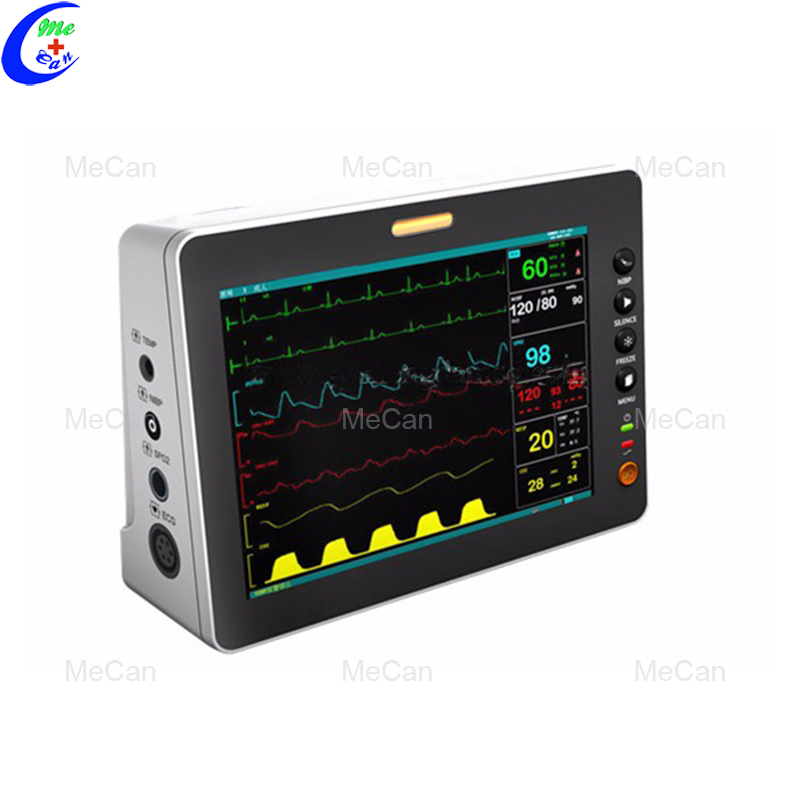

Med-Pm-Top1800 Portable 6-Parameter Patient Monitor 12.1inch Cheap Price
Med-Pm-Top1800 Portable 6-Parameter Patient Monitor 12.1inch Cheap Price
Med-Pm-Top1800 Portable 6-Parameter Patient Monitor 12.1inch Cheap Price
Med-Pm-Top1800 Portable 6-Parameter Patient Monitor 12.1inch Cheap Price
Med-Pm-Top1800 Portable 6-Parameter Patient Monitor 12.1inch Cheap Price
1 / 5
Med-Pm-Top1800 Portable 6-Parameter Patient Monitor 12.1inch Cheap Price
Med-Pm-Top1800 Portable 6-Parameter Patient Monitor 12.1inch Cheap Price
Med-Pm-Top1800 Portable 6-Parameter Patient Monitor 12.1inch Cheap Price
Med-Pm-Top1800 Portable 6-Parameter Patient Monitor 12.1inch Cheap Price
Med-Pm-Top1800 Portable 6-Parameter Patient Monitor 12.1inch Cheap Price

Med-Pm-Top1800 Portable 6-Parameter Patient Monitor 12.1inch Cheap Price

Customization: Available
Classification: Imaging Diagnostic Equipment
Type: ECG
Send Inquiry

Product Description

⭐ Basic Information
Model NO.
MED-PM-TOP1800
Certification
CE, ISO13485
Packaging
Packaging Cartons
Delivery Detail
5 Days
Standard Parameters
ECG, Resp, NIBP, SpO2, Temp, Pr.
Full Lead
I, II, III, Avl, AVR, Avf and V
Scanning Speed
12.5mm/S, 25mm/S, 50mm/S
Production Capacity
10000 set/Year
📋 Product Overview

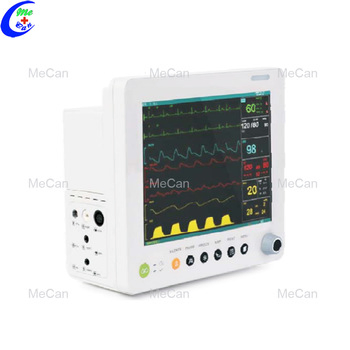

Portable 6-Parameter Patient Monitor (12.1-inch)

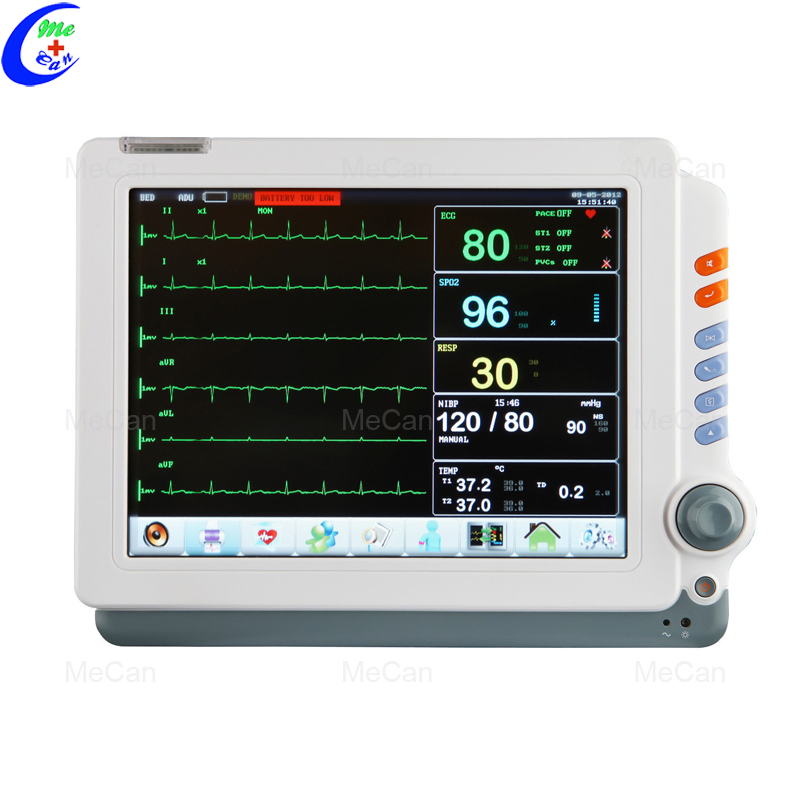

  • 12.1" large-screen color TFT display
  • 7-lead ECG waveforms display with big font observational interface
  • Reviewable ECG waveforms, maximum 72 hours graphic trends review
  • Optional with thermal recorder
Software Features
Feature Description
Large Font Display New large font model for long-distance real-time monitoring.
Complete Display Seven lead ECG waveform and physiological info display for accurate diagnosis.
Trend Display Dynamic trend display allowing doctors to observe changes in all parameters.
Mounting Options Available with bedrail hook, wall hook, and rolling stand.
Digital SpO2 Precise measurement for weak perfusion and finger shaking.
ICU Ready Arrhythmia, S-T segment analysis, and pacemaker detection; suitable for Adult, Pediatrics, and Neonatal patients.
⚙️ Technical Specifications
ECG Monitoring

Lead Mode: I, II, III, AVL, AVR, AVF, V
Gain Selection: 5mm/mV, 10mm/mV, 15mm/mV, 20mm/mV, 25mm/mV
Heart Rate Range: 15 - 300 bpm | Accuracy: ±1 bpm
ST Section Scope: ±0.8mV | Precision: < ±0.05mV

NIBP (Non-Invasive Blood Pressure)

Theory: Electric oscillator
Detection Scope:
- Systolic: 30mmHg - 255mmHg
- Diastolic: 15mmHg - 220mmHg
- Mean: 20mmHg - 235mmHg
Accuracy: Static pressure ±3mmHg, Pulse rate ±2%

Respiration & Temperature

Resp Method: Chest impedance or End-tidal CO2
Resp Rate Range: 2 - 60 times/minute (including infants)
Temp Range: 20°C - 50°C | Accuracy: ±0.2°C

🖼️ Product Categories
Patient Monitor
Hospital Furniture
Surgical Equipment
Obstetric Gynaecology
Laboratory Equipment
Sterilizer
Mortuary Equipment
Homecare Product
Veterinary Equipment
❓ Frequently Asked Questions
Q: What are the standard monitoring parameters for this device?
A: The standard parameters include ECG, RESP (Respiration), NIBP (Non-Invasive Blood Pressure), SpO2, TEMP (Temperature), and PR (Pulse Rate).
Q: Is the monitor suitable for neonatal and pediatric use?
A: Yes, it is designed for ICU, CCU, and operating room use across adult, pediatric, and neonatal patient groups.
Q: How long can the monitor operate on battery power?
A: The built-in high-capacity battery provides up to 2 hours of continuous working time and includes a low-battery indicator.
Q: Can I review historical patient data on this monitor?
A: Yes, the system supports a maximum of 72 hours of reviewing graphic trends and reviewable ECG waveforms.
Q: Does the device have alarms for critical changes?
A: Yes, it features an adjustable 3-level audio and visual alarm system to alert medical staff of any parameter changes.
Q: What is the display size and type?
A: The monitor features a 12.1-inch large-screen color TFT display for clear visibility of all waveforms and data.
