Basic Info.
Group
Adult, Pediatric and Neonatal Patient
Power Requirements
AC100-240V , 50/60Hz
Battery
Internal Rechargeable Li-ion Battery Power
Printer
Built-in Thermal Printer (Paper Width:110mm)
Size
32cm (W)*26cm (D)*8cm (H)
Central Monitor System
Optional
Production Capacity
500 Sets/Month
Product Description

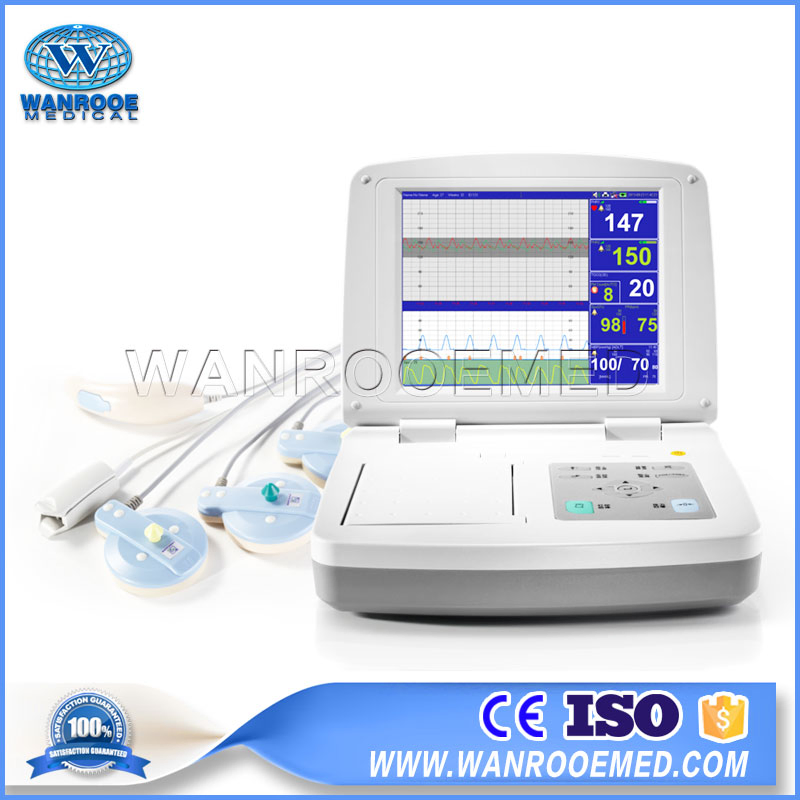

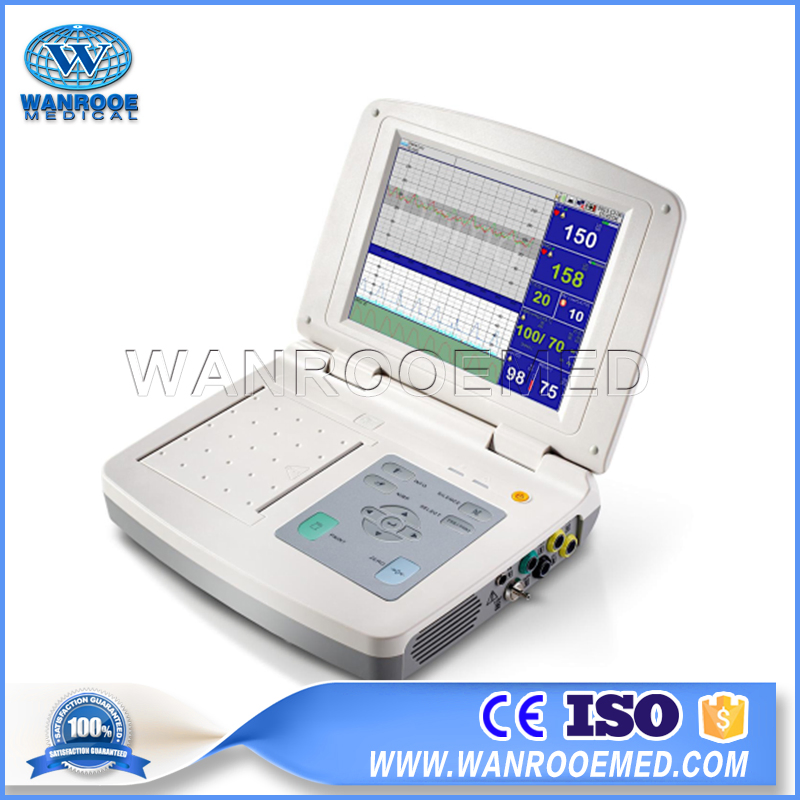

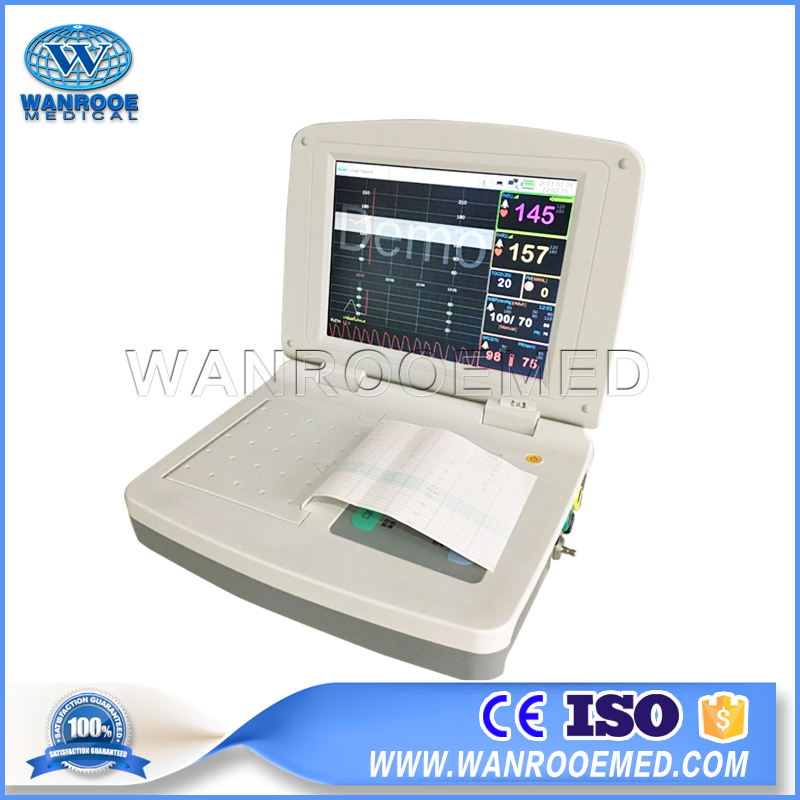

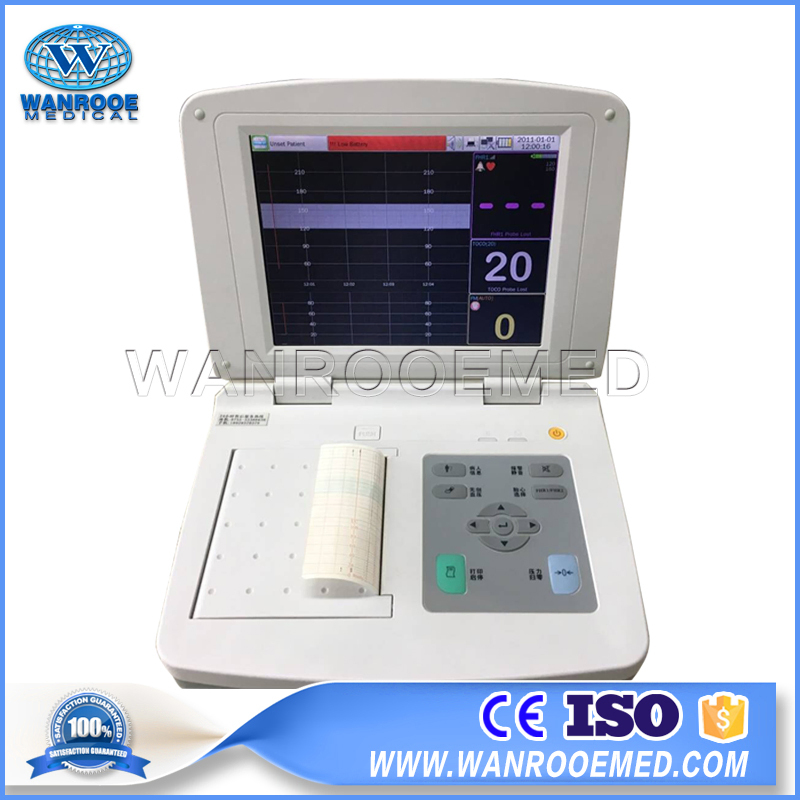

Mars K Hospital LCD Display Portable Fetal Heart Doppler Maternal Monitor for Pregnant Women
Features
- Folded 10.4 inches TFT LCD high-brightness screen
- 12-crystal waterproof pulse Doppler transducer (optional), providing wider beam area and more homogeneous signal.
- Event Marker makes it easy to annotate perceived fetal movements (FM) on the strip chart.
- Fetal Movement Profile (FMP) detects and automatically records gross fetal body movements.
- Heart rate offset mode visually distinguishes twins by offsetting secondary FHR + 30BPM.
- Heartbeat Coincidence recognition provides visual and audible indication for synchronous signals.
- Fetal heart rate alarm provides both audible and visual alerts for high/low ranges.
- Easy-to-load Z-fold paper stacks neatly, facilitating easy storage.
- Internal Li-on battery power or AC power from external power supply.
- Supporting TCP/IP or wireless connection to the central monitoring station.
- NST Report (Fetus health report).
Technical Specifications
| Physical Specifications |
| Dimension | 32cm (W)*26cm (D)*8cm (H) |
| Weight | Standard configuration: 2.8 kg |
| Operation Environment |
| Power requirements | AC100-240V, 50/60Hz, 50VA |
| Temperature / Humidity | 0-40ºC / 0-93% non-condensing |
| Fetal/Maternal Performance |
| Display | 10.4 inches (1024×768 pixel) color TFT-LCD |
| Indicator | Visual on-display, alarm light, audible alarm |
| Memory | 24-hours memory for fetal traces (150 groups) |
| Printer | Built-in thermal printer (110mm), Z-fold paper |
| Ultrasound (FHR) |
| Measurement Range | 30 to 240 bpm |
| US Frequency | 1MHz±5%Hz |
| TOCO |
| Measurement Range | 0-100 units |
| Baseline setting | 0, 5, 10, 15, 20 selective |
| Maternal Monitoring (Optional) |
| NIBP Range | Systolic: 30 to 270 mmHg, Diastolic: 10 to 245 mmHg |
| SpO2 Range | 0% - 100% (Accuracy: ±2%) |

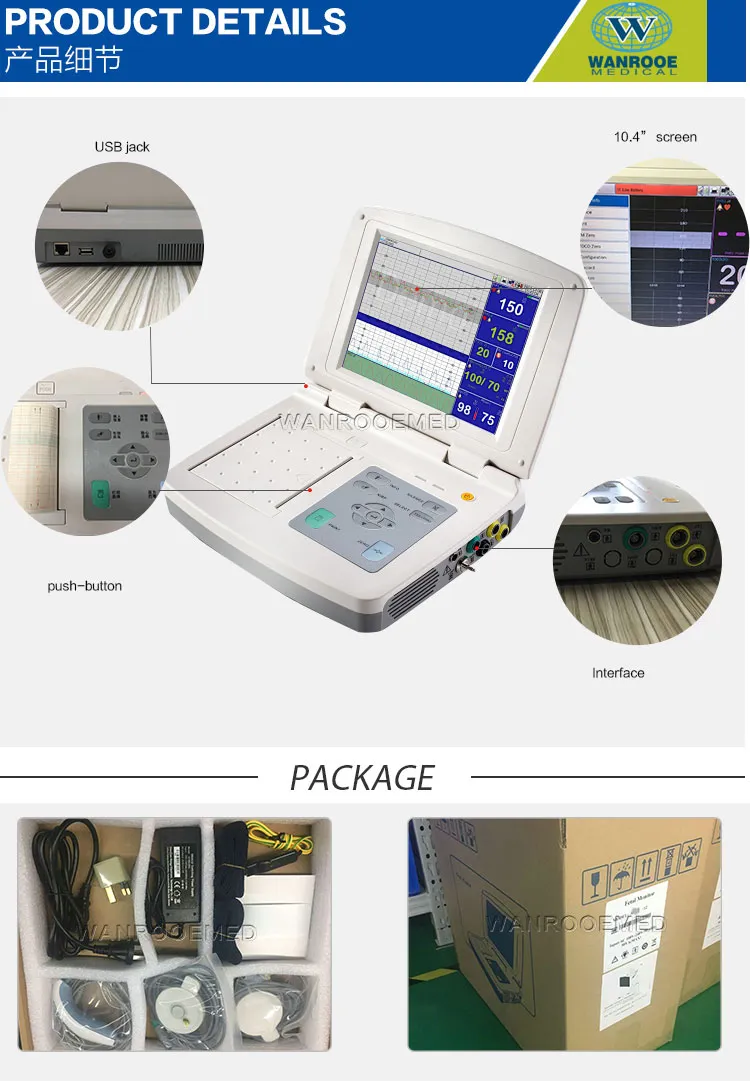

Product Details
Frequently Asked Questions
What is the display size of the Mars K fetal monitor?
The Mars K features a high-brightness 10.4-inch color TFT-LCD screen that can be folded for better viewing angles and portability.
Does this monitor support twin pregnancy monitoring?
Yes, it includes a heart rate offset mode that allows you to visually distinguish the heart rates of twins by offsetting the secondary FHR by +30BPM.
What parameters are monitored for the mother?
The Mars K offers optional maternal monitoring including NIBP (Non-Invasive Blood Pressure), SpO2 (Oxygen Saturation), and Pulse Rate.
How long is the data memory storage?
The device provides a 24-hour memory for fetal traces and can store up to 150 groups of patient data for review and printing.
Is the monitor portable for hospital use?
Yes, with a lightweight design of 2.8 kg and an internal rechargeable Li-ion battery, it is highly portable and suitable for various hospital settings.
Can it connect to a central monitoring station?
Yes, it supports both TCP/IP (LAN) and wireless connections to link with a central monitoring station for remote data management.
