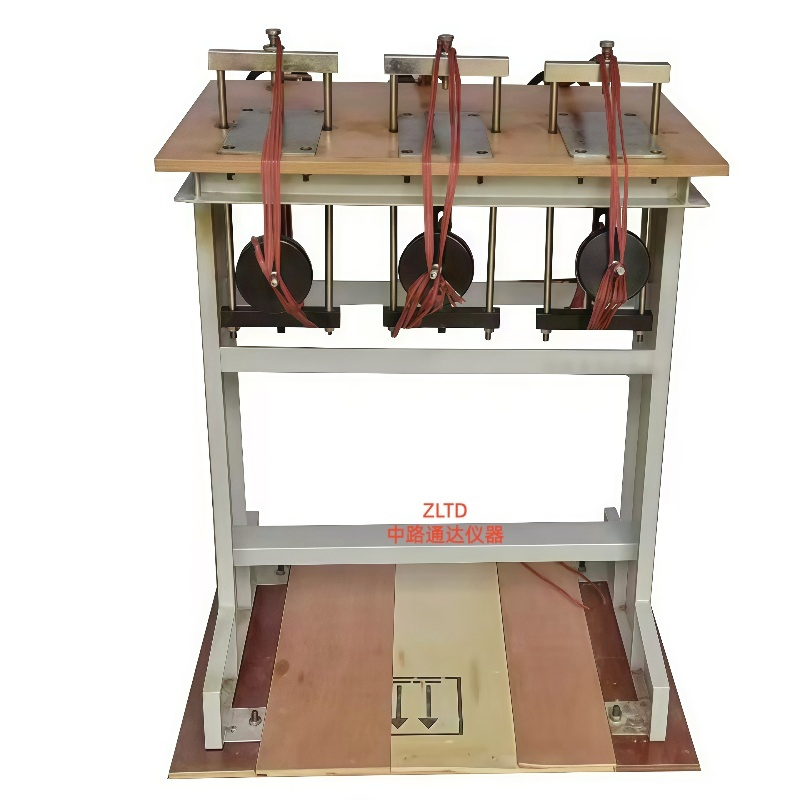

Laboratory Hydraulic Flow Analysis Front-Loading Oil Channel Instrument

I. Purpose

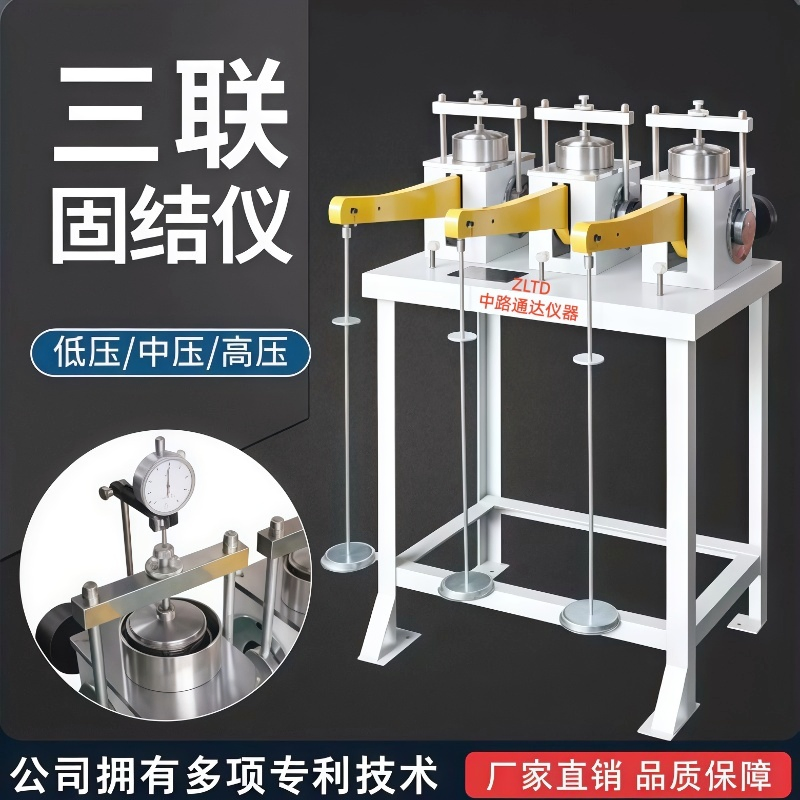

This apparatus is designed for soil consolidation (oedometer) testing, in compliance with international standards such as ASTM D2435. It determines the relationships between soil deformation and applied pressure, void ratio and effective stress, as well as deformation and time under load.

II. Technical Specifications

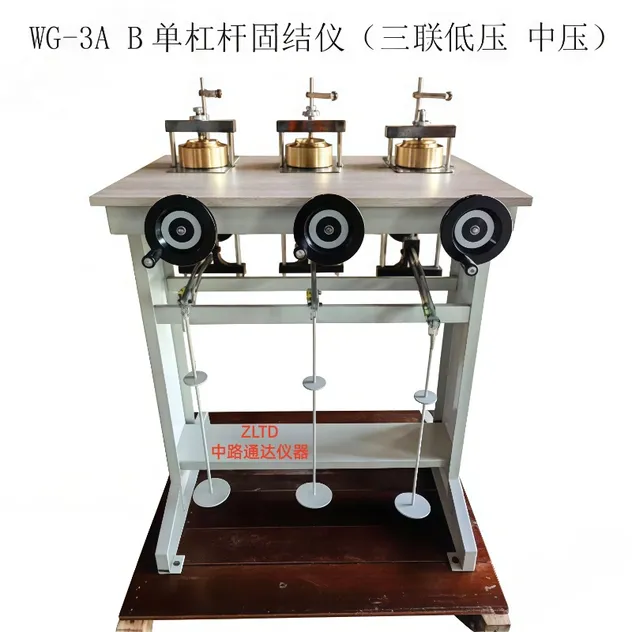

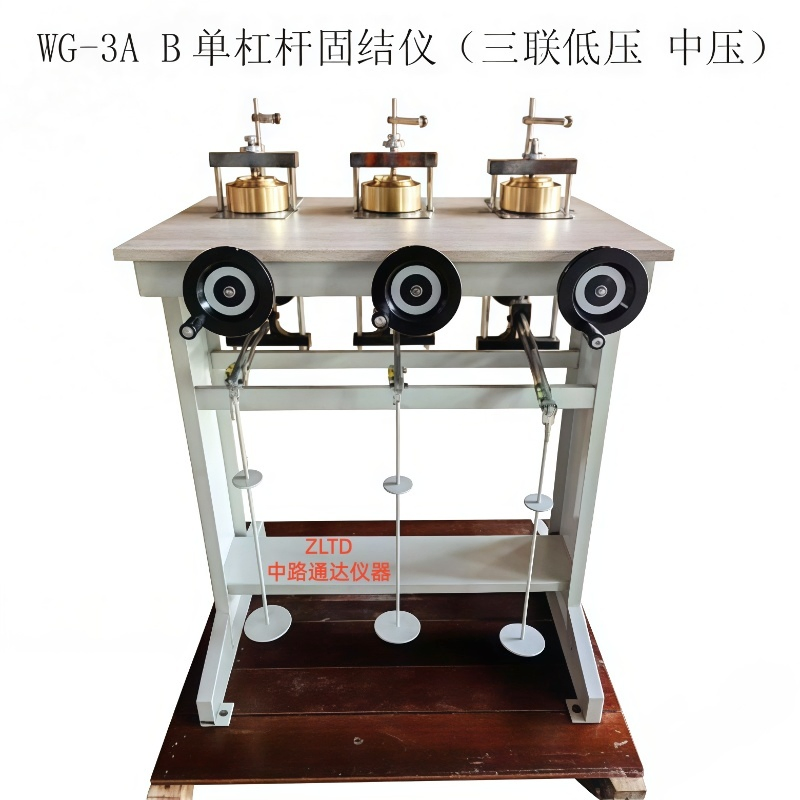

• Simultaneous Testing: Capacity for 3 soil samples (triple beam configuration).
• Sample Sizes: Accommodates 30 cm² or 50 cm² areas with a fixed height of 20 mm.

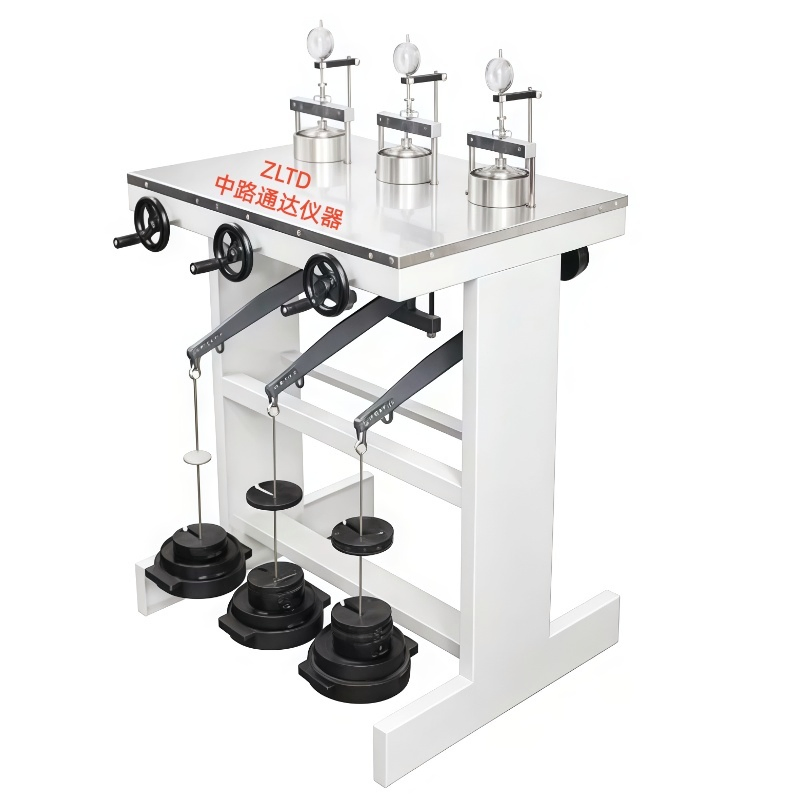

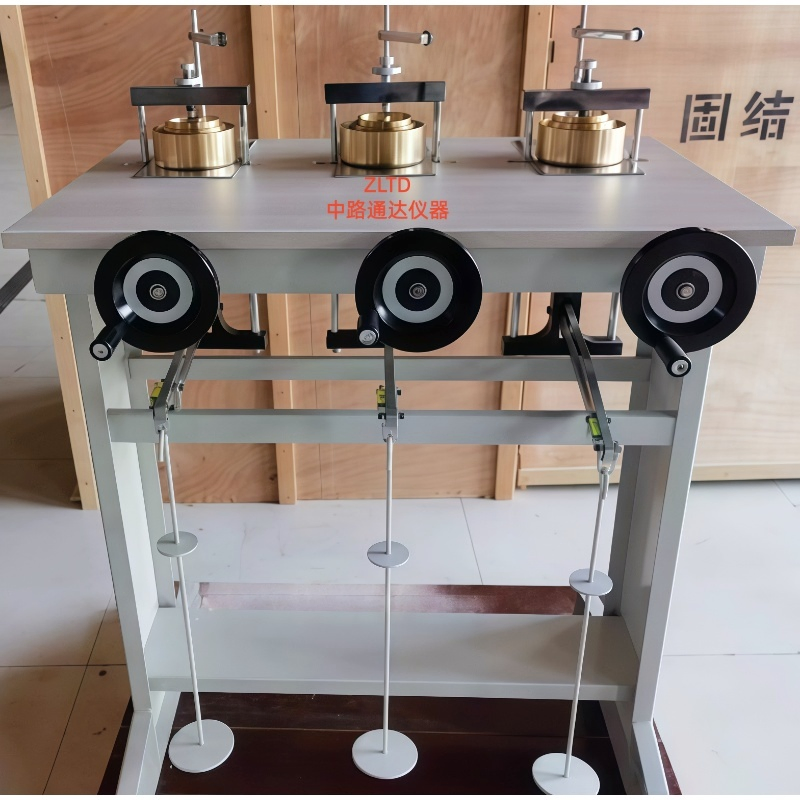

• Lever System: 1:12 ratio with built-in level bubble and calibrated weights.
• Load Capacity: Model 1B (4.8 kN), Model 1C (2.4 kN).
• Pivot Adjustment: 15 mm vertical travel to maintain leverage accuracy.
• Frame: High-density board platform with a robust steel frame.

Our factory is a high-tech enterprise specializing in the R&D, application research, and sales of testing and measurement instruments. With several outstanding senior engineers involved in product development for over twenty years, we introduce advanced testing equipment globally and provide professional pre-sale and after-sale services.

We produce and sell a wide array of instruments including universal testing machines, highway and railway testing tools, geotechnical, concrete, asphalt, and non-destructive testing equipment. Our solutions cover construction, water conservancy, power, and environmental protection industries.

• Warranty: 12-month comprehensive warranty service.
• Inspection: 100% quality inspection and testing before shipment.
• Training: Video tutorials provided for each model; on-site engineer training available upon request.

I. Protection: Adequate measures are taken to prevent dampness, rust, corrosion, and impact damage during transit.

II. Documentation: Each box includes a detailed packing list of all accessories and components.

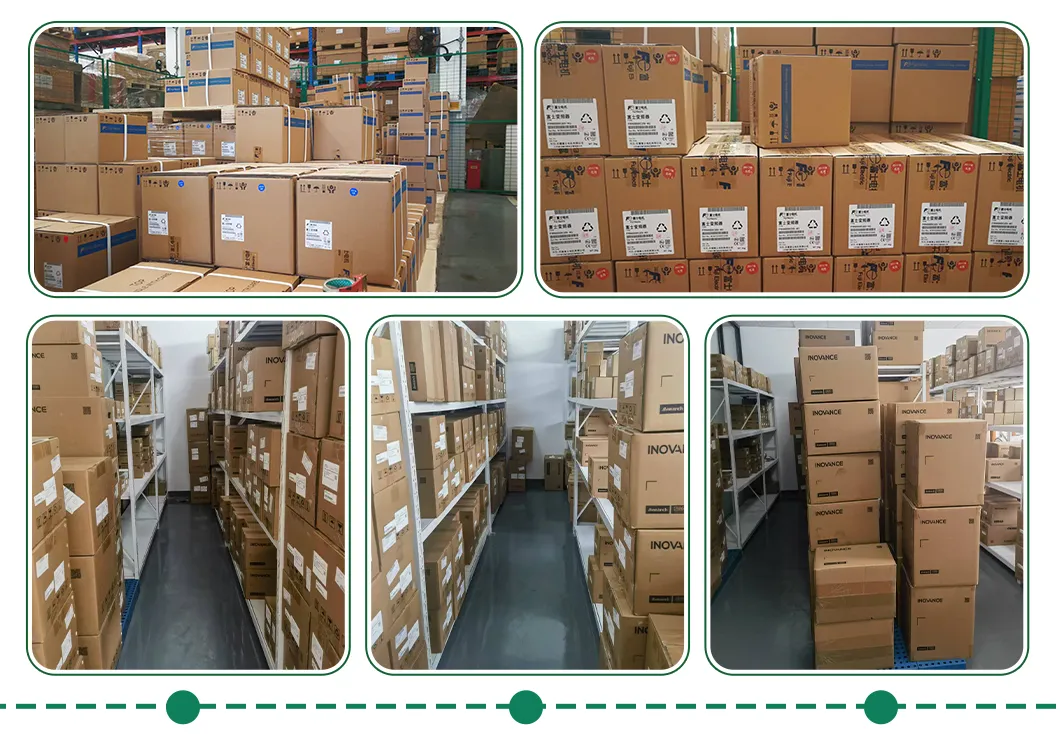

III. Planning: Instruments are packaged separately in compliance with national standards to ensure intact delivery.
