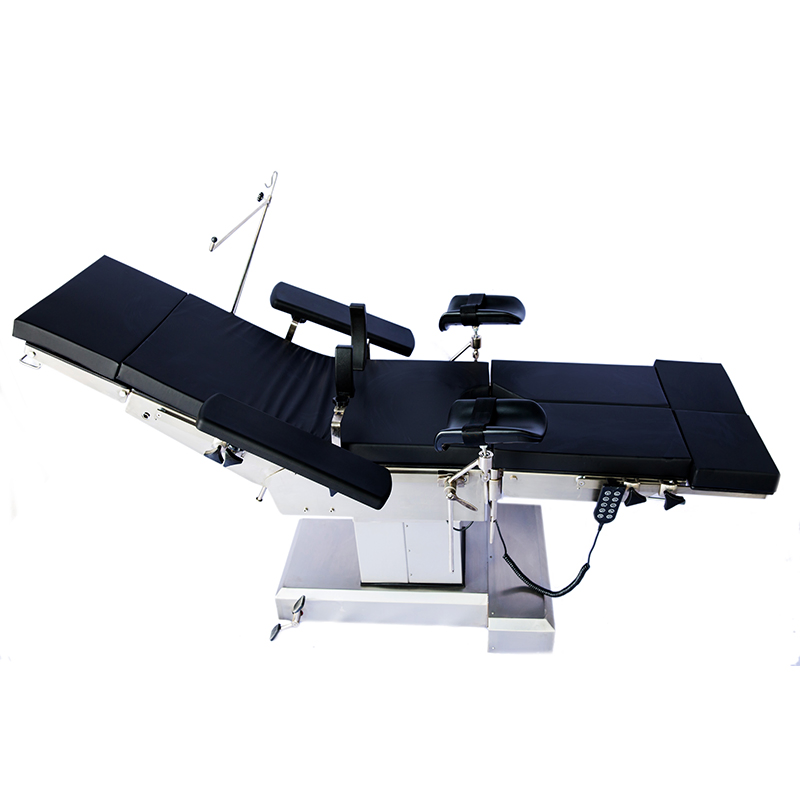

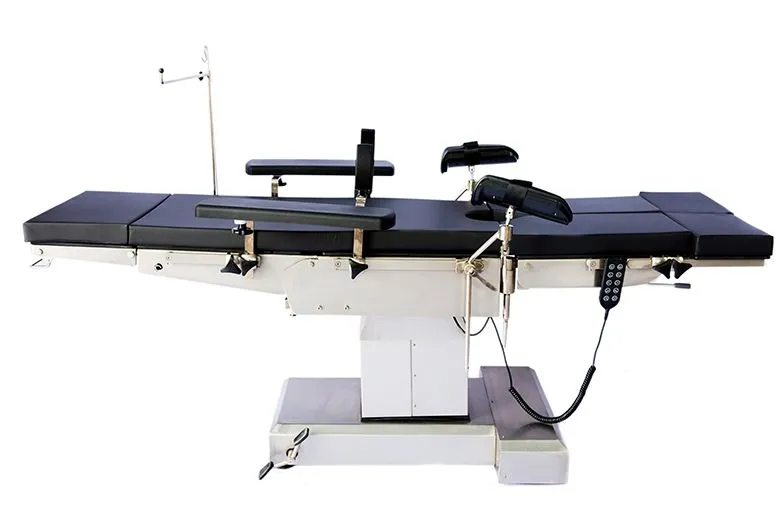

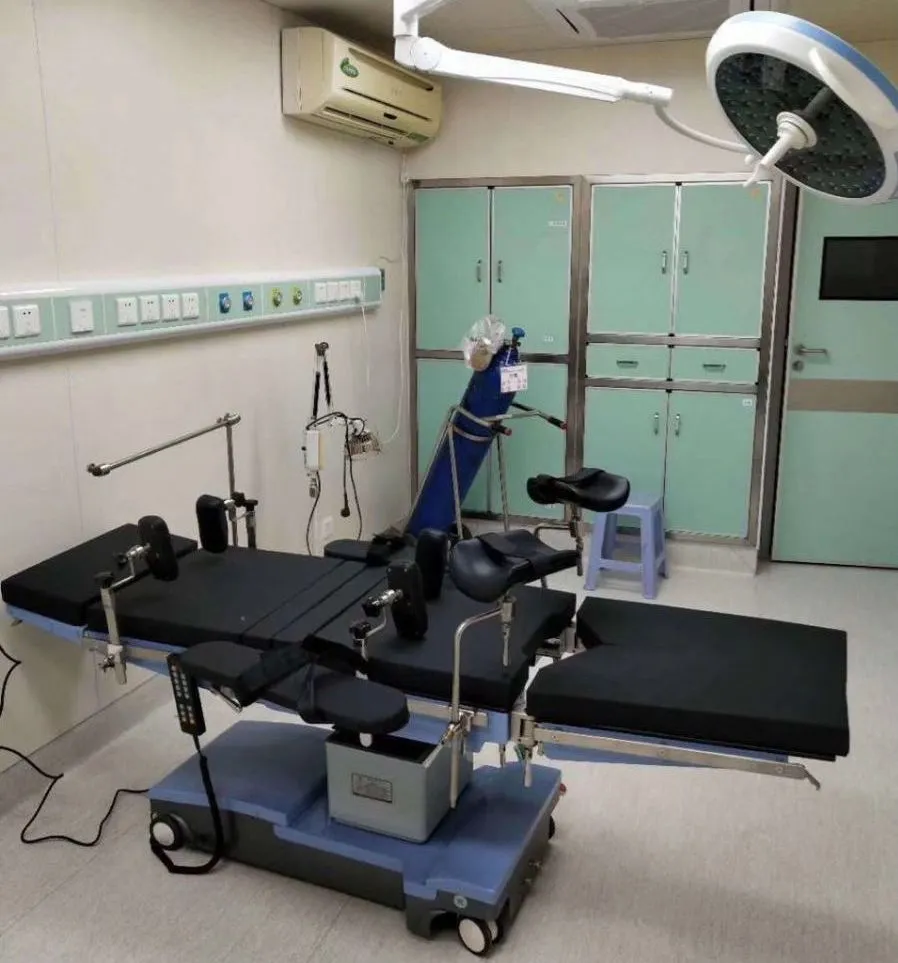

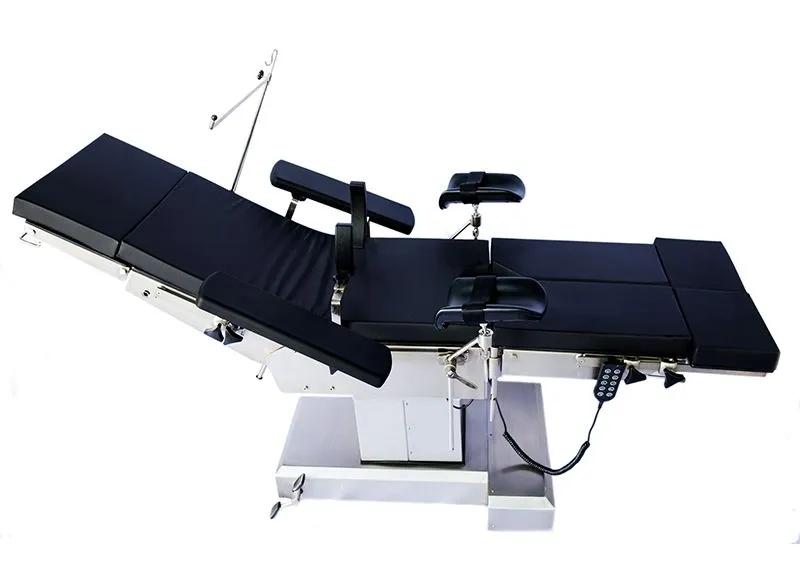

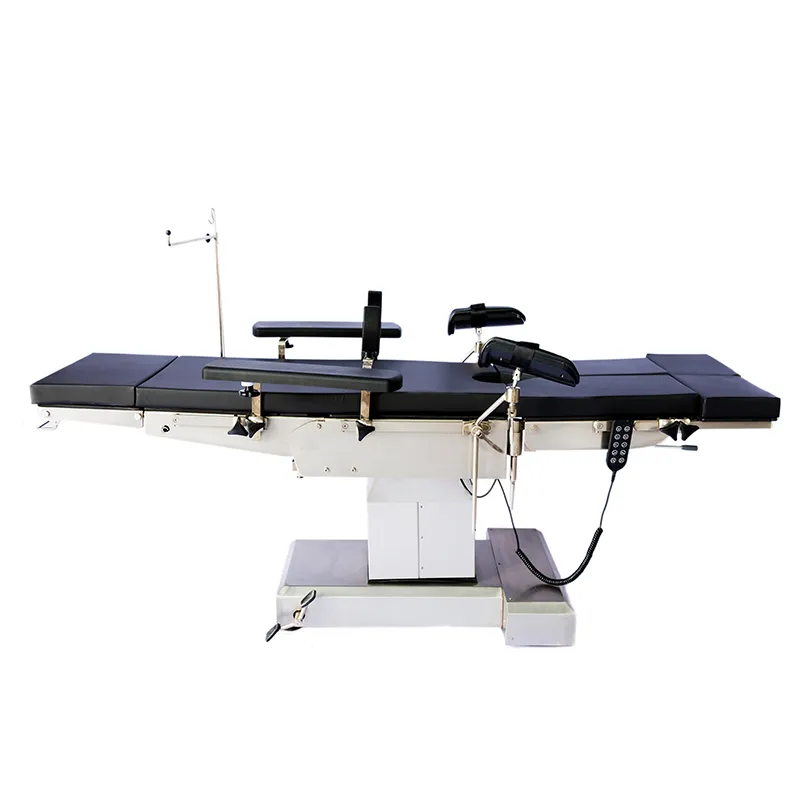

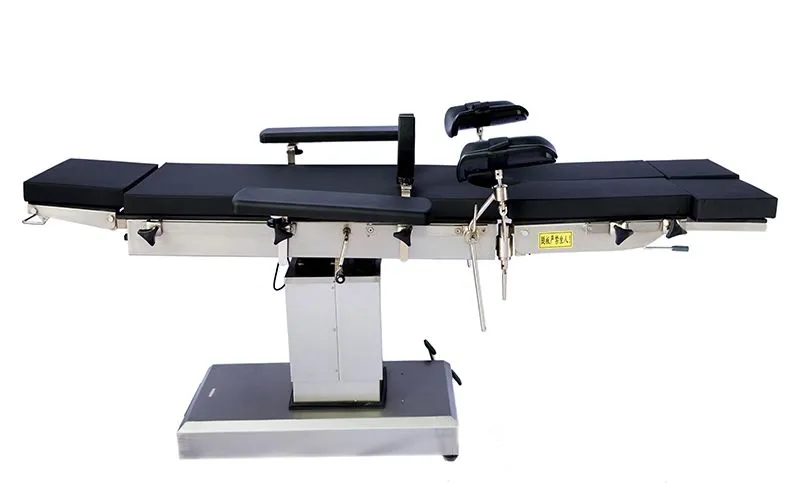

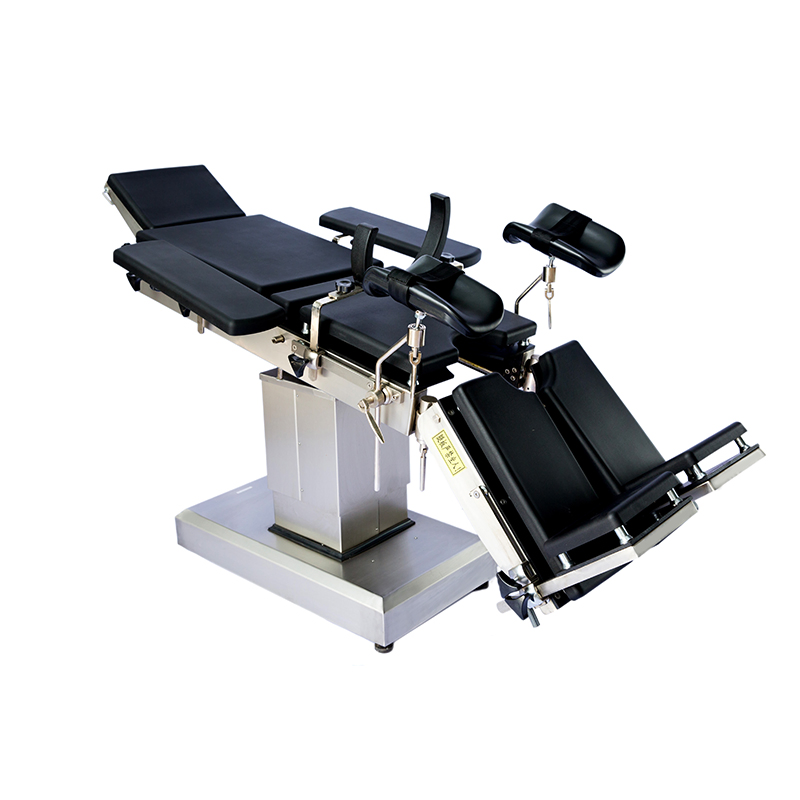

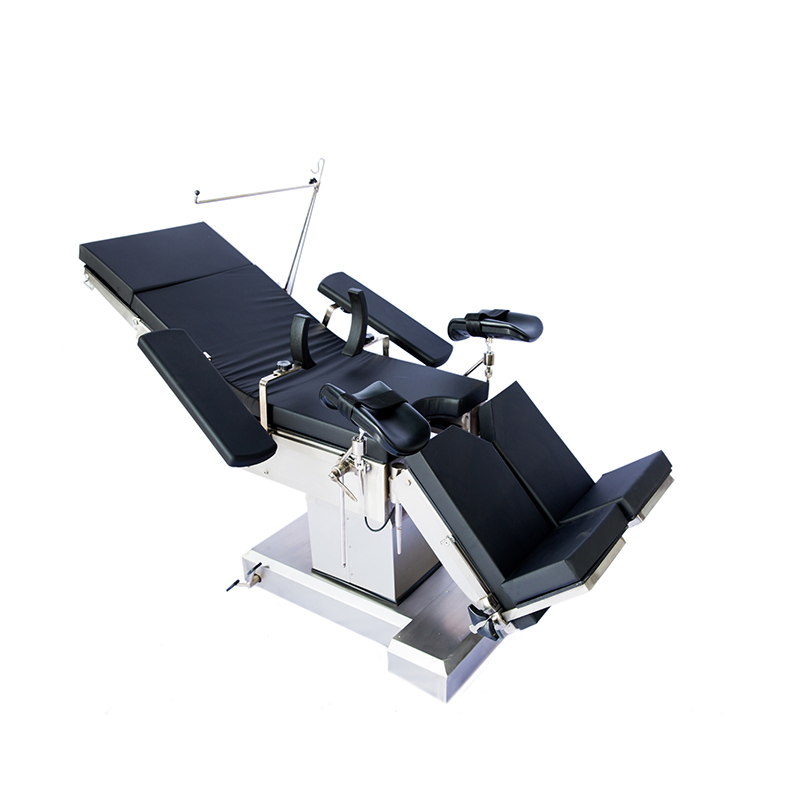

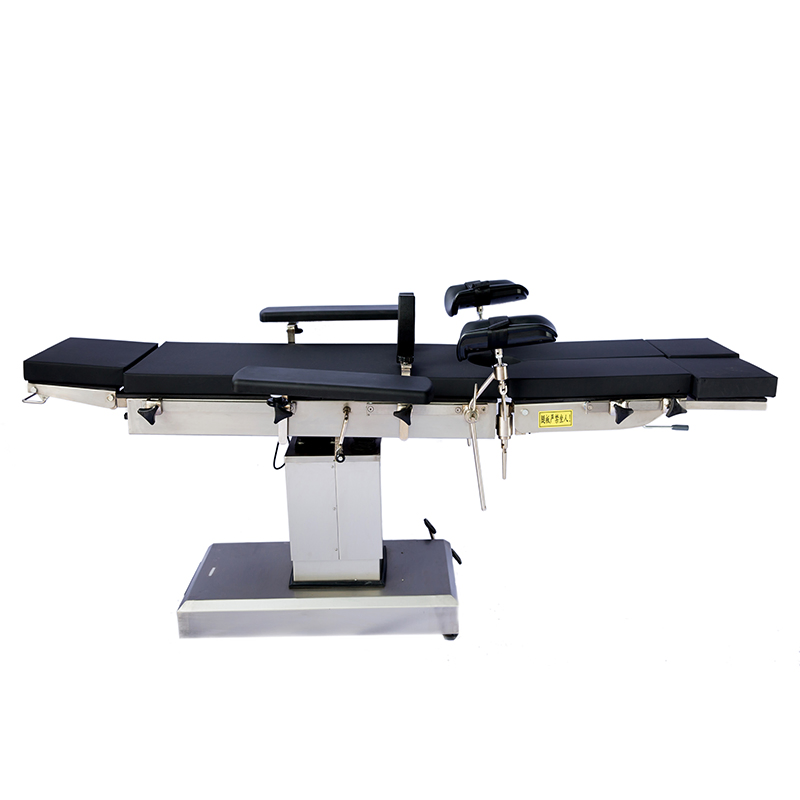

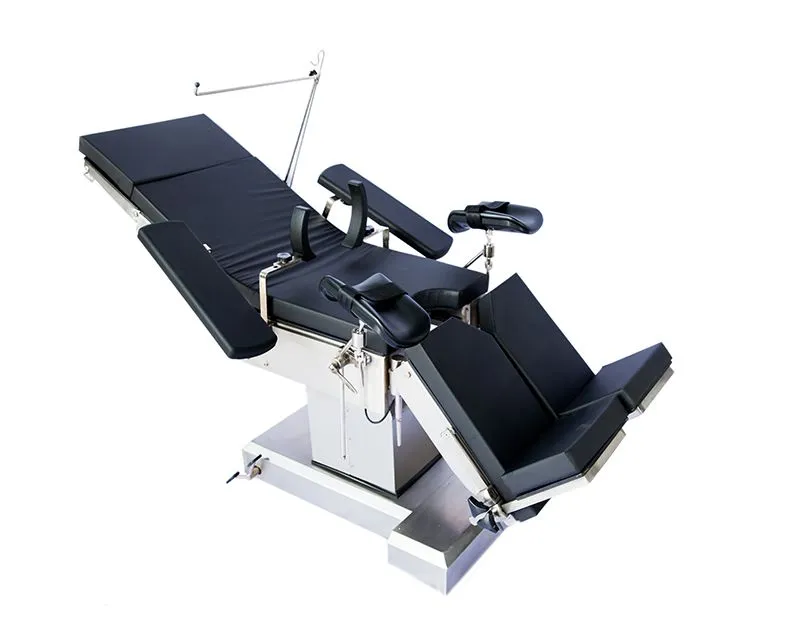

It is used in hospital operating rooms for head, neck, chest, abdomen, perineum and limbs surgery, obstetrics and gynecology, ophthalmology, otolaryngology, orthopedics, etc. The double-layer imported acrylic tabletop can be used for X-ray examination during surgery; the leg board can be abducted 90° and disassembled, which is very convenient for urology surgery. The tabletop lifting, front and back tilting, left and right tilting, and front and back translation are realized by electric devices, and the leg board folding down is realized by gas pressure springs, which is flexible, safe and reliable.
| Table length | 2100 (±20) × 520 (±20) mm |
| Table height | minimum 750(±20)--1000(±20)mm (electric) |
| Left/Right tilt (roll) | +20° / -20° (electric) |
| Front/Back tilt | +25° / -25° (electric) |

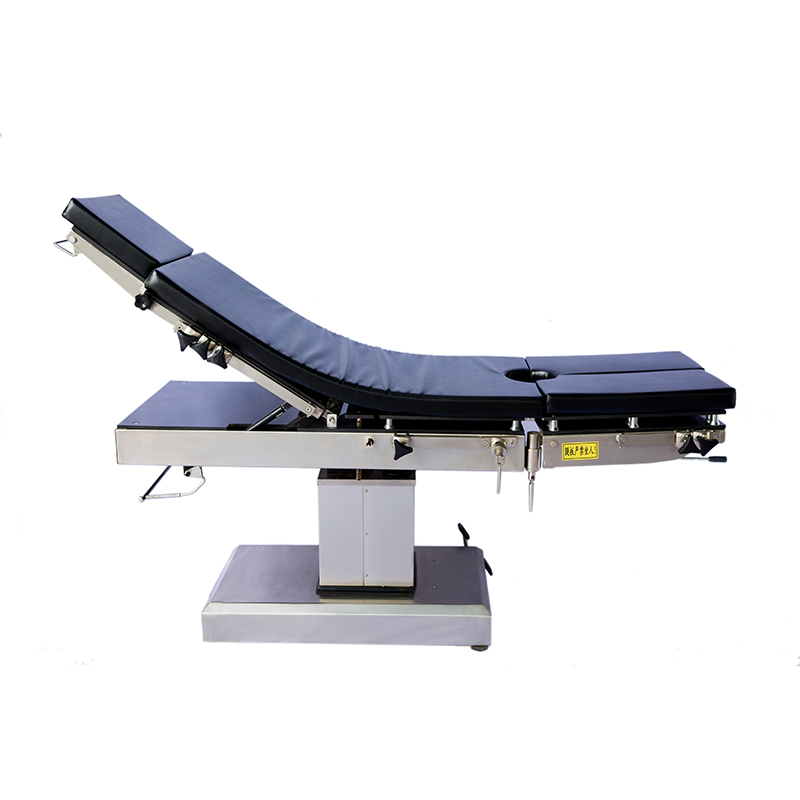

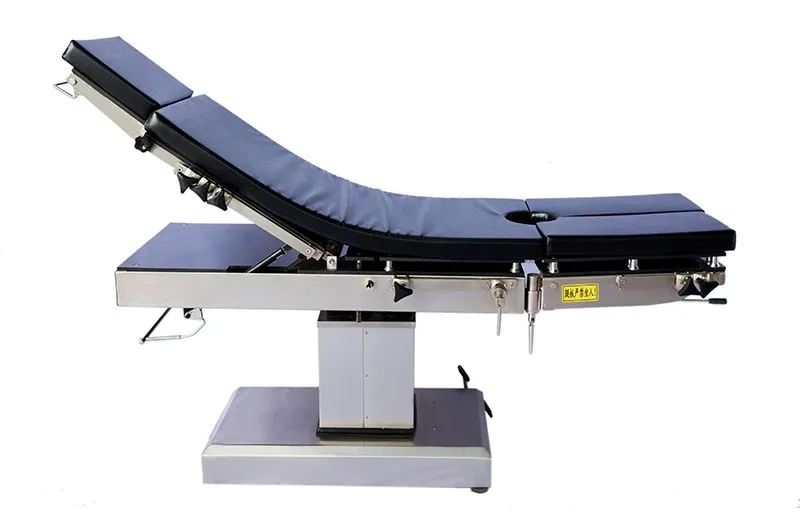

| Back up/bending | +85° / -15° (electric) |
| Front/Rear translation | 400 mm (electric) |
| Leg plate adjustment | -90°/ +15°, leg plate abduction: ≥90° (manual) |
| Standard configuration | Anesthesia screen rack/1 pc, Armrest rack/2 pcs, Leg support rack/2 pcs, Waist clamp/2 pcs, Large fixer/4 pcs, Small fixer/3 pcs, Mattress/1 set, Hand controller/1 pc. |
