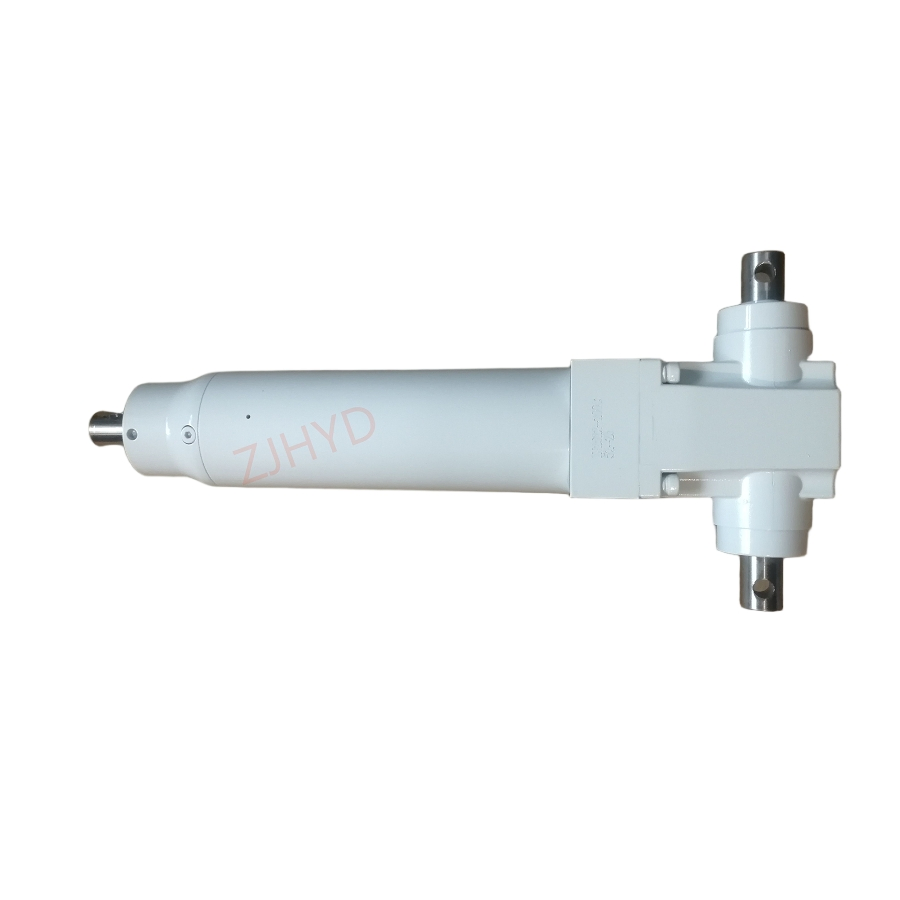

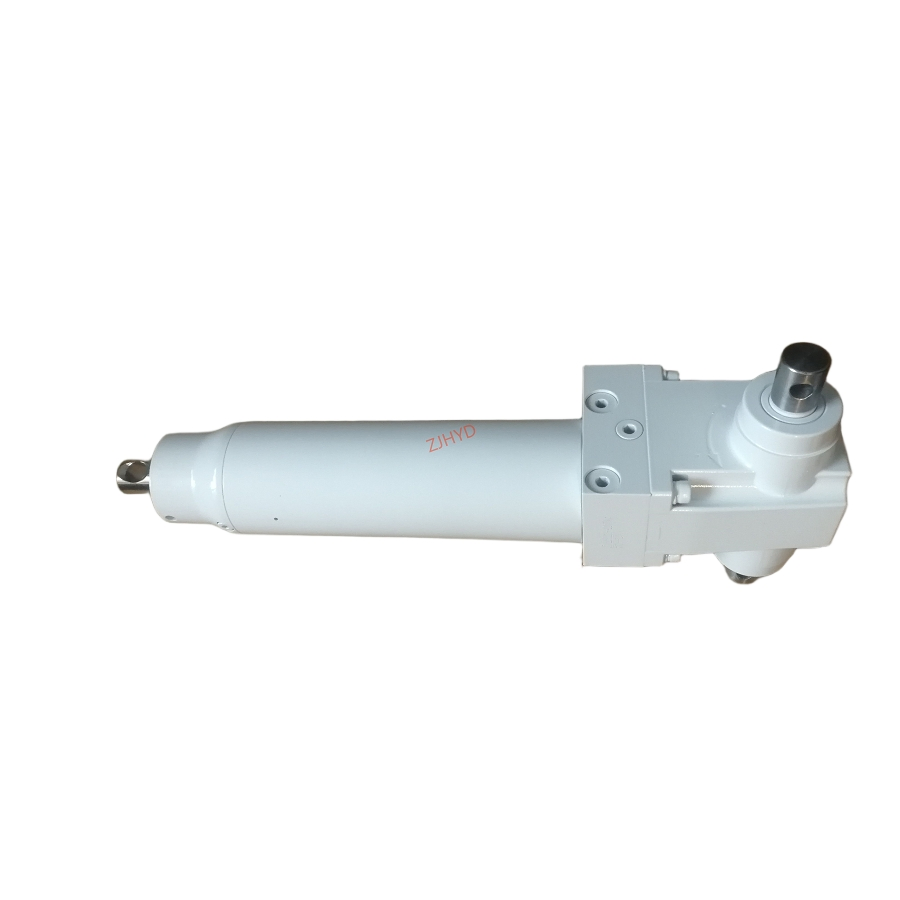

Hydraulic Pump for Hospital Medical Table Treatment Table Examination Massage Table Adjustable Surgical Lift Table

1 / 5

Hydraulic Pump for Hospital Medical Table Treatment Table Examination Massage Table Adjustable Surgical Lift Table

Material:	OEM
Type:	Hydraulic
Folded:	as Required

Send Inquiry

Product Description

Basic Specifications

Model NO.ZJ

ConditionNew

ApplicationHospital / Medical

FunctionsCustomizable

PackagingPlywood Case

SpecificationOEM & ODM Support

HS Code8412210000

Capacity50,000 PCS / Year

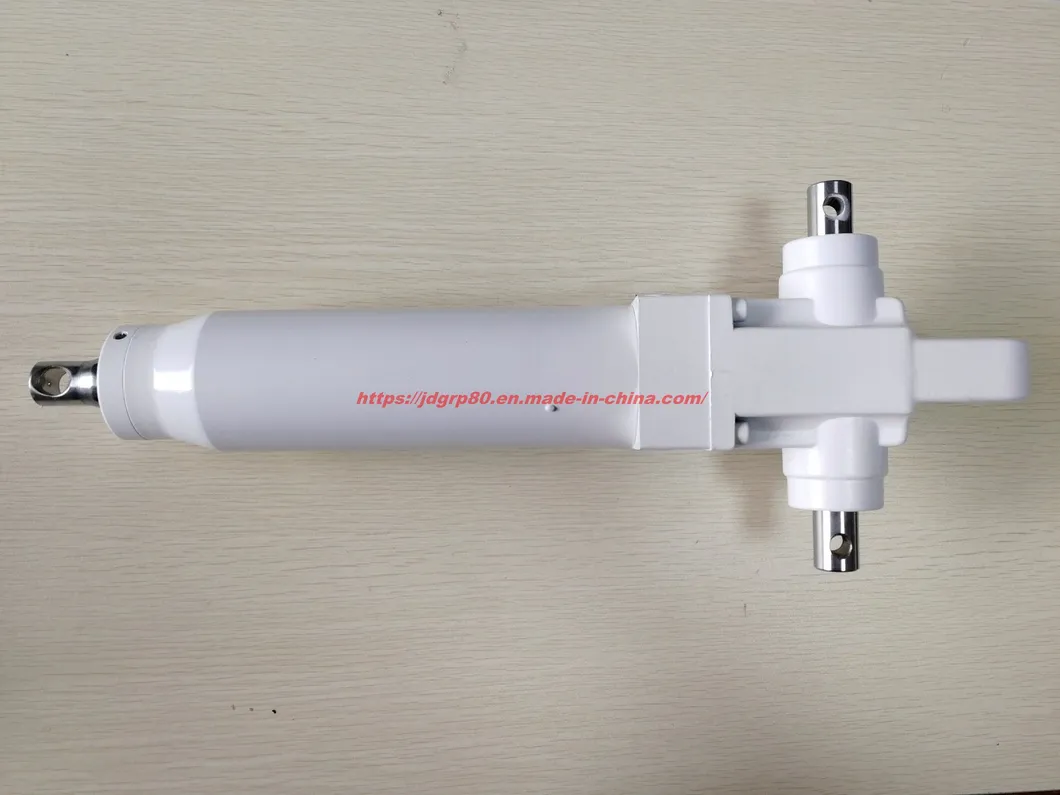

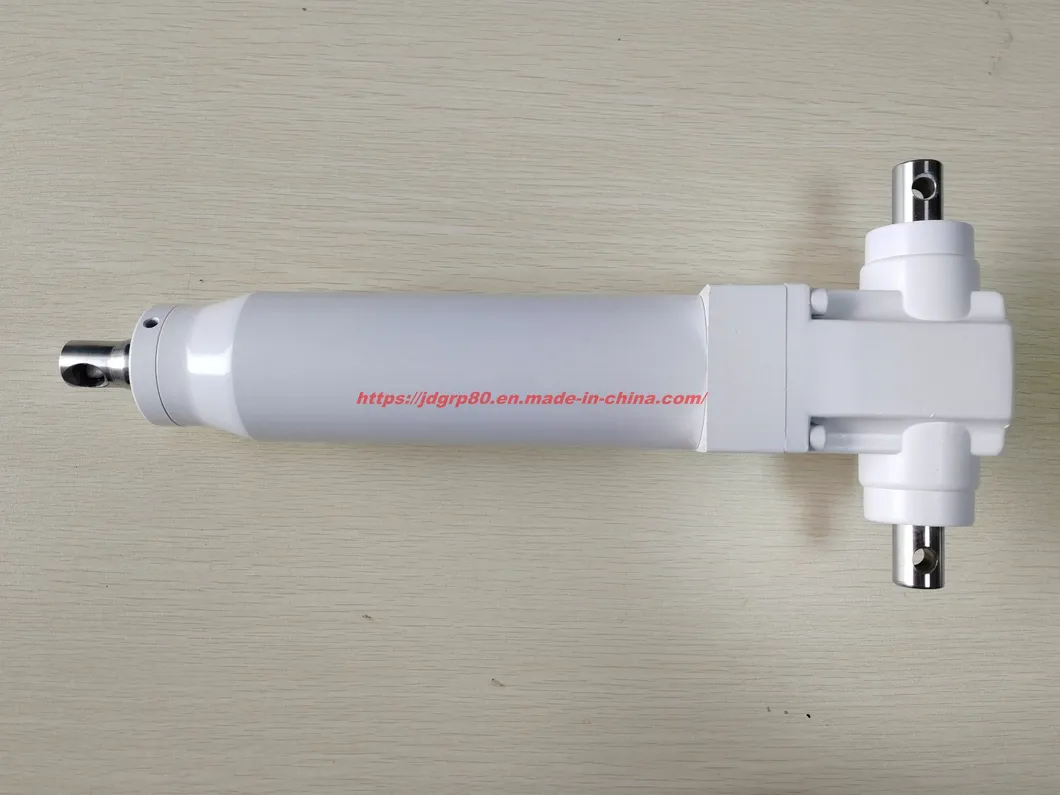

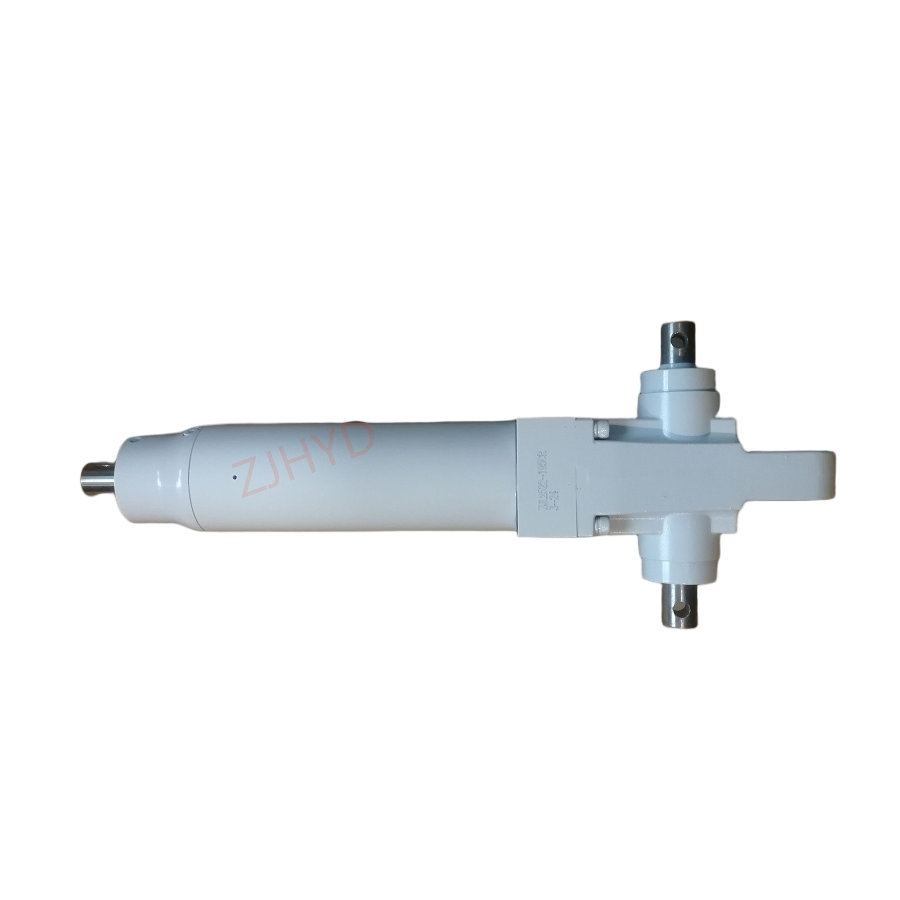

Hydraulic Cylinder for Medical Equipment

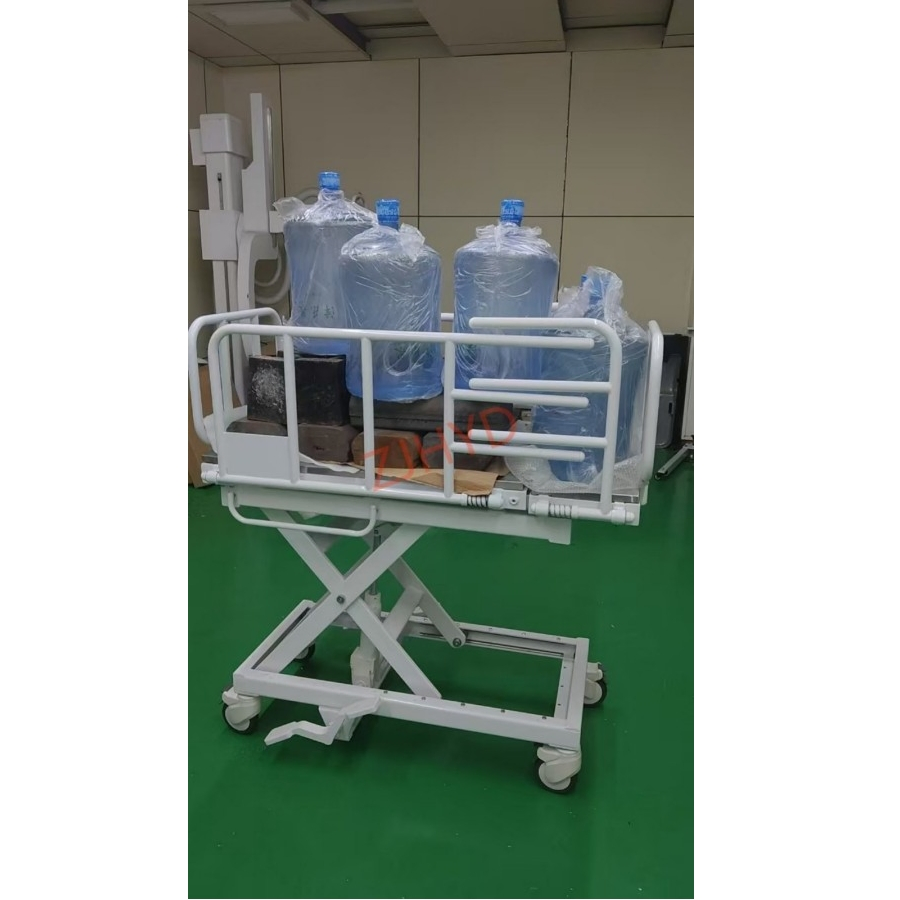

Premium hydraulic lift solution designed specifically for Hospital Beds, Medical Tables, and Surgical Lifting Tables.

📋 Technical Specifications

Maximum Work Load: 600 Kg
Maximum Bearing Load: 700 Kg
Minimum Relief Load: 20 Kg
Stroke Pressure: 6mm per stroke
Safety Valve: Integrated Overload Protection
Relief Velocity: < 15mm/S
Service Life: > 50,000 Cycles
Installation: 360° Universal Mounting

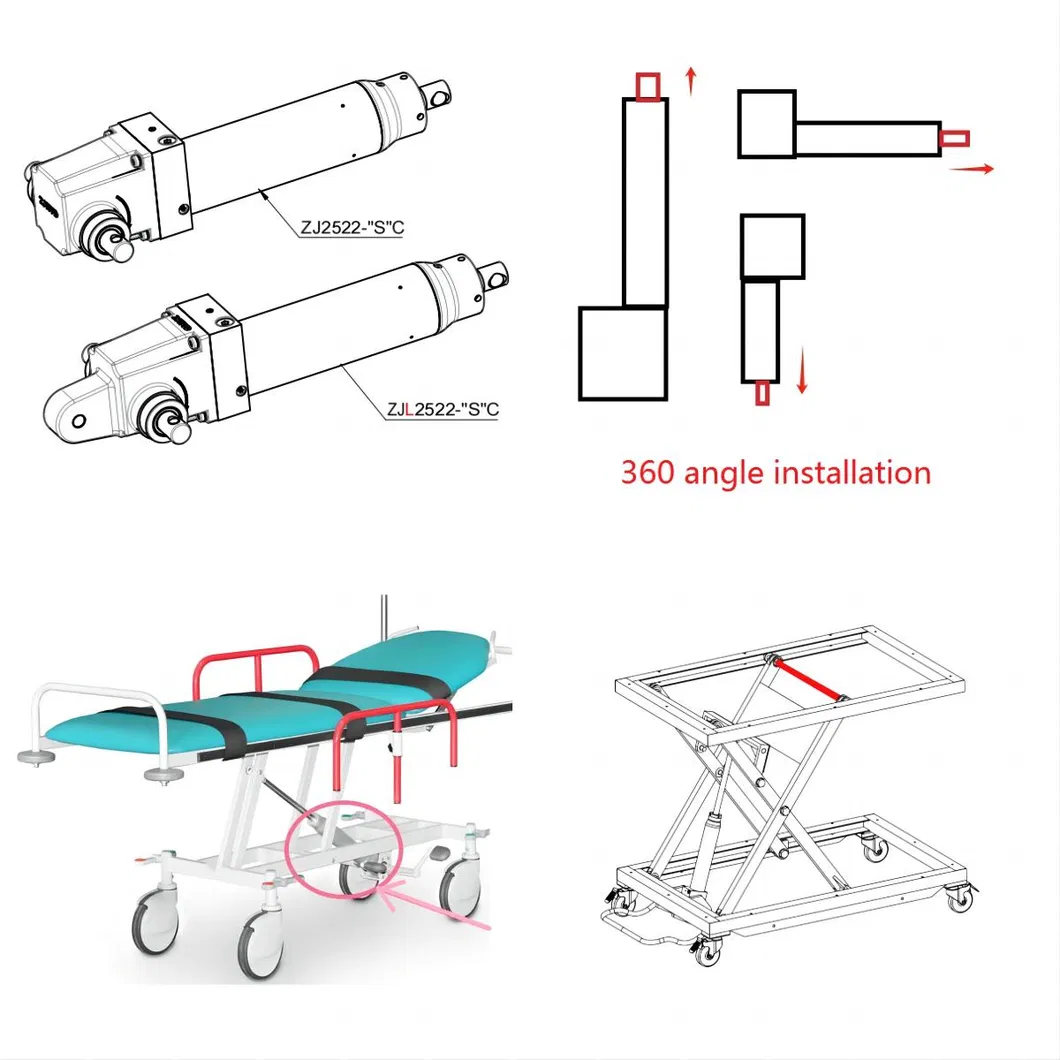

Model Selection & Stroke Range

Model Series	Stroke (mm)
ZJ2522-100C / ZJL2522-100C	100
ZJ2522-130C / ZJL2522-130C	130
ZJ2522-140C / ZJL2522-140C	140
ZJ2522-150C / ZJL2522-150C	150
ZJ2522-180C / ZJL2522-180C	180
ZJ2522-200C / ZJL2522-200C	200
ZJ2522-250C / ZJL2522-250C	250
ZJ2522-280C / ZJL2522-280C	280
ZJ2522-300C / ZJL2522-300C	300

Key Features & Advantages

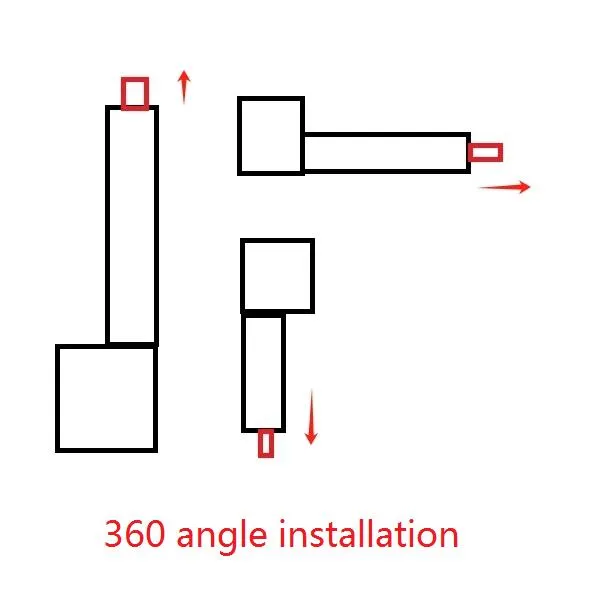

1. 360° Positioning Technology: Patented function allowing operation at any angle—horizontally, above, or below the horizontal line.

2. Advanced Overload Protection:
• Automatic pressure limitation when rod is fully extended to prevent damage.
• Relief valve triggers automatically if the platform weight exceeds the safety setting (600kg).

3. Premium Components:
• High-quality JAPAN-sourced springs for reliable relief valve performance.
• 304 Stainless Steel rod and shaft with hard chrome plating.
• Precision CNC machined valve blocks for zero-leakage performance.

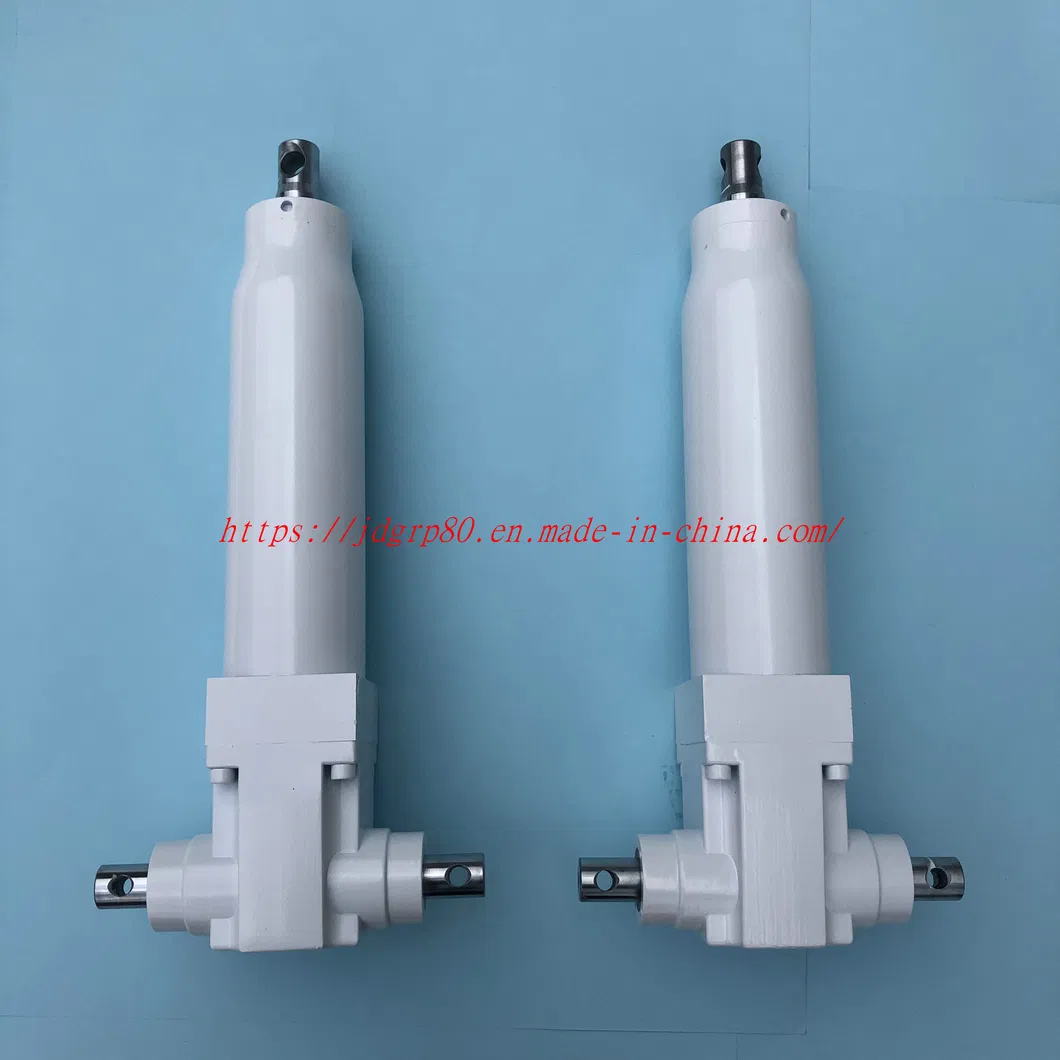

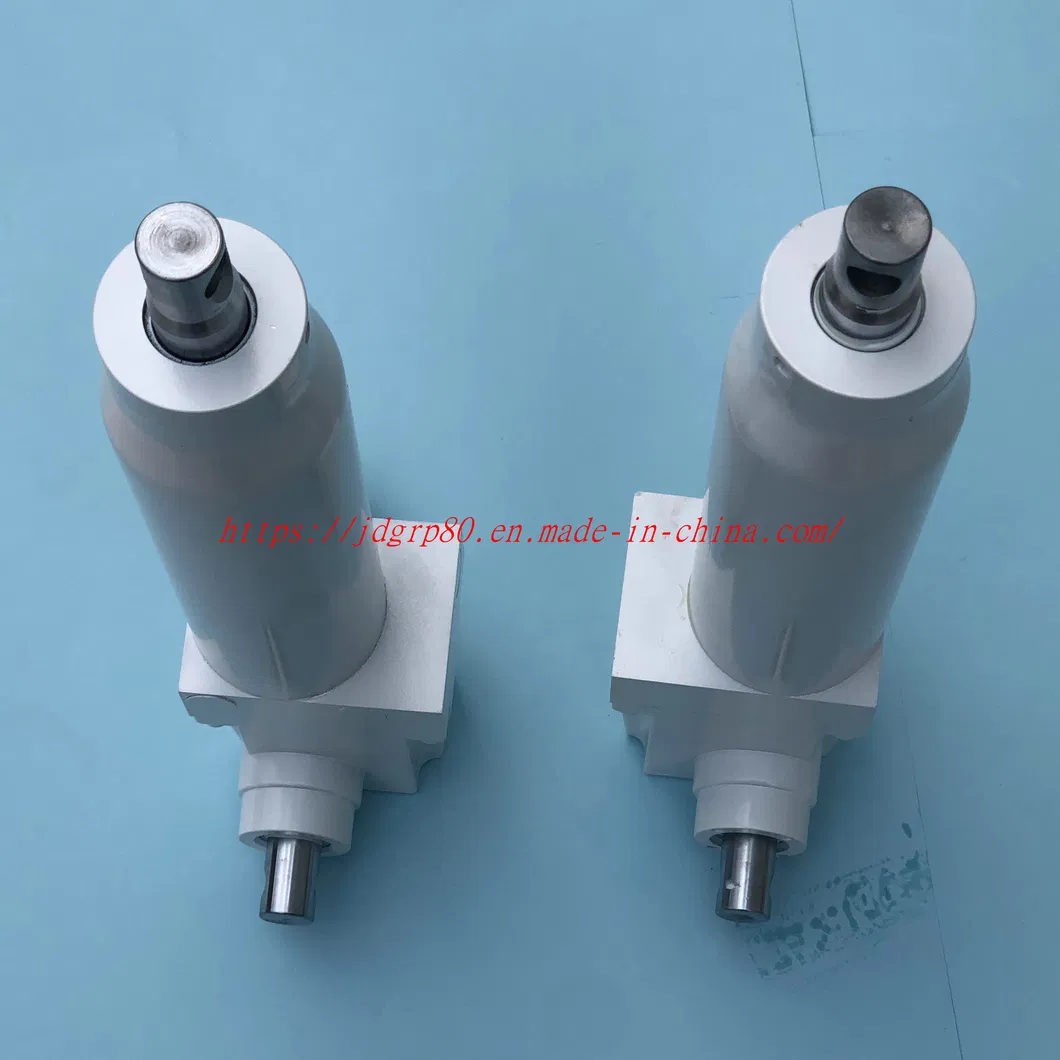

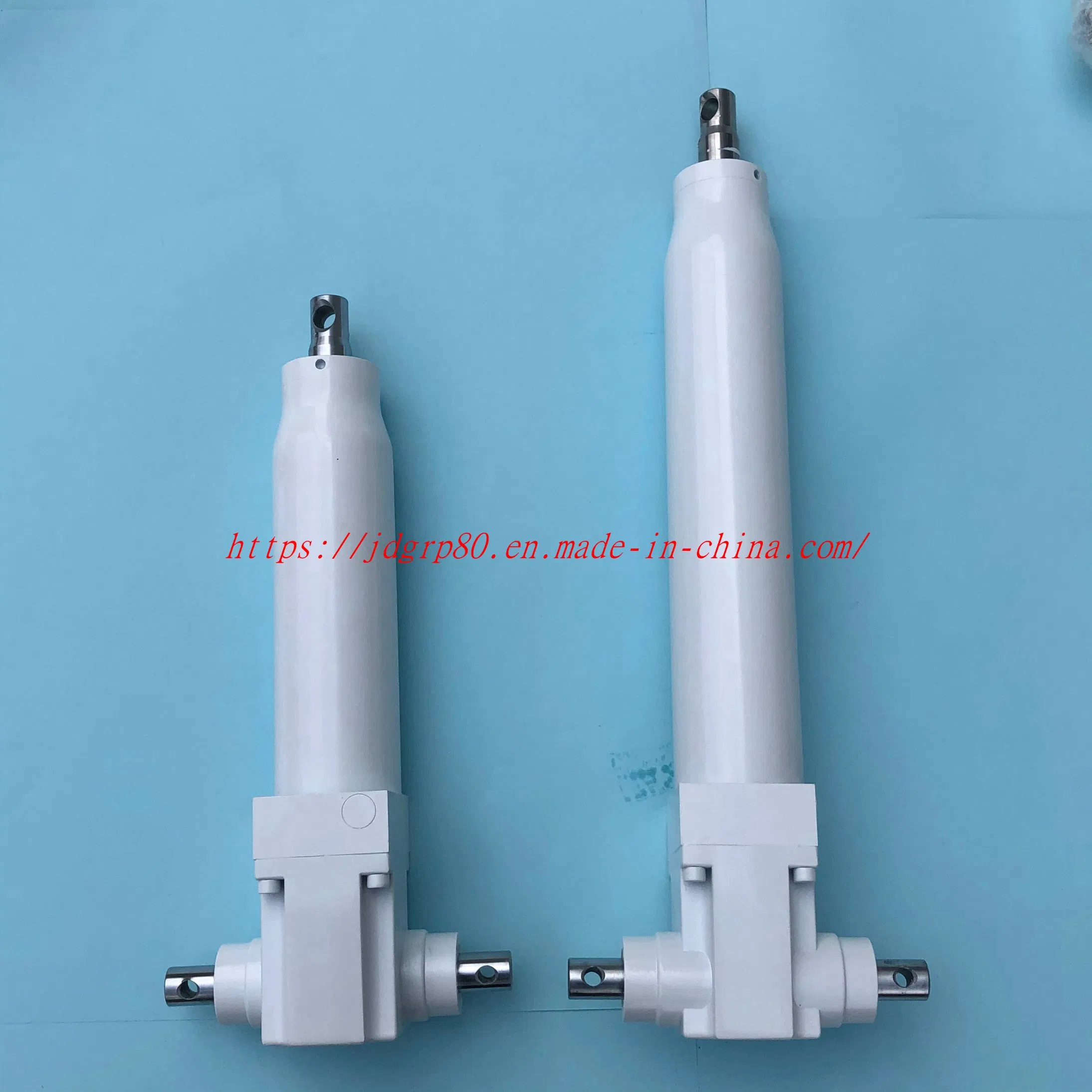

Product Display

Frequently Asked Questions

Q1: What is the maximum load capacity of this hydraulic cylinder? The cylinder supports a maximum working load of 600 Kg and a bearing load of up to 700 Kg.

Q2: Can the cylinder be installed at any angle? Yes, our patented design allows for 360° installation, functioning perfectly horizontally or at inclined positions.

Q3: What materials are used to prevent corrosion? The rod and shaft are made of 304 stainless steel with a hard chrome finish, providing excellent durability and hygiene for medical environments.

Q4: Does the system include safety protections? Yes, it features an integrated safety relief valve and overload protection to prevent pressure spikes and equipment damage.

Q5: What is the expected lifespan of the product? The service life is tested to exceed 50,000 cycles, ensuring long-term reliability for hospital equipment.

Q6: Are OEM and ODM services available? Yes, we provide full support for original equipment manufacturing and original design manufacturing to meet specific medical requirements.
