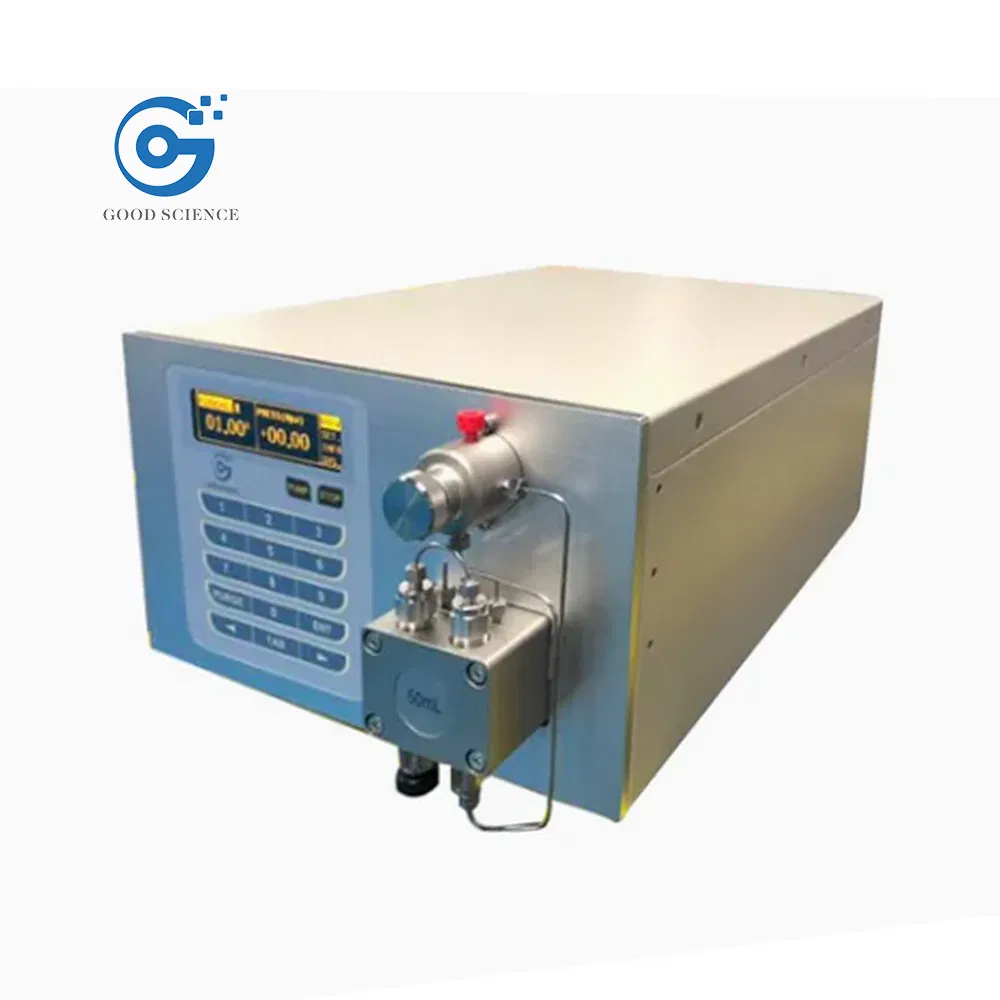

HPLC Chromatography Lab Instrument Lab Equipment

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

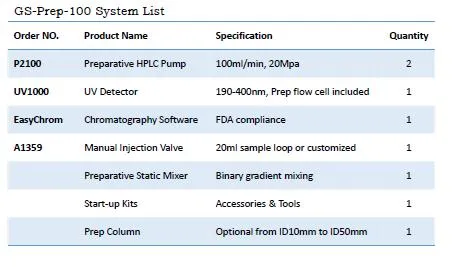

GS-Prep-100 System

Detector

Flow Rate

0.01-99.99ml/Min

Max Pressure

20MPa

Certification

CE, ISO

Software

FDA 21 Compliance

UV Wavelength

190-400nm/190-700nm

Weight

30kg

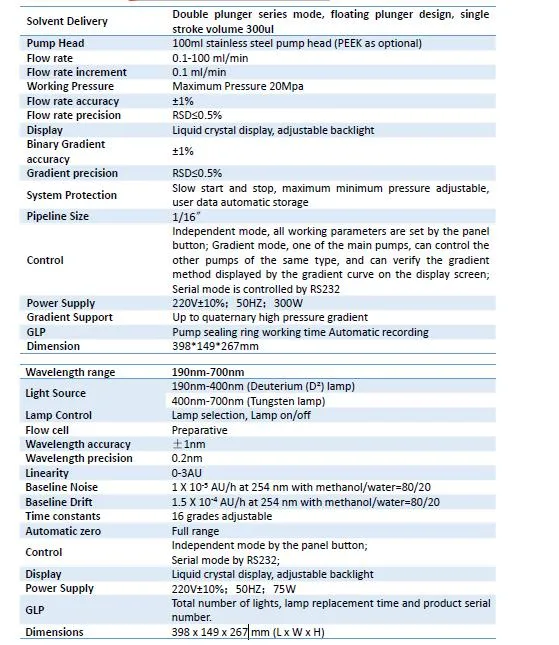

Technical Parameters

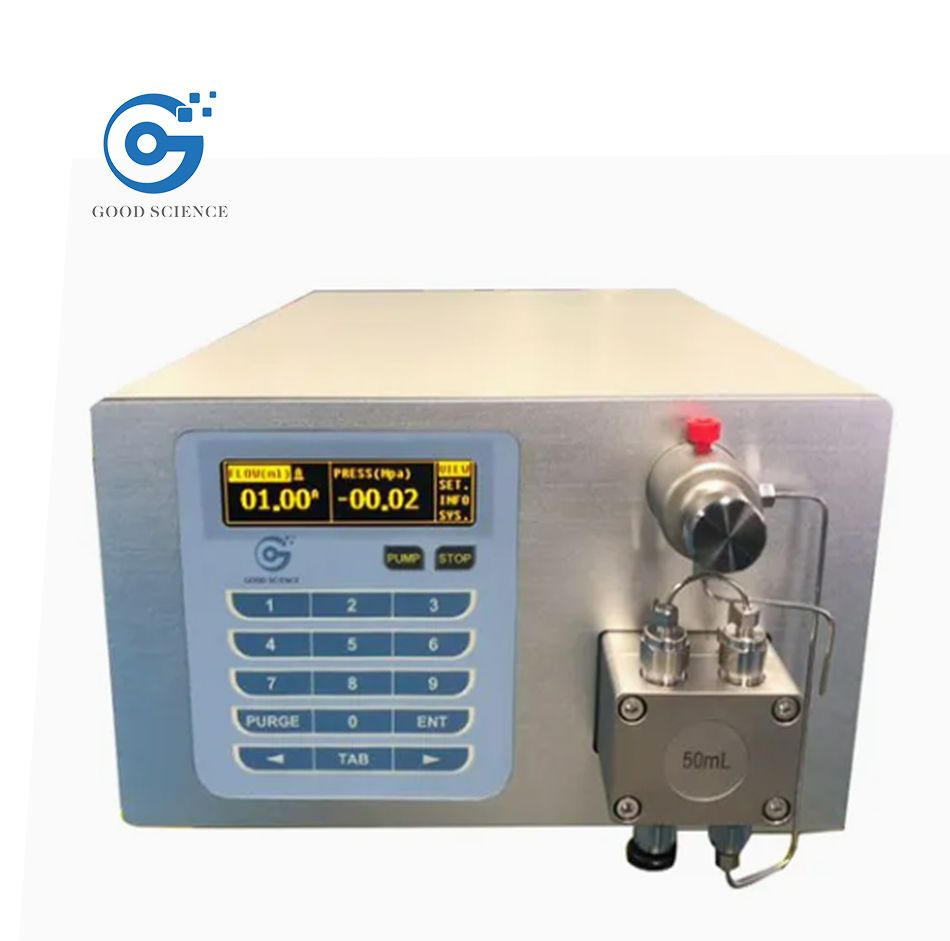

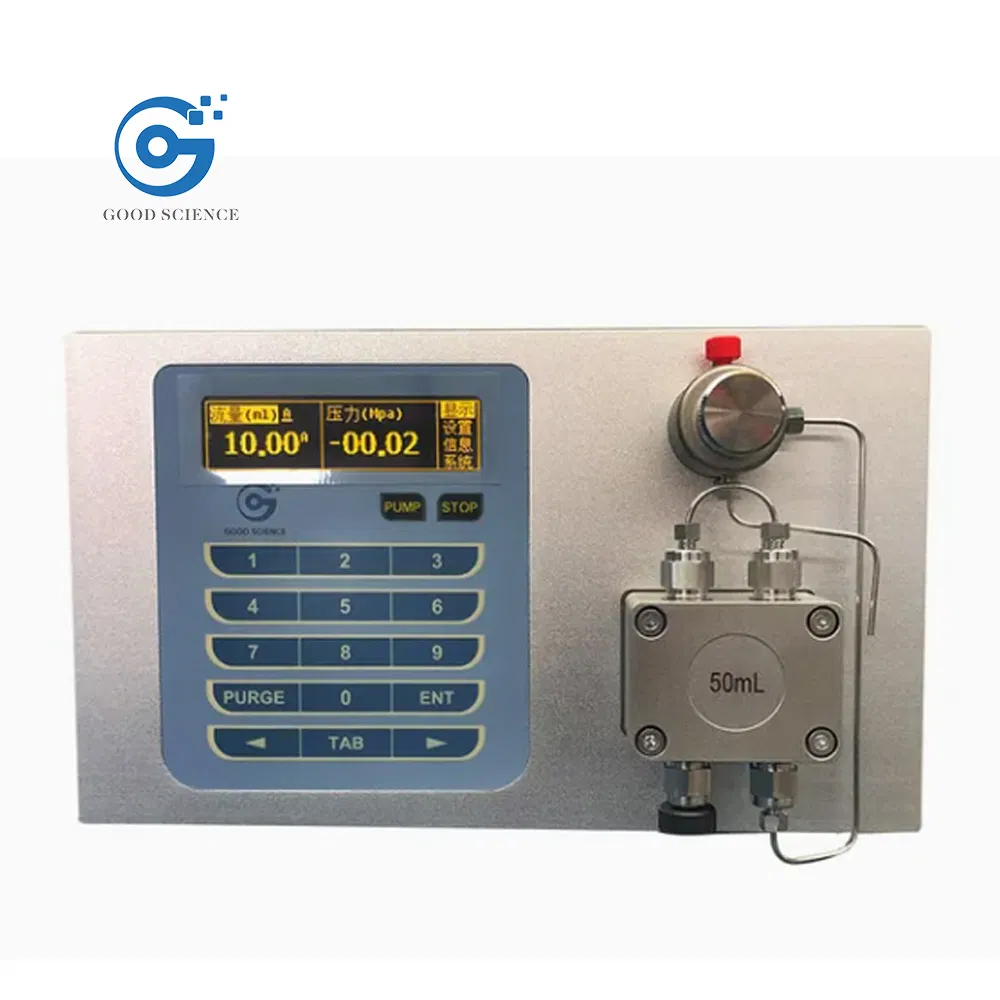

Type	100ml pump ,SS
Flow Range	0.01-99.99ml/min, Flow rate increment 0.001ml/min
Flow Accuracy	±0.5%
Flow Rate Precision	RSD≤0.1%
Pressure Fluctuation	≤0.2MPA
Piping Connection	1/16"OD, 0.25mmID
Wet Material	316L, Precious stone, PTFE, PEEK

Product Application & Features

Designed for Ion chromatography, dosing applications, and delivery of aggressive media.

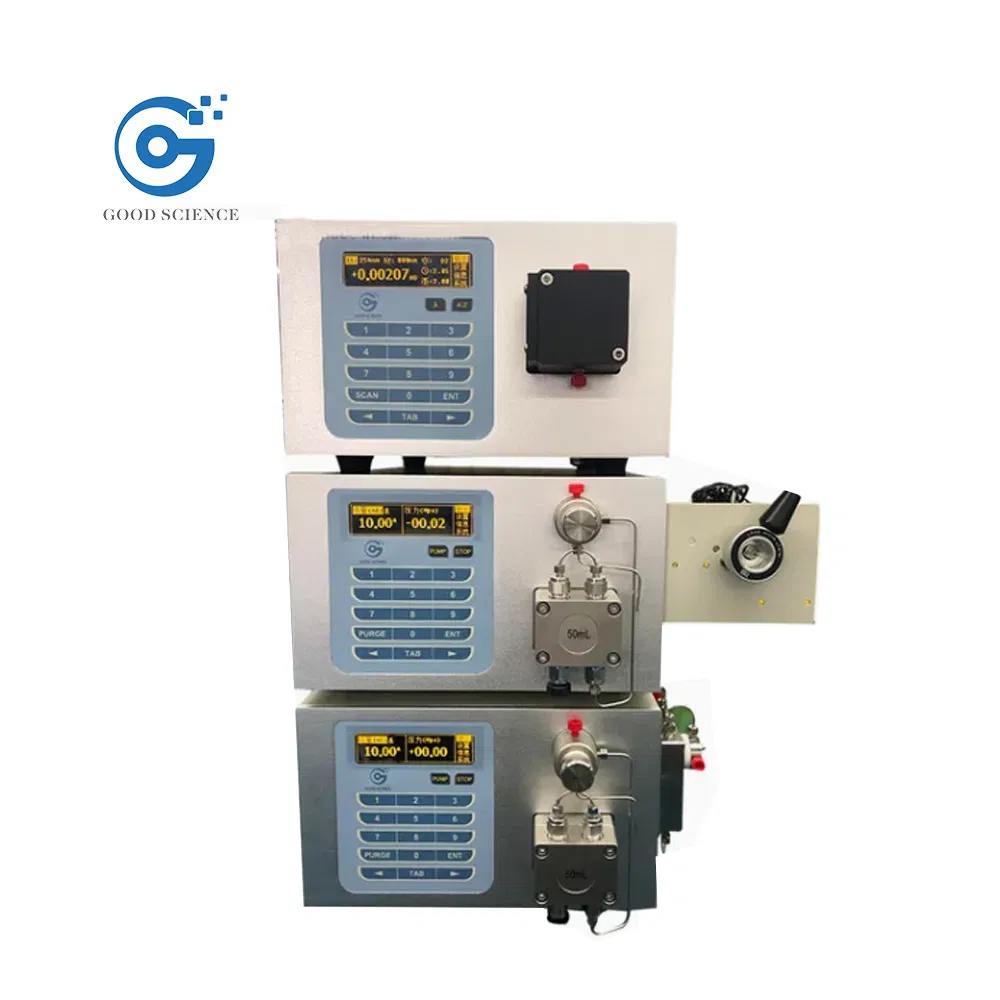

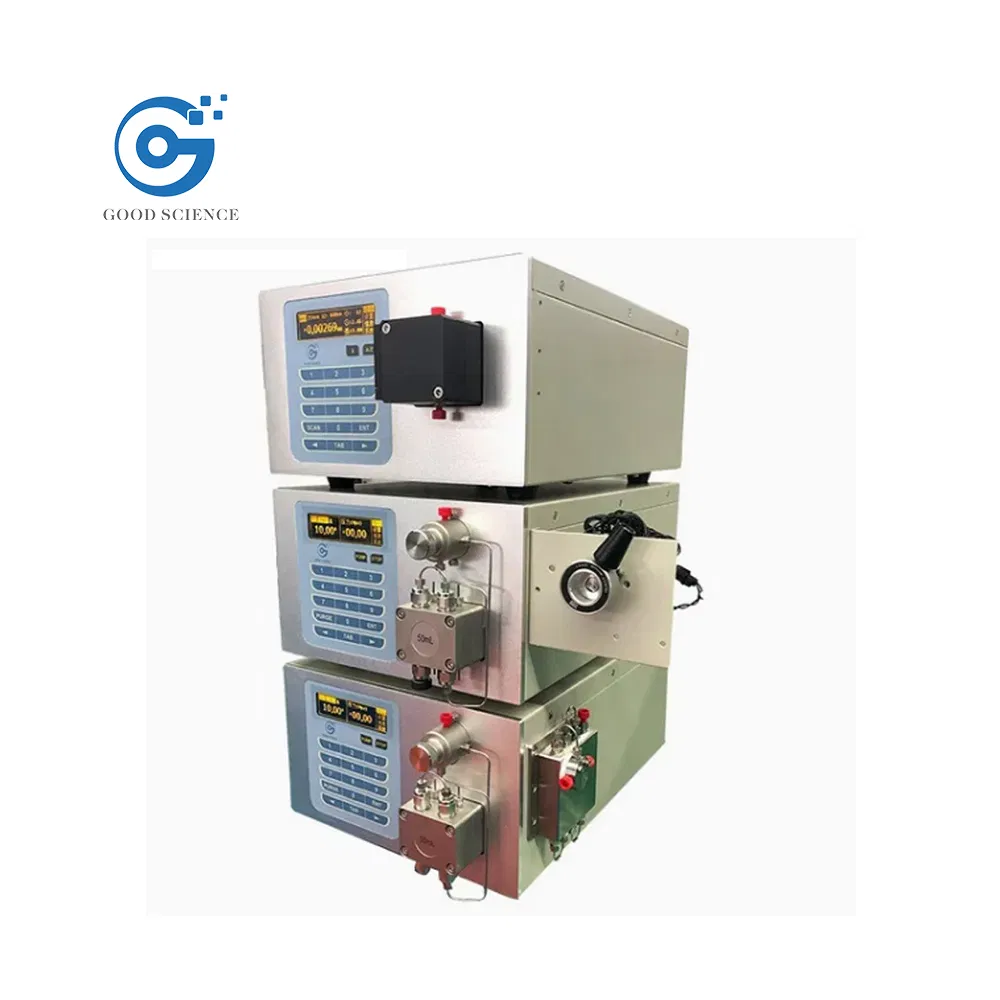

Automatic purification HPLC system with auto sampler and fraction collector.

UV visible dual wavelength detector with high sensitivity and wide linear range.

Excellent transmission system with floating plunger supporting mechanism for longer service life.

Customizable configurations for flash chromatography, MPLC, and protein purification.

Supports manual injector, auto sampler, and sample injection pump methods.

Product Gallery

Packaging Details

Package Size

45.00cm * 30.00cm * 30.00cm

Gross Weight

30.000kg

Cartons

3 Cartons

Material

Standard Export Carton

Sincerely look forward to excellent agents and OEM partners to join us!

Frequently Asked Questions

1. What is the maximum flow rate and pressure of the GS-Prep-100 system?

The system supports a flow rate range of 0.01-99.99 ml/min and a maximum operating pressure of 20MPa.

2. Is the software compliant with regulatory standards?

Yes, the system software is fully FDA 21 CFR Part 11 compliant, ensuring data integrity for laboratory use.

3. What materials are used for the wetted parts?

The wetted materials include 316L stainless steel, precious stone, PTFE, and PEEK, making it suitable for aggressive media and bioinert applications.

4. Can this system be used for protein purification?

Absolutely. With biocompatible PEEK pumps and detectors, the system is highly effective for protein and antibody purification.

5. Does the system support automated fraction collection?

Yes, it features an auto fraction collector with up to six collection tube trays, allowing for unattended overnight operation.

6. What detectors are available for this HPLC system?

The system comes with a UV-visible dual wavelength detector, offering high sensitivity and a wide linear range (190-400nm or 190-700nm).
