Lab Instrument Hotblock Digestion Sample Digestion Heavy Sample Digest for Elemental Analysis

Customization:	Available
After-sales Service:	Remote Online Instruction
Warranty:	18 Months

Basic Info

Model NO.

DC46-3078

Application

Lab

Customized

Certification

CE, ISO

Structure

Desktop

Material

Silicon Carbide

Type

Digestion

Heating Area Size

400*600mm

Peak Temperature

350 Degrees Celsius

Temperature Control Mode

Pid

Temperature Control Accuracy

±0.5 Degrees Celsius

Dimesions

790*625*250mm

Power

5.1kw

Current

23A

Weight

81kg

Transport Package

Wooden Case

Origin

China

HS Code

8419899090

Packaging & Delivery

Package Size

91.00cm * 71.00cm * 40.50cm

Package Gross Weight

35.000kg

Product Description

Our laboratory electric heating equipment features a unique research and development process. The Surrounding Heating Digestion and Acid Driving Instrument, which has obtained a national invention patent, is widely used in geological prospecting, metallurgy, chemical industry, agriculture, medicine, environment, and food industries for efficient sample pretreatment.

Product Features

Surrounding heatingFive sides heating design, real surrounding heating.

Fast digestion, high efficiencyLarge quantity for sample preparation at one time. Improves efficiency by about 60% compared to flat surface heaters.

Uniform digestion360° wrapped heating ensures no blind spots, providing excellent stability and uniformity.

Accurate temperature controlTouchscreen design with PID regulation, accuracy within ±0.5°C.

Good heating insulationHigh-quality alumina mullite minimizes heat loss.

Corrosion resistanceMetal shell with special anti-corrosion coating for protection against corrosive liquids and gases.

Two functions in oneUpper & lower split design allows use as both a digestion instrument and a hotplate.

Safe and convenientEquipped with multi-layer insulation and fault alarms for immediate safety.

Product Parameters

DC Series	DC46-3078	DC34-3033
Dimensions (mm)	400 × 600	300 × 400
Power (KW)	5.1	2.7
Current (A)	23	12.5
Peak Temperature (°C)	350	350
Temp. Control Accuracy	±0.5	±0.5
Overall Dimensions (L×W×H) mm	790×625×250	590×530×250
Weight (KG)	81	49
Note: Compatible with any brand of microwave digestion tubes (customizable height and aperture).

Package

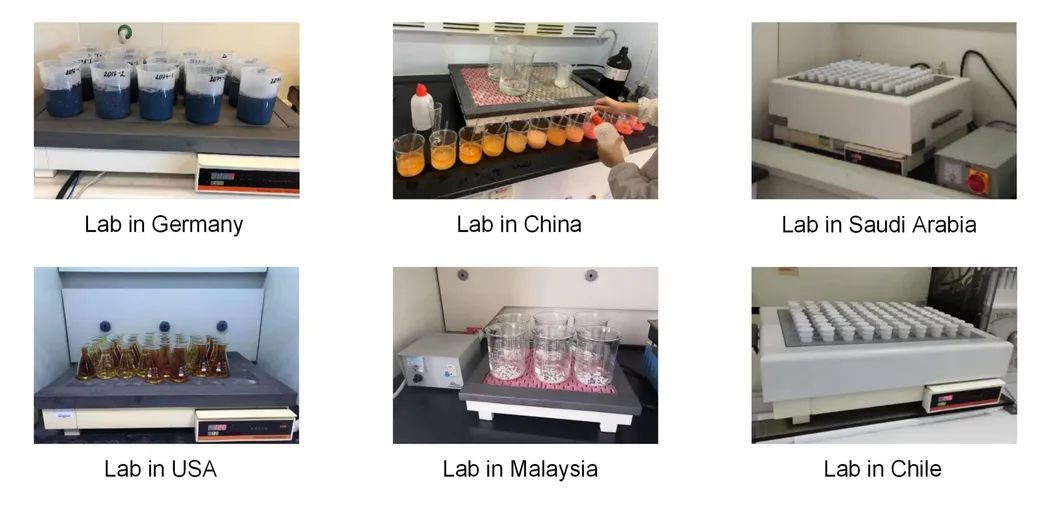

Application

Certifications

Exhibition

Frequently Asked Questions

Q1: What industries is this digestion instrument suitable for?

It is widely used in geological prospecting, metallurgy, chemical industry, agriculture, medicine, environment, and food industries for efficient sample pretreatment and analysis.

Q2: How does "surrounding heating" improve work efficiency?

The five-sided heating design provides 360° wrapped heating. This eliminates blind spots and can improve efficiency by approximately 60% compared to traditional flat-surface heaters.

Q3: Can the instrument handle corrosive substances?

Yes, the device features a silicon carbide material and a metal shell covered with a special anti-corrosion coating, making it resistant to various corrosive liquids and gases.

Q4: What is the temperature control accuracy?

The instrument uses a PID regulation system with a touchscreen interface, achieving a high temperature control accuracy of ±0.5°C.

Q5: Can I use digestion tubes from other brands?

Yes, the system is designed to be compatible with any brand of microwave digestion tubes, and the height and aperture can be customized to meet your requirements.

Q6: What safety features are included?

The instrument features multi-layer insulation protection and a real-time temperature display. In case of equipment failure, an alarm will sound and the machine will stop working immediately.
