High Quality 1.5t MRI Machine Medical for Sale Hospital Equipment Price MRI Scanner

1 / 5

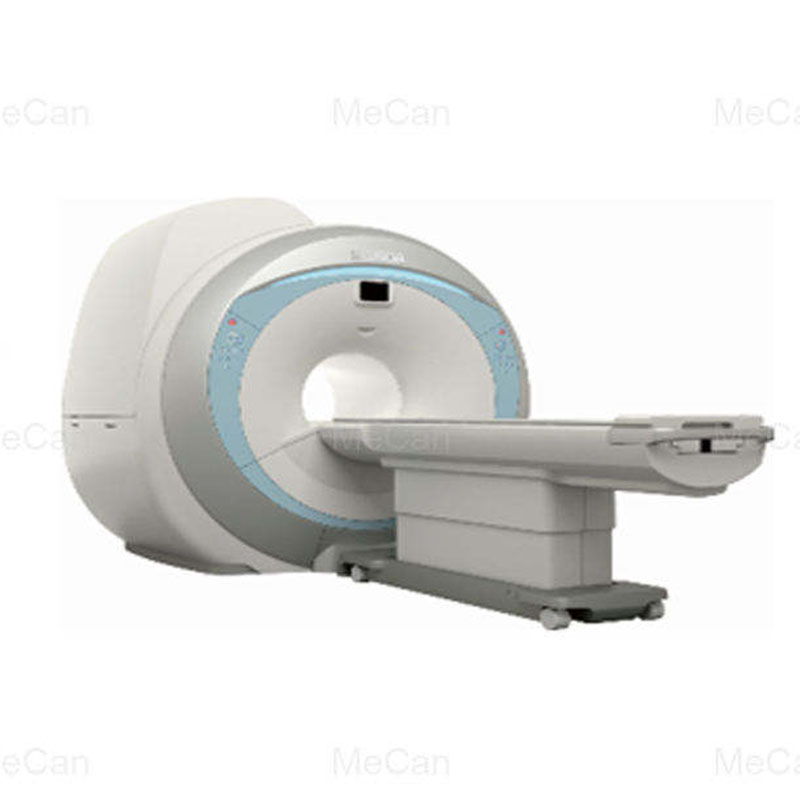

High Quality 1.5t MRI Machine Medical for Sale Hospital Equipment Price MRI Scanner

Customization:	Available
Certification:	CE
Product Name:	Medical Equipment MRI Scan Price MRI Scanner Equip

Send Inquiry

Product Description

Basic Specifications

Model NO.

MC-150

Min. Shielding Room

6000mm*5000mm*3200mm(H)

Standard Room Size

7000mm*6000mm*3200mm(H)

Hospital Medical Equipment MRI Scanner

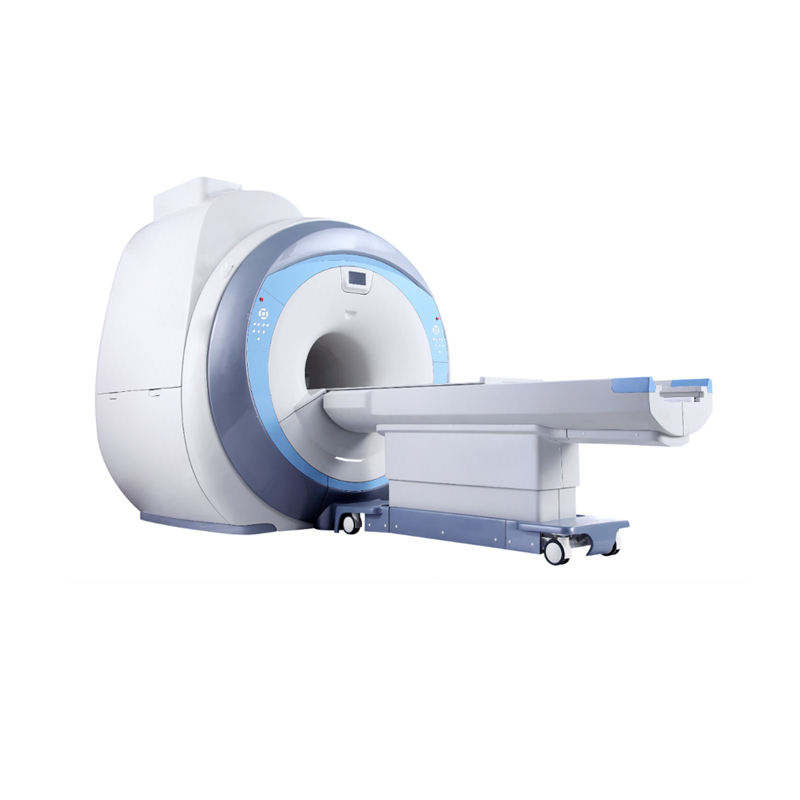

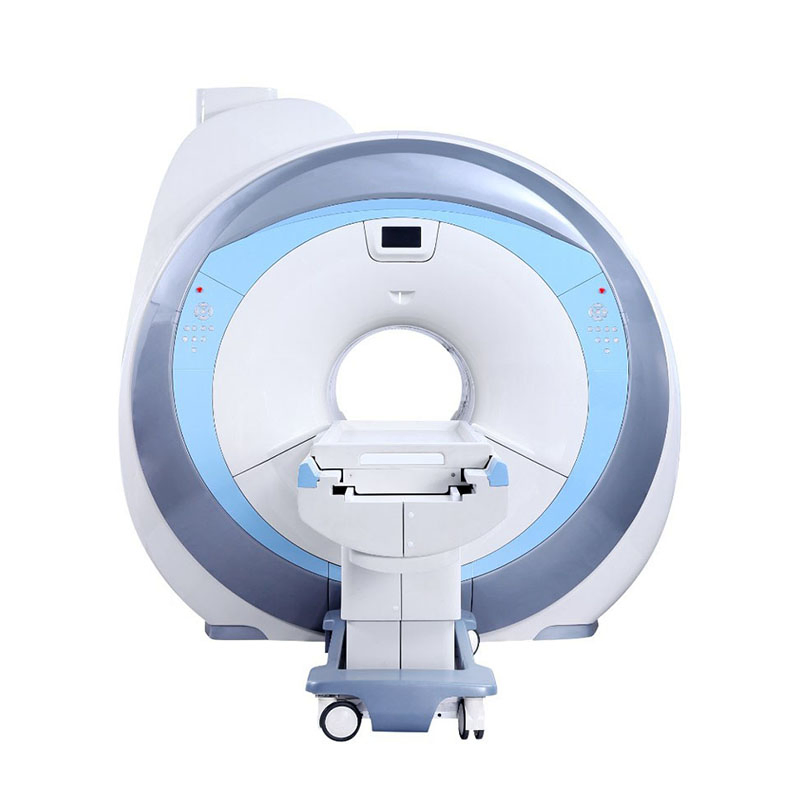

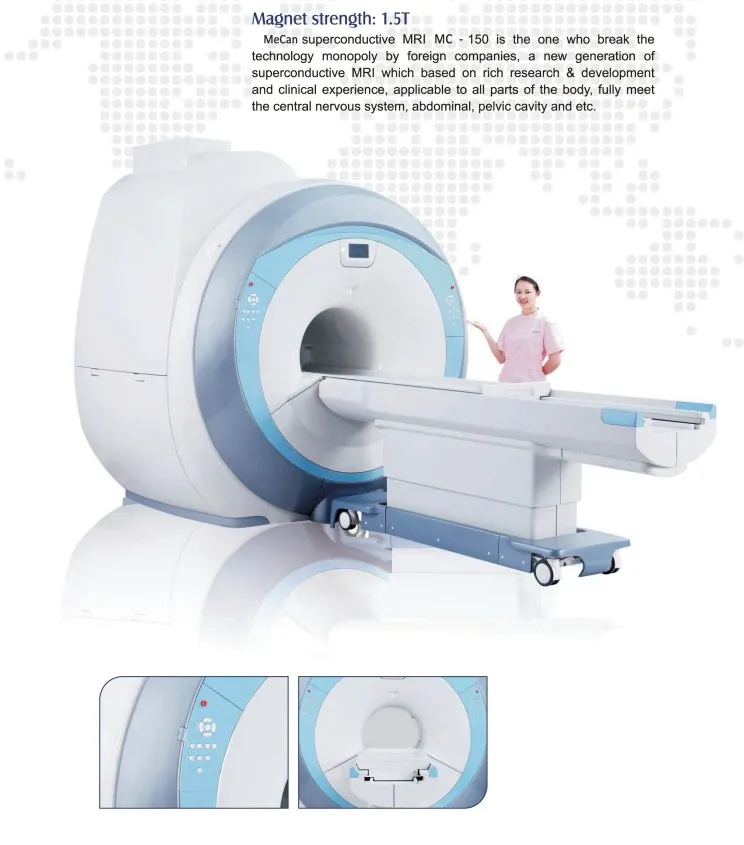

Professional 1.5T MRI Machine for Clinical Diagnosis

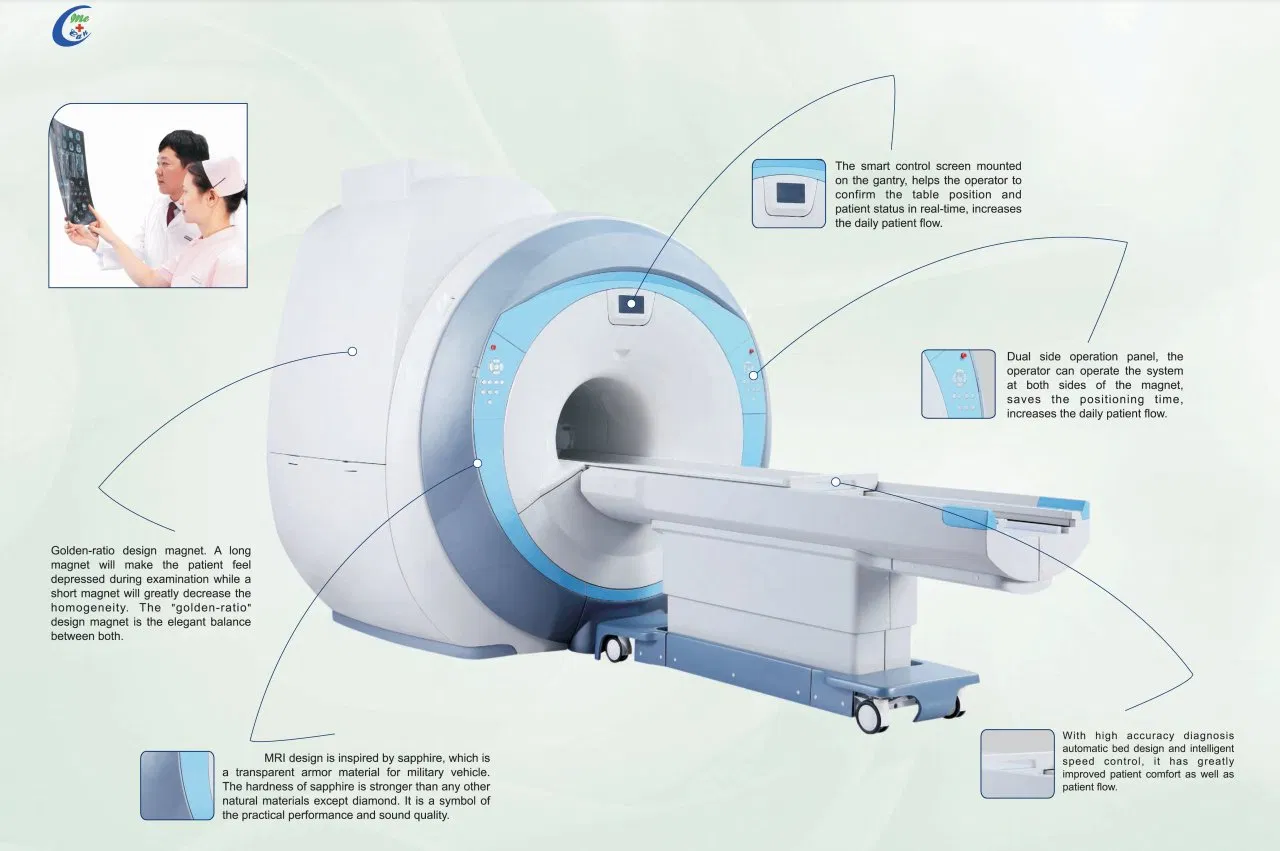

Key Technical Features

Magnet: Helium supplement interval time ≥ 48 months with zero consumption technology.

E-alarm technology: Real-time monitoring of pressure, temperature, and liquid levels with auto-messaging for protection.

Spectrum meter: Full Digital 8-16 channels spectrometer.

RF Amplifier: 18KW high power for strong proton excitation.

Gradient system: 41mT/m intensity with Quiet Comfort noise reduction (33% reduction).

Receiver Coils Configuration

No.	Coil Type	Channels
1	Head Coil	CH8
2	Neck Coil	CH8
3	Body Coil	CH8
4	Knee Coil	CH8
5	Breast Coil	CH8 & CH4
6	Shoulder Coil	CH4
7	Ankle Coil	CH8
8	Full Palm Coil	CH8
9	Spine Coil	CH18 High
10	Soft Coil	CH4
11	Head-neck Coil	CH16
12	AIT Coil	CH18

Operation & Cooling System

AIT Technology: One-time positioning for full field imaging, maximizing clinical efficiency.

Chiller system: Intelligent touch-screen control with auto-fault detection and backup pump integration.

Patient Table: Motor-driven with 200Kg capacity, 8" TFT operation screen, and 1mm positioning accuracy.

Workstation: Quad-core ≥2.8GHz, 24" LCD TFT monitor, running on dedicated MRI software.

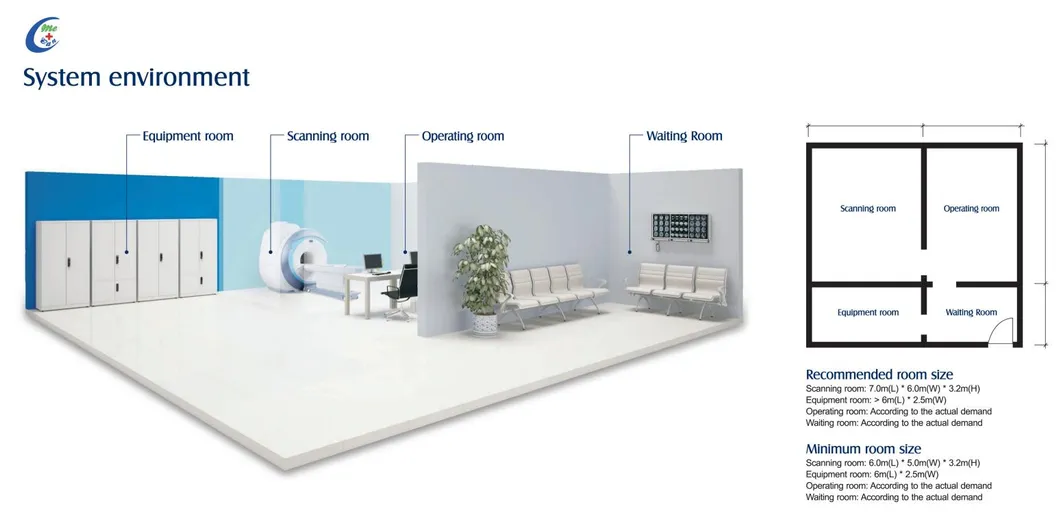

Installation Requirements

Standard Shielding Room Size	7000mm × 6000mm × 3200mm (H)
Min. Shielding Room Size	6000mm × 5000mm × 3200mm (H)
Equipment Room Area	Approx. 15m²
Operator Room Area	Approx. 12m²

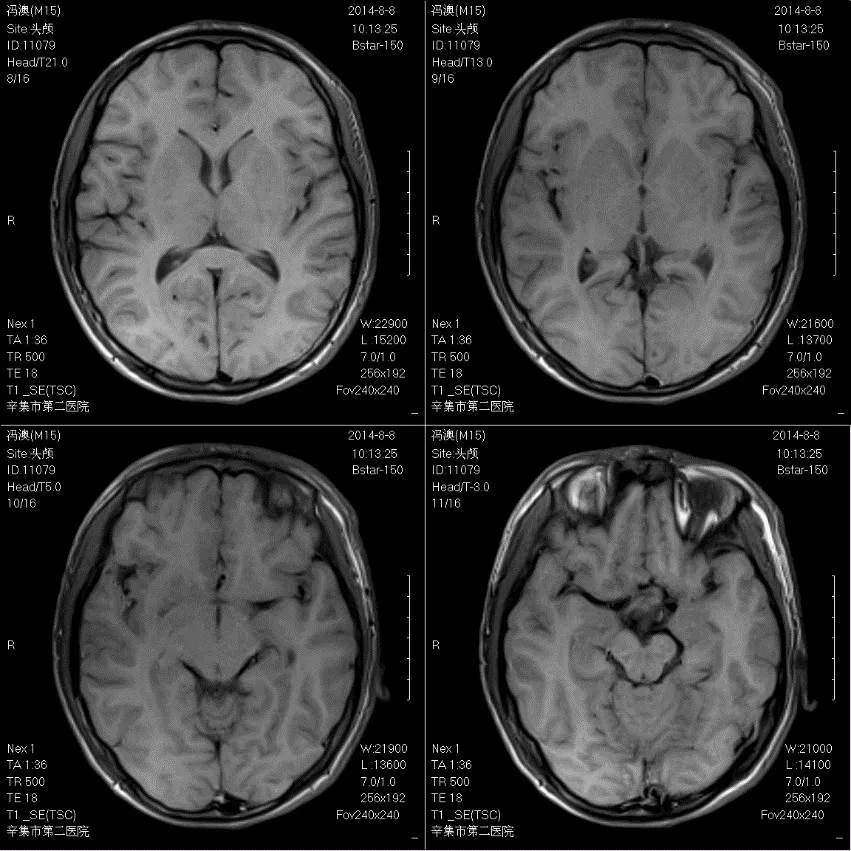

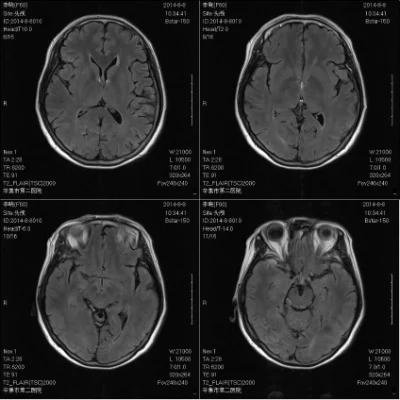

Clinical Image Gallery

Advanced imaging powered by PA coils and parallel acquisition technology. Scan sequences completed in under 2 minutes with high SNR and resolution.

Manufacturing & Quality Control

Frequently Asked Questions (FAQ)

Q1: How often does the helium need to be supplemented?

A: Thanks to zero consumption technology, the helium supplement interval is ≥ 48 months.

Q2: What is the maximum patient weight the table can support?

A: The motor-driven patient table is designed to support a maximum load of 200Kg.

Q3: Does the system include noise reduction for patient comfort?

A: Yes, the gradient coil features Quiet Comfort technology, which reduces scanning noise by approximately 33%.

Q4: What are the minimum room dimensions required for installation?

A: The minimum shielding room size required is 6000mm x 5000mm x 3200mm (Height).

Q5: What safety systems protect the magnet from quenching?

A: The E-alarm technology monitors inner pressure, temperature, and liquid levels in real-time, sending automated alerts to operators if abnormal conditions are detected.

Q6: How efficient is the imaging process?

A: With AIT (One-time position) technology and parallel acquisition, most scanning sequences can be completed in less than 2 minutes.
