Hospital Instrument Color Display Heart Fetal Monitor Medical Equipment

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	Fetal Monitor

Send Inquiry

Product Description

Basic Information

Model NO.

FCM-200A

Certification

ISO13485

Name

Fetal Monitor

Screen

8" TFT Display

Battery

Built-in Rechargeable Lithium

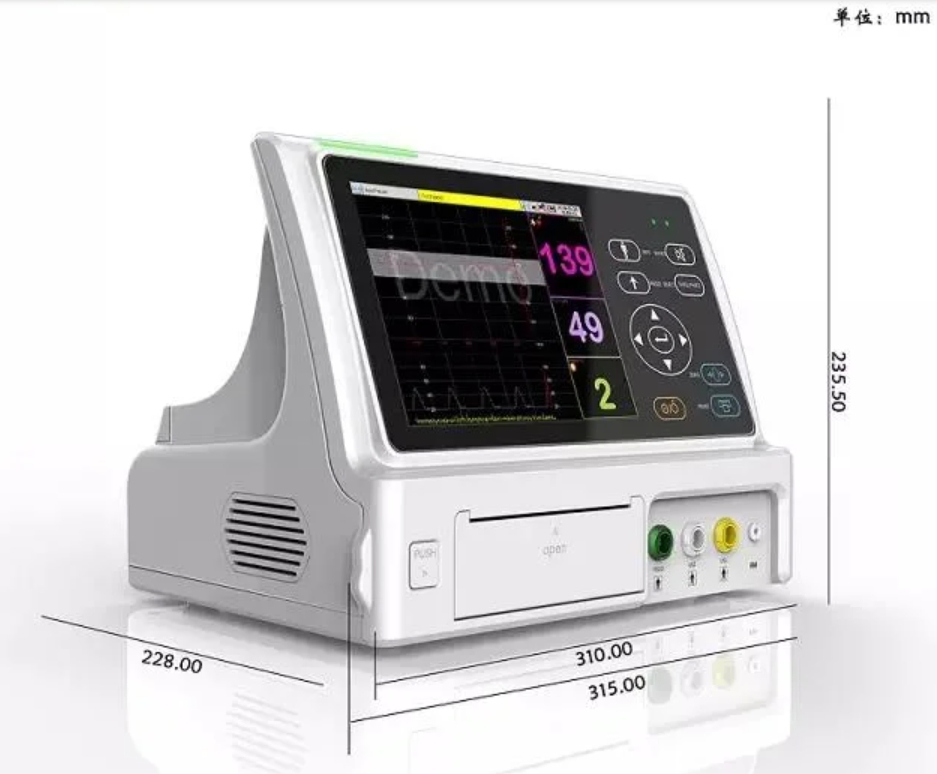

Dimension

315mm*230mm*236mm

Probe

Waterproof Probe

HS Code

9018110000

Product Description

Hospital Instrument Color Display Heart Fetal Monitor Medical Equipment

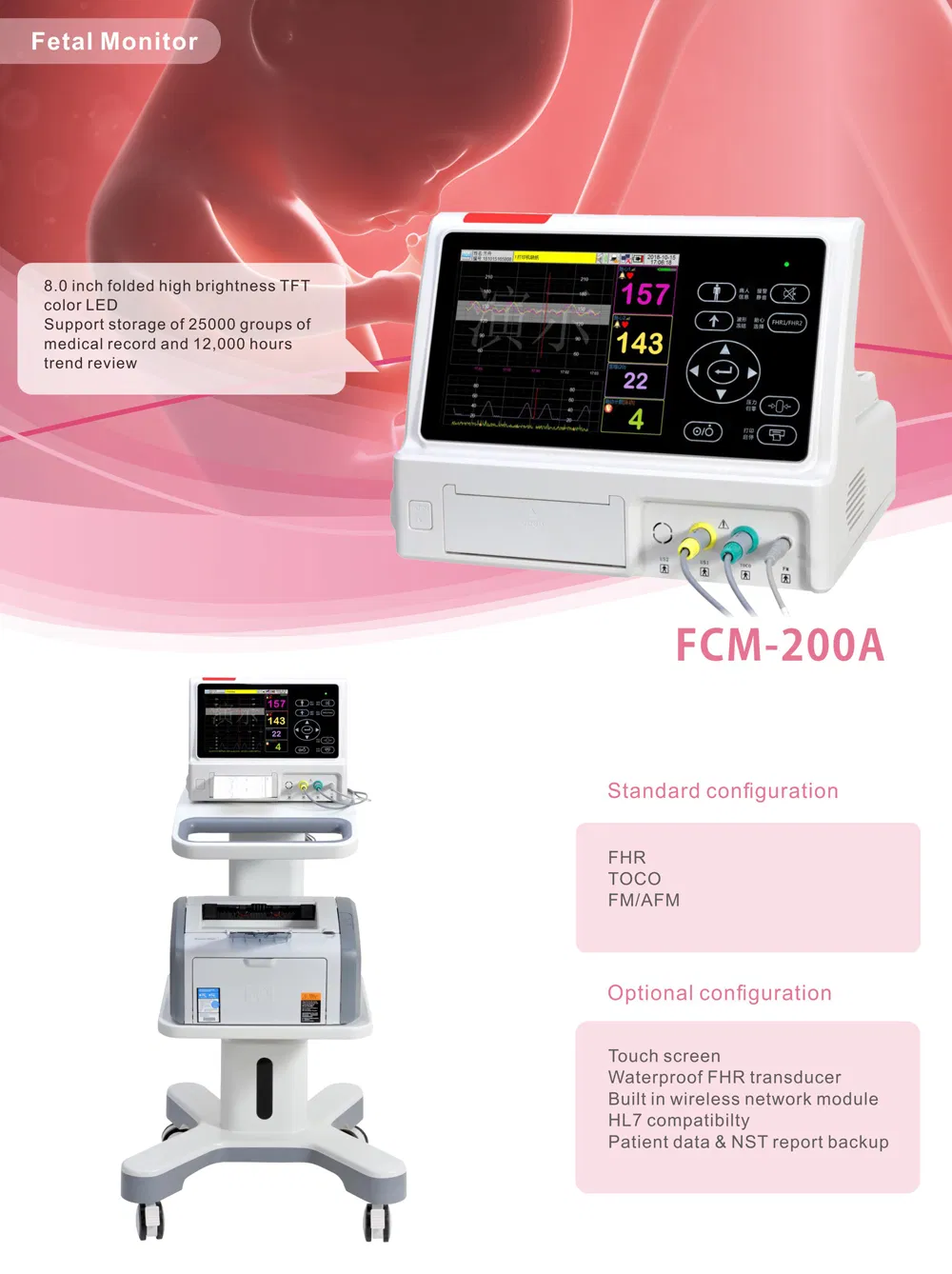

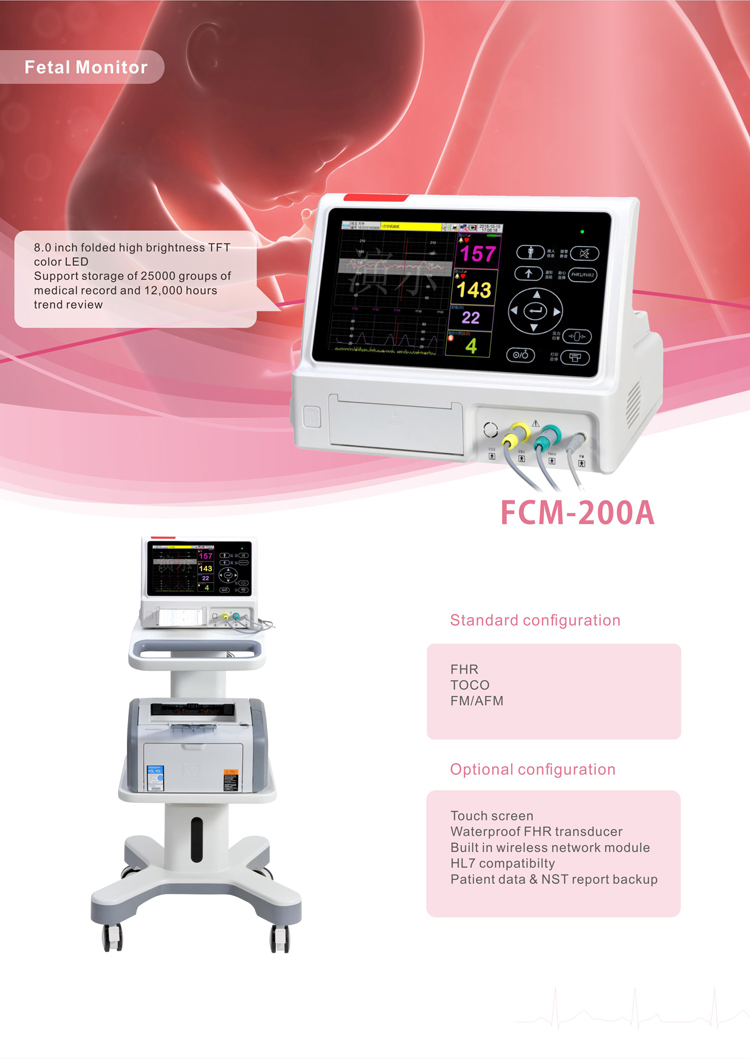

Fetal Monitor Key Features (FCM-200A)
Display	8 inch folded high brightness TFT LCD with touch screen
Control	Supporting operation with mouse and computer keyboard
Technology	12 crystal ultrasound transducer for wider focal region and greater depth
Recording	Built-in high speed thermal printer with 112 mm width
Indicator	Signal strength indicator to optimize position of transducers
Reports	Advanced Fischer NST Report (Fetal Health Report)
Storage	Support storage of 25,000 groups of medical records and 8,640 hours trend review

Technical Parameters

Power Supply

Voltage: AC100~240V, 50/60HZ
Adapter: Output 9VDC, 5A

Display & Battery

8" Color TFT LED (800*600 pixels)
Rechargeable battery: 2-5 hours working time

Ultrasound (FHR)

Range: 30 to 240 bpm / 50 to 210 bpm
Accuracy: ±1 bpm
Frequency: 1MHz ±3%

TOCO & Fetal Movement

TOCO Range: 0 ~ 100 units
Manual & Auto fetal movement (AFM)

Configuration Details

Model Config	Single FHR	Dual FHR	TOCO	AFM/MFM	Wireless Probe
Config. A	√	×	√	√	Option
Config. B	√	√	√	√	Option

Packaging & Shipping

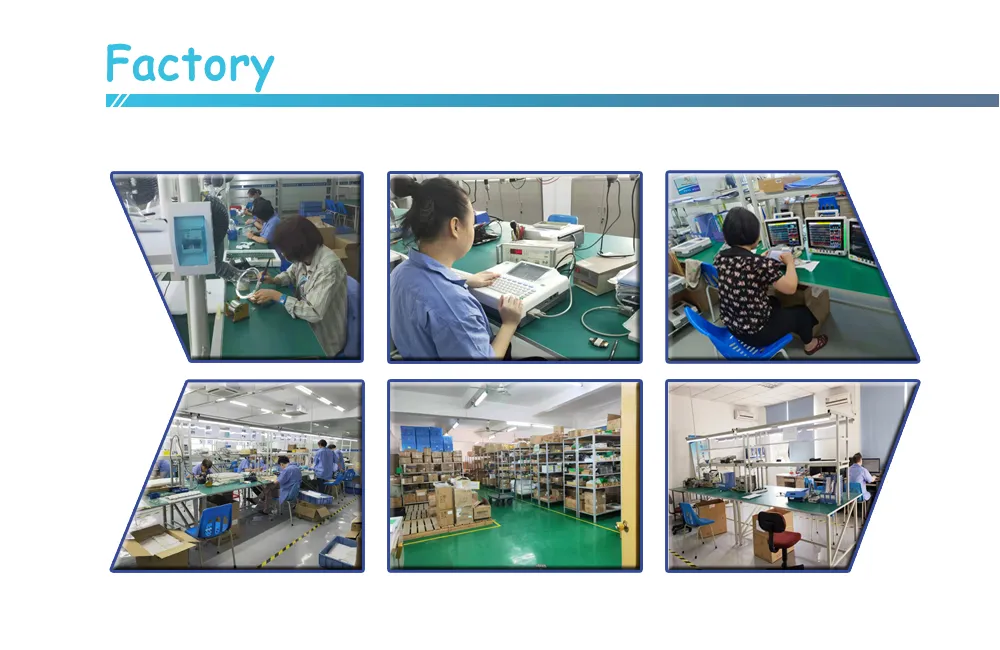

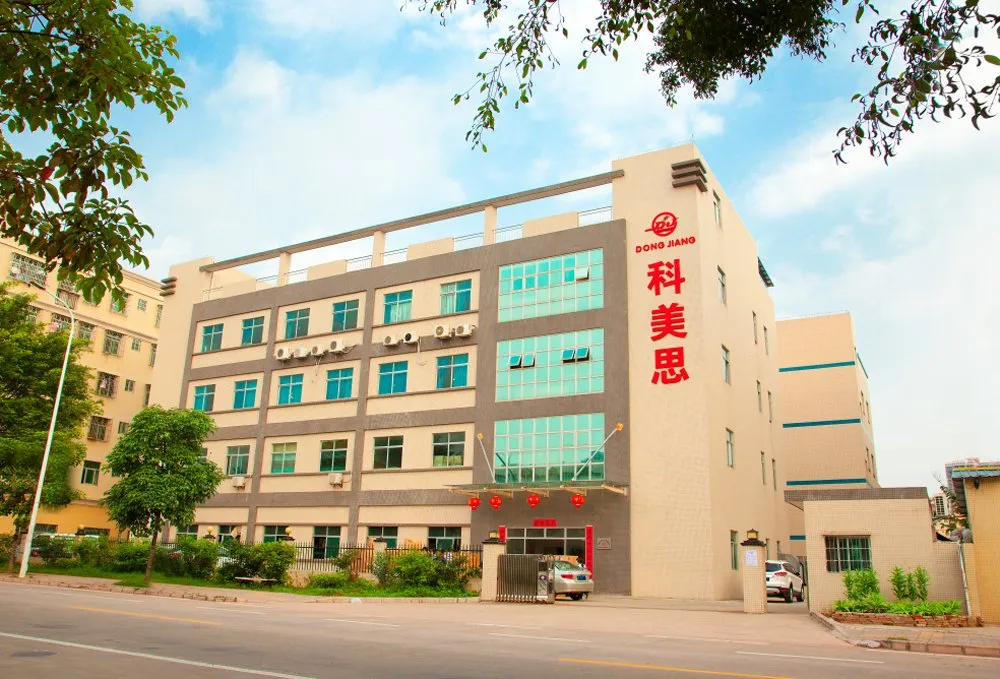

Production Showcase

Frequently Asked Questions

What is the screen size and display type?

The device features an 8-inch high-brightness color TFT LED display with a resolution of 800*600 pixels. A touch screen option is also available.

Does the monitor support dual fetal heart rate monitoring?

Yes, Config. B supports Dual FHR monitoring, which is ideal for twin pregnancies. Config. A is designed for Single FHR monitoring.

How long does the battery last on a full charge?

The built-in rechargeable lithium battery provides 2 hours of continuous working time. An optional larger capacity battery is available for 4-5 hours of operation.

Can I connect a mouse or keyboard to the device?

Yes, the system includes a standard touch pad and supports external USB mouse and computer keyboard connections for easier data entry.

What type of printer does the monitor use?

It has a built-in high-speed thermal printer that uses 112mm Z-fold thermosensitive paper with adjustable printing speeds of 1, 2, or 3 cm/min.

Is the FHR probe waterproof?

Yes, the device comes with a waterproof FHR probe, making it durable and easy to clean for clinical environments.
