Guangzhou Mecan Meidcal Hospital Ambulance Instrument Veterinary ICU Monitor Etco2 12.1inch Patient Monitor

Customization:	Available
Classification:	Patient Monitor
Type:	Hospital Products

Basic Specifications

Model NO.

MCS1529

Certification

CE, FDA, EEC, MSDS, ISO13485

Function

6 Vital Signs Monitoring

Screen Size

12.1 Inch TFT

Application

Medical Surgery / ICU / Veterinary

Power Source

Electric

Warranty

1 Year

Feature

Portable & Multi-parameter

Product Description

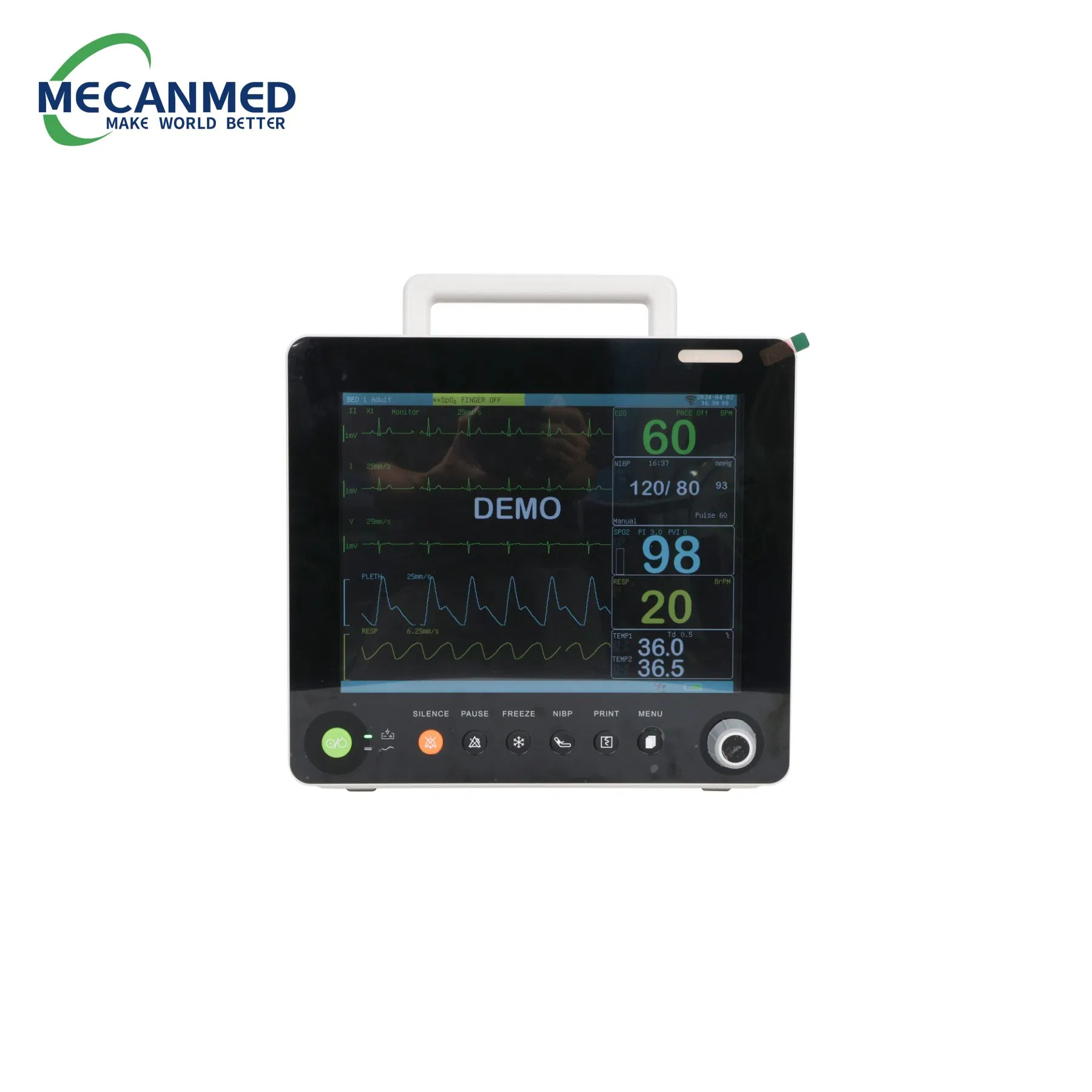

Hospital Ambulance Instrument & Veterinary ICU Monitor - 12.1 inch Patient Monitor

Key Features:

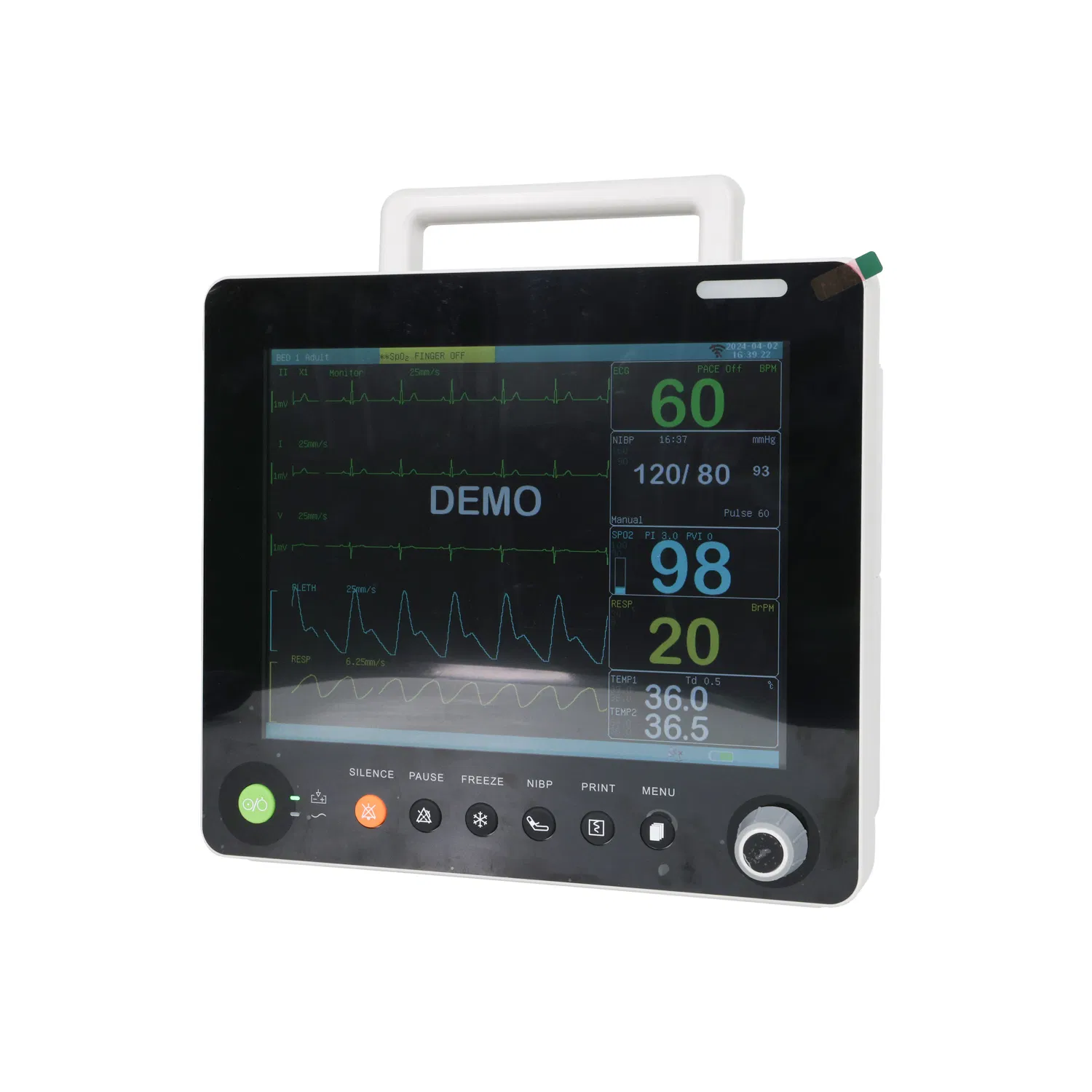

High-Resolution Display: 12.1 inch, 800x600 color TFT, supporting up to 13 wave channels simultaneously.
Advanced DSP Algorithm: SpO2 features a DSP algorithm for excellent performance during movement and low perfusion.
Flexible Layout: Multiple screen layouts including Big Font screen; parameters and waves can be toggled individually.
VET Algorithm Support: NIBP VET algorithm supports animals ranging from small cats to horses with over-pressure protection.

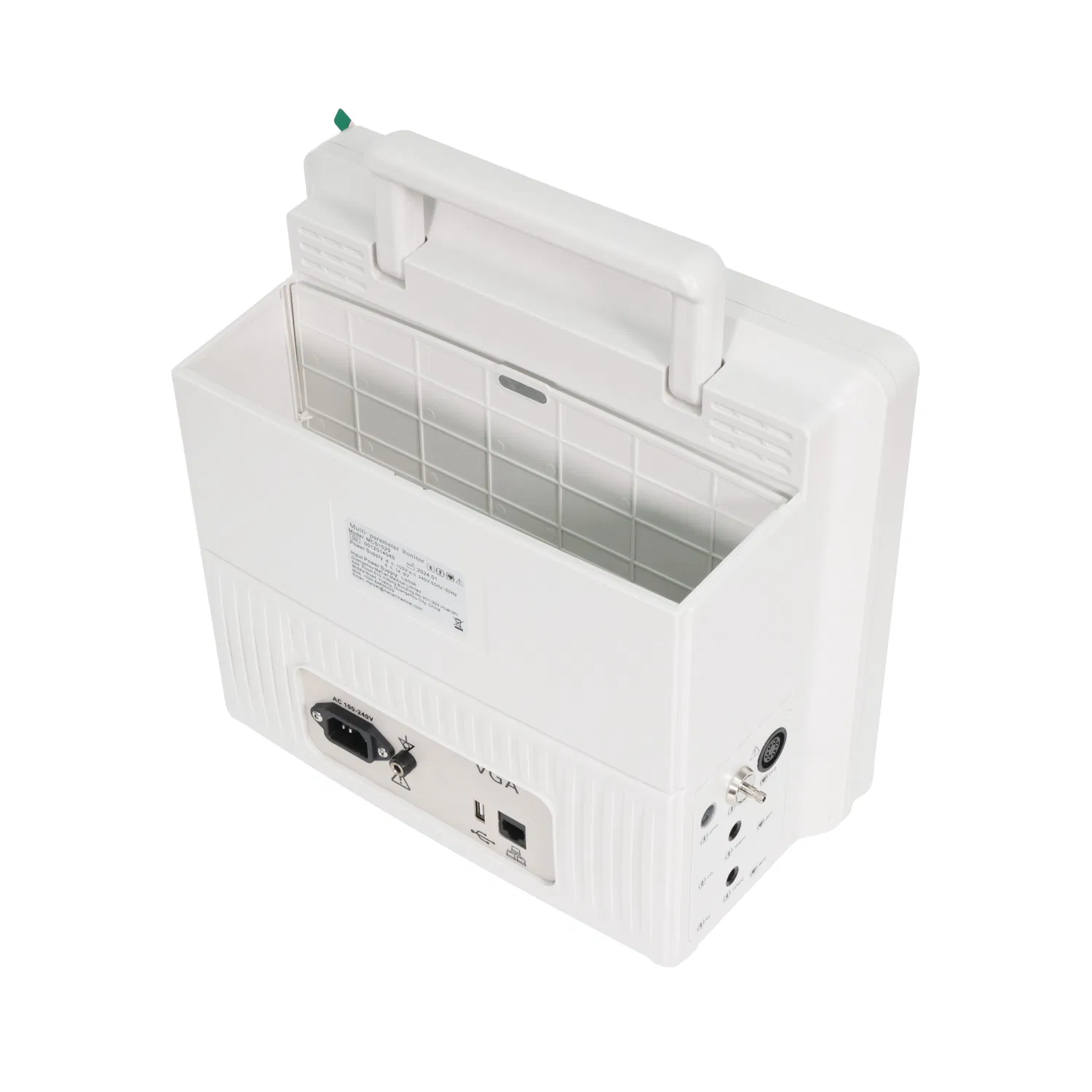

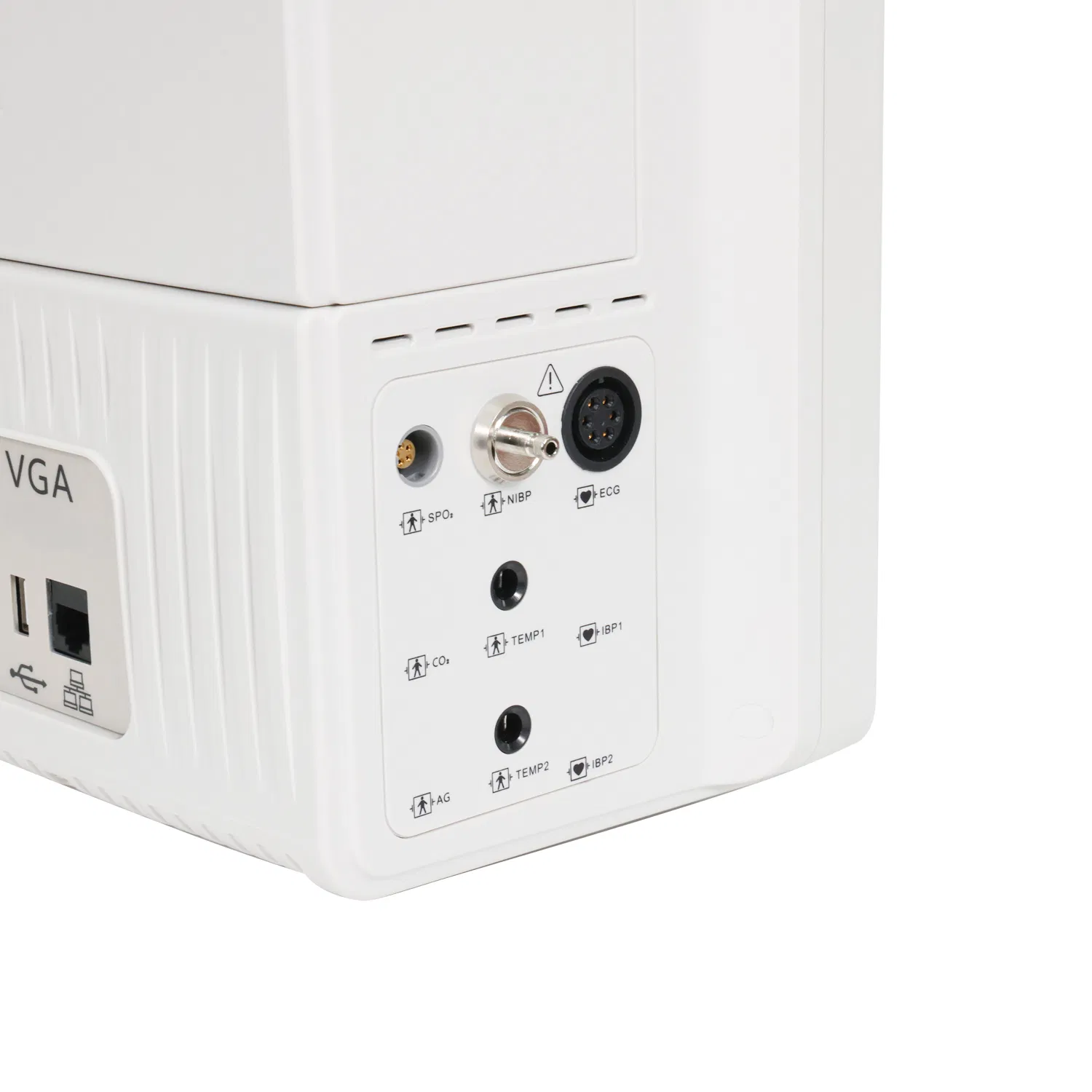

Connectivity: Standard RJ45 network port with optional USB WIFI module for CMS connection and USB data output.

Technical Specifications

ECG	Lead: 3/5 Lead mode (I, II, III, aVR, aVL, aVF, V). 3 ECG channels with 7 waves. HR range: 15~500BPM. Arrhythmia and ST analysis included.
RESP	Method: Impedance between RA-LL or RA-LA. Lead: I/II. Wave speed: 6.25, 12.5, 25mm/s. Apnea Alarm: 5~120s.
NIBP	Method: Oscillometry. Suitable for animals/humans. Mode: Manual, Auto, STAT. Range: SYS 40-280 mmHg, DIA 10-220 mmHg.
SPO2	Parameters: SpO2, PR, PI. Accuracy: ±2% (70~100%). Pulse Rate range: 20~250bpm.

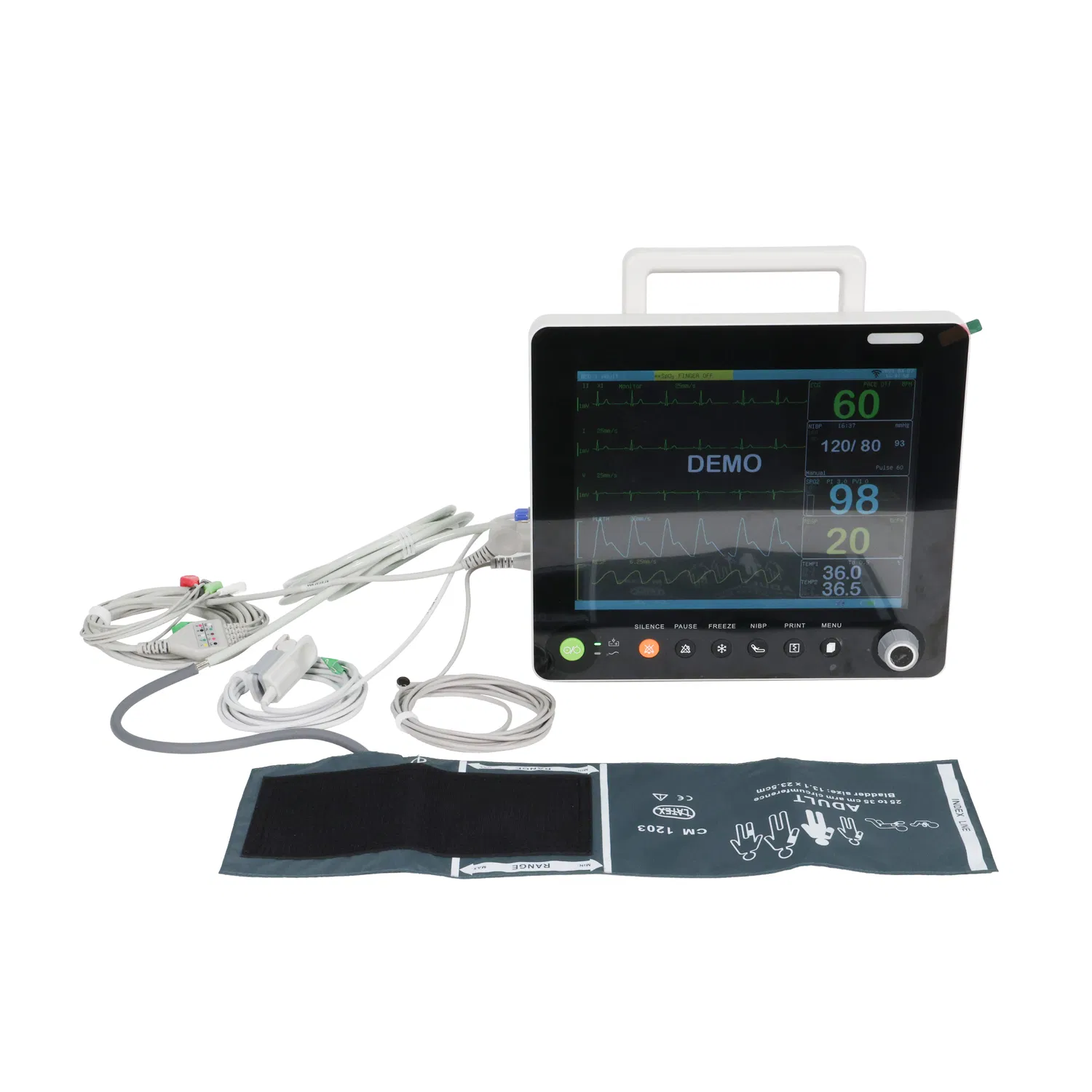

Standard Configuration	ECG, NIBP, SpO2, PR, TEMP, RESP.
Optional Features	Mainstream/Sidestream EtCO2, Wall Mount, Trolley, Central Monitoring System (CMS).

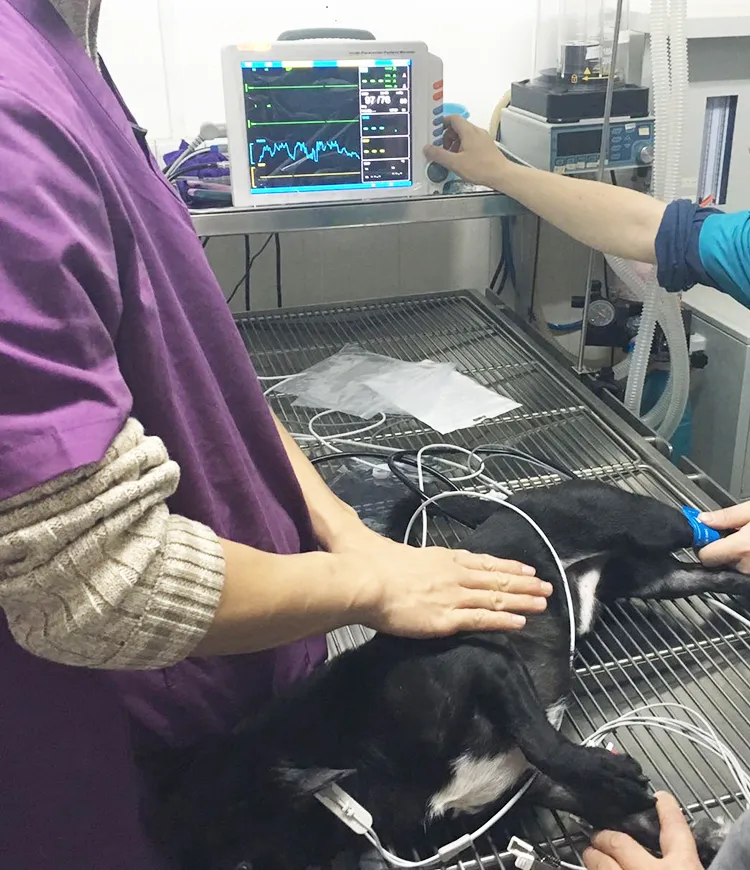

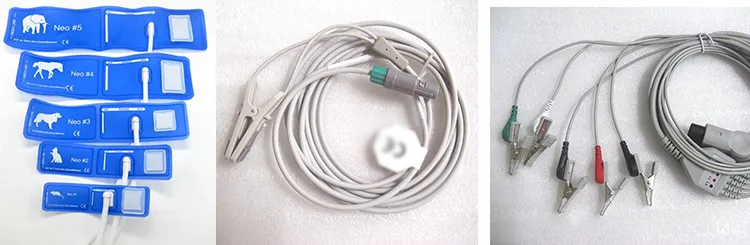

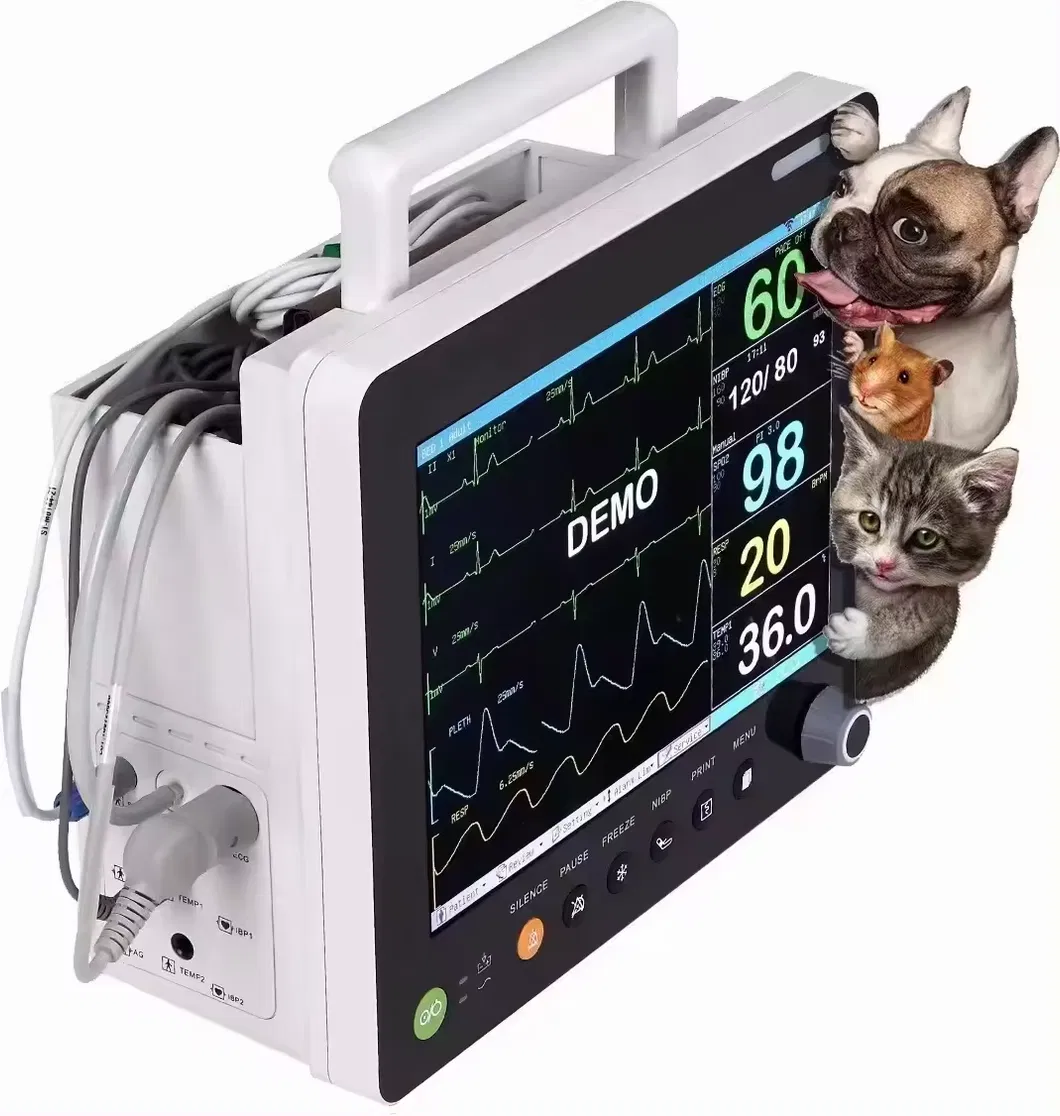

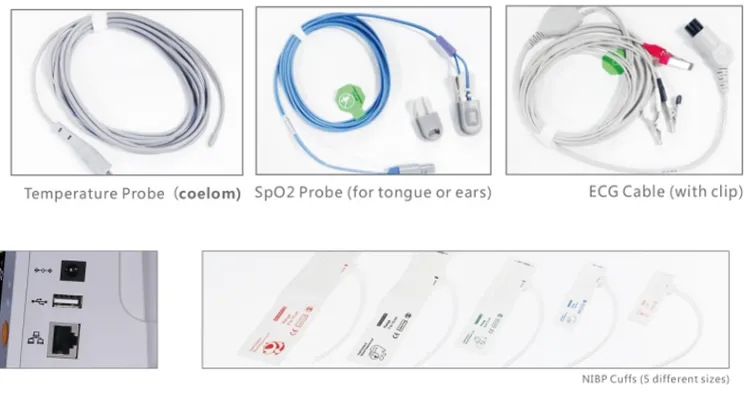

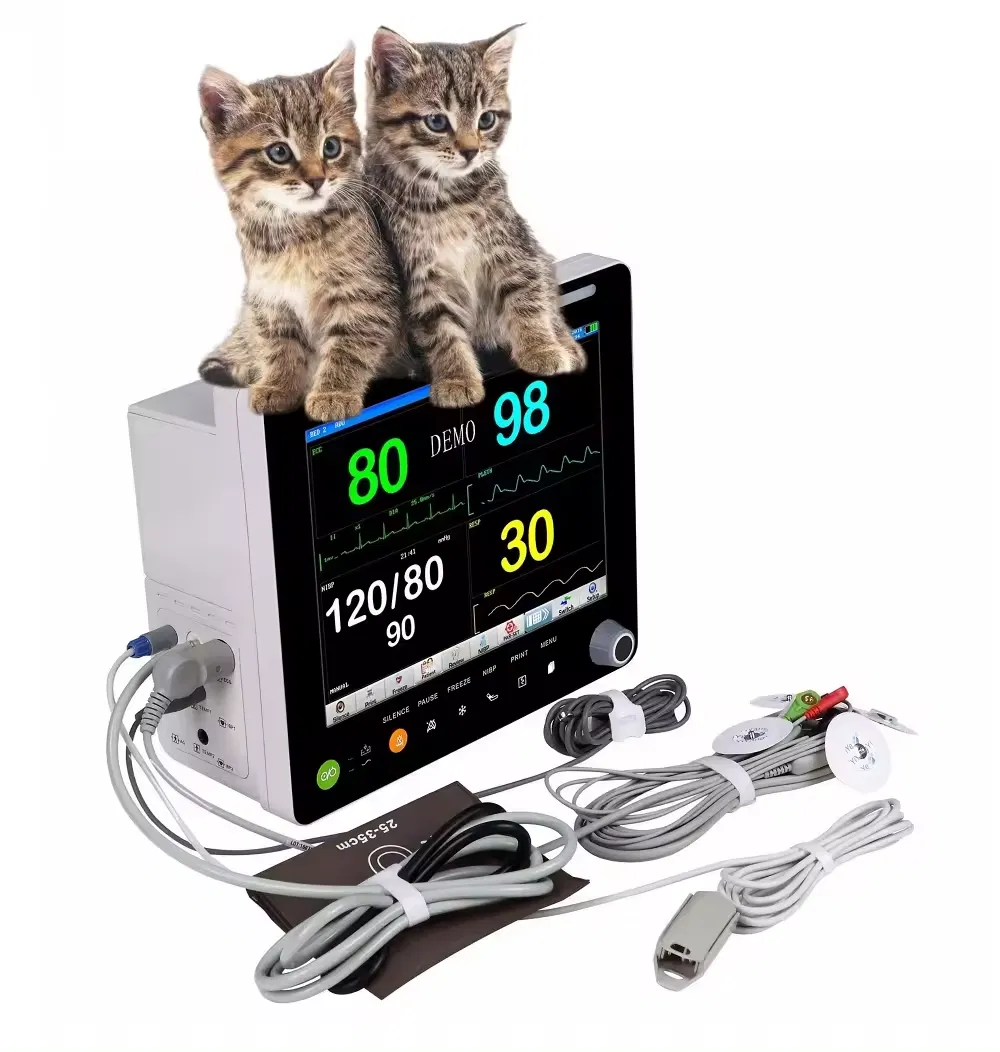

Detailed Images

Why Choose Our Solutions

One-stop medical equipment service provider with experience serving over 2,000 hospitals worldwide.
Approved supplier for multiple government healthcare projects.
High-quality components shared with national-level aerospace projects.
Comprehensive training provided for installation, operation, and daily maintenance.
Visualized production and transport tracking with 99% on-time delivery rate.
Support for multiple languages including English, Spanish, and French.

Frequently Asked Questions

1. What is the warranty period for this monitor? We provide a one-year warranty for all products free of charge.

2. How do you handle after-sales technical support? We provide technical support through operating manuals and videos. Our engineers are available to respond promptly via email or online training. If a hardware issue occurs within the warranty period, spare parts are provided free of charge.

3. What are the available shipping methods and delivery times? Products can be delivered via express (7-10 days), air freight (3-10 days), or sea freight (10-45 days depending on the port).

4. What is the standard lead time for production? Approximately 40% of our products are in stock. For others, production typically takes 3-10 days, while specialized equipment may require 15-30 days.

5. What payment methods do you accept? Our accepted payment terms include Telegraphic Transfer (T/T) in advance, Western Union, MoneyGram, and other secure trade assurance platforms.

6. Is there a minimum order requirement (MOQ)? We offer flexible services and have no MOQ requirements for our standard ODM/OEM medical equipment services.
