GS-Prep-100 System HPLC Chromatography Lab Instrument Lab Equipment

1 / 5

GS-Prep-100 System HPLC Chromatography Lab Instrument Lab Equipment

Customization:	Available
After-sales Service:	Yes
Warranty:	1 Year

Send Inquiry

Product Description

📊

Basic Specifications

Model NO.

GS-Prep-100 System

Appliance

The Analysis of Environmental Samples

Detector

Certification

CE, ISO

Chromatography Type

Liquid Chromatography

Flow Rate

0.01-99.99ml/Min

Max Pressure

20MPa

UV Wavelength

190-400nm/190-700nm

Software Compliance

FDA 21 CFR Compliance

Origin

China

💡

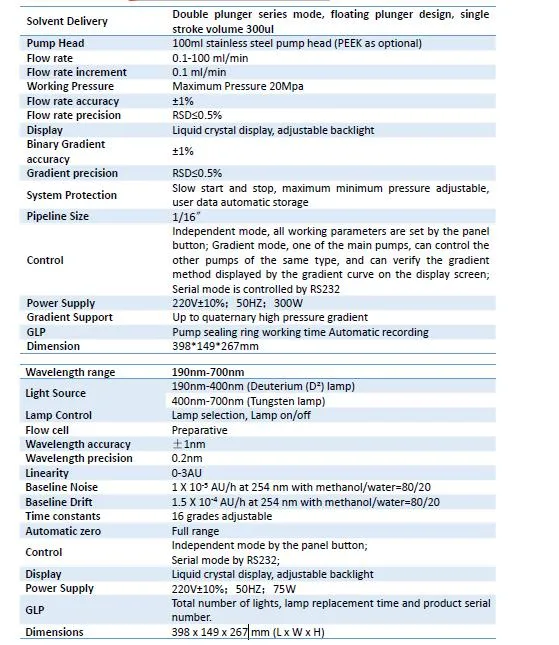

Application & General Information

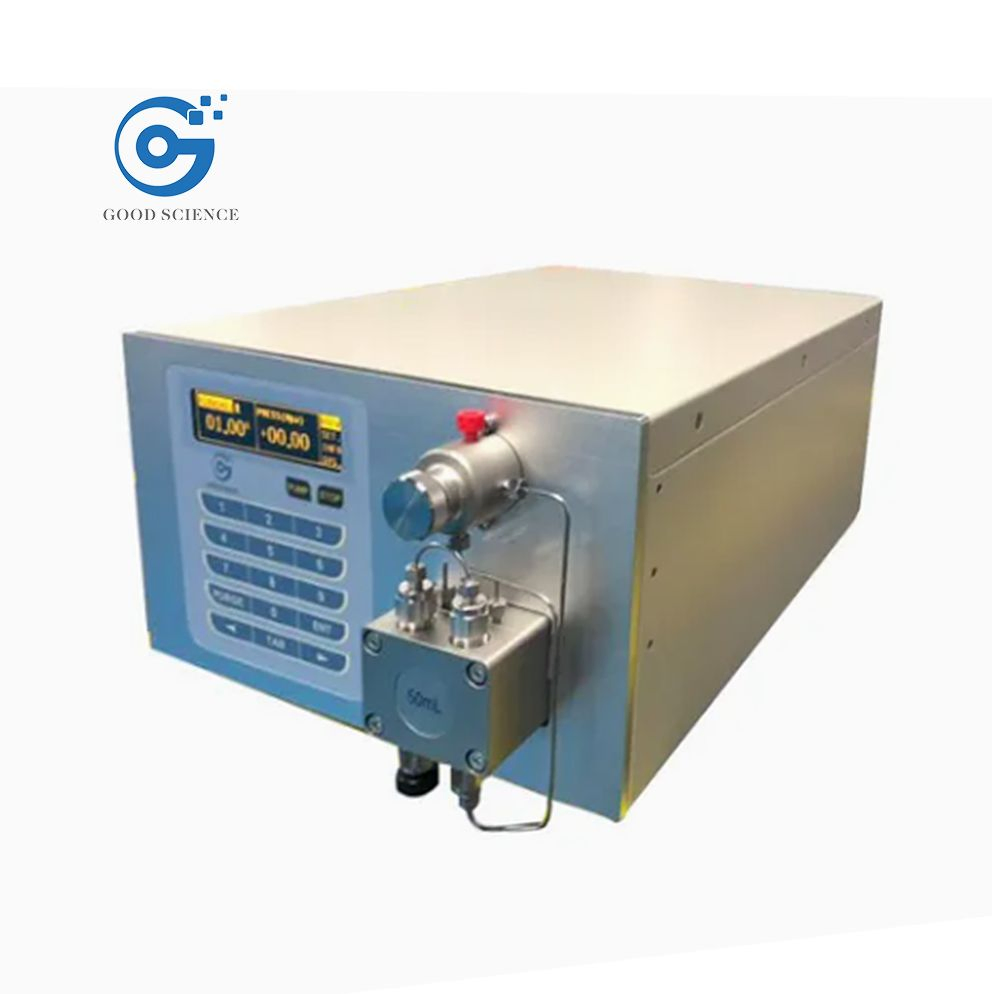

✔ 100 ml/min SS pump head with pressure sensor
✔ Ideal for Ion chromatography and dosing applications
✔ Suitable for delivery of aggressive media and bioinert applications

Type	100ml pump, SS
Flow Range	0.01-99.99ml/min, Increment 0.001ml/min
Max Pressure	20MPA
Flow Accuracy	±0.5%
Flow Rate Precision	RSD≤0.1%
Pressure Fluctuation	≤0.2MPA
Piping Connection	1/16"OD, 0.25mmID
Wet Material	316L, Precious stone, PTFE, PEEK

🛠️

Product Features

🔹 Automatic purification HPLC system with auto sampler and fraction collector.
🔹 Excellent transmission system with floating plunger supporting mechanism to improve piston life.

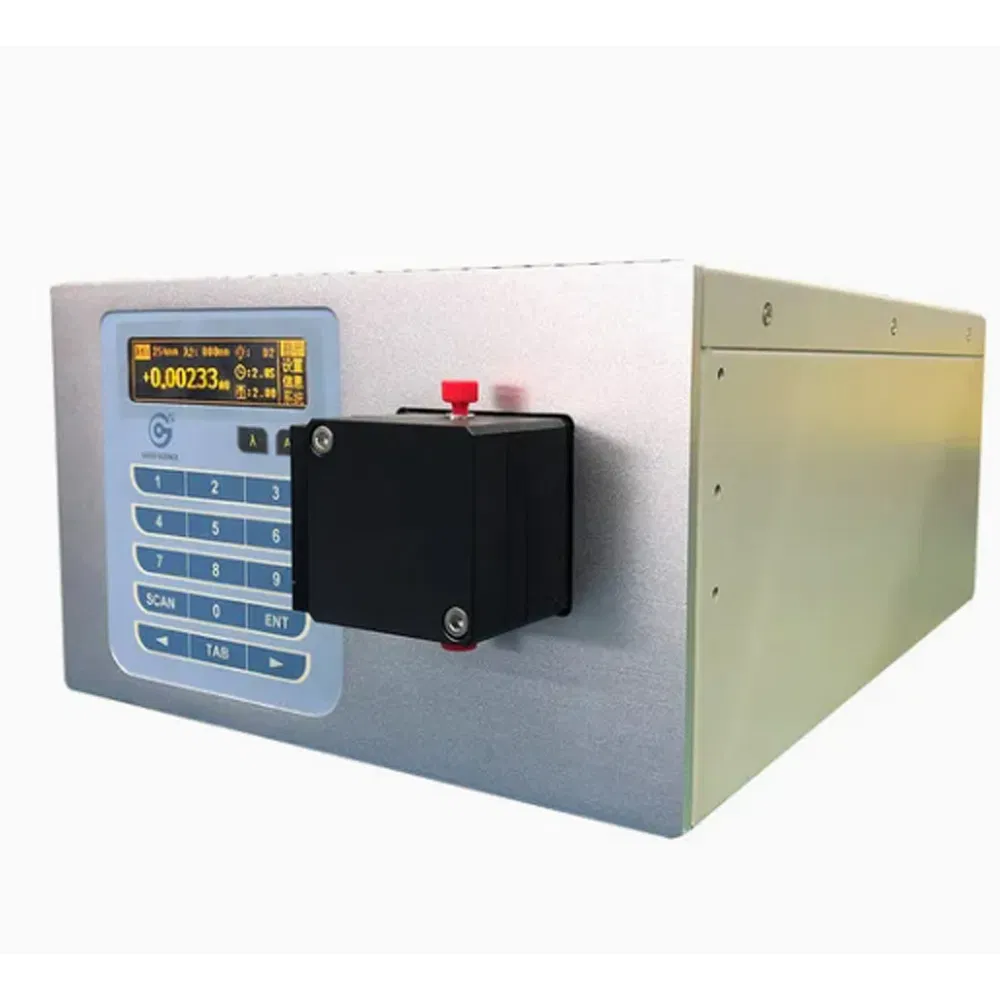

🔹 UV visible dual wavelength detector with high sensitivity and wide linear range.
🔹 Biocompatible PEEK pump and detector for protein and antibody purification.
🔹 Flexible loading amount: milligram to gram scales.

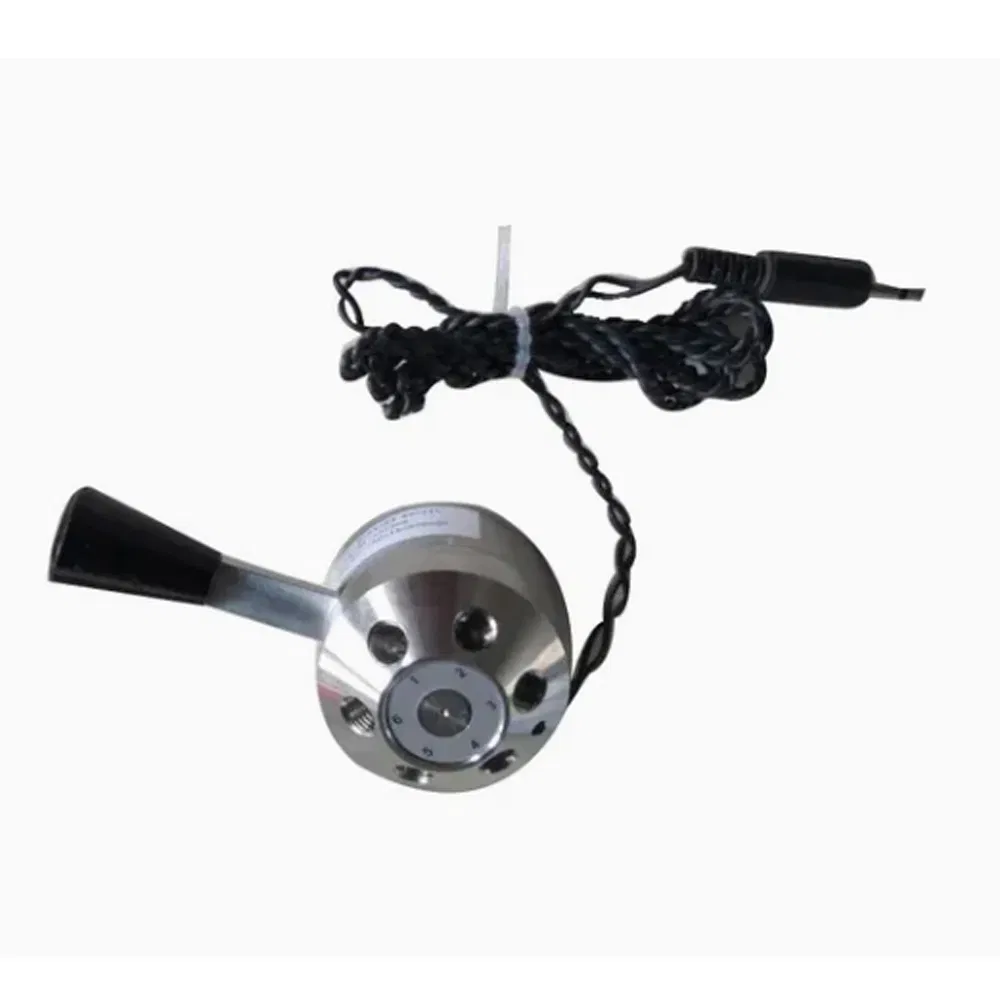

🔹 Multiple injection methods: manual injector, auto sampler, or sample injection pump.

📦

Packaging & Delivery

Package Size

45.00cm * 30.00cm * 30.00cm

Gross Weight

30.000kg

Packing Details

450*300*300mm, 3 cartons

Frequently Asked Questions

What is the flow rate range of the GS-Prep-100 system?

The system supports a flow rate range of 0.01-99.99 ml/min with a highly precise increment of 0.001 ml/min.

Is this equipment suitable for protein purification?

Yes, the system features biocompatible PEEK pumps and detectors, specifically designed for protein and antibody purification applications.

What are the primary detection capabilities?

The system is equipped with a UV visible dual wavelength detector, offering high sensitivity and a wide linear range across 190-400nm or 190-700nm.

Can the system operate unattended?

Yes, the automatic purification system includes an auto sampler and fraction collector, allowing it to run methods overnight to improve work efficiency.

What is the maximum pressure capacity?

The GS-Prep-100 system can operate at a maximum pressure of 20MPa.

Does the software comply with laboratory regulations?

Yes, the system software is FDA 21 CFR Part 11 compliant, ensuring it meets standard laboratory data integrity requirements.
