| Model NO. | PX-TS2 | Certification | CE, ISO13485 |
| Group | Adult | LCD Display | Without LCD Display |
| Static Load Capacity | 240 Kg | Surgery Table Size | 2000 * 470 (mm) |
| Total Weight | ≤ 45kg | Portable | Yes |
| Transport Package | Carton | Origin | China |

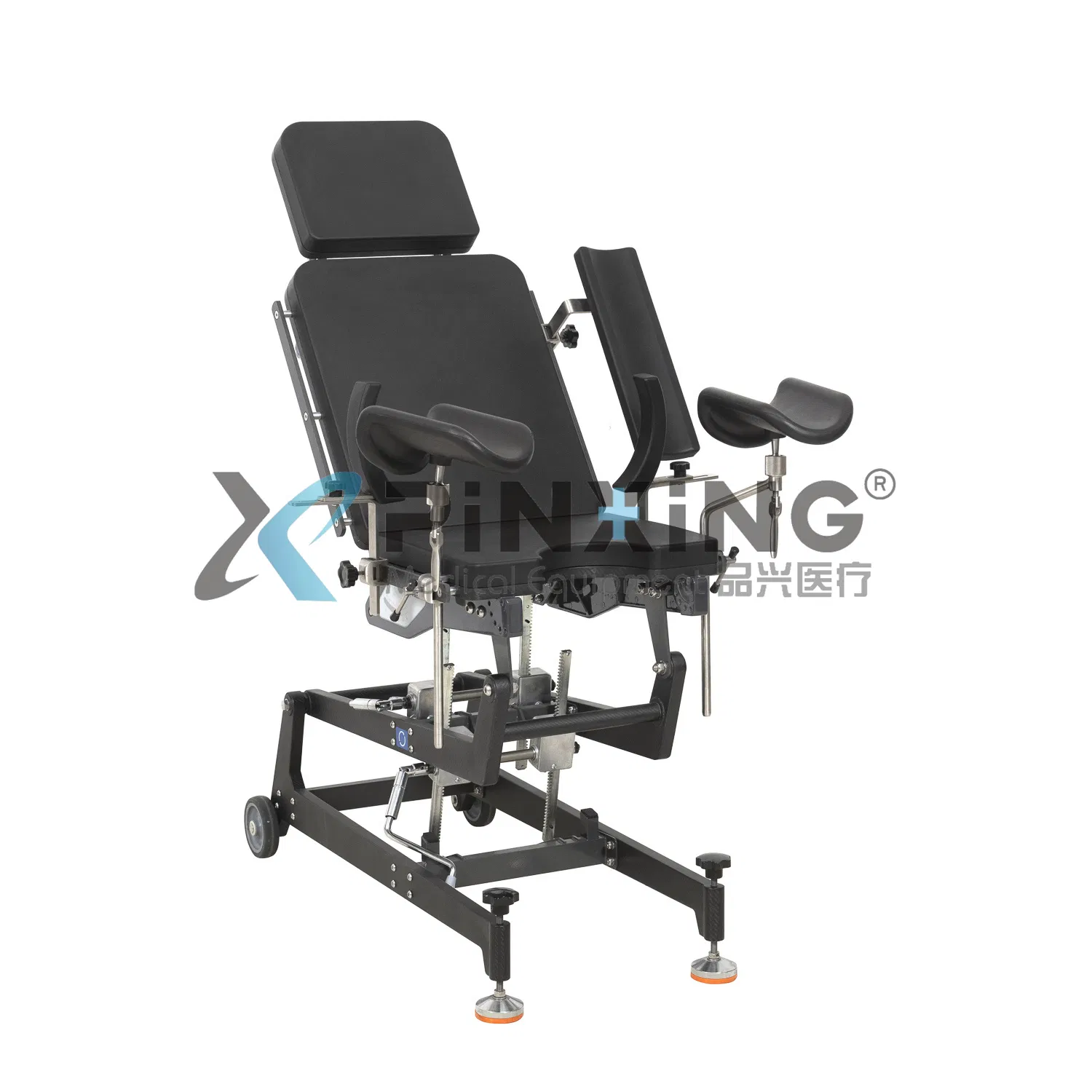

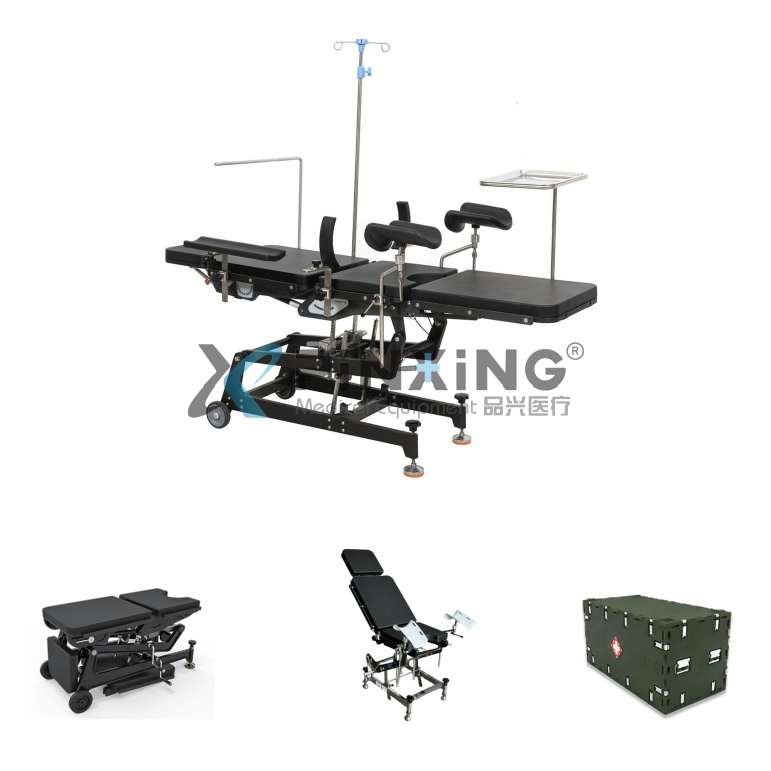

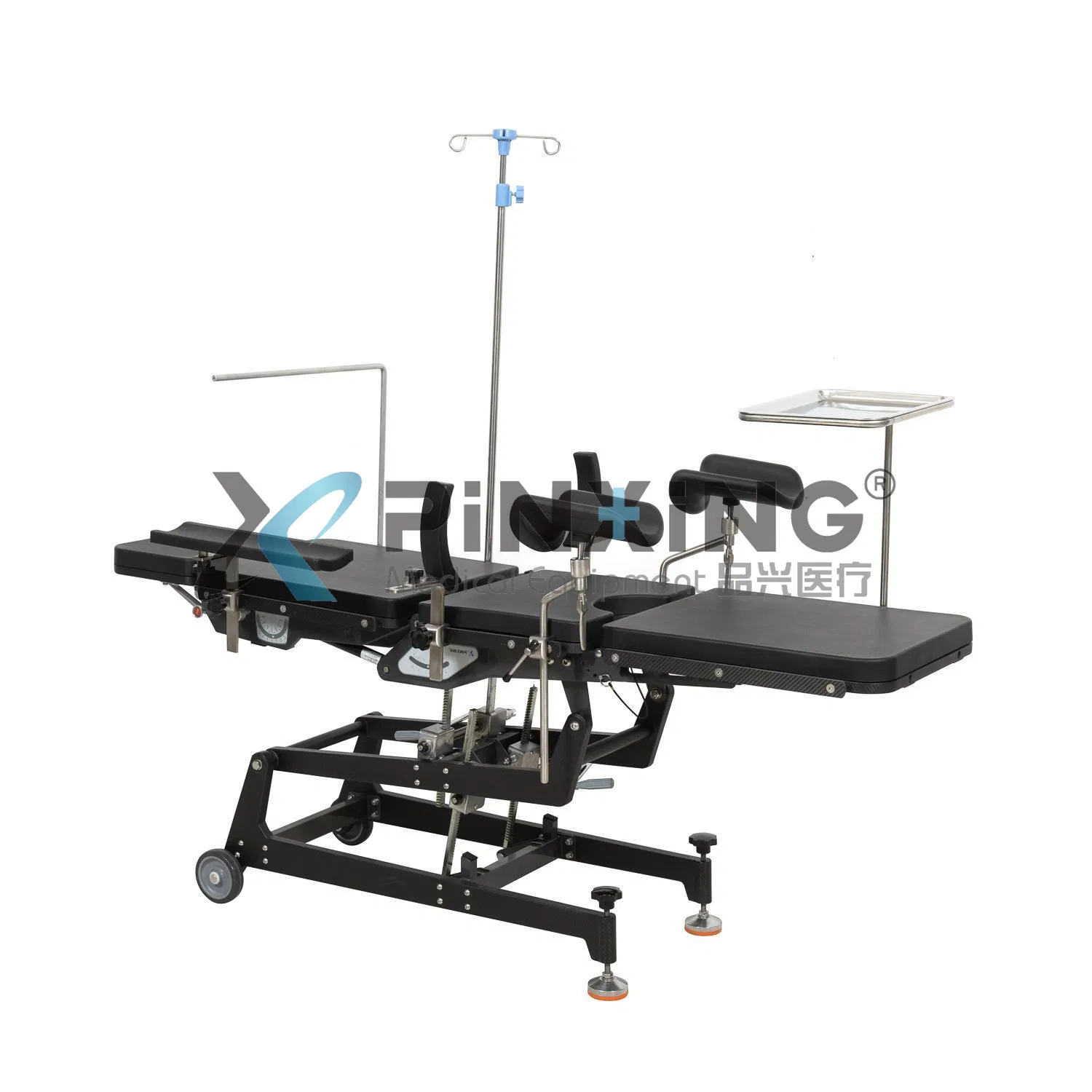

Built for Emergency & Field Operations

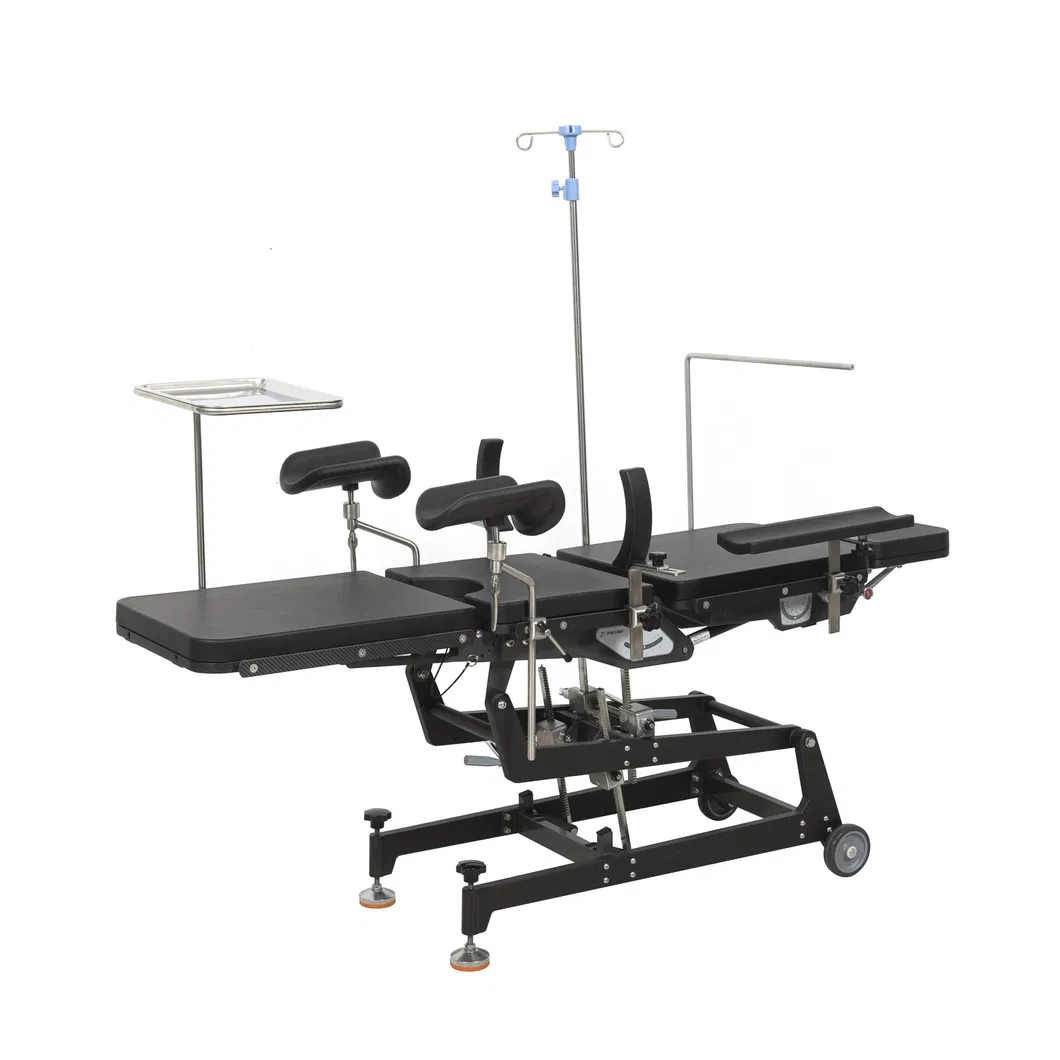

Our lightweight, portable carbon fibre field surgical beds are the ultimate solution for emergency medical care in challenging field hospital environments. Made with advanced materials like carbon fibre, these beds offer high strength, low weight, and resistance to wear and corrosion.
| Parameter | Specification |
|---|---|
| Overall length | 1970mm(±10mm) |
| Width | 480mm(±10mm) |
| Table height (manual) | 540~880mm(±10mm) |

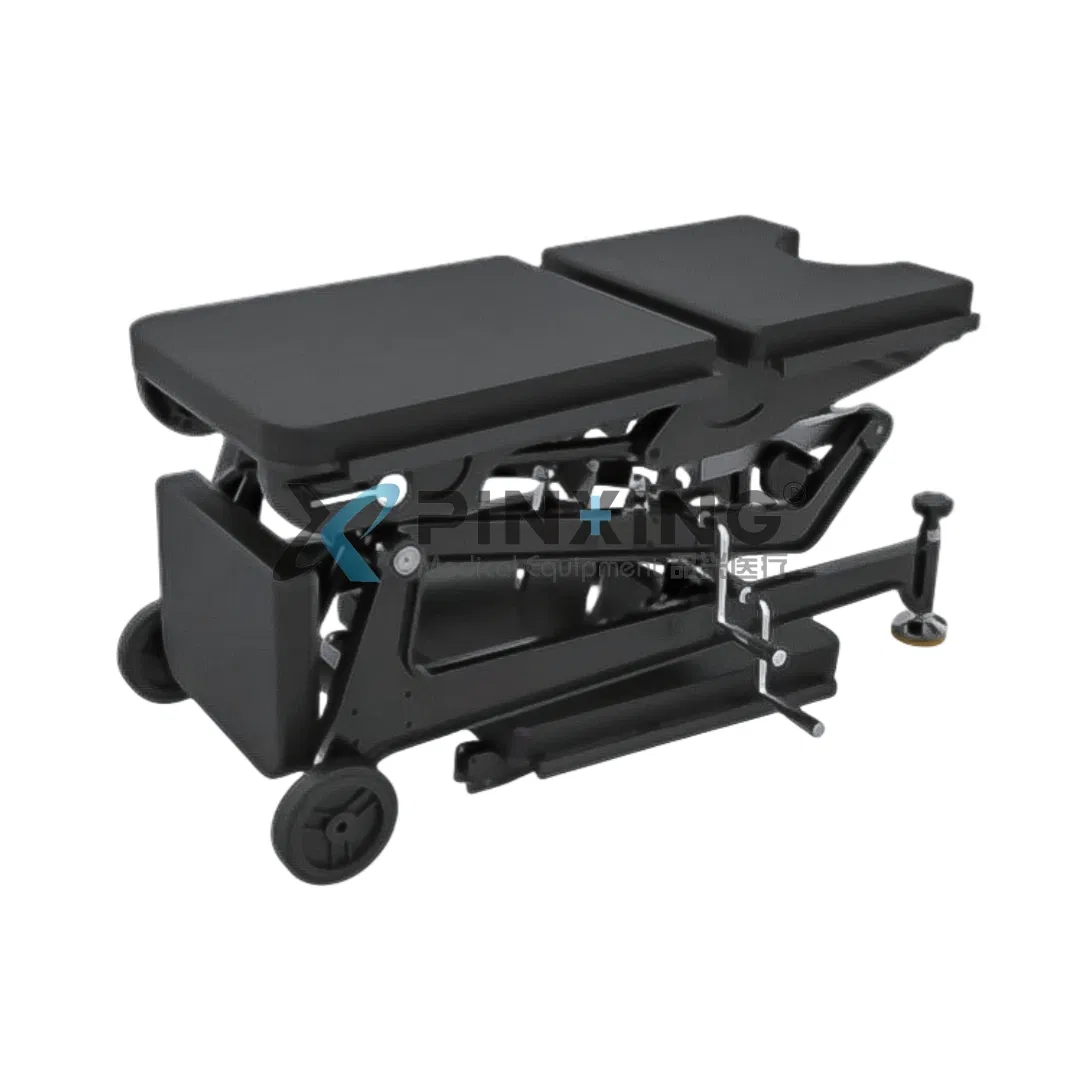

| Dimensions after folding | 1100mm x 540mm x 540mm(±10mm) |
| Table weight | 45KG |
| Trendelenburg/ Reverse | 15°/30° |
| Gas spring-assisted back section | 0°~75° |
| Gas spring assisted leg section | 20°/55° (detachable) |
| Head section (up/down) | 25°/60° |
| Safe Working Load | 240KG |
| Carrying box (Plastic PE) | 1200mm x 600mm x 600mm (25KG) |

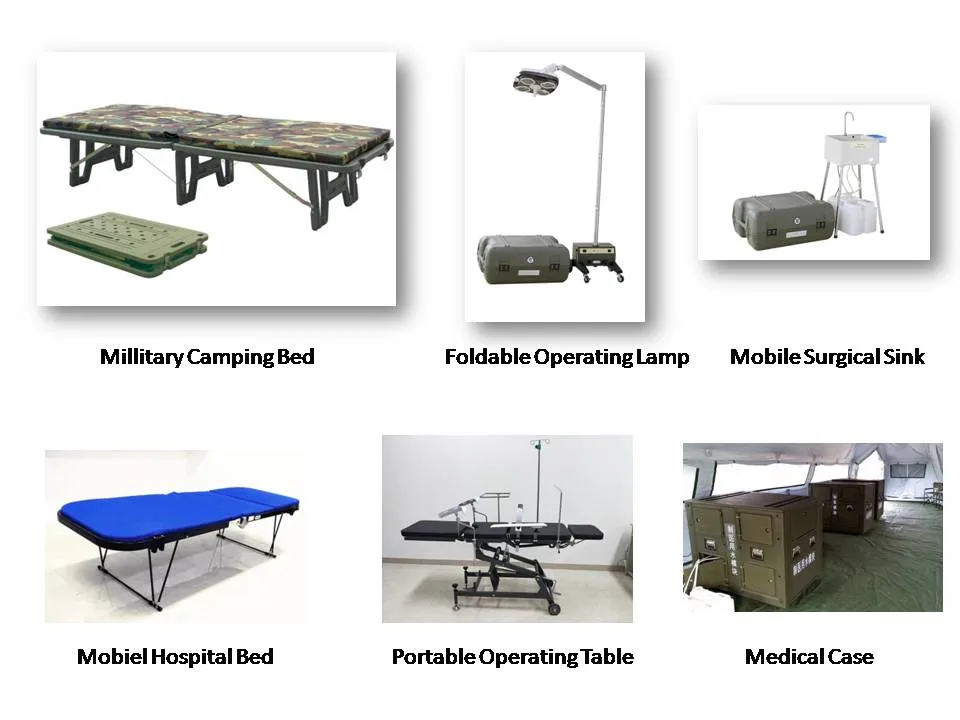

A field hospital is a small mobile medical unit that temporarily takes care of casualties on-site. The system can be transported by car, train, ship, and aircraft, suitable for wartime or peacetime disaster rescue.
