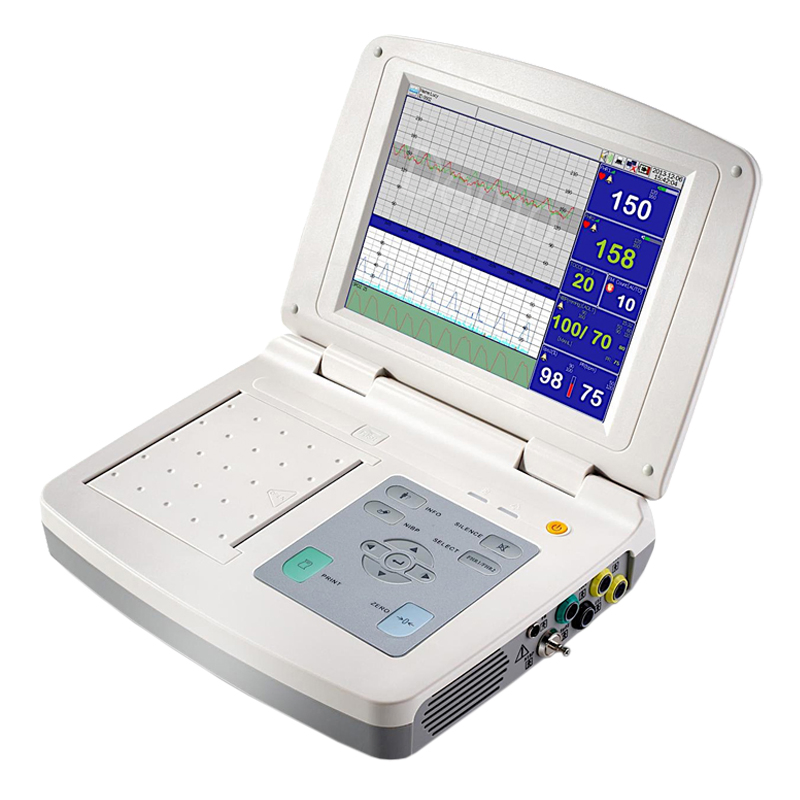

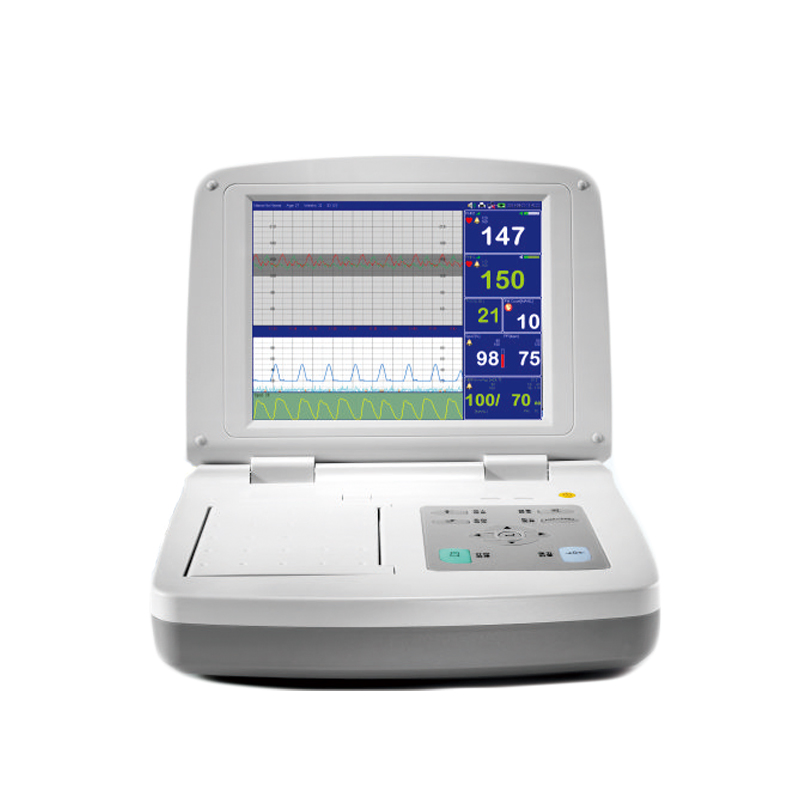

Medical Devices Fetal Doppler Monitor Baby Heart Monitor for Pregnancy

Still deciding? Get samples of $ !
Request Sample

Product Description

📋
Overview & Basic Info
Model NO.
FCM-100A
Screen
10.4 inch
Battery
Built-in Rechargeable Lithium
Storage
25,000 Groups of Medical Records
Printer
Paper Width 112mm
Dimension
320X260X80mm
Weight
2.8kg
Type
Patient Monitor
Certification
ISO13485
Origin
Guangdong, China
🔍
Product Description

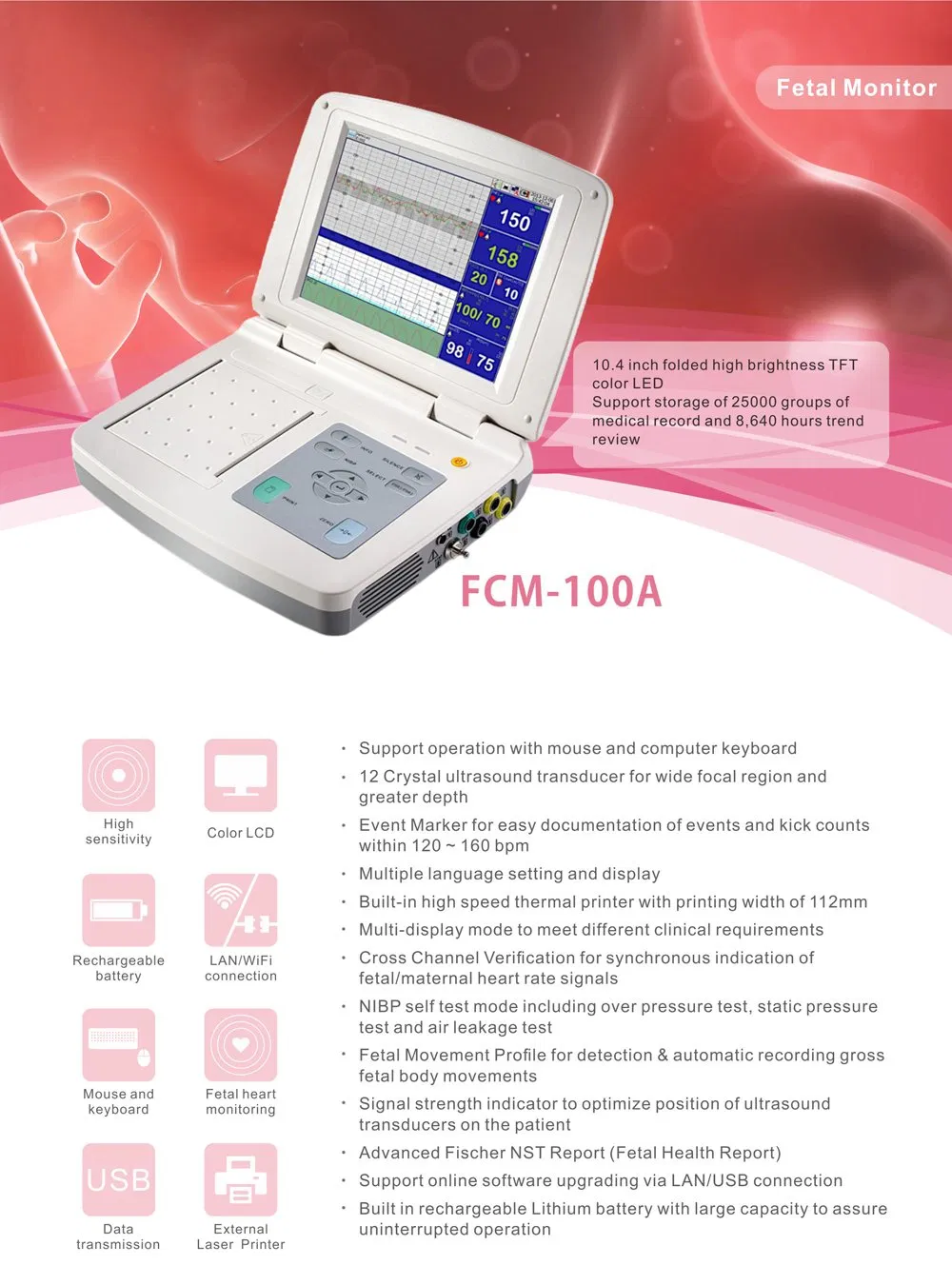

Fetal Doppler Monitor
Model Configuration

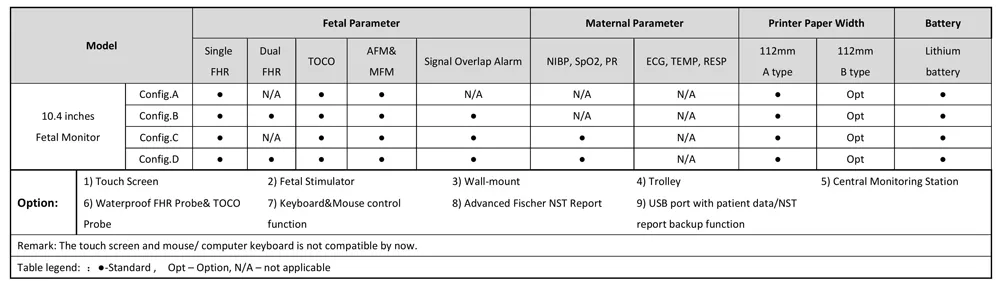

Configuration Table
⚙️
Technical Parameters
Power Supply & Display
  • Adapter: Output 9VDC, 5A
  • Voltage: AC100~240V, 50/60HZ
  • Screen: 10.4" color TFT LED (0-135° rotation)
  • Resolution: 800*600 pixels
Battery & Recorder
  • Battery Type: Rechargeable lithium battery
  • Charge Cycle: ≥500 times
  • Working Time: 2-5 hours (optional)
  • Printing Method: Thermal printer
  • Paper Width: 112 mm (Z-fold)
  • Speed: 1/2/3cm/min
Monitoring Features (FHR & TOCO)
  • Ultrasound Type: 12-Crystal wide beam pulse doppler
  • FHR Range: 30 to 240 bpm (Standard)
  • FHR Accuracy: ±1 bpm
  • TOCO Range: 0 ~ 100 units
  • Fetal Movement: AFM & MFM supported
Review & System Output
  • CTG Review: 8640 hours
  • Vital Signs Trend: 2160 hours
  • NIBP Review: 2000 groups
  • Interface: RJ45 Ethernet, USB Port
📦
Standard Packing List
Item Description Quantity
FCM-100A Fetal monitor main unit1 pc
FHR Transducer1 pc
TOCO Transducer1 pc
Event Marker1 pc
Belt2 pcs
Recording Paper (112mmx100mmx150p)2 pcs
Power Cord & User Manual1 pc each
Ground Cable & Checking List1 pc each
Packaging
Manufacturing 1
Manufacturing 2
Frequently Asked Questions
What is the display size and capability of the FCM-100A?
The device features a 10.4-inch color TFT LED screen with a resolution of 800*600 pixels. The screen can be rotated from 0 to 135 degrees for better viewing angles.
How long can the built-in battery last?
The standard rechargeable lithium battery provides up to 2 hours of working time. An optional larger battery is available to extend the working time to 4-5 hours.
What kind of data storage and review functions are supported?
The system can store up to 25,000 groups of medical records. It supports 8,640 hours of CTG waveform review and 2,160 hours of vital signs trend review.
What are the specifications for the built-in printer?
It uses a thermal printer with Z-fold thermosensitive paper. The paper width is 112mm, and it supports printing speeds of 1, 2, or 3 cm/min.
Does the device support fetal movement recording?
Yes, the FCM-100A supports both Automatic Fetal Movement (AFM) using pulsed doppler ultrasound and Manual Fetal Movement marker (MFM).
What monitoring parameters are included as standard?
The standard configuration includes FHR (Fetal Heart Rate), TOCO (Uterine Contraction), and Fetal Movement (AFM/MFM) monitoring.
