Electric Hydraulic Ce Approved Surgical Operation Table

1 / 5

Electric Hydraulic Ce Approved Surgical Operation Table

Customization:	Available
Material:	Metal
Type:	Manual Bed

Send Inquiry

Product Description

Basic Specifications

Model NO.

HB3000

Function

Hydraulic Hospital Bed

Using Ambient

Hospital

Certification

CE, ISO13485

Condition

New

Transport Package

Plywood Case

HS Code

90189090

Production Capacity

5000PCS/Year

Product Overview

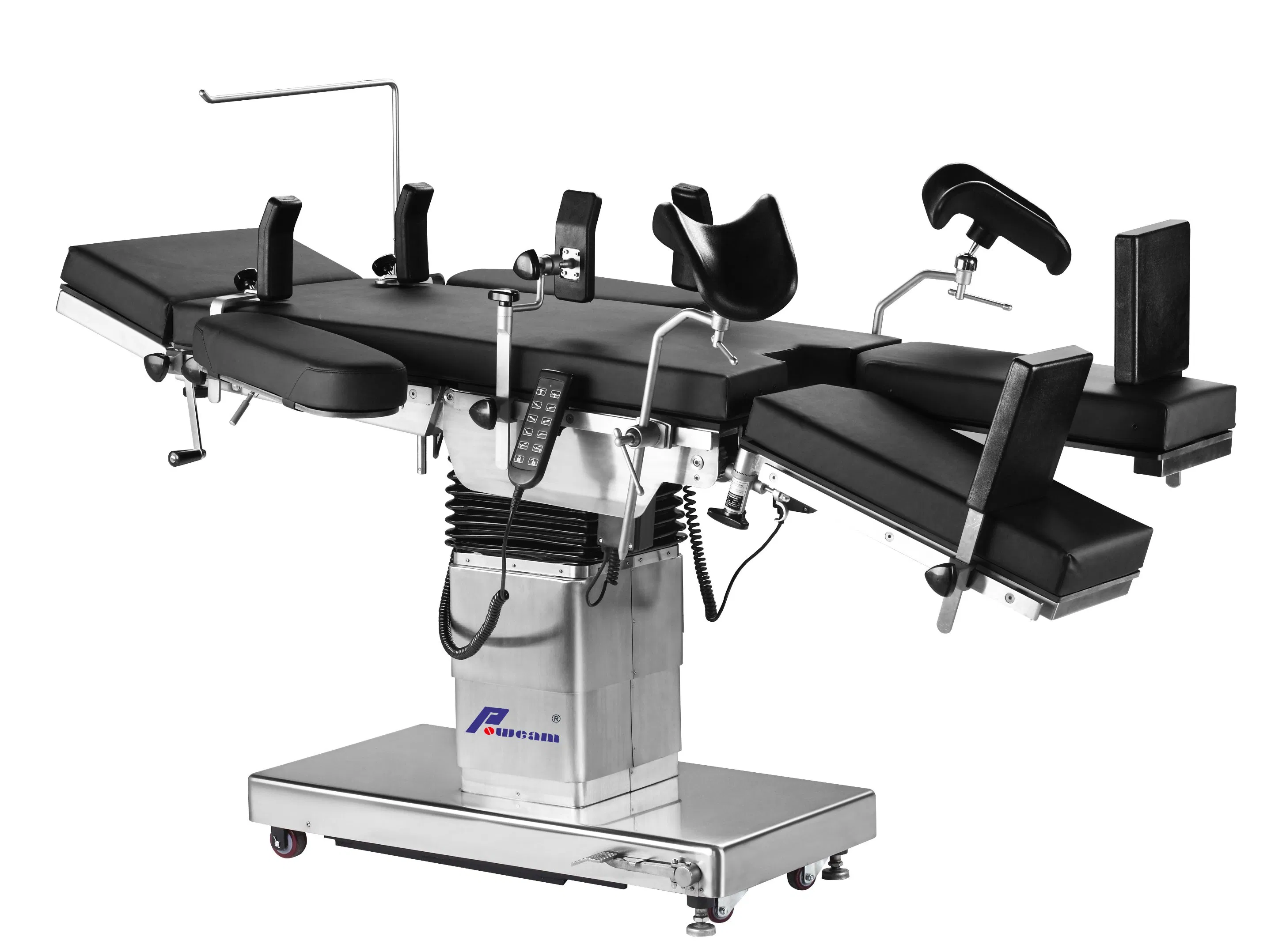

Electric Hydraulic CE Approved Surgical Operation Table (HB-3000)

Engineered for increasingly complex surgical cases, the HB3000 requires minimal effort and time to position a patient in a comfortable, safe, and efficient way. As an advanced automatic operation table designed with the needs of surgeons and nurses in mind, it adopts micro-touch remote control for convenient adjustments.

Key Features

Decompression memory mattress with antistatic, waterproof, and seamless design.
Electric horizontal sliding range of 300mm.
Weight capacity of 200kg - 300kg in normal position.
Battery power support for 50-80 operations.
Radiolucent table plate for free C-arm access.
Equipped with a micro-touch remote control system.

Technical Parameters

Adjustment Range & Specifications

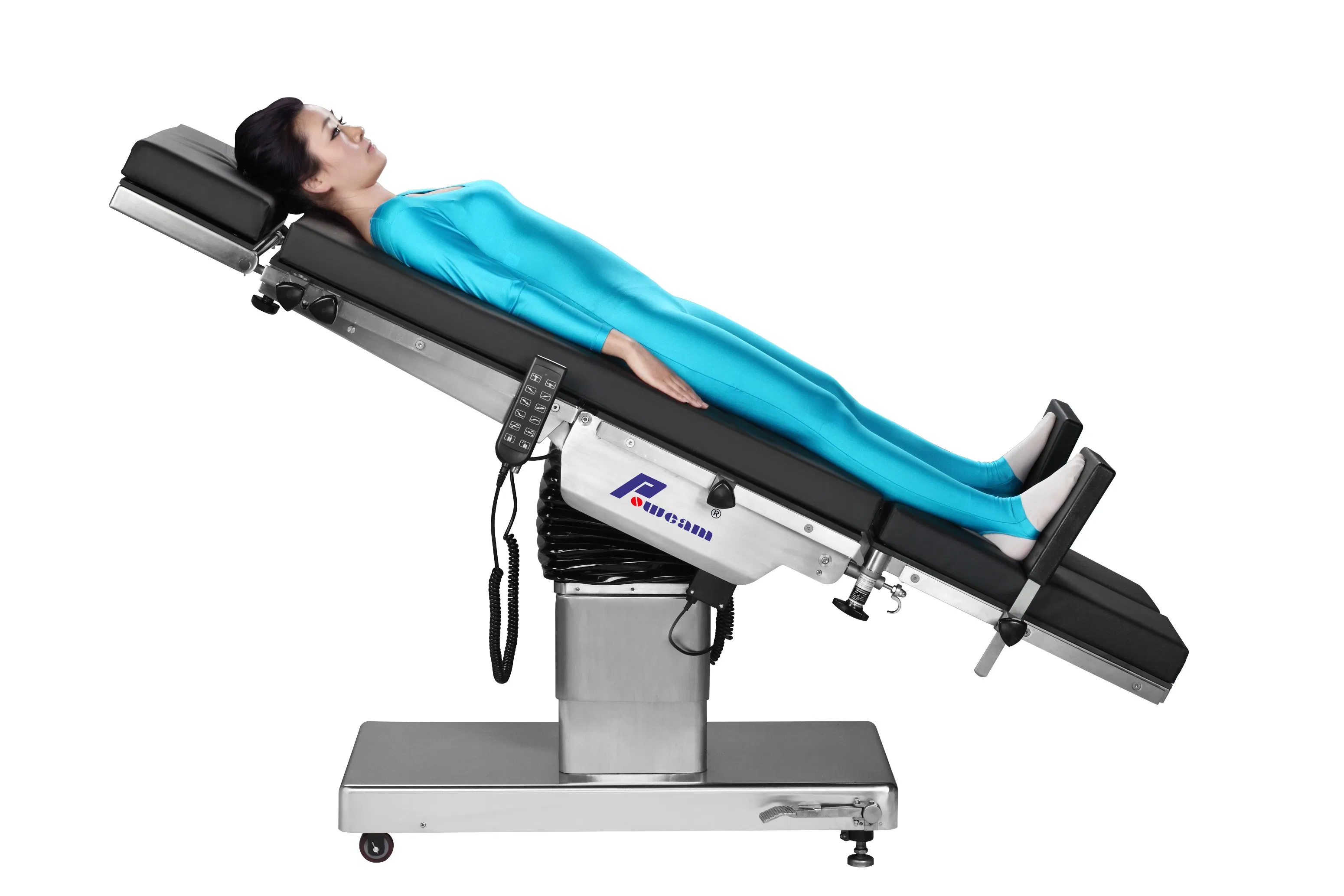

Trendelenburg	25°
Anti-Trendelenburg	25°
Lateral Tilt (Left/Right)	15° / 15°
Head Rest (Up/Down)	45° / 90°
Back Plate (Up/Down)	75° / 20°
Leg Plate (Up/Down/Outward)	15° / 90° / 90°
Kidney Bridge (Up)	110mm
Longitude Sliding	300mm
Load Capacity	200 kgs
Power Supply	220v, 50Hz, 1.0kW
Mattress Material	Memory Foam

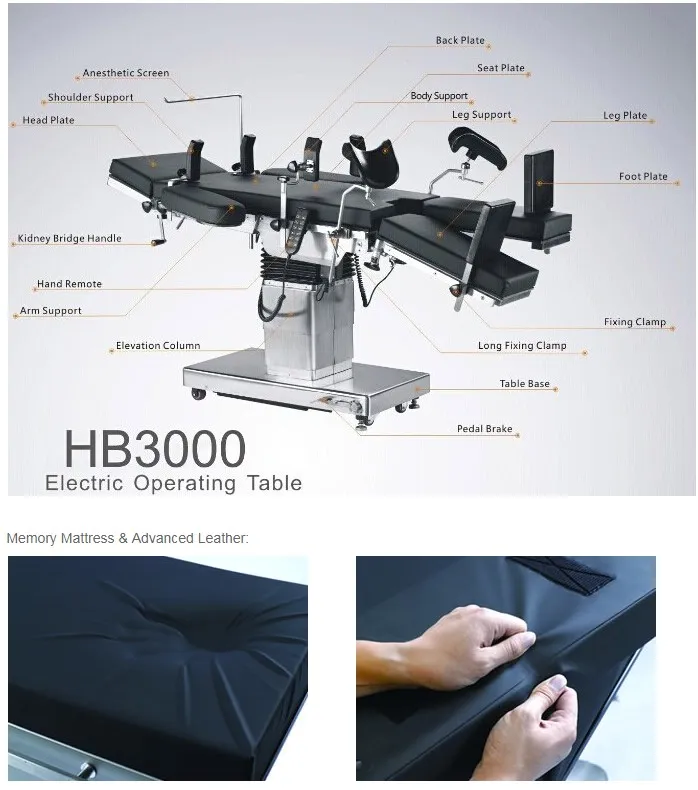

Standard Accessories
Anaesthetic Screen	1 piece
Shoulder Support	1 pair
Arm Support	1 pair
Body Support	1 pair
Knee Crutch	1 pair
Foot Plate	1 pair
Fixing Clamp	8 pieces

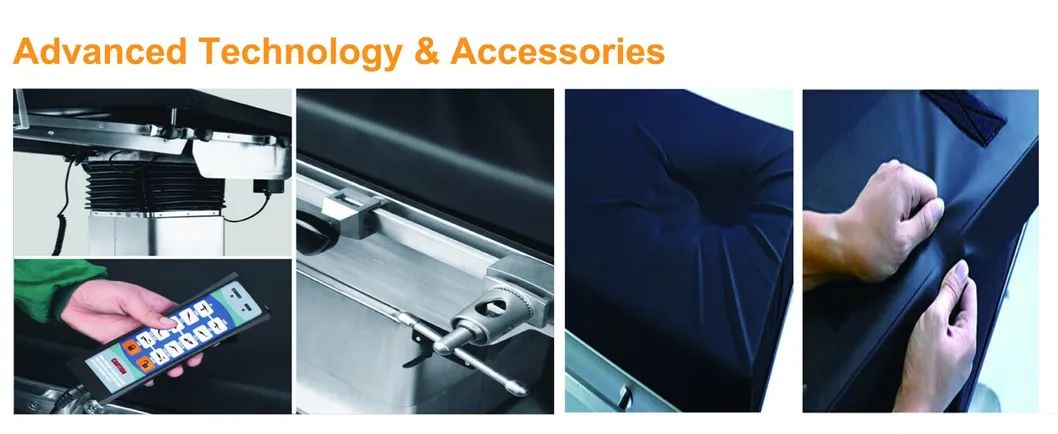

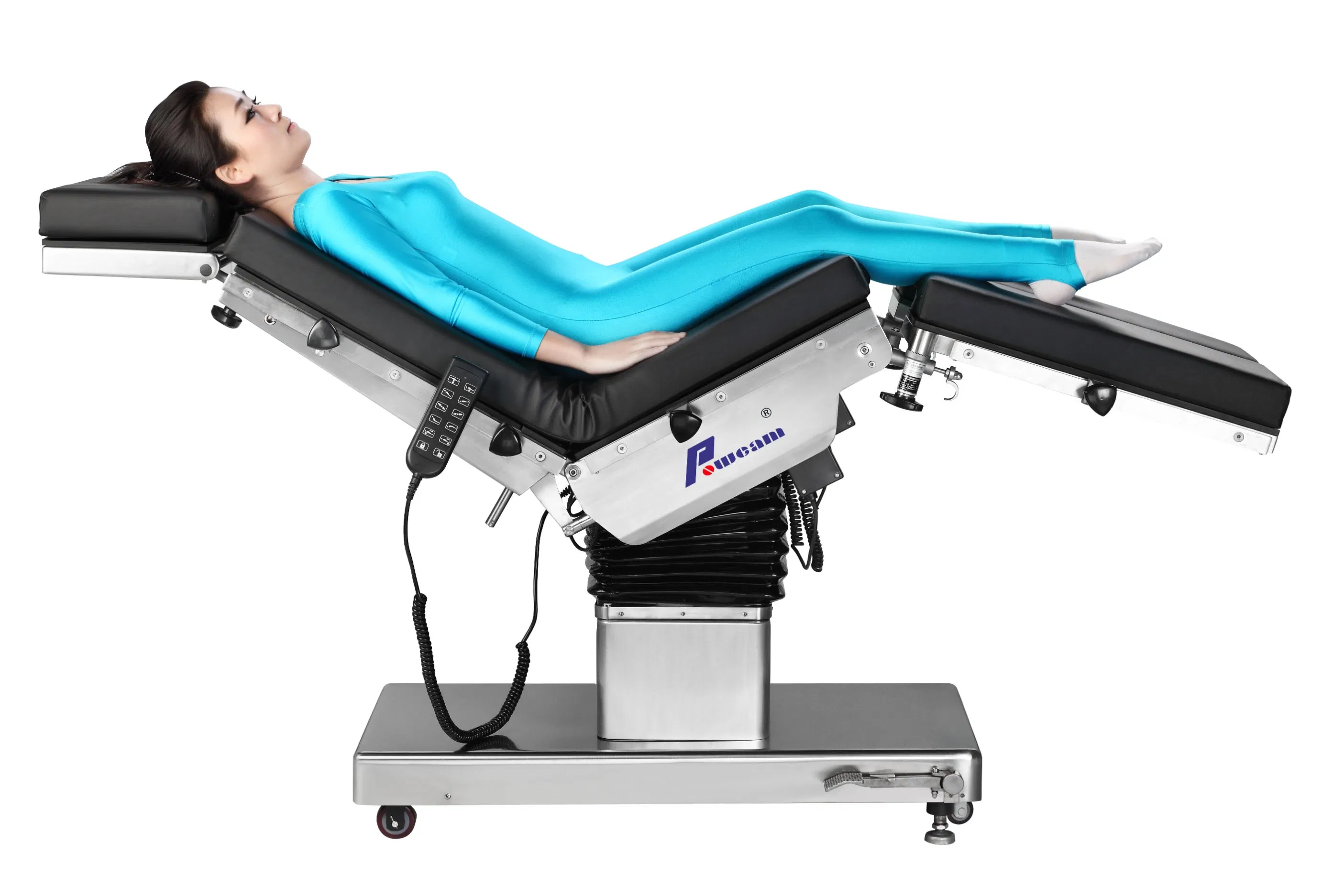

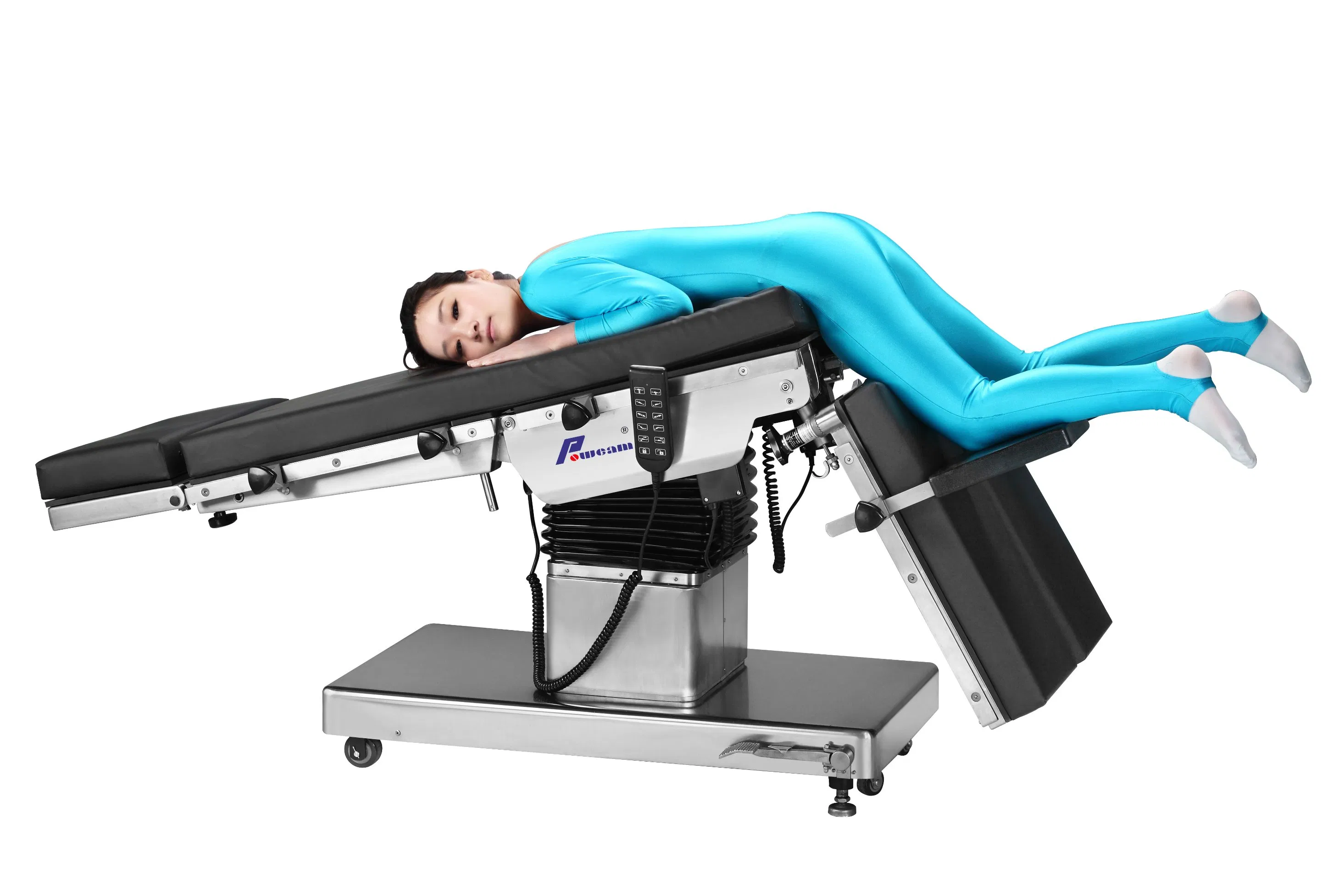

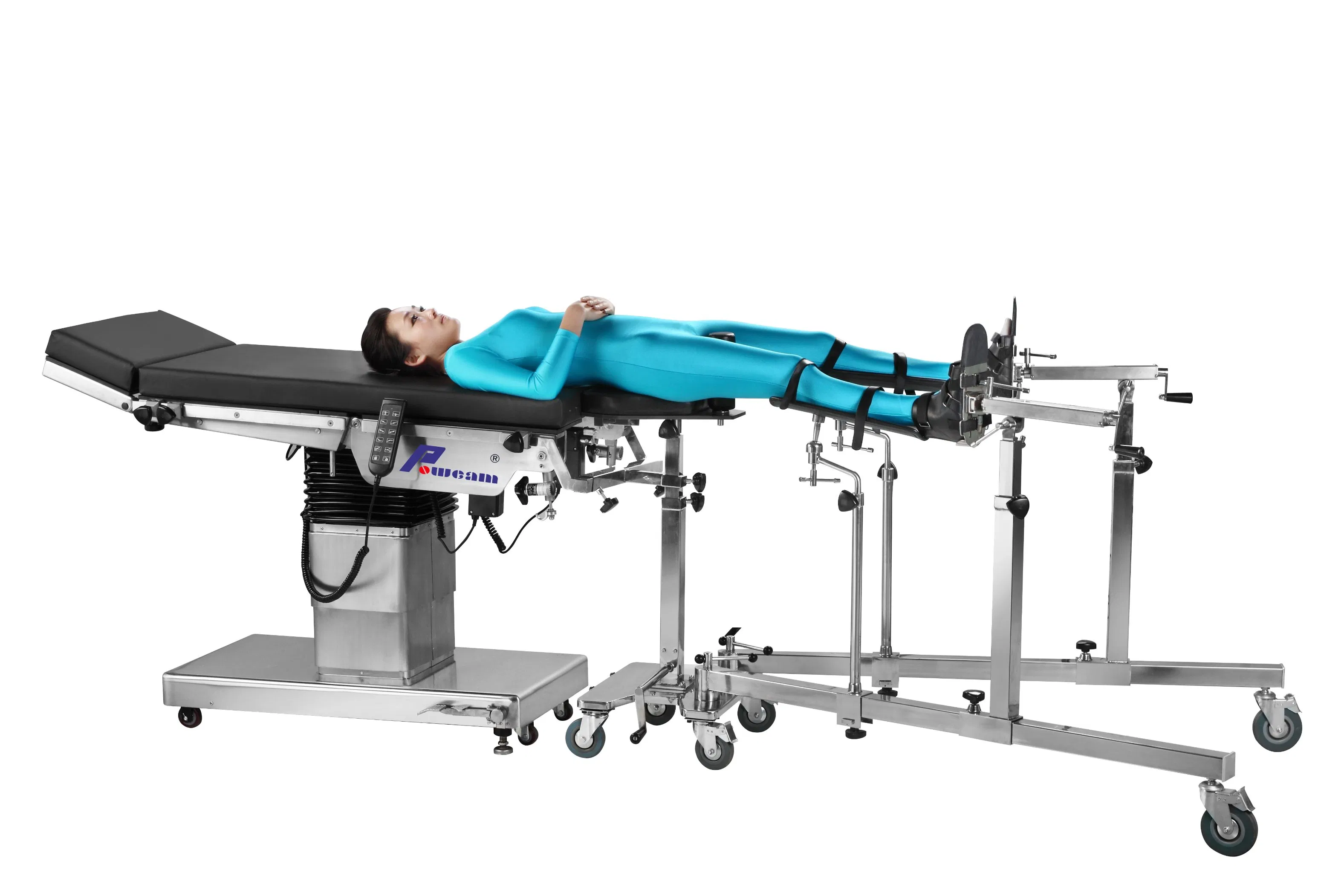

Product Visuals

Frequently Asked Questions

Q1: What is the maximum weight capacity of the HB3000 operation table? A: The table is designed to support a load capacity of 200kg to 300kg in its normal position, making it suitable for a wide range of patients.

Q2: Can this table be used with C-arm imaging systems? A: Yes, the table features a radiolucent table plate which allows for unobstructed free C-arm access during surgical procedures.

Q3: How long does the battery last in case of a power outage? A: The built-in battery provides enough power to support approximately 50 to 80 complete surgical operations.

Q4: What are the benefits of the memory foam mattress? A: The decompression memory mattress is antistatic, waterproof, and features a seamless design to ensure patient safety, comfort, and easy sterilization.

Q5: Does the table support longitudinal sliding for imaging flexibility? A: Yes, it features an electric horizontal sliding function with a range of 300mm, providing excellent flexibility for patient positioning.

Q6: What certifications does the HB3000 hold? A: The HB3000 is fully CE approved and manufactured under ISO13485 quality management standards for medical devices.
