Customization: Available
Type: Operating Table
Kind: All
Send Inquiry

Product Description

Basic Information
Model NO.
JRKL-D. III
Certification
CE, ISO13485
Group
All
LCD Display
Without LCD Display
Metal
Stainless Steel
Transport Package
Plywood Case
Specification
200× 52× 70-110 CM
Production Capacity
100units/Week
Product Description

JRKL-D·III ELECTRICAL OR TABLE

The JRKL-D·III (Economic) is a cost-effective, multi-performance mobile operating table designed to meet the rigorous requirements of various surgical procedures.

Key Features
Electro-hydraulic operation mode with hand-held remote and panel control.
MCU processing with self-locking function to avoid false triggering.
High-quality 304 stainless steel construction for base, column, and rails.
Seamless, one-piece high-density memory sponge mattress with artificial leather.
Carbon steel plate table top, fully compatible with X-ray photography.
Simultaneous AC and DC power capability for continuous operation.
Features auto-restoration function and sliding table top.
Electric braking device for convenient and stable shifting.
One-press operation for "∧" (Lateral tilt) or "∨" (Reverse) positions.
Standard Accessories

• A pair of shoulder and waist support frames
• A pair of arm resting frames
• A pair of leg support frames
• One anesthesia screen frame

Technical Specifications
Parameter Specifications
Table Length2000±100 mm
Table Width520±20 mm
Height Adjustment(700~1100)±50 mm
Tilt (Left / Right)≥18°
Trendelenburg / Rev-Trend≥25° / ≥35°
Head board (Up / Down)≥50° / ≥90°
Backboard (Up / Down)≥70° / ≥30°
Waist board lifting100±20 mm
Leg board (Up / Down)≥10° / ≥90°
Leg board Outwards≥180°
Lumbar corner (∧ / ∨)≤150° / ≤110°
Sliding Movement300±30 mm
Main VoltageAC 220V±22V, 50Hz±1Hz
Input Power400±10% VA
Product Gallery

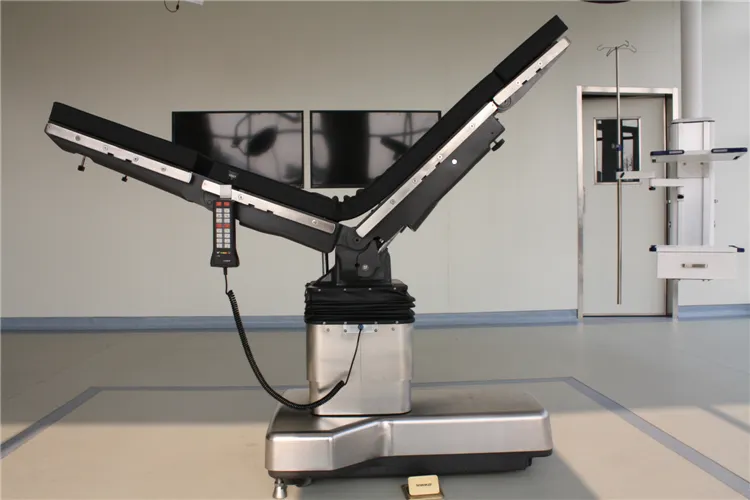

Operating Table View 1

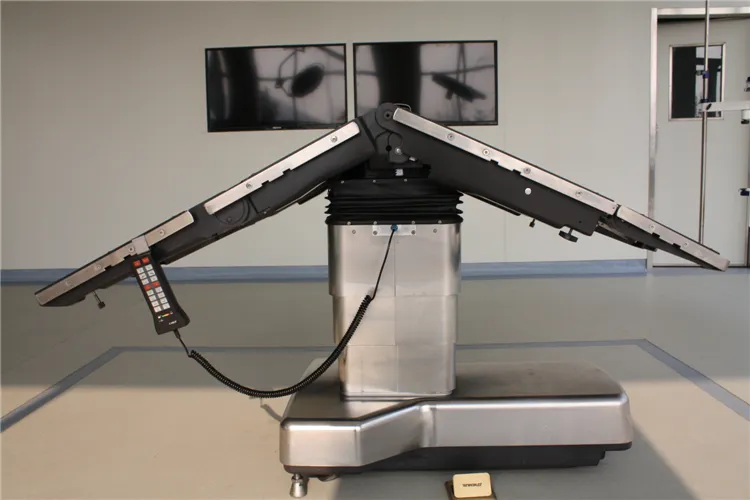

Operating Table View 2

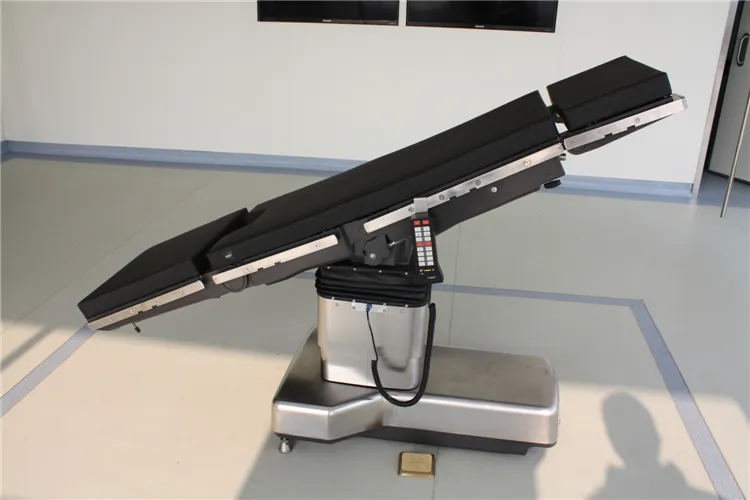

Operating Table View 3

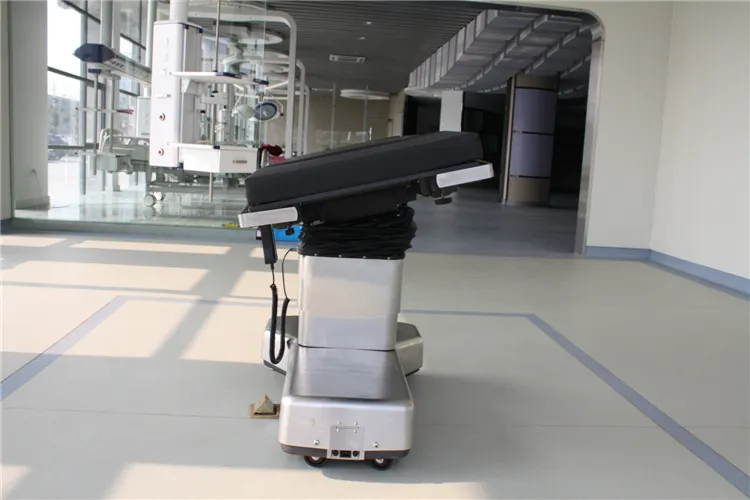

Operating Table View 4

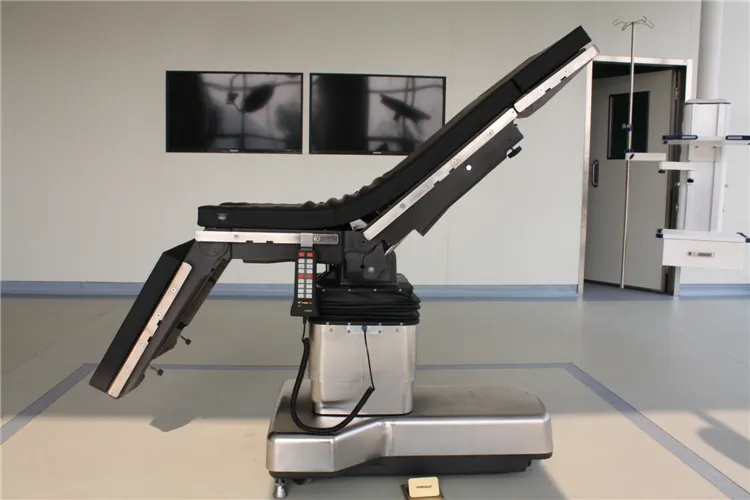

Operating Table View 5

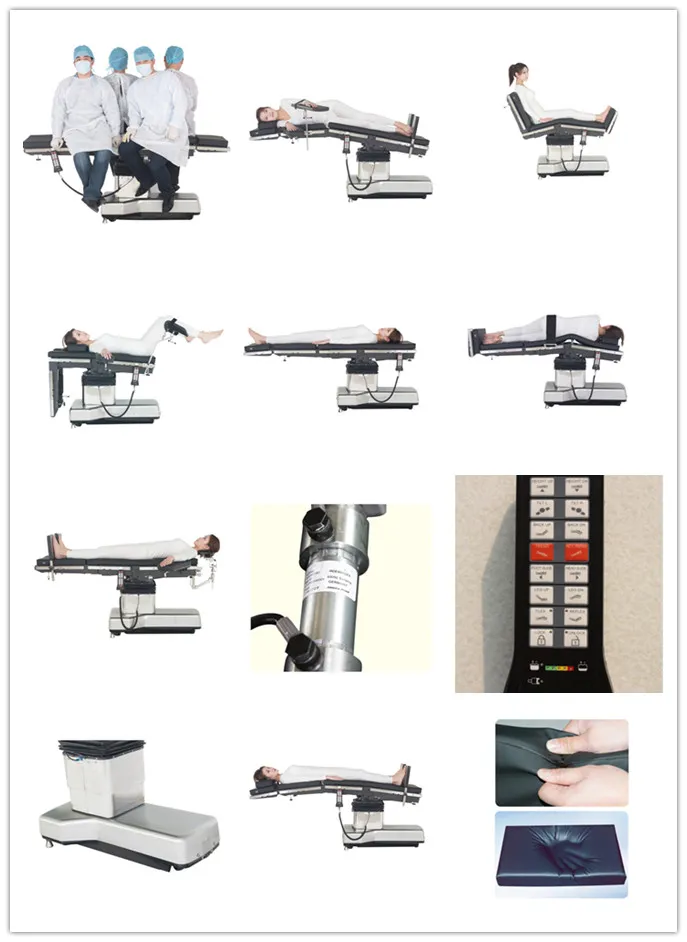

Operating Table View 6
Operating Table View 7
Frequently Asked Questions
What are the power options for the JRKL-D·III operating table?
The table is designed for maximum reliability, supporting both AC and DC power simultaneously to ensure uninterrupted performance during surgery.
Is this operating table compatible with X-ray imaging?
Yes, the table top is constructed from high-quality carbon steel plate, which allows for clear X-ray photography and imaging during procedures.
What materials are used in the construction for sterilization purposes?
The table support, base plate, column shield, and side rails are all made of 304 stainless steel, making them easy to clean, sterilize, and resistant to corrosion.
How is the movement of the operating table controlled?
It features two control modes: a hand-held remote controller and a built-in control panel, both processed via MCU for precision.
Does the mattress provide patient comfort?
Yes, the mattress is made of a seamless, high-density memory sponge formed in one piece and wrapped in imported artificial leather for durability and comfort.
Is the table easy to move and stabilize?
The table includes an electric braking device, which allows for easy shifting when unlocked and secure stabilization during surgical procedures.
