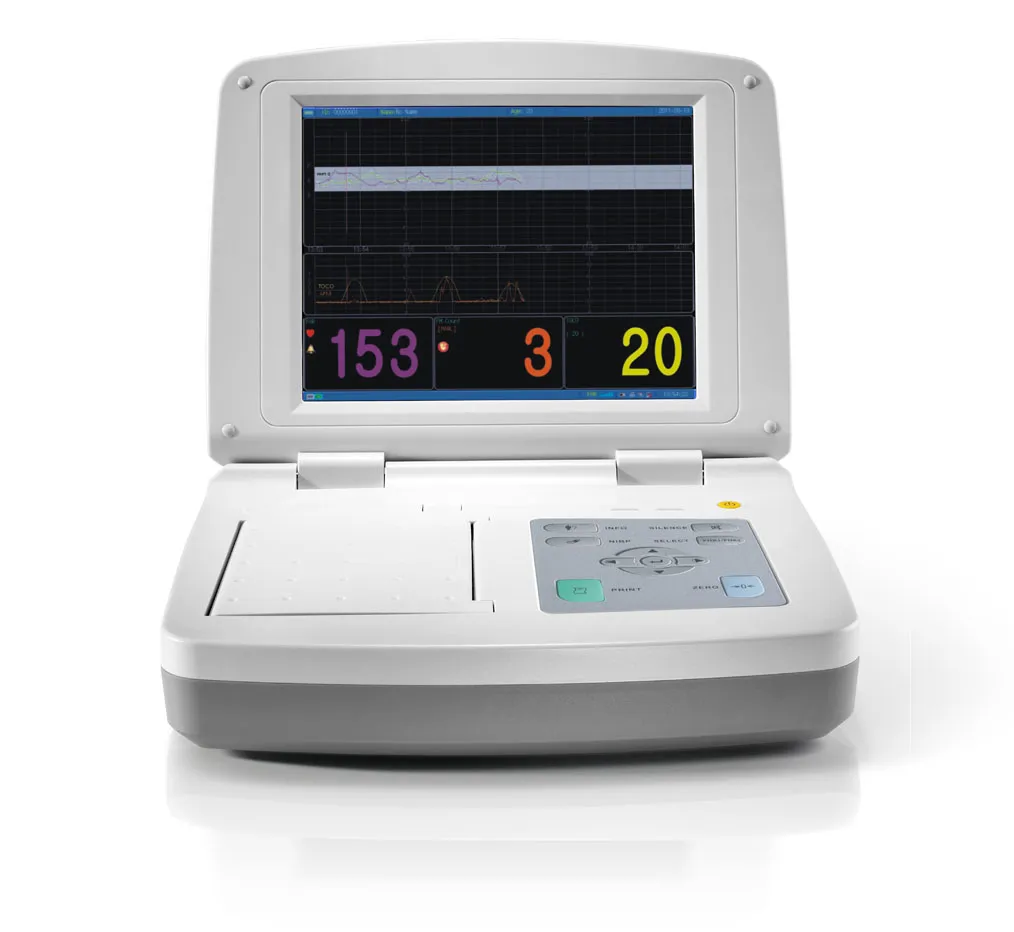

Medical Doppler Fetal Monitor Ctg Machine Maternal Monitor for Pregnancy (THR-FM800T)

1 / 5

Medical Doppler Fetal Monitor Ctg Machine Maternal Monitor for Pregnancy (THR-FM800T)

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	Patient Monitor

Send Inquiry

Product Description

Basic Information

Model NO.:THR-FM800T

Certification:CE, ISO13485

Group:Pregnant Woman

Weight:2.8 Kg

Power Requirements:AC100-240V, 50/60Hz

Display:10.4inch LCD

Memory:24-Hours Memory for Fetal Traces

Measurement Range:50 to 240 Bpm

Ultrasound (Fhr):1MHz±5%Hz

Toco Range:500 Units

AFM Range:0-100%

Dimensions:36cm (W)*26cm (D)*8cm (H)

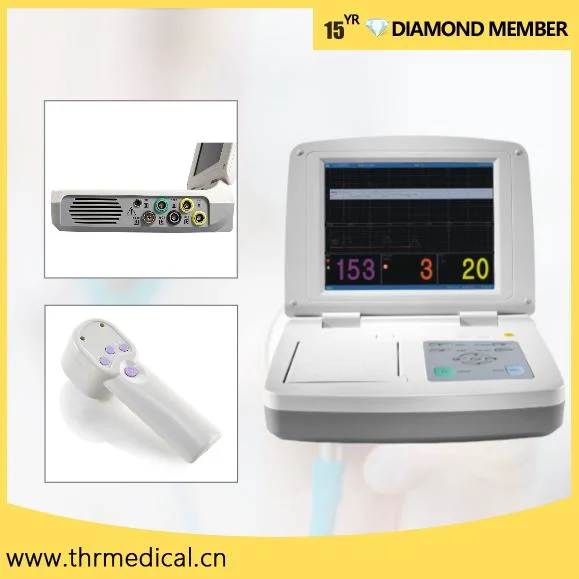

Portable Fetal Monitor CTG Machine

Main Features

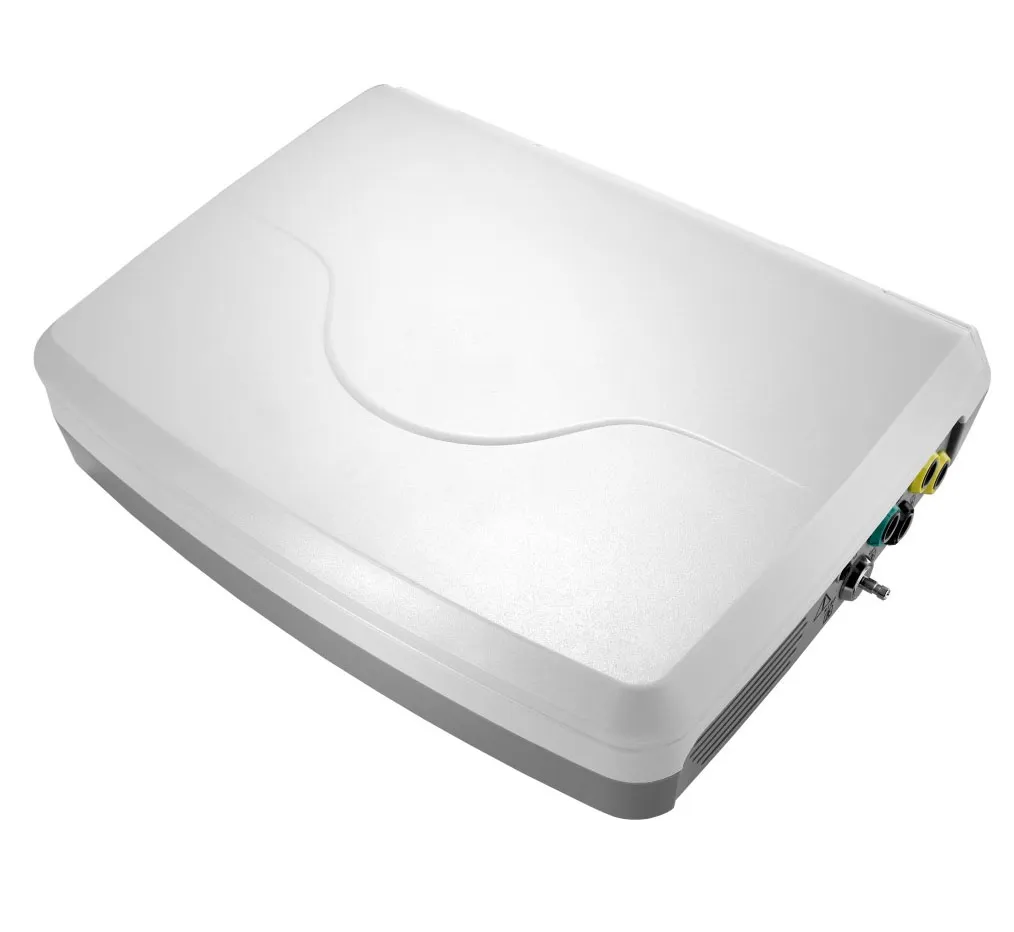

Unique notebook design for screen protection and portability
10.4 inch TFT LCD high-brightness display (1024*768)
Folding screen from 0-135 degrees
12-crystal pulse doppler ultrasound probe

Automatic and manual fetal movement detection
Heart rate offset mode for twin monitoring
Heartbeat overlapping detection and alarming system
Built-in rechargeable lithium battery (up to 2 hours)

Technical Specifications

Core & System

Advanced A9 main board with Linux OS
Support storage of 25000 groups of medical records
8640 hours trend review
Wired or wireless central monitoring connection

Sensor & Printer

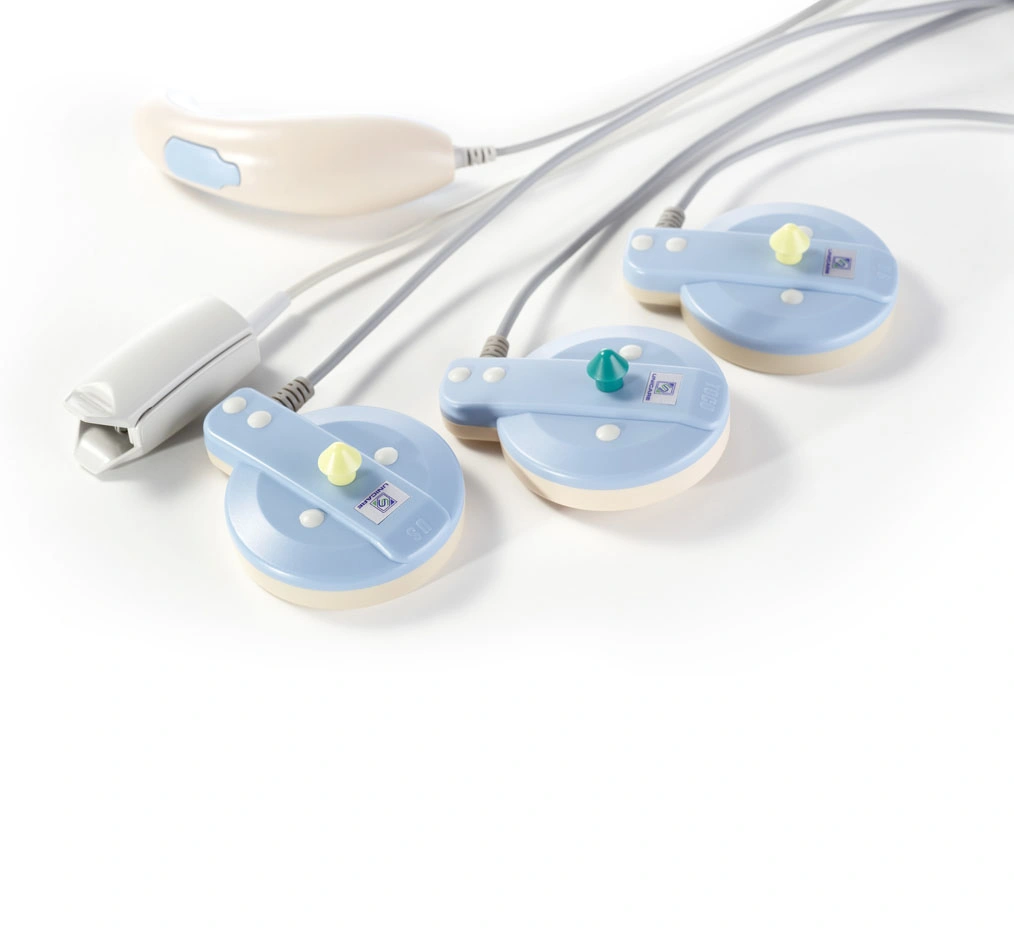

12-Crystal ultrasound transducer with signal strength indicator
Built-in high-speed thermal printer (112mm)
Support for external laser printer options
Event Marker for annotating fetal status

Alarm & Safety

Three-level acousto-optic alarm for abnormal FHR
Cross-Channel Verification (CCV)
Sensor-off and Paper-out alarms
NIBP self-test mode

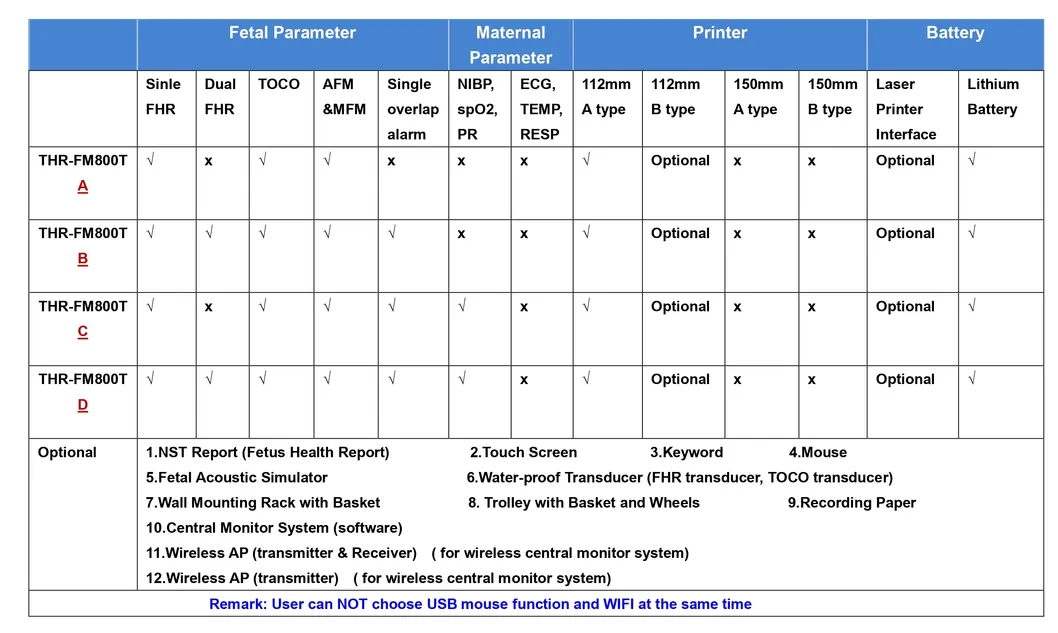

Version Comparison (A/B/C/D)

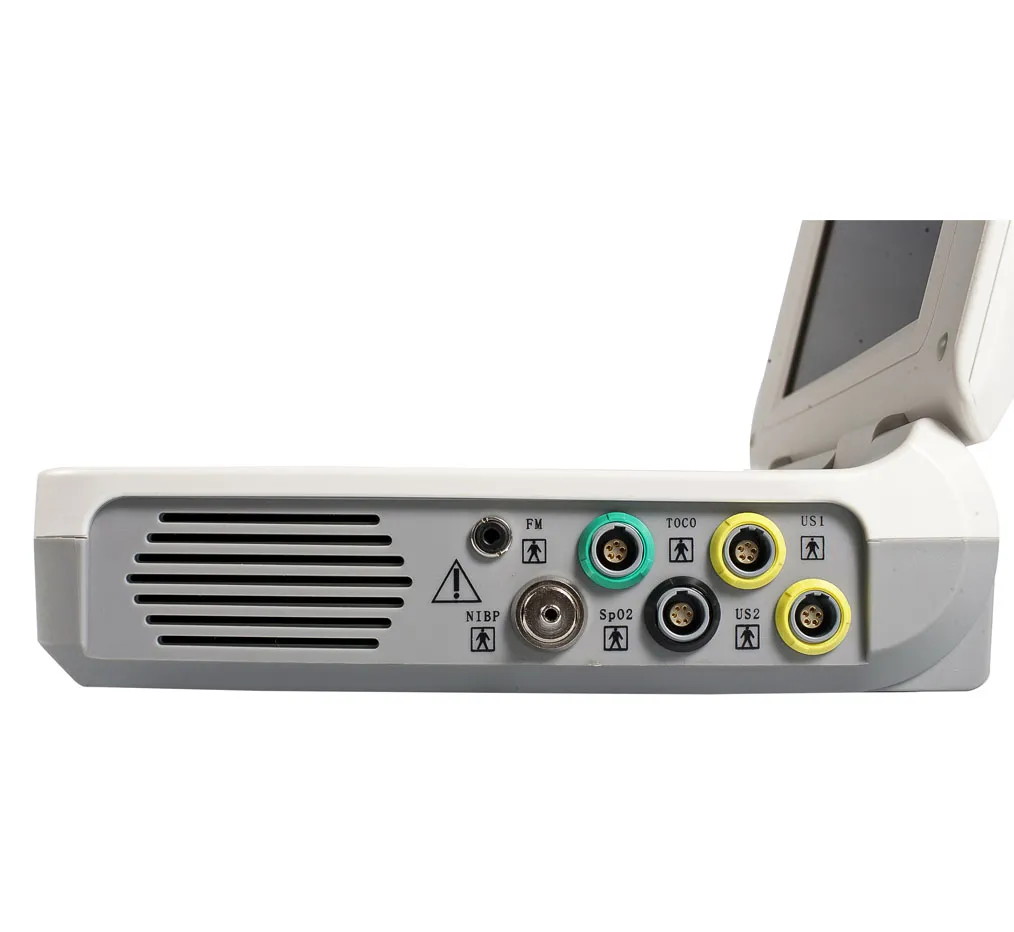

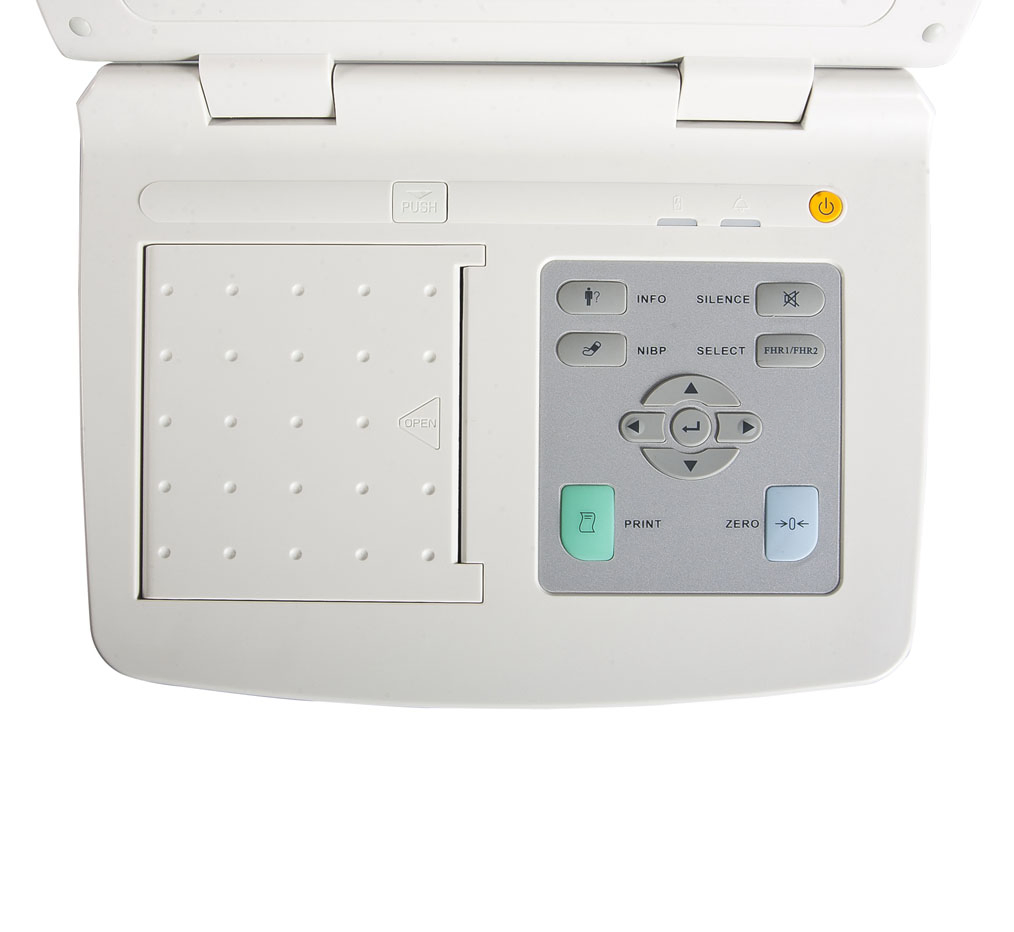

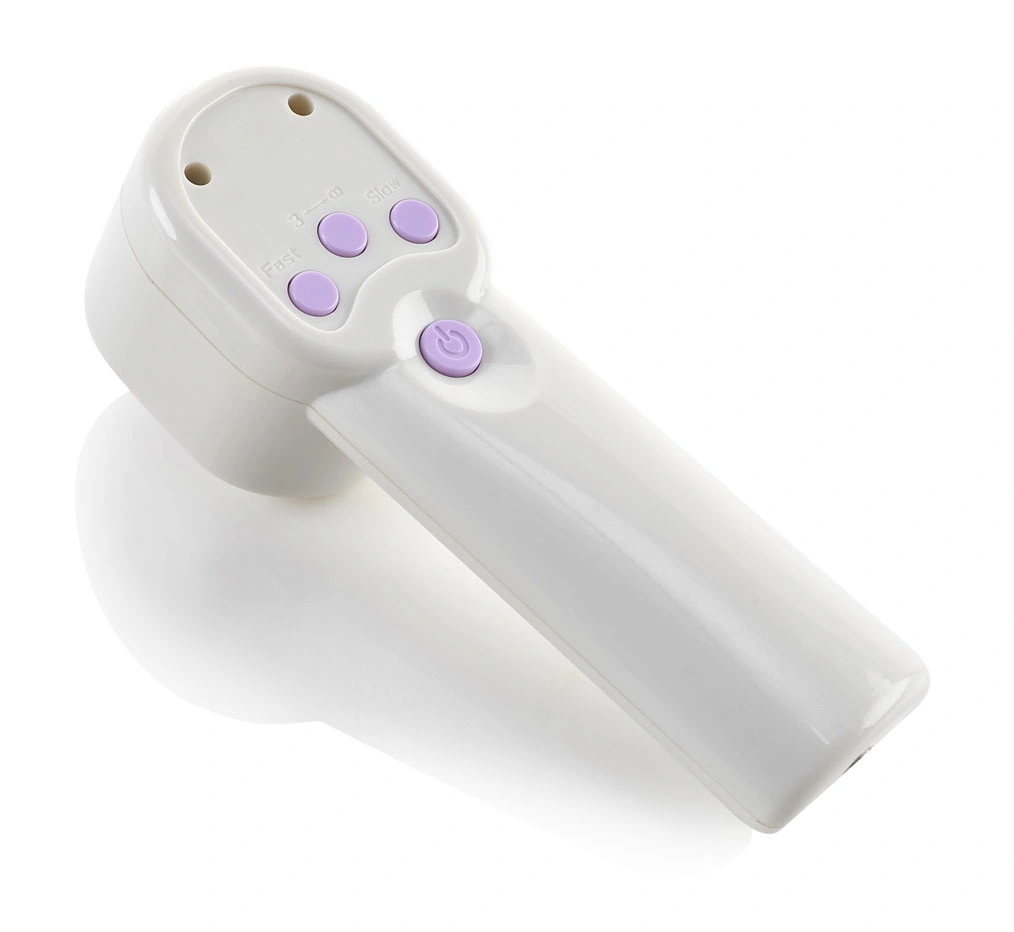

Product Details Gallery

Frequently Asked Questions

Q1: What are the main display features of the THR-FM800T? A: It features a 10.4-inch high-brightness TFT LCD screen with a resolution of 1024*768. The screen can be folded from 0 to 135 degrees for optimal viewing angles.

Q2: Can this device monitor twins? A: Yes, it includes an outstanding heart rate offset mode specifically designed for twin monitoring, making it more convenient to observe two fetal heart rates simultaneously.

Q3: How long does the internal battery last? A: The built-in rechargeable lithium battery provides up to 2 hours of continuous operation, supporting portability and use during power outages.

Q4: What kind of data storage capacity does it offer? A: The monitor supports 24 hours of waveform and data storage, with the ability to store up to 25,000 groups of medical records and 8,640 hours of trend reviews.

Q5: Does it support report analysis in digital formats? A: Yes, it supports auto CTG analysis reports (Fischer/NST/KREBS) and can export CTG data and analysis in PDF format via USB memory for EMR connectivity.

Q6: What type of printer is used for physical reports? A: It is equipped with a built-in 112mm high-speed thermal printer. It also offers optional support for external laser printers via its Linux-based operating system.
