The Distillation Apparatus Dl6s: Automated Lab Instrument Precision for Sensitive Element Analysis in Environmental and Pharmaceutical Fields

Customization:	Available
After-sales Service:	Online Support
Warranty:	1 Year

Basic Information

Model NO.

DL6S

Element

Volatile Phenol, Cyanide, Ammonia Nitrogen, Cod

Analysis

Distillation and Condensation

Display

Instrument Screen

Application

Environmental Monitoring, Pharmaceuticals, etc

Performance

Automation

Heating Time

≤15min

Power Source

AC220V±22V

Product Overview

The Distillation Apparatus DL6S represents a sophisticated automated instrument meticulously engineered for the precise measurement of sensitive elements within complex samples. This apparatus is particularly proficient in the analysis of volatile phenols, cyanides, ammonia nitrogen, and chemical oxygen demand (COD). It finds extensive application in the fields of environmental monitoring and the pharmaceutical industry.

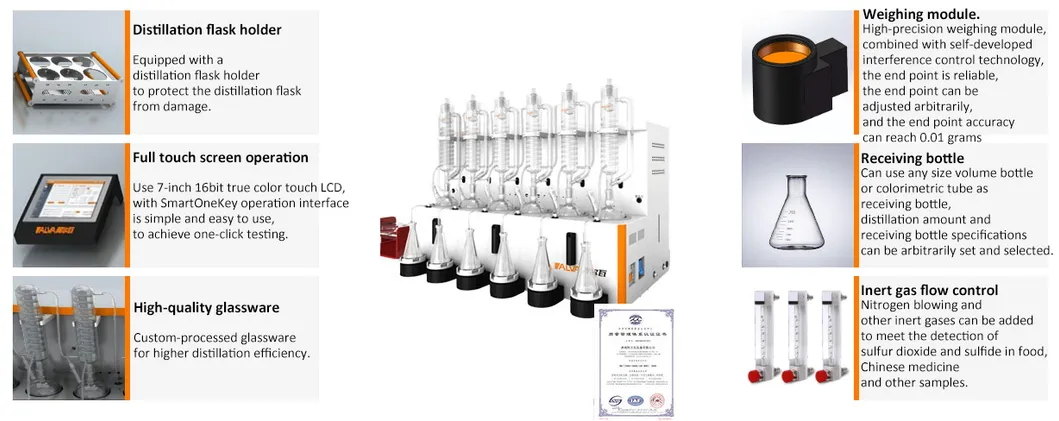

Performance Features

Automatic distillation principle: Aligns with the national standard distillation system.
Dual end control: Time or weight mode automatically ends.
Multi-functional operation: Precise temperature control, circulation condensation, anti-suction, explosion-proof boiling.
One-click test: Full touch screen operation with SmartOneKey interface.
Universal receiver bottle: Compatible with various specifications, including colorimetric tubes.
Automatic filling: Supports each station in adding 4 different reagents.
Built-in cooler: Easy to use, no external water source required.

Technological Specifications

Parameter	Specification (DL6S)
Heating-up time	≤15 min
Reagent Addition	4 types per station, accuracy ±3%
Distillation Mode	Strong Boiling, Intelligent Micro-boiling, Manual Micro-boiling
Heating Units	6
Distillation Precision	Weight Mode: 0.1g; Time Mode: Configurable
Receiving Bottle	Diameter <84mm, Height <155mm

Support Services:

Complimentary Sample Testing: Clients are encouraged to submit samples for testing at no cost.
Technical Consulting: Professional guidance for diverse experimental technical consulting.

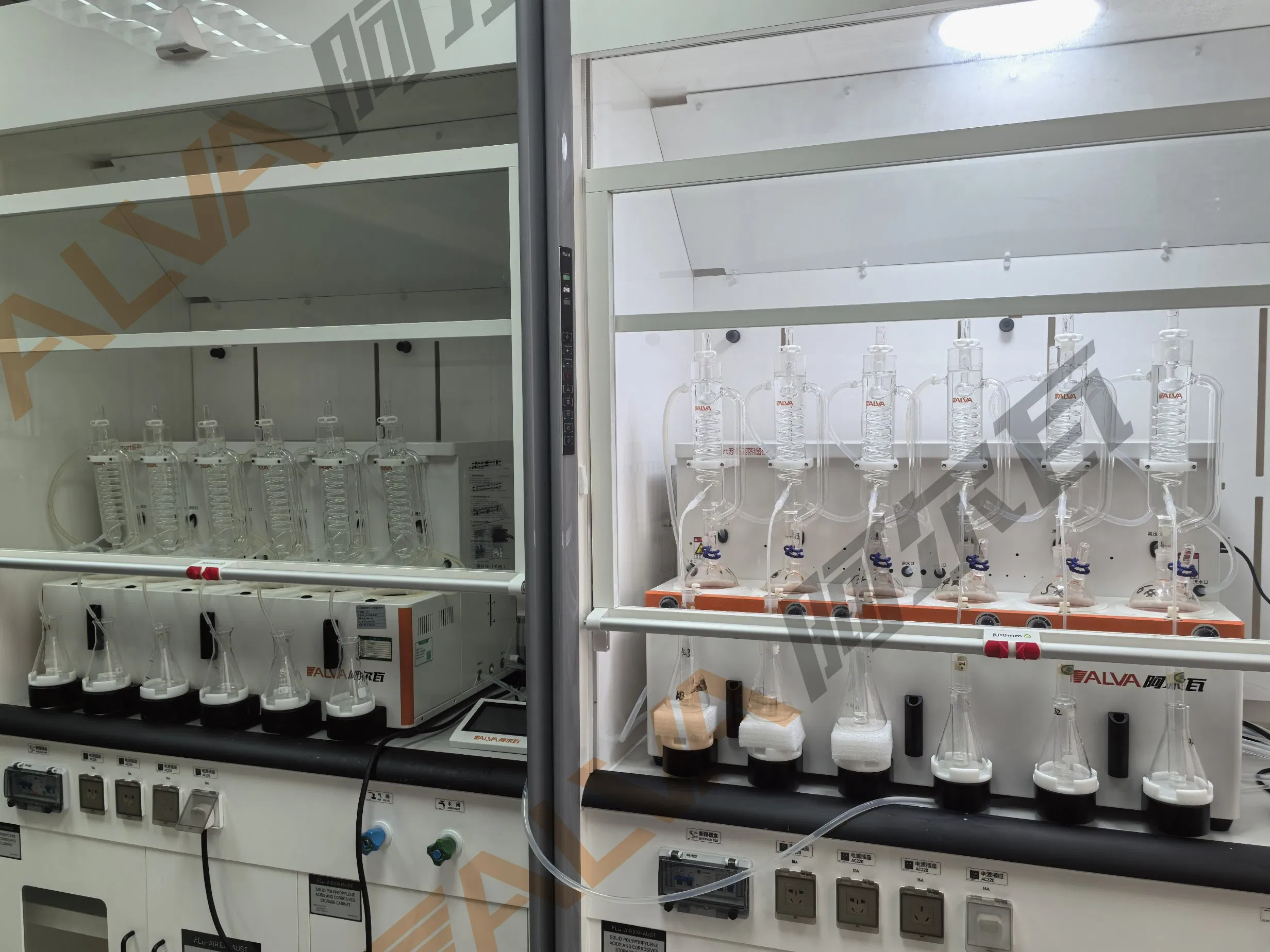

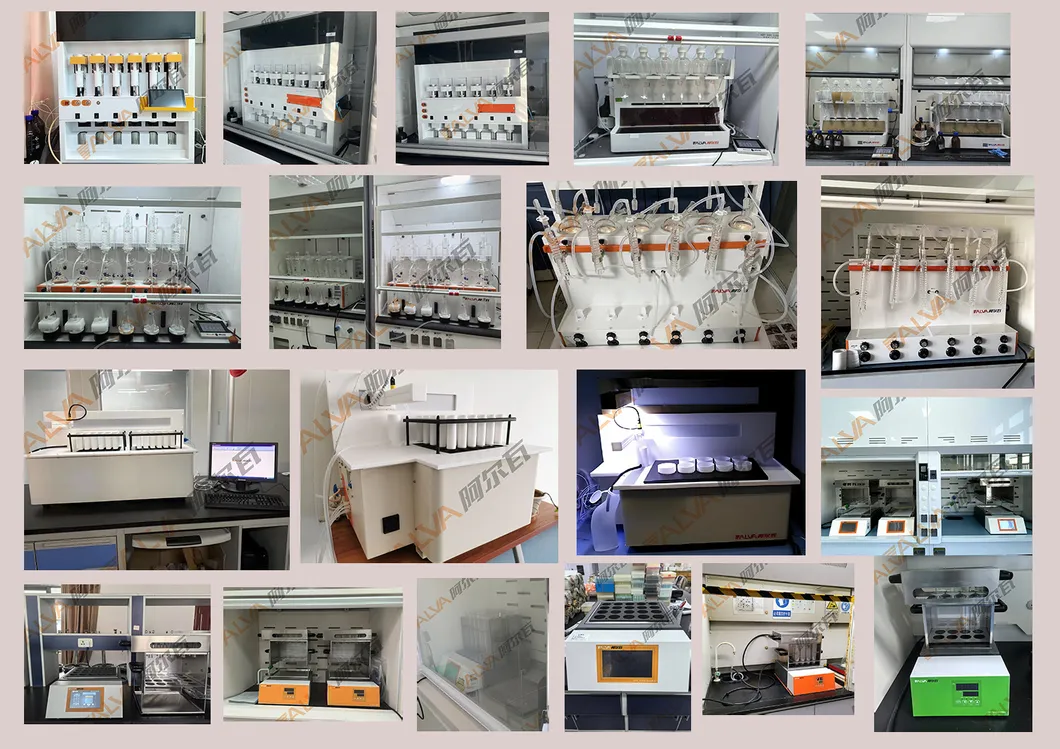

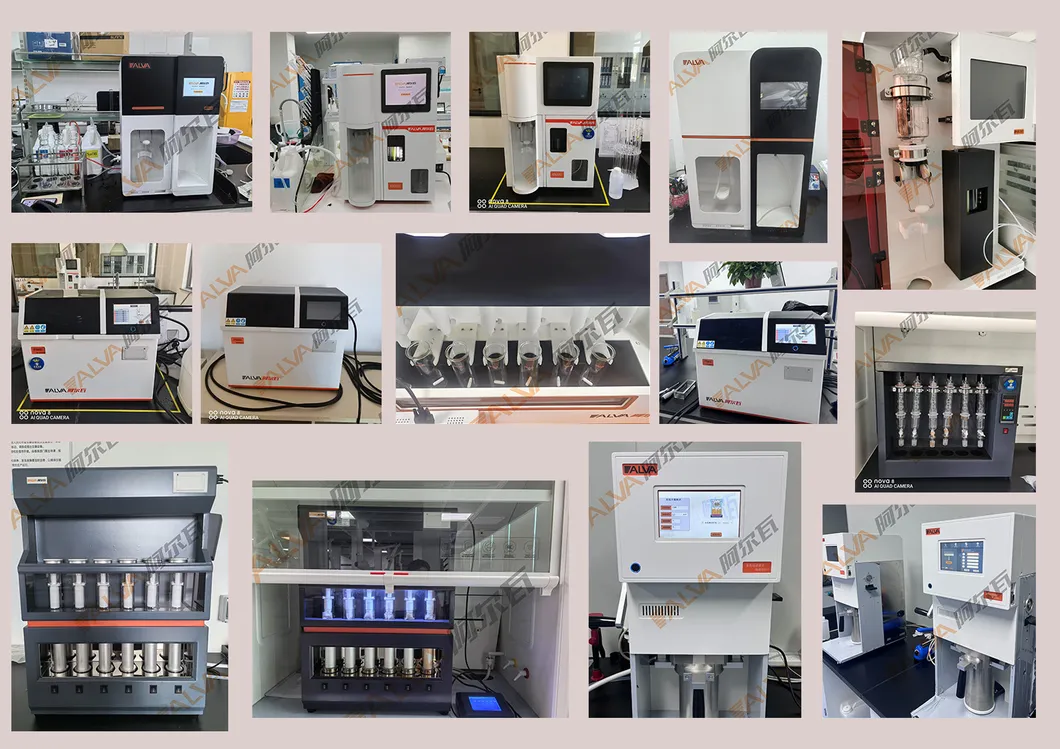

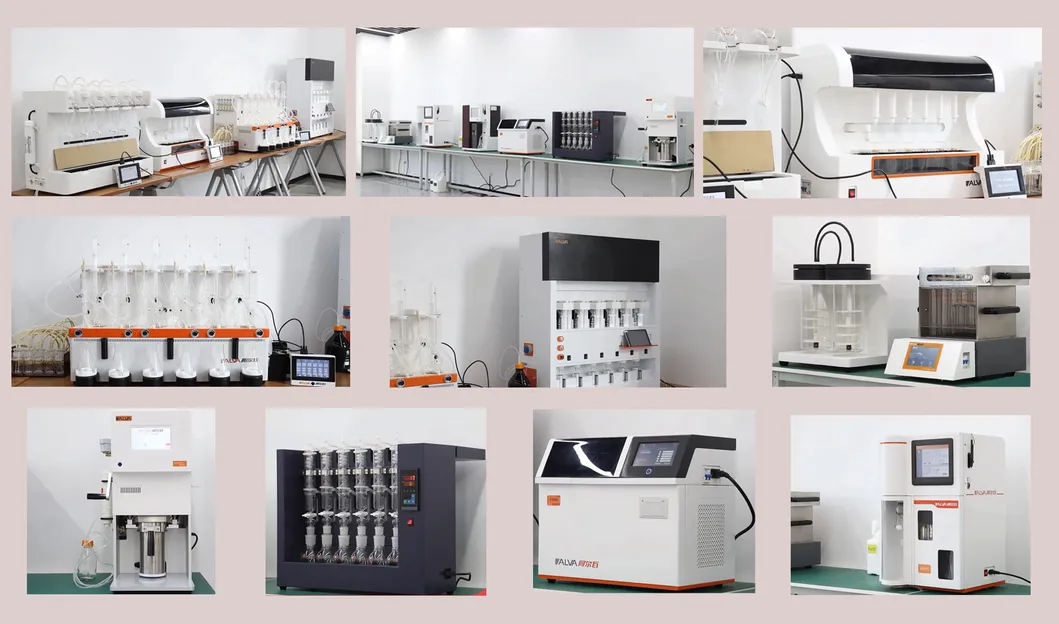

Customer Application Cases

Professional Profile

Founded in 2011, our company is a leading integrated analytical instrument provider, focusing on R&D, manufacturing, and sales. We offer a diverse range of laboratory instruments including nitrogen/protein analyzers, fiber analyzers, and fat extraction analyzers.

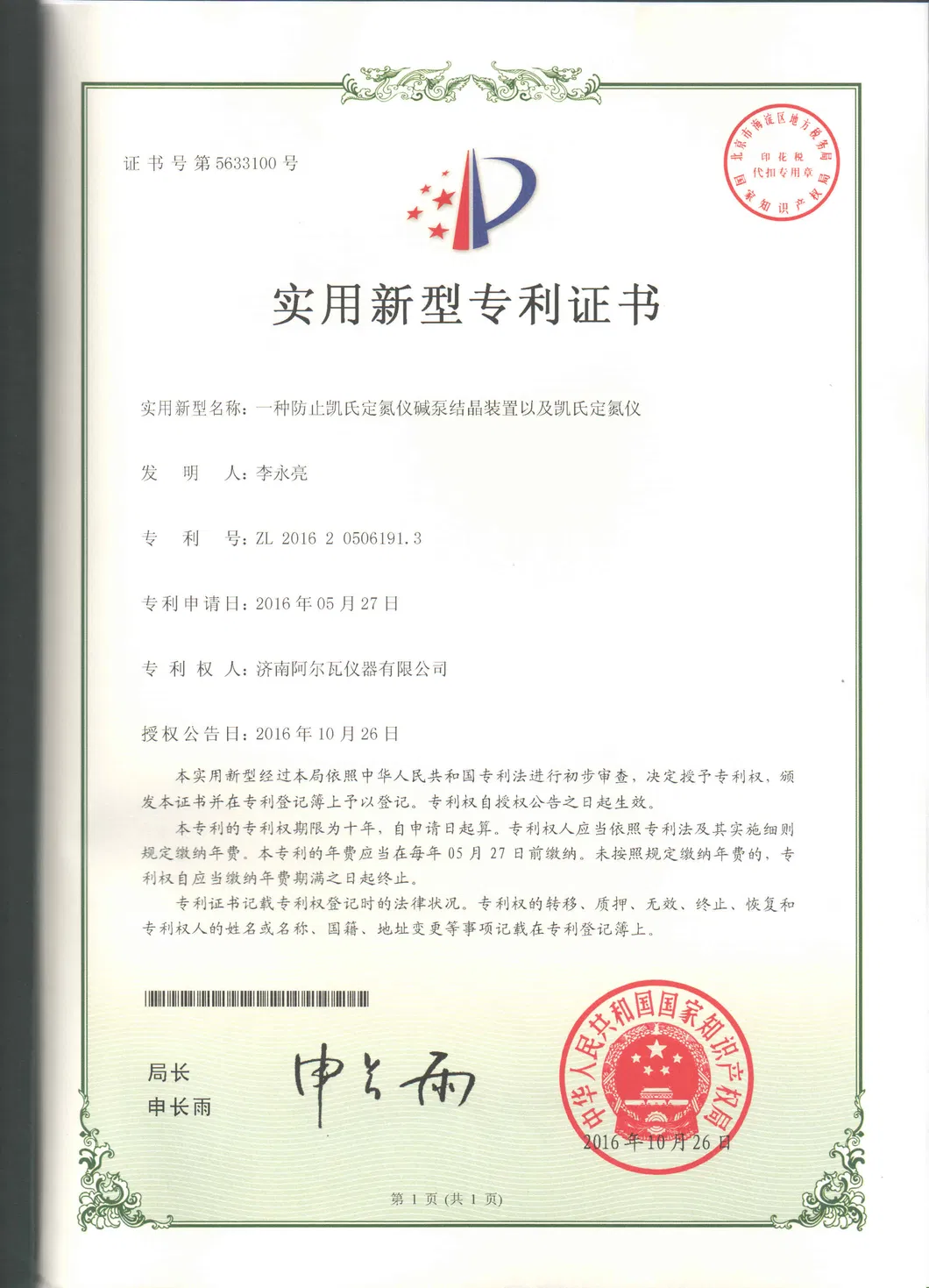

Qualification & Certification

Frequently Asked Questions

What analytical instruments do you mainly provide?

We mainly produce Soxhlet fat analyzers, Kjeldahl nitrogen analyzers, fiber analyzers, digestion instruments, and distillation analyzers, providing comprehensive industry application solutions.

What are the primary features of your distillation products?

Our products feature cutting-edge automated technology, including one-click start experiments, precise weight/time distillation control, and integrated cooling systems that require no external water source.

What quality assurance is provided?

We offer a one-year warranty on all products. If there is a manufacturing quality issue within one year, we are responsible for the repair or replacement of the instrument.

What technical support services are available?

We have a dedicated technical after-sales team that provides reagent preparation methods, instrument operation guidance via video, and customized analytical adjustment solutions for different experimental needs.

Which industries are your instruments suitable for?

Our instruments are widely used in food processing, environmental monitoring, pharmaceuticals, agriculture, animal husbandry, and scientific research institutions.

Do you offer customized product services?

Yes, we are an industry and trade-integrated enterprise with over ten years of experience, allowing us to deeply understand and support specific customized laboratory requirements.
