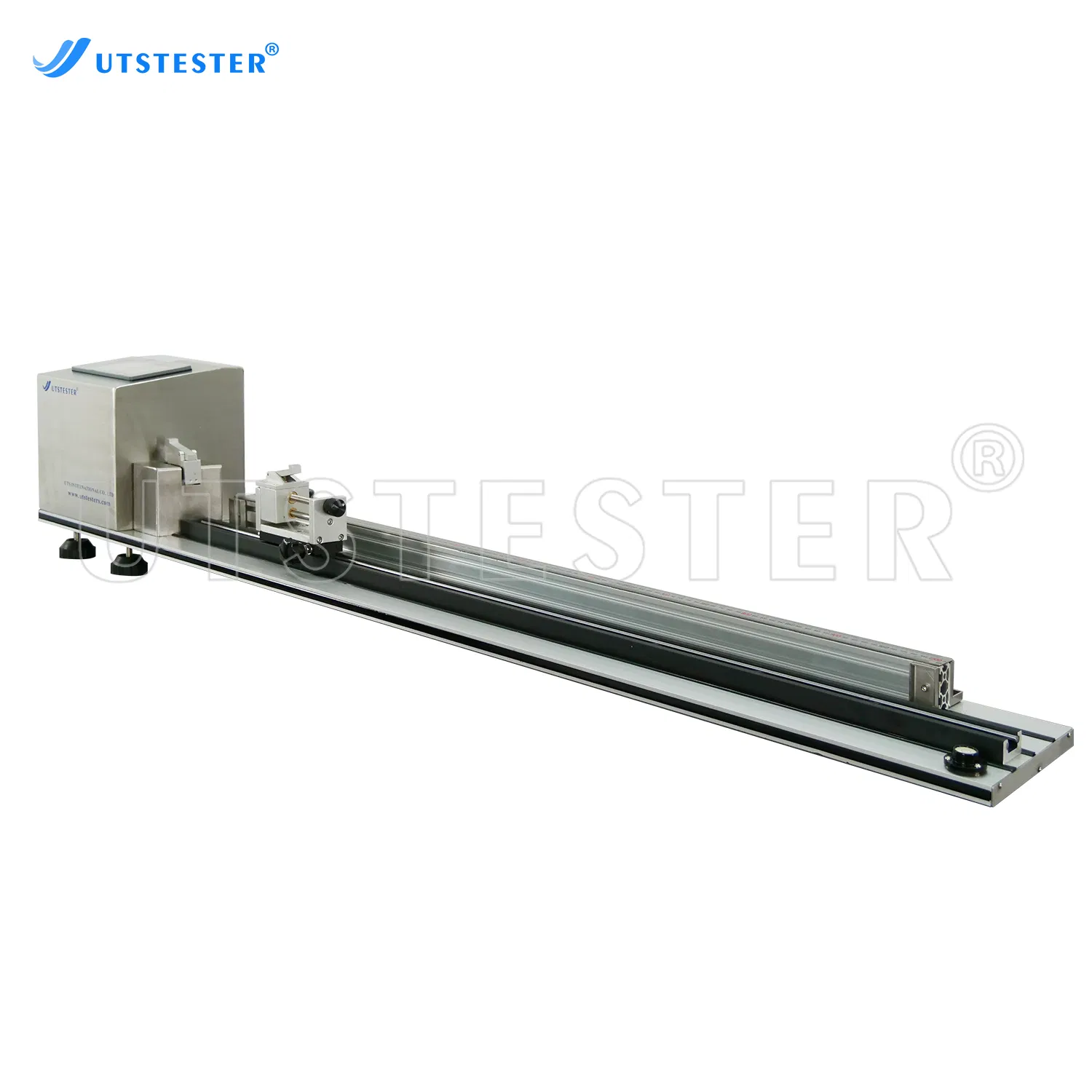

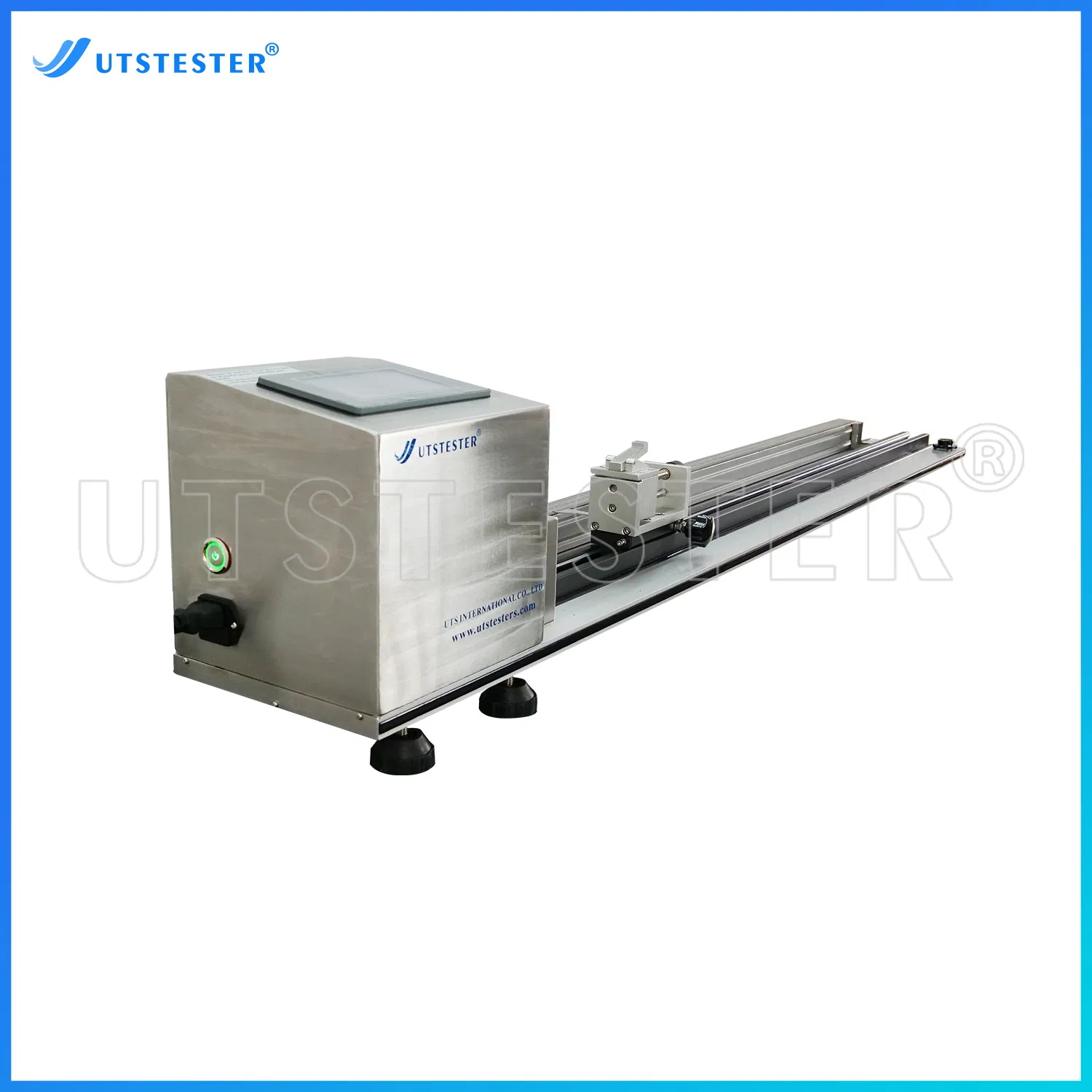

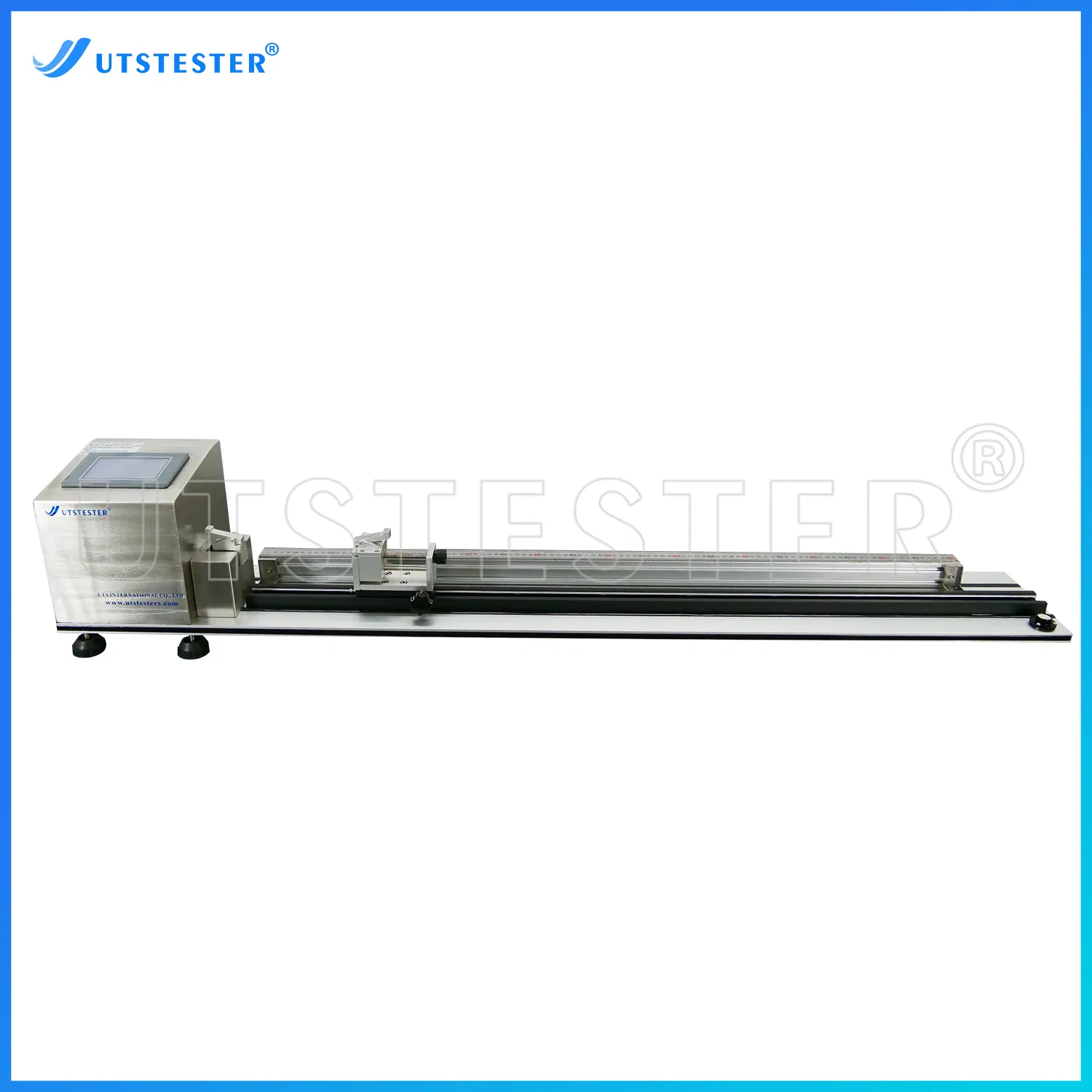

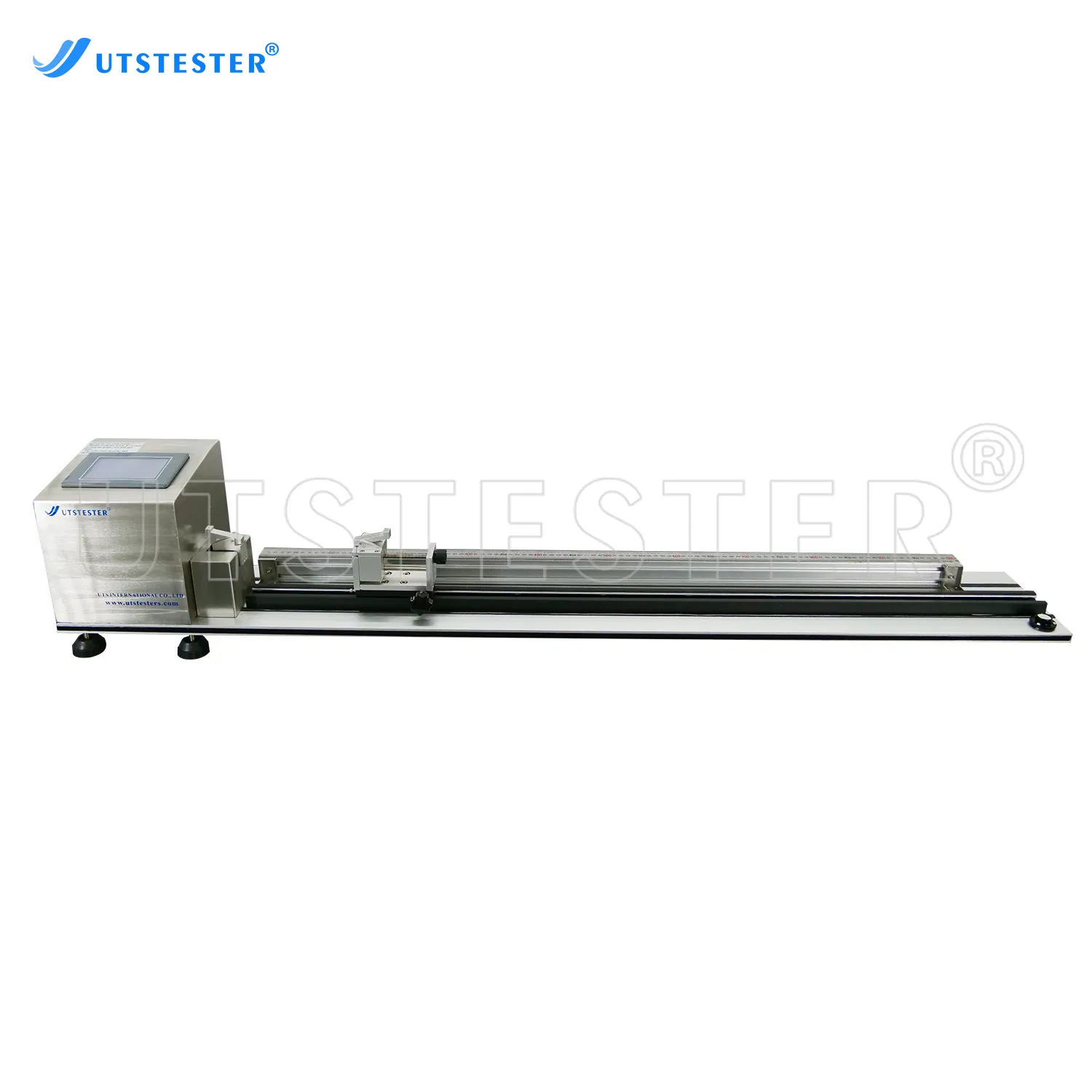

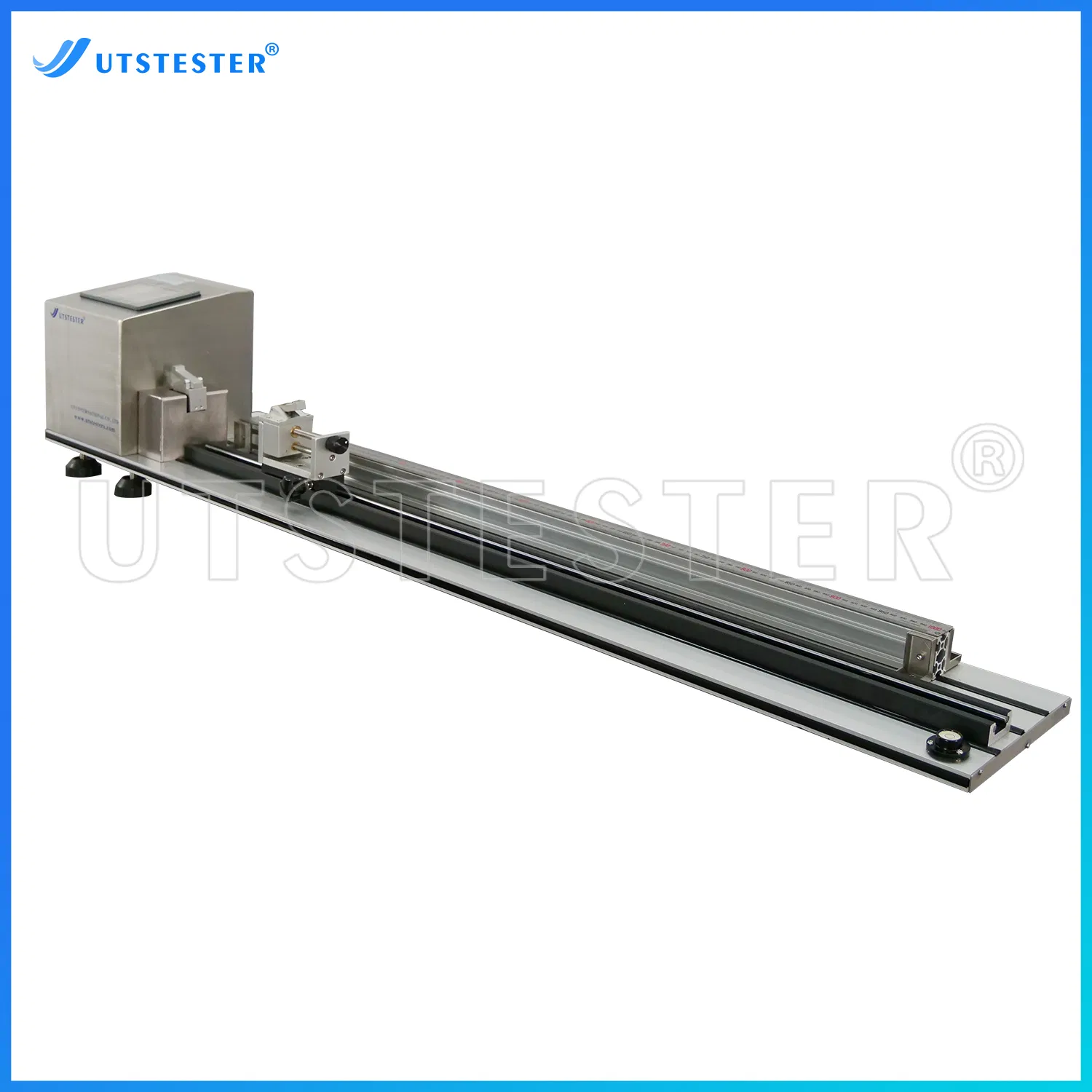

Laboratory Instrument for Digital Yarn Crimp Testing and Length Analysis

Customization:	Available
Warranty:	12 Months
Usage:	Textile Fabric Testing, Sample Yarn Winder

Basic Specifications

Model No.

Y016

Automatic Grade

Semi-Automatic

Type

Digital Yarn Crimp Tester

Certification

CE, ISO 17025

Standard

ASTM D3883, ISO 7211-5, ISO 7211-3

Power Supply

AC 220V±10% 50Hz 60W

Weight

14kg / 20kg

Dimensions

1250x180x250mm

Product Description

Experience precision with our device, meticulously designed to measure the crimp degree of yarn within fabric, ensuring unparalleled accuracy.

Seamlessly evaluate the take-up of yarn in fabric, providing essential insights into textile construction.

Effortlessly calculate the count of yarns extracted from fabrics, facilitating efficient material analysis.

Accurately estimate yarn usage during fabric production, optimizing resources and minimizing waste.

Working Principle: The innovative thread straightening and measuring device features dual adjustable grips, allowing precise tension application on the yarn for reliable measurement.

Key Features

Advanced microcomputer control with force values displayed on a large LCD screen for impeccable accuracy and swift response.

Cutting-edge calibration procedure removes the need for manual adjustments, ensuring seamless results every time.

Sleek all-stainless steel body providing both aesthetic appeal and superior corrosion resistance.

Adjustable damping on the mobile platform to suit specific testing requirements.

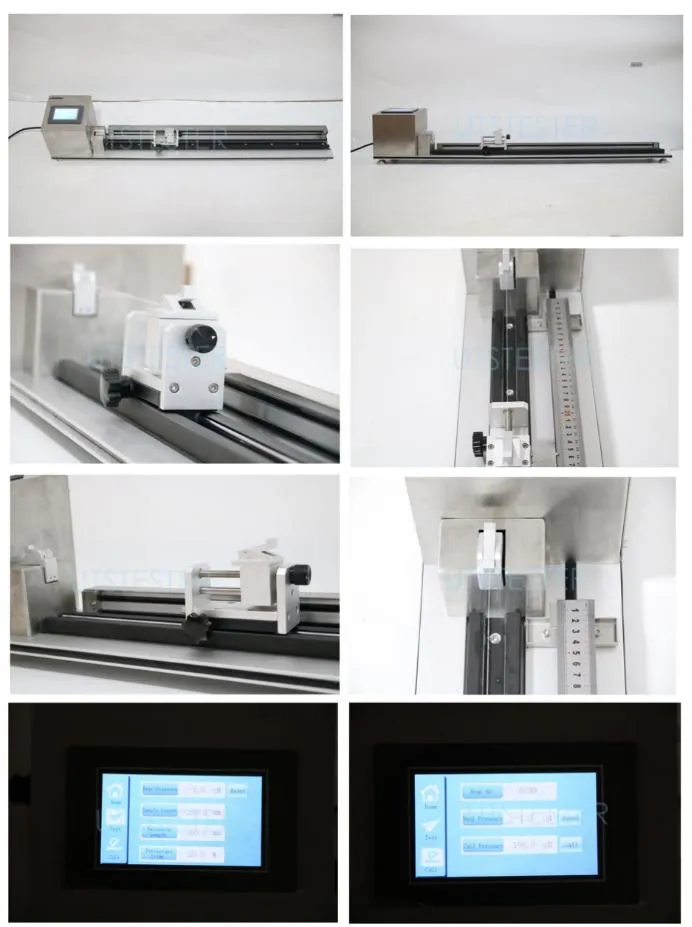

Product Presentation

Technical Parameters

Parameter	Specification
Sample length	1000mm
Capacity	200 cN
Display value resolution	0.1cN
Length sensor accuracy	1mm
Clamping distance	10mm ~ 1000mm
Force measuring error	±0.5%
Force calibration weight	200cN
Display Type	Touch screen panel

Showcase & Exhibition

Frequently Asked Questions

Q1: How is the quality of the testing devices ensured? All test devices are calibrated and debugged before delivery. We provide an English operation manual and video guides to ensure proper usage.

Q2: What is the standard warranty period for the equipment? The warranty period is 12 months. During this time, we provide necessary spare parts for free for any product problems (excluding consumables and man-made damage).

Q3: What are the accepted payment terms and lead times? Usually, TT and L/C are available. The typical lead time is 5-25 days depending on stock status and production requirements.

Q4: Can you provide ISO 17025 calibration certificates? Yes, we provide two types: an optional third-party ISO 17025 certificate (with charges) and our standard calibration certificate (without charges).

Q5: Do your shipping packages require fumigation treatment? No, our packing uses composite board rather than raw logs, so fumigation treatment is not required for international shipping.

Q6: What support is available after purchase? Our professional after-sales team provides support via email or video within 24 hours, 7 days a week. On-site training and installation can also be arranged.
