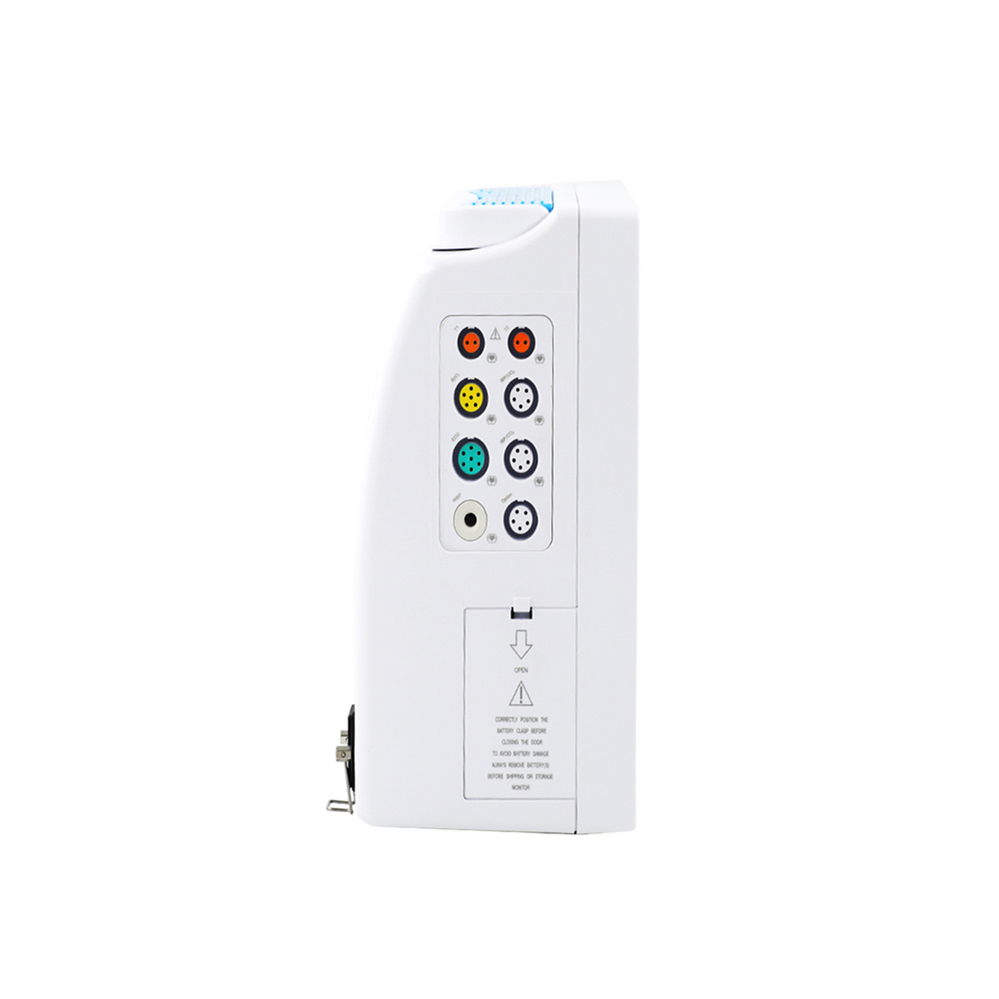

Contec Cms8000 Multi-Parameter 12 Inch Vital Signs Bedside Patient Monitor

1 / 5

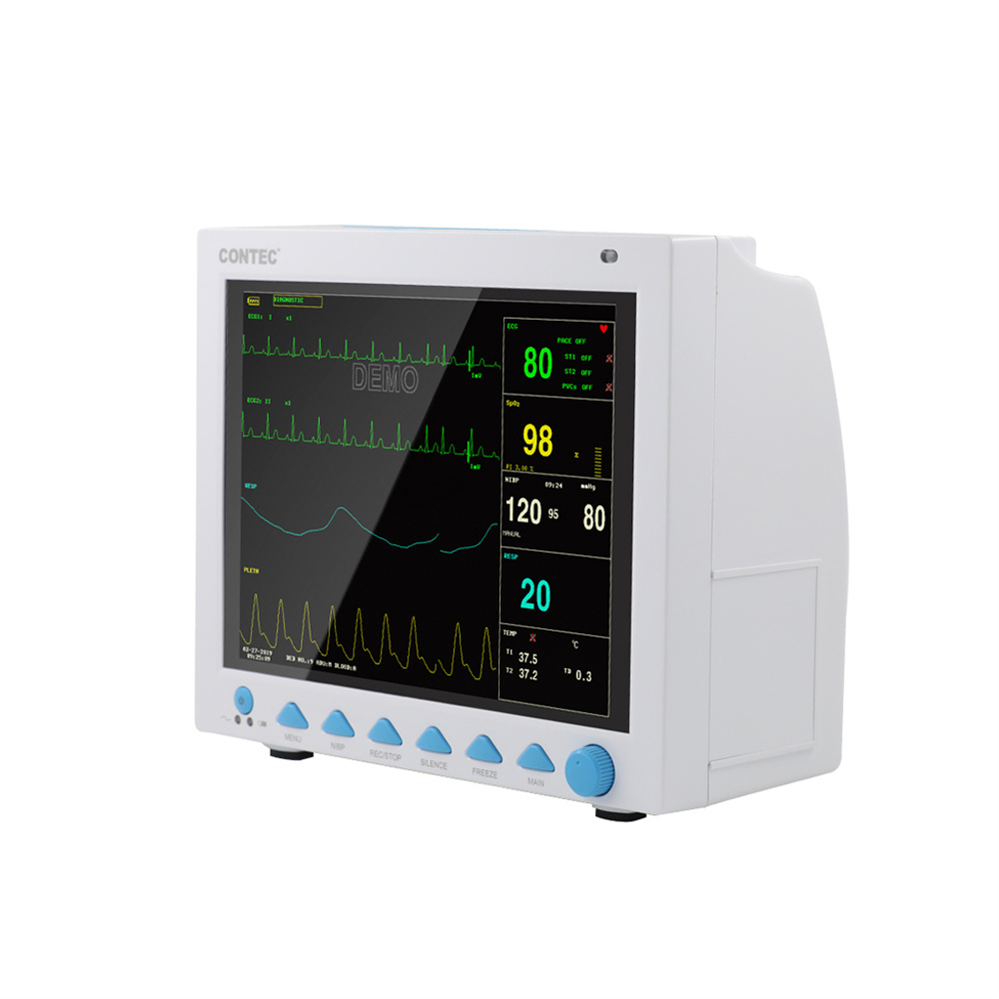

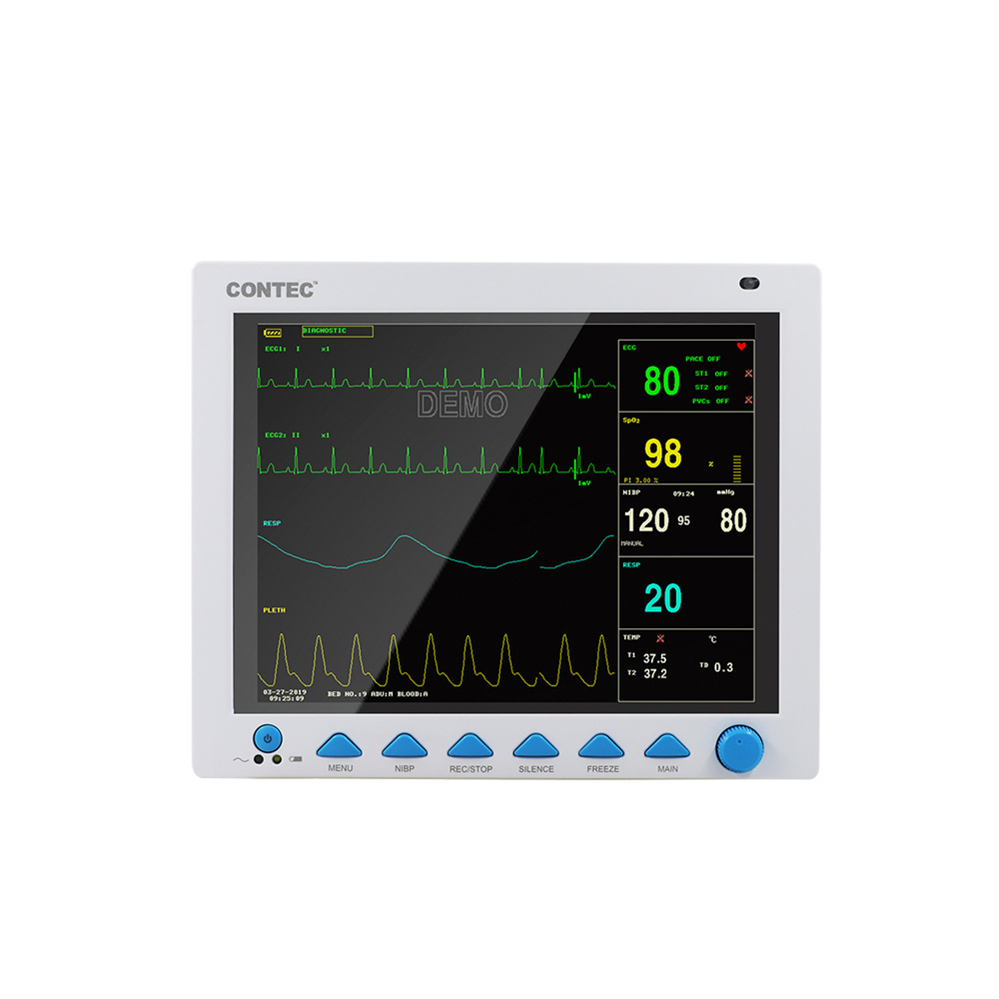

Contec Cms8000 Multi-Parameter 12 Inch Vital Signs Bedside Patient Monitor

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	ECG

Send Inquiry

Product Description

Multi-Parameter Portable Patient Monitor CMS8000

Model:

CMS8000

Certification:

CE, FDA, ISO13485

Group:

All Ages (Adult, Pediatric, Neonatal)

Parameters:

ECG, SpO2, NIBP, 2-TEMP, PR, RESP

Optional:

2-IBP, EtCO2, Thermal Printer, VGA

Language:

Multi-Language Support

Display:

12'' Color TFT LCD

HS Code:

9018193010

Product Overview

The CMS8000 Multi-Parameter Patient Monitor is designed for all-round monitoring of adult, pediatric, and neonatal patients. With its 12'' high-resolution color TFT display, it provides clear visualization of vital signs and waveforms in various clinical environments including bedside monitoring, surgery, and diagnosis.

Key Features

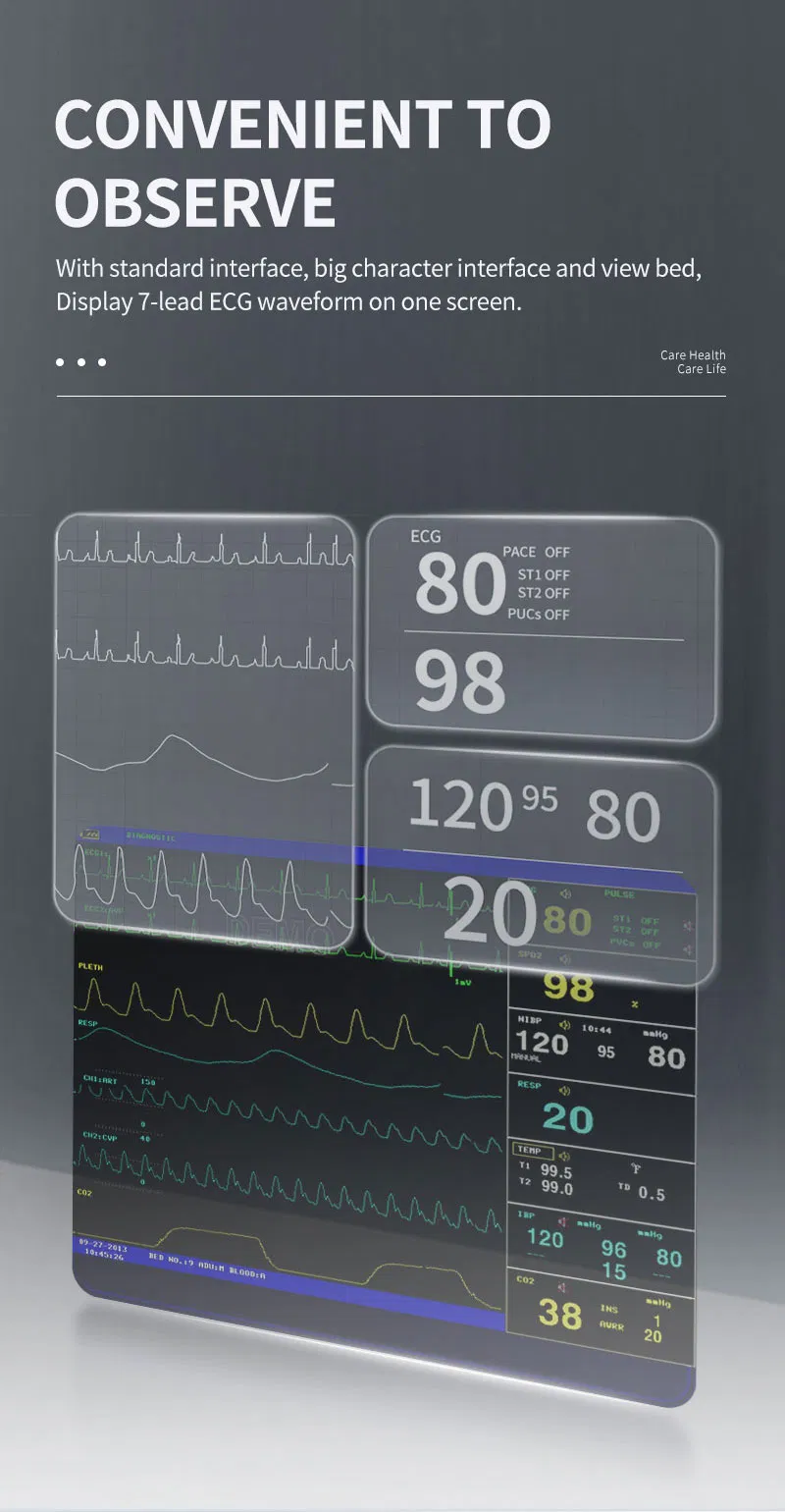

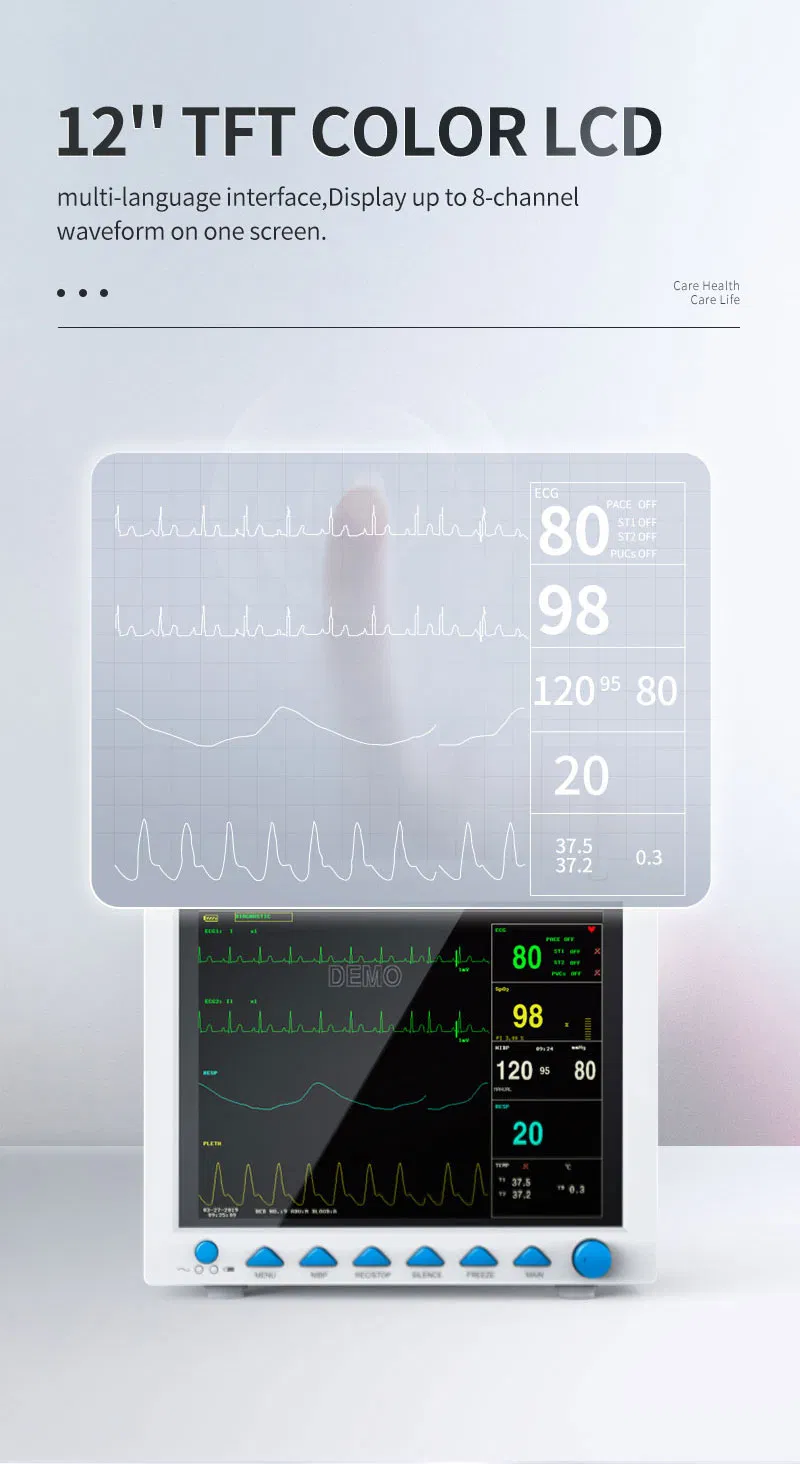

High-Resolution Display: 12'' color TFT LCD with multiple display modes, including big character interface.
Comprehensive Monitoring: Standard 5-lead ECG, SpO2, NIBP, RESP, TEMP, and Pulse Rate.
Advanced Technology: Digital SpO2 technology with strong anti-interference and anti-weak filling capability.
Data Management: Storage of 480-hour trend data and review of 40-second holographic waveforms.
Safe & Reliable: Anti-high frequency surgical unit and defibrillation-proof design.
NIBP Protection: Dual-overpressure protection with both software and hardware.

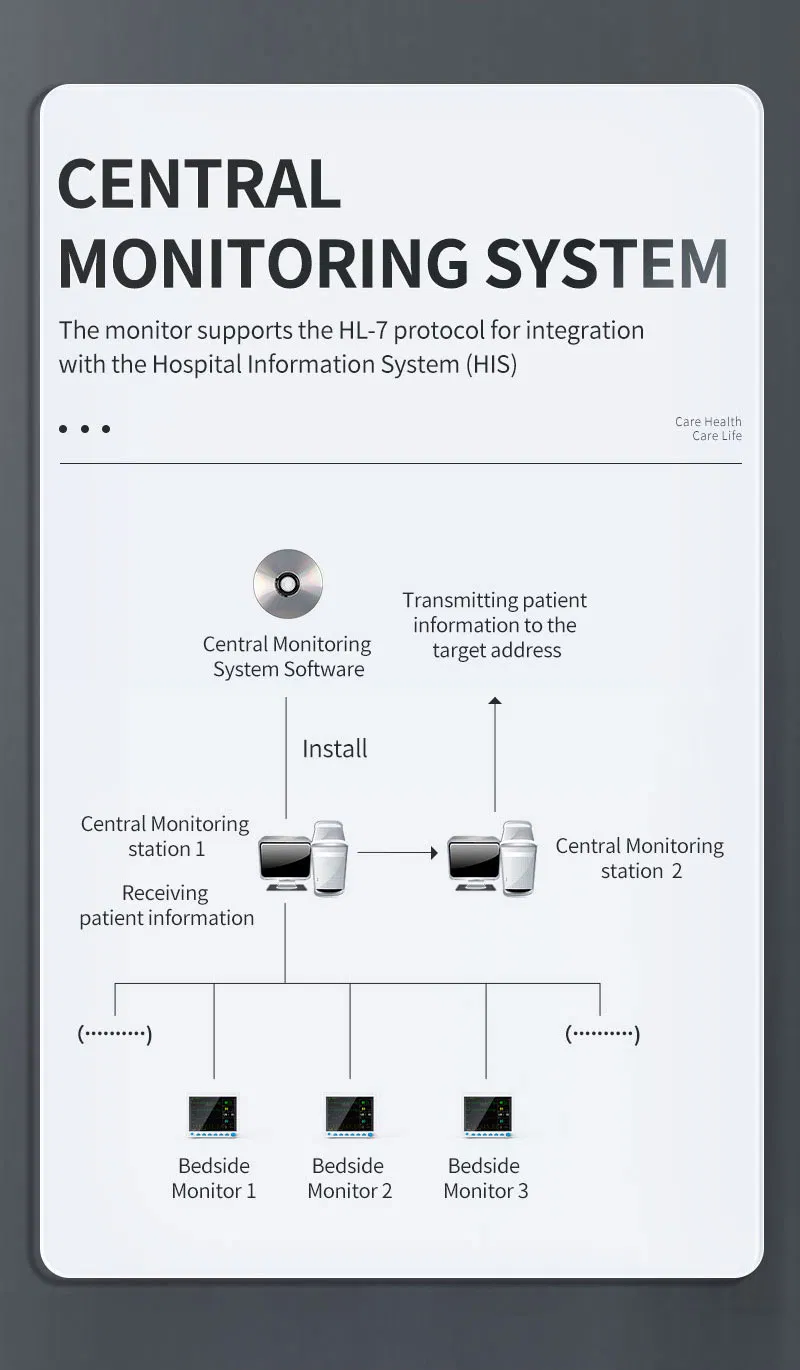

Connectivity: Supports central monitoring station connection via wireless or wired modes.
Power & Portability: Built-in rechargeable lithium battery for uninterrupted monitoring.

Product Specifications

Parameter	Range / Performance
ECG	Lead selection: I, II, III, avR, avL, avF, V; HR Range: 15 ~ 300 bpm
RESP	Method: R-F(RA-LL) Impedance; Adult: 0~120rpm; Pediatric/Neonatal: 0~150rpm
SpO2	Range: 0 ~ 100%; Accuracy: 70% ~ 100% ±2%
NIBP	Method: Oscillometry; Modes: Manual, Auto, Continuous; Range: 10~270mmHg
TEMP	Dual-channel; Range: 0 ~ 50°C; Accuracy: ±0.1°C
Power	AC 100~240V, 50/60Hz; Consumption: 150VA

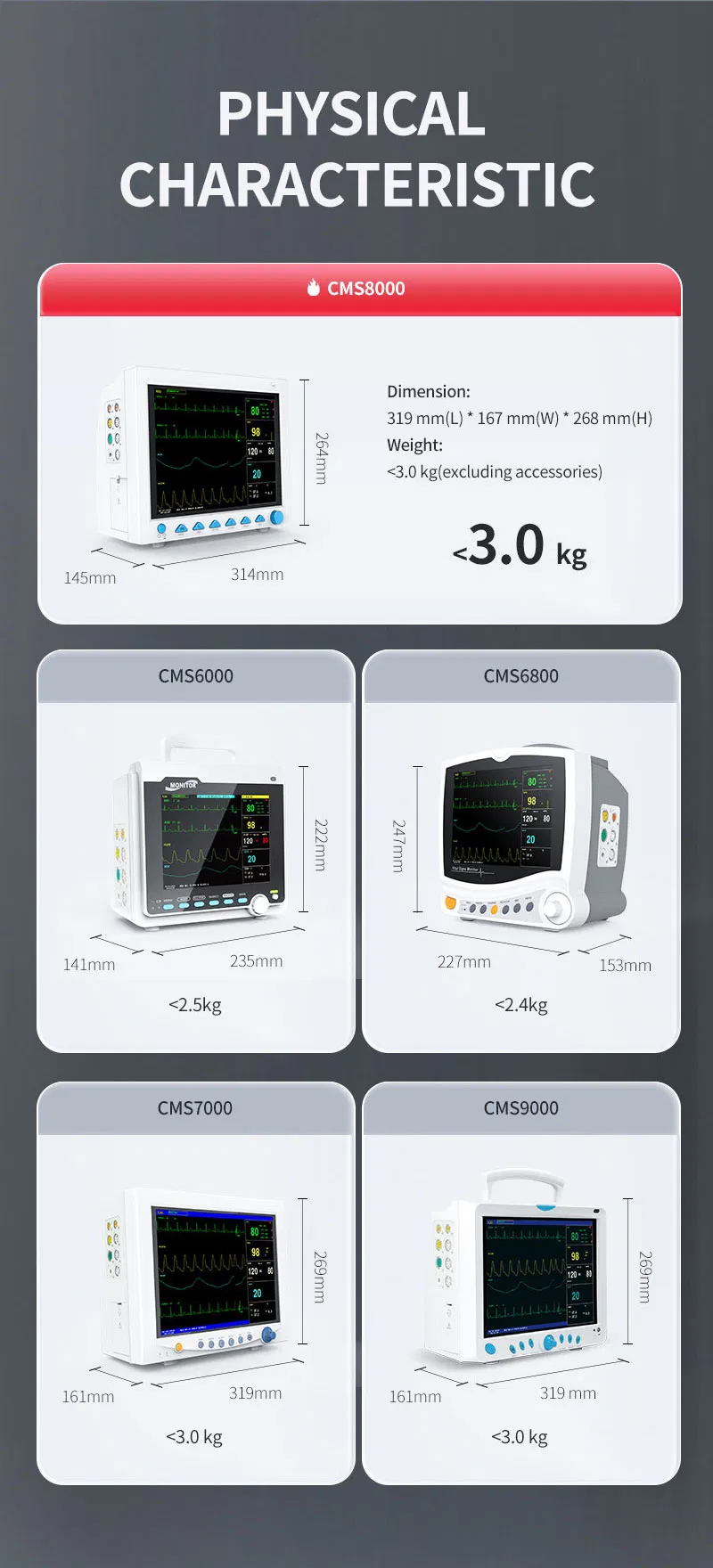

Dimensions	310 × 140 × 263 (mm); Weight: 3.8Kg

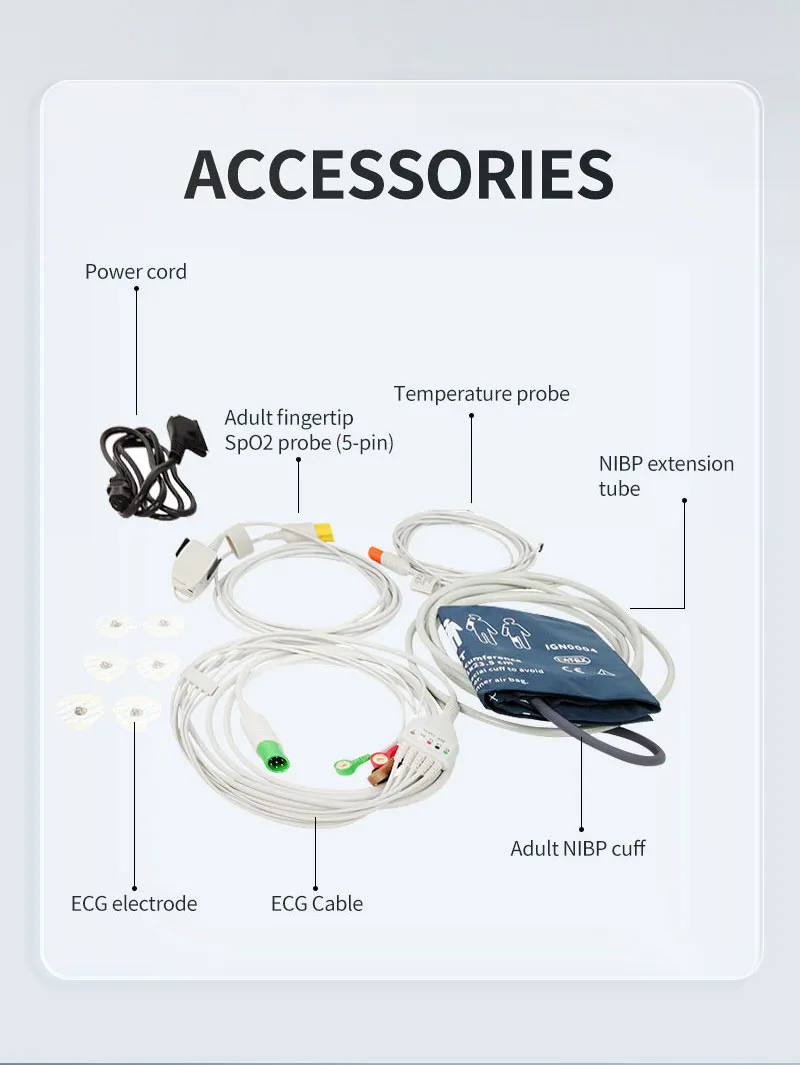

Clinical Application & Accessories

System Overview & Certificates

Frequently Asked Questions (FAQ)

What core parameters are monitored by the CMS8000?

The CMS8000 standardly monitors 5-lead ECG, SpO2 (pulse oxygen saturation), NIBP (non-invasive blood pressure), Respiration (RESP), dual-channel Temperature (TEMP), and Pulse Rate (PR).

Is this patient monitor suitable for pediatric and neonatal use?

Yes, the CMS8000 is designed with specialized monitoring modes and optional cuffs/probes for adult, pediatric, and neonatal patients, ensuring accuracy across all age groups.

Can I add EtCO2 or IBP monitoring to this device?

Yes, the CMS8000 supports several optional parameters including End-Tidal CO2 (EtCO2), Invasive Blood Pressure (IBP), and a built-in thermal printer for real-time data recording.

How long does the battery last for mobile use?

The monitor includes a high-capacity rechargeable lithium battery, enabling continuous monitoring during patient transfer or in the event of an AC power failure.

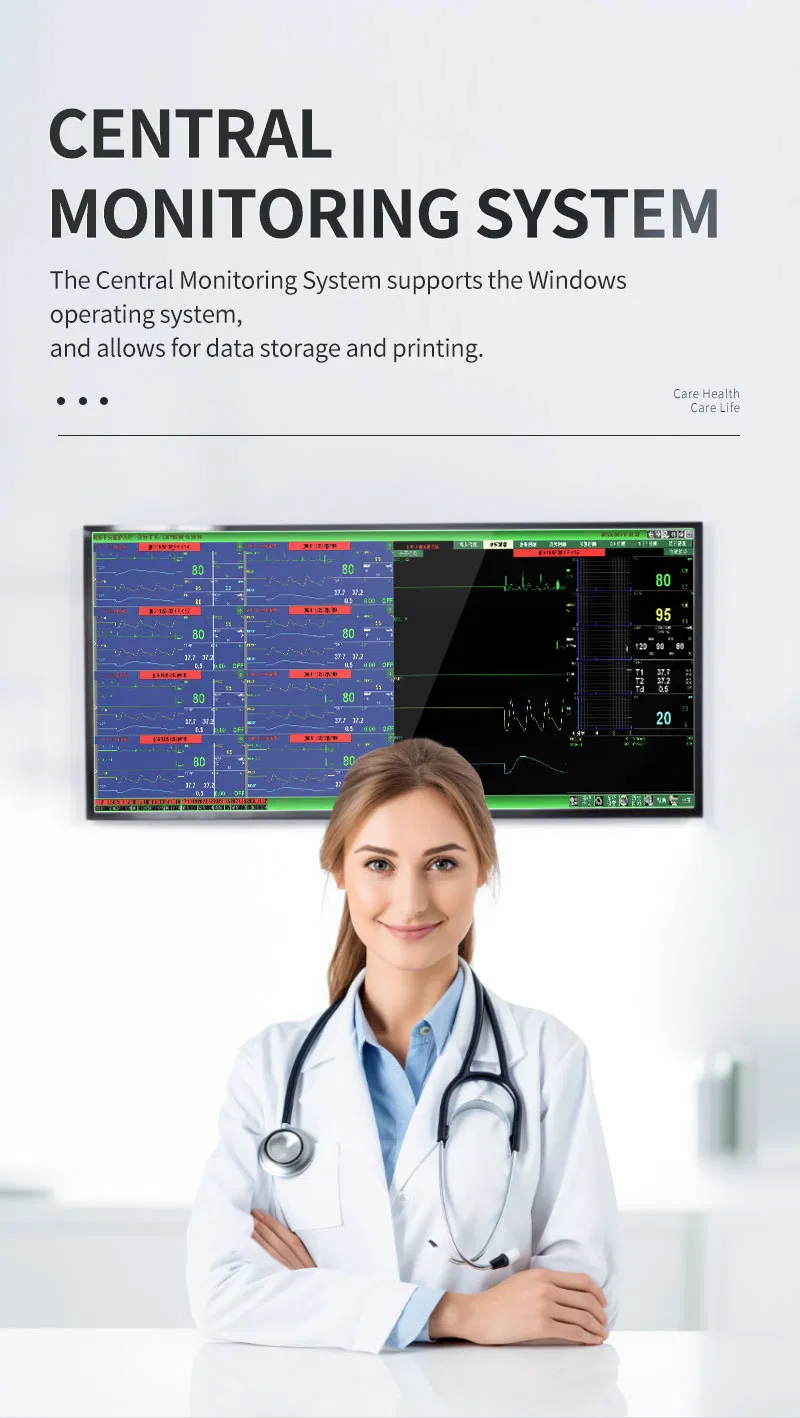

Does the CMS8000 support connection to a central station?

Yes, the monitor can connect to a central monitoring station through both wireless and wired modes, allowing for efficient multi-bed observation by medical staff.

What certifications does the product hold?

The CMS8000 has successfully passed CE certification in Europe, FDA certification in the USA, and is manufactured under ISO13485 quality management standards.
