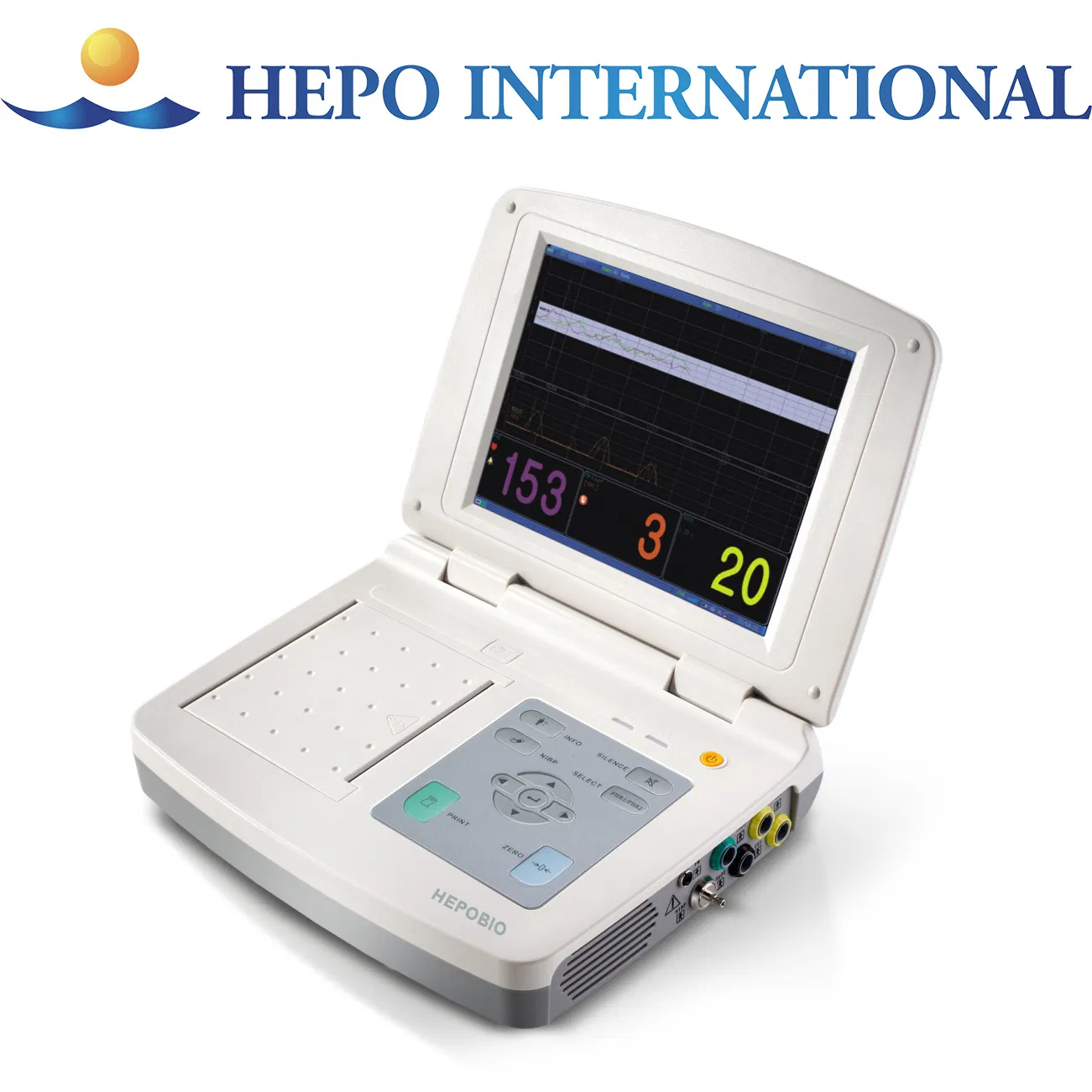

Chinese ICU Medical Surgical Operation Fetal Doppler Monitor

1 / 5

Chinese ICU Medical Surgical Operation Fetal Doppler Monitor

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

HP-FETM10A

Certification

CE, FDA, EEC, MSDS, ISO13485

Target Group

Infants and Young Children

Screen Display

10.4inch TFT LCD High Brightness Screen

Transducer

12-Crystal Waterproof Pulse Doppler Transducer

Power Supply

Internal Li-ion Battery or AC Power

Dimension

32cm (W)*26cm (D)*8cm (H)

Weight

2.8kg

Printer

Built-in Thermal Printer (110mm)

Origin

China

Product Description

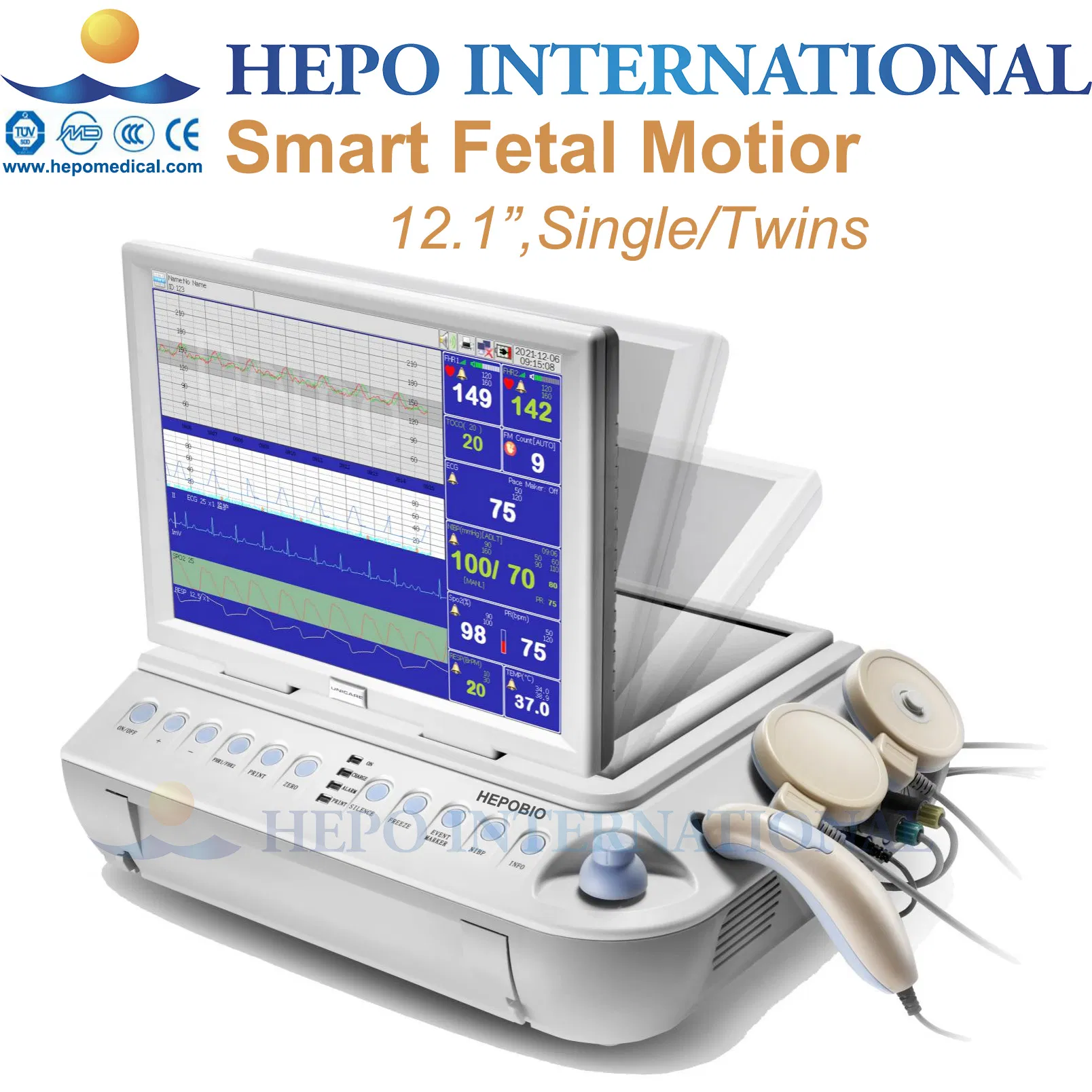

HP-FETM SERIES are high-tech fetal & maternal monitors, offering a reliable, high-performance solution for fetal monitoring needs in clinics and hospitals, from pre-natal check-ups to antepartum monitoring of high-risk pregnancies. It is your best partner from Antepartum through Intrapartum till Delivery.

Key Features

✓

High-Res Display: Folded 10.4 inches TFT LCD high-brightness screen.

✓

Advanced Transducer: 12-crystal waterproof pulse Doppler transducer for wider beam area and homogeneous signal.

✓

Event Marker: Easy annotation of perceived fetal movements (FM) on the strip chart.

✓

Fetal Movement Profile: Automatically detects and records gross fetal body movements.

✓

Twins Monitoring: Heart rate offset mode visually distinguishes twin heart rates (+30BPM).

✓

Safety Alarms: Audible and visual alerts for heart rates outside defined ranges.

✓

Efficient Printing: Easy-to-load Z-fold paper stacks neatly for storage.

✓

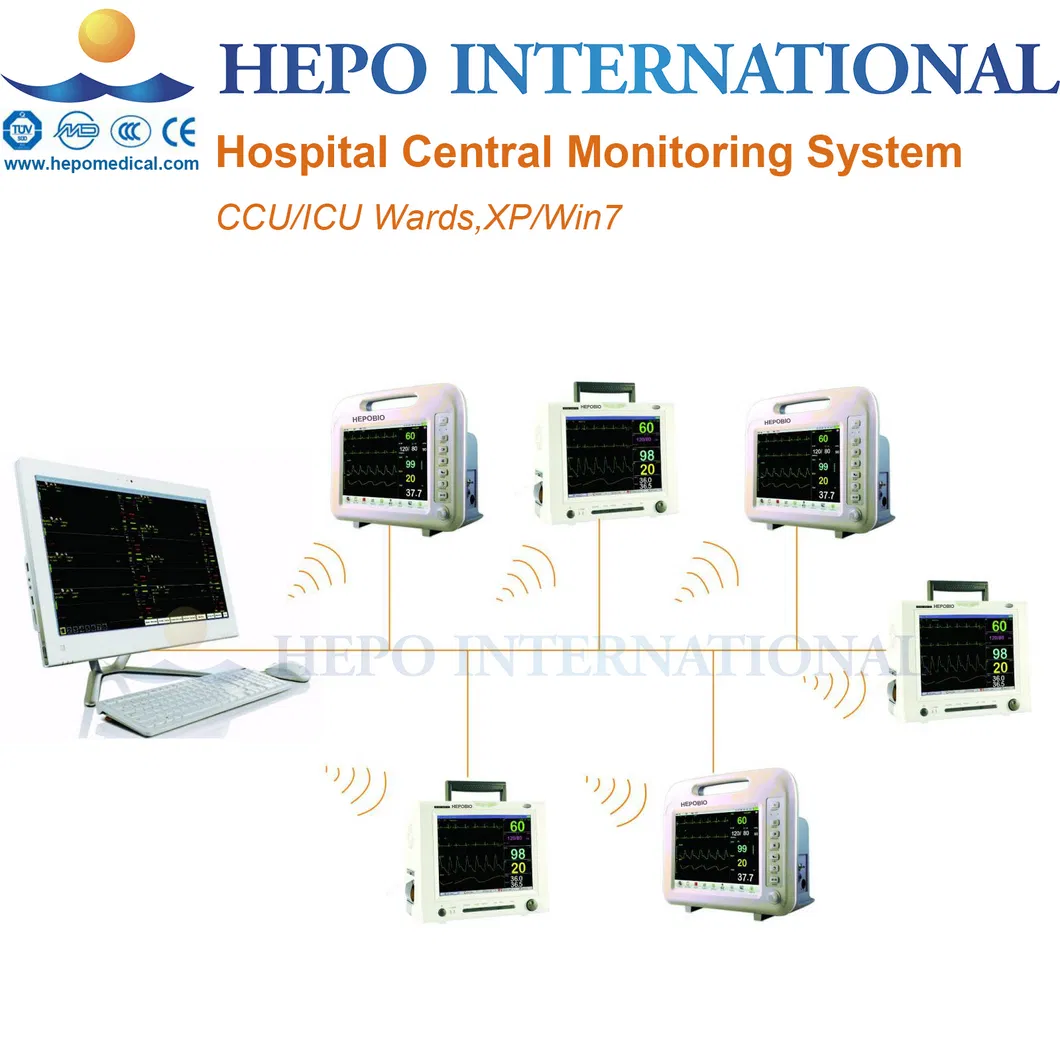

Smart Connectivity: Supports TCP/IP or wireless connection to central monitoring stations.

Technical Specifications

Physical Specifications
Dimension	32cm (W) * 26cm (D) * 8cm (H)
Weight	2.8 kg (Standard configuration)
Performance Specifications
Display	10.4 inch (1024×768 pixel) color TFT-LCD
Memory	24-hours fetal traces / 150 patient data groups
Printer Speed	1/2/3cm/min real-time and fast print stored traces
Ultrasound (FHR)
Measurement Range	30 to 240 bpm
US Frequency	1MHz ± 5%
Maternal Monitoring (NIBP & SpO2)
NIBP Mode	Manual / Automatic / STAT
SpO2 Range	0% - 100% (Accuracy ±2%)

Product Gallery

Frequently Asked Questions

Q1: What is the screen size and resolution of the HP-FETM10A? The monitor features a 10.4-inch color TFT-LCD screen with a resolution of 1024×768 pixels, providing high brightness for clear viewing.

Q2: Can this monitor be used for twin pregnancies? Yes, it includes a heart rate offset mode that allows you to offset the secondary fetal heart rate by +30BPM, making it easy to distinguish between twins.

Q3: How much data can the device store? The unit has a 24-hour memory capacity for fetal traces and can store data for up to 150 different patient groups.

Q4: Is the Doppler transducer waterproof? Yes, the device utilizes a 12-crystal waterproof pulse Doppler transducer, which provides a wider beam and more homogeneous signal.

Q5: Does the monitor support connection to a central hospital system? Yes, it supports connecting to a central monitoring station through either LAN (TCP/IP) or wireless connections.

Q6: What type of power supply does the HP-FETM10A use? It can be powered by an internal rechargeable Li-ion battery or via standard AC power (100-240V, 50/60Hz).
