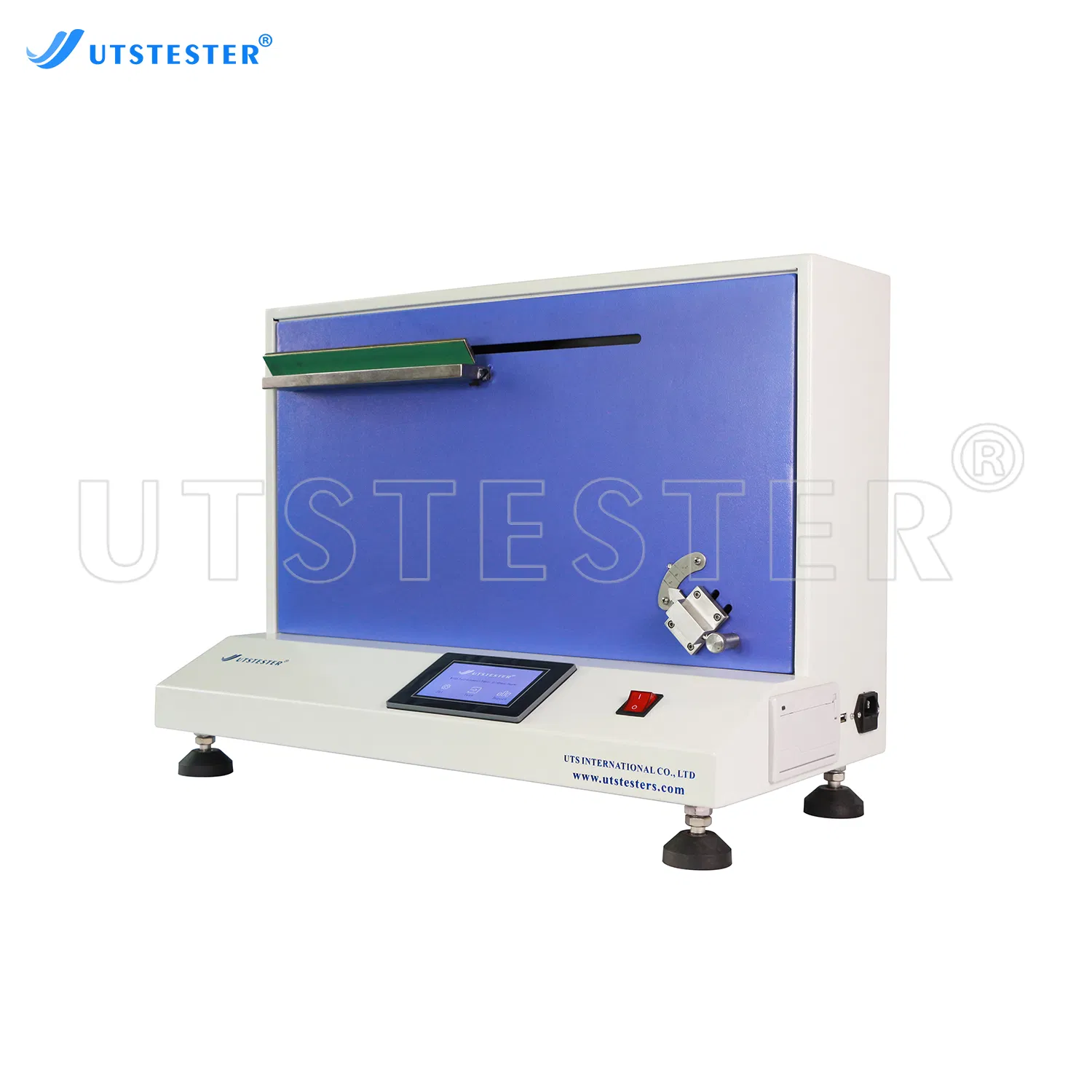

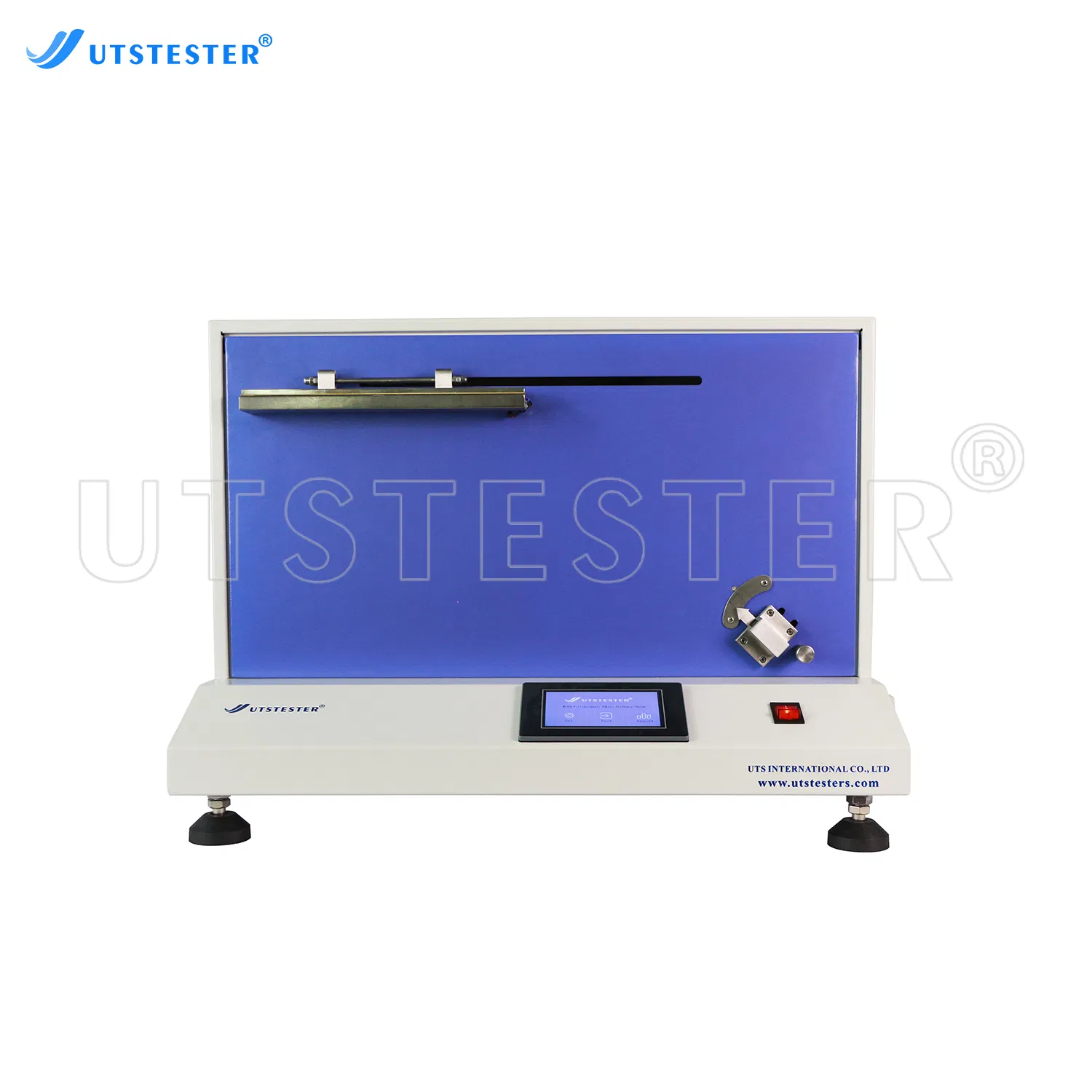

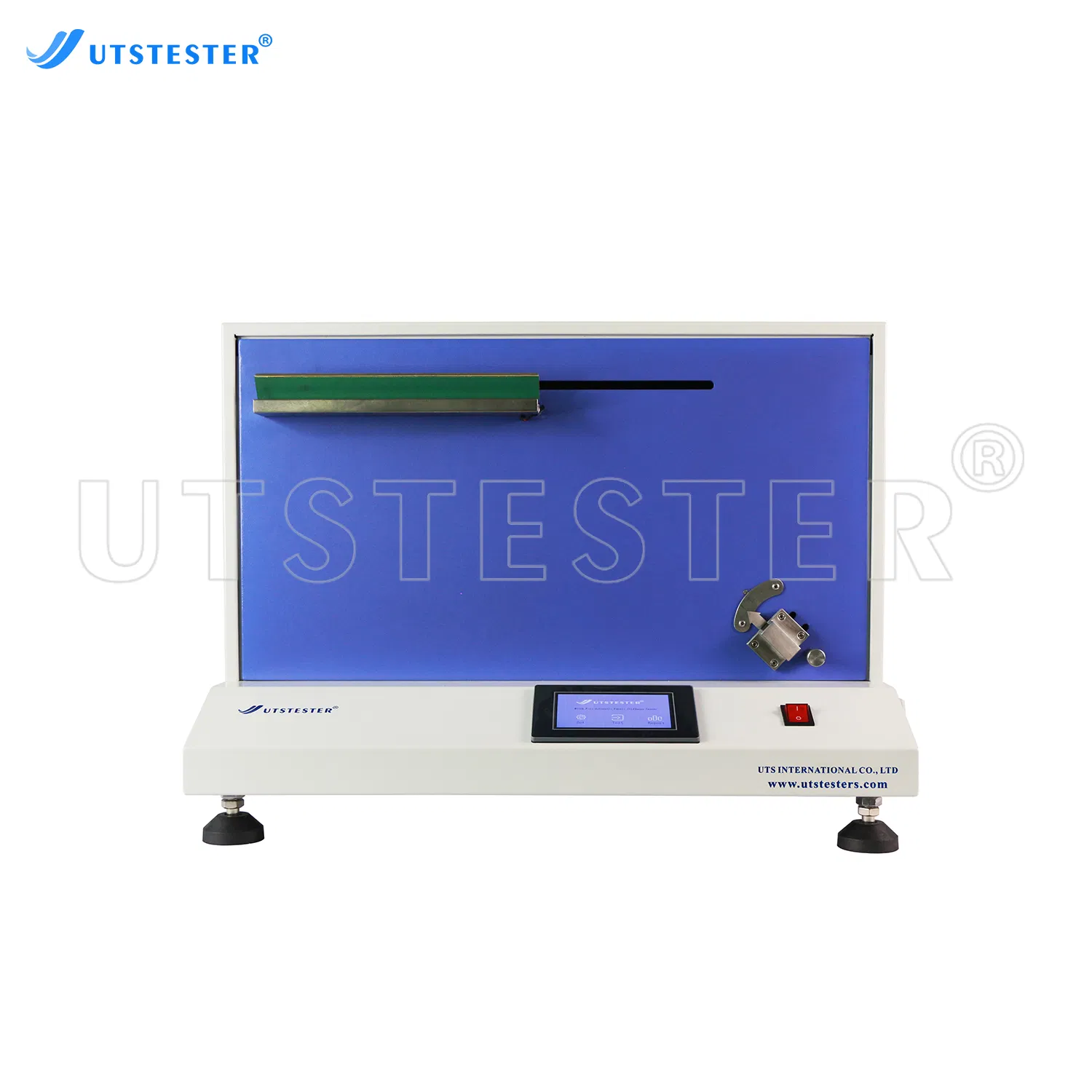

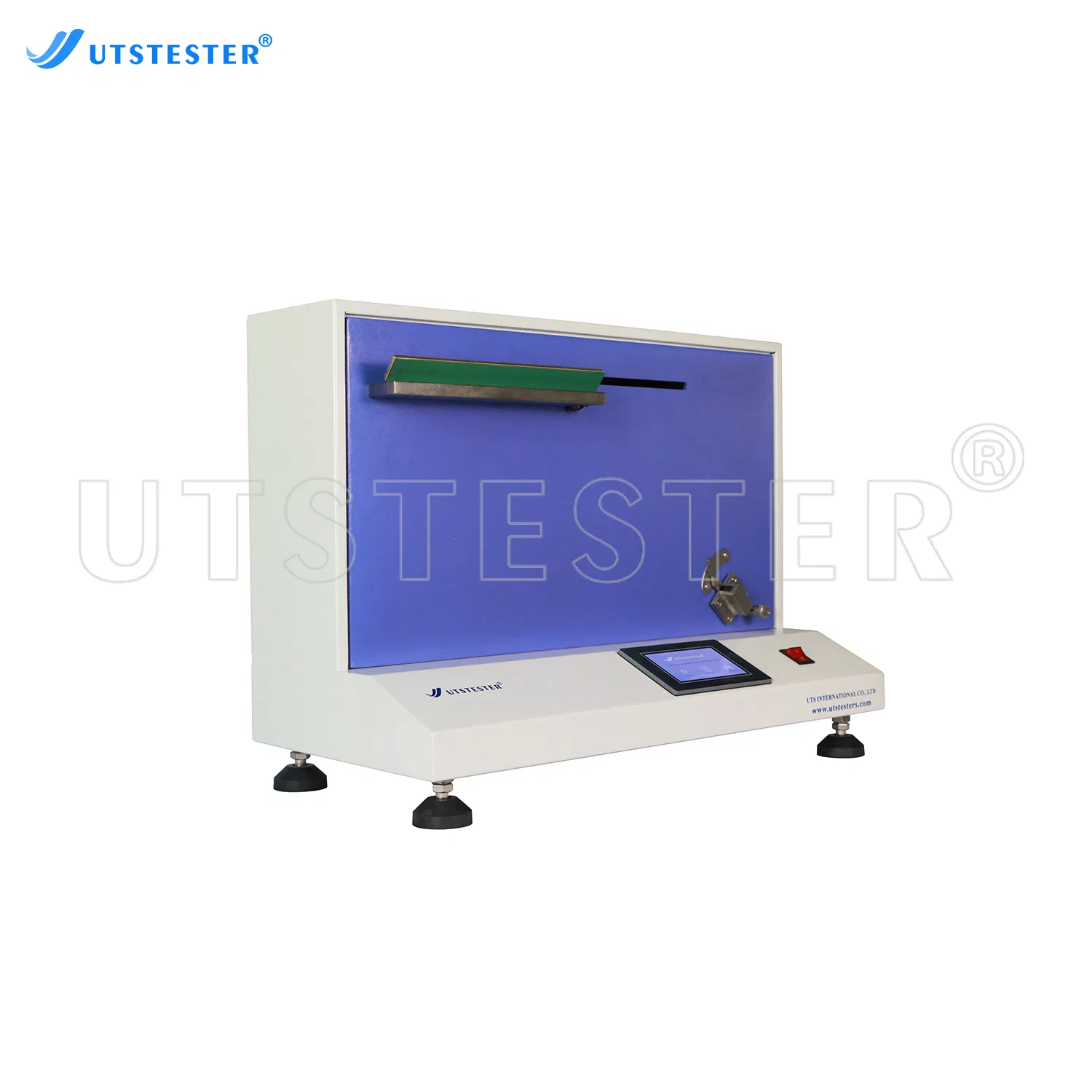

Laboratory Instrument for Automatic Fabric Stiffness Testing and Analysis

Customization:	Available
Warranty:	12 Months
Usage:	Textile Fabric Testing, Appearance Quality Testing

📋

Basic Information

Model NO.	M038A
Automatic Grade	Automatic
Machine Type	Full-Automatic Fabric Stiffness Tester
Certification	CE, ISO 17025
Condition	New
After-sales Service	12 Months
Weight	18kg
Standard	ASTM D 1388, ISO 9073-7
Measuring Angle	41.5°, 43°, 45° (Adjustable)
Dimensions	470mm x 290mm x 405mm

🔬

Product Description

Introducing our Laboratory Instrument for Automatic Fabric Stiffness Testing and Analysis, a cutting-edge tool designed to test the stiffness properties of a wide range of fabrics, including cotton, wool, silk, linen, chemical fibers, knitted and non-woven fabrics, as well as coated fabrics. Additionally, it is ideal for testing the stiffness of soft materials such as paper, leather, and thin films, offering unparalleled versatility and precision.

Applicable Standards:
ASTM D 1388, ISO 9073-7, BS EN22313, ZB WO4003, GB/T18318, BS 3356

⚙️

Test Principle

The testing process is highly precise, where the sample is moved by a motor and halted when bent to a predetermined angle. This action is meticulously detected by a laser scanning device, and the results are prominently displayed on an LED screen, ensuring accuracy and consistency with every test conducted.

🌟

Key Features

1

Microprocessor control with infrared stealthy slope detection and LCD English display.

2

Online working mode via specialized analysis software for computer-based operations and statistics.

3

Fully automated measurement of bending heights up to 0.01mm using laser technology.

4

Automatic sample holder and automatic return function post-testing for streamlined operations.

5

Adjustable virtual slopes at 41.5°, 43°, and 45° for various testing needs.

📊

Technical Parameters

Model	M038A
Measuring Angle	41.5°, 43°, 45° (Adjustable)
Extension Elongation	0.5 - 20.5cm
Measure Accuracy	0.1mm
Sample Size	2.5 × 25 cm
Sample Pressing Plate	2.5 × 25 cm, Weight 250g
Pushing Speed	0.1mm/s ~ 6.0mm/s
Power Supply	1∮ AC 220V 50/60Hz 0.12kw

🖼️

Product Showcase & Exhibition

❓

Frequently Asked Questions

How is the after-sales service?

All test devices are calibrated and debugged before delivery to guarantee quality. Our professional team solves problems within 24 hours via email or video. English operation manuals and videos are also provided.

What is the warranty period?

The warranty period is 12 months. We provide necessary spare parts for free during this time, excluding consumables and man-made damages.

What are the payment terms?

Usually, TT and L/C are available. For other payment methods, please contact us for negotiation.

What is the lead time for orders?

Depending on stock status, the lead time is usually between 5-25 days. Our professional production line ensures high quality in a short time.

Can you provide an ISO 17025 calibration certificate?

Yes, we provide two options: an ISO 17025 certificate from a third-party company (with charges) or our standard calibration certificate (without charges).

Is a fumigation report required for shipping?

No. Our packaging uses composite board rather than raw logs, so fumigation treatment is not required.
