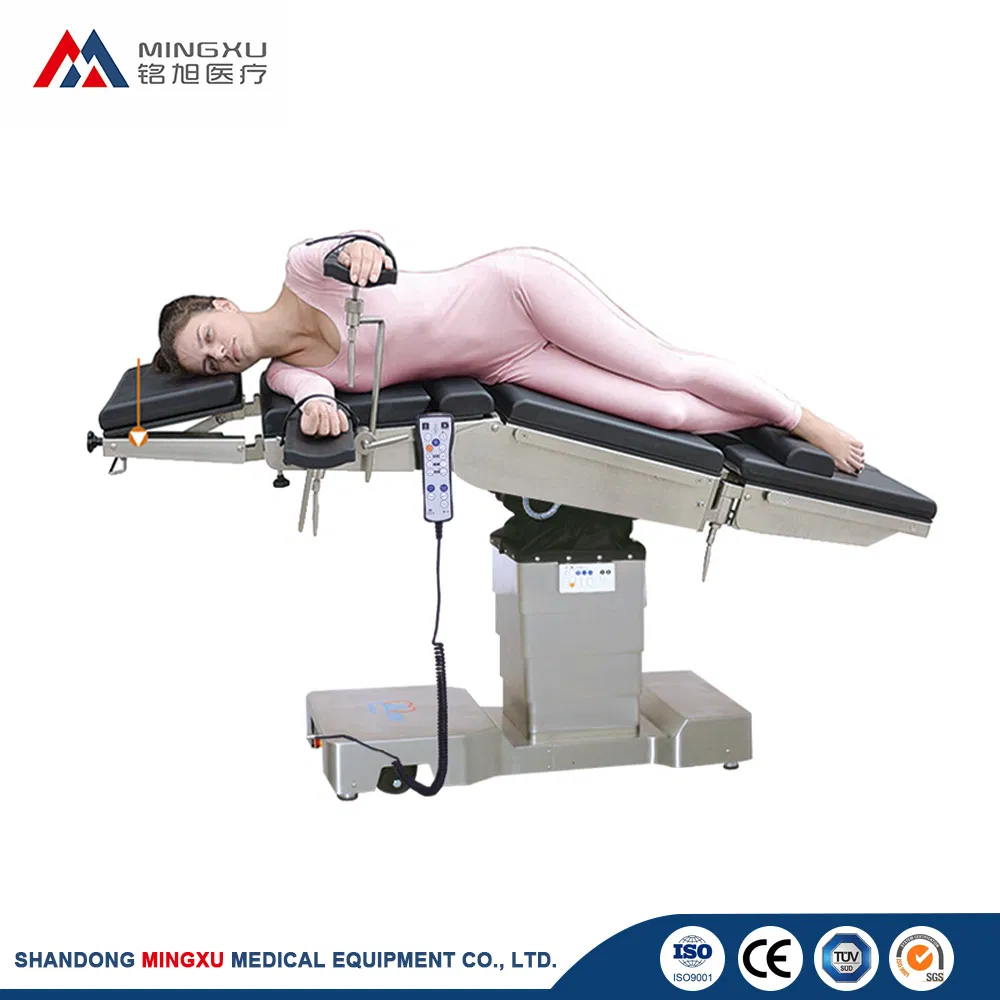

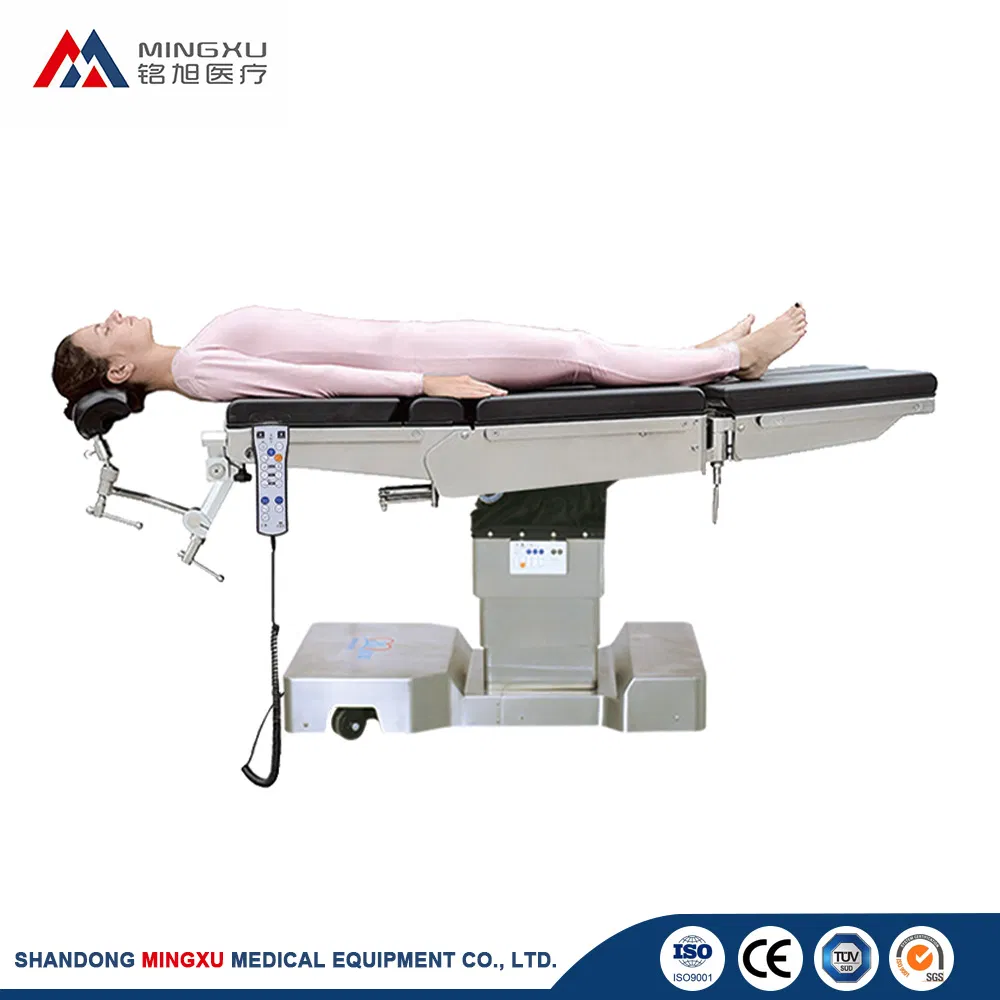

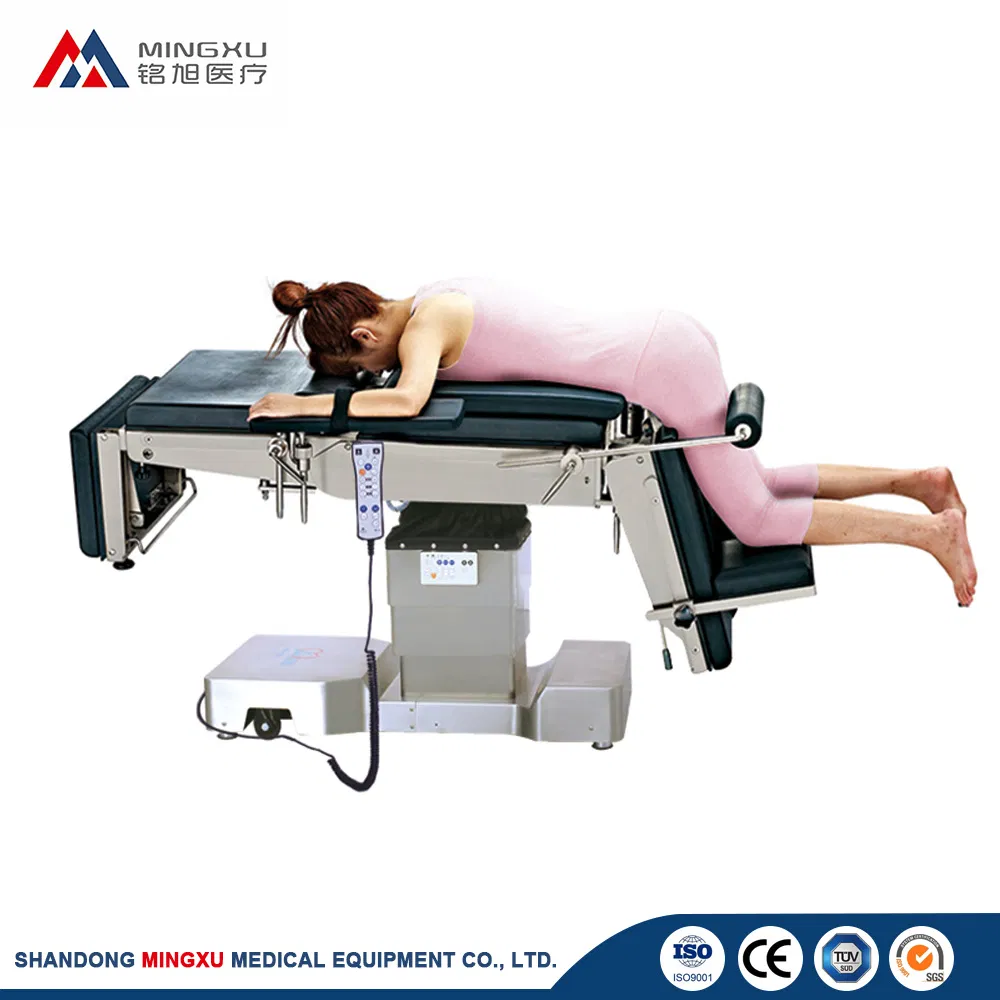

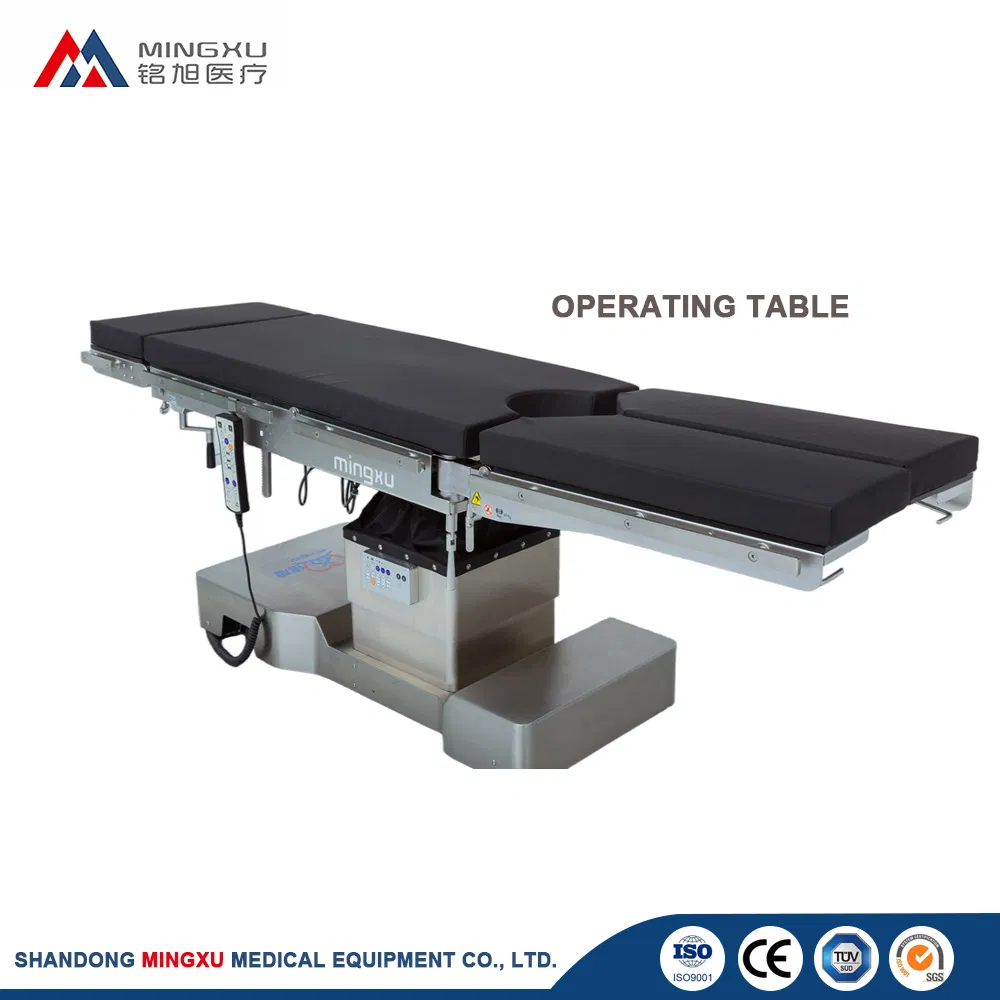

Advanced Hydraulic Operating Table Surgical Equipment for Surgical Precision and Comfort

Customization: Available
Type: Operating Table
Kind: Orthopedics Gynecology Otolaryngology

Product Description

i

Basic Specifications

Model NO.
MX-Table 8000
Certification
CE, ISO13485
Group
Adult
Material
Stainless Steel
Warranty
1 Year
MOQ
1 Set
Reset Function
One-Key Reset
Capacity
50000 PCS/Year
Suitability
Orthopedics, Gynecology, ENT, Ophthalmology
Packing
Standard Wooden Case

Product Description

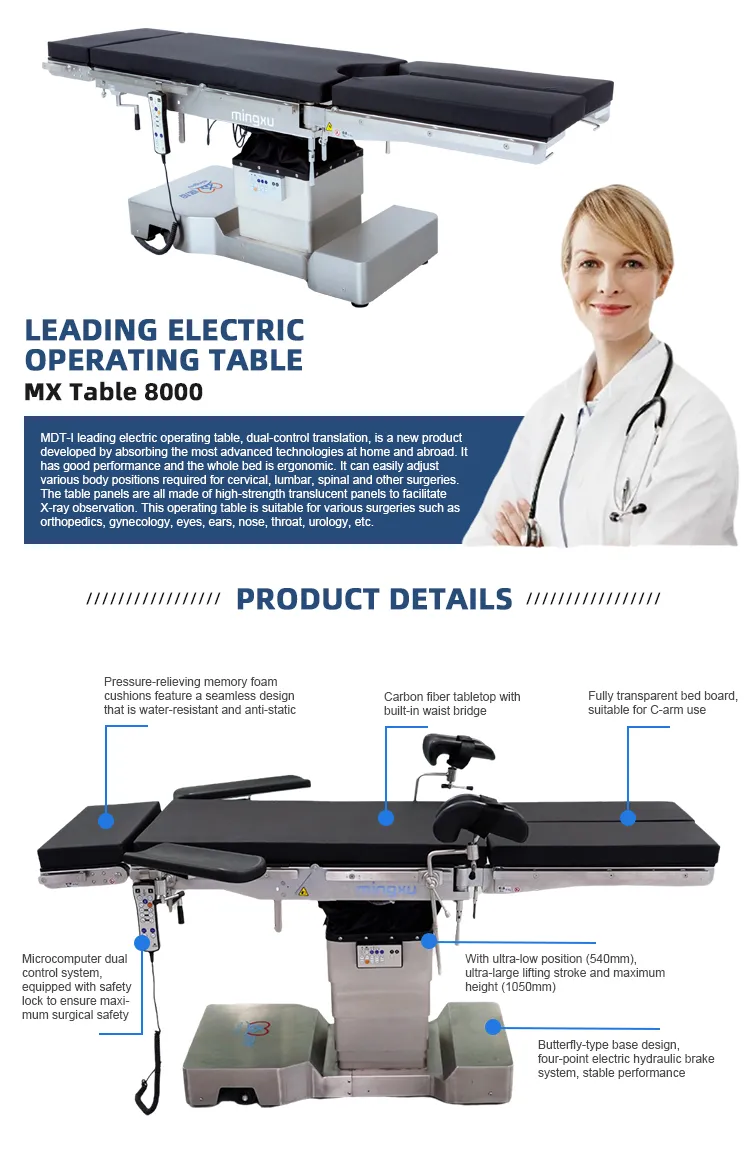

Operating Table Visual 1 Operating Table Visual 2 Operating Table Visual 3

Product Parameters

Table length2170±20mm
Table width560±10mm (with side rails) / 520±10mm (without)
Lifting height540±20mm - 1050±20mm
Lifting travel (electric)500±20mm
Front tilt angle (electric)Forward ≥ 30° / Backward ≥ 30°
Lateral tilt angle (electric)Left ≥ 20° / Right ≥ 20°
Headboard foldingUpward ≥45° / Downward ≥90° (Detachable)
Leg foldingUpward ≥15° / Downward ≥90° (Detachable)
Back panel foldingUpward ≥85° / Downward ≥40°
Built-in waist bridge≥120mm
Max translation distance≥300mm (Electric)
Rated load250KG

Key Features & Functions

1
Full hydraulic control system for heavy load-bearing and low noise.
2
Microcomputer dual-controller system with safety locks and auxiliary switch backup.
3
SUS304 stainless steel construction, acid and alkali resistant, easy to clean.
4
X-ray transparent tabletop sections with built-in film box layer.
5
Multi-layer memory foam mattress for pressure distribution and anti-bedsore protection.
6
One-button horizontal reset and one-button flexion/anti-flexion functions.
7
Intelligent electric hydraulic brakes with a stable four-point base contact.
8

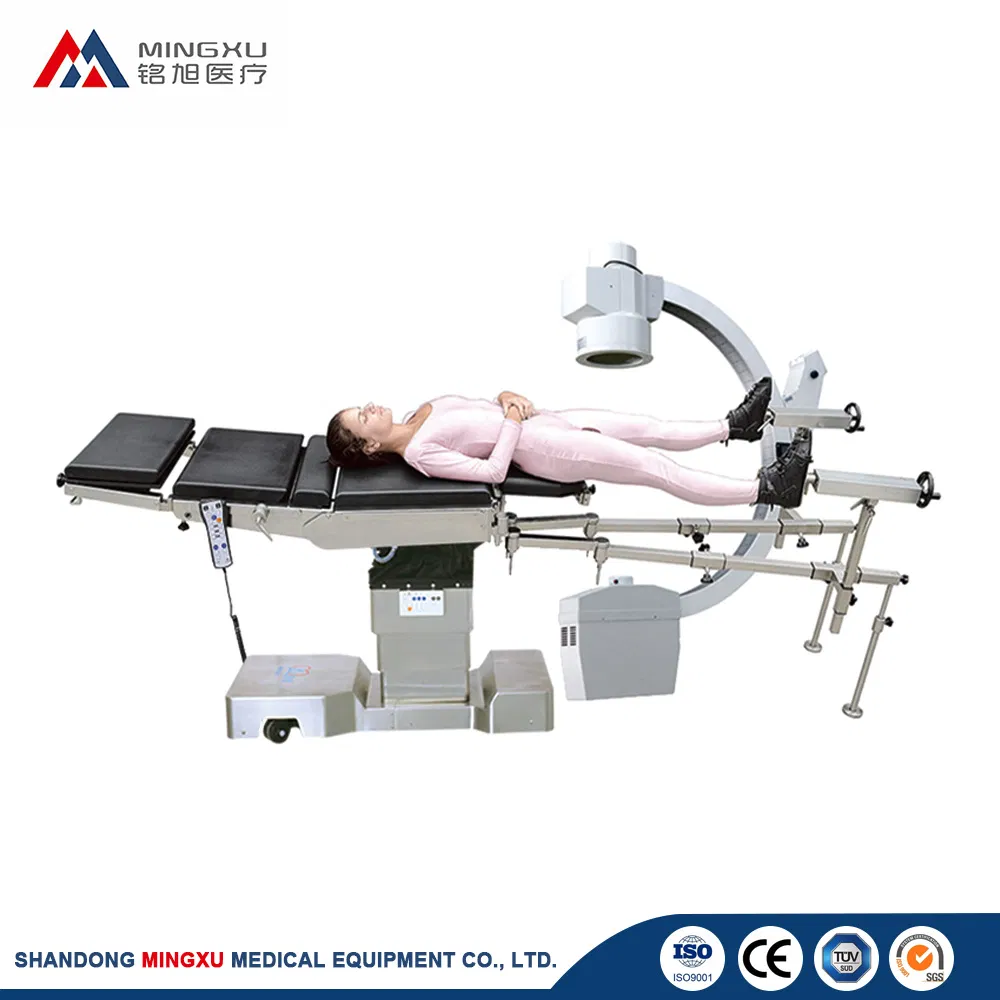

Large lifting stroke (500mm) and longitudinal movement (300mm) for C-arm filming.
9
Automatic power-off protection after 30 seconds of inactivity to prevent misoperation.

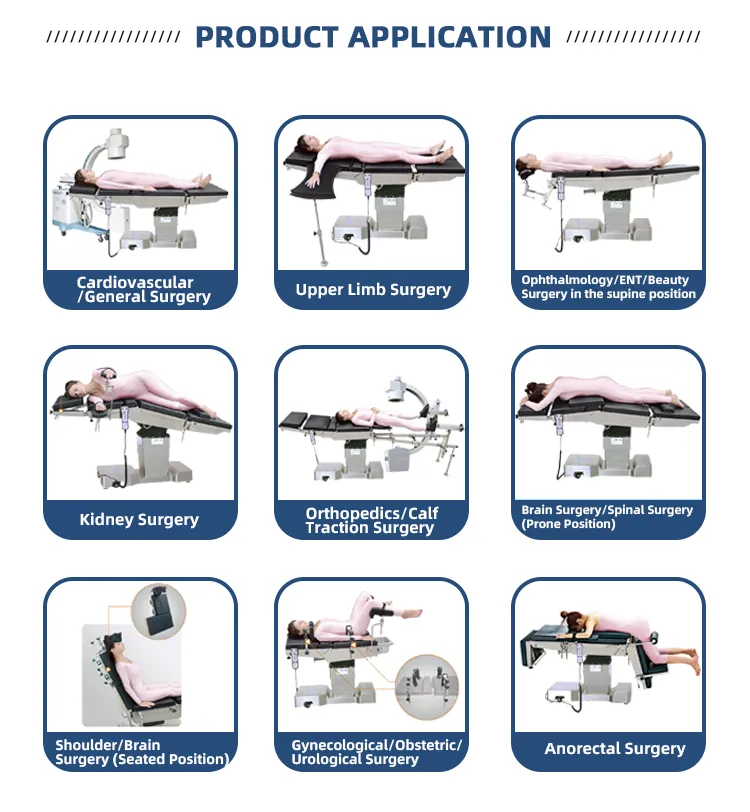

Functional Detail 1 Functional Detail 2
📋

Standard Configuration

Item Description Quantity
Operating table bed1 Set
Memory Foam Mattress1 Set
Anesthesia screen1 Pc
Armrest / Leg Support2 Pcs each
Body straps1 Set
Hand control & Power cord1 Pc each
📜

Quality & Certifications

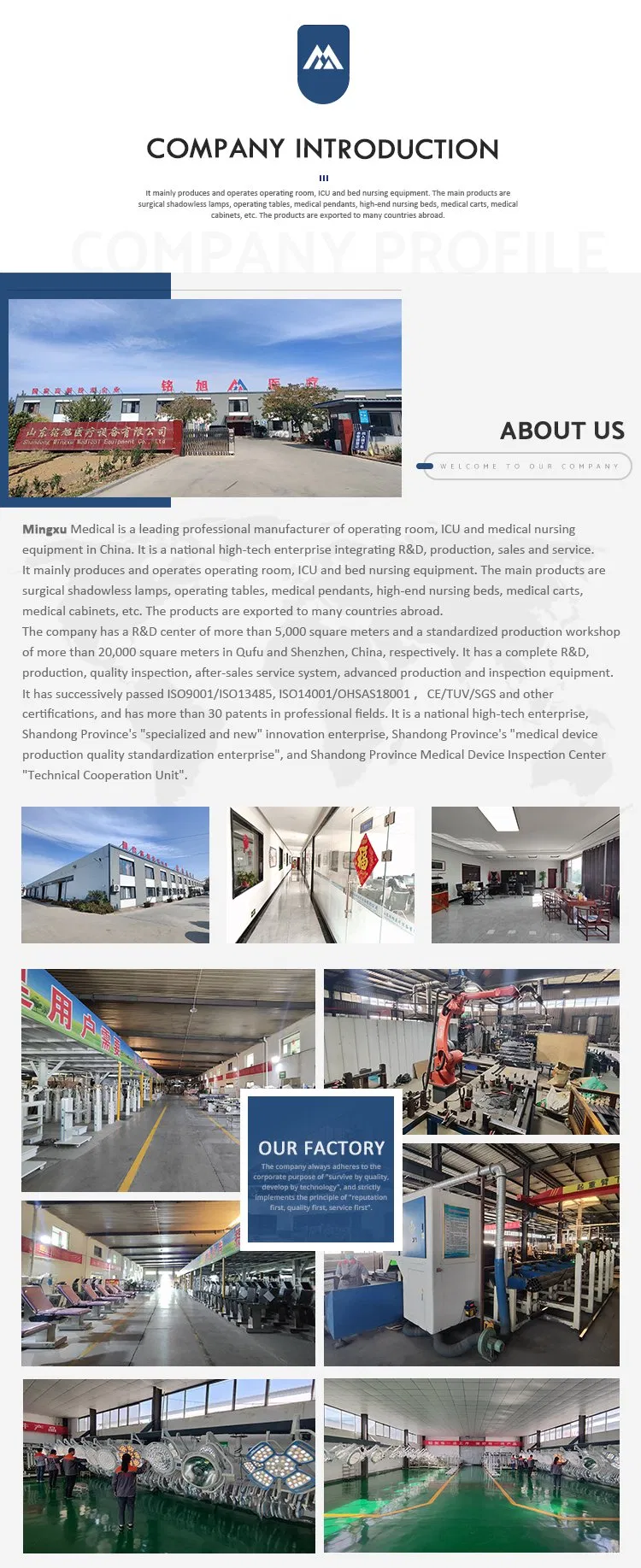

Manufacturing Capability Certificates
Quality Control Workshop Shipping
?

Frequently Asked Questions

Q: Are you a professional manufacturer?
A: Yes, we have a research and development center of more than 5,000 square meters and standardized production workshops of more than 20,000 square meters. We provide one-stop service with our own R&D and sales teams.
Q: Do your products meet international standards?
A: Yes, all our surgical products are approved by CE and ISO13485 certifications, ensuring high quality and safety for medical use.
Q: Is OEM & ODM customization available?
A: Yes, we offer full OEM and ODM services. Simply provide the necessary requirements and documents, and we will produce the equipment according to your specifications.
Q: What are the packing and inspection details?
A: We use standard export wooden cases or carton packages. Every unit is carefully inspected by our QC team before delivery to ensure performance.
Q: What is the typical delivery time?
A: If items are in stock, delivery is 5-10 days after deposit. For production orders, it usually takes 20-30 days depending on the quantity.
Q: What is your Minimum Order Quantity (MOQ)?
A: Our MOQ is 1 set, making it accessible for both small clinics and large hospitals.
