304 Stainless Steel 550-1050mm Low Position Operation Room Surgical Electric Hydraulic Operating Table
304 Stainless Steel 550-1050mm Low Position Operation Room Surgical Electric Hydraulic Operating Table
304 Stainless Steel 550-1050mm Low Position Operation Room Surgical Electric Hydraulic Operating Table
304 Stainless Steel 550-1050mm Low Position Operation Room Surgical Electric Hydraulic Operating Table
304 Stainless Steel 550-1050mm Low Position Operation Room Surgical Electric Hydraulic Operating Table
1 / 5
304 Stainless Steel 550-1050mm Low Position Operation Room Surgical Electric Hydraulic Operating Table
304 Stainless Steel 550-1050mm Low Position Operation Room Surgical Electric Hydraulic Operating Table
304 Stainless Steel 550-1050mm Low Position Operation Room Surgical Electric Hydraulic Operating Table
304 Stainless Steel 550-1050mm Low Position Operation Room Surgical Electric Hydraulic Operating Table
304 Stainless Steel 550-1050mm Low Position Operation Room Surgical Electric Hydraulic Operating Table

304 Stainless Steel 550-1050mm Low Position Operation Room Surgical Electric Hydraulic Operating Table

Customization: Available
Type: Operating Table
Kind: Orthopedics
Send Inquiry

Product Description

🟦 Basic Specifications
Model NO.
AOT800
Certification
CE
Group
Adult
Length
2100mm
Width
550mm
Height Range
550mm - 1050mm
Kidney Bridge
120mm
HS Code
9402900000
Capacity
500 Sets/Month
Origin
China

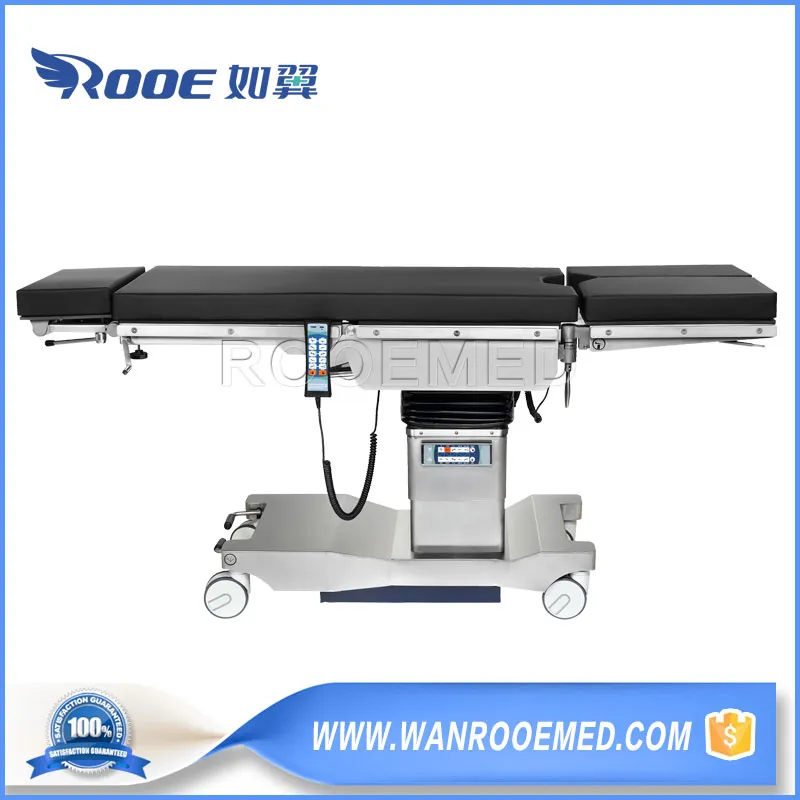

AOT800 Surgical Electric Hydraulic Operating Table
🟦 Product Overview

AOT800 304 Stainless Steel 550mm Low Position Surgical Operating Table

⚙️
Modular Design: Desktop suitable for various surgical disciplines. Featuring detachable back and legs for quick attachment and positioning.
🔗
Easy Click Connection: Convenient, safe, and intuitive modular installation. Lightweight components can be easily fitted to suit surgical needs.
🛡️
Premium Construction: Base and column housing made of high-grade stainless steel with advanced antibacterial surface treatments.
📱
Smart Control: Manual controller with safety lock and LCD screen accurately displays action instructions during operation.
🟦 Technical Features & Benefits
  • 💎 Imaging Excellence: Longitudinal slide up to 310mm allows free C-arm entry without moving the patient.
  • 💎 High Load Capacity: Supports up to 350 kg with maximum safety and stability.
  • 💎 Dual Control System: Hand remote control plus a supercontrol column panel for emergency use.
  • 💎 Intelligent Reset: One-button reset restores the table to the horizontal zero position instantly.
  • 💎 Versatility: Meets needs for thoracic, renal, gallbladder, endoscopic, gynecological, and ENT surgeries.
🟦 Detailed Parameters
Operating Table Adjustment Range
Trendelenburg / Reversed≥35º / ≥35º
Lateral Tilt≥25º
Backward and Forward Slide≥310mm
Flex / Reflex≥225º / ≤100º
Table Section Adjustment
Head Section (Up/Down)≥40º / ≥90º
Back Section (Up/Down)≥80º / ≥45º
Leg Section (Up/Down)≥80º / ≥90º
Kidney Bridge Elevation≥120mm
Power SupplyAC 220V±10%, 50Hz

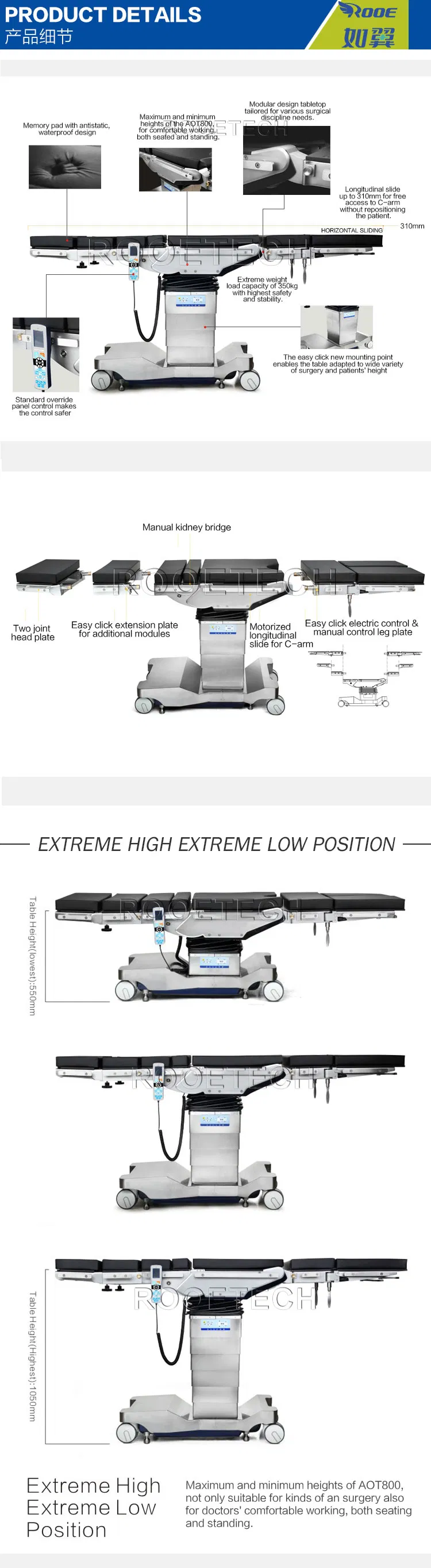

AOT800 Dimensions

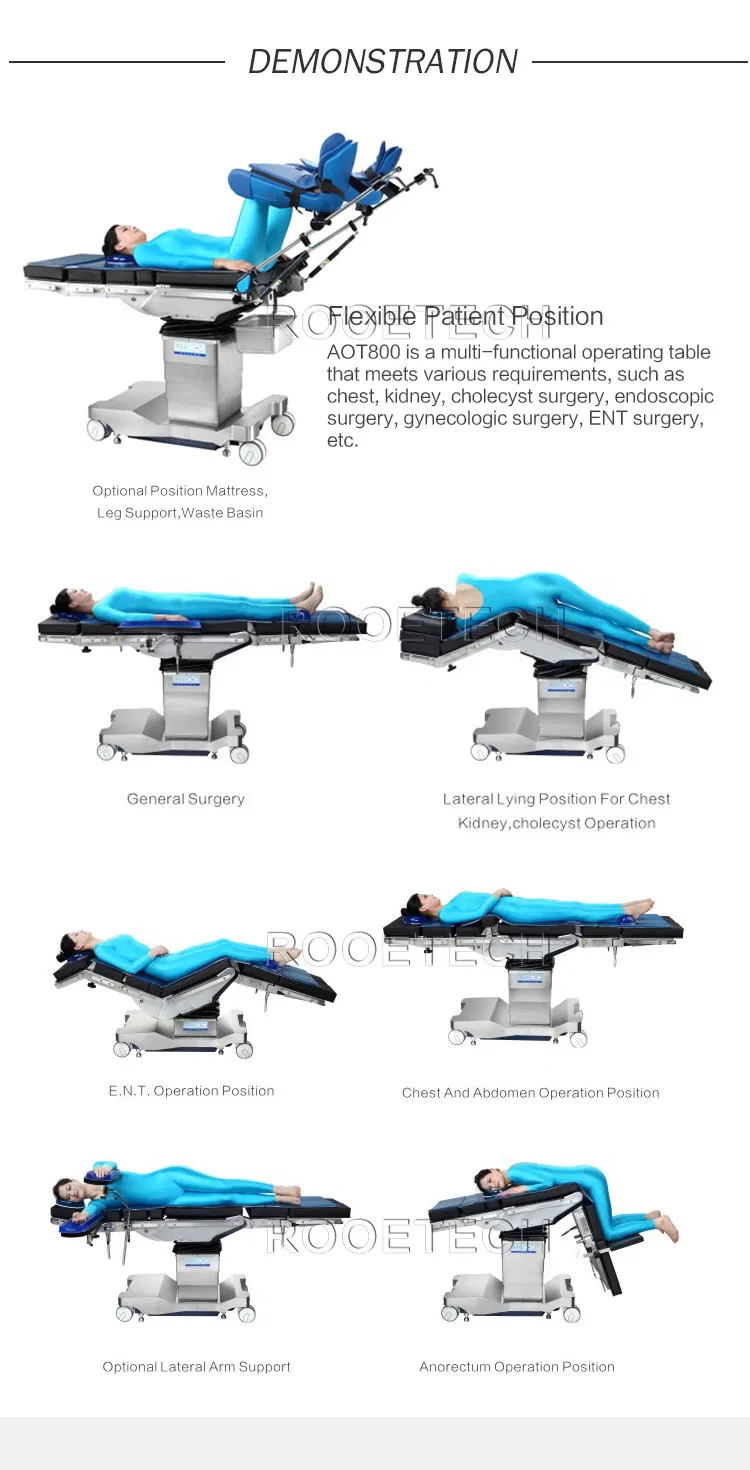

AOT800 Features 1

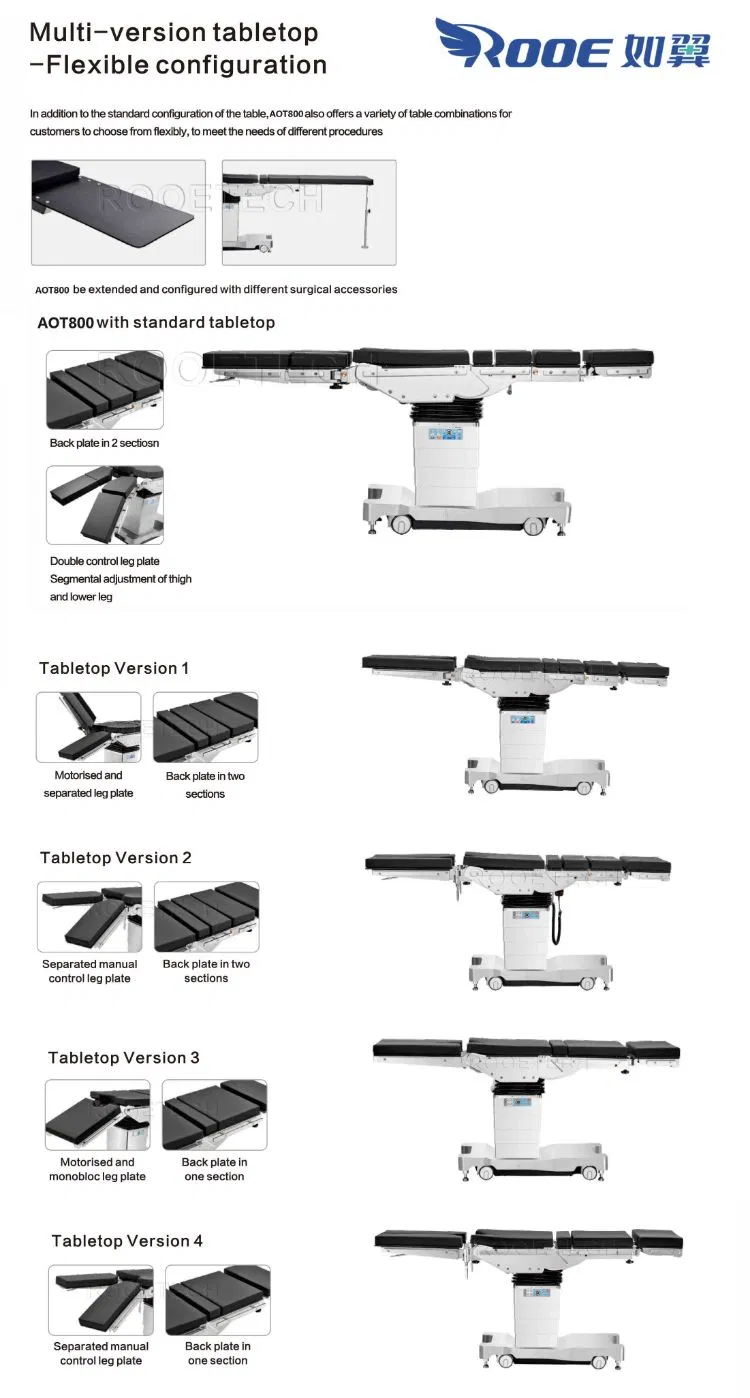

AOT800 Features 2
🟦 Basic Accessories List
  • Anaesthetic screen (1 set)
  • Arm support (1 pair)
  • Body support (1 pair)
  • Leg support (1 pair)
  • Shoulder Rest (1 pair)
  • Foot plate (1 pair)
  • Cushion (1 set)
  • Manual controller (1 pc)
  • Kidney bridge handle (1 pc)
  • Power cord (1 pc)
Frequently Asked Questions
Q1: What is the maximum weight capacity of the AOT800 operating table?
The AOT800 features an extreme weight load capacity of 350 kg, ensuring high safety and stability for various patient sizes.
Q2: Can this table be used with a C-arm for imaging?
Yes, the table provides a longitudinal slide of up to 310mm, allowing the C-arm to be freely entered for ray observation without repositioning the patient.
Q3: What are the height adjustment limits?
The table top height can be adjusted from a low of 550mm to a high of 1050mm, accommodating different surgical requirements and surgeon comfort.
Q4: What happens if there is a power failure during surgery?
The AOT800 offers an optional spare battery system that can supply power to the workbench for several hours in case of a power outage.
Q5: Is the table resistant to medical cleaning products?
Yes, the 304 stainless steel base and column are treated with advanced procedures to ensure high resistance to antibacterial products and a longer service life.
Q6: How many control systems does the table have?
It features a dual control system: a hand-held remote control with an LCD screen and a secondary control panel located on the column for emergency use.
