12.1", 15.1"Touch Screen ICU Patient Monitor

1 / 5

12.1", 15.1"Touch Screen ICU Patient Monitor

Customization:	Available
Product Name:	Non-Invasive Monitor
Sweep Speed:	12.5mm/S, 25mm/S, 50mm/S

Send Inquiry

Product Description

Basic Information

Model NO.

WHY80C

Trace

12 Waveforms

Battery

Lithium-Ion Battery/ Rechargeable

Patient Range

Adult, Pediatric, Neonate

Interface

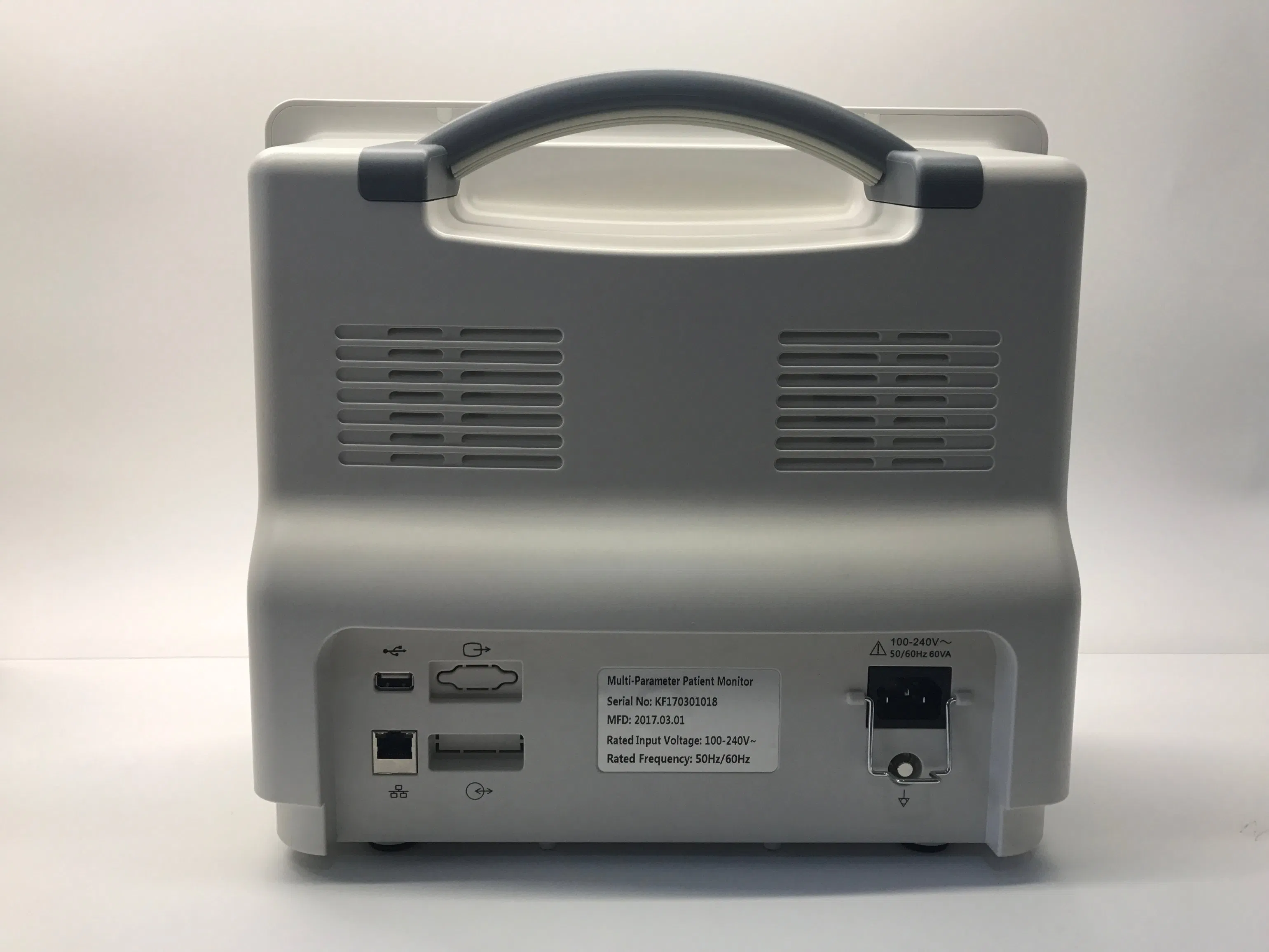

Parameter Cable Interface, External VGA Interface

Display

12.1" Touch Screen

Trend Time

1~120hours

Power

AC100-250V, 50/60Hz

Resolution

800X600

Origin

China

HS Code

90189090

Capacity

5000PCS/Year

Product Description

Multi-Parameter Infant Patient Monitor

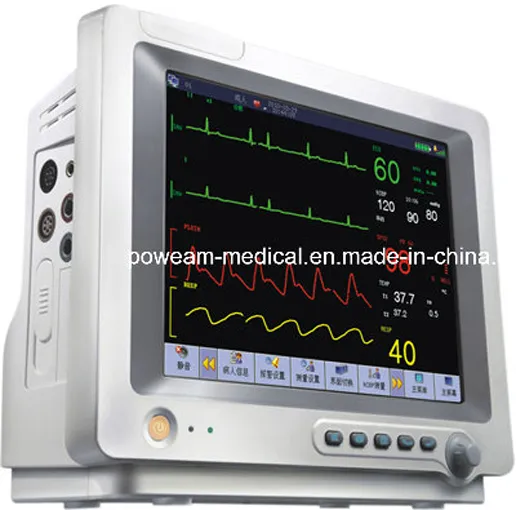

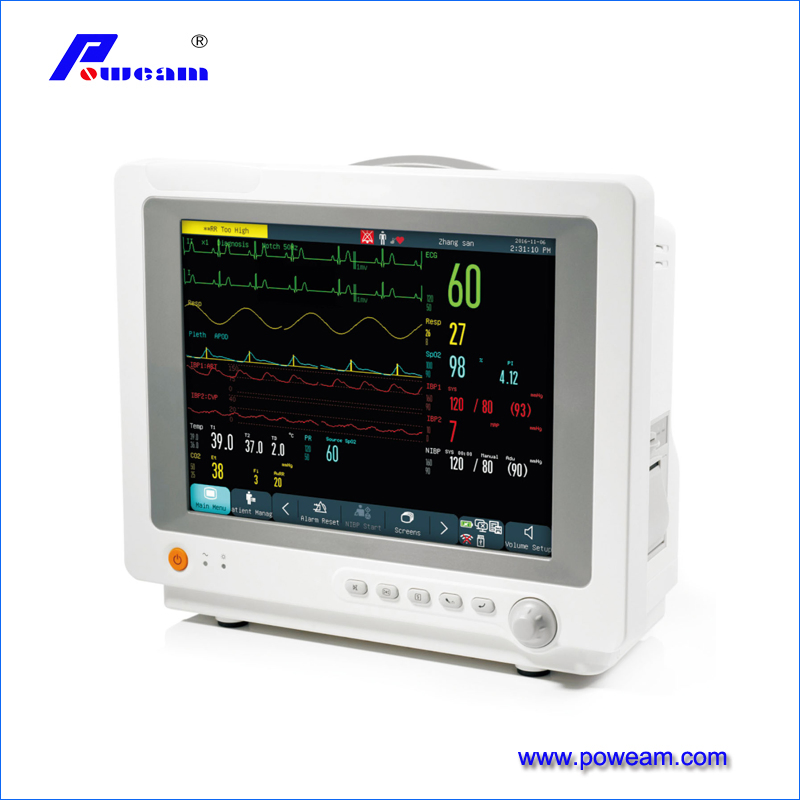

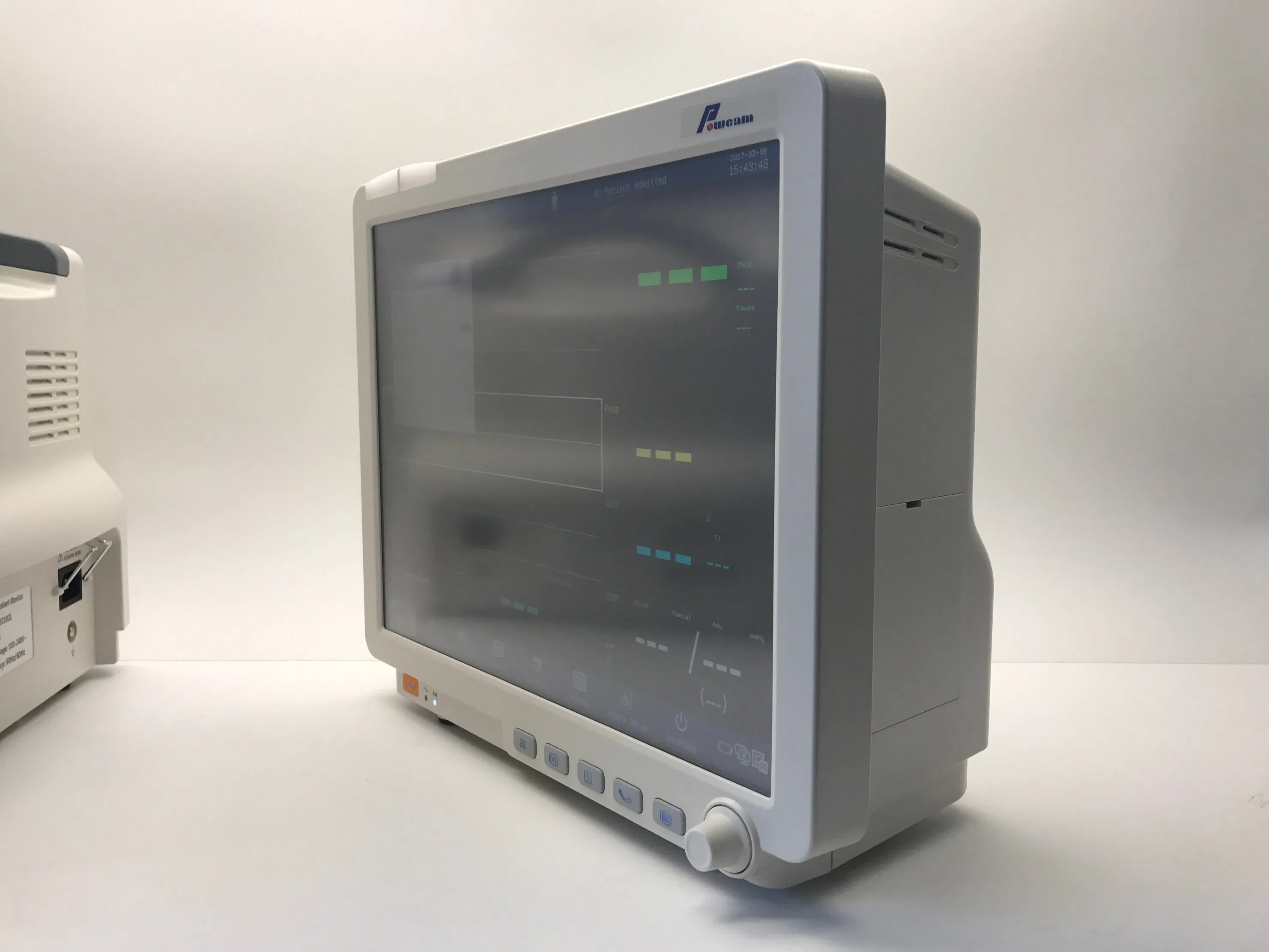

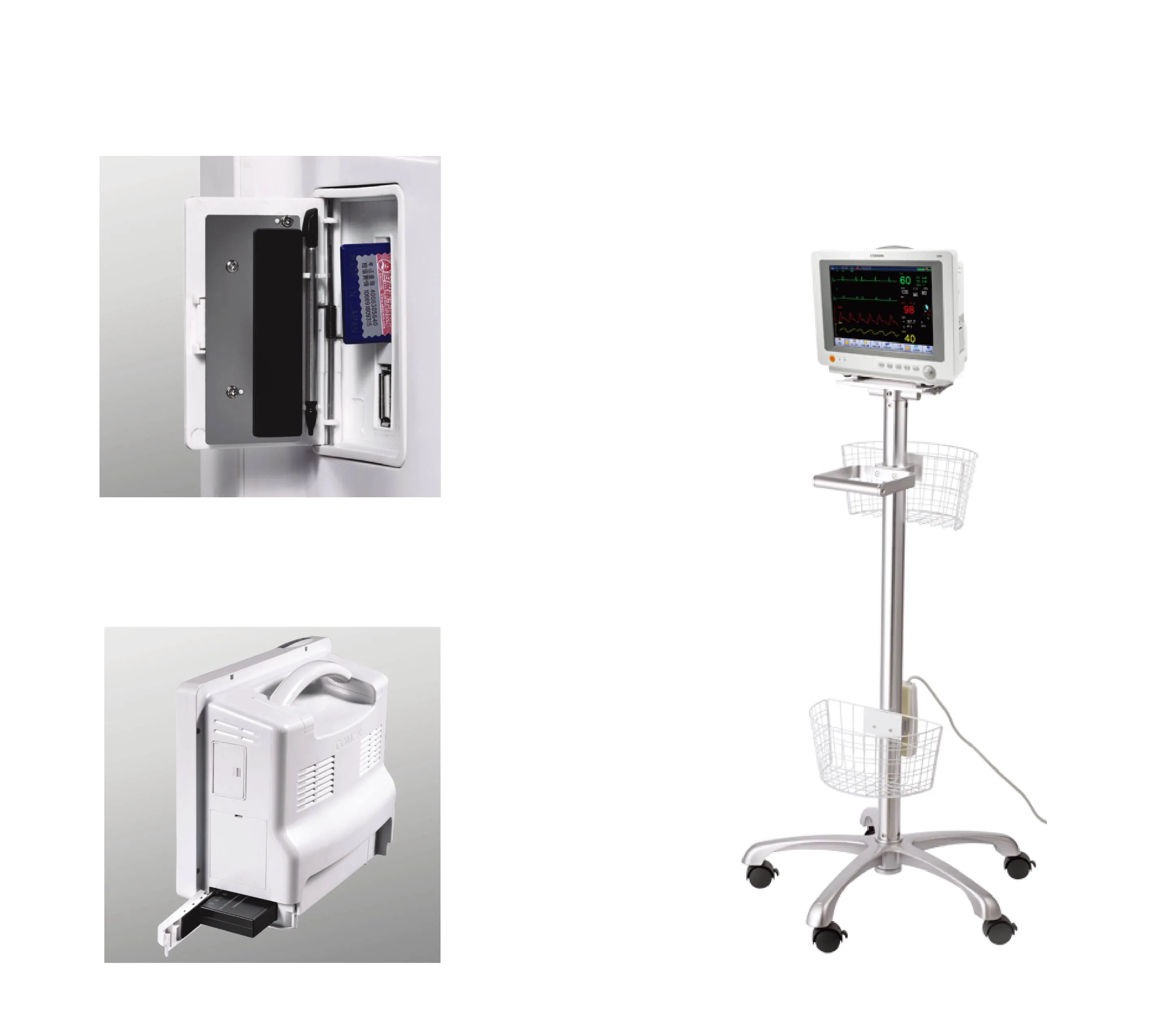

WHYC80 is designed especially for ICU/CCU/Operation theatre and Trauma care. It is equipped with 12.1" touch screen, handwriting pen, SD card interface, USB interface, auto dust shield to prevent dust etc foreign matter, wall mount, rolling stand and trolley multiple mounting options. IPX1 level waterproof cabinet to withstand different rough environments.

2-channel IBP using the US Abbott/Medex accessories to monitor ABP, PAP, CVP, ICP etc.
EtCO2 collaborate with US RESPIRONICS COMPANY.
Anesthesia Gas module collaborate with Sweden ARTEMA to monitor 8 types Gas including O2, CO2, N2O, ENF, ISO, DES, SEV, HAL.
Intelligent Alarm system can auto-identify alarm level, self-adjust proper alarm time to reduce false alarms.
Support wire & wireless central monitoring system.

Display	12.1 inch color TFT Touch Screen
Resolution	800X600
Sweep speed	12.5mm/s, 25mm/s, 50mm/s
Patient Range	Adult, Pediatric, Neonate
Recorder	Built-in, thermal array
Standard Configuration	IPX1 level waterproof cabinet, 12.1" Touch Screen, CardioTec 12-leads ECG/HR, OxiMax SpO2, RESP, PR, TEMP, EtCO2 Socket Reserved, Nurse Call System, lin-ion Battery, NIBP
Optional	Dual TEMP, Thermal Recorder, Nellcor SpO2, 7-lead ECG, Single/Double IBP, Mainstream/Sidestream EtCO2, ICG, Anesthesia Gas, CF Card, Accessories for Neonate, Pediatric and Adult

Frequently Asked Questions

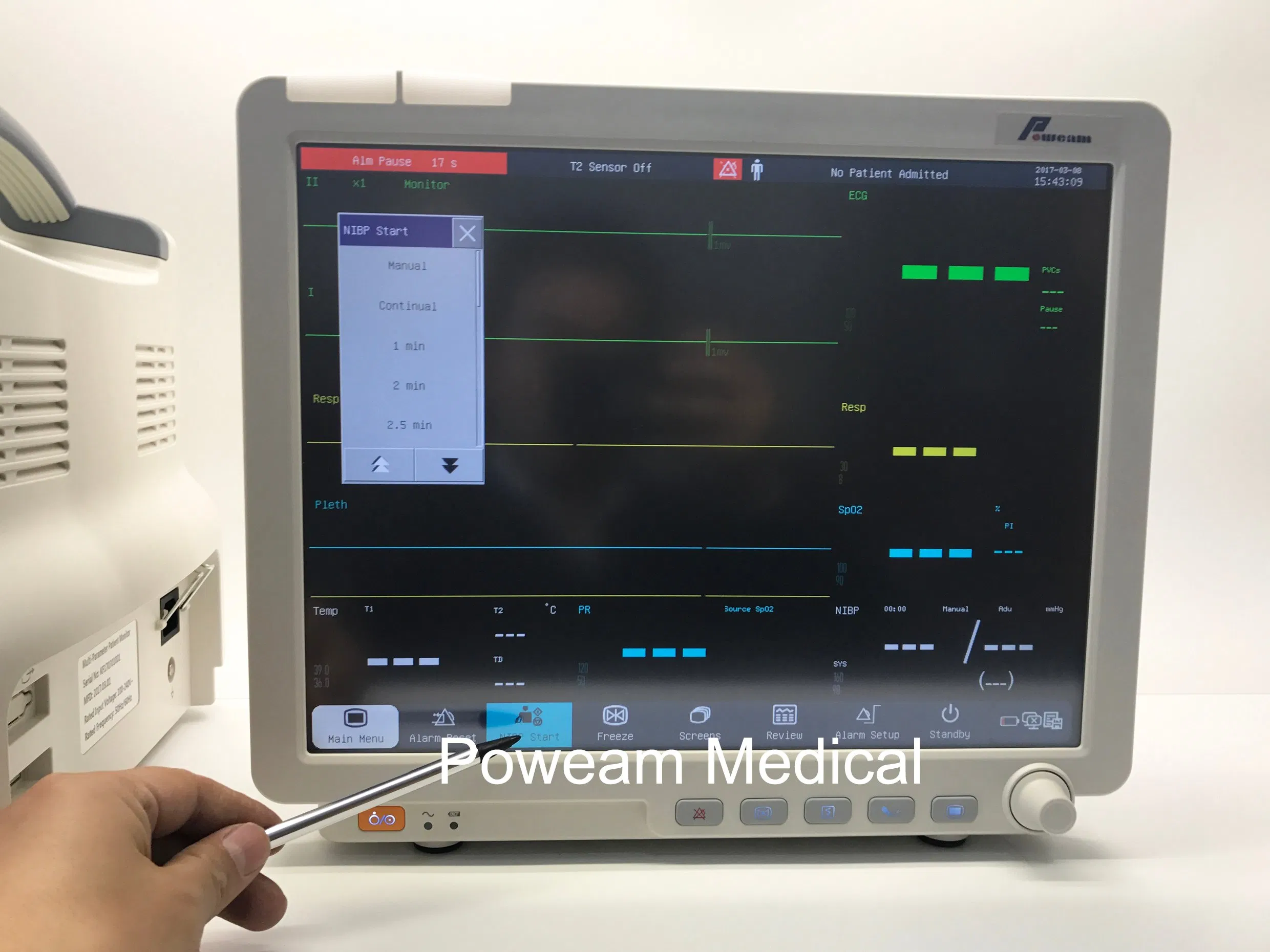

Q: What is the screen size and type for this patient monitor? A: The monitor features a 12.1-inch color TFT Touch Screen with a resolution of 800x600 and handwriting pen support.

Q: Is this monitor suitable for neonatal use? A: Yes, the patient range covers Adult, Pediatric, and Neonate users with specialized accessories available.

Q: Does the device support EtCO2 monitoring? A: The standard configuration includes an EtCO2 socket reserved, and it supports both Mainstream and Sidestream EtCO2 as optional upgrades.

Q: What is the waterproof level of the device? A: The monitor is designed with an IPX1 level waterproof cabinet to withstand challenging clinical environments.

Q: How much trend data can the monitor store? A: The device supports trend time storage from 1 to 120 hours.

Q: What are the power requirements for this monitor? A: It operates on AC100-250V, 50/60Hz, and includes a rechargeable Lithium-ion battery for portable use.
