Product Description

i

Basic Specifications

Model NO.
YS2000I
Certification
ISO13485
Group
All
Generator Modes
5 Working Modes
Transport Package
Wooden Case
Specification
375mm x 295mm x 195mm
Origin
China
HS Code
9022199090
Capacity
500 Sets/Year
P

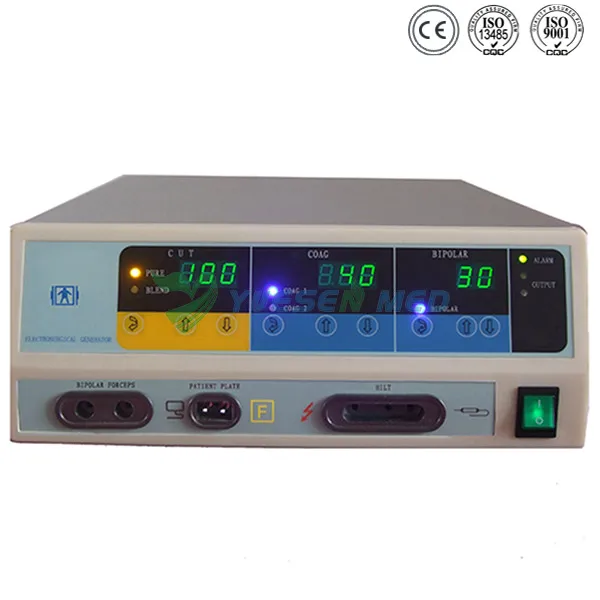

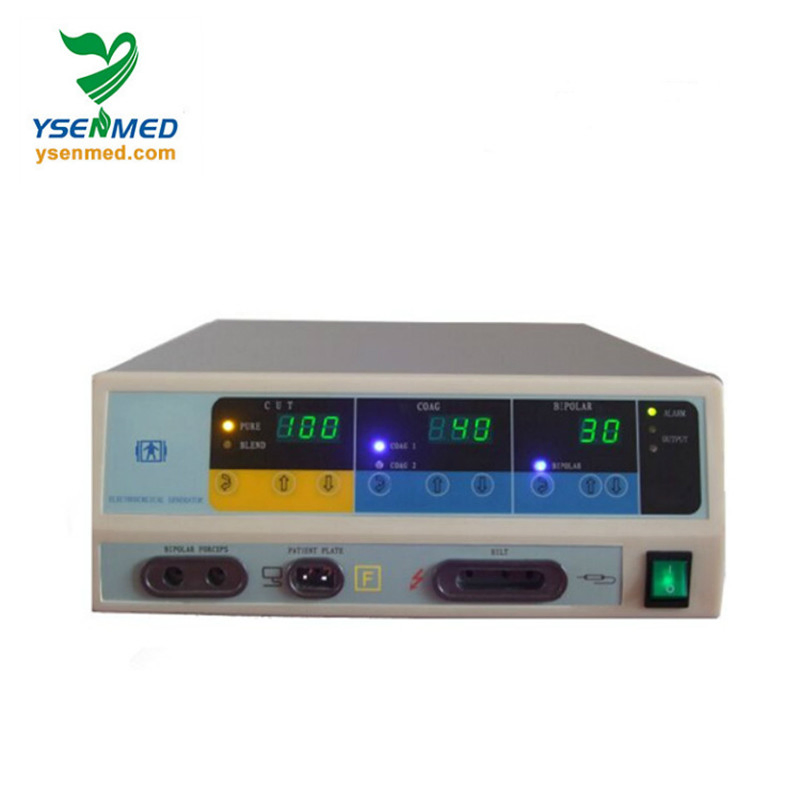

Electrosurgical Generator YS2000I

Electrosurgical Unit

Core Features

  • Microcomputer control system for enhanced precision.
  • Supports both monopolar and bipolar modes.
  • Monopolar controlled by hand or foot; Bipolar controlled by foot.
  • Precise power control suitable for all general surgical procedures.
  • Touch control panel with three-way power output and audiovisual indicators.
  • Automatic performance check during startup and Polar plate testing.
  • Full floating output system to protect patients from low-frequency current damage.
  • CVREM contact quality monitoring system reduces burn risks; automatically stops output if contact is poor.
T

Technical Specifications

Power
220V±22V / 110V±11V, 50Hz±1Hz
Operating Freq.
360~460kHz
Power Rating
880VA±10%
Consumption
<=880VA

Working Modes Detail

Monopolar Cut (Pure Cut) 1W~300W (Load 500Ω), applicable to any tissue.
Bloodless Cut (Blend1) 1W~200W (Load 500Ω), provides coagulation effect while cutting.
Forced Coagulation (Coag1) 1W~150W (Load 500Ω), ideal for deep tissue coagulation and homeostasis.
Soft Coagulation (Coag2) 1W~120W (Load 500Ω), suitable for endoscopic and fine tissue surgery.
Bipolar Coagulation 1W~50W (Load 100Ω), automatic power slowdown for homeostasis effect.
L

Standard Packing List

Item Name Quantity
Mainframe1 Set
Electrosurgical pencil5 Pieces
Electrosurgical pad10 Pieces
Electrosurgical pad cable1 Piece
Foot switch1 Set
Tip clean sponge1 Piece
Bipolar forceps and cable1 Set
Fuse3 Pieces
Power cord1 Piece
Operating manual1 Book

Dimension: G.W. 13kg | Size: 59*49*34cm

V

Product Gallery

Detail View 1
Detail View 2
Detail View 3
Detail View 4
S

Related Operation Room Equipment

Operation Room SolutionsAnesthesia MachineVentilator
Operating LampOperation Table
Medical PendantDrill and Saw
ECG / Patient MonitorDefibrillator
Infusion PumpElectrocoagulation
Oxygen GeneratorElectric Suction Device
Autoclave SterilizerElectrosurgical Units
?

Frequently Asked Questions

What are the main working modes of the YS2000I?
The unit features five modes: Pure Cut, Blend Cut (Bloodless), Forced Coagulation, Soft Coagulation, and Bipolar Coagulation.
How is the output safety monitored?
It uses the CVREM contact quality monitoring system which tracks the connection between the patient plate and skin, automatically stopping output if contact is insufficient.
Can this unit be used for bipolar procedures?
Yes, it supports bipolar coagulation (1W~50W) which can be controlled via a dedicated foot switch.
What is the power range for the Pure Cut mode?
The Pure Cut mode provides a power output ranging from 1W to 300W with a 500Ω load.
Is the system protected against low-frequency current?
Yes, the generator features a full floating output system that protects patients from potential tissue damage caused by low-frequency currents.
What is included in the standard package?
The package includes the mainframe, 5 electrosurgical pencils, 10 pads, bipolar forceps, foot switch, and necessary cables and fuses.
