Basic Specifications
Certification
CE, ISO13485
Effective Pixels
12 Million
Spatial Resolution
6.0 Lp/mm
Product Overview
💡

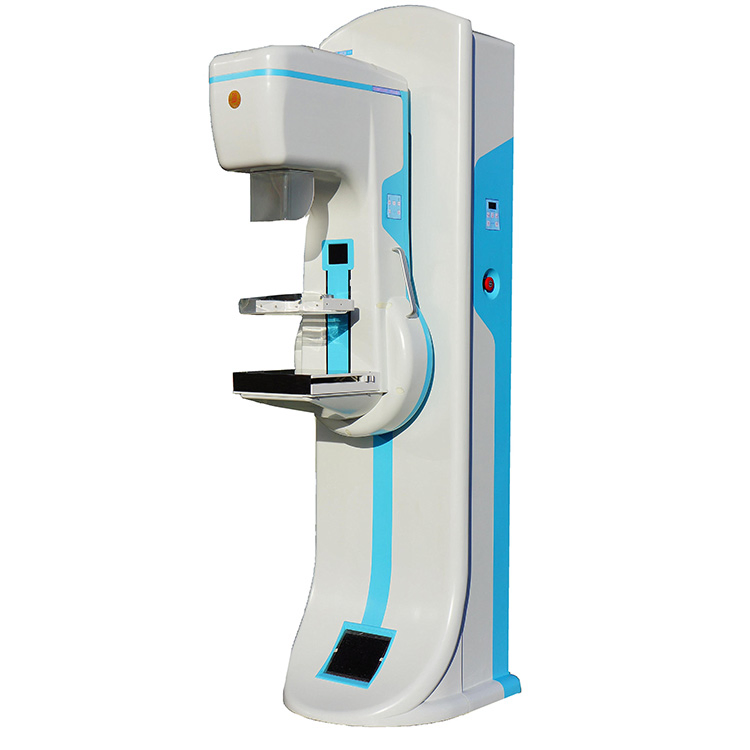

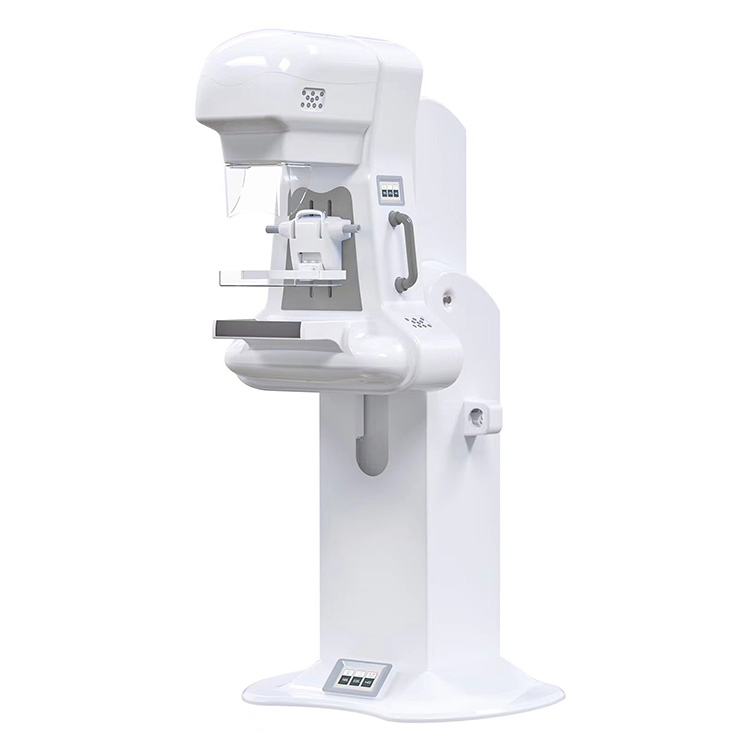

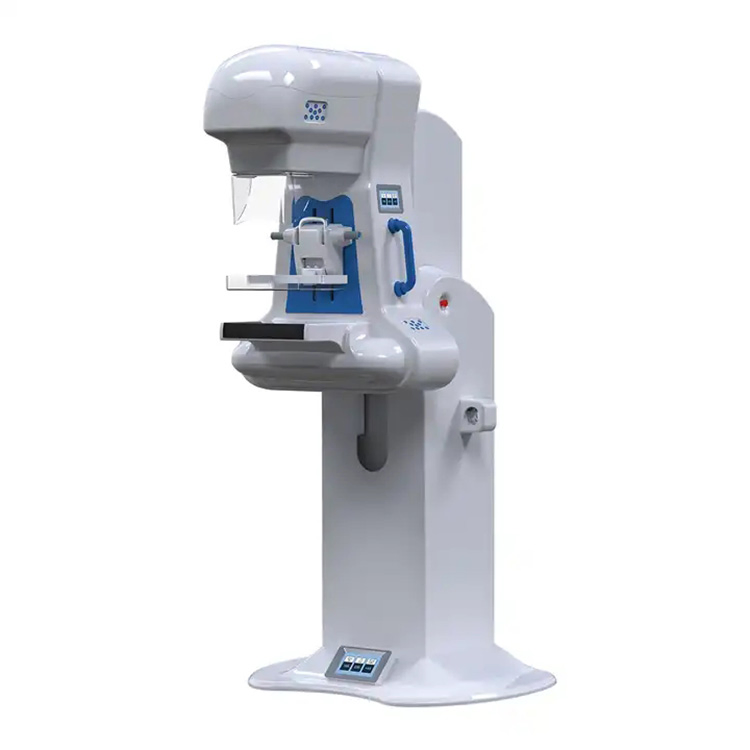

XMM400 3D High Frequency Mammography System
The XMM400 is a high-end medical breast cancer detection system utilizing advanced professional algorithms to provide superior breast image quality, specifically optimized for women with dense breasts.
Key Features & Advantages
- Advanced Tungsten Molybdenum Alloy Target: Provides better penetrating performance for dense breasts with shorter exposure times.
- Dose Reduction: Reduces X-ray dose by 30% for patients while maintaining the same image quality.
- High Detection Rate: Enhanced ability to detect smaller calcifications, masses, and fine structures.
- Amorphous Silicon Detector: High sensitivity with a 24cm×30cm imaging size.
- Intelligent Compression: Multi-level breast compression system with multiple pressure sensors for patient comfort.
- Workflow Efficiency: Integrated control for patient registration, acquisition, analysis, and report writing.
- Wide Range Motion: Smooth height adjustment (650mm-1300mm) and wheelchair compliance.
Main Technical Specifications
| Component |
Technical Details |
| Generator |
| Inverter frequency | 28kHZ |
| Maximum power | 5kW |
| Flat Panel Detector |
| Type | Amorphous silicon flat panel detector |
| Size | 24×30cm |
| Effective pixels / Matrix | 12 million / 3072*4096 pixels |
| Pixel size / Resolution | 77um / 6.0 Lp/mm |
| Tube |
| Anode material | Rhenium tungsten molybdenum alloy / Tungsten target |
| Focus size | 0.1mm / 0.3mm |
| Maximum heat capacity | 500kHU |
| Mechanical Structure (Stand) |

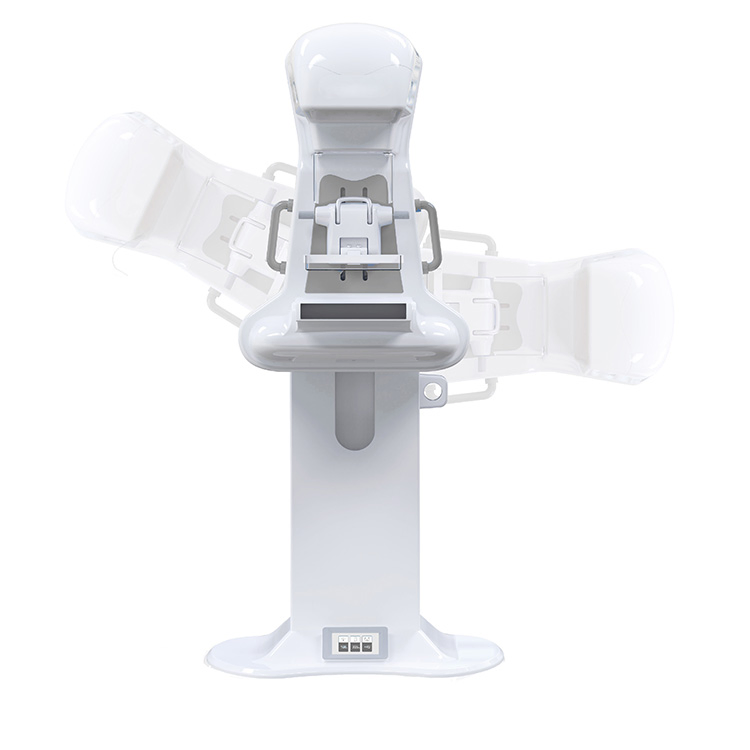

| Rotation angle | -90° ~ +90° |
| Vertical range | 650mm ~ 1300mm |
| SID | ≥65cm |
| Exposure & Compression |
| Exposure modes | Full-automatic, Semi-automatic, and Manual mode |
| Maximum pressure | 200N |
Application & Environment
Certifications & Team
Frequently Asked Questions (FAQ)
Is the XMM400 suitable for patients with dense breasts?
Yes, the system is specifically designed and optimized with a tungsten molybdenum alloy target which has superior penetrating performance for dense breasts.
What is the radiation dose reduction compared to standard systems?
The XMM400 can reduce the X-ray dose by approximately 30% for patients while maintaining high image quality due to its advanced algorithms and tube technology.
How fast is the imaging process?
The system features a very short imaging time of less than or equal to 5 seconds, with the shortest acquisition taking only 2 seconds.
Does the machine accommodate wheelchair patients?
Yes, the design is wheelchair compliant and features a smooth height adjustment range from 650mm to 1300mm to cover various patient body heights.
Is the software DICOM 3.0 compatible?
Yes, it is fully DICOM 3.0 compatible, allowing for seamless integration with hospital PACS systems and other DICOM compatible devices.
What type of certifications does this mammography system hold?
The equipment is certified under CE and ISO13485 standards, ensuring it meets international medical quality and safety requirements.
