X Ray Cargo and Vehicle Inspection X-ray Machine Container Scanner

Customization:	Available
Portable:	Non Portable
Form:	Flatbed

Send Inquiry

Product Description

Basic Specifications

Model NO.AT 2900

ApplicationSecurity Check

TypeIndustrial High-definition X-ray Detector

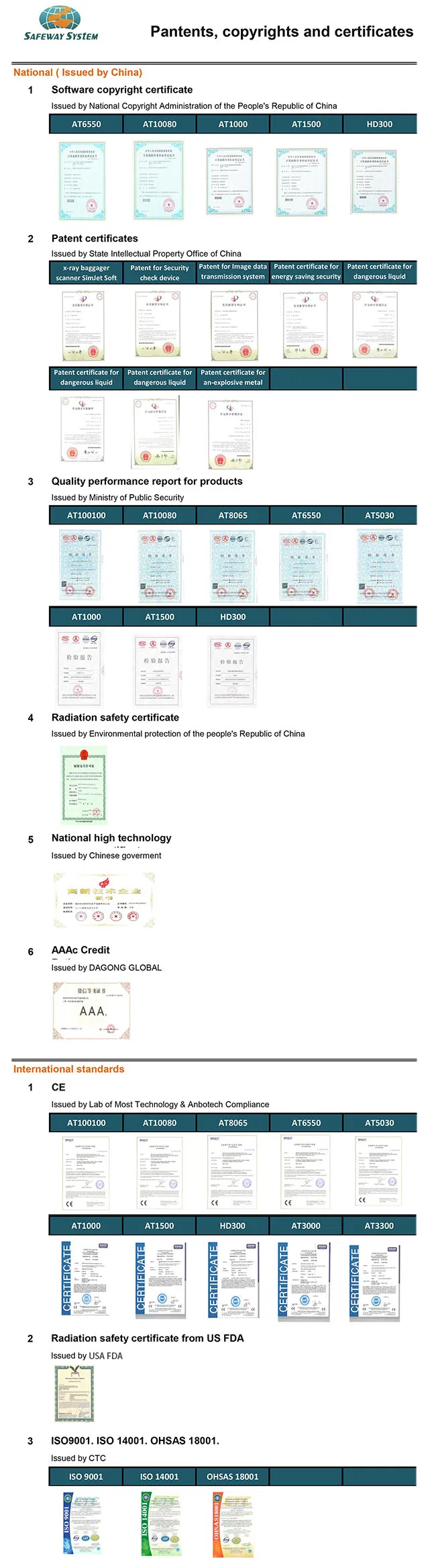

CertificationCE, ISO, Ukas

Alarm FormAudible Alarm

Energy Level200kv

Speed10m

Scanned SizeH 3000mm, W 3000mm

HS Code9022191000

OriginChina

Product Highlights

🚗

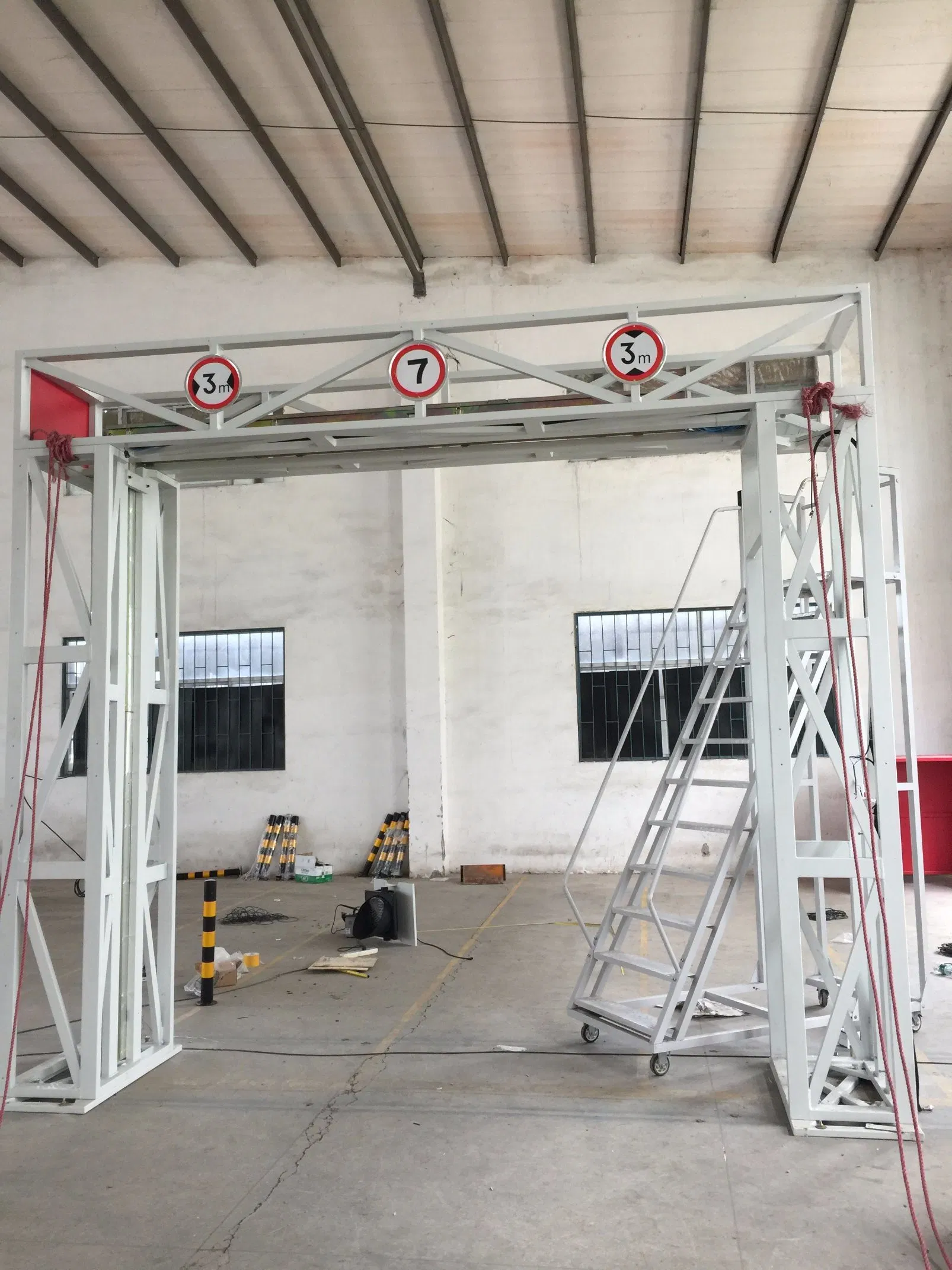

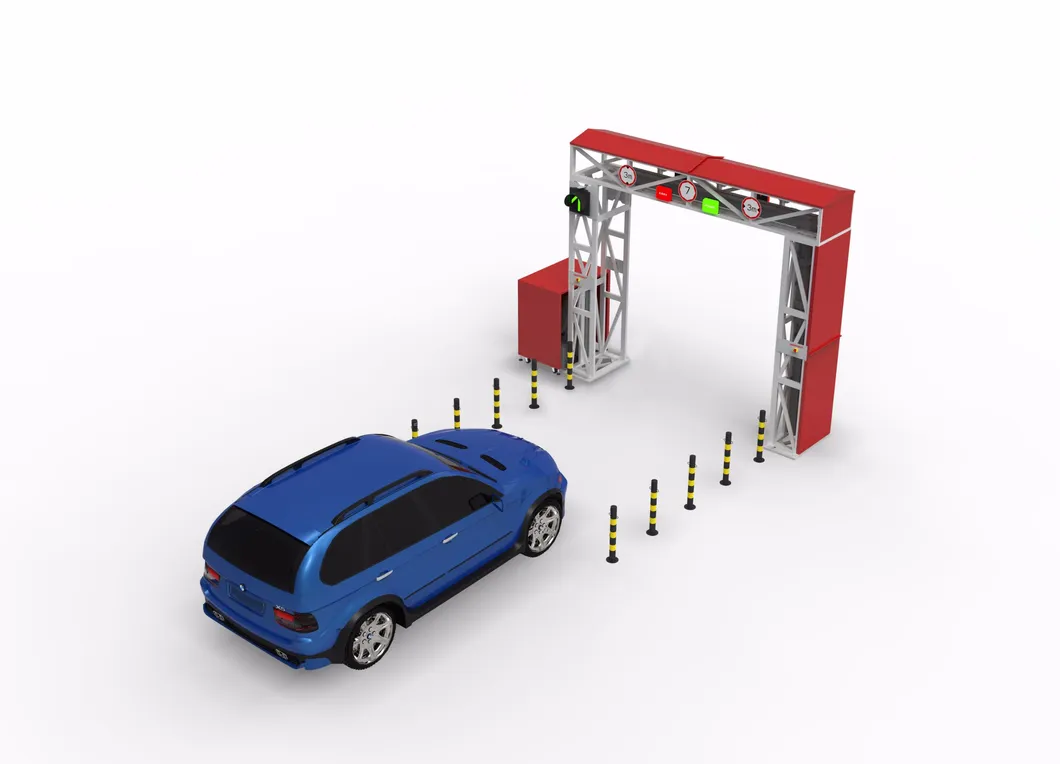

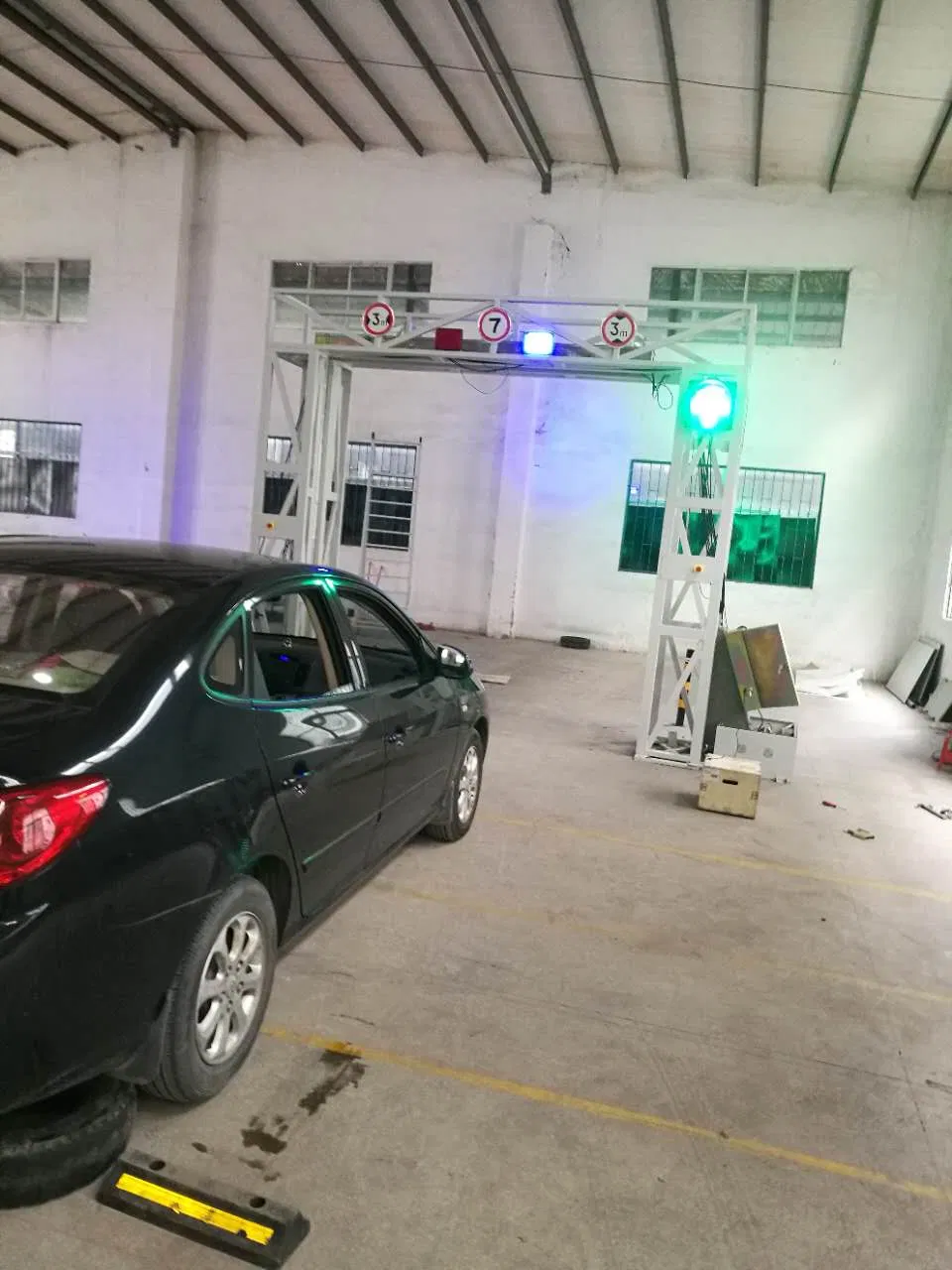

Drive-thru Technology Occupied vehicle scanning capability: passengers can stay in their cars during the scanning process, driving under their own power through the inspection portal.

📍

Small Footprint Requires a relatively small ground surface without special requirements for additional infrastructure.

⚡

High Penetration Produces high-quality X-ray images through 20 mm of steel at vehicle speeds of 10 km/h.

🌈

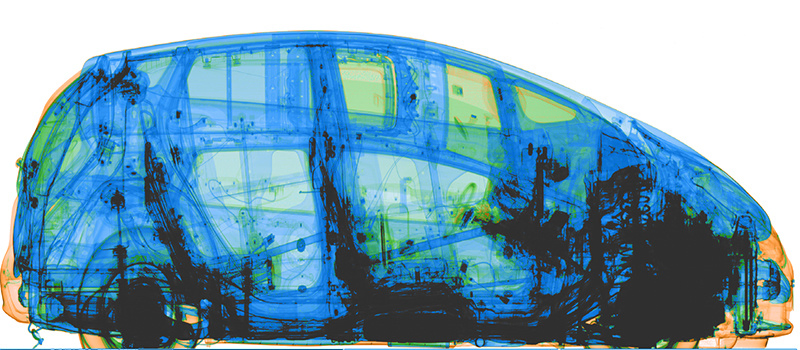

Dual Energy Imaging Automatic color coding for material separation (3 colors) allows for distinguishing between organic, non-organic, and metal materials.

🛡️

Radiation Safety Ensures low dose for driver and passenger operation (complies with ANSI 43.17 standard) and protection of the operator.

Technical Specifications

Physical & General Specifications
Equipment Size	4.8(L) * 4.9(W) * 3.75(H) M
Tunnel Size	3(L) * 3(H)m
Scanning Speed	5-10km/h
Typical Throughput	150 vehicles/hour
Penetration	Typical 45mm steel, Application 20mm steel
Wire Resolution	Dia 1.0mm copper wire
Dose to Passengers	<0.2μsv/scan
X-ray Generator & Environment
Dual Energy Accelerator	200kv
Beam Shape	Vertical fan-shaped beam
Operating Temp/Humidity	-15ºC to 55ºC / 5% to 95% (non-condensing)
Operation Power	220VAC(±10%) 50±3Hz (Optional: 100V-200V)

Software Capabilities

Password-protected operator login

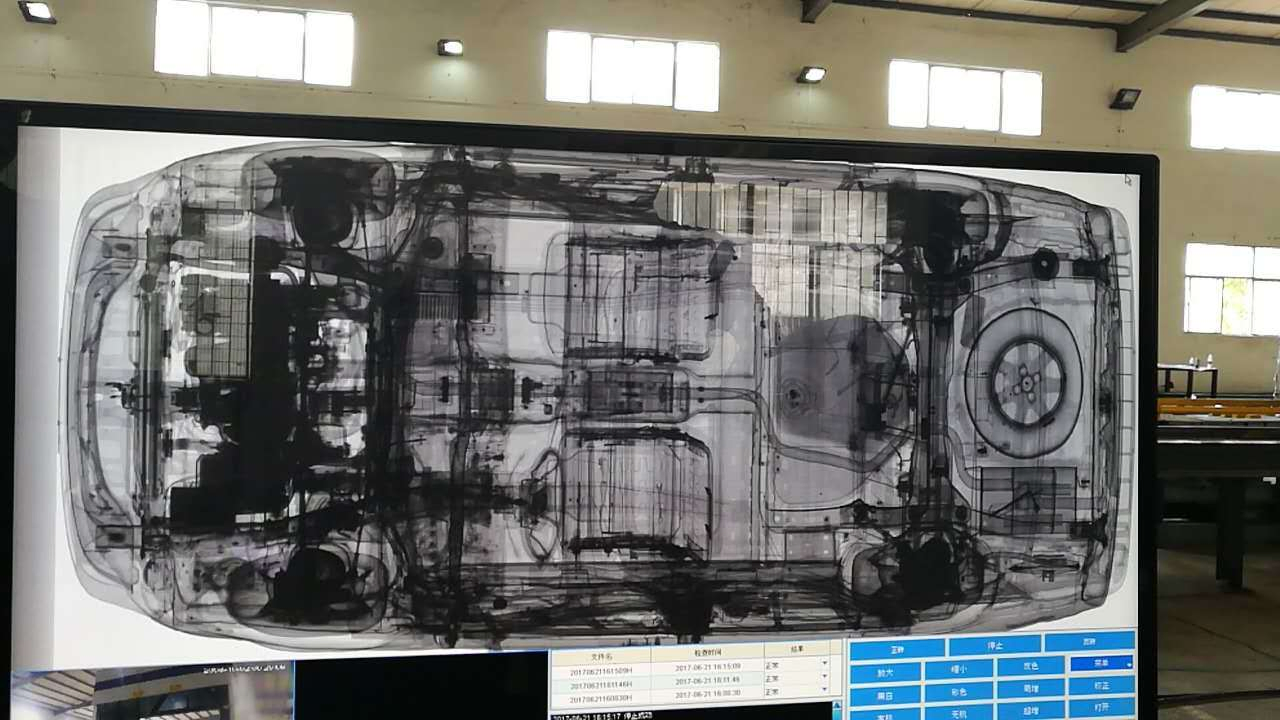

Automatic real-time display of inspected vehicle
Brightness and contrast adjustment of acquired images
High-density and low-density objects display feature
Zoom and pan functions (up to 8x)

Frequently Asked Questions

Q1: Can passengers stay inside the vehicle during the scan? Yes, the AT 2900 uses drive-thru technology which allows passengers to remain safely inside their cars while driving through the inspection portal.

Q2: What is the scanning capacity of this system? The system has a typical throughput of approximately 150 vehicles per hour, with scanning speeds ranging from 5 to 10 km/h.

Q3: How deep can the X-ray penetrate steel? The system provides typical penetration of 45mm of steel and application penetration of 20mm of steel.

Q4: Is the radiation dose safe for humans? Yes, the dose to passengers is less than 0.2μsv per scan, which complies with international IAEA and ANSI 43.17 safety standards.

Q5: Can the system distinguish between different types of materials? Yes, the dual-energy imaging feature provides automatic 3-color coding to help operators distinguish between organic, non-organic, and metallic materials.

Q6: What are the installation requirements? The AT 2900 is designed with a small footprint, ideally requiring an installation area of 7m(L) * 5m(W) * 4.5m(H) without complex infrastructure needs.
