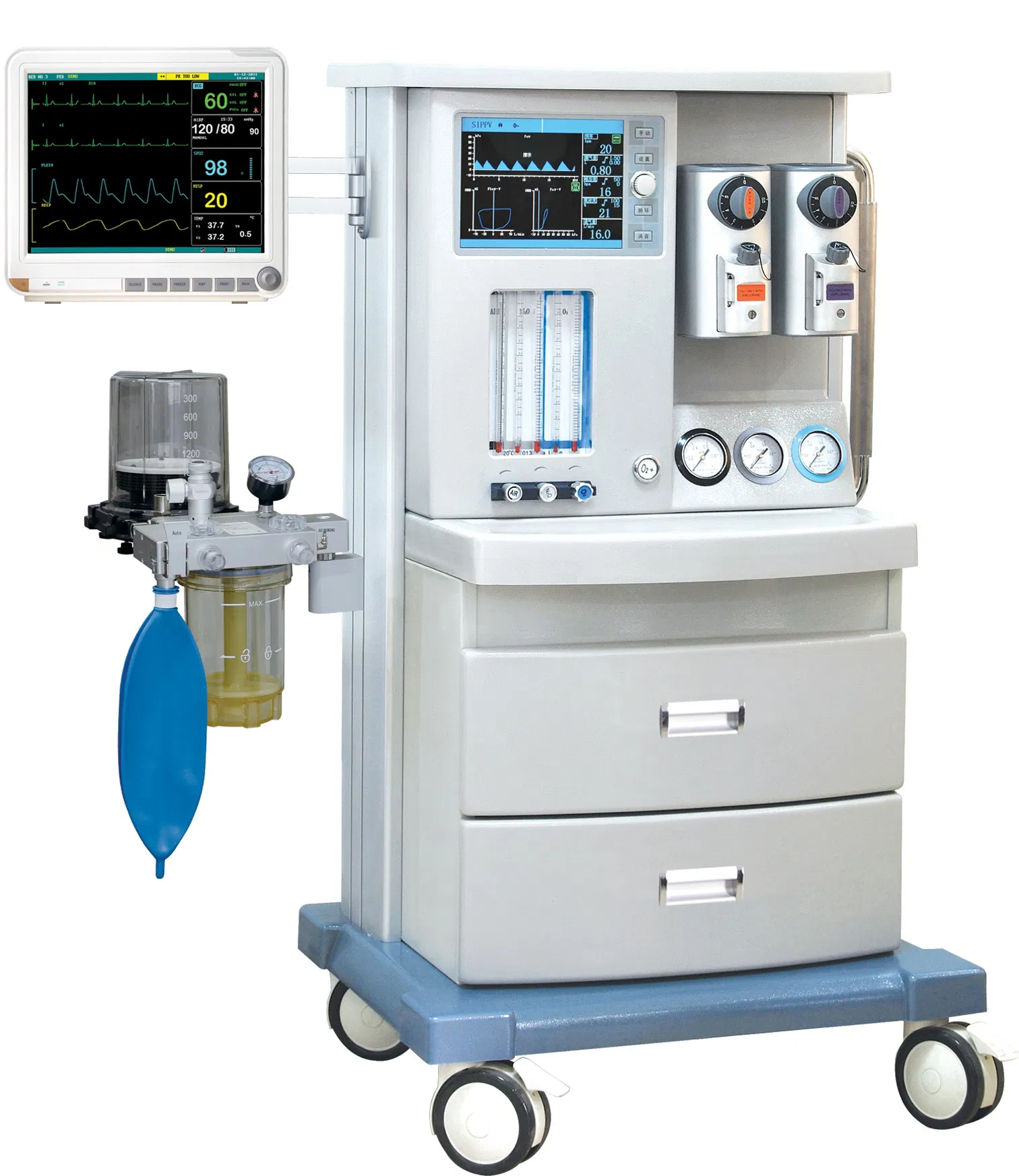

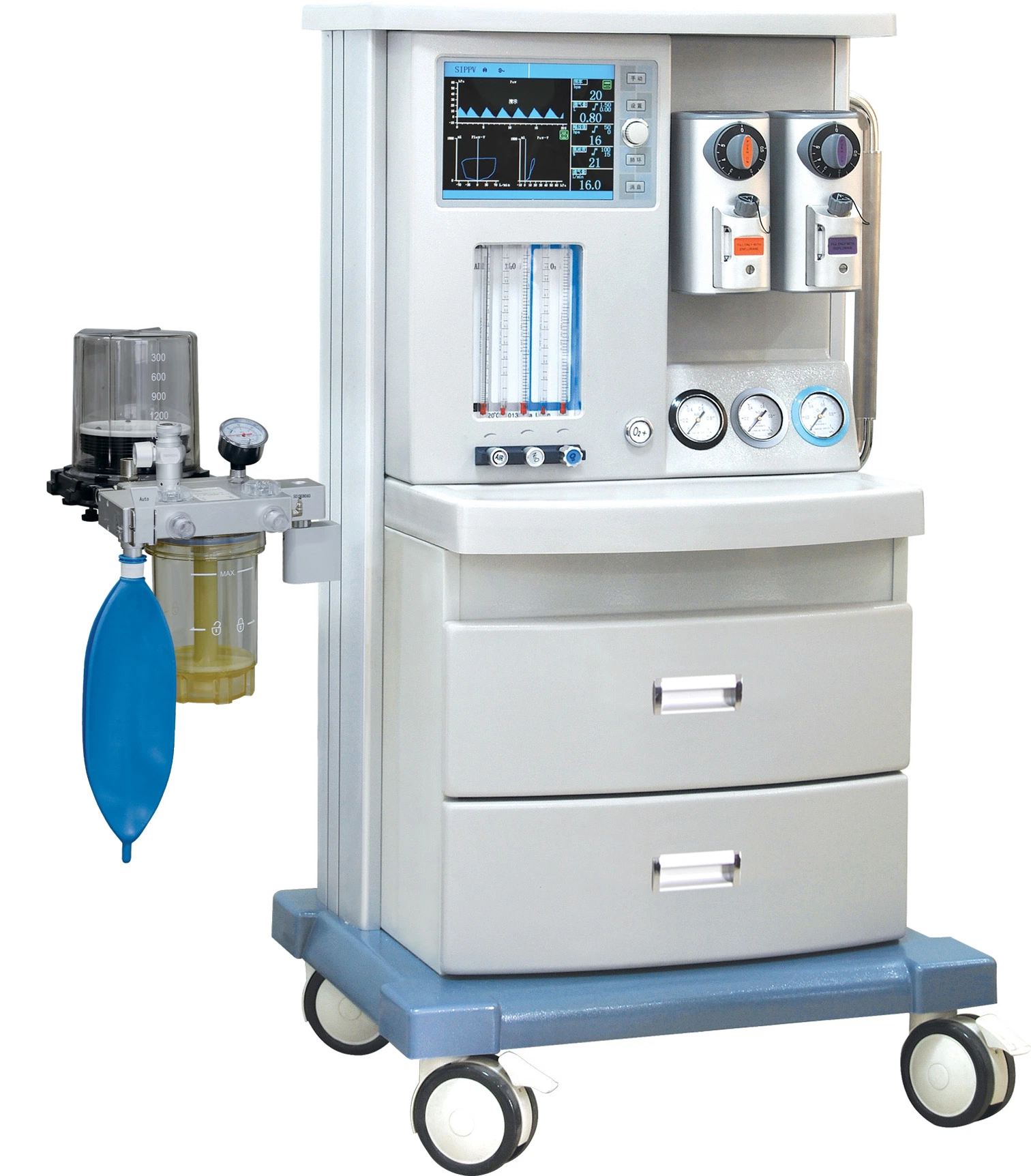

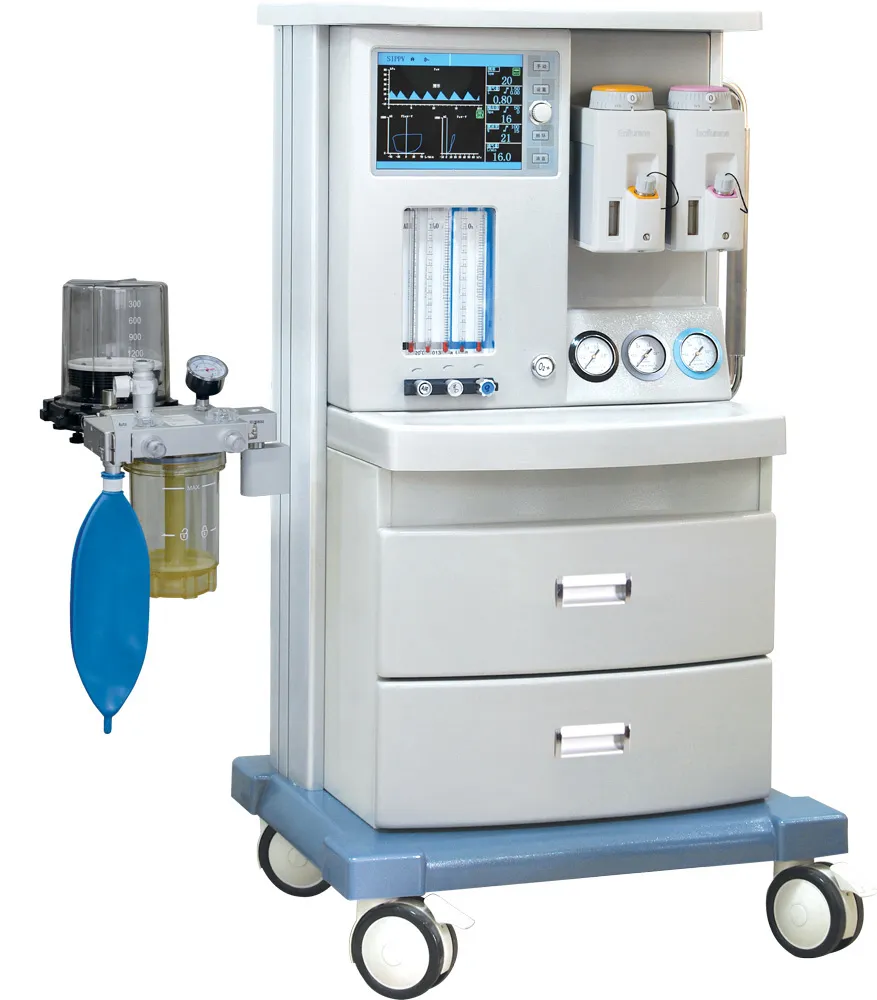

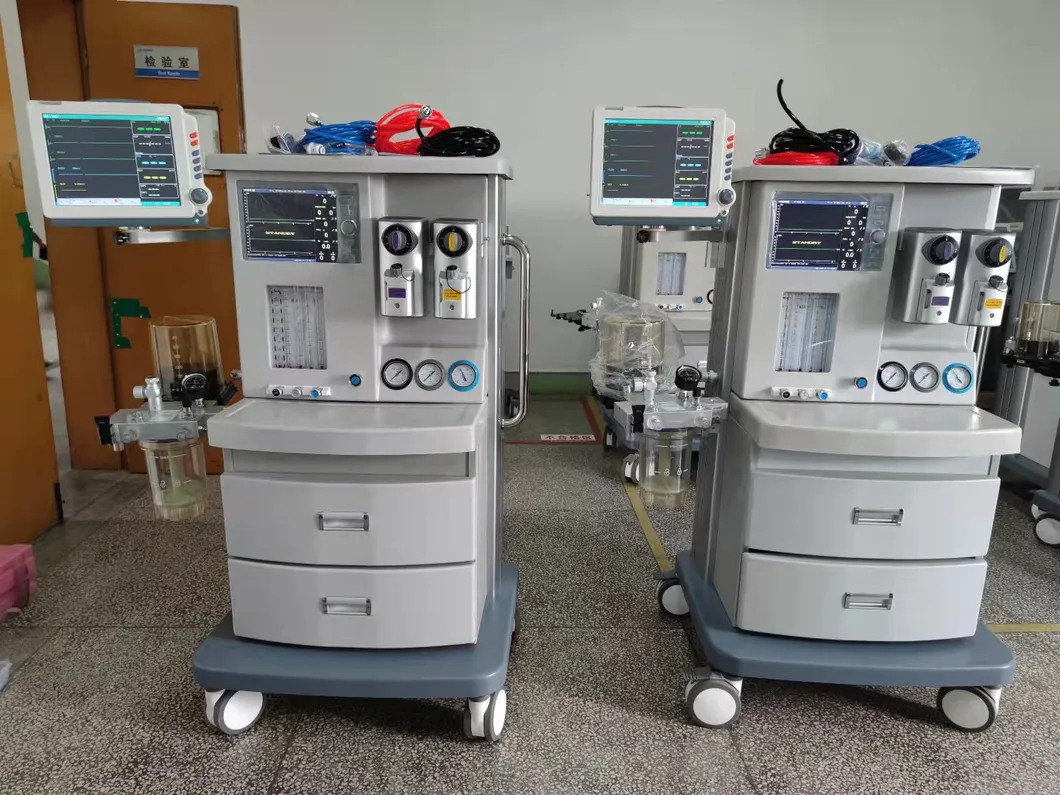

Technical Specifications Overview
Model NO.JINLING 850
CertificationISO13485, RoHS
ApplicationAdult and Children
Display10.4 Inch TFT Display

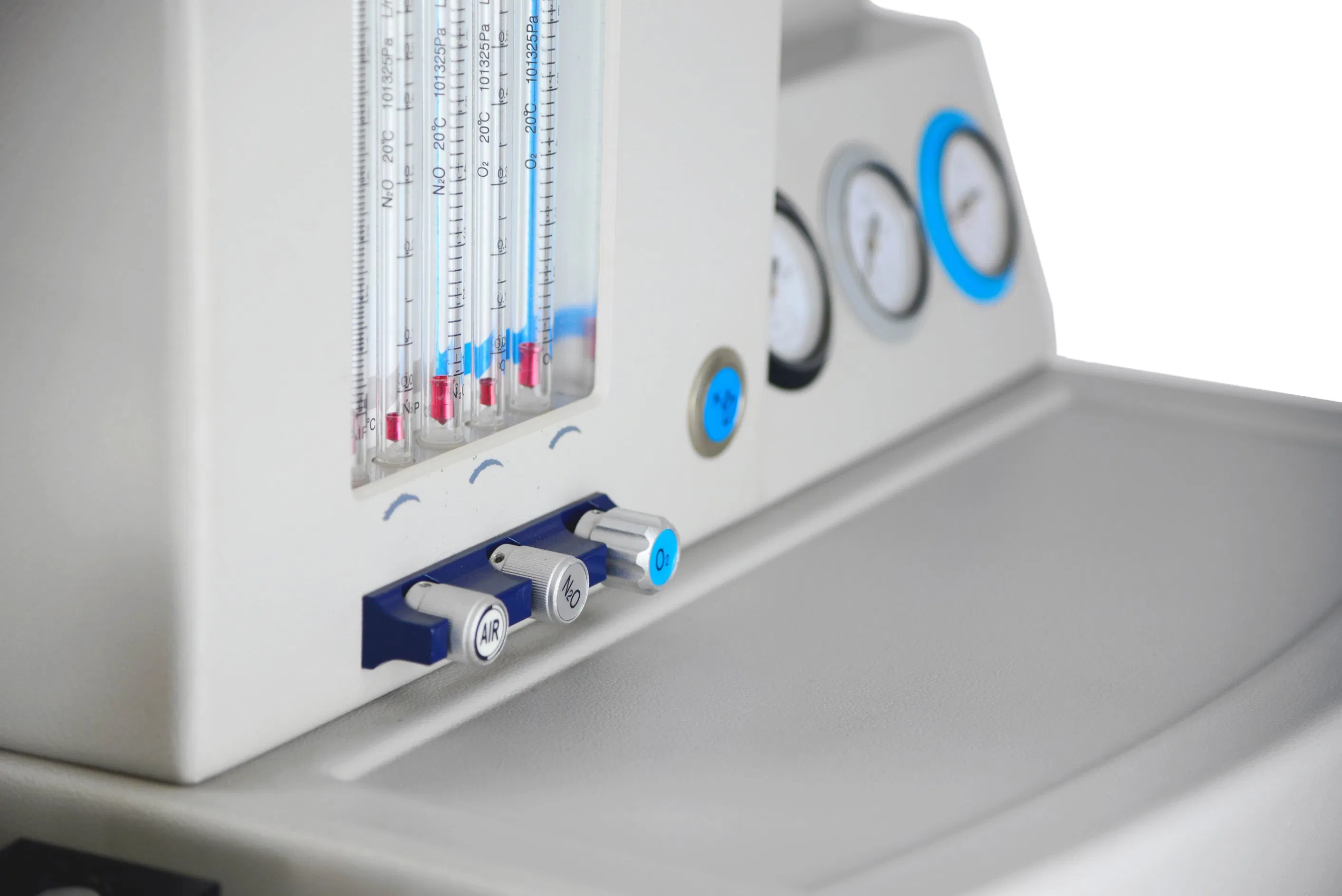

Flowmeter RangeO2: 0.1~10L/Min; N2o: 0.1~10L/Min
Ventilation ModeIppv, Sippv, Pcv, Imv, Simv, Manual
Back-up PowerAt least 4 Hours
Tidal Volume0~1500ml (Adj), 0~2000 (Display)
Oxygen Flush25-75L/Min
OriginChina
Core Performance Features
-
●
Operating Modes: Pneumatically driven & electronically controlled; supports closed, semi-closed, and semi-open systems.
-
●

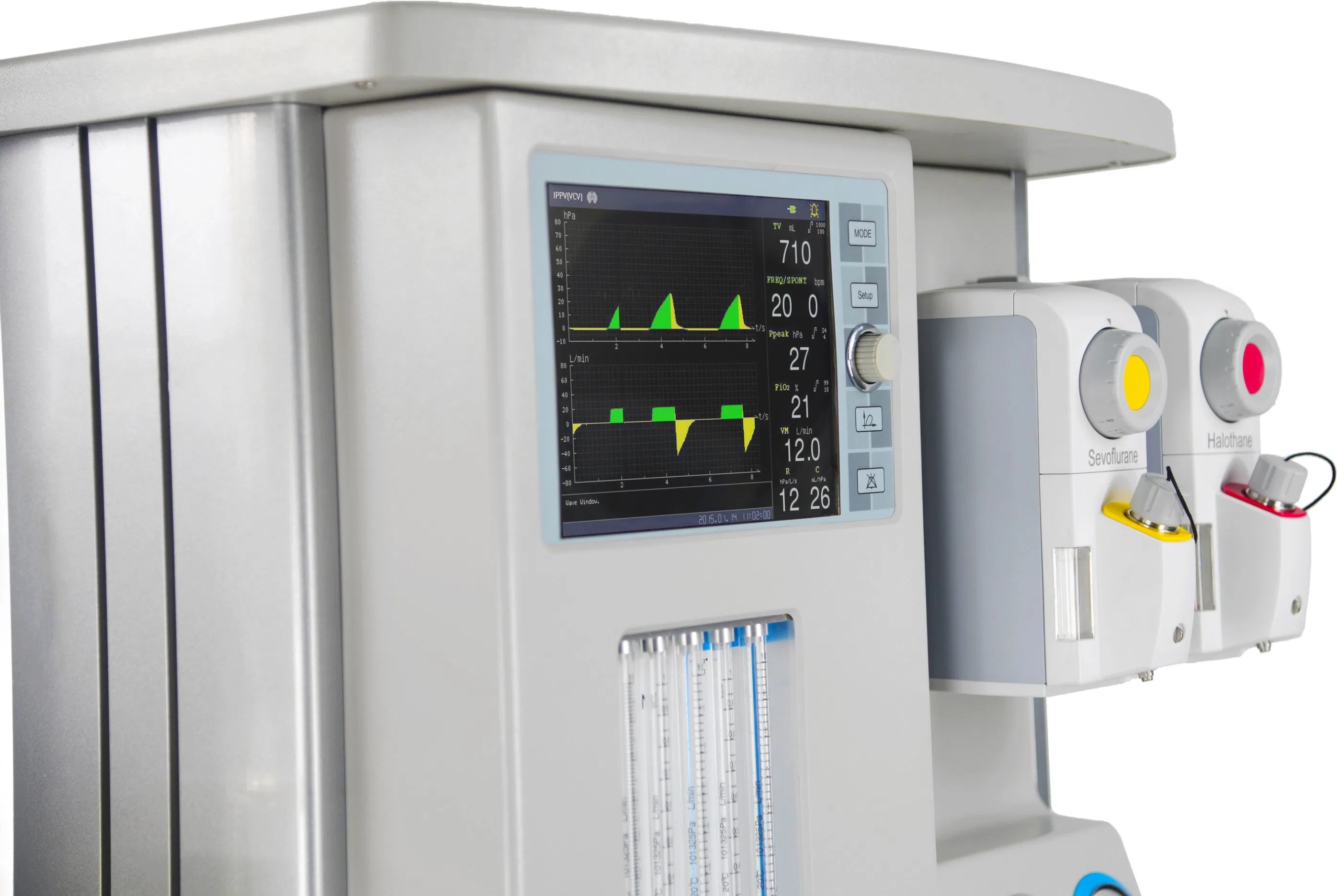

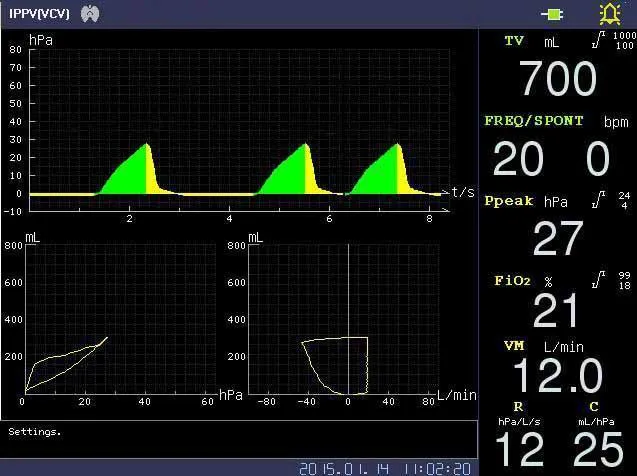

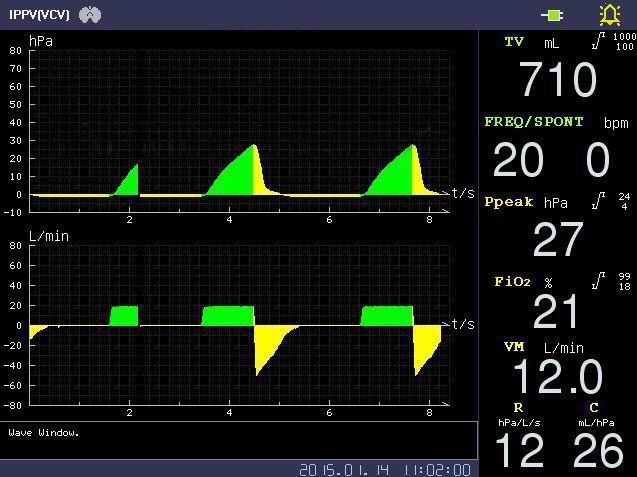

Advanced Monitoring: Built-in color TFT display showing Pressure-Time, Frequency-Time, Pressure-Volume, and Frequency-Volume waveforms.
-
●
Respiratory Circuit: Standard integrated metallic modular circuit; high-temperature disinfection compatible with superior sealing.
-
●
Safety Systems: Interlocking oxygen-nitrous oxide supply guarantees oxygen output never falls below 21%.
-
●

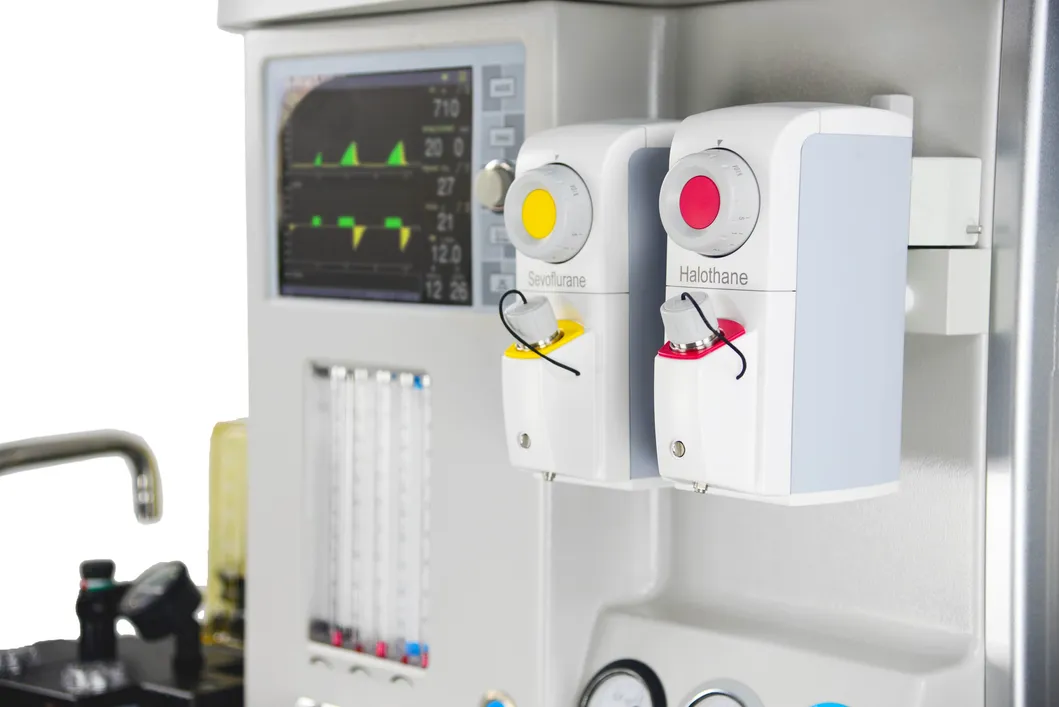

Vaporizer Quality: High-precision Enflurane, Isoflurane, and Sevoflurane options with self-compensating functionality.
-
●
Stable Components: Equipped with advanced international rotating Na-lime tank and Adjustable Pressure Limiting (APL) valve.
Detailed Specifications
| Parameter |
Details |
| Respiratory Frequency | 0-100bpm |
| SIMV Frequency | 1-20bpm |
| I:E Ratio | 8:1 - 1:10 |
| Inspiratory Pressure Trigger | -10 ~ 20cmH2O |
| PEEP | 0-20cmH2O |
| SIGH | 1 breath in every 70-120 breaths |
| Inspiratory Plateau | 0-1 second |
| Inhaled O2 Monitor | 21-100% |
| Gas Supply Pressure | O2/N2O/AIR: 0.32MPa ~ 0.6MPa |
| Vaporizer Slots | Double PA-I type slots |
Frequently Asked Questions
What patient groups is the JINLING 850 suitable for?
The system is designed for both adult and pediatric patients in hospital ICU and surgical operation room settings.
How long can the machine operate during a power failure?
The built-in back-up power supply ensures the machine remains operational for at least 4 hours during AC power outages.
Does the machine support low-flow anesthesia?
Yes, it is equipped with an advanced Adjustable Pressure Limiting (APL) valve specifically designed for low and ultra-low flow anesthesia.
What kind of display monitor does it have?
It features a 10.4-inch color TFT display that provides real-time waveforms including Pressure-Time and Pressure-Volume loops.
How is the breathing circuit disinfected?
The unit features a standard integrated metallic modular respiratory circuit that is designed for high-temperature disinfection to ensure complete gas sealing and hygiene.
What are the vaporizer options?
The system features double PA-I type slots and supports Enflurane, Isoflurane, and Sevoflurane, with Halothane as an optional addition.
