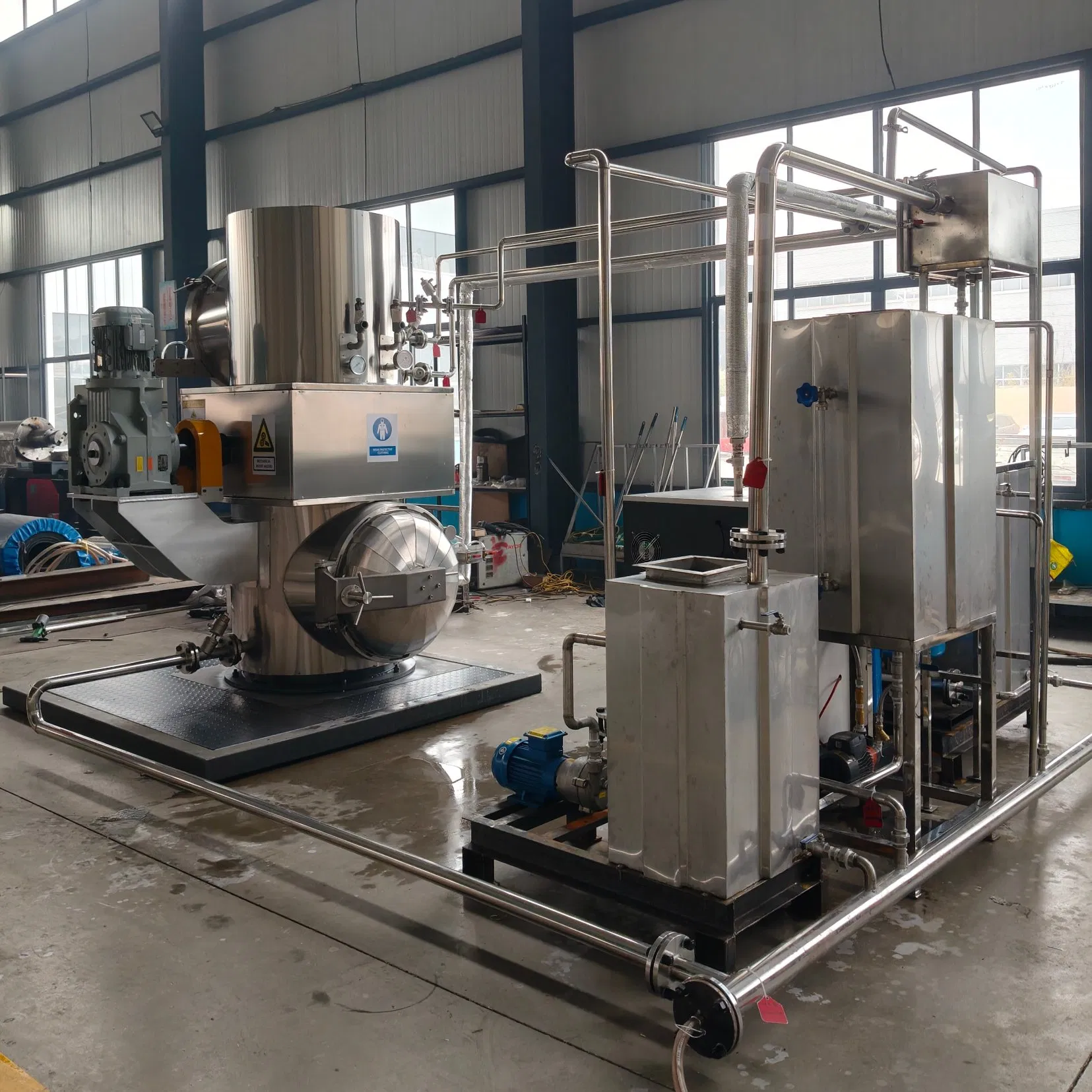

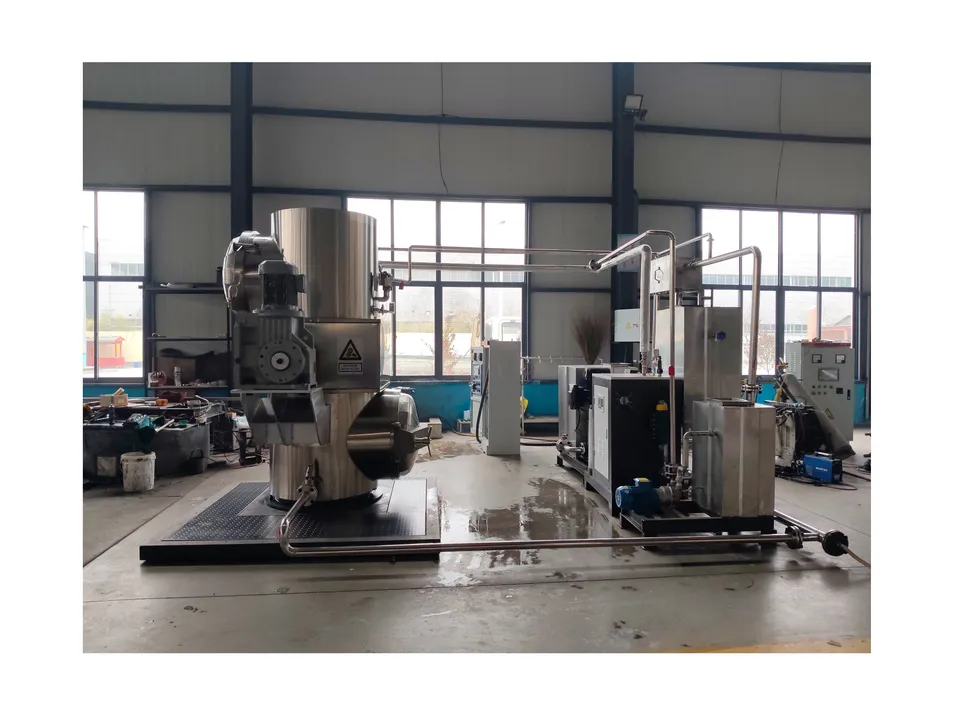

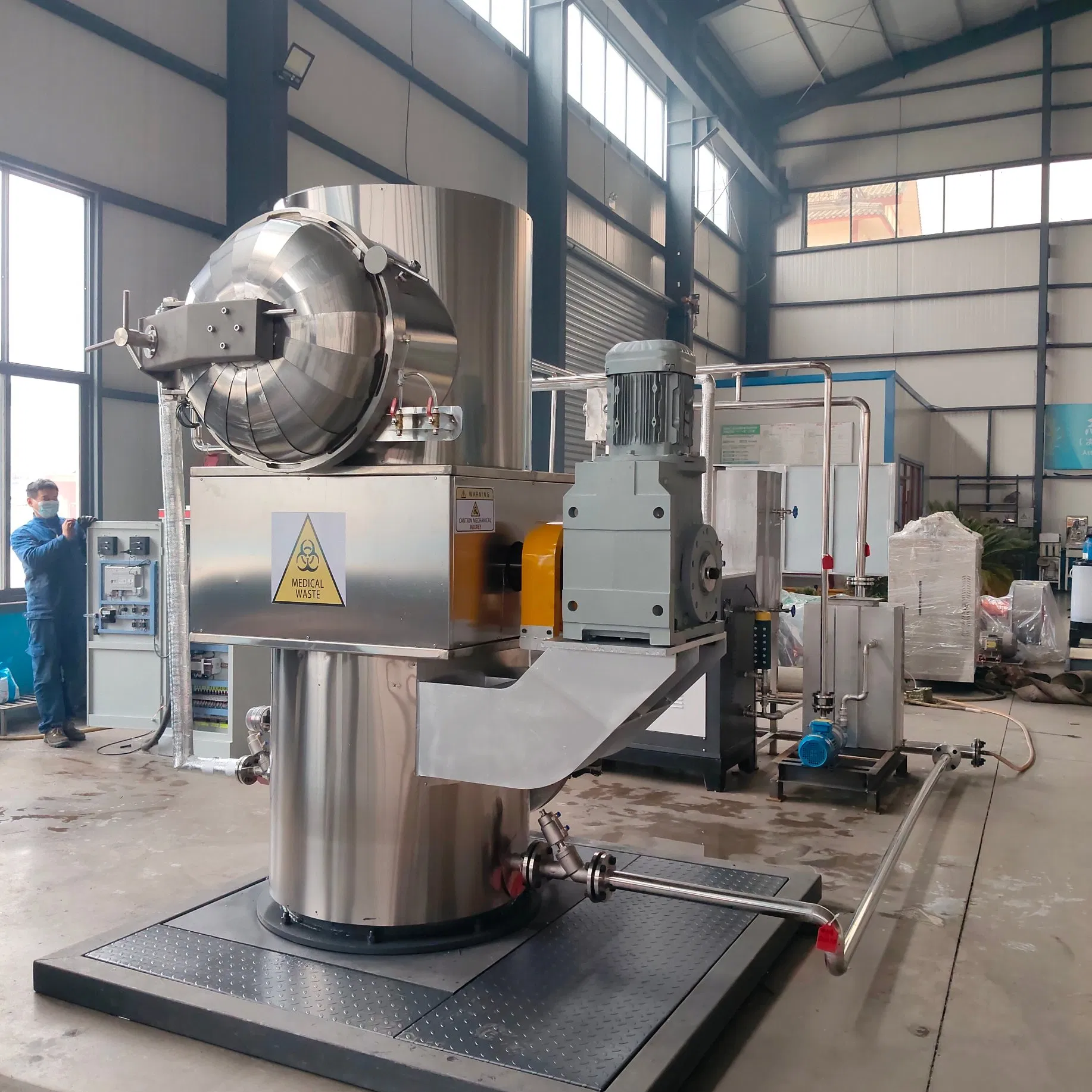

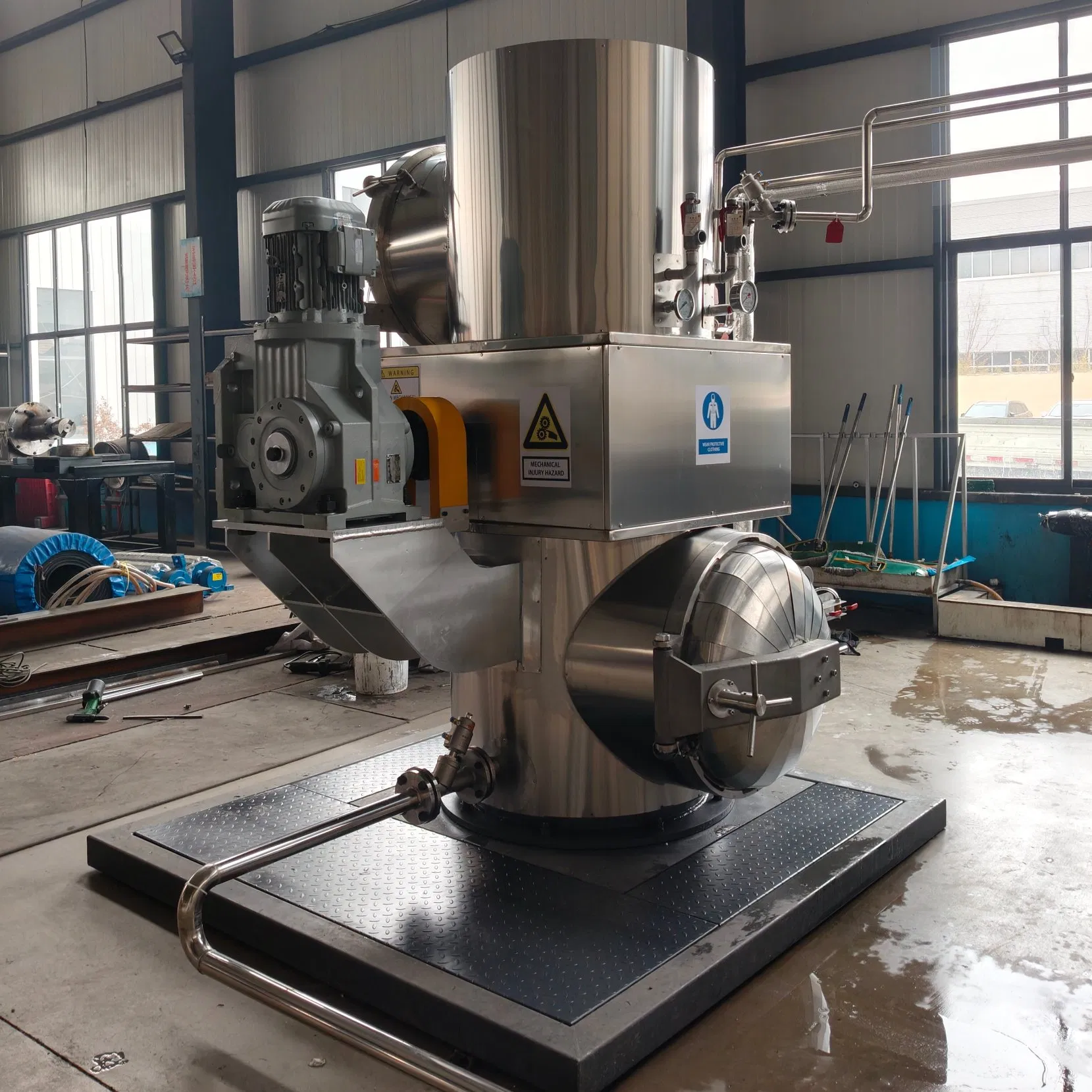

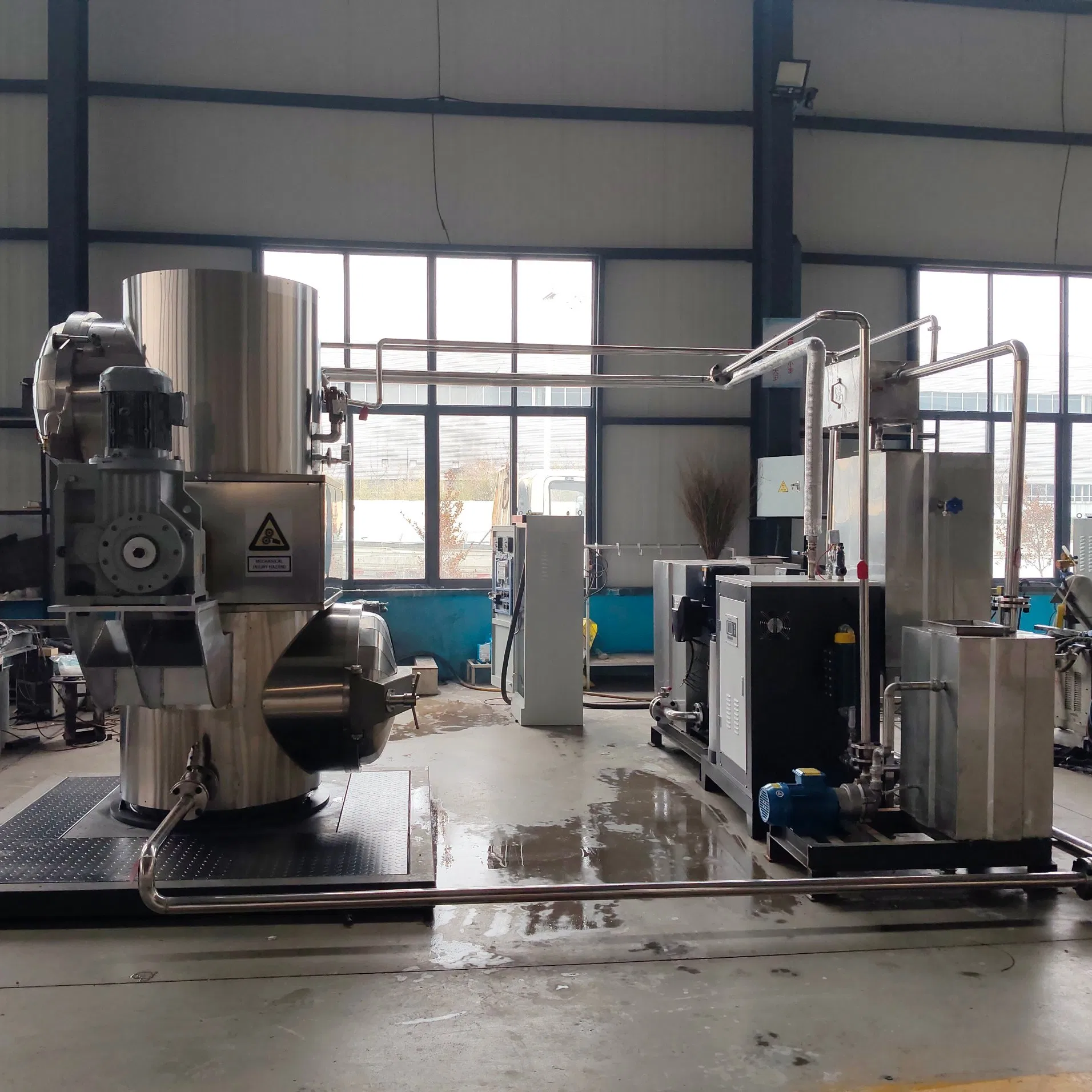

Vertical medical waste high-temperature disinfection and sterilization environmental protection equipment
Working Principle:
The collected medical waste is manually fed into a sterilizer, and the feed door is closed. Inside the sterilizer, a shredding system breaks the medical waste into particles. After shredding, a pre-vacuum method is used to purge the air from the sterilizer. Then, high-temperature, high-pressure saturated steam is introduced. After treatment, a vacuum process removes remaining air and air is injected. Pathogens are effectively killed, allowing waste to be treated as ordinary household waste.

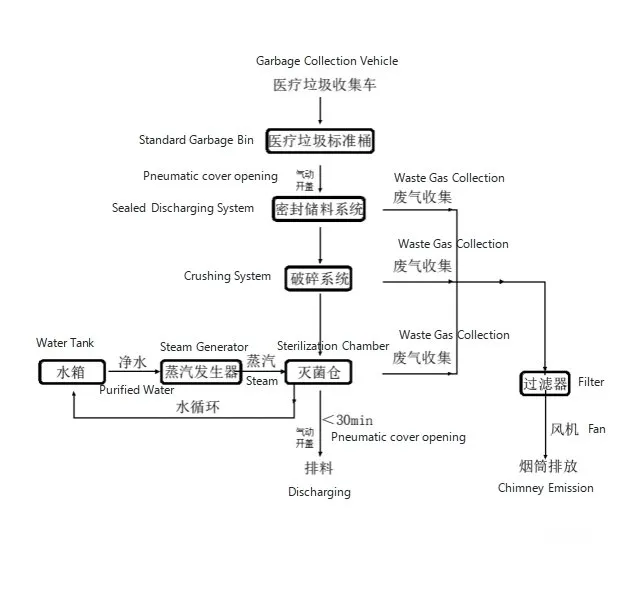

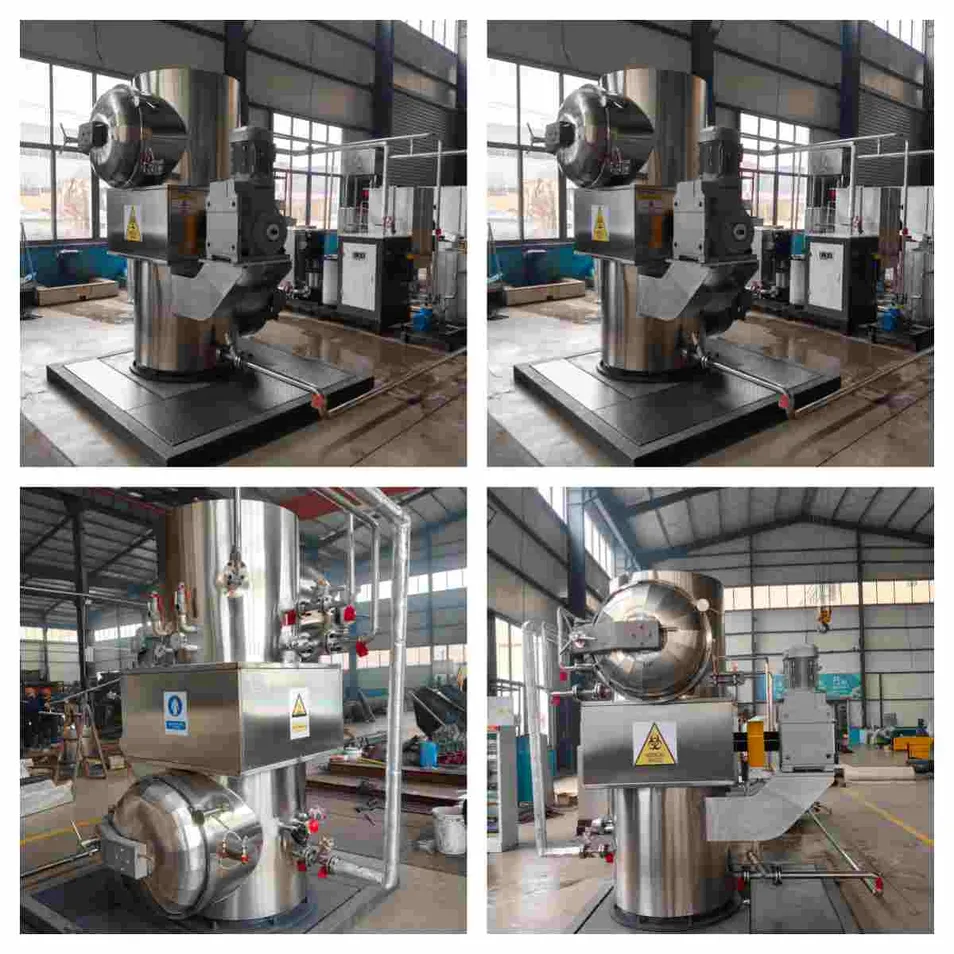

Working Process Schematic

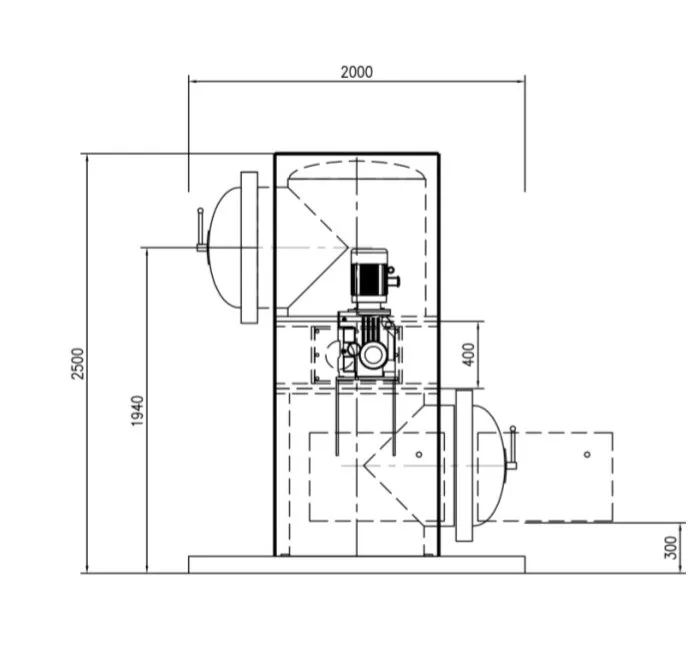

System Units Assembly Sequence
The sealing connection with the shredding system is composed of a stainless steel flange and a high-temperature resistant gasket, while the sealing method of the quick-opening discharge door is an inflatable gasket. Fixed lugs are welded on the upper end of the high-temperature sterilization chamber, fastened with high-strength bolts.
| System Unit | Project | Technical Parameters |
|---|---|---|
| Processor Parameters | Processing Capacity | 60kg/h |
| Single Processing Time | 30min | |
| Sterilization Method | High-temperature steam | |
| Volume Reduction Rate | 85% | |
| Vertical Vessel | Volume | 420L |
| Working Pressure | 0.3MPa | |
| Working Temperature | 134℃ | |
| Crushing System | Power | 7.5kw*1 |
| Control System | Operation | Industrial computer with mobile APP remote support |
