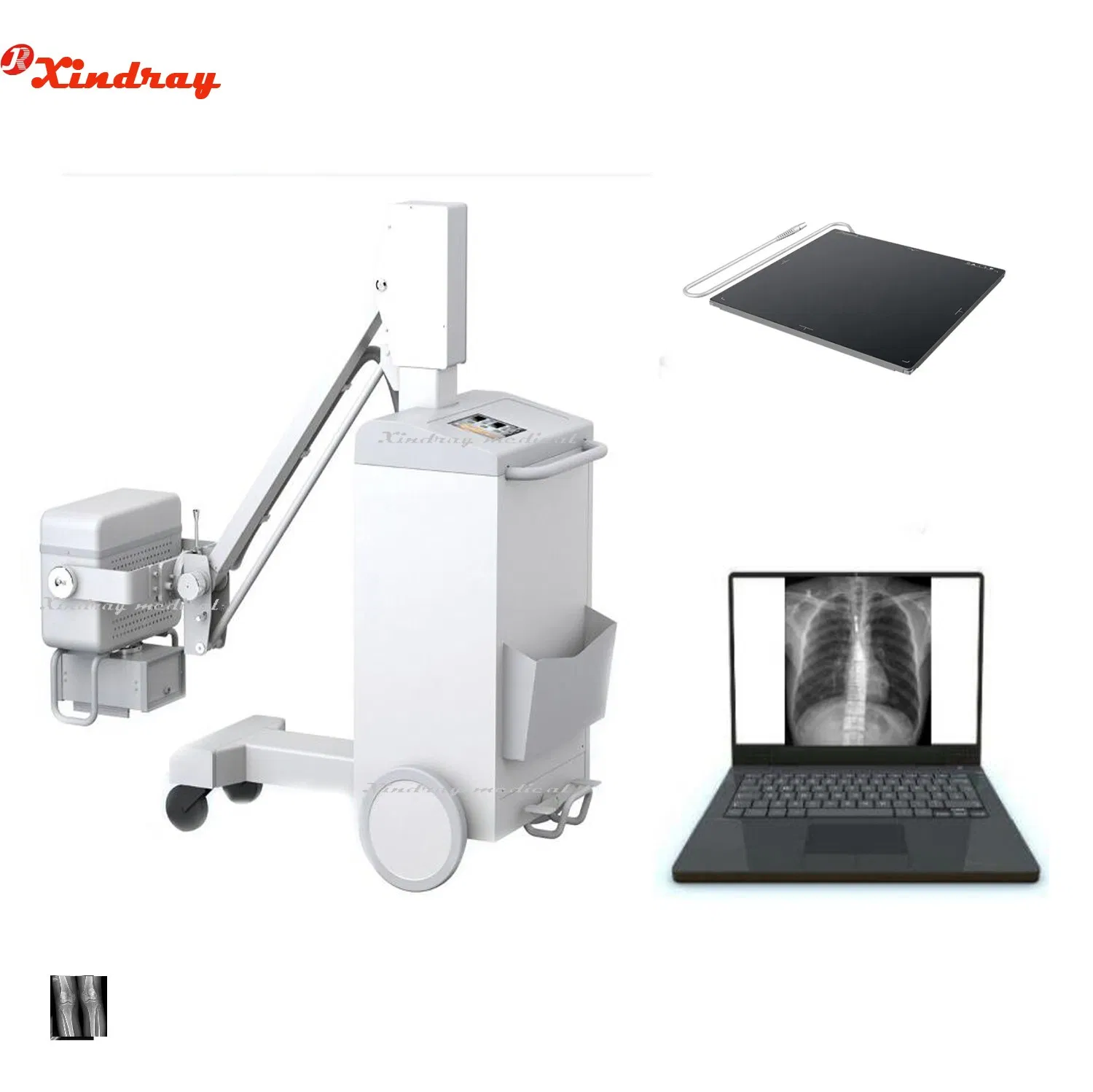

User-Friendly Touch Screen Digital Imaging Mobile X-ray Machine

1 / 5

User-Friendly Touch Screen Digital Imaging Mobile X-ray Machine

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	X Ray Equipment

Send Inquiry

Product Description

Basic Information

Model NO.

XrXMD220301103

Certification

CE, MSDS, ISO13485

Group

All People

Output Power

5.6kw

Tube Current

10-100mA

Power Supply

220V, 50kHz

Tube Voltage

40-120kv

Battery

Available Lithium

Touch Screen

8 Inch

Operation Method

Wire/ Wireless Control

After-Sales Service

Whole Using Lifetime

Package

Wooden Case

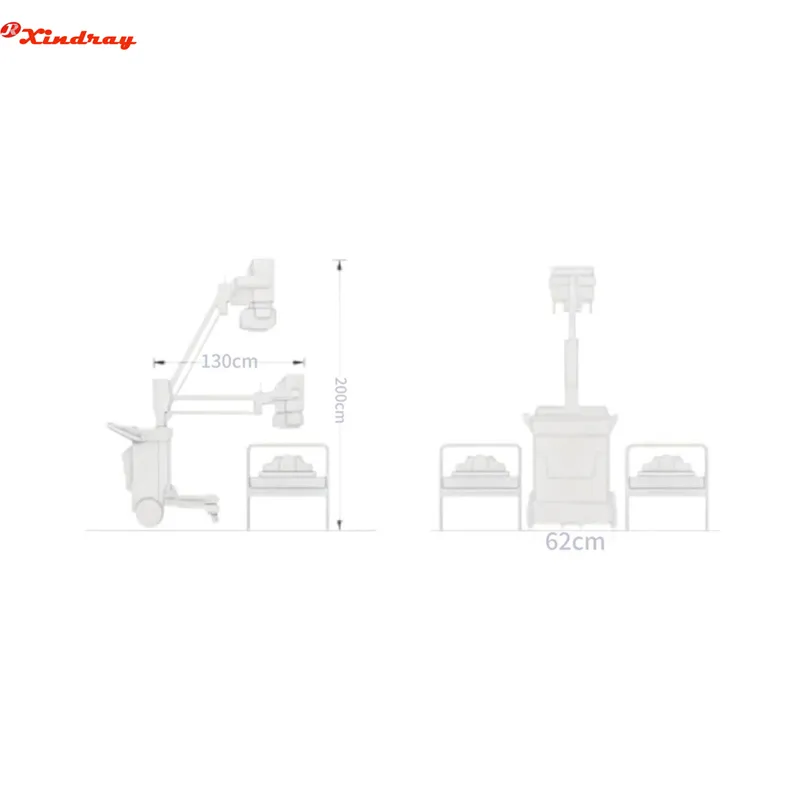

Specification

650cm*300cm*190cm

Origin

China

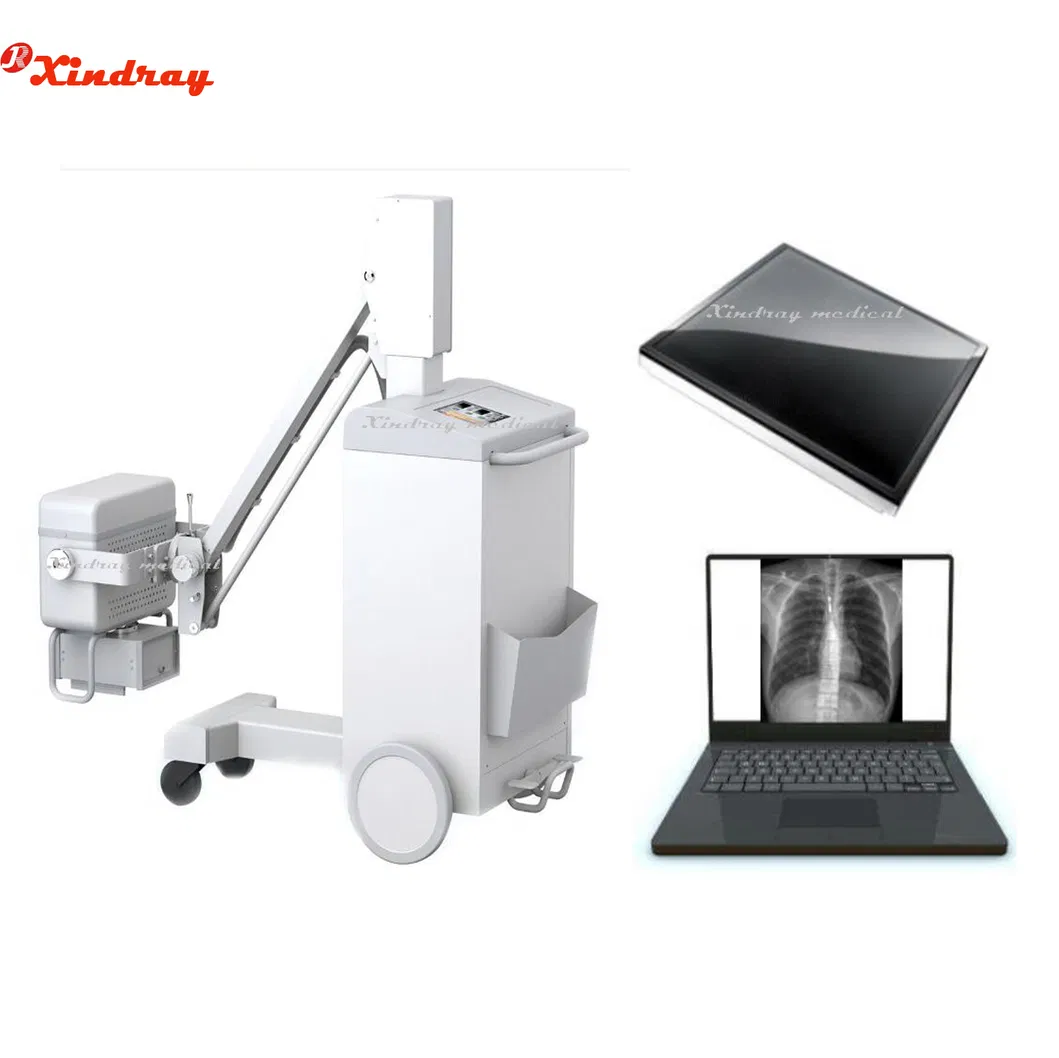

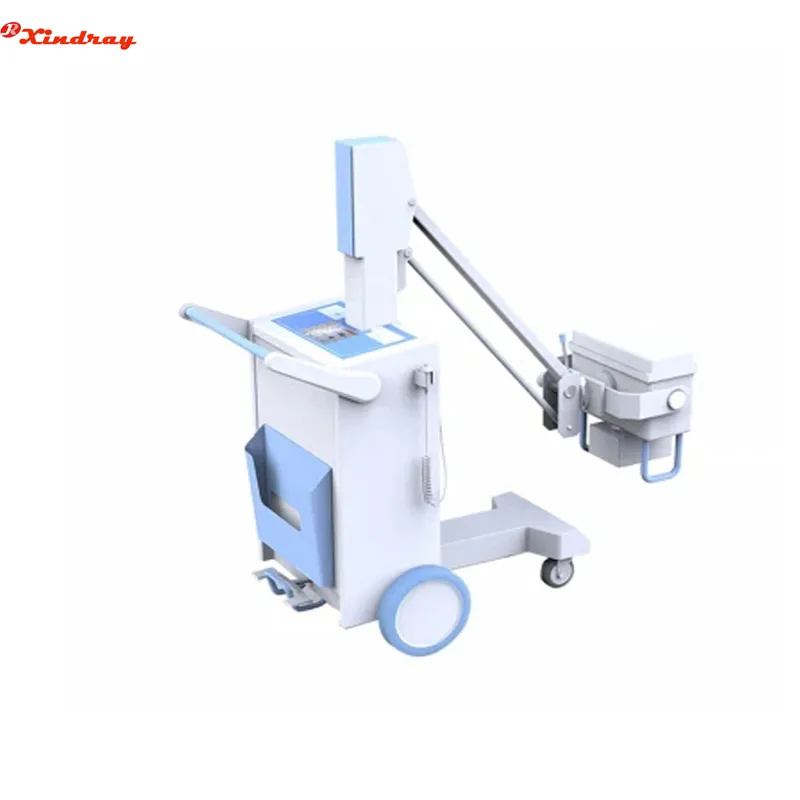

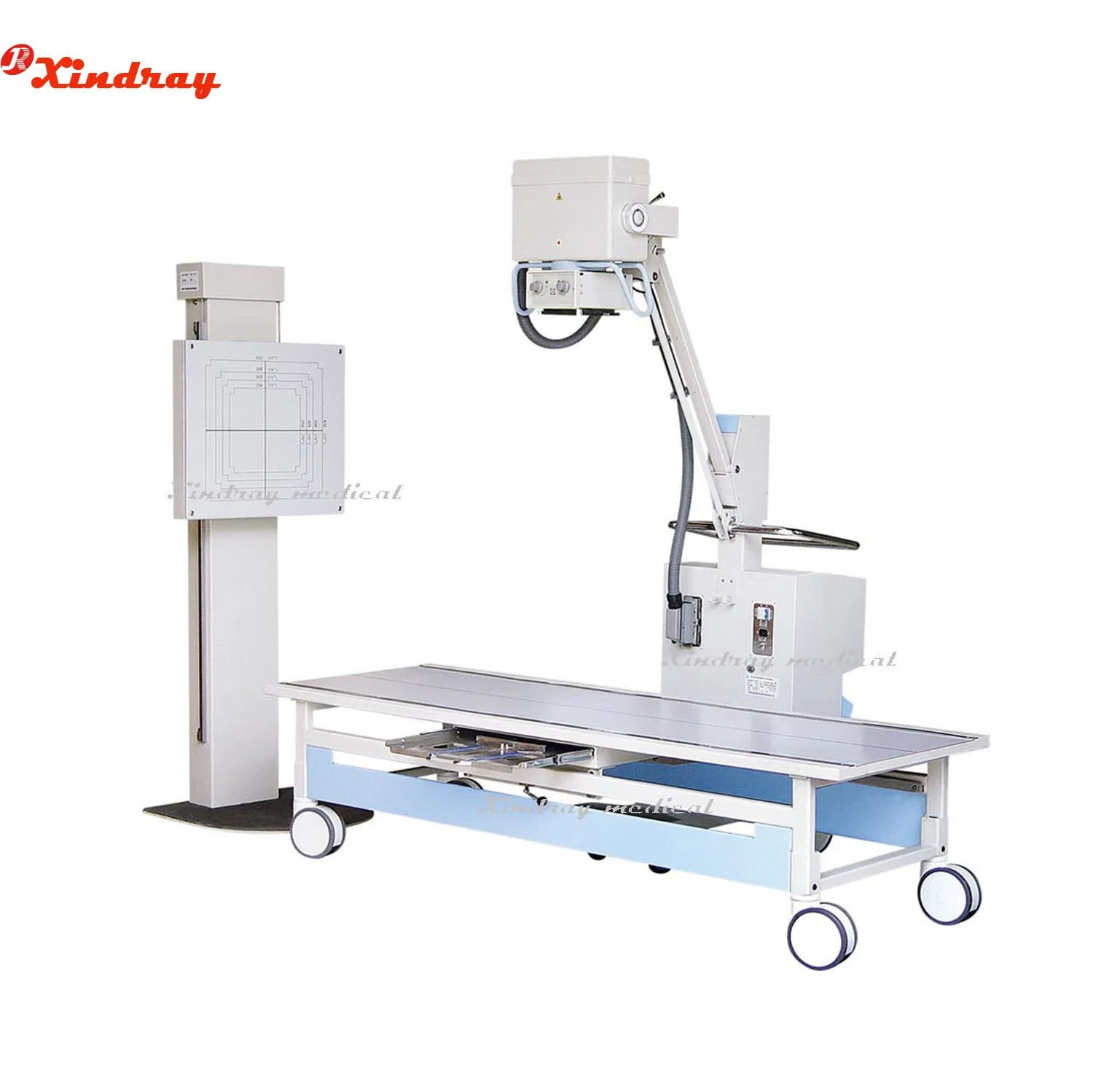

Touch Screen Digital Imaging Mobile X-ray Machine

★

Product Features

High frequency inverter emits high quality X-ray at low doses, ensuring excellent image definition and contrast.
Utilizes KV analog closed-loop control and mAs digital closed-loop control for precise dose repeatability.
Features two-button adjustment (kV, mAs), a clear LCD display, and multi-functional safety protection.
Includes 50 preset exposure programs that can be modified and stored by the user for efficient operation.
High-quality knockdown X-ray generator minimizes stray radiation, increasing safety for the environment and operator.
Symmetrical beam applicator and collimator lamp help locate the field accurately for precise radiography.

⚙

Technical Specifications

Item	Details
1. High Voltage Generator
Standard Power	5.6kW
mA Range	10-100mA
Tube Voltage	40-125kV
mAs Range	0.1-200mAs
Load Time	0.002s - 4s
2. X-ray Tube
Focus Range	0.6/1.8mm
Anode Type	Fixed Anode (15° Angle)
Max Voltage	125kV
3. Collimator
LED Lights	Equipped (30s auto-extinguish)
Measuring Ruler	Built-in

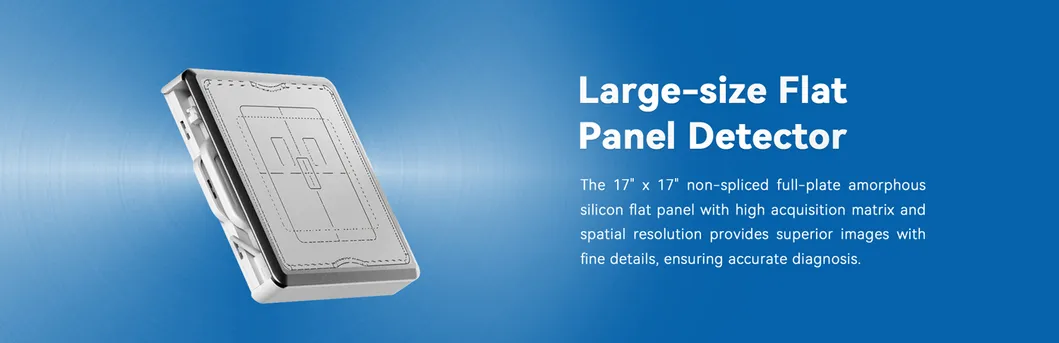

4. Detector (iRay)
Connection	WIFI, Amorphous Silicon Oxide
Effective Size	350mm × 430mm
Pixel Size	150 µm
5. Battery System
Power Type	Lithium battery (32.4V)
Capacity	More than 100 exposures per charge
Standby Time	≥ 7 hours

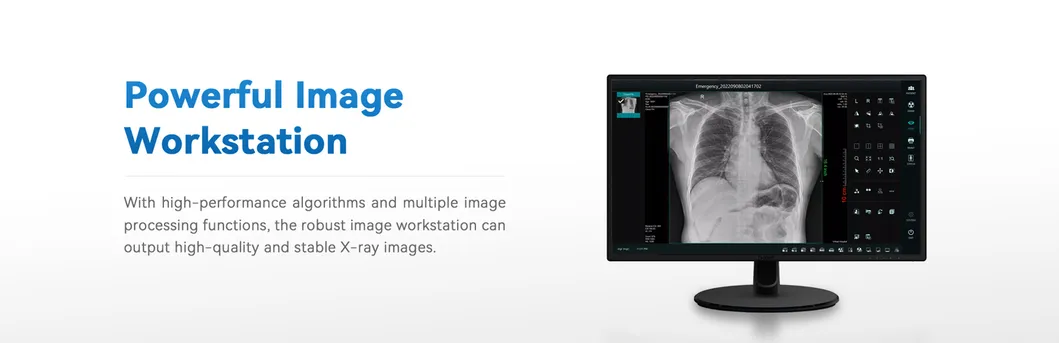

6. Workstation
CPU / RAM	Core i3 / 4GB
Storage	500 GB Hard Drive
OS	64 bit Windows

▣

Product Gallery

✔

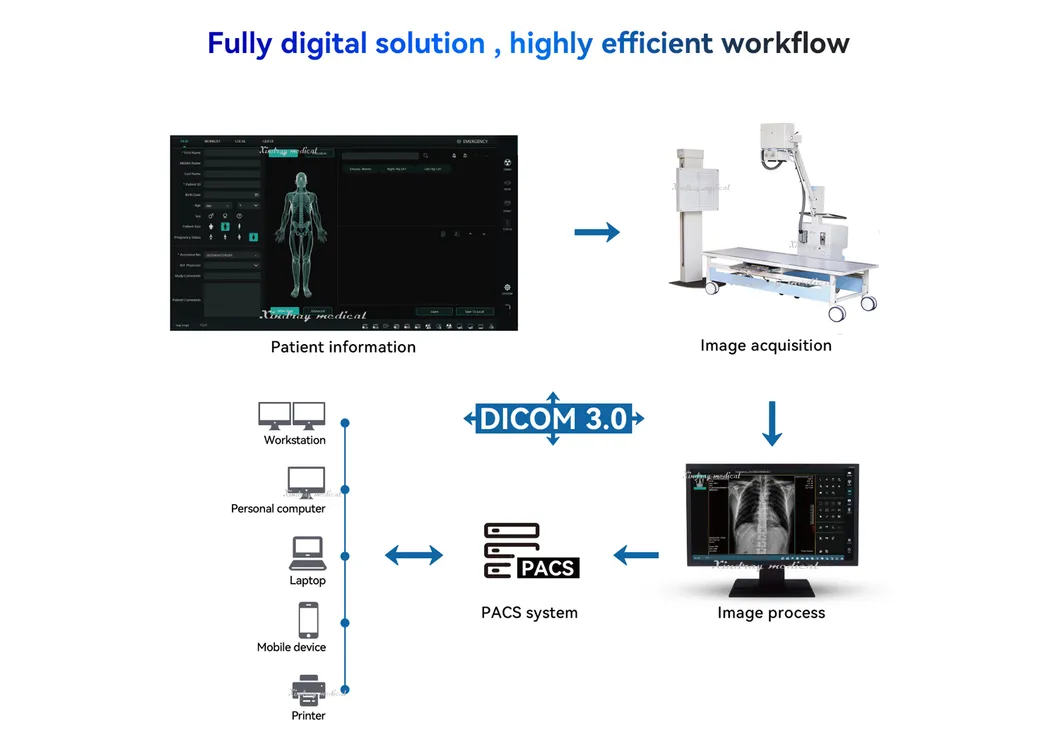

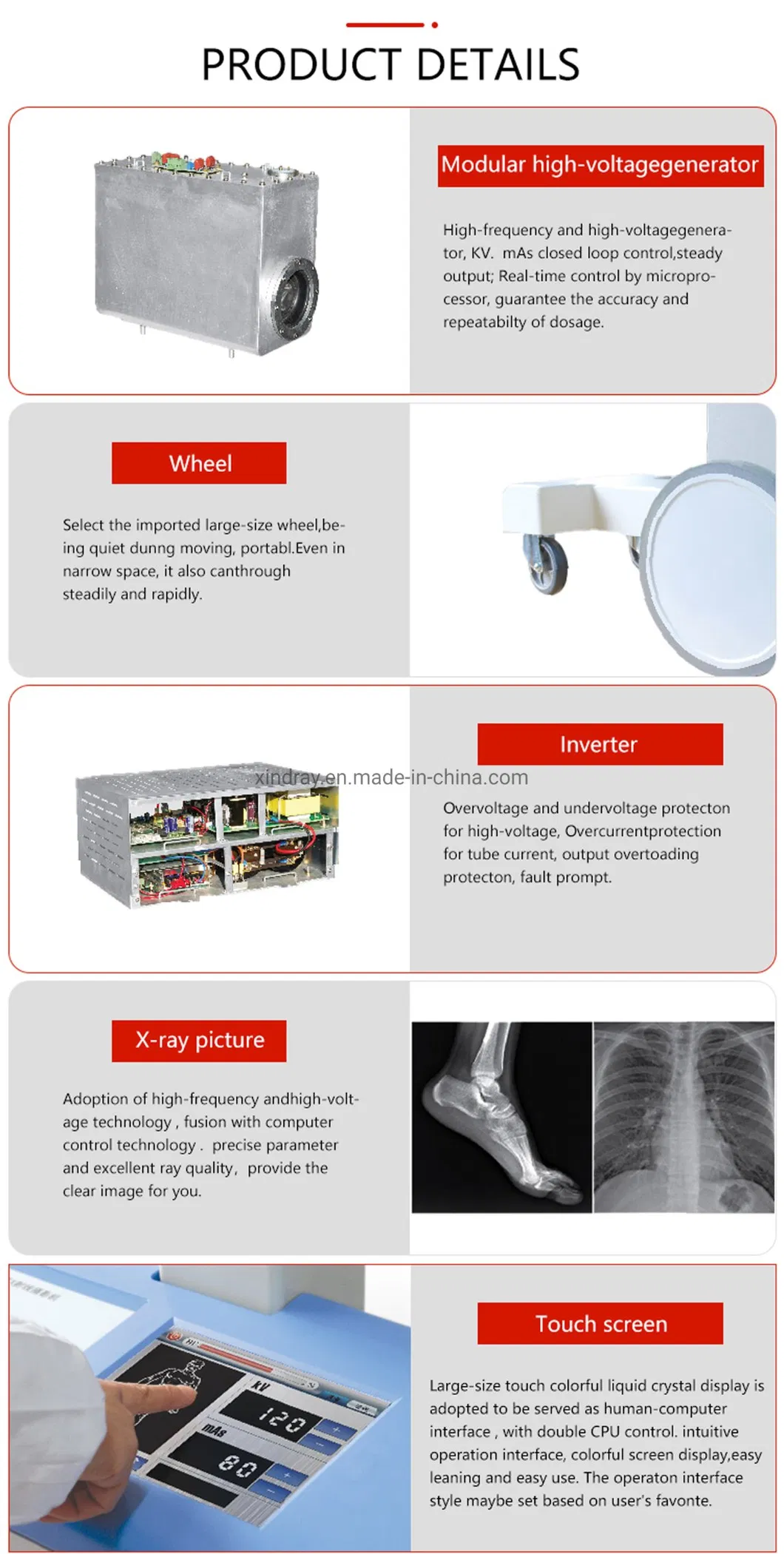

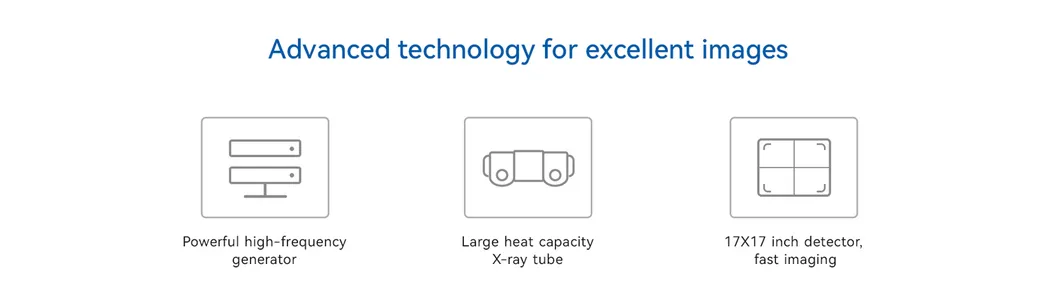

System Advantages

◎

Imaging Performance

⚓

Main Components

Frequently Asked Questions

How can I purchase these products?

You can place an order directly through our online platform or contact our sales team for assistance. We will confirm order details, product configurations, and shipping matters to guide you through the entire process.

What payment methods are accepted?

We accept various payment modes including T/T Bank Transfer, Trade Assurance Service, Western Union, Money Gram, L/C, and Cash.

What is the delivery time and shipping method?

Delivery time depends on the specific product and quantity; generally, the lead time is within 1 week. We ship worldwide via express, air freight, or sea freight, and can provide door-to-door service in many countries.

What is your after-sales service policy?

We provide at least a one-year warranty on all products (excluding consumables). Our engineers provide lifetime technical support and free repairs or part changes during the warranty period.

How is the transaction secured?

We are a professional medical company with required government certifications. All transactions are 100% guaranteed, and we are committed to providing high-quality medical products and safe payment methods.

Does it support wireless operation?

Yes, the device supports both hand-switch and remote control exposure, and includes wireless network data transmission (WIFI) for efficient workflow.
