Medical Equipment Hospital Top-Grade Jinling 850 Standard Anesthesia Machine for Children

1 / 5

Medical Equipment Hospital Top-Grade Jinling 850 Standard Anesthesia Machine for Children

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info

Model NO.JINLING 850

CertificationISO13485

GroupAdult and Children

LCD Display8.4 Inch TFT Display

Tidal Volume20~1500ml

Respiratory Rate1~100bpm

Ventilation ModeIPPV, SIPPV, VCV, IMV, SIMV, Manual, Standby

Back up PowerAt least 4 Hours

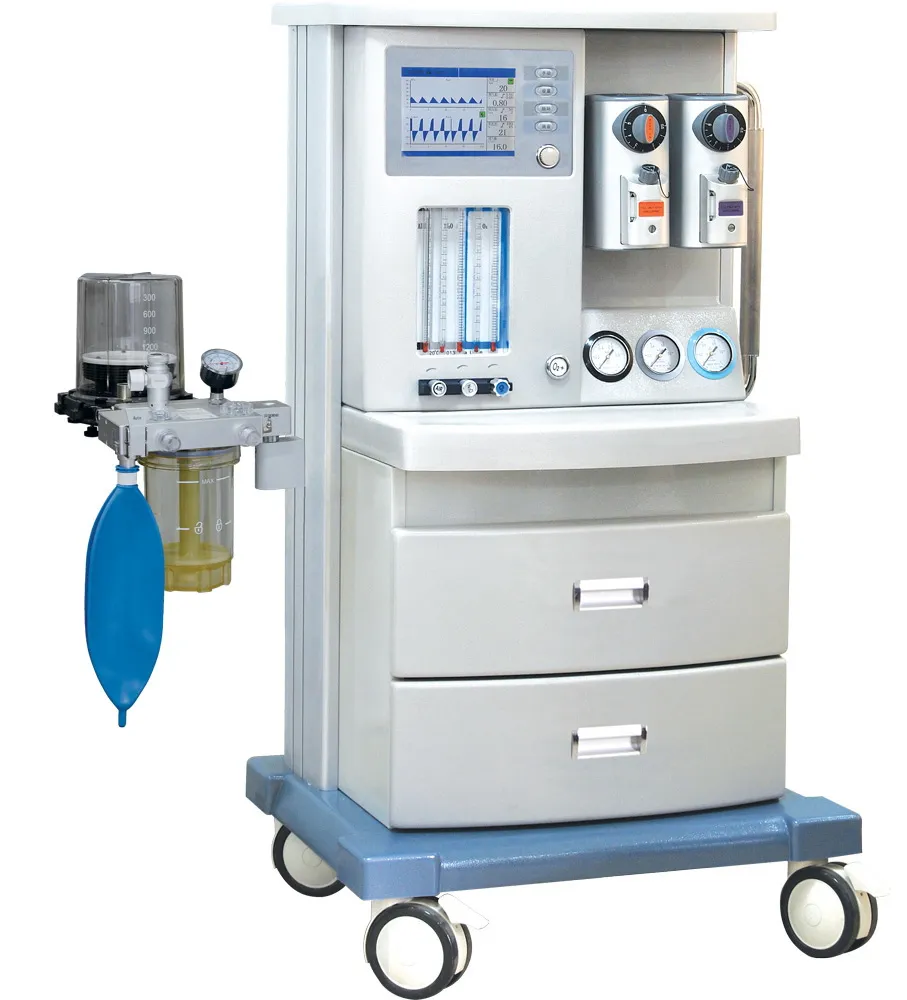

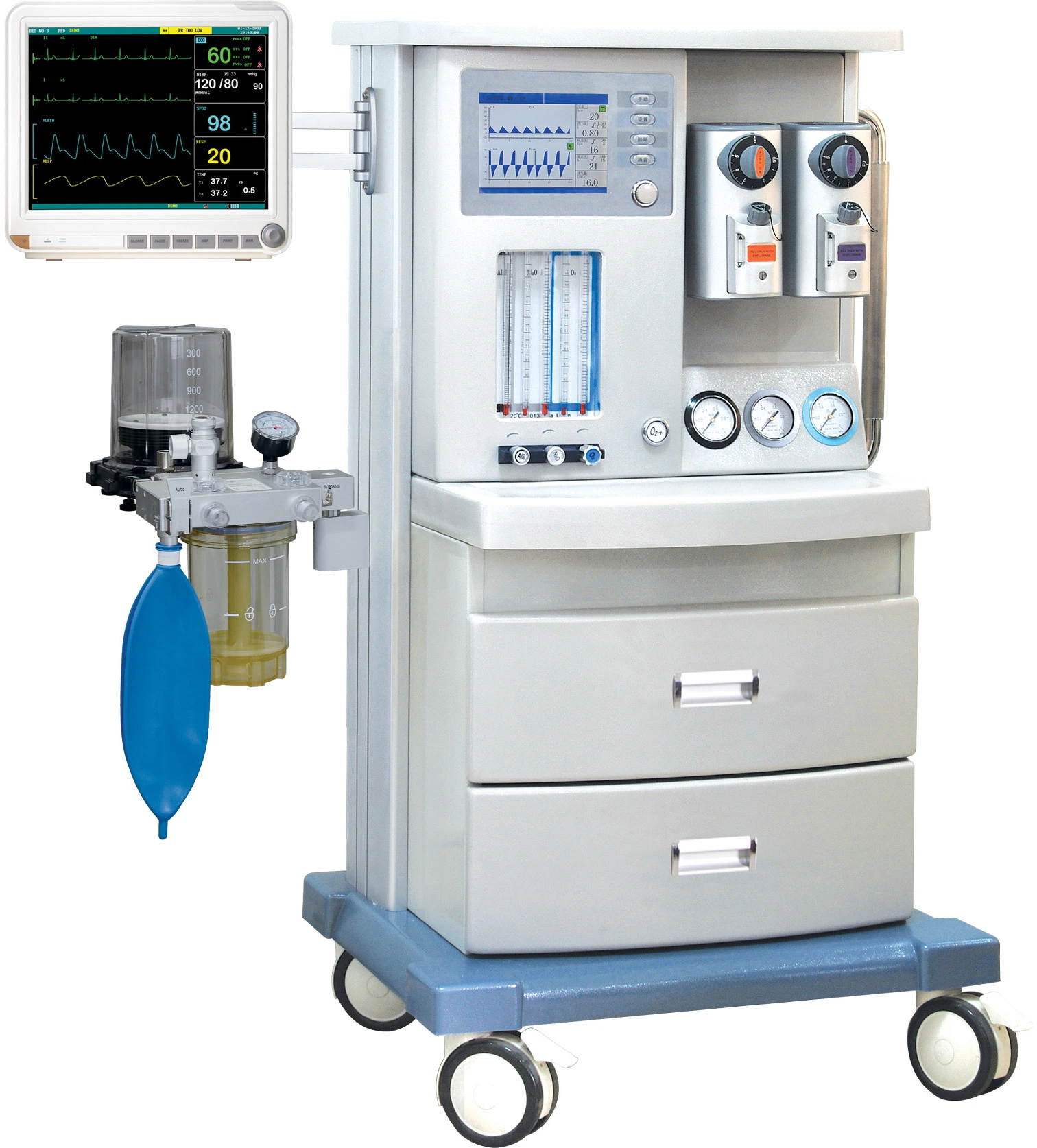

Medical Equipment Jinling 850 Anesthesia Machine

Common Features

✓

Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect.

✓

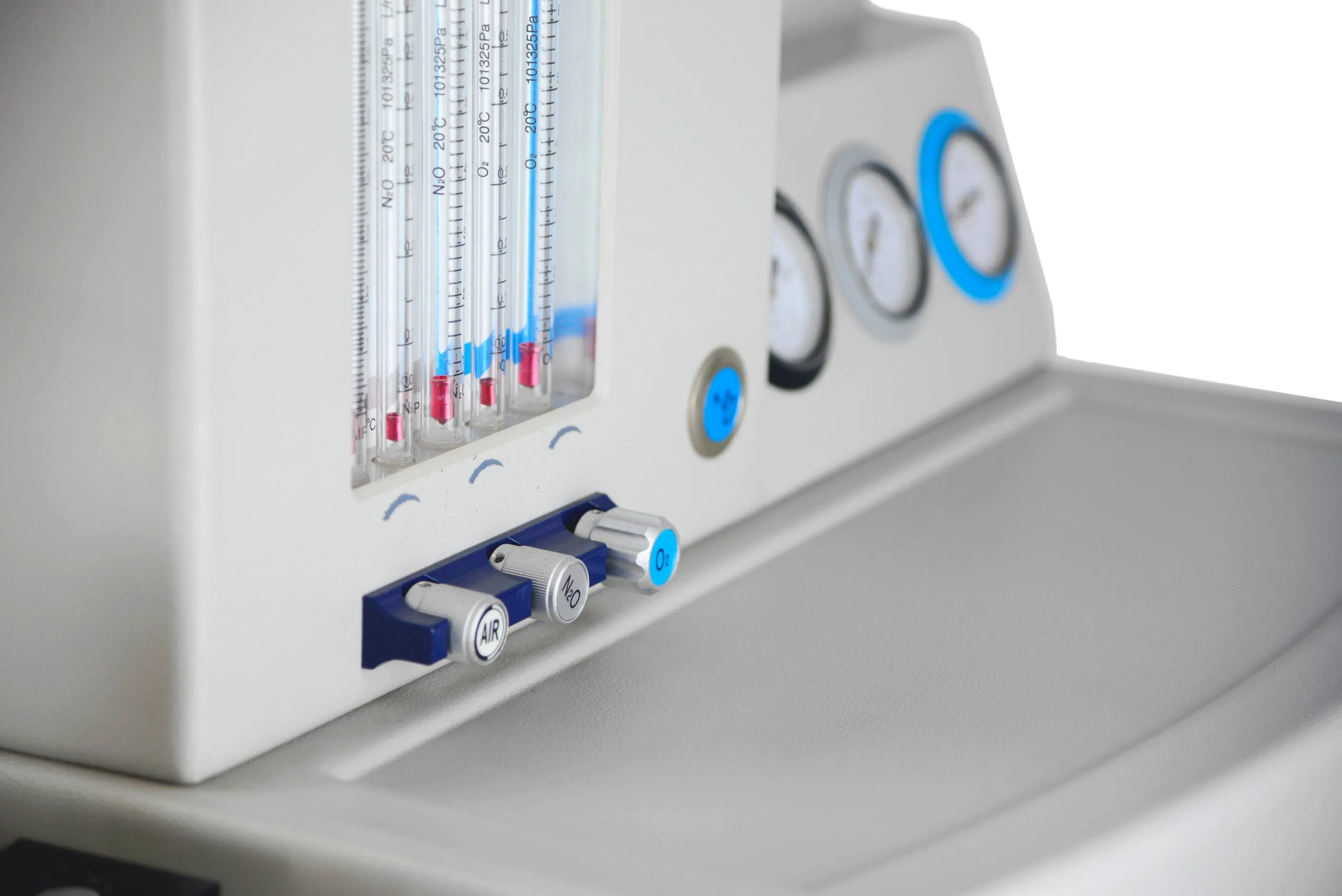

High precision five tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%.

✓

Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup.

✓

Advanced and stable Adjustable Pressure Limiting (APL) valve, suitable for low and ultra low flow anesthesia.

✓

Equipped with advanced international rotating Na-lime tank, easy-operate, requires only one hand, temperature resistant to 134°C.

Technical Specifications

Model	850 (Standard Model)
Display	8.4 inch TFT display
Flowmeter Range	O2: 0.1-10L/min; N2O: 0.1-10L/min; Air: 0.1-10L/min
Ventilation Mode	IPPV, SIPPV, VCV, IMV, SIMV, MANUAL, Standby
Tidal Volume	Adjustable range: 10-1500ml (Display: 0-2000ml)
I:E Ratio	8:1 - 1:10 (Capable of inverse ratio ventilation)
PEEP Range	0-20cmH2O (Electronically controlled)

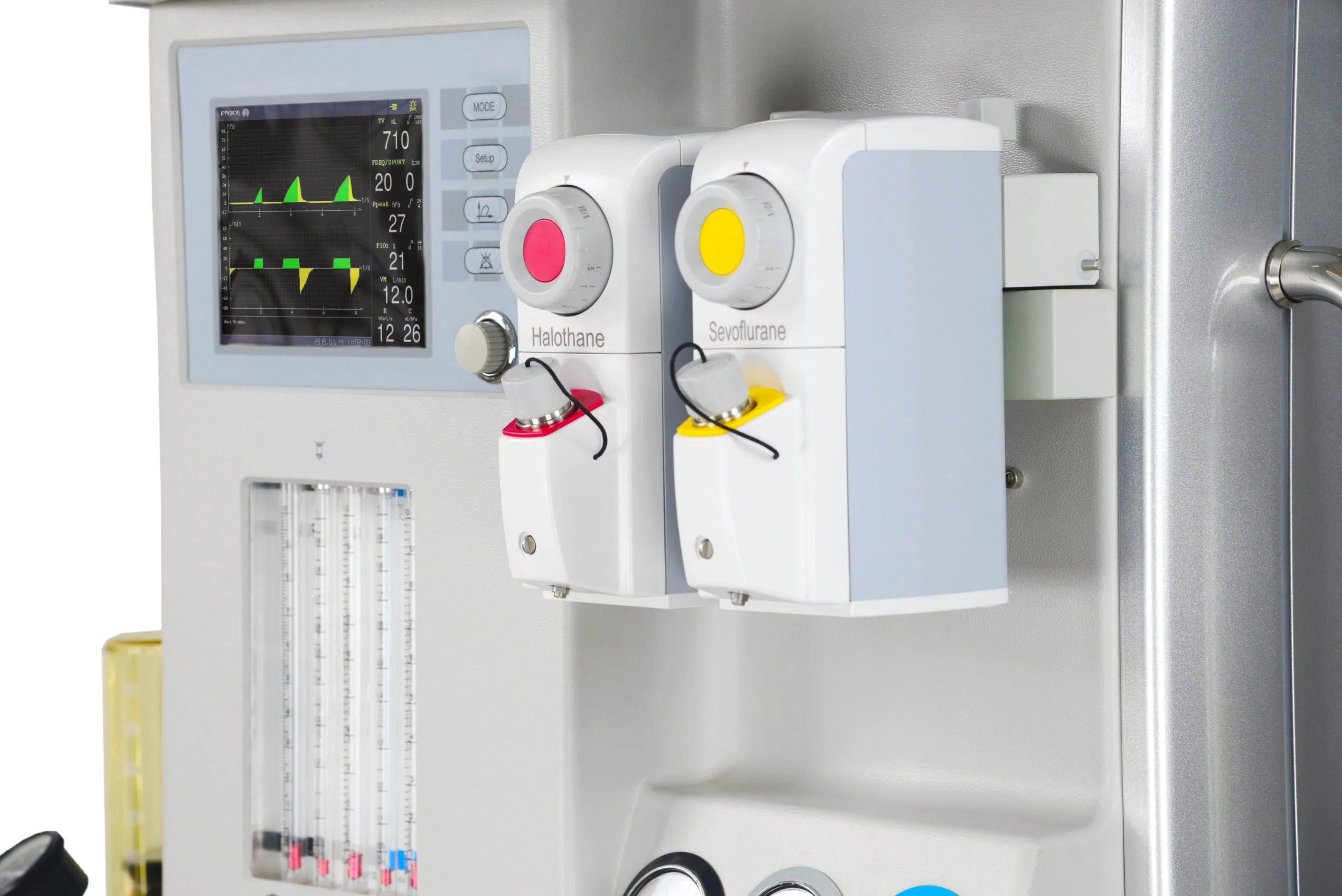

Vaporizer Slots	Double PA-I type slots (0-5% concentration)

Frequently Asked Questions

Q: What patient groups can the Jinling 850 support? A: The Jinling 850 is designed for both adult and pediatric patients, featuring a wide tidal volume range starting from 10ml.

Q: How long does the internal battery last? A: The unit is equipped with a backup power supply that provides at least 4 hours of operation in case of power failure.

Q: What ventilation modes are available on this machine? A: It supports multiple modes including IPPV, SIPPV, VCV, IMV, SIMV, Manual, and Standby to suit various clinical needs.

Q: Is the respiratory circuit easy to maintain? A: Yes, it features an integrated metallic modular respiratory circuit that is easy to clean and supports high-temperature disinfection.

Q: Does the machine ensure safety in oxygen delivery? A: Absolutely. The high-precision five-tube flowmeter includes an interlocking oxygen-nitrous oxide supply system to ensure oxygen levels never drop below 21%.

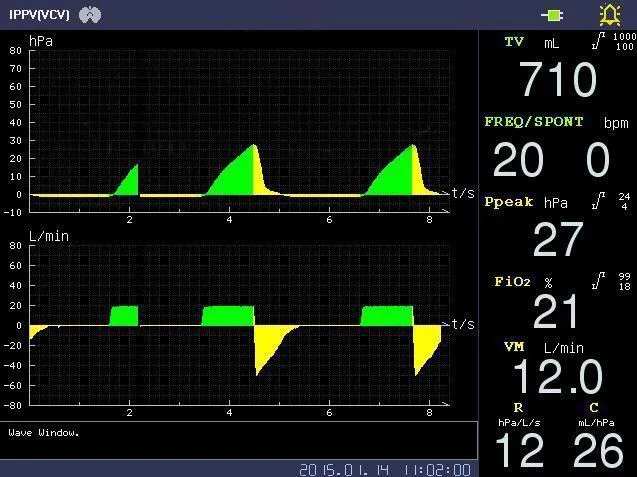

Q: What are the display specifications? A: It comes with a clear 8.4-inch TFT color display for easy monitoring of parameters and ventilation waveforms.

Medical Equipment Hospital Top-Grade Jinling 850 Standard Anesthesia Machine for Children

Product Description

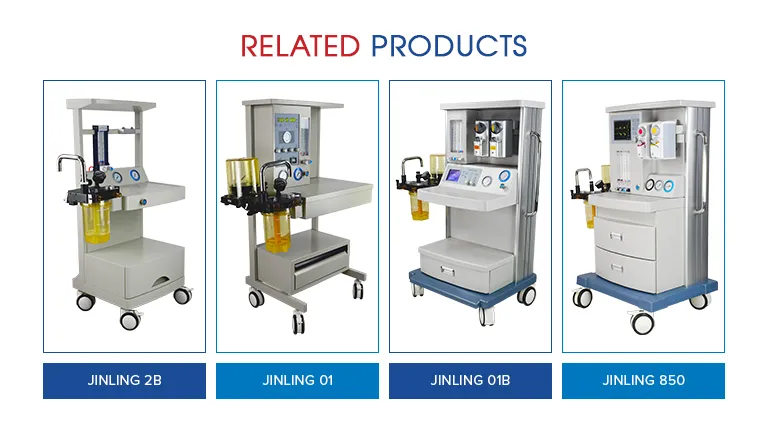

Related Products
